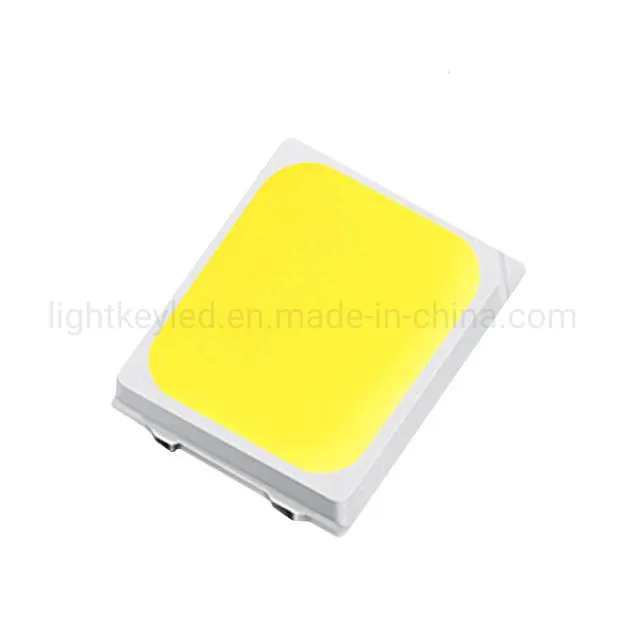

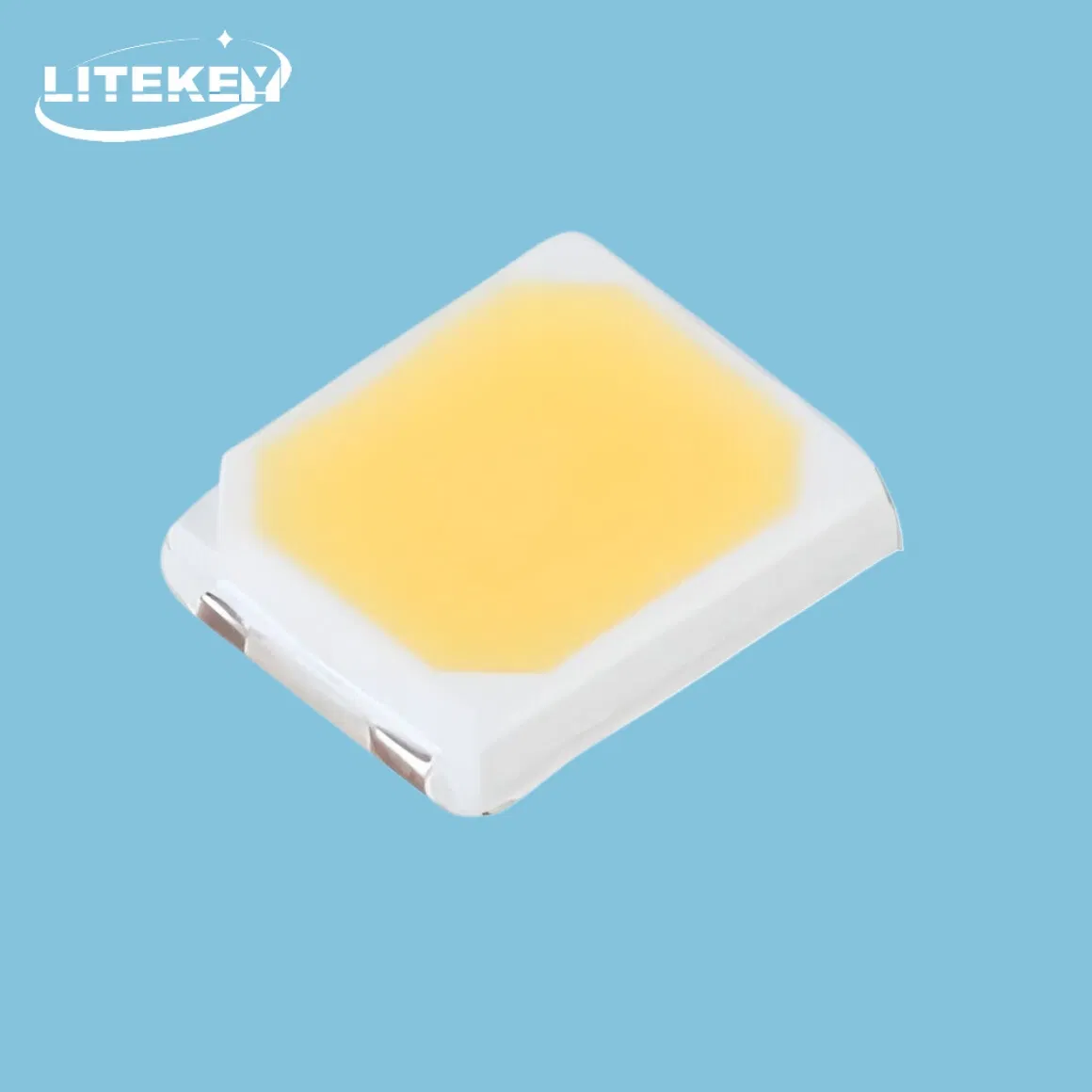

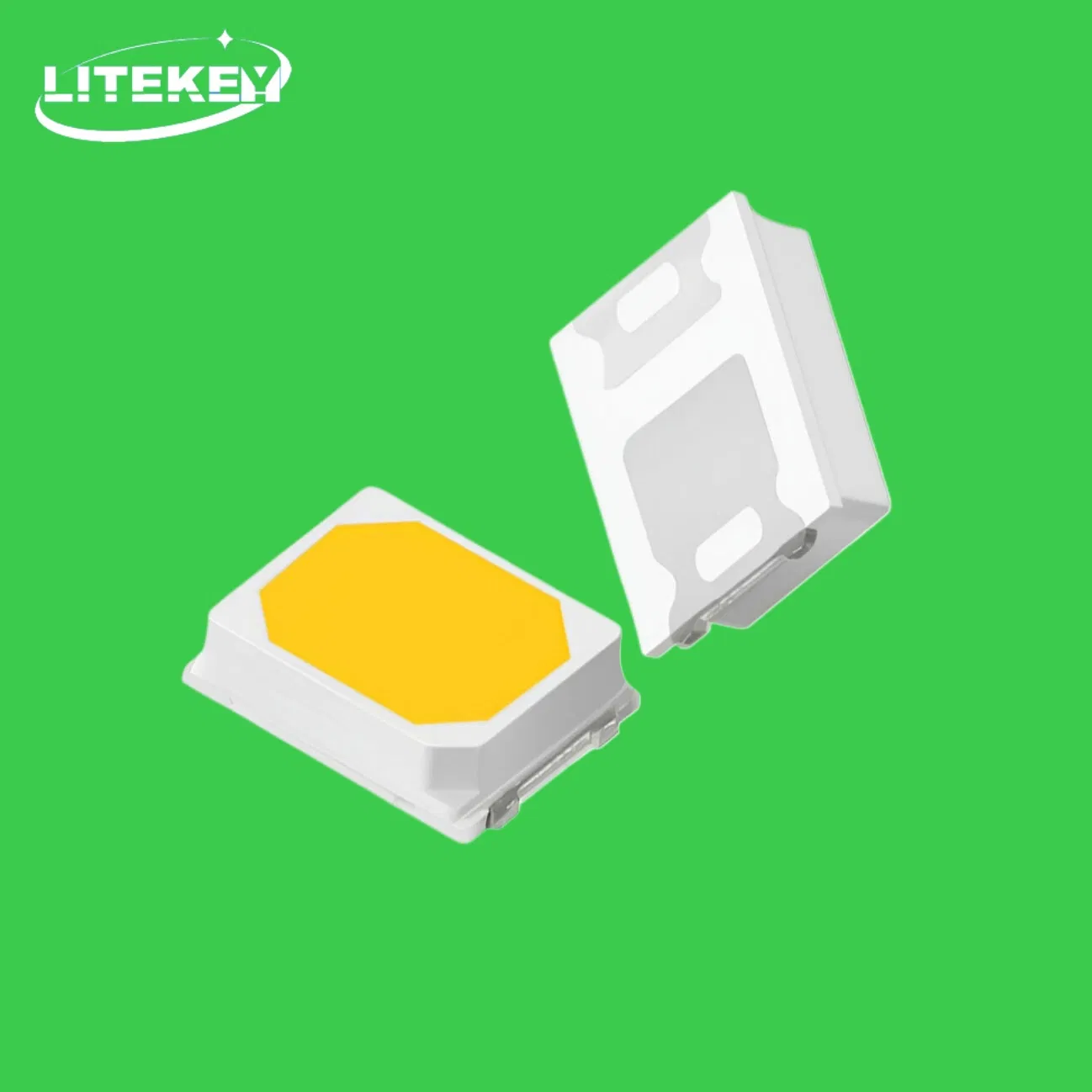

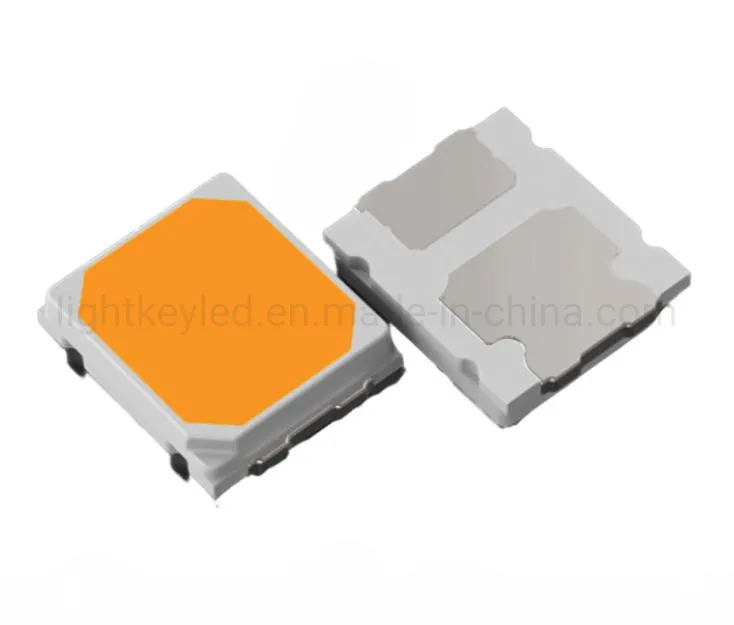

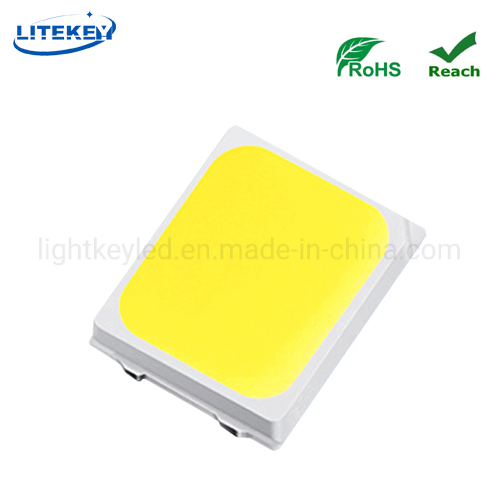

Custom 0.5W 2500-5000K SMD LED 2835 with CRI 95, 3V, 40-60LM
| P/N. | Power | Color | Voltage (V) | Current (mA) | CCT (K) | Flux (lm) | CRI (min) |
|---|---|---|---|---|---|---|---|
| LLS2835WW-0.2W | 0.2W | Warm white | 2.8-3.2V | 60mA | 2500-5000K | 18-30lm | 95 |
| LLS2835PW-0.2W | 0.2W | Pure White | 2.8-3.4V | 60mA | 5000-8000K | 20-30lm | 95 |
| LLS2835NW-0.5W | 0.5W | Warm white | 3.0-3.4V | 150mA | 2000-5000K | 40-60lm | 95 |
| LLS2835PW-0.5W | 0.5W | Pure White | 3.0-3.4V | 150mA | 5000-8000K | 40-60lm | 95 |
| LLS2835NW-1W | 1W | Warm white | 3.0-3.4V | 300mA | 2000-5000K | 90-120lm | 95 |
| LLS2835PW-1W | 1W | Pure White | 3.0-3.4V | 300mA | 5000-8000K | 90-120lm | 95 |
Custom designs are available according to your specific demand. Sample orders are welcome.
1. What is the CRI of this 2835 SMD LED?
This specific model features a high Color Rendering Index (CRI) of 95, making it ideal for applications requiring accurate color representation.
2. What materials are used in the construction of the LED?
We use high-quality raw materials including 99.99% pure gold wire, a copper frame for superior thermal conductivity, and Epistar chips.
3. Is this product RoHS compliant?

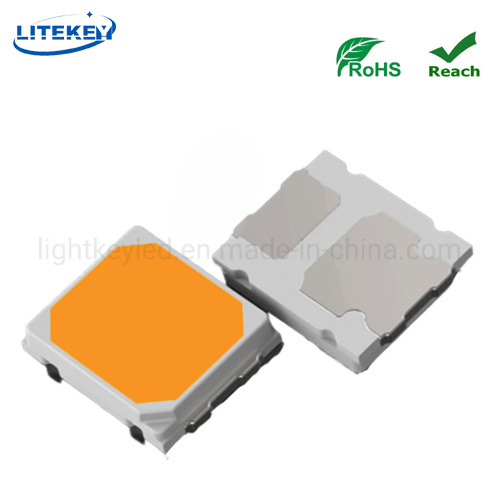

Yes, all our SMD LED products are PB-free and fully compliant with EU RoHS and Reach certifications.
4. What is the expected lifespan of the LED?
The LED is designed for high reliability with a lifespan of up to 50,000 hours under standard operating conditions.
5. Can I request a customized CCT or power rating?
Yes, we provide customized design services to meet your specific requirements for power, color temperature, and brightness.
6. What is the beam angle for this SMD LED?
The standard beam angle for the 2835 SMD LED series is 120°, providing wide and even light distribution.
