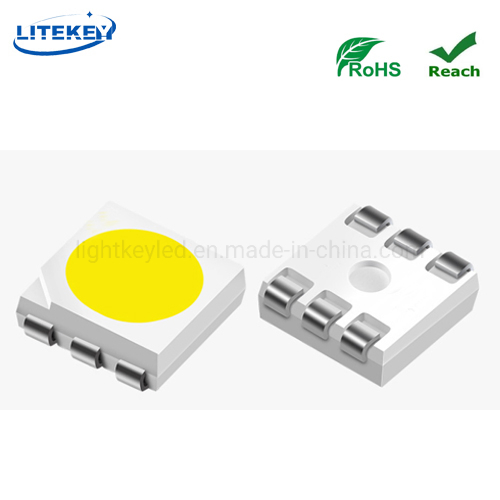

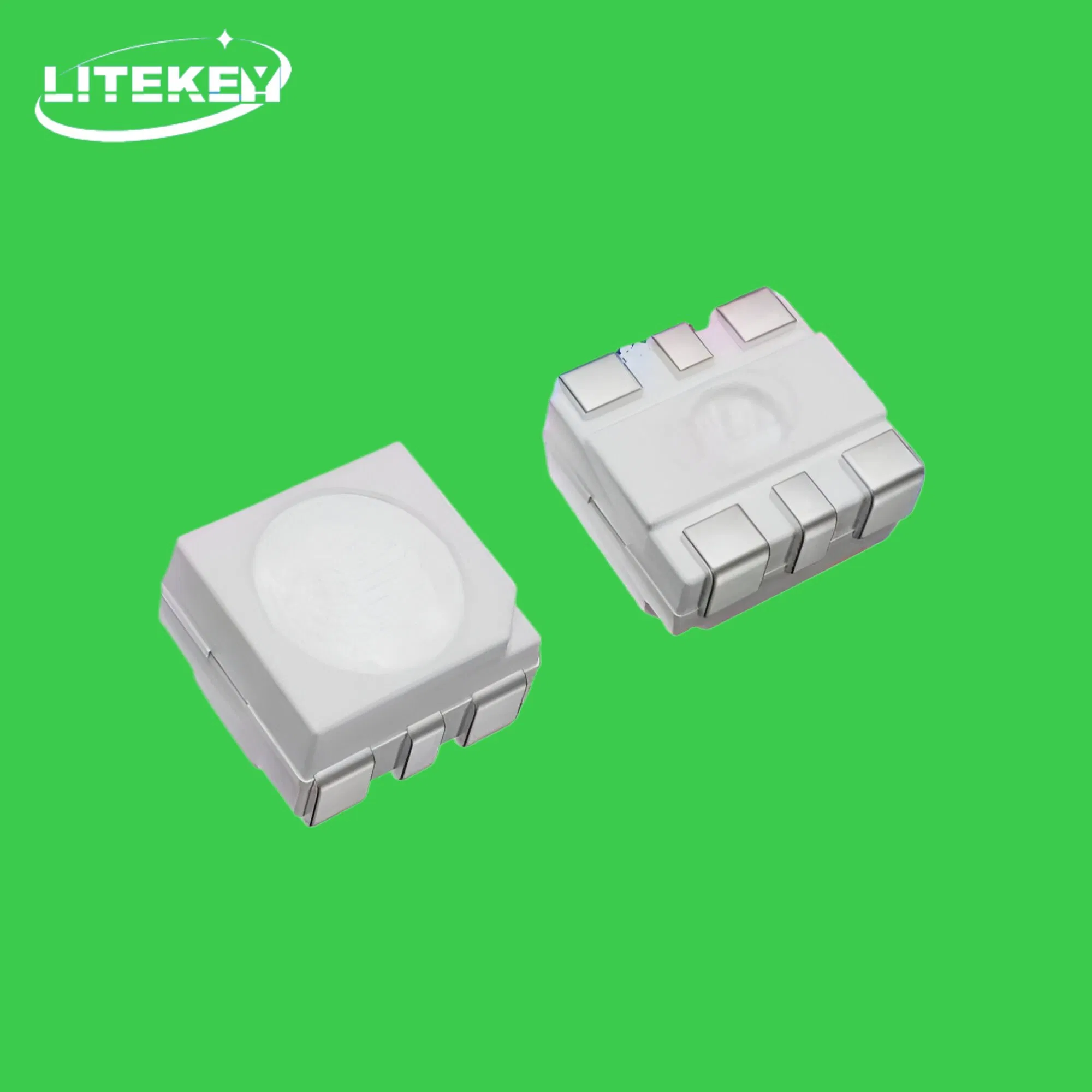

Custom High Power 3W 6V Cool White 10000K SMD LED 5050 with 6 Pins
Custom High Power 3W 6V Cool White 10000K SMD LED 5050 with 6 Pins
Custom High Power 3W 6V Cool White 10000K SMD LED 5050 with 6 Pins
1 / 3
Custom High Power 3W 6V Cool White 10000K SMD LED 5050 with 6 Pins
Custom High Power 3W 6V Cool White 10000K SMD LED 5050 with 6 Pins
Custom High Power 3W 6V Cool White 10000K SMD LED 5050 with 6 Pins

Custom High Power 3W 6V Cool White 10000K SMD LED 5050 with 6 Pins

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
LLS5050PLC6CW-3W
Beam Angle
120°
Emitting Color
Cool White
Base Material
Copper
LED Chips
Epistar
Power
3W
Life
50000h
Certification
RoHS, Reach
Specification
5.0mmX5.0mmX1.3mm
Production Capacity
500,000,000 PCS/Year
💡 Product Description
RoHS compliant High Power 3W 6V Cool White SMD LED 5050 with 6 Pins
  • High reliability and stability
  • Low operating voltage & Low power consumption
  • Long functional life (up to 50,000+ hours)
  • PB Free products (Compliant with EU's RoHS)
  • Versatile RGB capabilities
⚙️ Technical Parameters

Absolute Maximum Ratings (Ta=25ºC)

Item Symbol Maximum Unit
Forward CurrentIF500mA
Reverse VoltageVR--V
Power DissipationPD3000mW
Peak Pulsing CurrentIFP800mA
Electrostatic Discharge (HBM)ESD2000V
Operating TemperatureTopr-25 to +80ºC
Junction TemperatureTj115ºC

Electrical/Optical Characteristics (Ta=25ºC)

Item Symbol Condition Min. Typ. Max Unit
Forward VoltageVFIF=500mA6.0--6.5V
Color TemperatureCCTIF=500mA--10000--K
Luminous FluxφIF=500mA300--350LM
Viewing Angle2θ1/2IF=500mA-120-deg
Color Rendering IndexCRIIF=500mA--70--Ra
🖼️ Detailed Photos

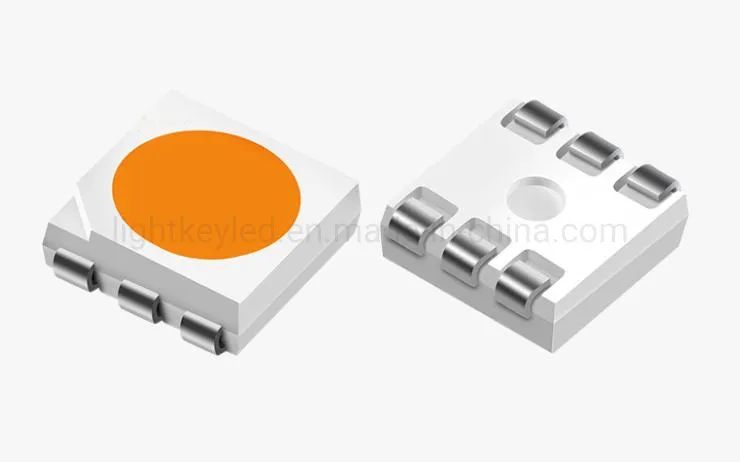

SMD LED 5050 Detail

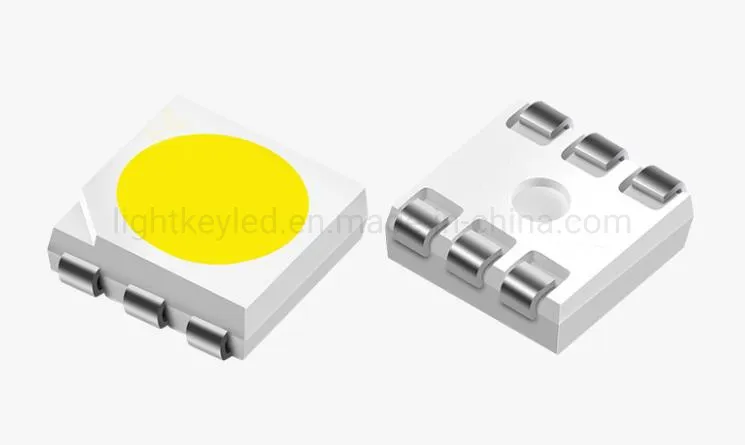

SMD LED 5050 View
📐 Package Dimensions

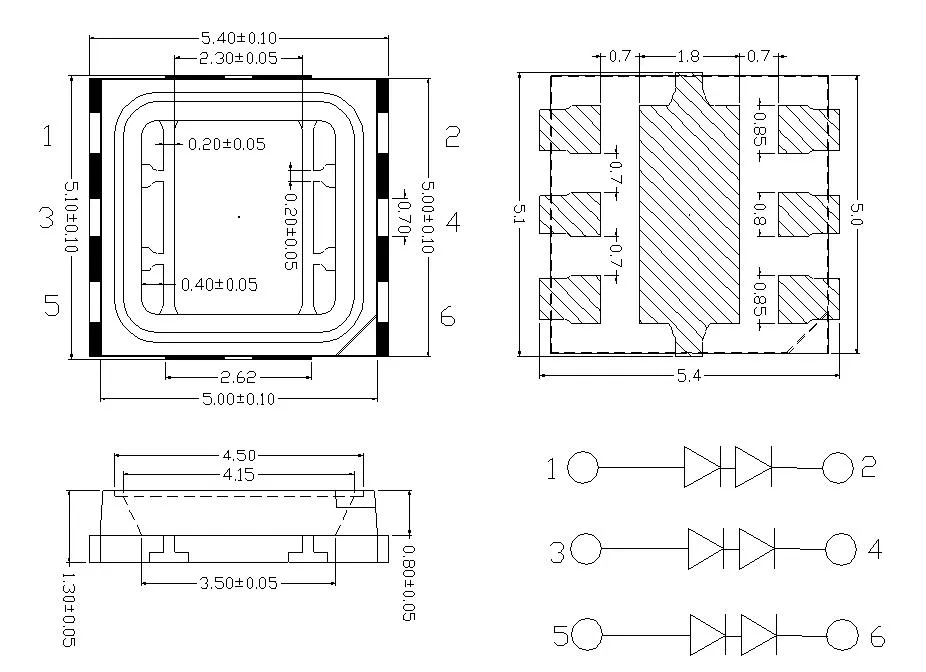

LED Dimensions

Customized designs according to your demand are available. Sample orders are welcome.

🚀 Application Areas
Indoor Illumination: High-efficiency lighting for residential and commercial spaces.
Automotive Lighting: Reliable performance for vehicle interior and exterior signals.
Back Lighting: Uniform light distribution for LCD screens and signage.
General Use: Versatile enough for DIY projects and industrial indicators.
📦 Packaging & Shipping

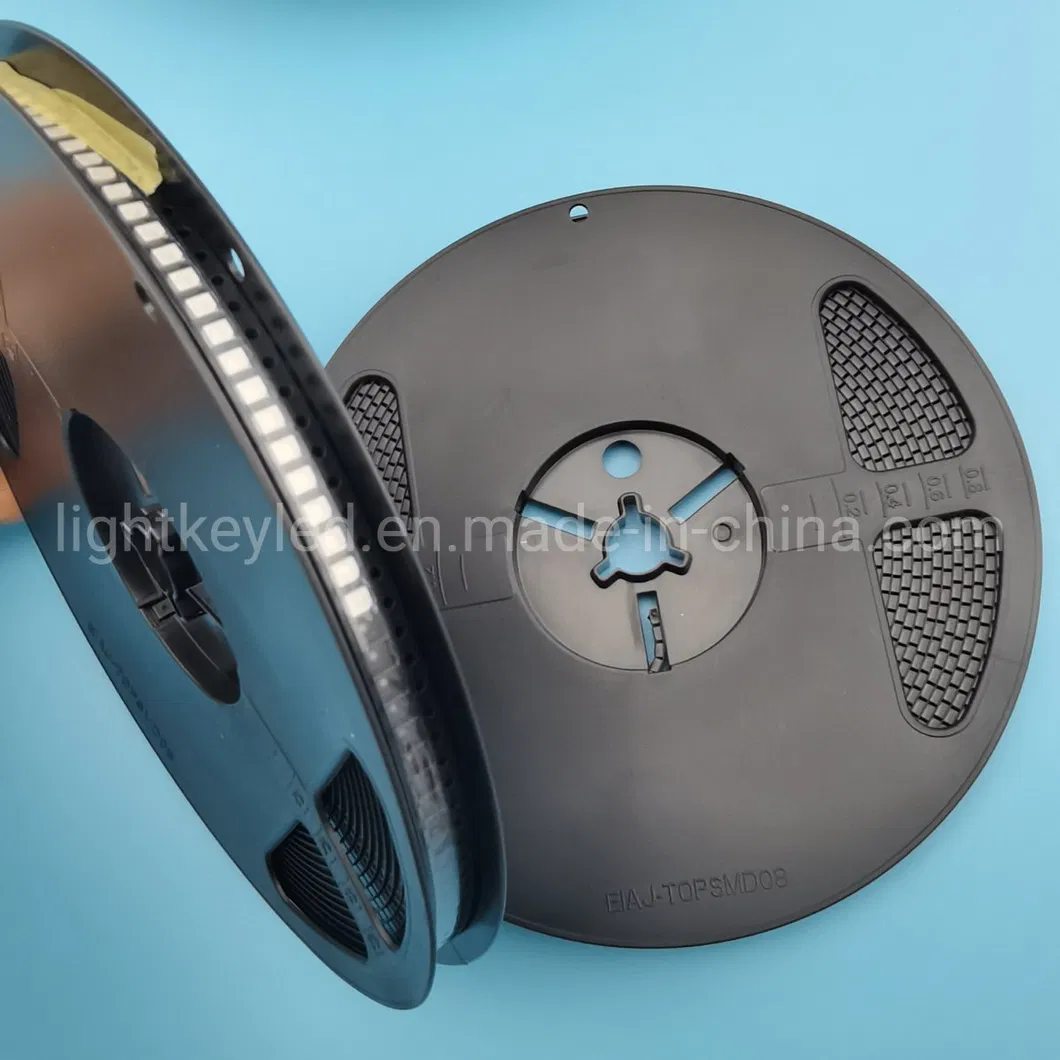

Packaging Step 1

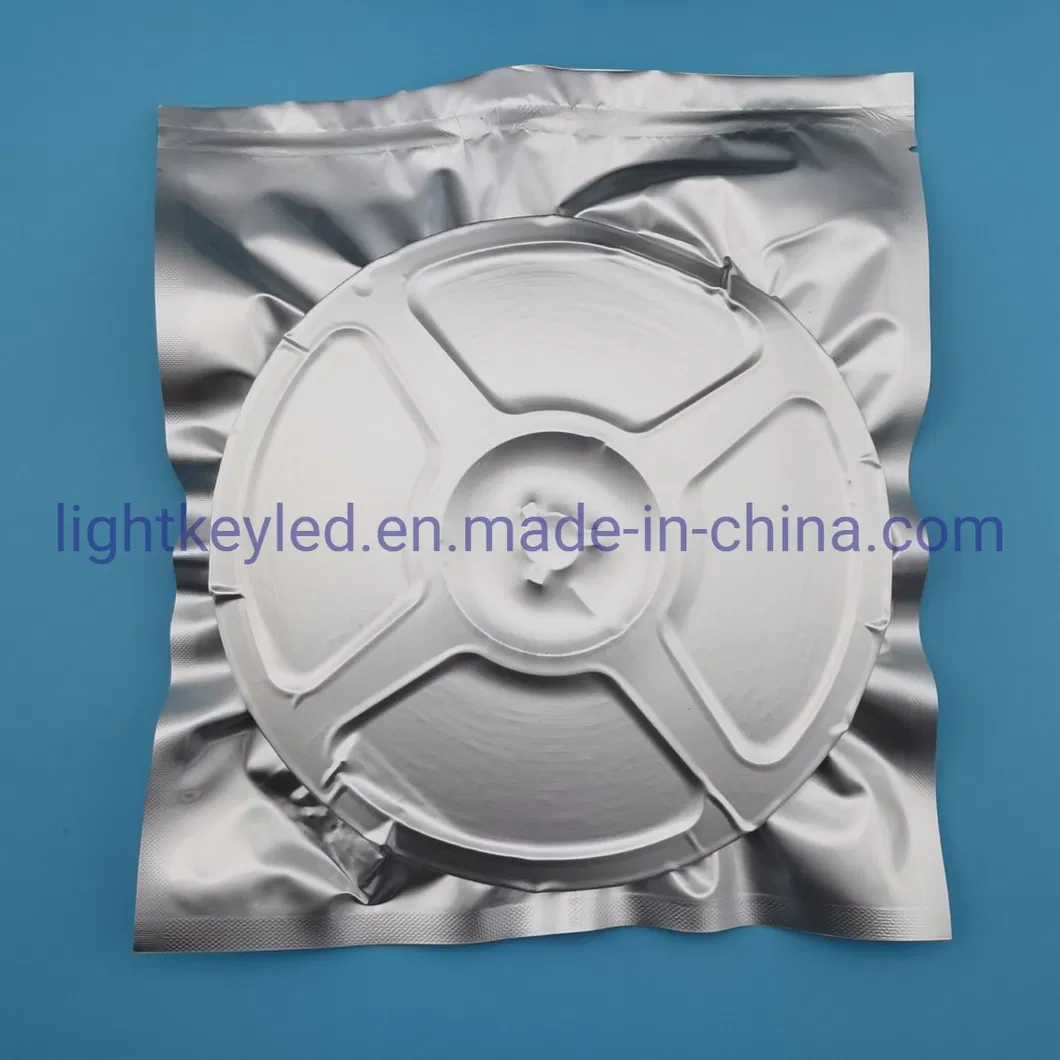

Packaging Step 2
Packaging Step 3
🏭 Professional Manufacturing
Why Choose Our SMD LED Diodes?

Premium Raw Materials for High Efficiency:

  • Famous Brand & Big Size chips (Epistar)
  • Pure (99.99%) Gold Wire for superior conductivity
  • Copper Frame for excellent heat dissipation
  • Advanced Optical-Grade Epoxy

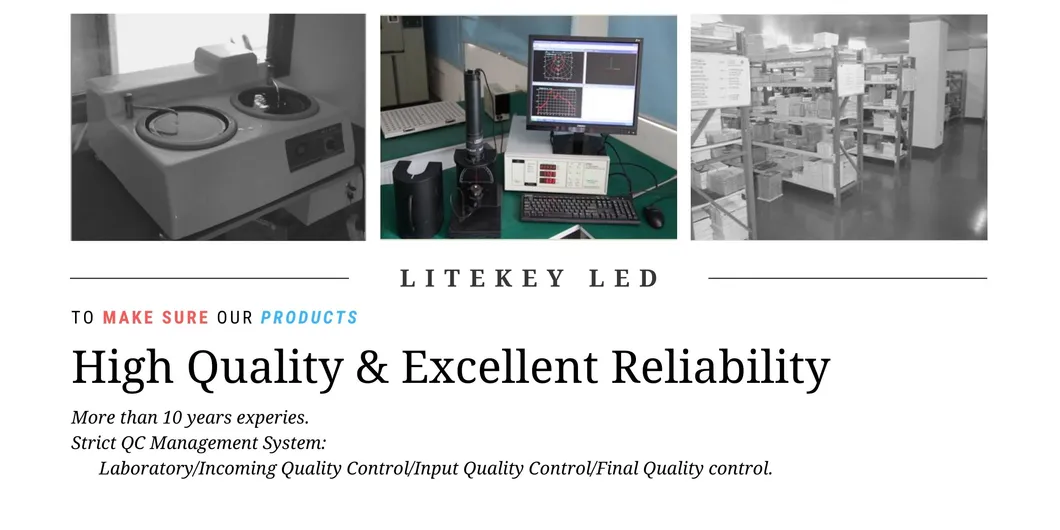

QC System

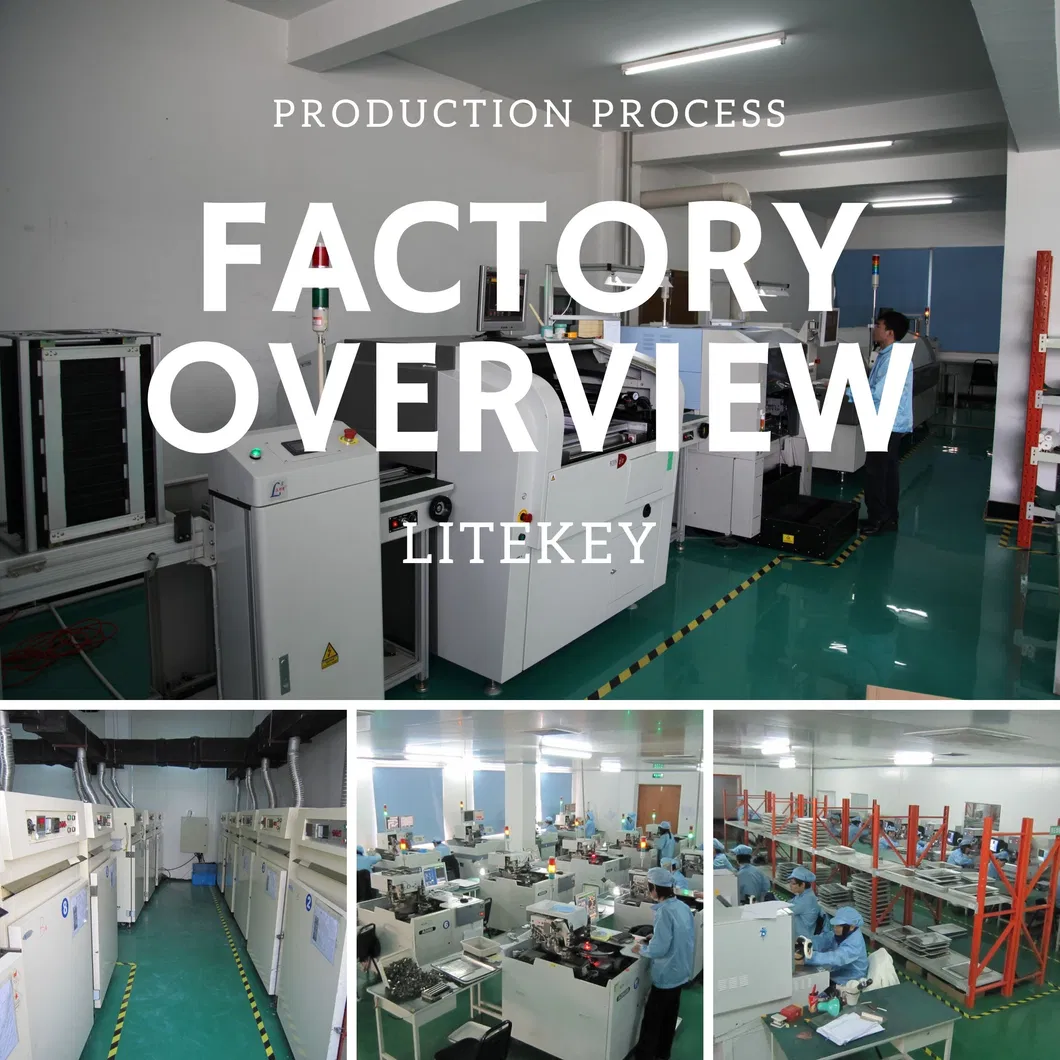

Factory Overview

Our Advantages:

  • Over 14 years of LED component production experience.
  • 100% testing for each piece with automatic testing machines.
  • Stable delivery time and competitive pricing.
  • Professional service and customized design support.
❓ Frequently Asked Questions
What is the lifespan of the 5050 SMD LED?
The LED is designed for high reliability and can be used for more than 50,000 to 80,000 hours, depending on operating conditions.
Are these LEDs RoHS compliant?
Yes, all our products are PB-free and fully compliant with EU's RoHS and Reach certifications, ensuring they are safe and environmentally friendly.
What kind of raw materials are used?
We use premium materials including 99.99% pure gold wire, high-quality copper frames, and big-size chips from famous brands like Epistar.
Can I request a customized design?
Absolutely. We provide customized product design according to your specific requirements and have various ready moldings available.
Do you offer samples for testing?
Yes, sample orders are available for quality evaluation and testing before placing a bulk order.
What are the main applications for this product?
These LEDs are ideal for indoor illumination, automotive lighting, backlighting for displays, and general electronic indicators.
