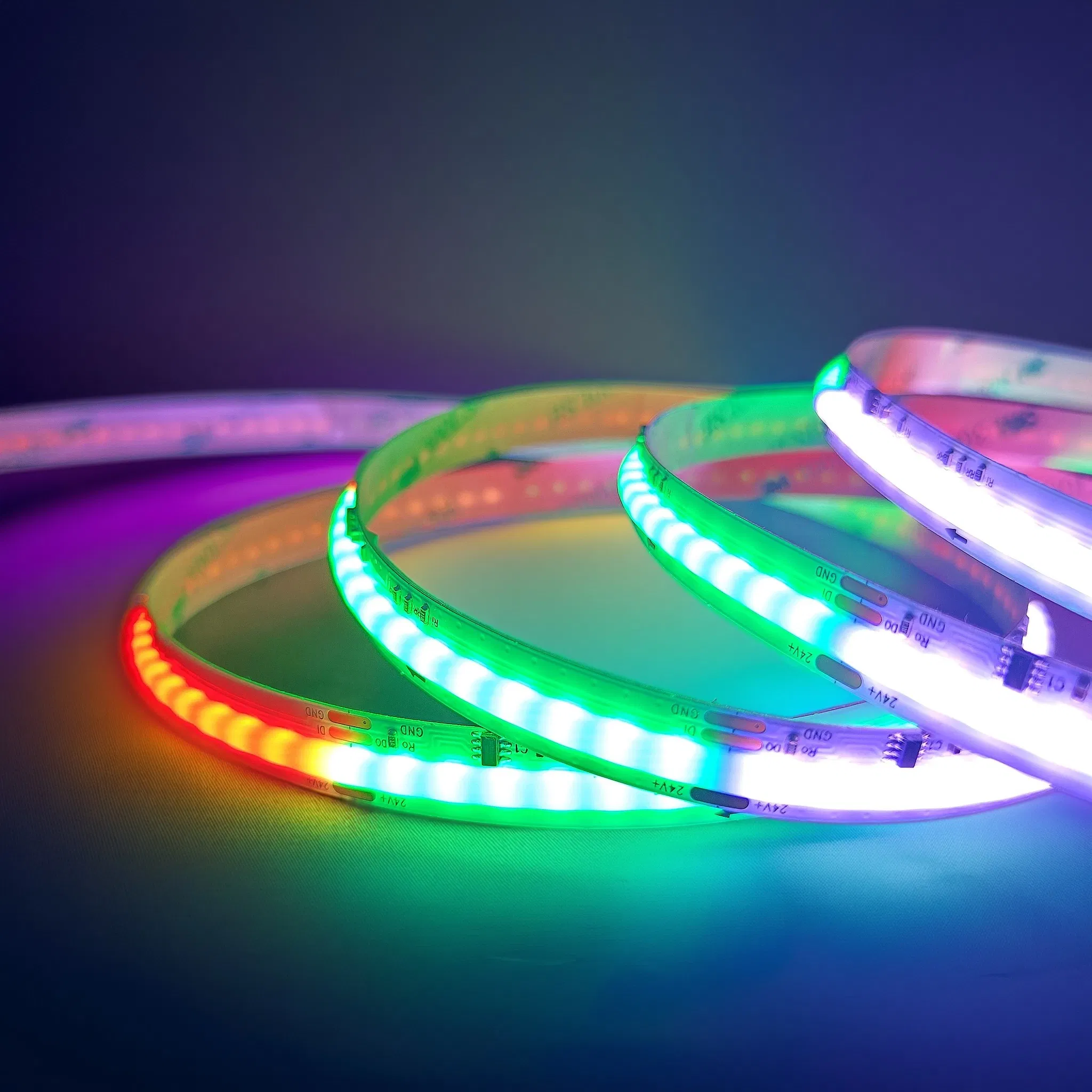

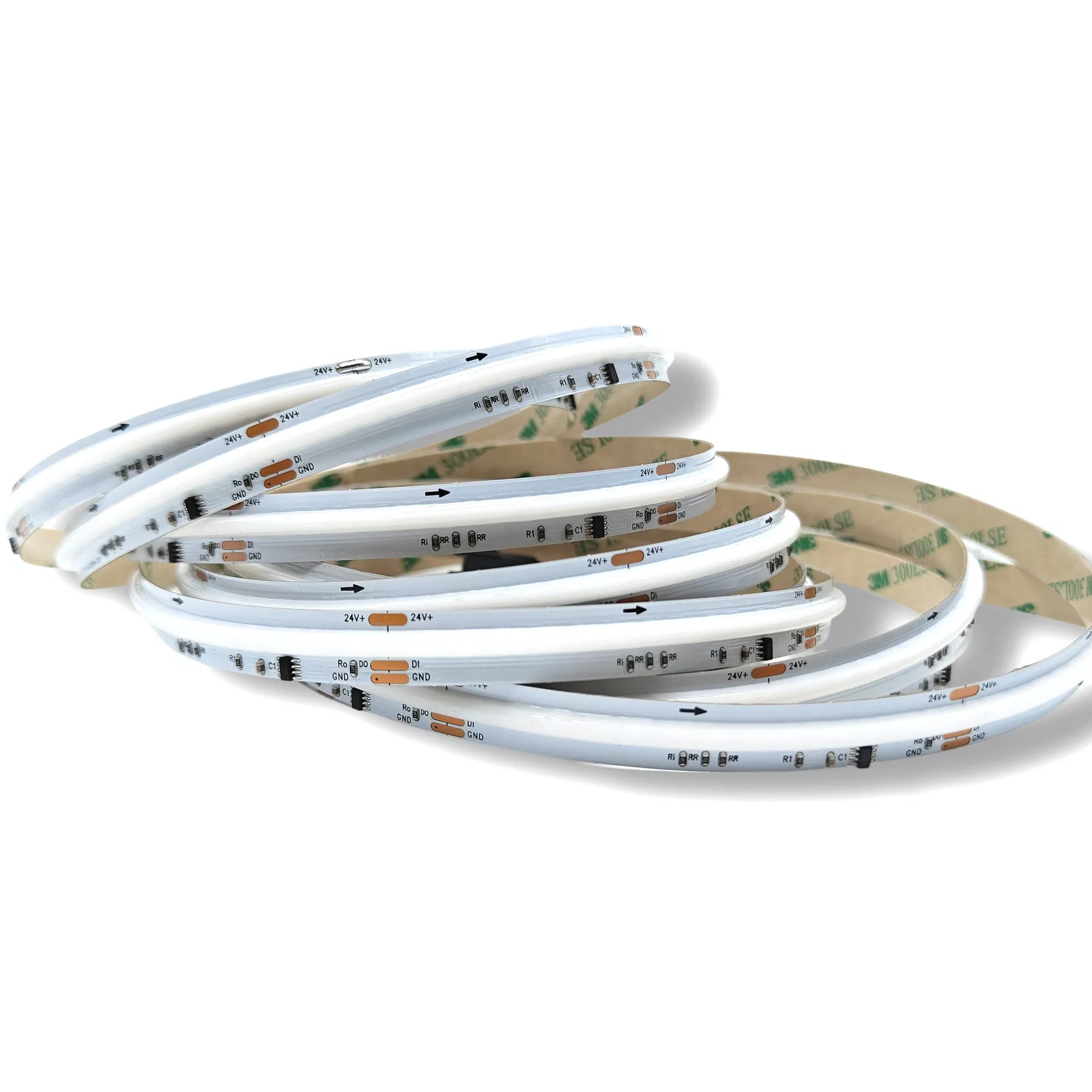

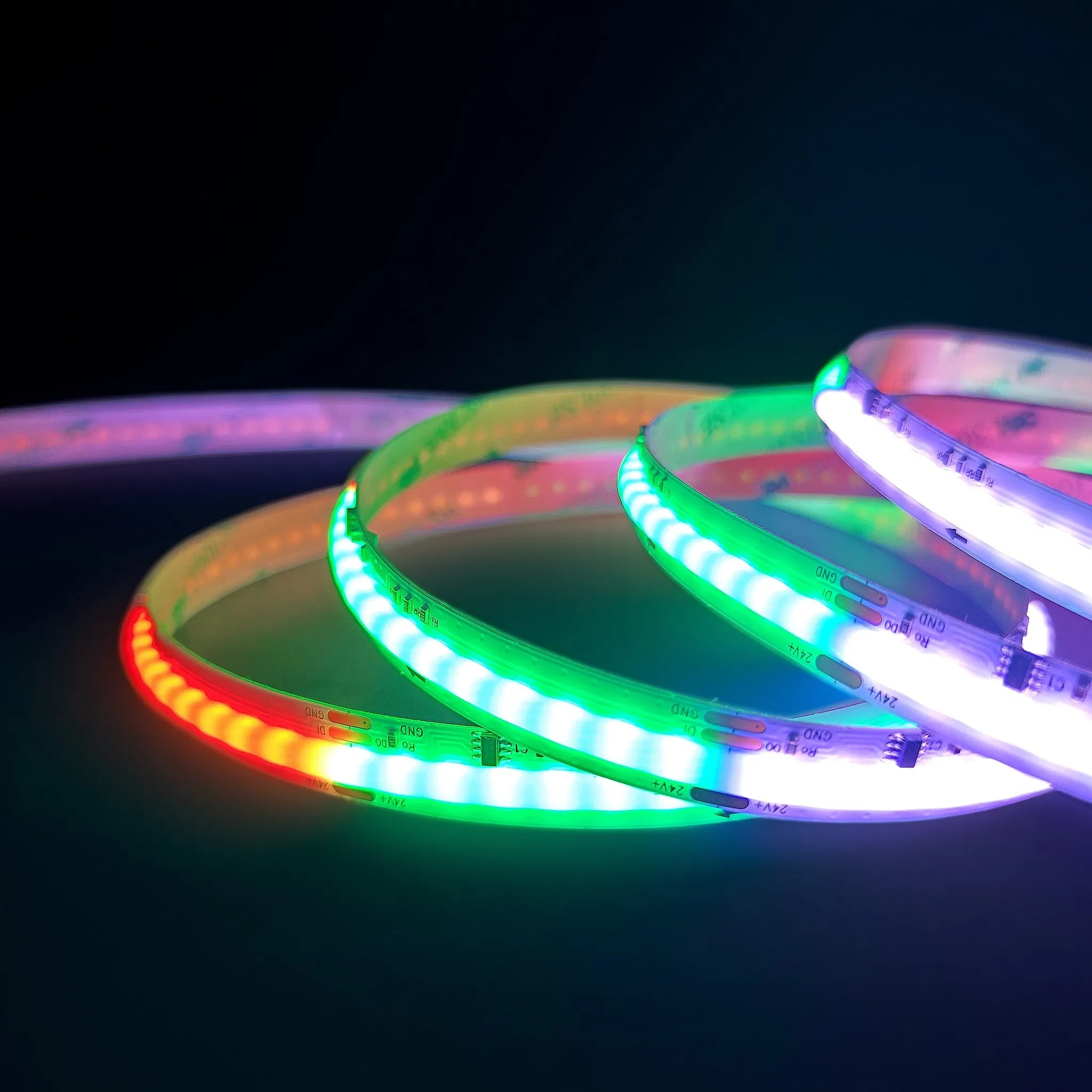

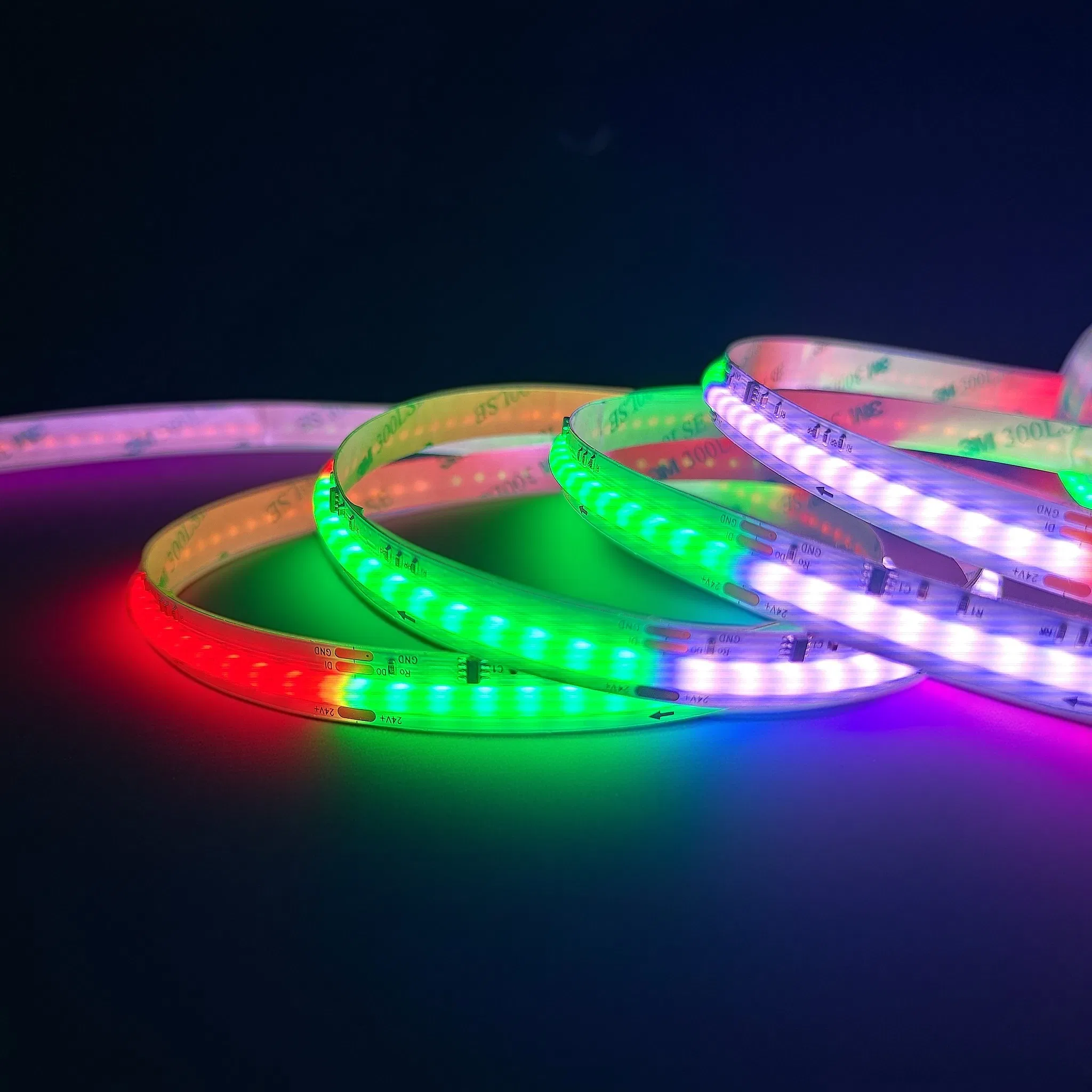

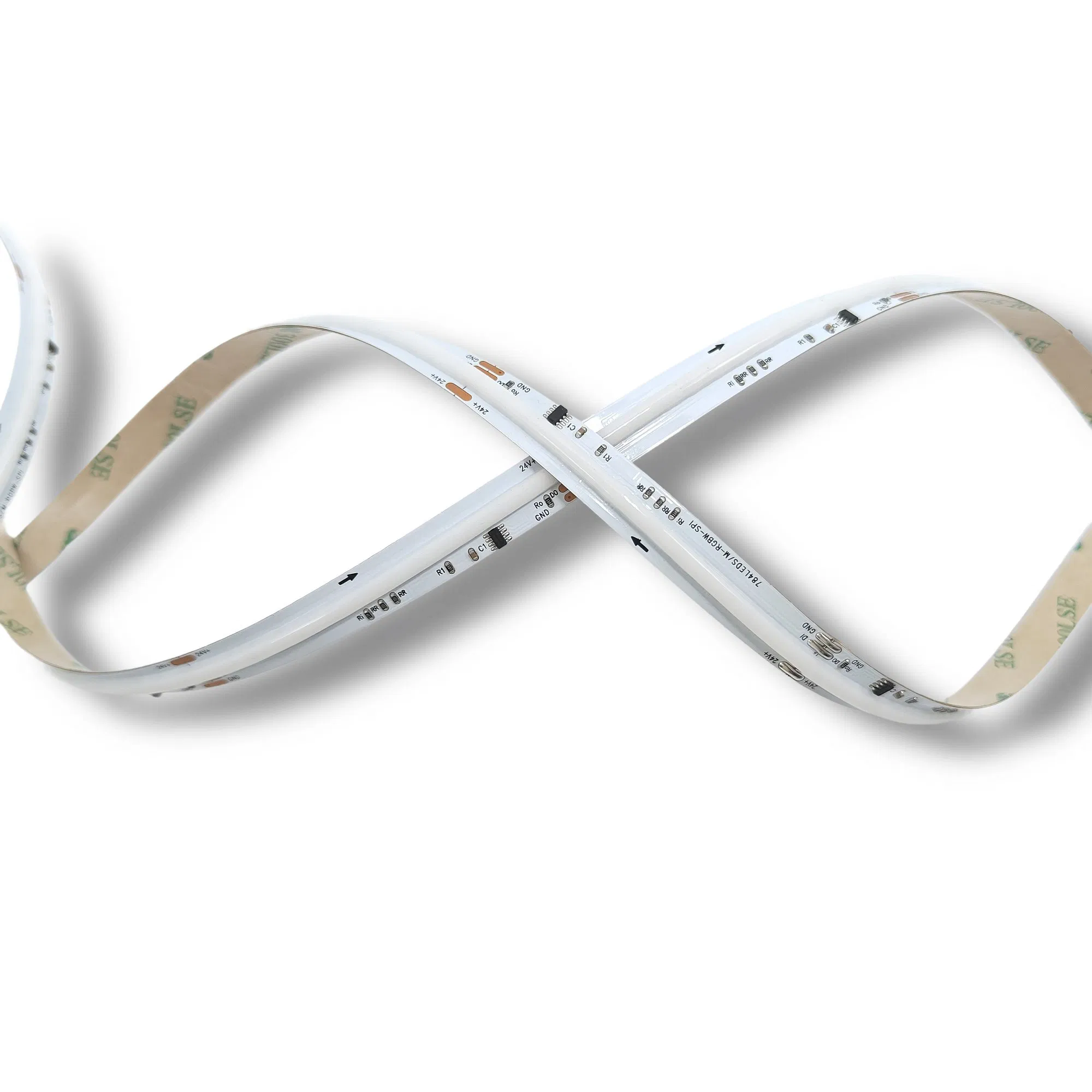

LED Light COB Spi RGBW IC Ws2814 784 LEDs DC24V Rgbic Flexible COB Digital LED Pixel Strip
LED Light COB Spi RGBW IC Ws2814 784 LEDs DC24V Rgbic Flexible COB Digital LED Pixel Strip
LED Light COB Spi RGBW IC Ws2814 784 LEDs DC24V Rgbic Flexible COB Digital LED Pixel Strip
LED Light COB Spi RGBW IC Ws2814 784 LEDs DC24V Rgbic Flexible COB Digital LED Pixel Strip
LED Light COB Spi RGBW IC Ws2814 784 LEDs DC24V Rgbic Flexible COB Digital LED Pixel Strip
1 / 5
LED Light COB Spi RGBW IC Ws2814 784 LEDs DC24V Rgbic Flexible COB Digital LED Pixel Strip
LED Light COB Spi RGBW IC Ws2814 784 LEDs DC24V Rgbic Flexible COB Digital LED Pixel Strip
LED Light COB Spi RGBW IC Ws2814 784 LEDs DC24V Rgbic Flexible COB Digital LED Pixel Strip
LED Light COB Spi RGBW IC Ws2814 784 LEDs DC24V Rgbic Flexible COB Digital LED Pixel Strip
LED Light COB Spi RGBW IC Ws2814 784 LEDs DC24V Rgbic Flexible COB Digital LED Pixel Strip

LED Light COB Spi RGBW IC Ws2814 784 LEDs DC24V Rgbic Flexible COB Digital LED Pixel Strip

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
KDY-COB784-PXRGBWW
Emitting Color
RGBW
Voltage
24V
IP Rating
IP20/IP67
Wattage
18W/M
CRI (Ra>)
90
LED Qty
784LEDs/M
Beam Angle
180 degree
Lifespan
50,000 Hours
Package Size
20.00cm * 20.00cm * 2.00cm

FCOB SPI RGBW IC LED Light

This addressable 784LEDs DC24V Dream Color RGBW Flexible COB Digital Led Pixel Strip is an advanced solution for linear lighting. It achieves a perfect dot-free effect even without profiles or covers.

✓
Continuous and uniform linear illumination, soft and elegant light.
✓
Flip-Chip technology ensures no dead light risk.
✓
Excellent heat dispersion and low luminous decay.
✓
Highly flexible with a bending radius of only 5mm.

Technical Parameters

Parameter Details
Input VoltageDC24V
IC TypeFCOB RGBW WS2814 IC
LED Quantity784 Leds/m / 896 Leds/m
FPCB Width10mm (784Leds) / 12mm (896Leds)

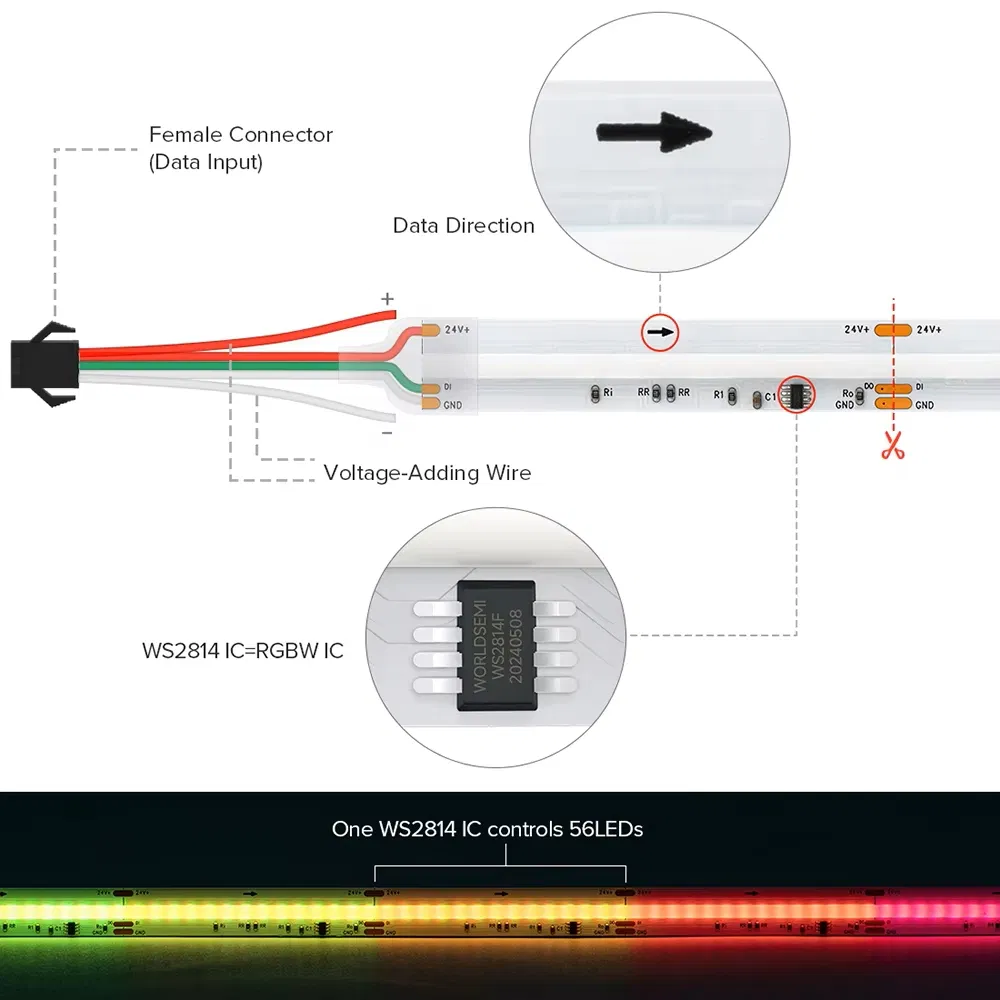

IC QuantityOne IC controls 56 LEDs
Cutting Length71.42mm (784) / 62.5mm (896)
Color RenderingCRI >90

COB Product Series

Product Name LED/m Volt W/m PCB Width Color CRI
RGBW COB Strip560LED24V16W10mmRGBW>90
RGB COB Strip768/840LED24V14/15W10mmRGB>90
CCT COB Strip608LED24V14W10mmCCT>90
White COB Strip312/320/480LED12V/24V8W-11W8mm2700K-6000K>90
Addressable COB240LED5V21W10mmFull Color>90

Product Showcase

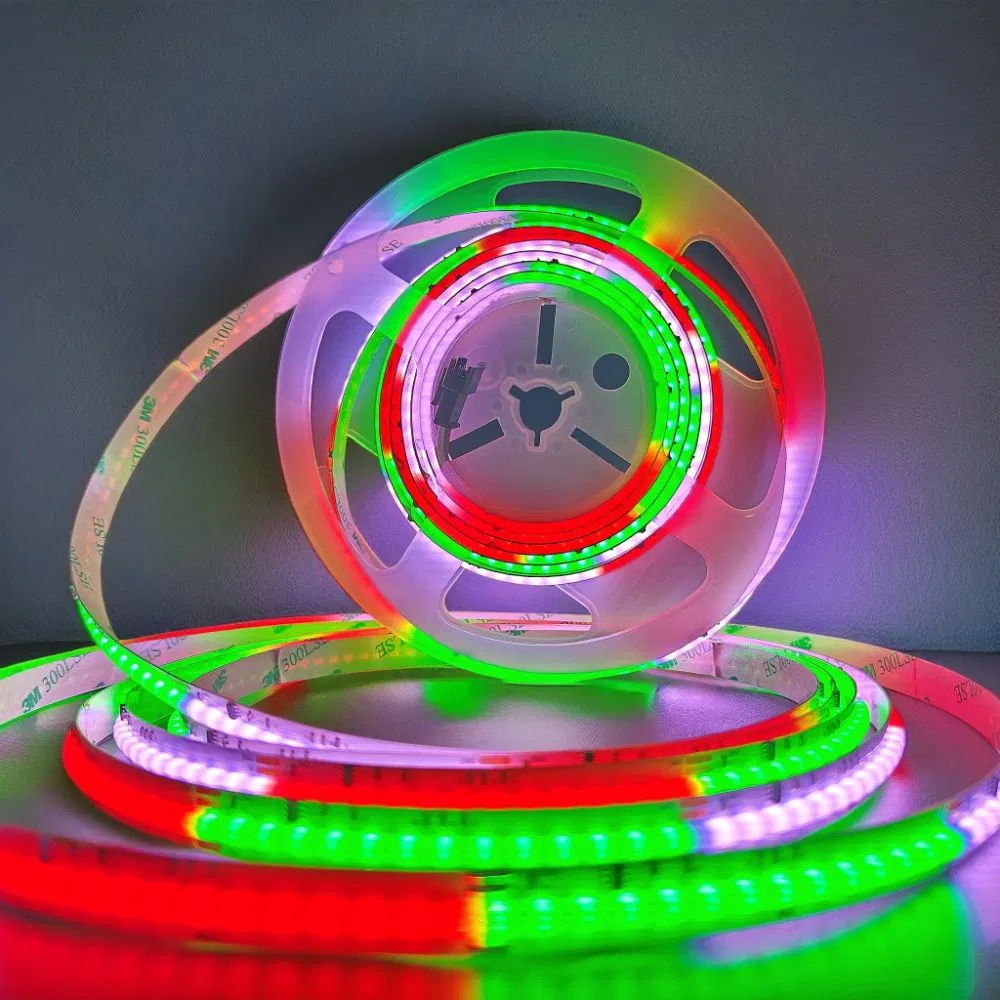

RGBW COB Strip 1
RGBW COB Strip 2

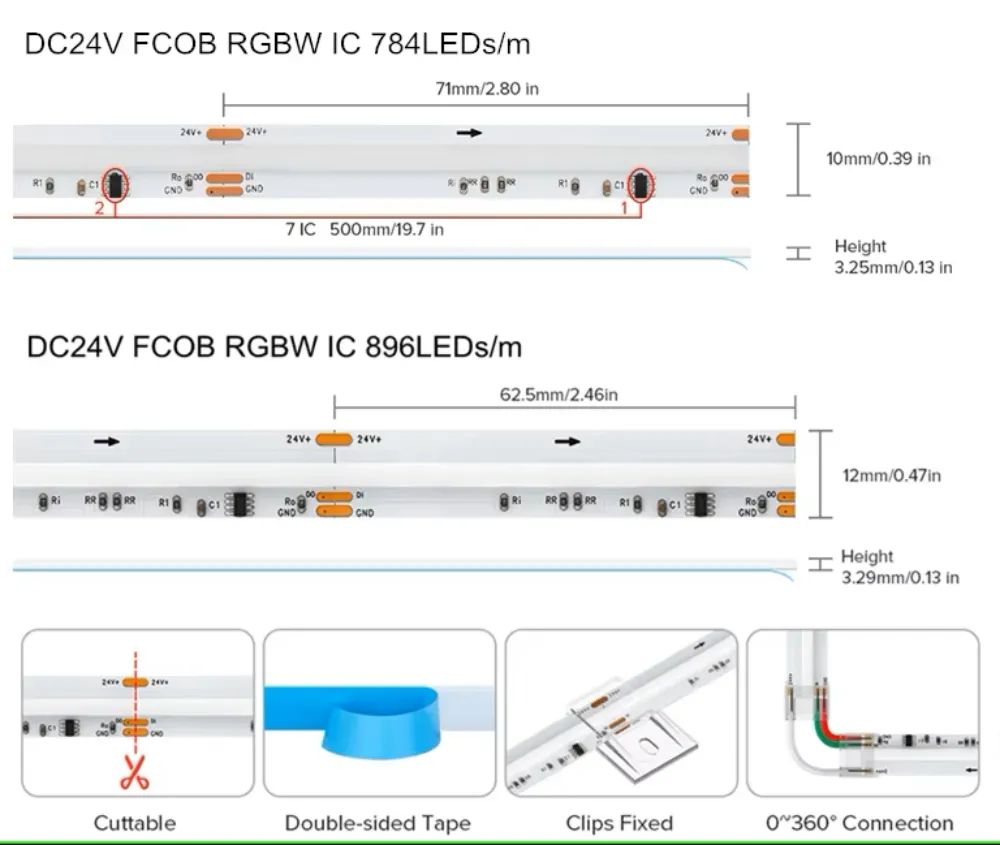

RGBW COB Strip 3

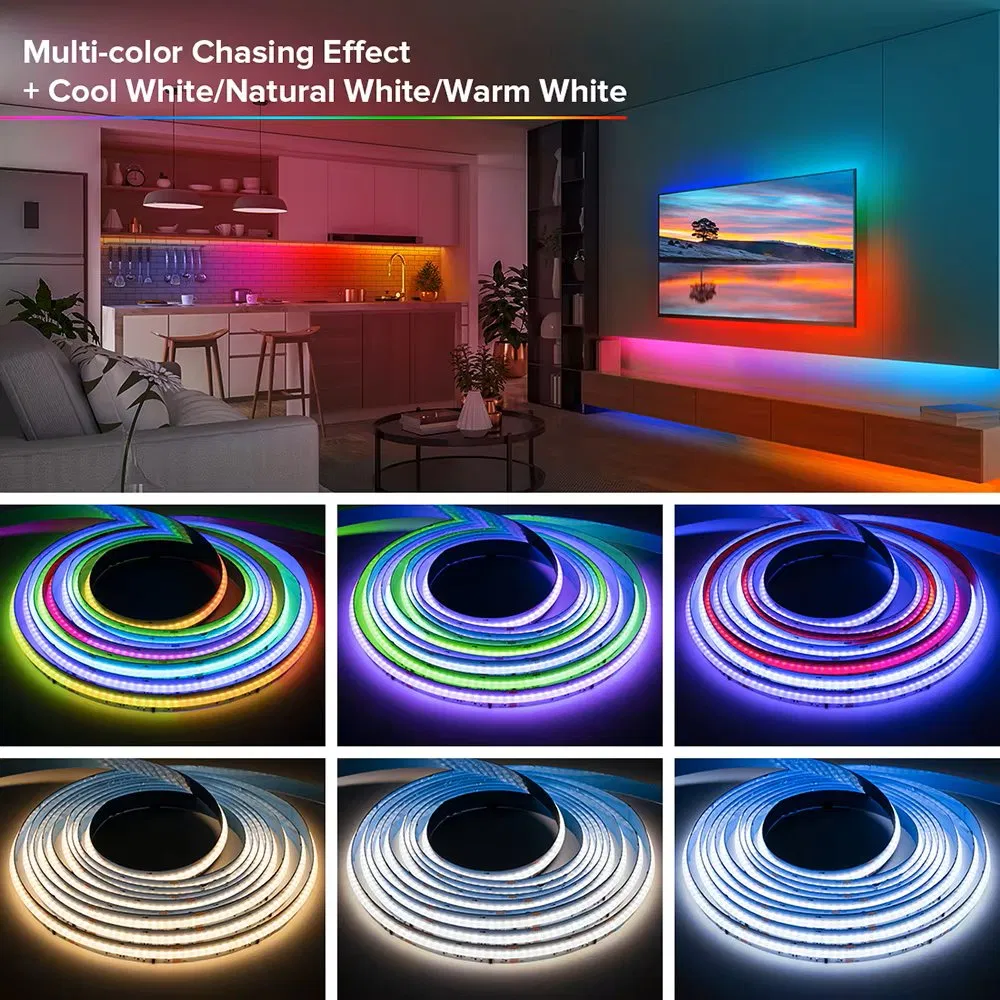

RGBW COB Strip 4

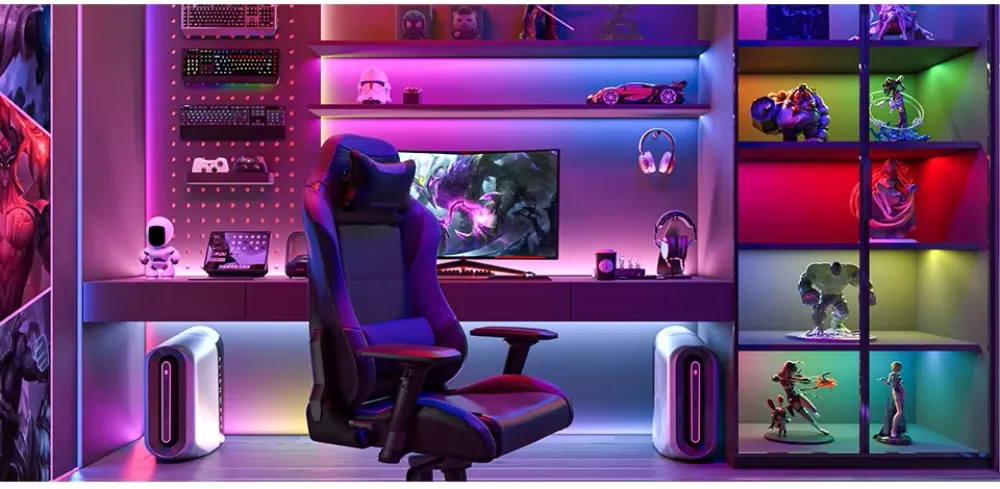

RGBW COB Strip 5

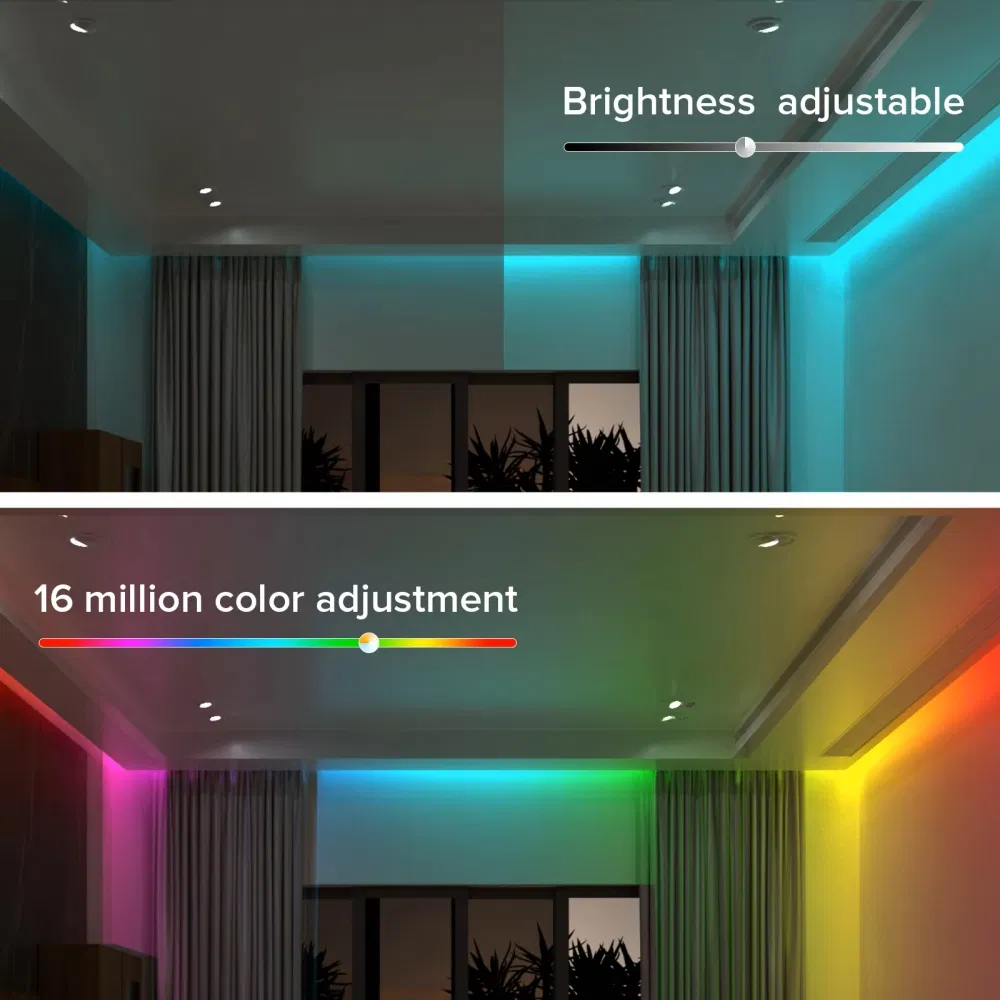

RGBW COB Strip 6

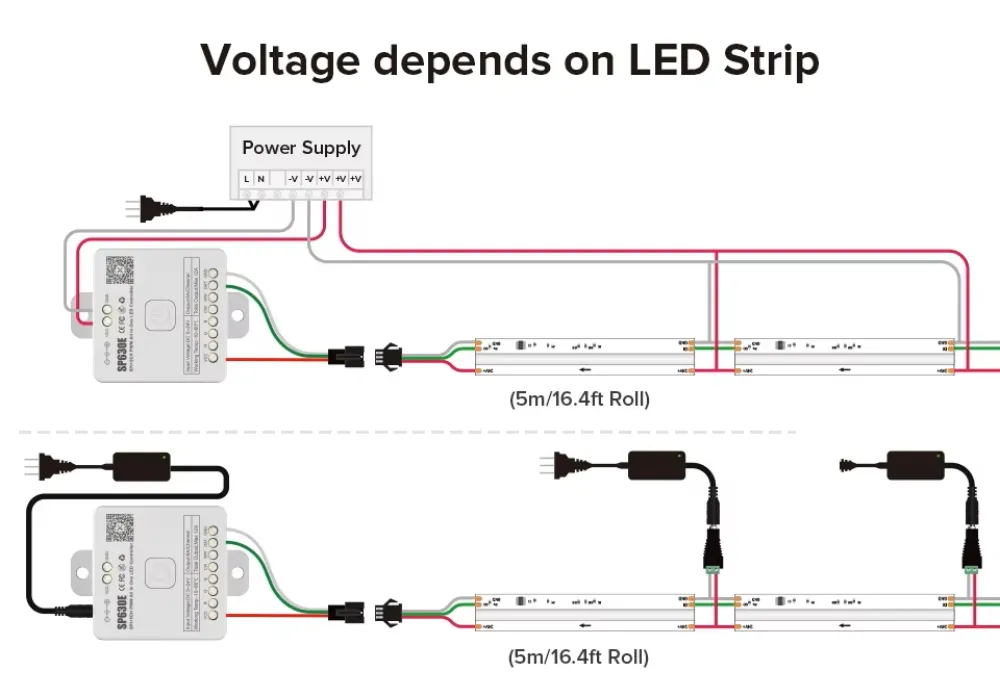

RGBW COB Strip 7

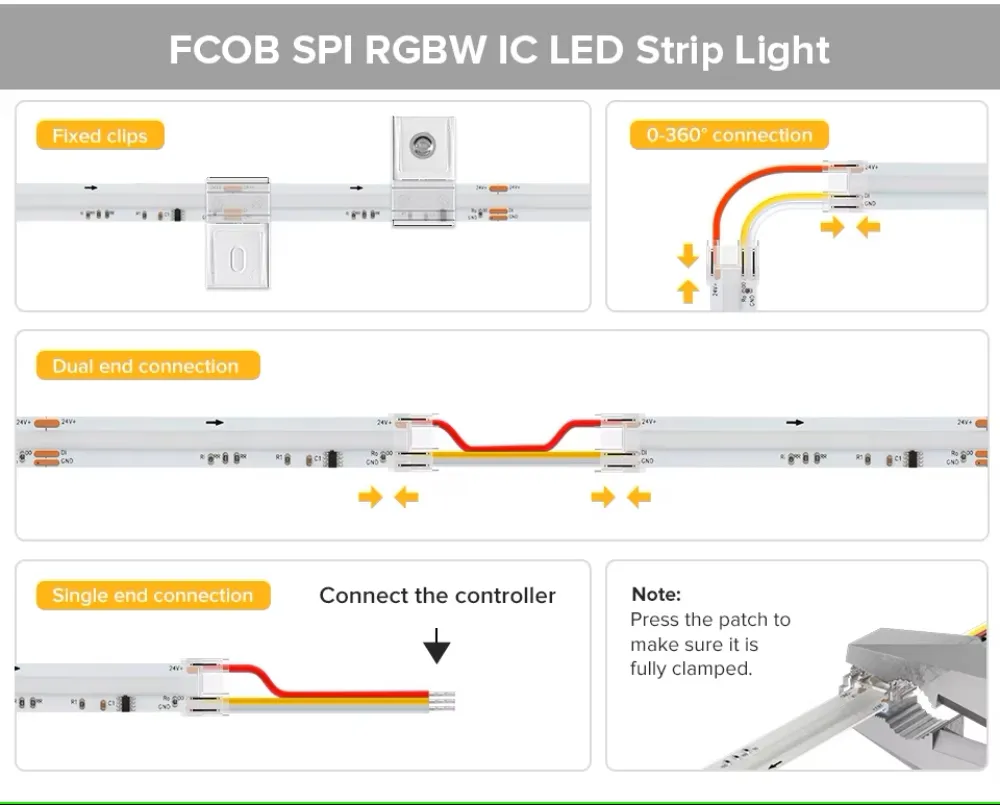

RGBW COB Strip 8

Installation Guidelines

  • Power supply should be loaded to approximately 80% of its total capacity for stability.
  • Standard length is 5m per roll; exceeding this may cause brightness variation.
  • Ensure surfaces are clean; wood or cloth may require additional testing for adhesion.
  • Minimum bending diameter is 60mm to protect FPC components.
  • Always cut off power during installation to avoid electric shock.

Applications

▶
Architectural decorative lighting
▶
Canopy and bridge edge lighting
▶
Amusement park and theater mood lighting
▶
Emergency hallway and walkway lighting
▶
Backlighting for signage letters
▶
Cove and concealed lighting

Factory Overview

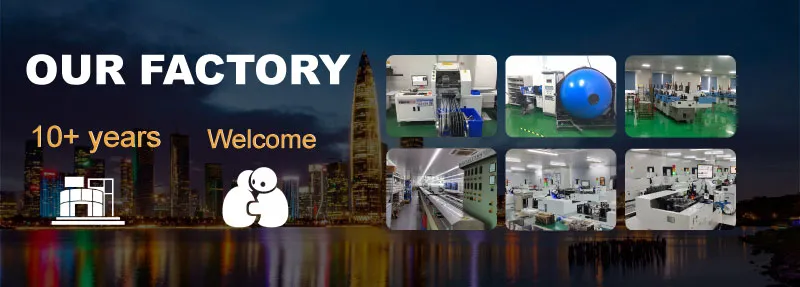

Factory Production Line 1

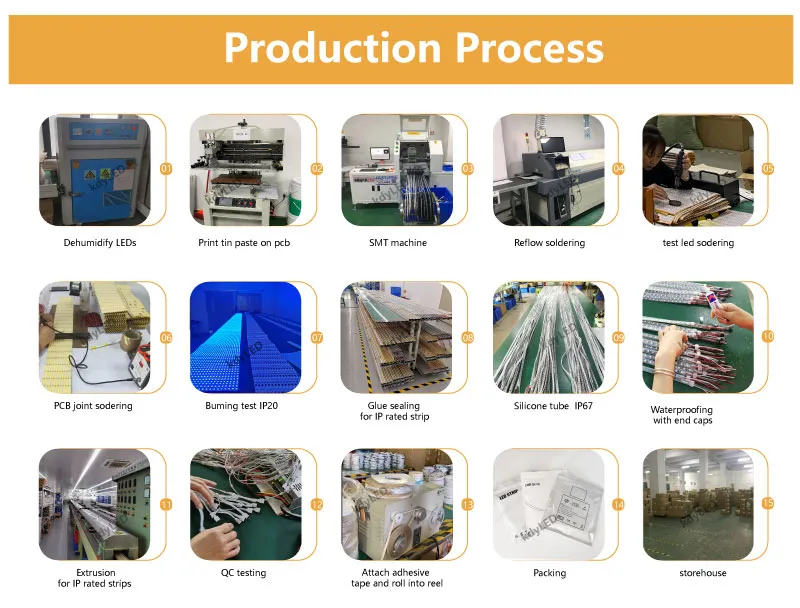

Factory Production Line 2

Frequently Asked Questions

Are you a factory or trading company?
We are a professional manufacturer of LED strip lights, COB strip lights, and digital strip lights with factory-direct pricing.
How do you ensure high product quality?
We conduct 100% QC on-line and final inspections. Our processes are certified by ISO9001:2015 and SGS to ensure no defective products leave the factory.
Can you provide samples for testing?
Yes, we can supply samples for free. Customers only need to cover the delivery charges or provide an express account for freight collect.
Do you offer custom services?
Yes! We have professional designers who can provide free designs and customization based on your specific requirements.
How do you ship goods and how long does it take?
We typically ship via DHL, UPS, FedEx, or TNT, taking 3-5 days to arrive. Sea and air shipping are also available.
What is your product warranty period?
We offer a 2-5 year warranty. During this time, we will repair or replace any products with quality issues for free.
