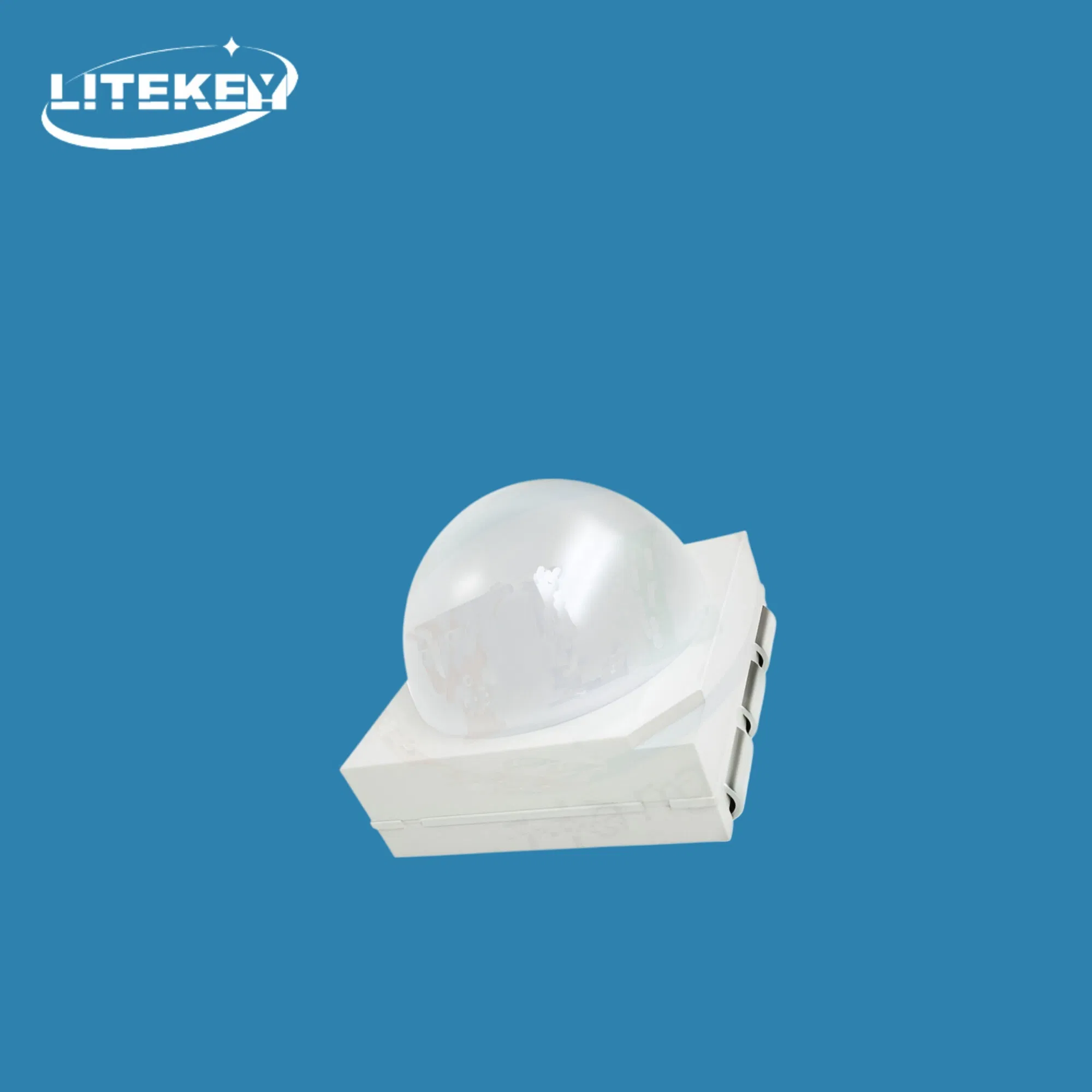

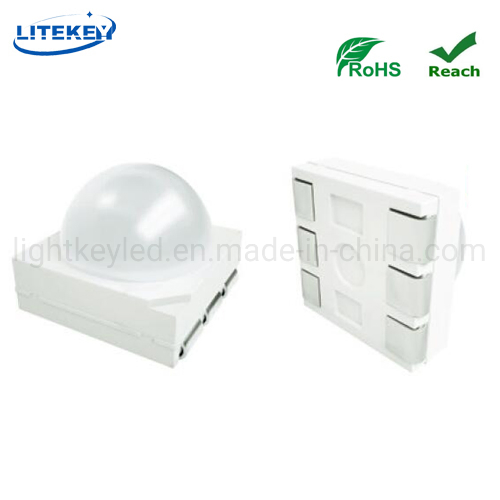

RoHS 5050 SMD LED Dome 30 Degrees Angle for Automotive Brake Light

1 / 3

RoHS 5050 SMD LED Dome 30 Degrees Angle for Automotive Brake Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.:LLS5050PLC6

Beam Angle:120°

Emitting Color:RGB/Homochromy

Base Material:Copper

LED Chips:Epistar

Power:0.04W

Life:50000h

Certification:RoHS

Viewing Angle:30 Degrees

Specification:5.0mmX5.0mm

Origin:China

Capacity:500,000,000PCS/Year

Product Overview

RoHS Compliant PLCC6 5050 SMD LED with Lens 30 Degrees Angle for LED Brake light

Small beam angle

Small power consumption

High brightness output

Low impedance design

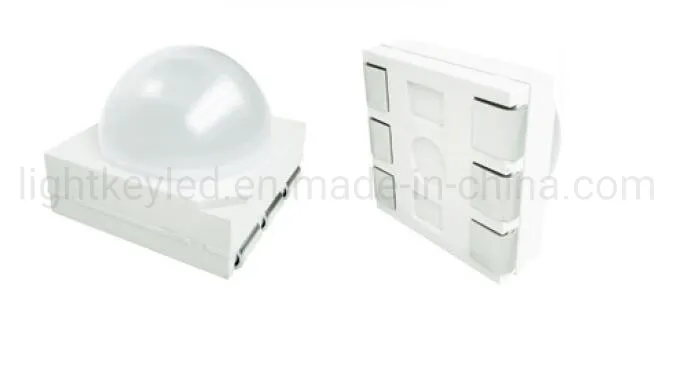

Detailed Photos

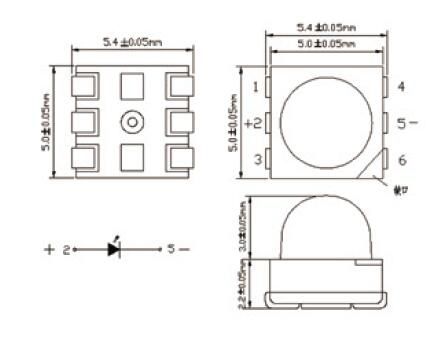

Package Dimensions

Technical Specifications

Product	Color	VF(V)	WL/CT	IV	IF	Angle	Ra
5050 SMD LED With Lens	RGB	2.0-2.6V / 2.8-3.4V	620-630nm / 520-530nm / 460-470nm	2500-4000mcd	3X20mA	30-40	-
	Red	2.0-2.6V	620-630nm	3000-12000mcd	20-70mA	30-40	-
	Green	2.8-3.4V	520-530nm	6000-8000mcd	20mA	30-40	-
5050 SMD LED	Yellow	2.0-2.6V	588-592nm	2000-12000mcd	20-70mA	30-40	-
5050 SMD LED	Warm White	2.8-3.4V	2958±87K	24-53lm	60-150mA	30-40	80-95
5050 SMD LED	Pure White	2.8-3.4V	6275±255K	26-60lm	60-150mA	30-40	80-95

Applications

Widely used in various lighting solutions:

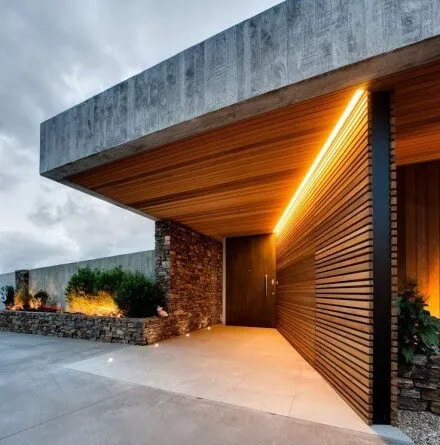

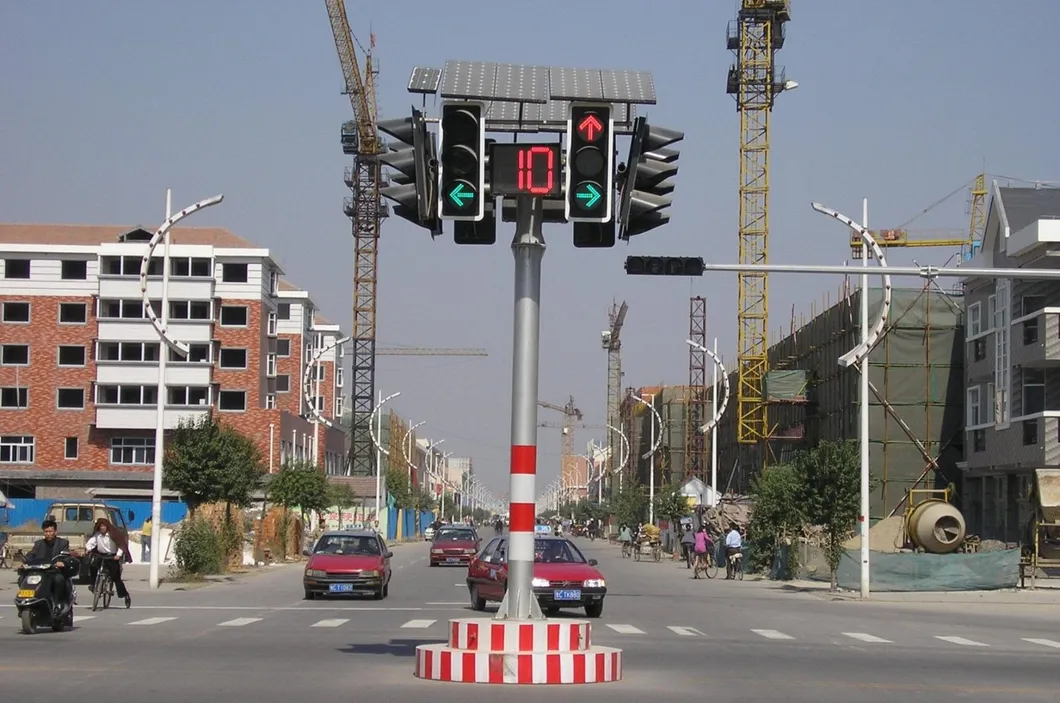

Outdoor lamps & Traffic lights
Automotive Turn lights & Brake lights
Professional Photography lighting

Quality Assurance

Premium Raw Materials:

Famous Brand & Big Size chips (Epistar)

Pure (99.99%) Gold Wire for superior conductivity

High-quality Copper Frame

Advanced Optical-Grade Epoxy

Performance Benefits:

Long lifespan: Over 50,000 - 80,000 hours

Superior High-Temperature & Moisture Resistance

Anti-UV for long-term direct sunlight exposure

RoHS Compliant & Lead-Free

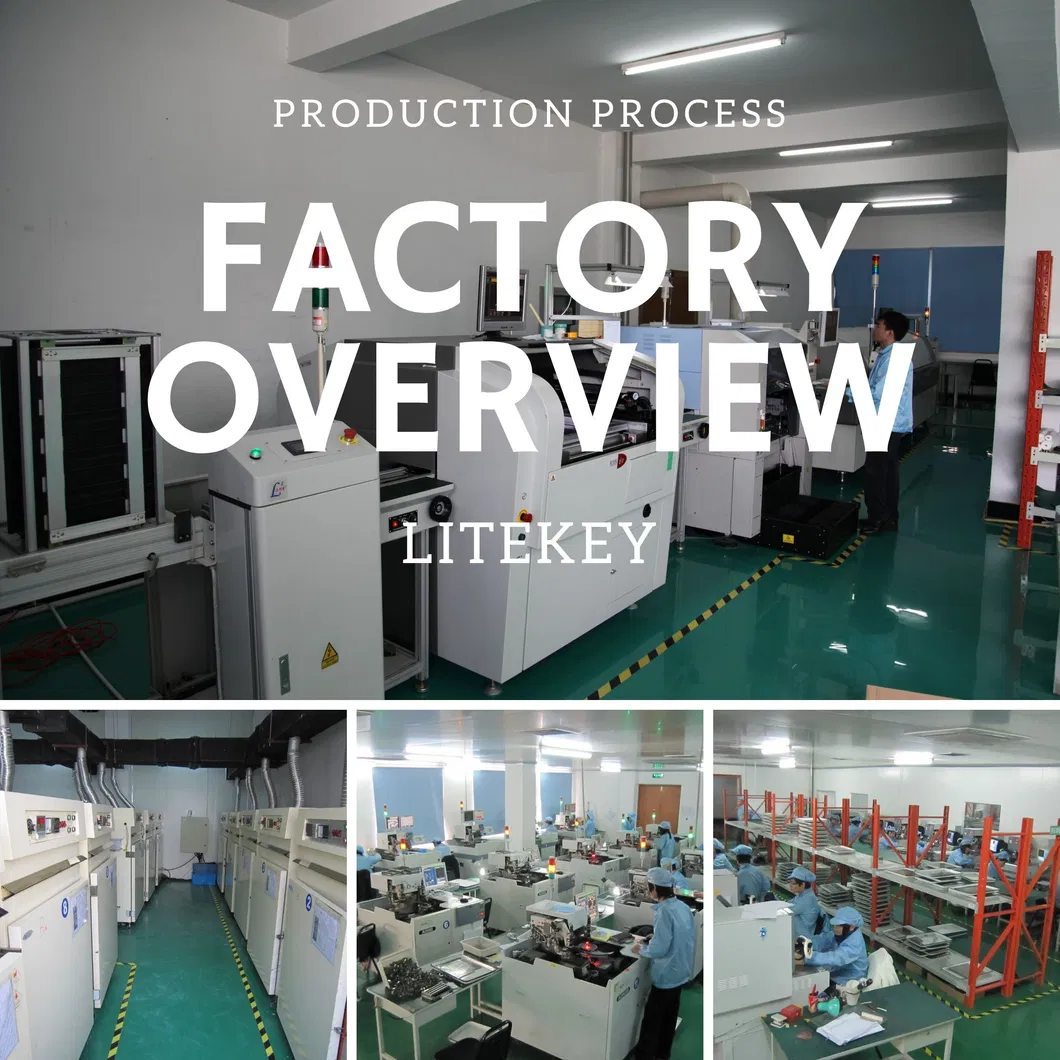

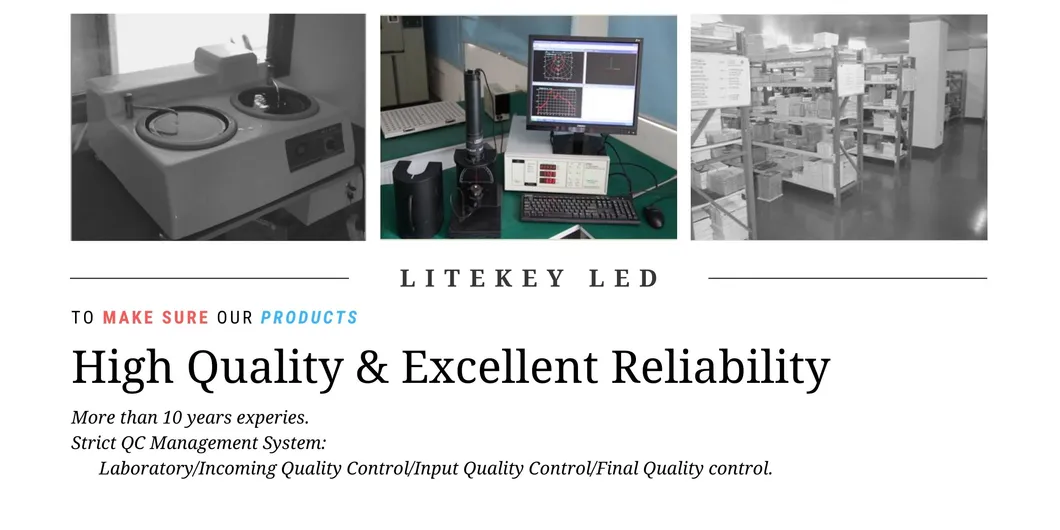

Factory Overview

Our Manufacturing Advantages

14+ years of experience in LED component production

Advanced ASM automatic production machines

100% testing for every single piece

Customized design and molding services available

Frequently Asked Questions

Q1: What is the viewing angle of this 5050 SMD LED? A: This specific model features a built-in lens that provides a focused 30-degree viewing angle, ideal for directional lighting like brake lights.

Q2: What kind of chips and materials are used? A: We use high-quality Epistar chips, 99.99% pure gold wire, and a copper base to ensure high light efficiency and reliability.

Q3: Is the LED resistant to outdoor conditions? A: Yes, it is designed with anti-UV properties and high moisture resistance, making it suitable for long-term outdoor exposure.

Q4: What is the expected lifespan of the product? A: Under standard operating conditions, these LEDs have a lifespan of 50,000 to 80,000 hours.

Q5: Can the emitting color be customized? A: Yes, we offer various options including RGB, Red, Green, Yellow, Warm White, and Pure White to meet specific application needs.

Q6: Are these LEDs environmentally friendly? A: Absolutely. All our 5050 SMD LEDs are RoHS compliant and lead-free (Pb Free).
