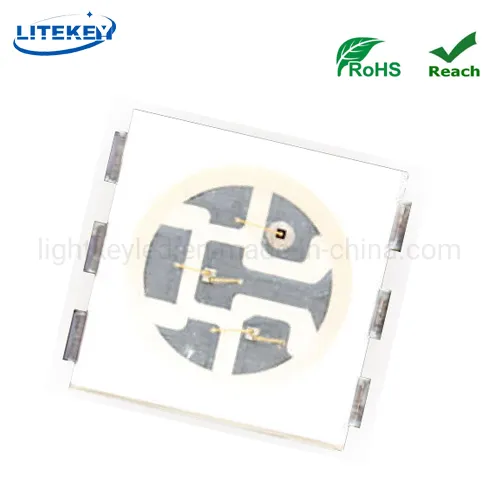

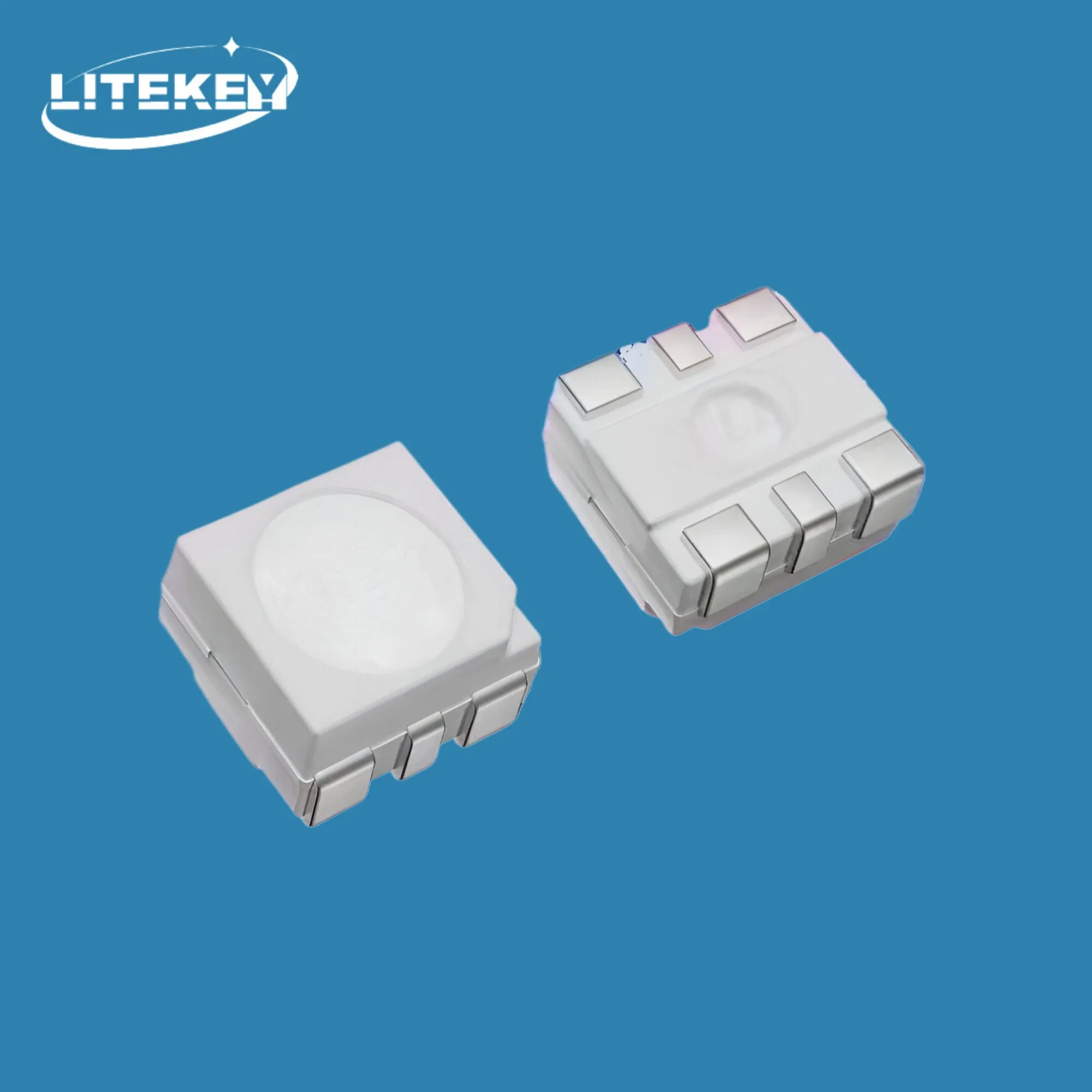

RoHS Compliant RGB SMD LED 5050 with 6 Pins 1.5W From Expert Manufacturer

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
LLS5050PLC6RGB-1.5W
Beam Angle
120°
Emitting Color
RGB
Base Material
Copper
LED Chips
Epistar
Power
1.5W
Life
50000h
Certification
RoHS, Reach
Encapsulation
Plcc
Specification
5.0mmX5.0mmX1.3mm
Product Features
High reliability
Low operating voltage & Low power consumption
Long service life (50,000h)
PB Free & RoHS compliant
Superior RGB Color Mixing
Product Parameters
P/N Power Color Forward Voltage (V) Forward Current (mA) WLP (nm) Luminous Flux (lm)
LLS5050PLC6RGB-1.5W 1.5W Red 2.0-2.4V 150mA 620-630nm 15-20lm
Green 2.8-3.2V 515-530nm 30-40lm
Blue 3.0-3.4V 455-465nm 8-13lm

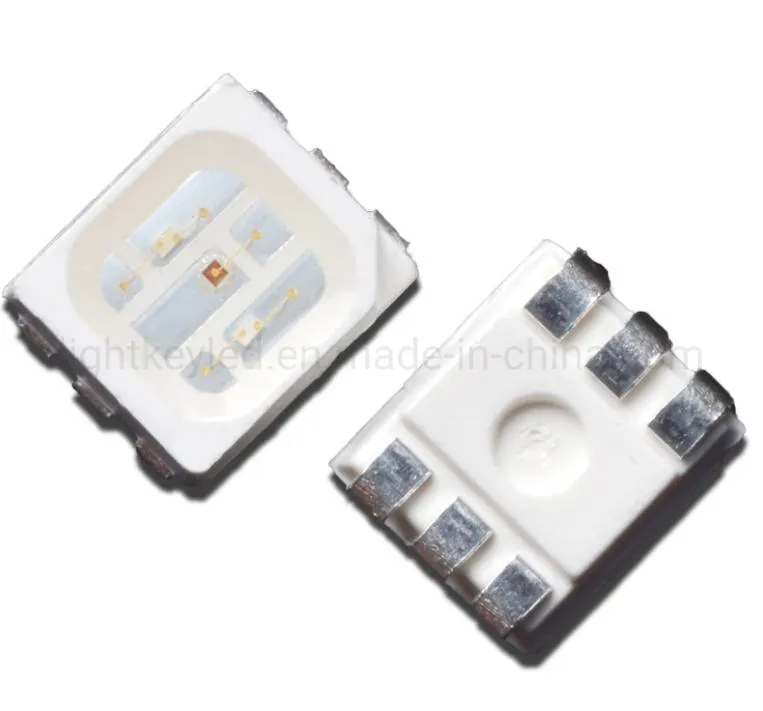

Detailed Photos & Dimensions

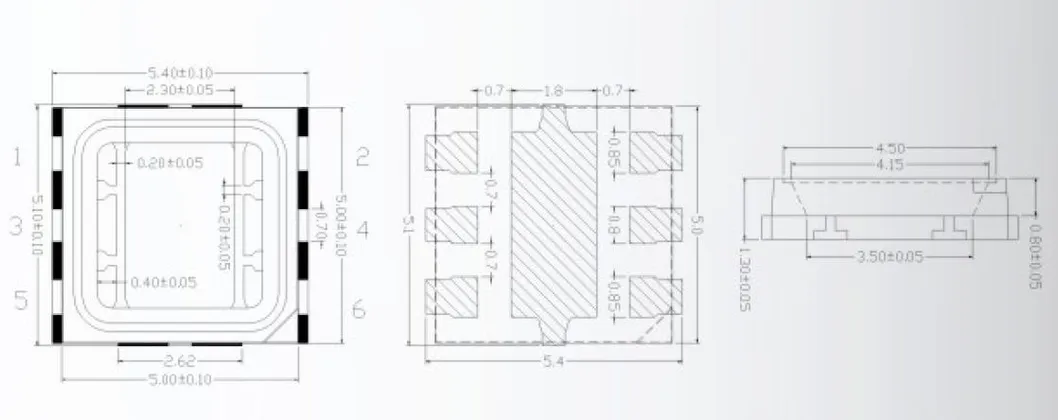

RGB SMD LED 5050 Package Dimensions
Application Areas
Indoor illumination
Automotive lighting
Back lighting
General electronic use
Packaging & Shipping

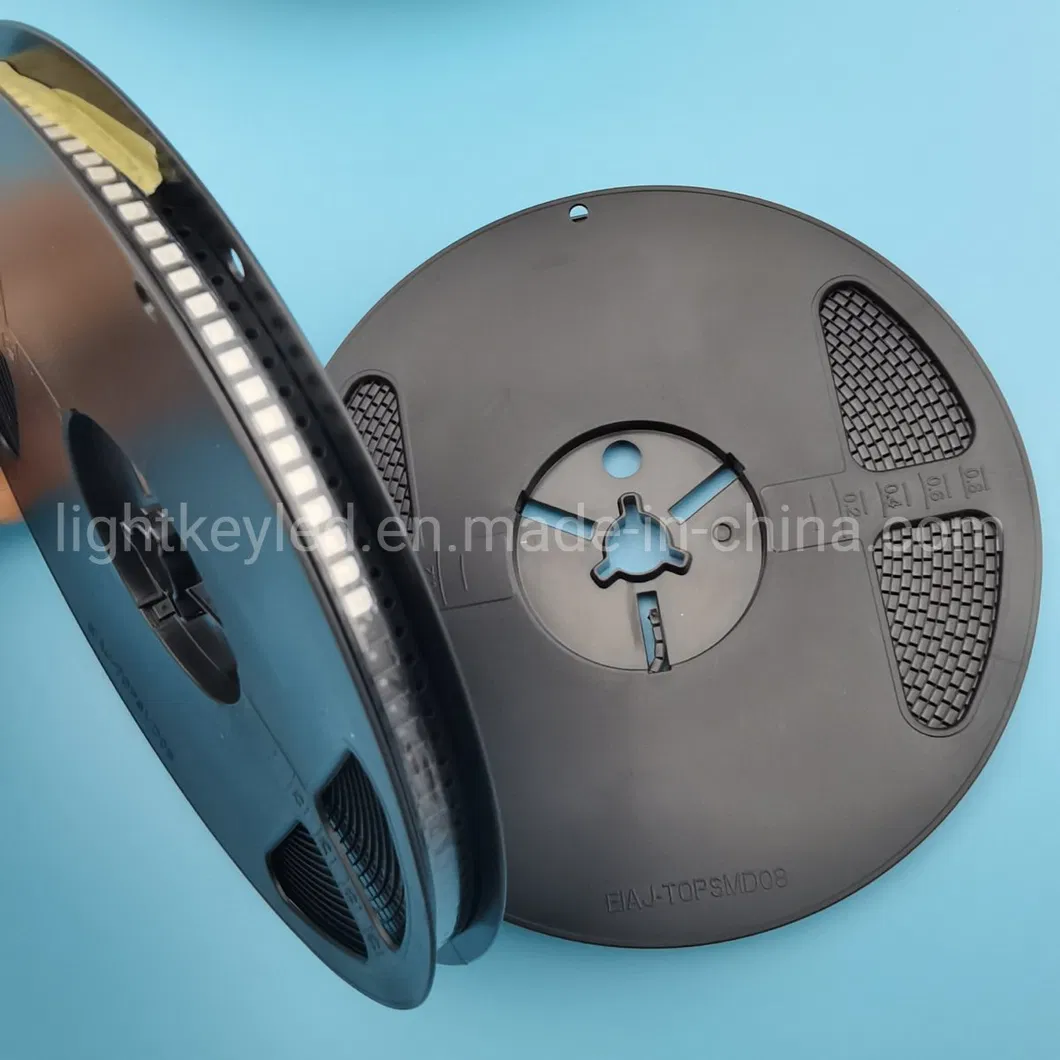

Packaging 1 Packaging 2 Packaging 3
Manufacturing Quality Control
Excellent Raw Materials
  • Famous Brand & Big Size chips
  • Pure (99.99%) Gold Wire
  • Copper Frame for better heat dissipation
  • Advanced Optical-Grade Epoxy

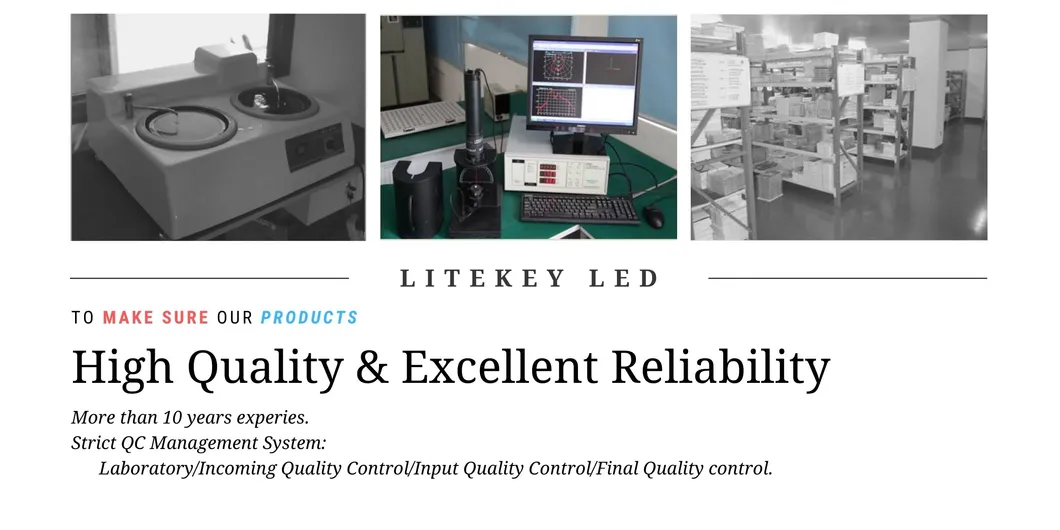

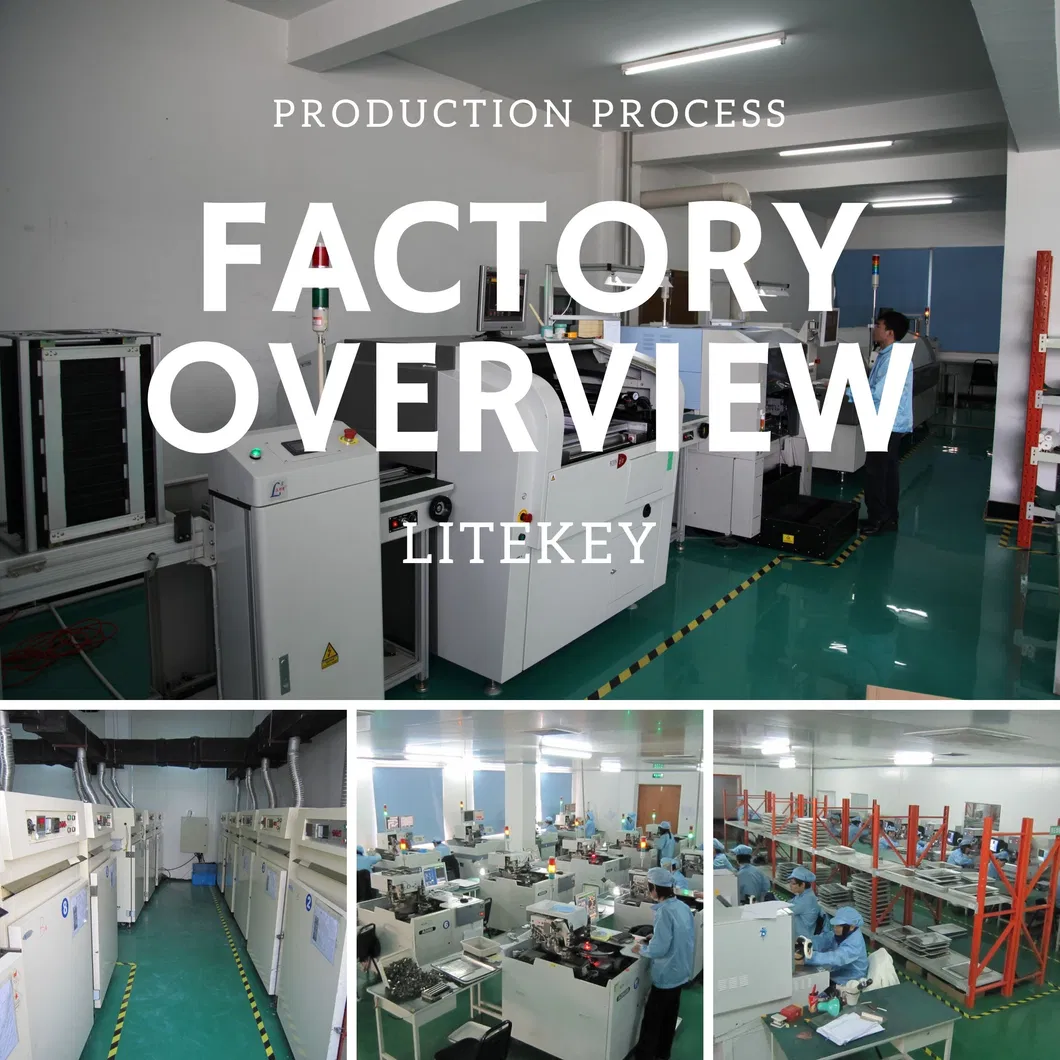

QC System Production Process
Our Advantages
Professional service replied within 24h
Ready moldings available - No extra fees
100% testing for each piece
ASM automatic production machines
Over 14 years of production experience
Frequently Asked Questions
What is the power rating of this RGB LED?
This 5050 RGB SMD LED is rated at 1.5W, providing high brightness for various lighting applications.
What materials are used to ensure reliability?
We use 99.99% pure gold wire, a copper frame, and high-quality Epistar chips to ensure long life and high light efficiency.
Is the product compliant with environmental standards?
Yes, all our LED products are RoHS and Reach compliant, and they are lead-free (Pb Free).
What is the expected lifespan of these LEDs?
With proper operating conditions, these LEDs have a long lifespan of up to 50,000 hours.
Can this LED be used for automotive lighting?
Yes, the high reliability and compact 5050 package make it ideal for automotive interior and exterior lighting.
What is the beam angle of this SMD LED?
The standard beam angle for this model is 120°, providing wide and even light distribution.
