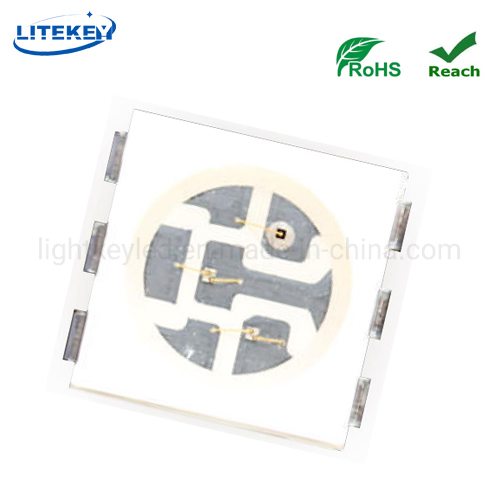

RoHS Compliant RGB SMD LED 5050 with 6 Pins 0.6W
1 / 1
RoHS Compliant RGB SMD LED 5050 with 6 Pins 0.6W

RoHS Compliant RGB SMD LED 5050 with 6 Pins 0.6W

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹ
Basic Information
Model NO.
LLS5050PLC6RGB
Beam Angle
120°
Emitting Color
RGB
Base Material
Copper
LED Chips
Epistar
Power
0.6W
Life
50000h
Certification
RoHS, Reach
Specification
5.0mmX5.0mmX1.3mm
Origin
China
📋
Product Description

RoHS compliant RGB SMD LED 5050 with 6 Pins 0.6W

High reliability
Low operating voltage & power consumption
Long service life (50,000h)
PB Free (EU RoHS Compliant)
Full RGB Color Spectrum
📊
Product Parameters
P/N Power Color Forward Voltage (V) Forward Current (mA) WLP (nm) Luminous Flux (lm)
LLS5050PLC6RGB 0.6W Red 2.0-2.4V 60mA 620-630nm 2-4lm
Green 2.8-3.2V 515-530nm 15-20lm
Blue 3.0-3.4V 455-465nm 4-6lm
📷
Detailed Photos

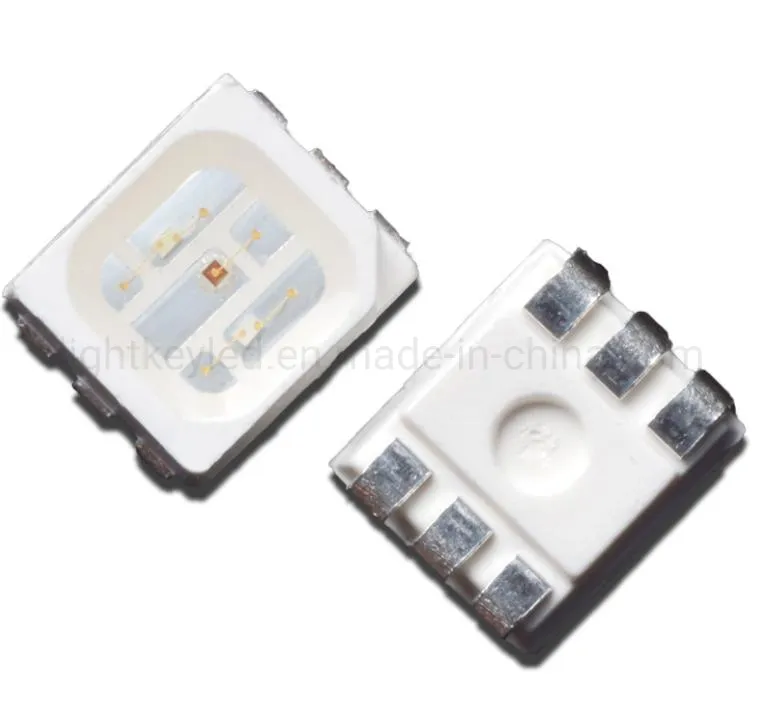

RGB SMD LED 5050
📐

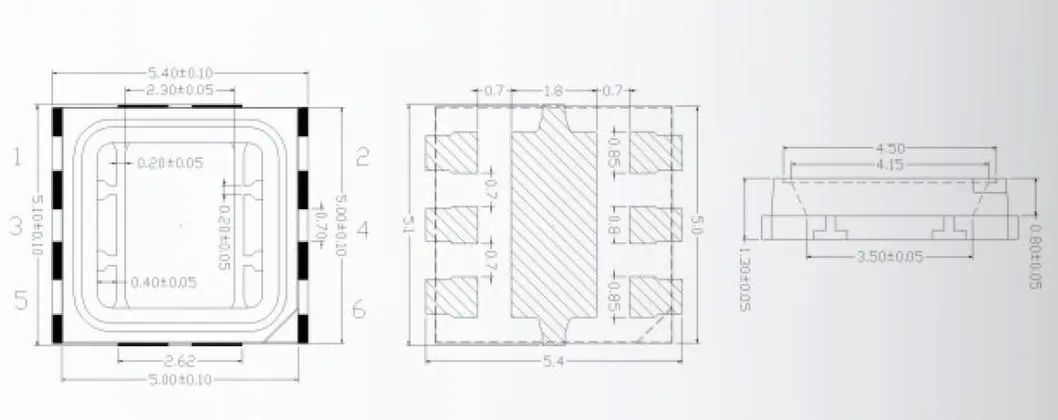

Package Dimensions
Package Dimensions

Customized designs are available according to your demand. Sample orders are welcome.

💡
Applications
    Indoor illumination
    Automotive lighting
    Back lighting
    General use LED projects
📦
Packaging & Shipping

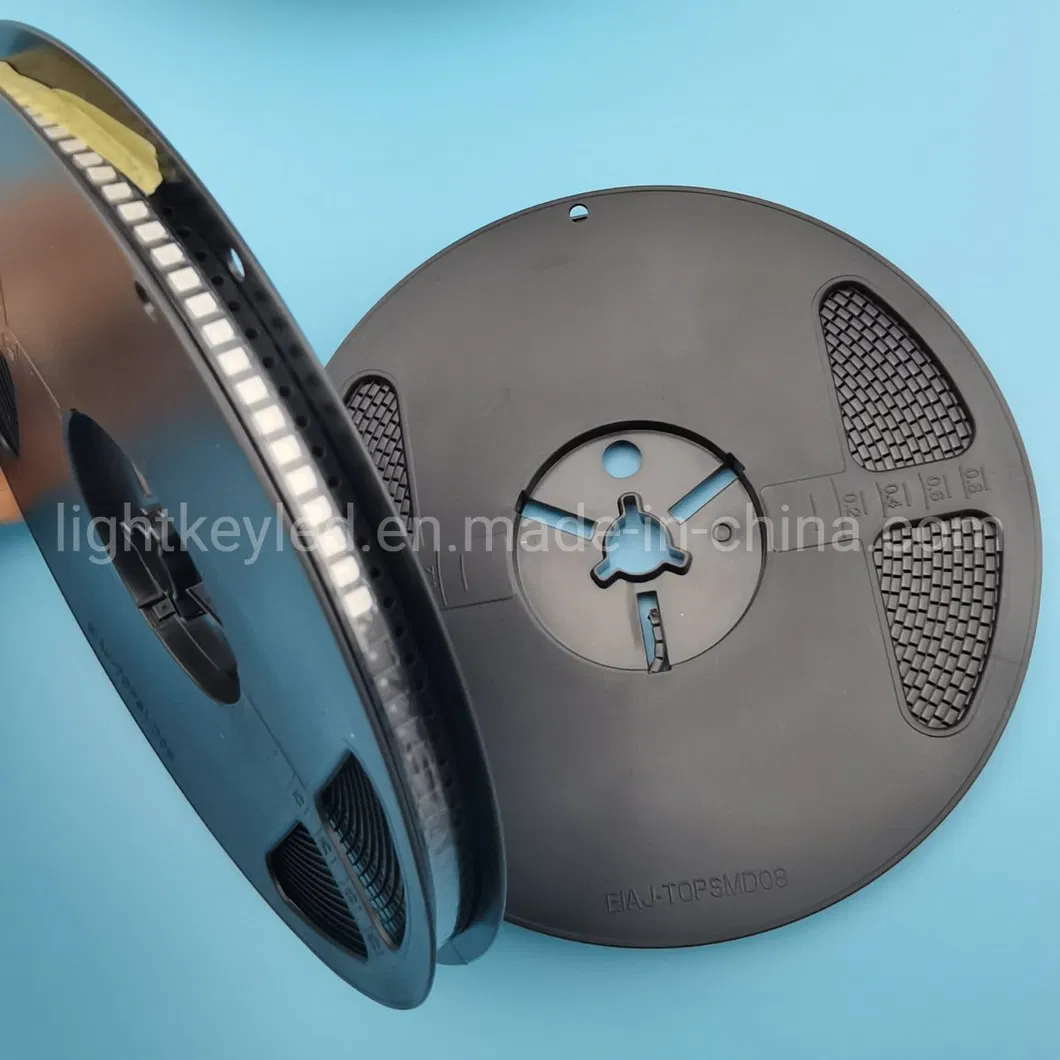

Packaging 1
Packaging 2
Packaging 3
🛡️
Quality Assurance & Manufacturing

Excellent Raw Materials:

  • Famous Brand & Big Size chips
  • Pure (99.99%) Gold Wire
  • Copper Frame for better heat dissipation
  • Advanced Optical-Grade Epoxy

Manufacturing Advantages:

  • High Moisture Resistance Performance
  • Anti-UV for long-term sunlight exposure
  • RoHS Compliant & Pb Free
  • Over 14 years of LED component production experience
  • ASM automatic production machines

QC System Overview

QC System

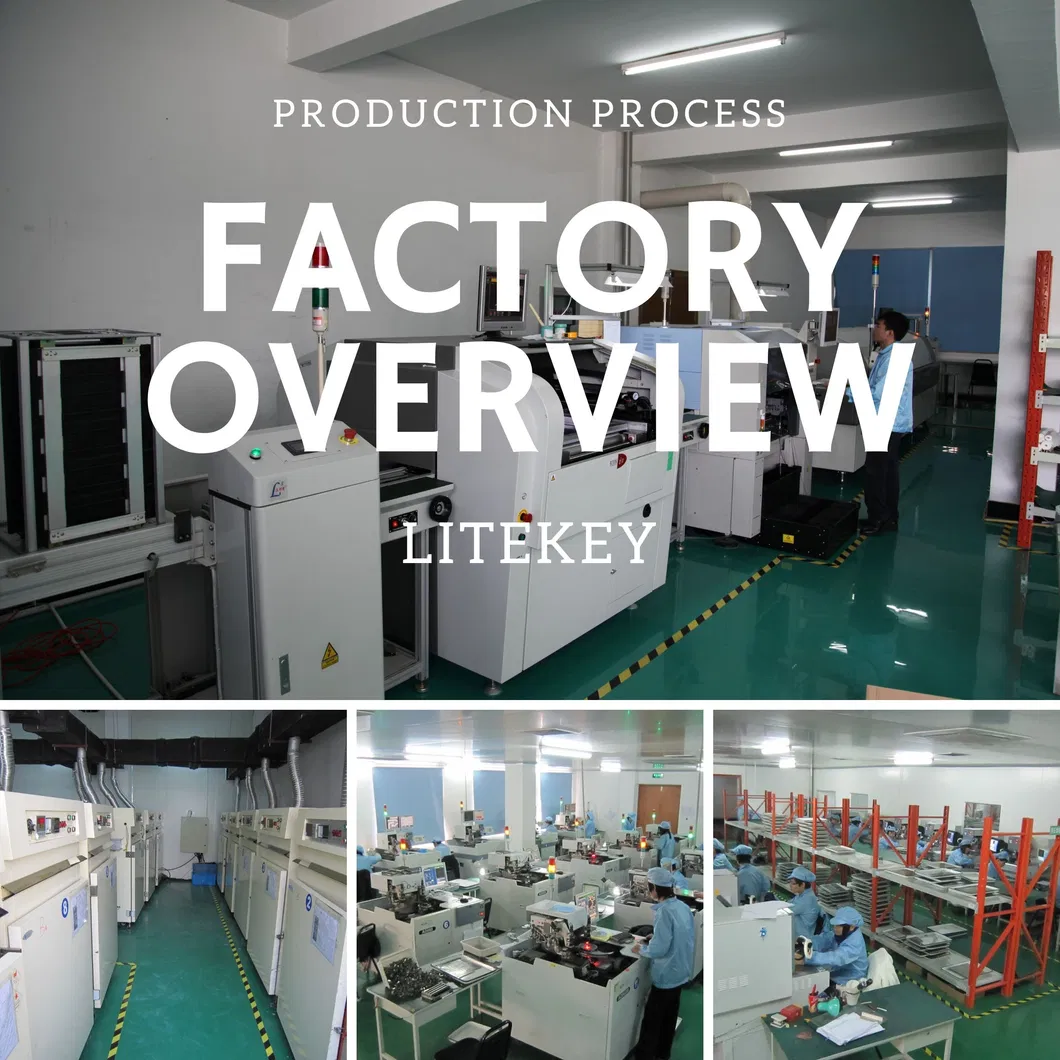

Factory Production Process

Production Process
❓
Frequently Asked Questions
What are the main applications for this 5050 RGB LED?
This LED is ideal for indoor illumination, automotive lighting, backlighting, and general electronic displays requiring high-quality RGB color mixing.
Is the product environmentally friendly?
Yes, our LEDs are RoHS and Reach compliant, and they are lead-free (Pb Free) to ensure safety and environmental protection.
What is the expected lifespan of these SMD LEDs?
These LEDs are designed for high reliability with a lifespan of approximately 50,000 hours under standard operating conditions.
Can I get a customized design for my specific project?
Absolutely. We provide customized products and can design the LED components according to your specific technical requirements.
What materials are used to ensure high performance?
We use premium raw materials including 99.99% pure gold wire, copper frames for heat management, and famous brand big-size chips like Epistar.
How do you ensure the quality of each LED?
We implement a strict QC system with 100% testing for each piece using automatic testing and bin code selection machines.
