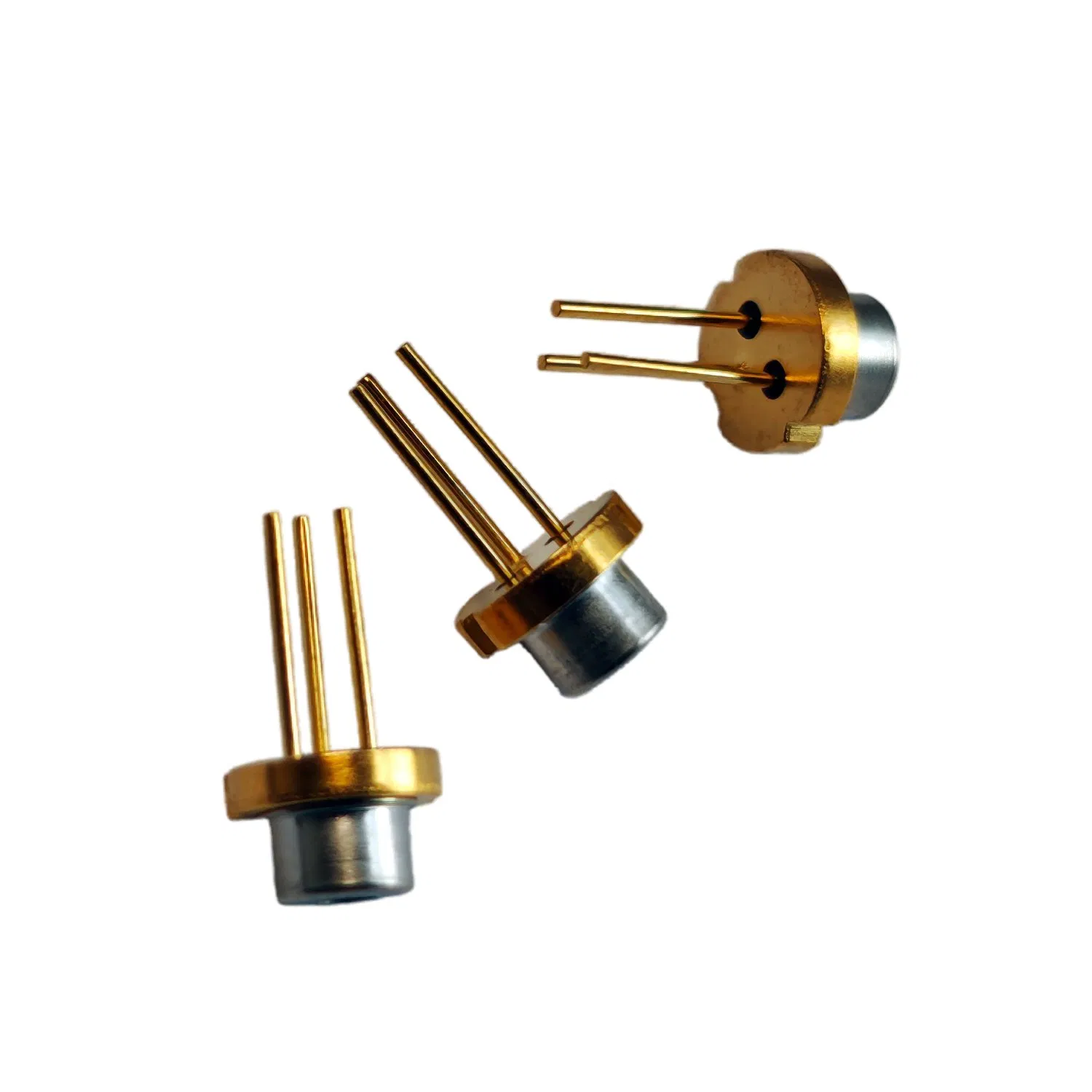

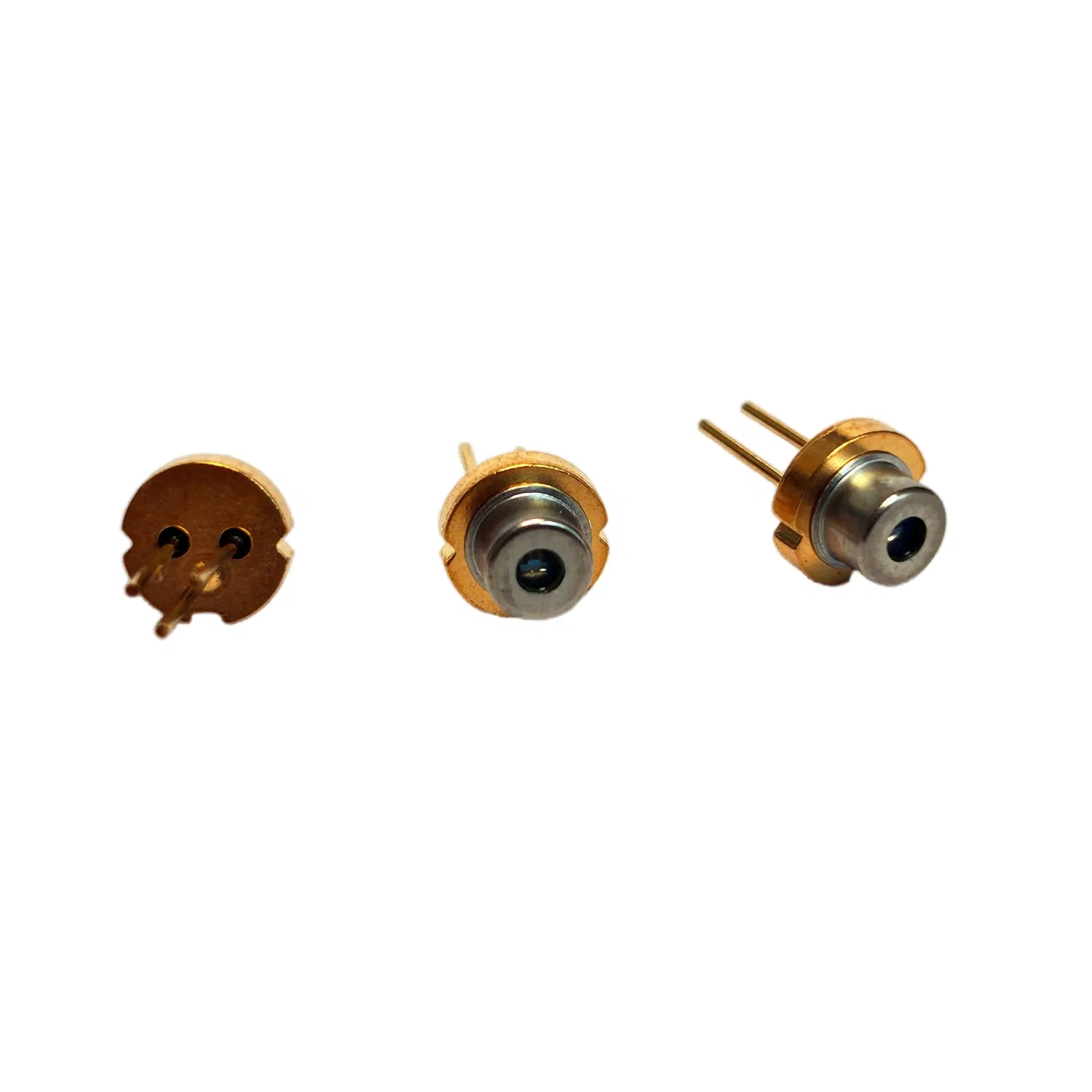

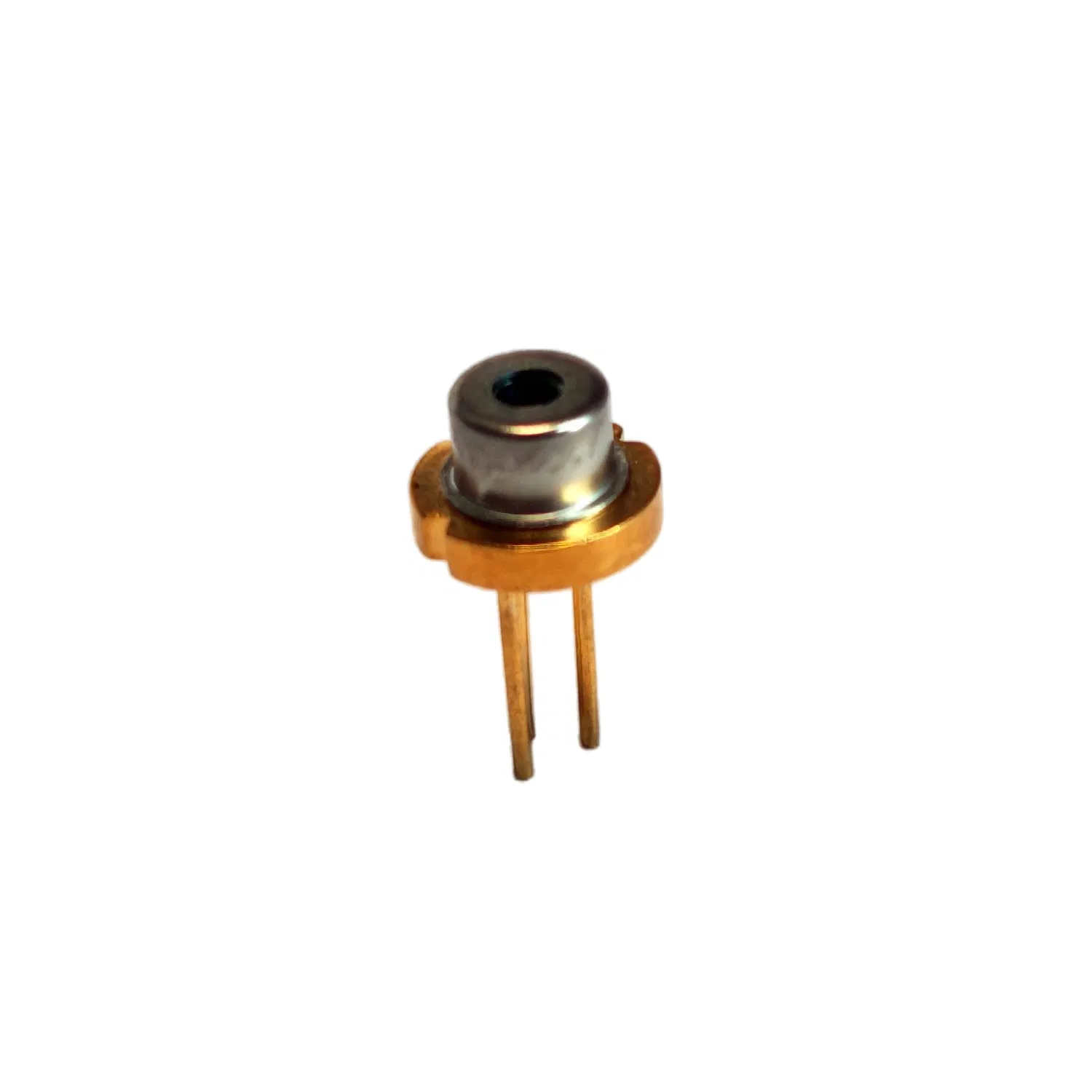

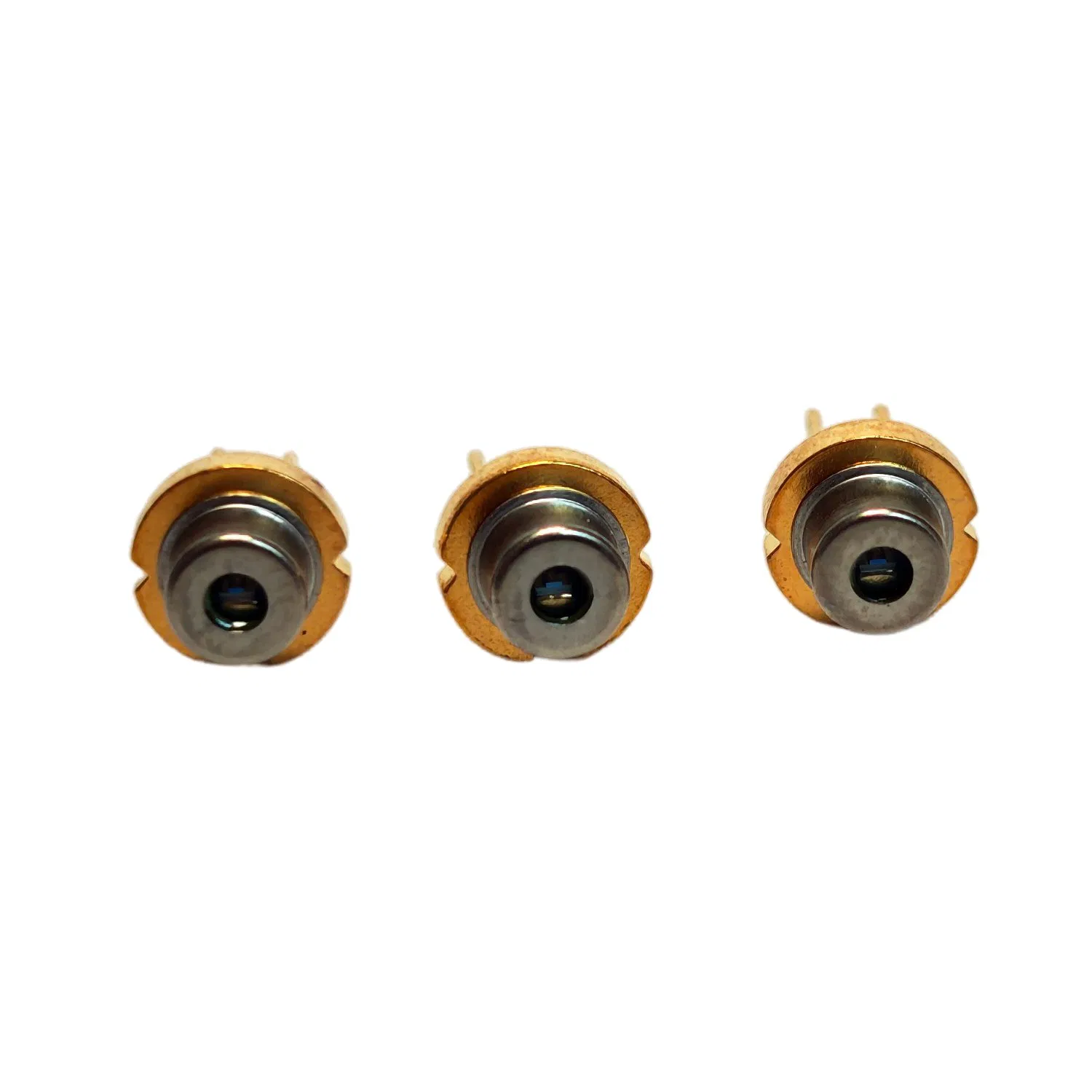

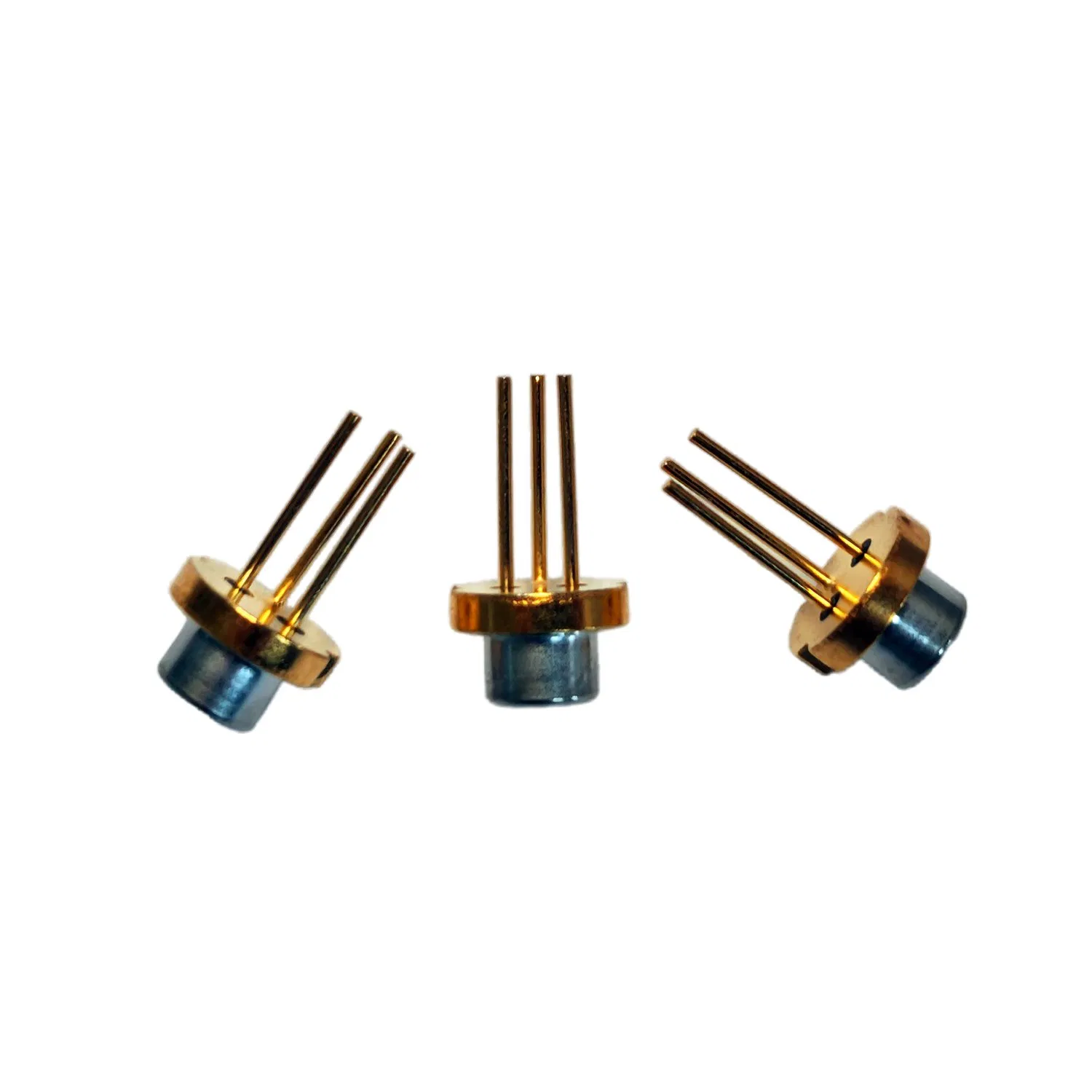

905nm 15W TO56 Tail-free Light Spot Pulsed Laser Diode
Absolute Maximum Ratings (Tc=25°C)
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Pulse Width (FWHM) | tP | - | 200 | ns |
| Duty Cycle | dc | - | 0.1 | % |
| Operating temperature | Top | -40 | 85 | ºC |
| Storage temperature | Tstg | -40 | 100 | ºC |
| Solder temperature | Ts | - | 260 | ºC |
Characteristics (Tc=25°C)
| Parameter | Symbol | MIN. | TYP. | MAX. | Unit |
|---|---|---|---|---|---|
| Center Wavelength | λ | - | 905 | - | nm |
| Spectral bandwidth | Δλ | - | 5 | - | nm |
| Optical Output Power | Po | - | 15 | - | W |
| Threshold current | Ith | - | 0.3 | - | A |
| Operating current | Iop | - | 6 | - | A |
| Aperture Size | Im | - | 38x10 | - | μm² |
| Beam Divergence (FWHM) | θ∥xθ⊥ | - | 9x25 | - | ° |
| Power Temp Coefficient | - | - | -0.33 | - | %/K |
| Wavelength Temp Coefficient | - | - | 0.28 | - | nm/K |
Products are packed in special boxes, vacuum-sealed anti-static bags and outer cartons. This packaging meets safe express delivery requirements.
Lead Time: Based on inventory and material availability, we can deliver within 1-8 weeks.
Shipping: We deliver by air express, mainly via FedEx.
