Our single-mode (SM) fiber pump lasers emit low noise, precisely controlled levels of light at a specific wavelength out of a small-core fiber. SM pumps require the alignment of a 125 µm fiber with an 8 µm core to a similarly small laser emitter. This micro-alignment remains stable throughout wide temperature ranges and high shock/vibration environments.

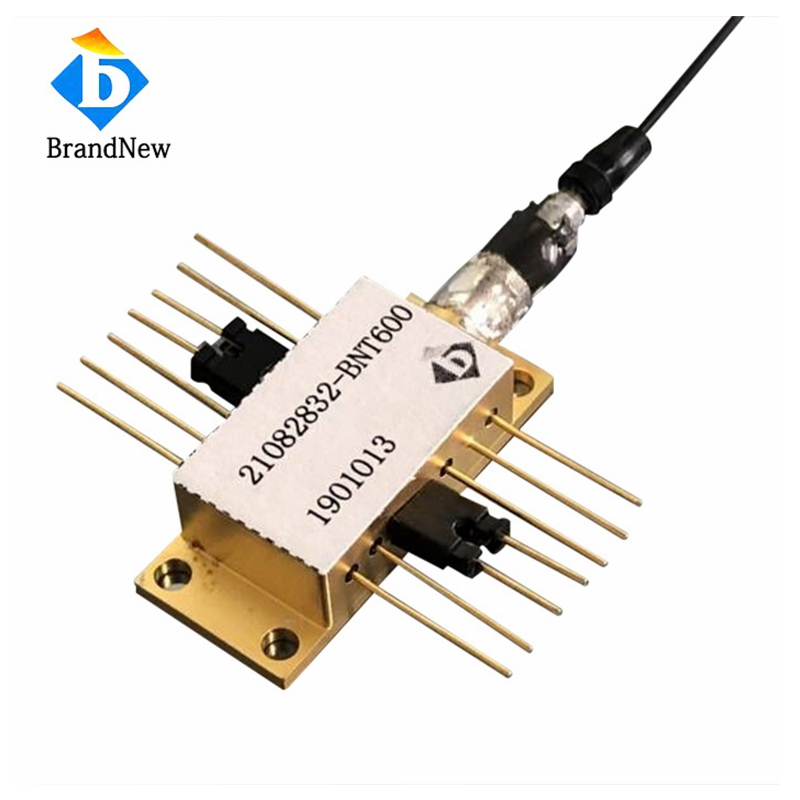

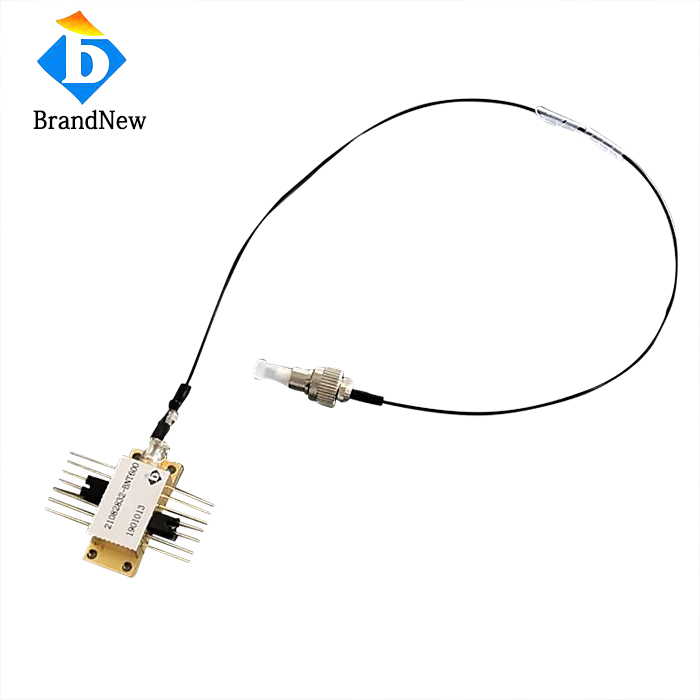

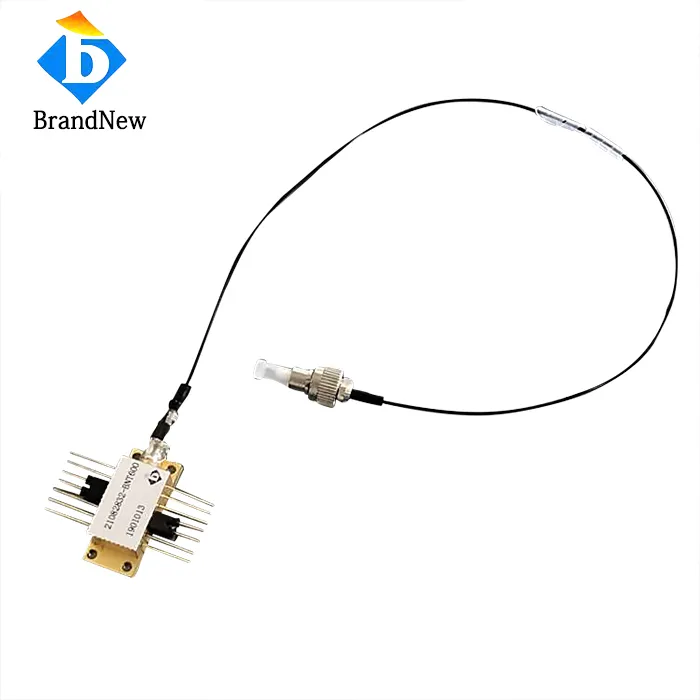

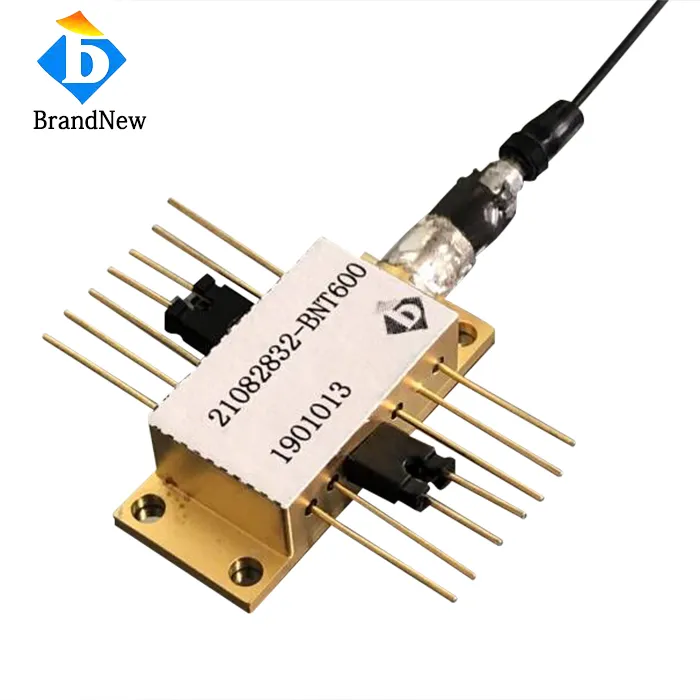

The 400mW 974nm/976nm Butterfly Laser Diode is a 14-pin, TE-cooled, fiber-coupled, PM, single-mode pump laser module designed for high-performance applications.
✓ Internal cooler and thermistor
✓ Fiber Bragg Grating (FBG)
✓ CE certificate compliant
✓ High Stability & Low Noise
Technical Specifications
Optical Parameters
Typical Value
Center Wavelength λ
974nm / 976nm
Wavelength Tolerance
±1nm
Output Power
400mW
Fiber Parameters
Fiber Type
Hi1060
Fiber Length
>1m
Fiber Connector
FC/APC
Electrical & Thermal
Threshold Current (Ith)
90mA
Operating Current (Iop)
750mA
Operating Voltage (Vop)
2.5V
Storage Temperature
-40 to 80ºC

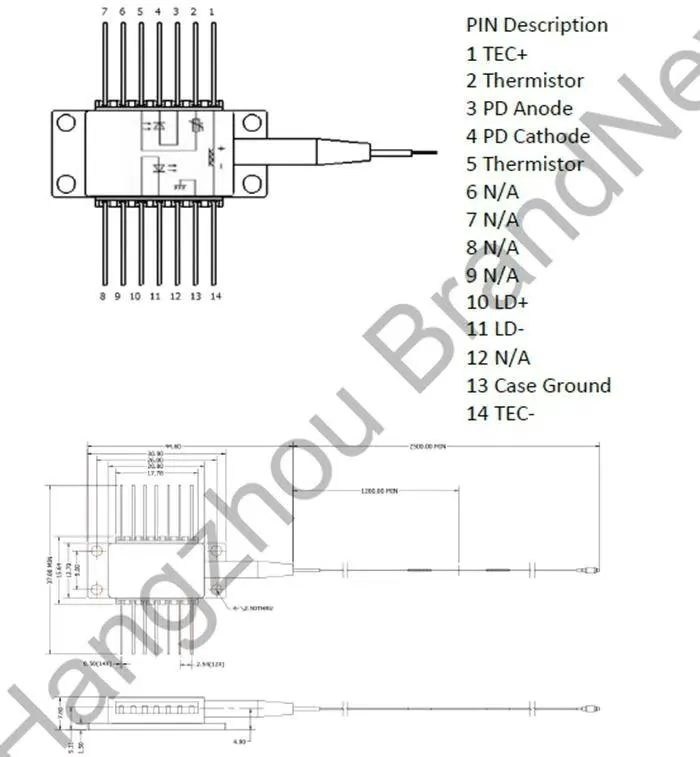

Dimensions
Manufacturing & Quality
Founded in 2011, the company specializes in manufacturing high-power diode lasers and systems across a wide range of output powers and wavelengths. Our expertise includes fiber-coupled, stack bar lasers, and plug-and-play laser solutions.

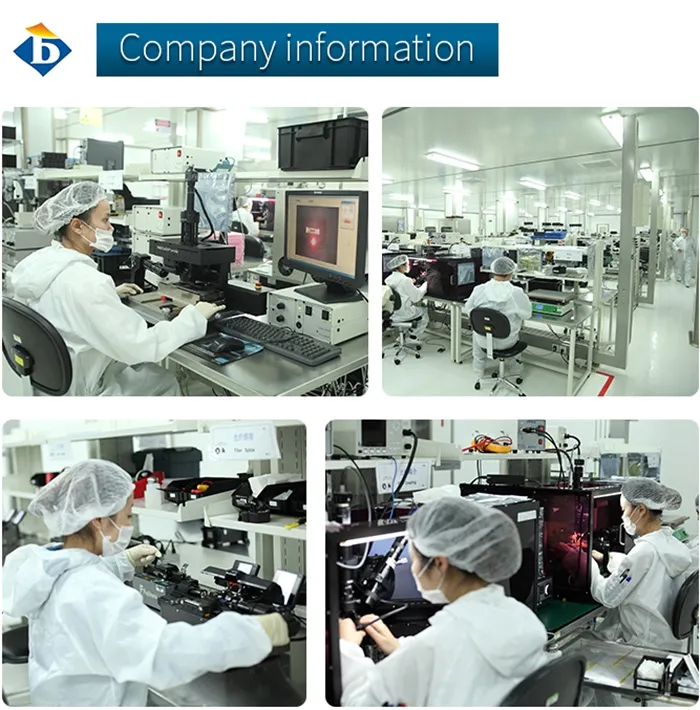

With a production space featuring a 2000 square meter Class 10,000 Clean Room and a team of highly skilled technicians and scientists, we ensure the highest standards in diode packaging, beam shaping, and reliability testing.
Frequently Asked Questions
Can you provide technical support?
Yes, we have a professional technology supporting team available for timely services and technical consultations.
What are the available delivery options?
We offer door-to-door services by air through major carriers such as DHL, UPS, TNT, and FEDEX, depending on your requirements.
What is the typical lead time for orders?
Standard products normally take 3-5 days. Customized laser modules require approximately 15 working days.
Is there a Minimum Order Quantity (MOQ)?
We support low MOQ requirements; 1pc for sample checking and evaluation is available.
What payment terms do you accept?
We accept T/T (Bank Transfer) and Western Union for your convenience.
Do you offer a guarantee for your products?
Yes, all products are rigorously tested before shipping. We provide a one-year warranty and lifelong technical support.
