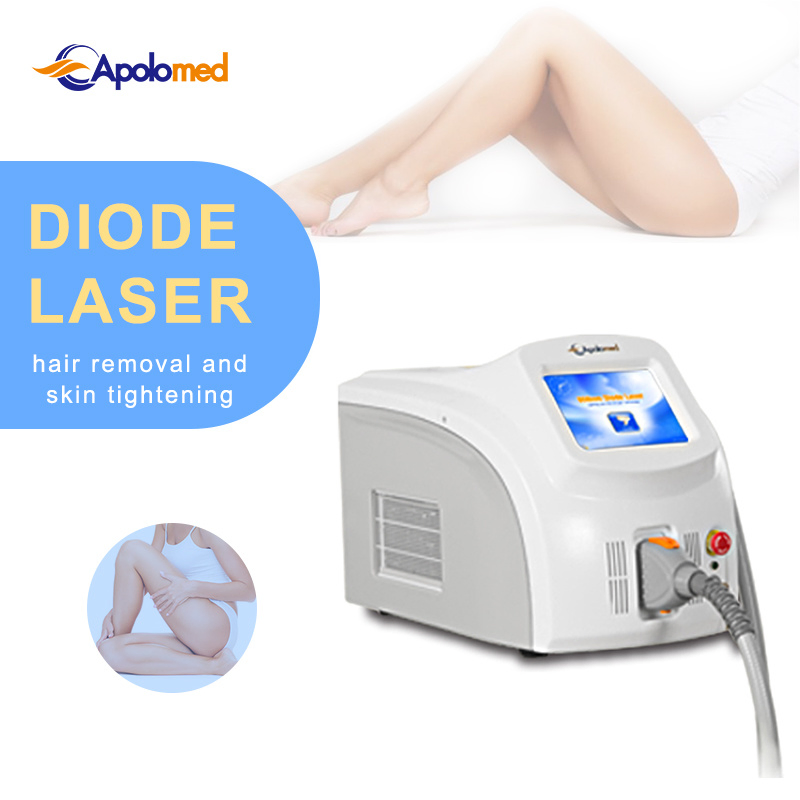

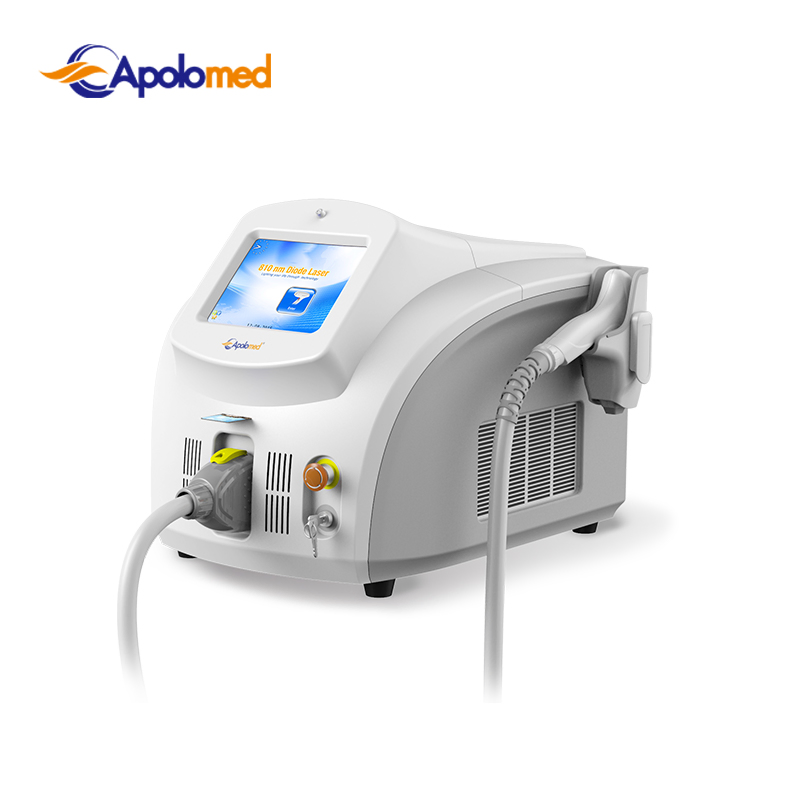

Outstanding Quality 1~100ms /1-200ms Pulse Width 808nm Diode Laser Hair Removal Machine

Customization: Available
Type: Hair Removal Instrument
Theory: Laser

Product Description

Basic Information
Model NO.
HS-816
Application
Commercial
Portable
Yes
Certificate
CE0197, ISO13485, FDA 510K
Wavelength
810nm / 755+810nm / Triplewave
Laser Power
1600W
Spot Size
12*14mm
Cooling
Air Compressor Cooling System
Product Description

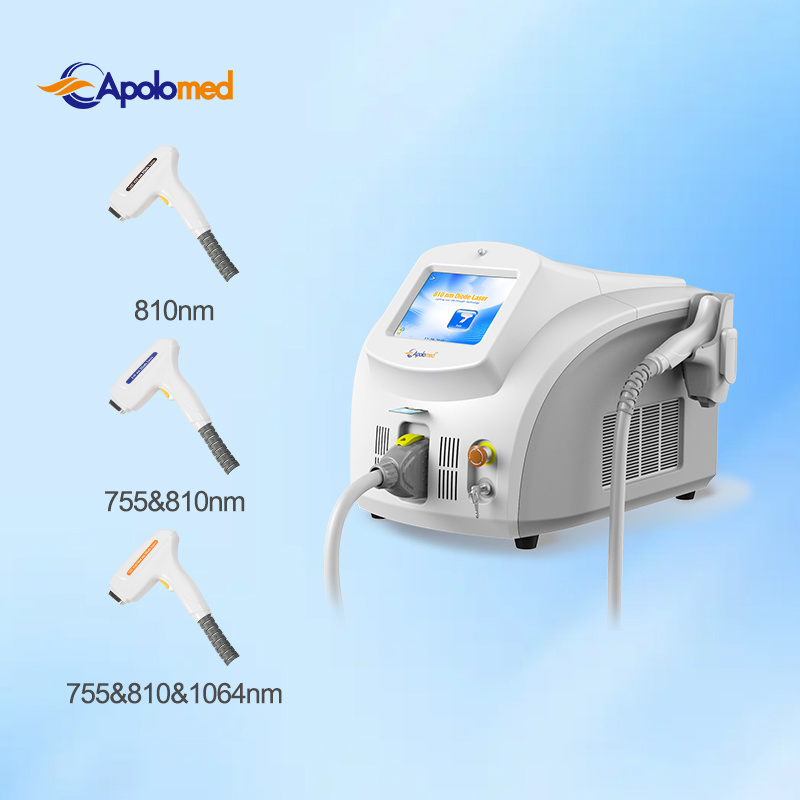

The HS-816 diode laser combines multiple wavelengths (810nm, 755nm+810nm, and triple wave 755+810nm+1064nm) to perform high-efficiency hair removal on all skin and hair types. Its high energy density enables faster results and virtually painless sessions.

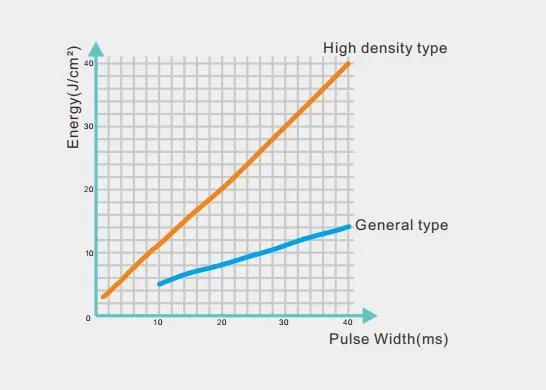

High Density Diode Laser Technology

Utilizing exclusive ultra-short pulse technology, it delivers pulses as short as 1ms at 1600W high peak power. This guarantees effectiveness, shortens treatment sessions, and targets even residual or fine blonde hair.

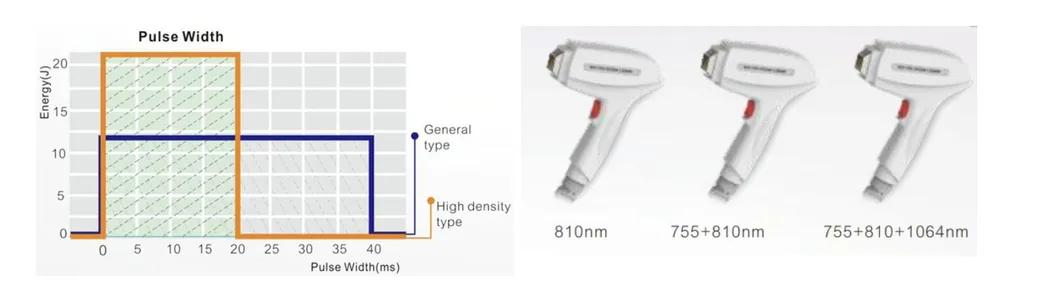

Diode Laser Technology
Wavelength Depth

Key Advantages

  • Ultra short pulses - as short as 1ms for maximum efficiency.
  • Dualwave 755/810nm head for widest range of hair colors.
  • High power output ensures comfortable treatment with less skin damage risk.
  • Advanced refrigeration system maintains tip cooling between 4°C and -4°C.
  • Large 14mm x 12mm spot size for rapid coverage.

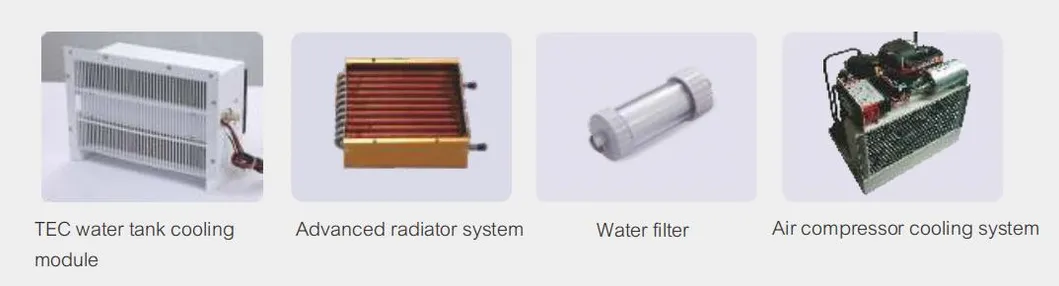

Professional Accessories

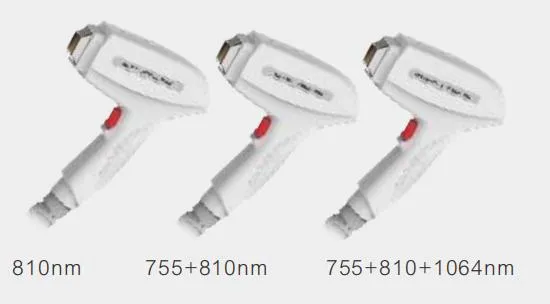

Laser Handpiece
Technical Specifications
  • Pulse Width
  • FeatureDetails
    Wavelength810nm / 755+810nm / Triplewave
    Spot Size10*10mm / 12*14mm
    Repetition Rate1-15Hz
    1~100ms / 1-200ms
    Laser Output1200W / 1600W
    Energy DensityUp to 72J/cm²
    Cooling SystemAir compressor + Sapphire contact cooling (-4~4 ºC)
    Interface9.7" True Color Touch Screen
    Weight35kg
    Working Theory & Quality

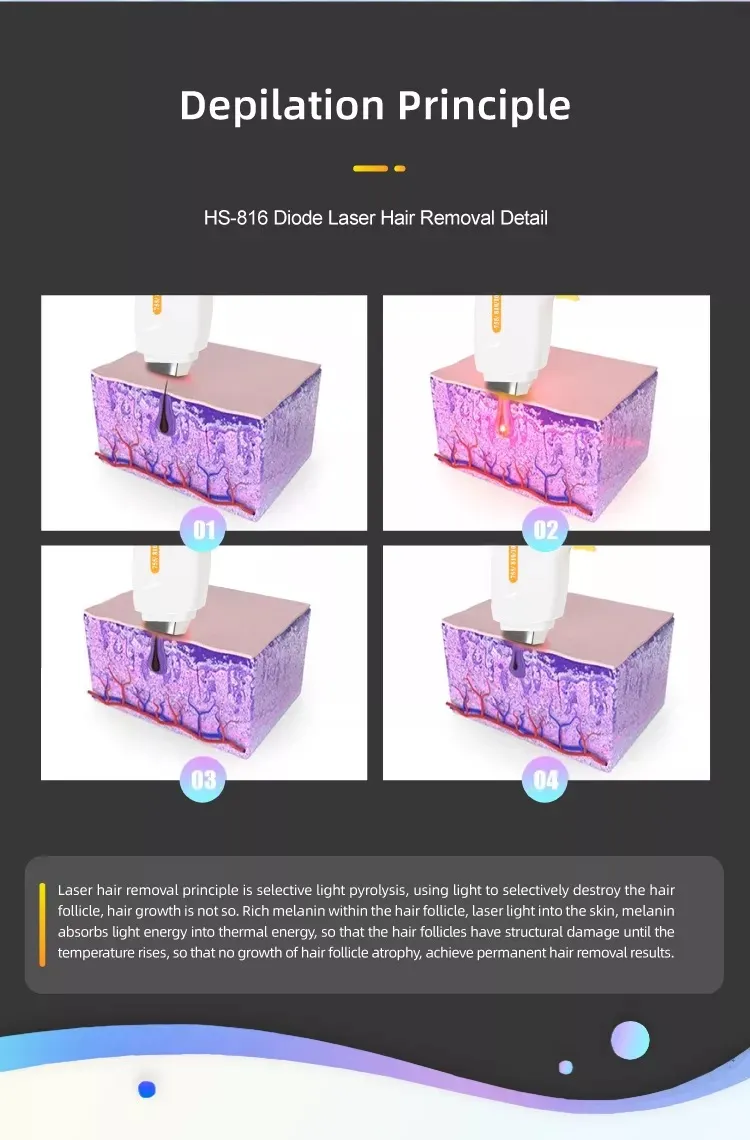

    Theory 1
    Theory 2

    Our diode stacks are imported from the USA, precision-assembled using automated machines to ensure consistency and accuracy. The system includes professional features like IC card functions for shot control and USB software updates.

    Treatment Result 1

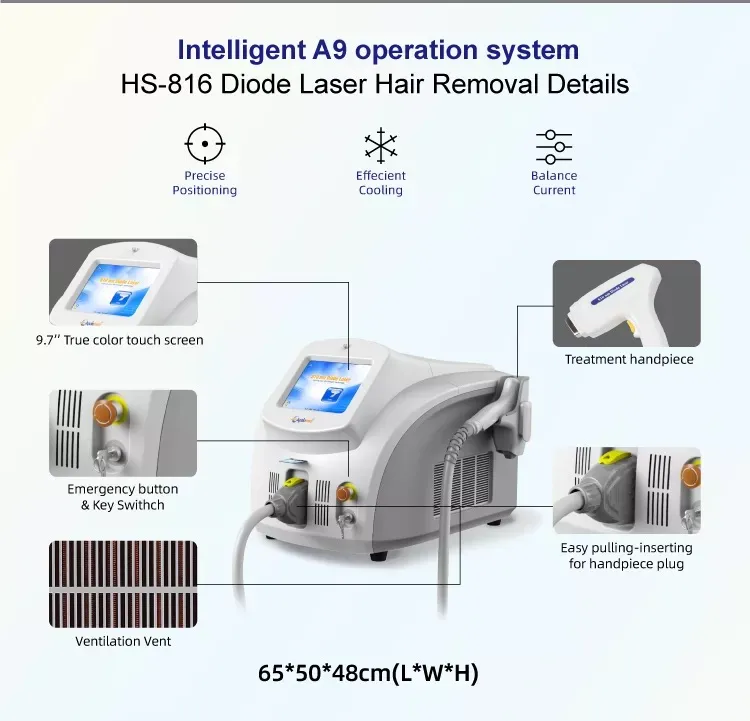

    Treatment Result 2
    Treatment Result 3
    Manufacturing Excellence

    As a leading designer and manufacturer since 2001, we specialize in Intense Pulsed Light (IPL), various laser technologies, and body slimming solutions. Our equipment is manufactured strictly in accordance with ISO 13485 and complies with Medical CE certificates (MDR).

    Certificates

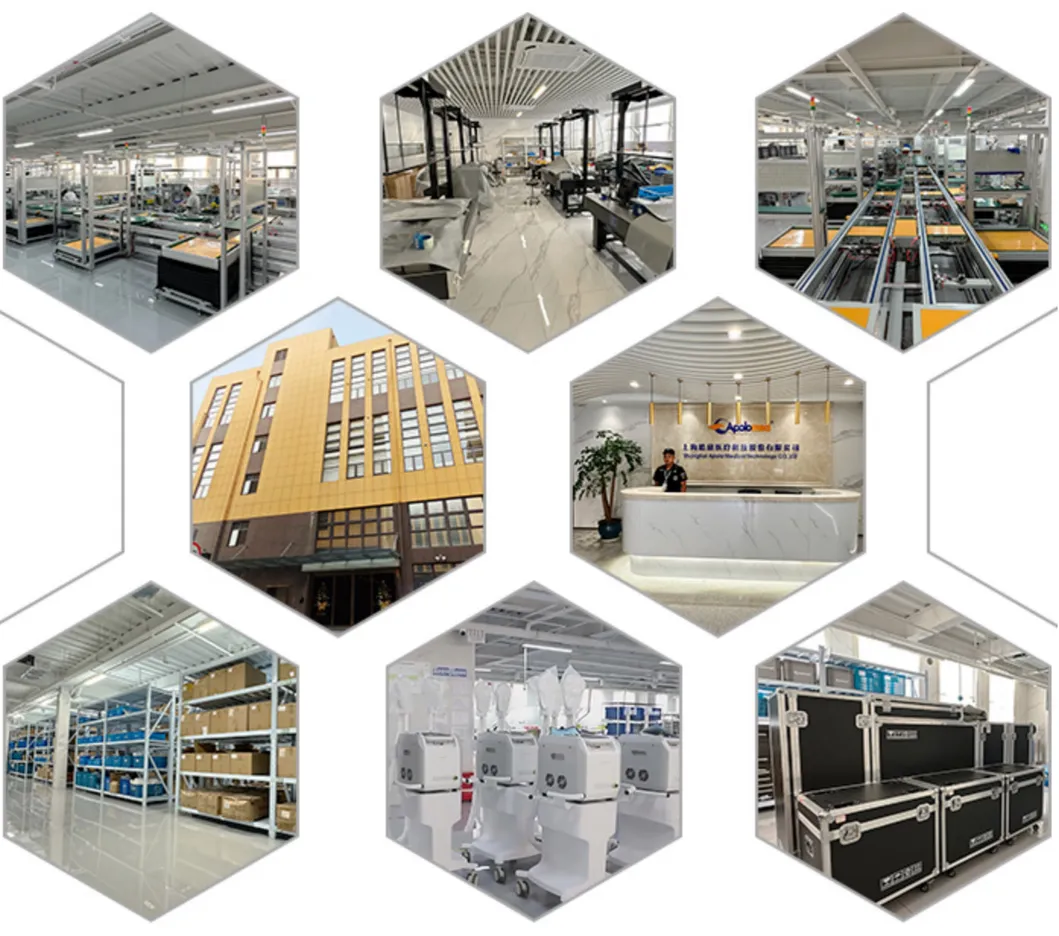

    Factory
    Frequently Asked Questions
    1. What wavelengths are available for the HS-816?
    The device offers 810nm, a combination of 755nm+810nm, and a triple-wave option (755+810+1064nm) to treat all skin types effectively.
    2. Is the hair removal treatment painful?
    No. Thanks to the advanced sapphire contact cooling system which maintains temperatures between -4°C and 4°C, the treatment is virtually painless and safe for the skin.
    3. What makes the "High Density" diode laser different?
    It uses ultra-short pulse technology (as low as 1ms) with 1600W high peak power, allowing it to target fine and blonde hair that standard lasers might miss.
    4. Can this machine be used for commercial purposes?

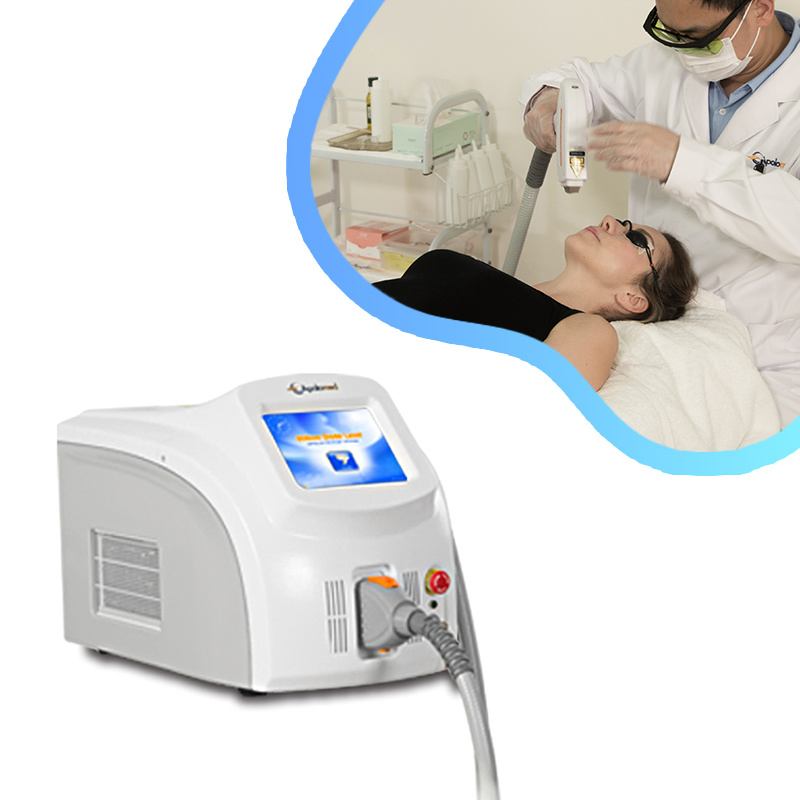

    Yes, it is designed for commercial use in medical and aesthetic clinics, featuring a robust cooling system for all-day operation.
    5. What certifications does the equipment have?
    Our products are manufactured under ISO 13485 and hold Medical CE (MDR), US FDA 510K, Australia TGA, and Brazil Anvisa certifications.
    6. How fast is the treatment session?
    With a large 12*14mm spot size and a repetition rate of up to 15Hz, the HS-816 allows for very fast and efficient coverage of large body areas.
