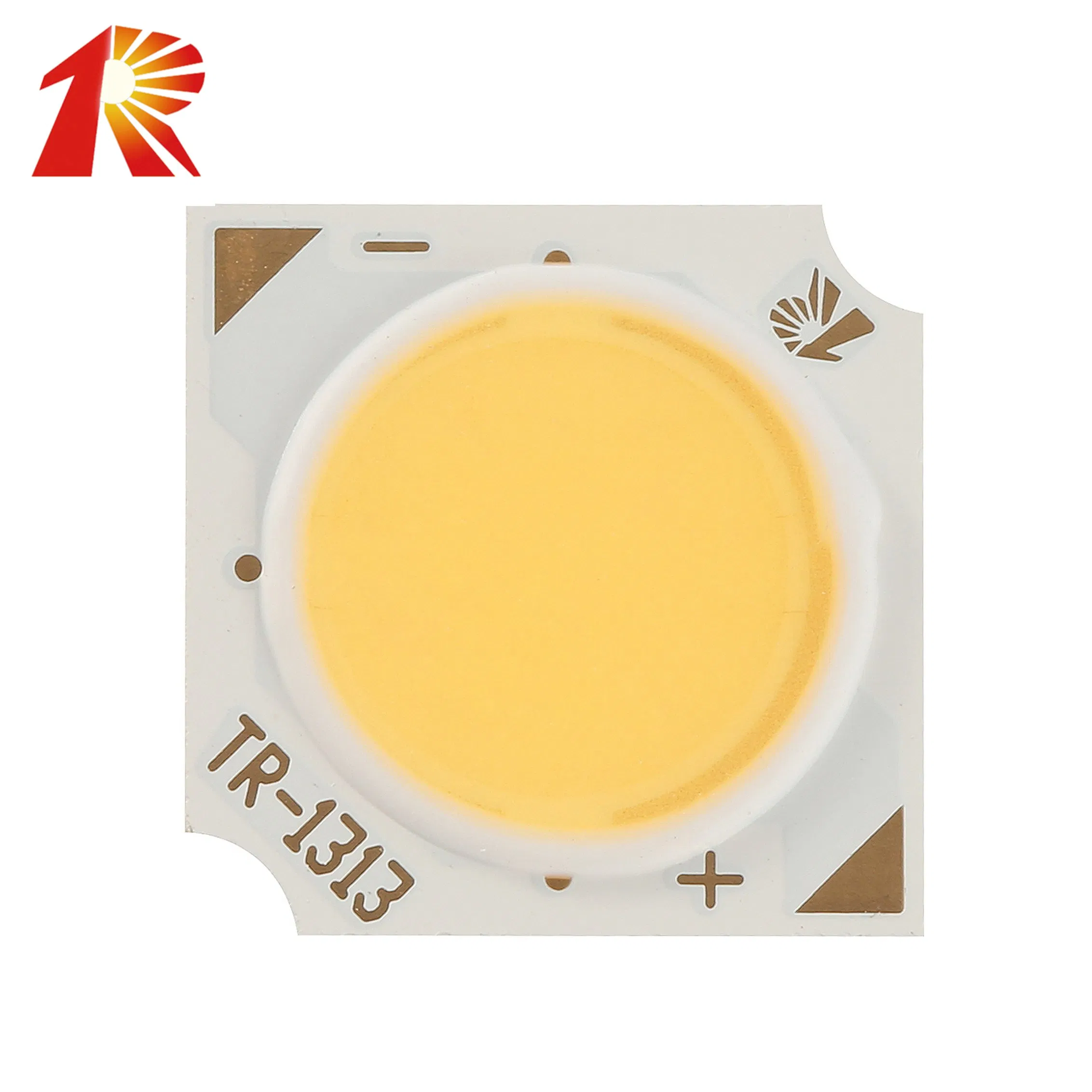

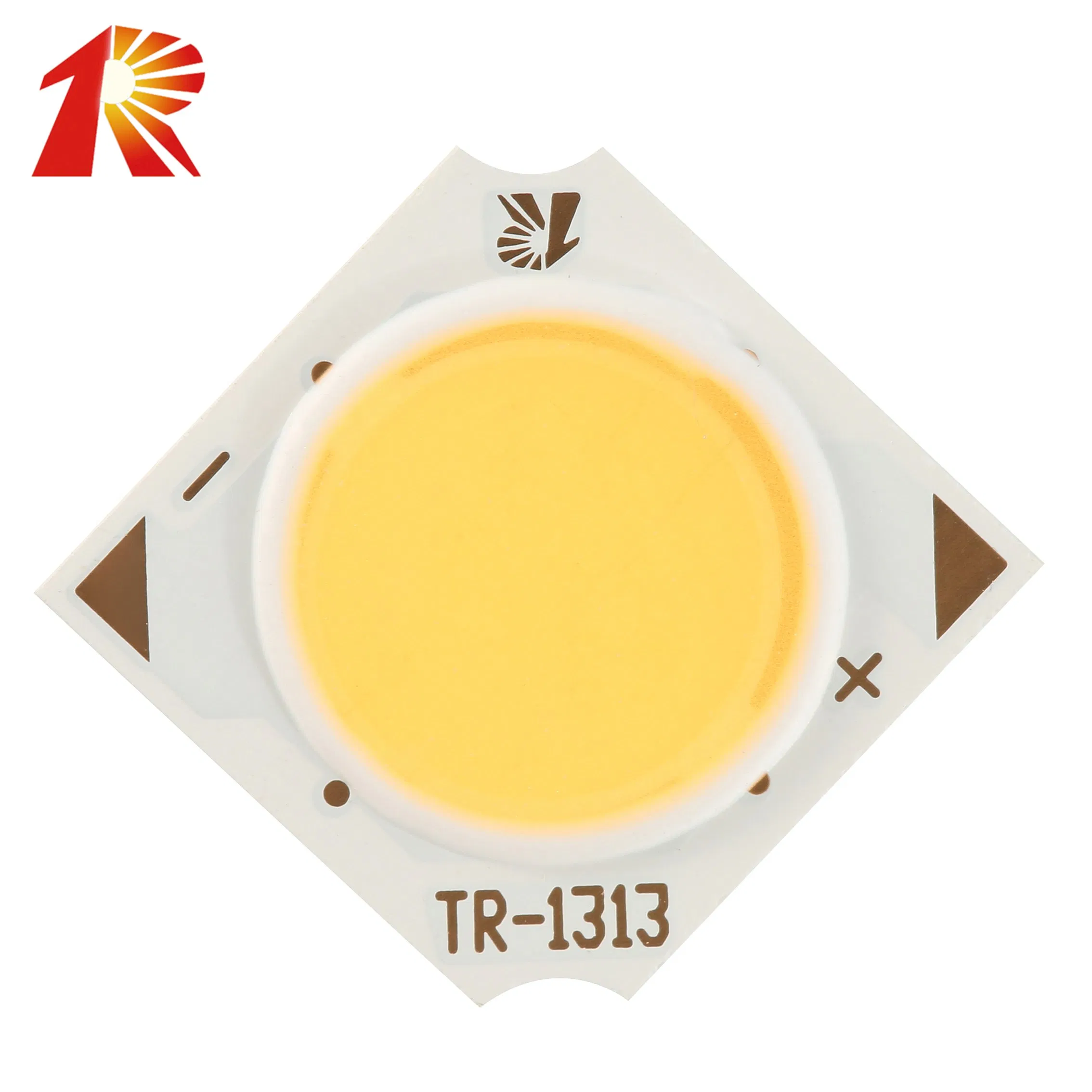

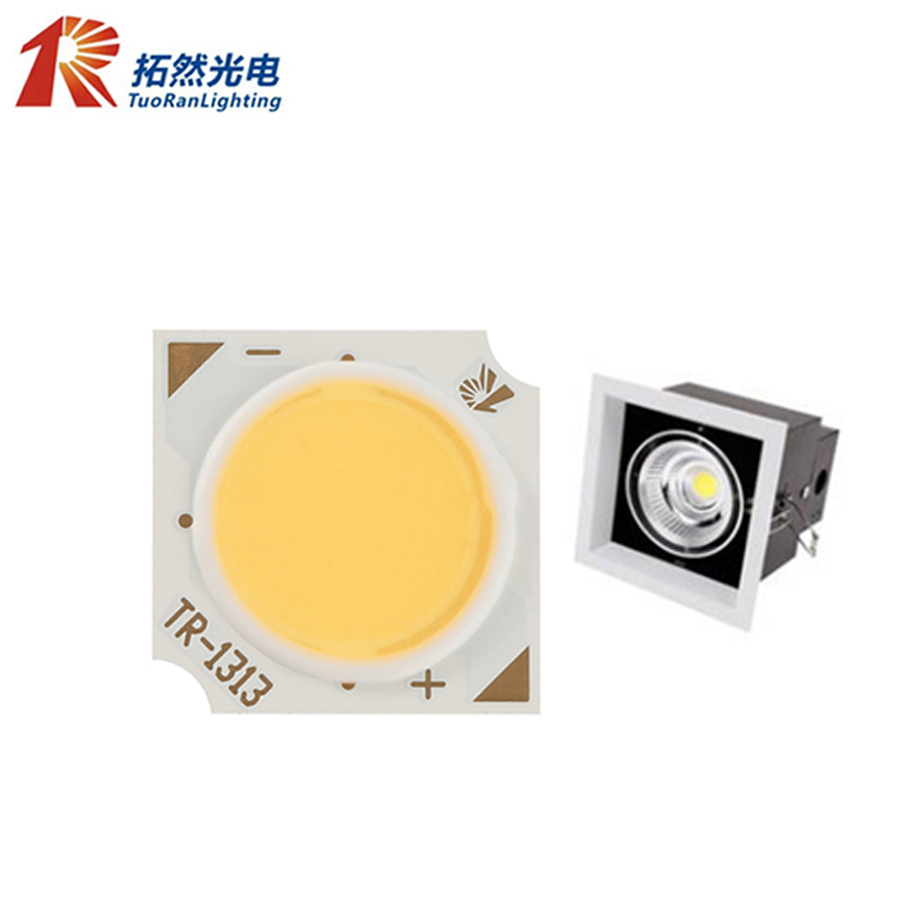

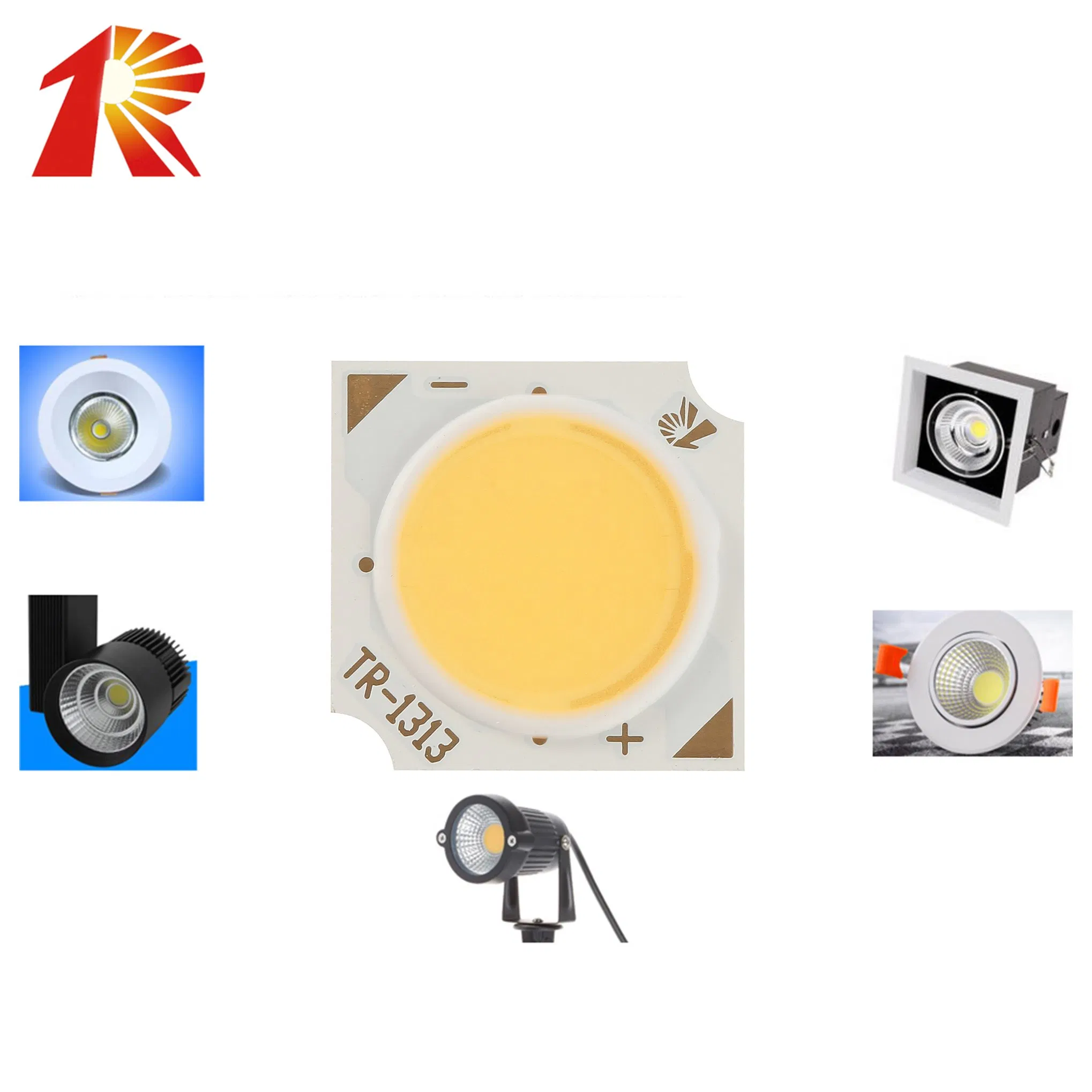

COB LED Light Strip 11mm Diameter Round 3W 5W 7W 12W Chip on Board LED Spotlight Source for Indoor Decoration Spotlight Lamp

1 / 5

COB LED Light Strip 11mm Diameter Round 3W 5W 7W 12W Chip on Board LED Spotlight Source for Indoor Decoration Spotlight Lamp

Customization:	Available
Usage:	Flood Light, LED Bulb, Downlight, Spotlight, Ceiling Light
Power:	5W/7W/10W/20W24W/40W30W/35W

Send Inquiry

Product Description

Basic Information

Model NO.

TR-COB 1414

Emitting Color

Customizable

LED Chips

Sanan

Welding Process

Hot Pressure Welding

IP Rating

IP50

Beam Angle

120°

Base Material

Aluminum

Life

30000h

Certification

RoHS, CE

15-60V

Tck

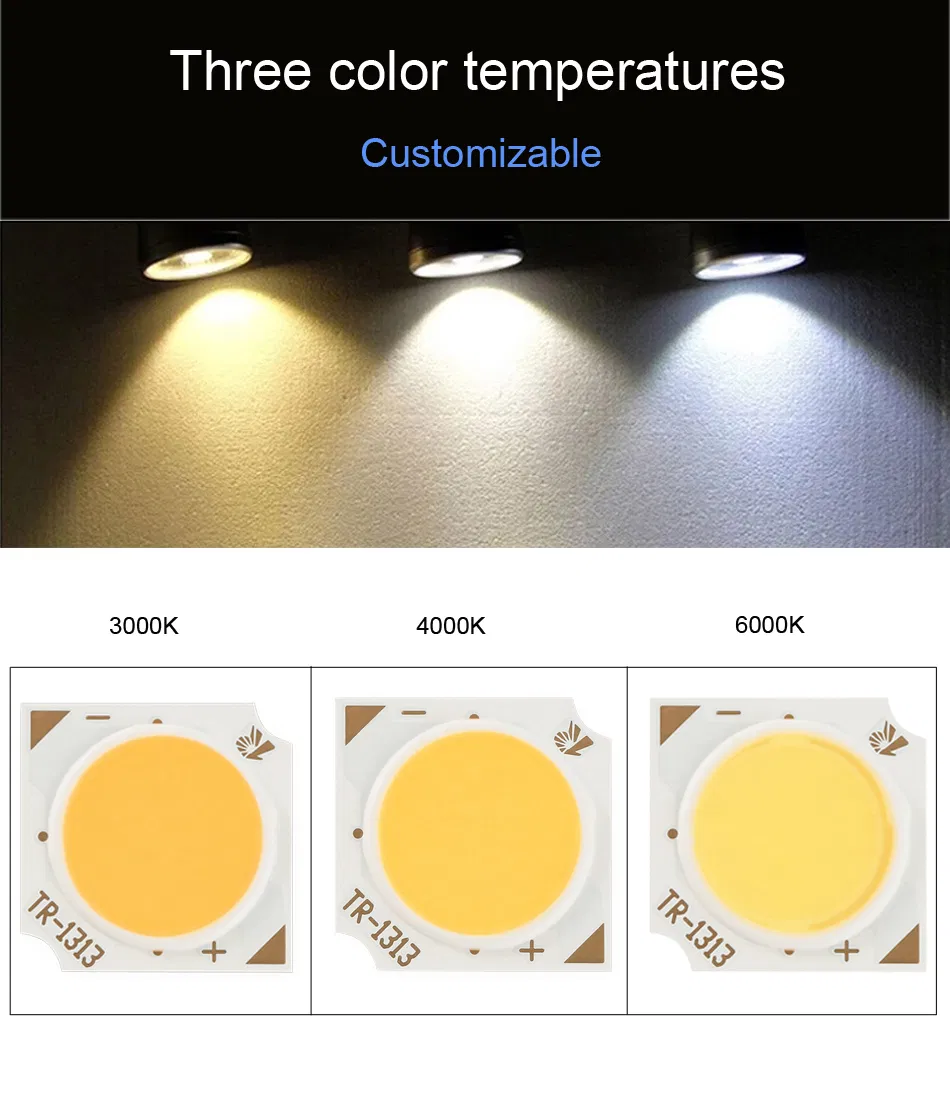

2700/3000/4000/6000K

80/90/95

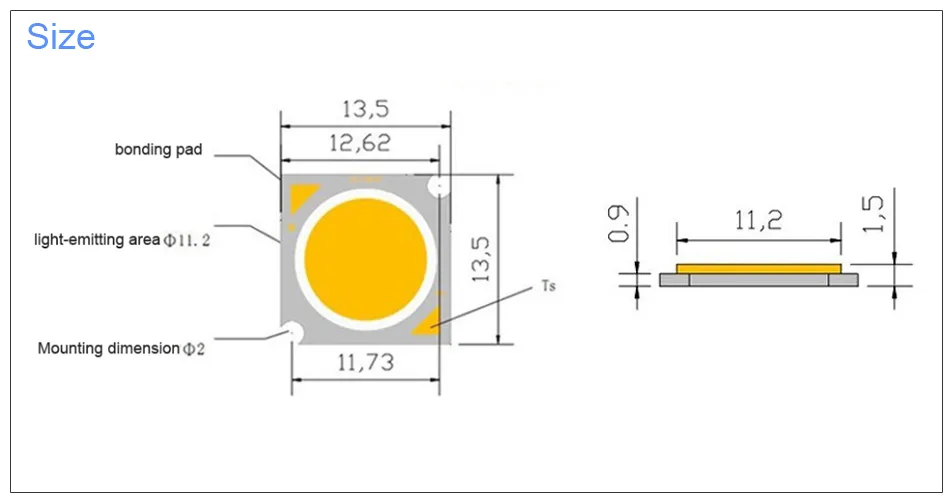

Size

14*14*1.5mm

Production Capacity

500000 Pieces/Month

Product Parameters

Model	Power	IV(Lm)	VF(V)	IF(mA)	CCT(K)	Whole Size	Emit Size	Ra	Material
TR-COB1414	3W	300-330lm	9-9.6V	300	3000K 4000K 6000K	13.513.51.5mm	Φ11.2mm	80	Mirror aluminum substrate
	5W	500-550lm	15-17V
	7W	700-770lm	21-24V
	9W	900-1000lm	27-30V
	12W	1200-1320lm	36-39V

The above parameters are in the general range. Special requirements can be customized according to your parameters.

Product Description

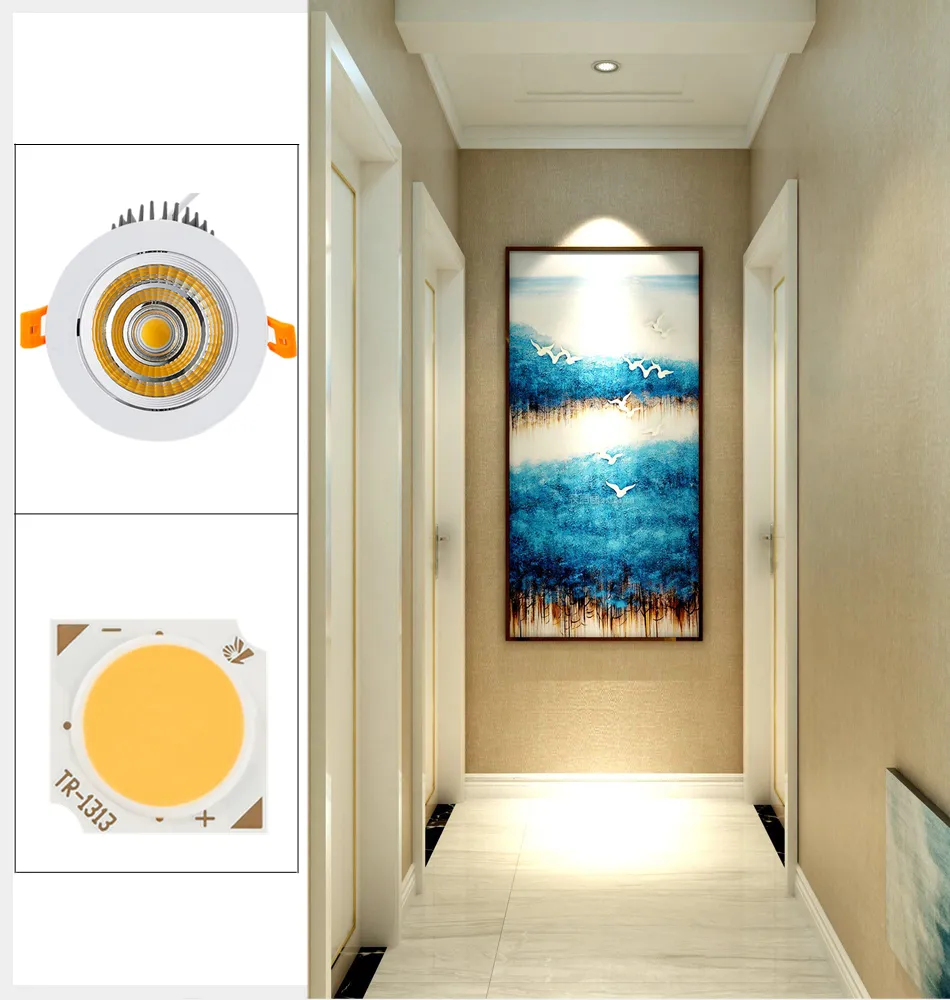

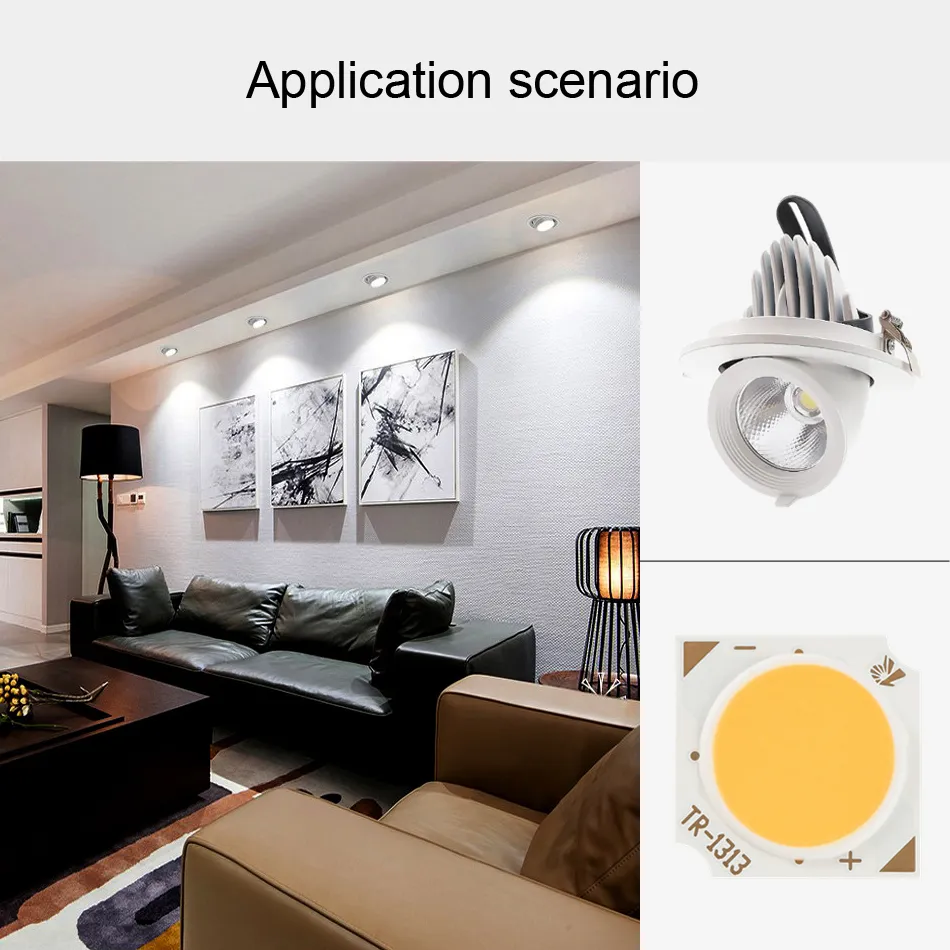

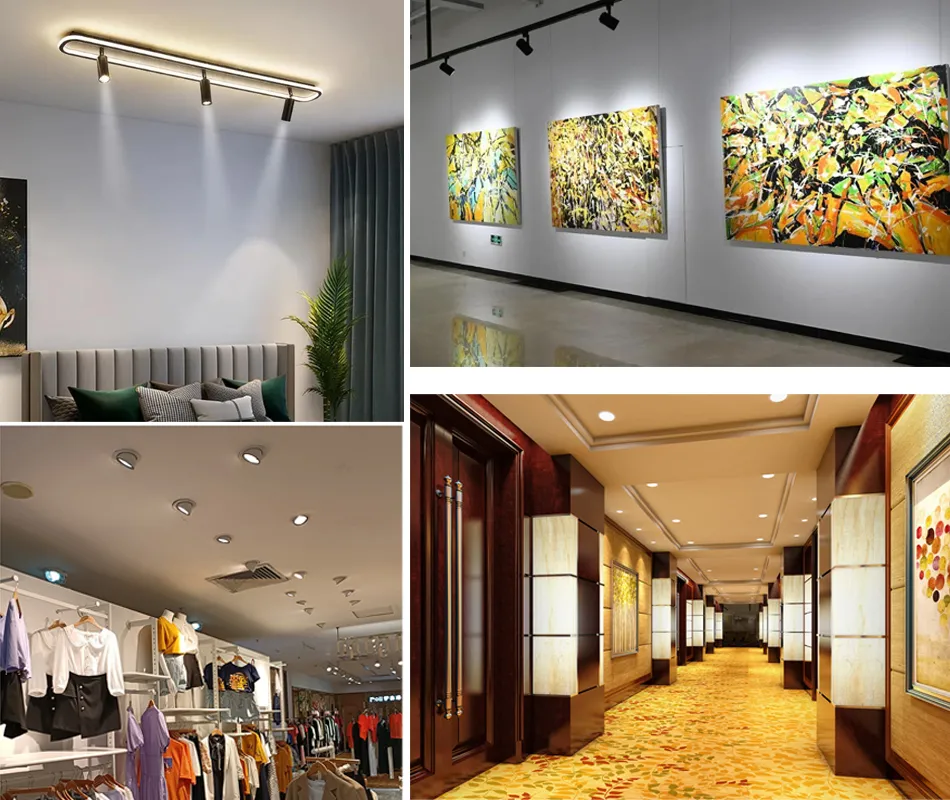

Application

It is widely used in COB bulb lamp, COB table lamp, COB street lamp, COB spot lamp, COB ceiling lamp, COB track lamp, COB fluorescent lamp, indoor and outdoor commercial lighting, decoration and entertainment lighting, etc.

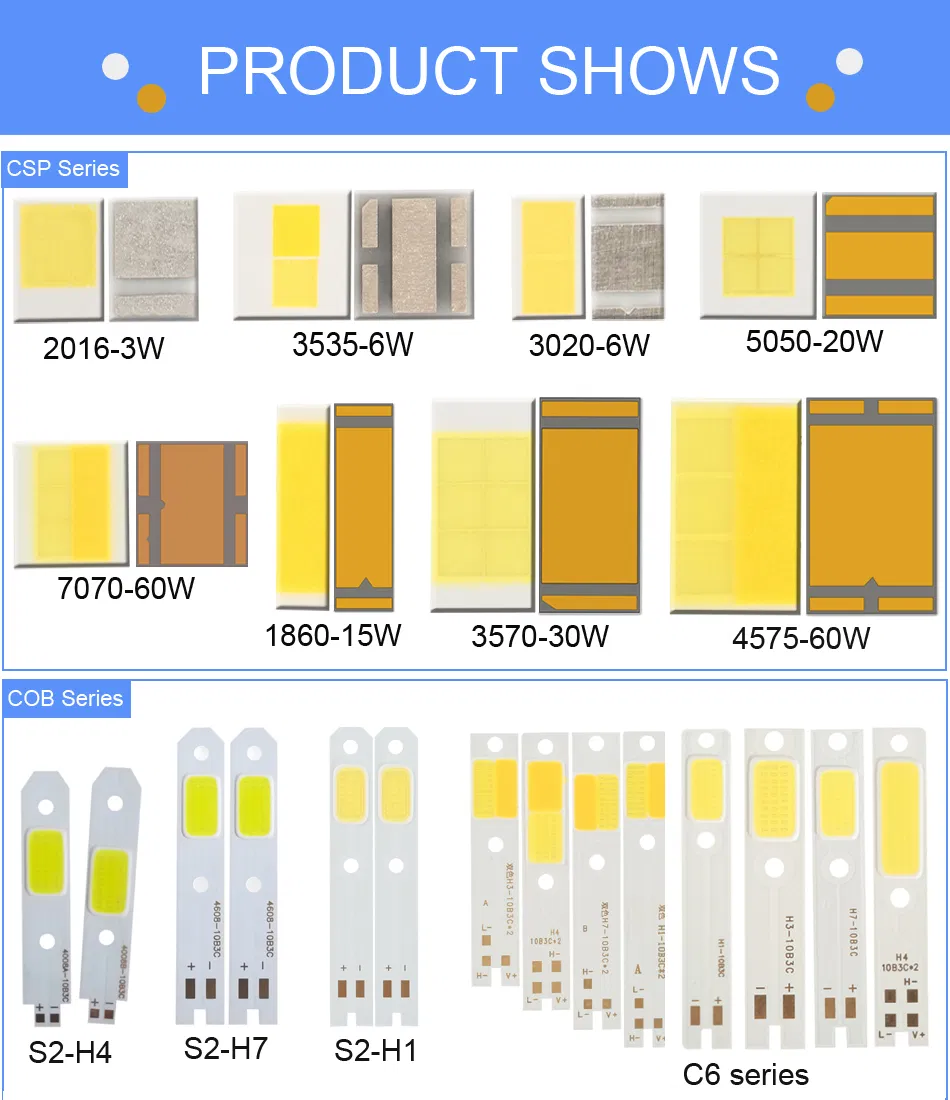

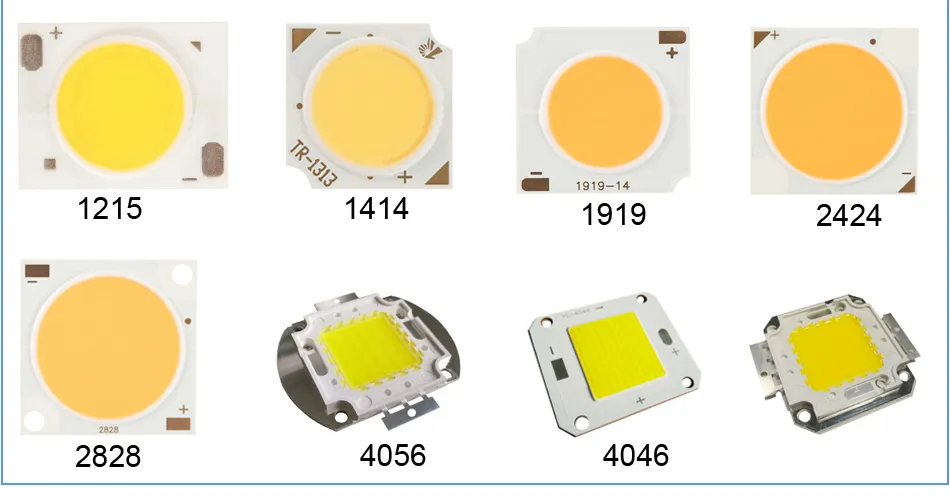

Related Products

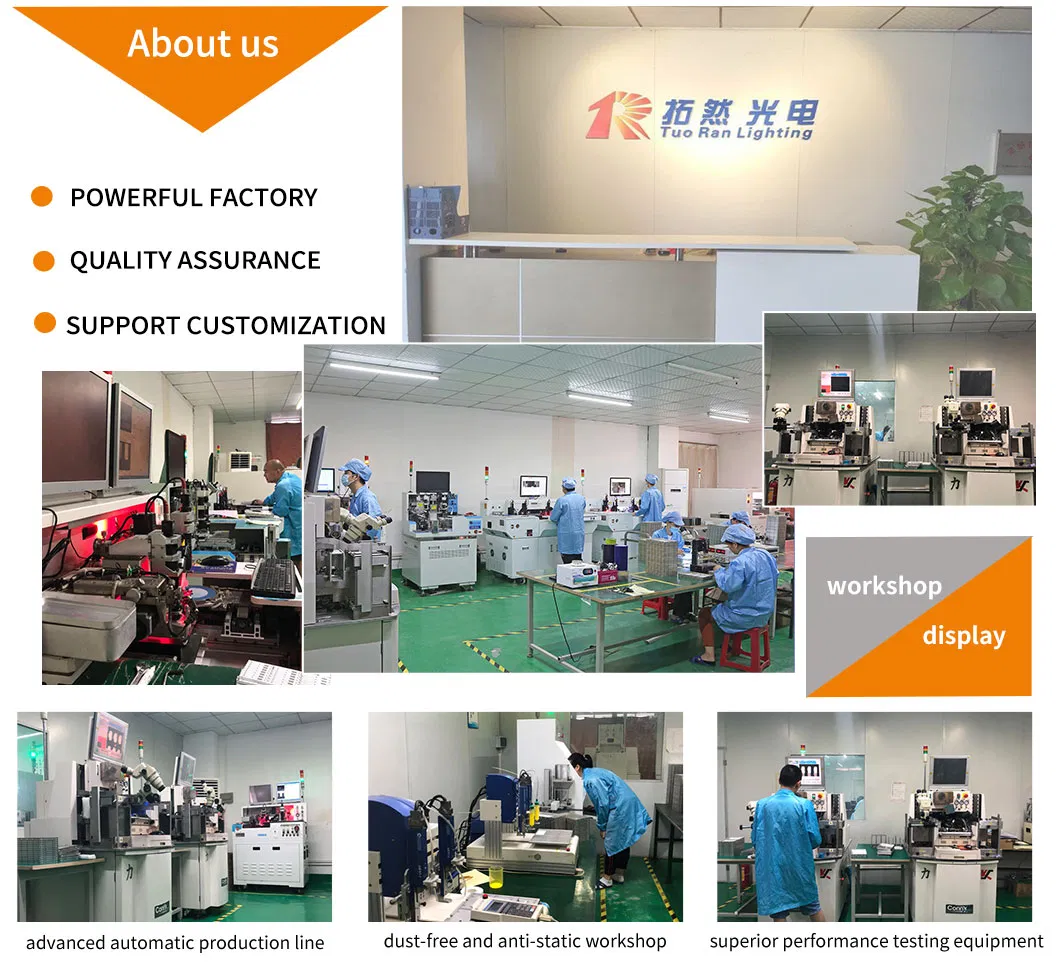

Manufacturing & Quality

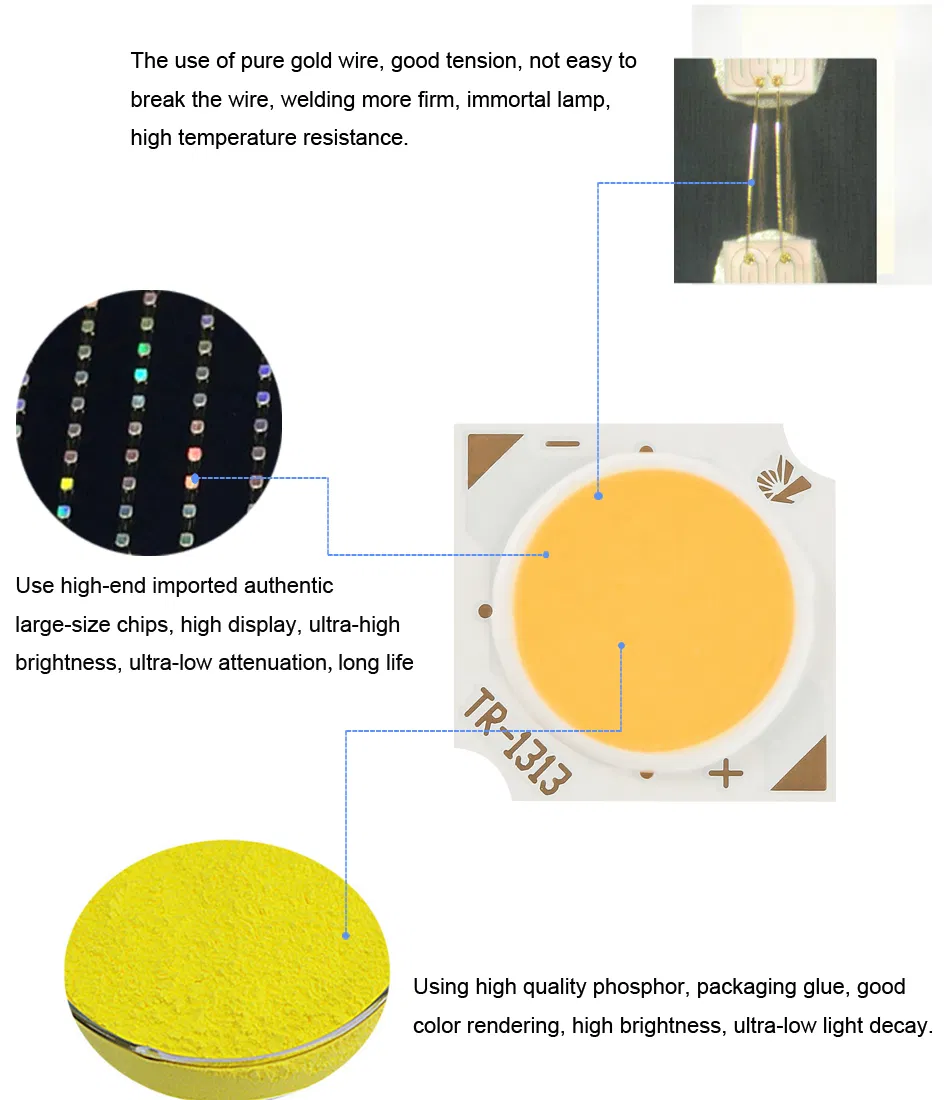

Our factory introduces the most advanced machinery and equipment, including advanced automatic production lines and production technology, dust-free and anti-static workshops, and superior performance testing equipment. From fixed chip, welding line, potting, spectral color separation, packaging, to inspection, all processes are automated.

Packaging & Shipping

Package Size

29.00cm * 18.00cm * 17.00cm

Package Gross Weight

8.000kg

Transport Package

Neutral Packaging

Frequently Asked Questions

Can I have a sample order of LED lamp?

Yes, we welcome sample orders to test and check the quality. Mixed samples are acceptable.

How about the delivery cycle?

It takes 3-5 days for samples and 1-2 weeks for batch production depending on the order volume.

How do I order LED lights?

First, let us know your request or application. Secondly, we will quote according to your requirements. Third, the customer confirms the sample and pays the deposit. Fourth, we arrange production.

Do you guarantee the products?

Yes, we provide a 1-year warranty for our products to ensure reliable performance.

Can the COB LED parameters be customized?

Yes, we can customize the power, brightness (Lm), voltage (VF), and color temperature (CCT) according to your specific requirements.

What are the main applications for these COB LEDs?

They are widely used in commercial lighting, including spotlights, ceiling lamps, track lights, and street lamps, as well as indoor decoration.
