Product Description

Basic Information
Model NO.
MF-COBIC-336-12V
Emitting Color
RGBW CCT Dim
Voltage
DC12V/24V
IP Rating
IP20/IP54/IP65/IP67/IP68
LED Type
COB LED Chip
Luminous Efficacy
90-95lm
CRI
>80
PCB Size
5000*8*1.6
Lifespan
50,000hrs
Warranty Period
2 Years
Product Description

Low Voltage DC 12V 24V Flexible Chip on Board COB LED Strip Lighting

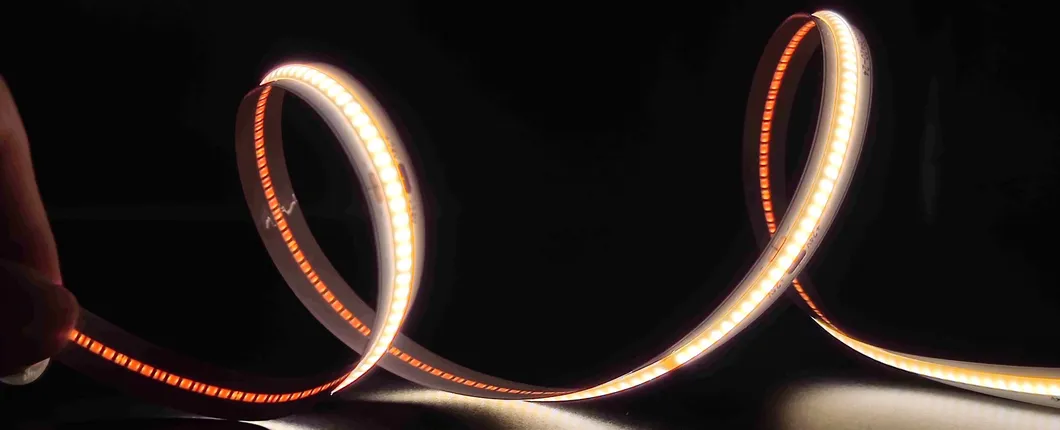

COB LED Strip Light

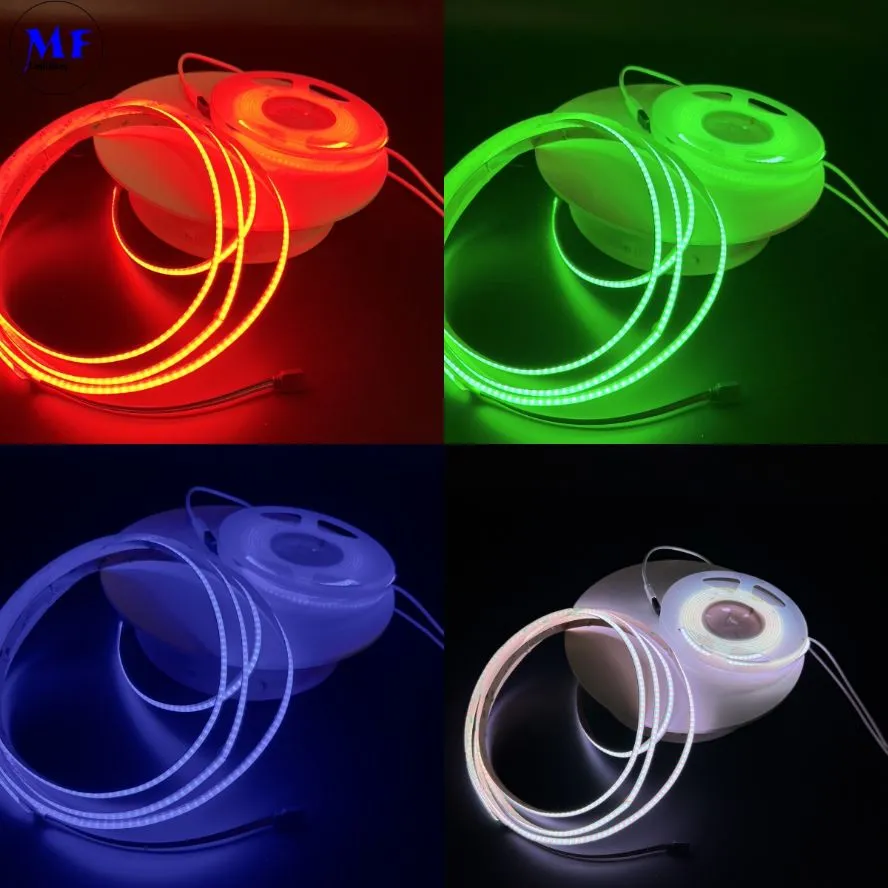

SAFE LOW VOLTAGE DESIGN
  • ✓ 12V/24V lamp with low voltage safe and reliable
  • ✓ Power: 6-15W
  • ✓ LED Density: 336LEDS/M - 896LEDS/M
  • ✓ CCT Options: 3000K/4000K/5000K/6000K/R/G/B/RGBW/RGBCCT
  • ✓ High Efficiency: 90-95LM/W

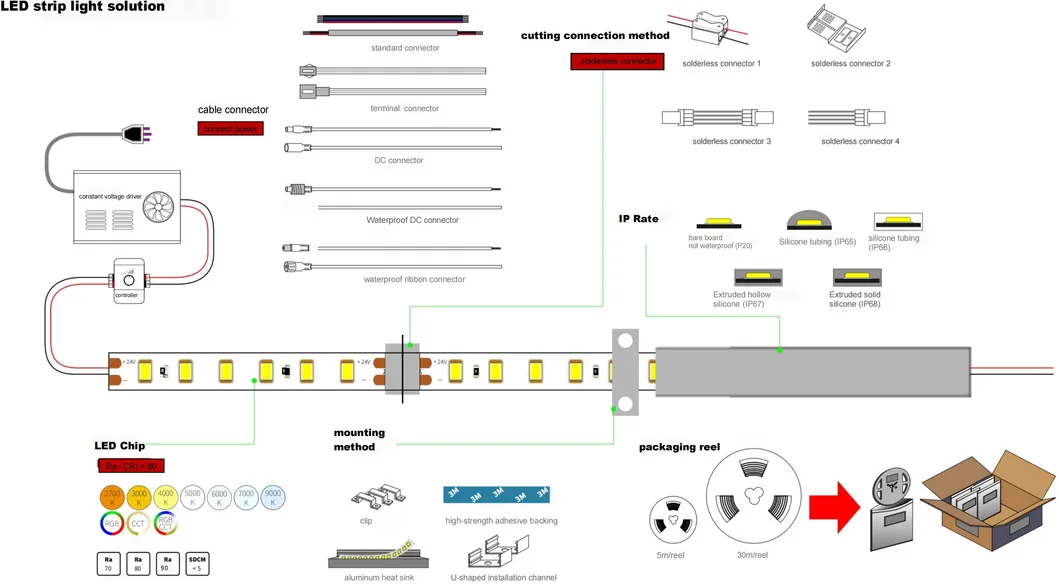

Safe Low Voltage COB Structure

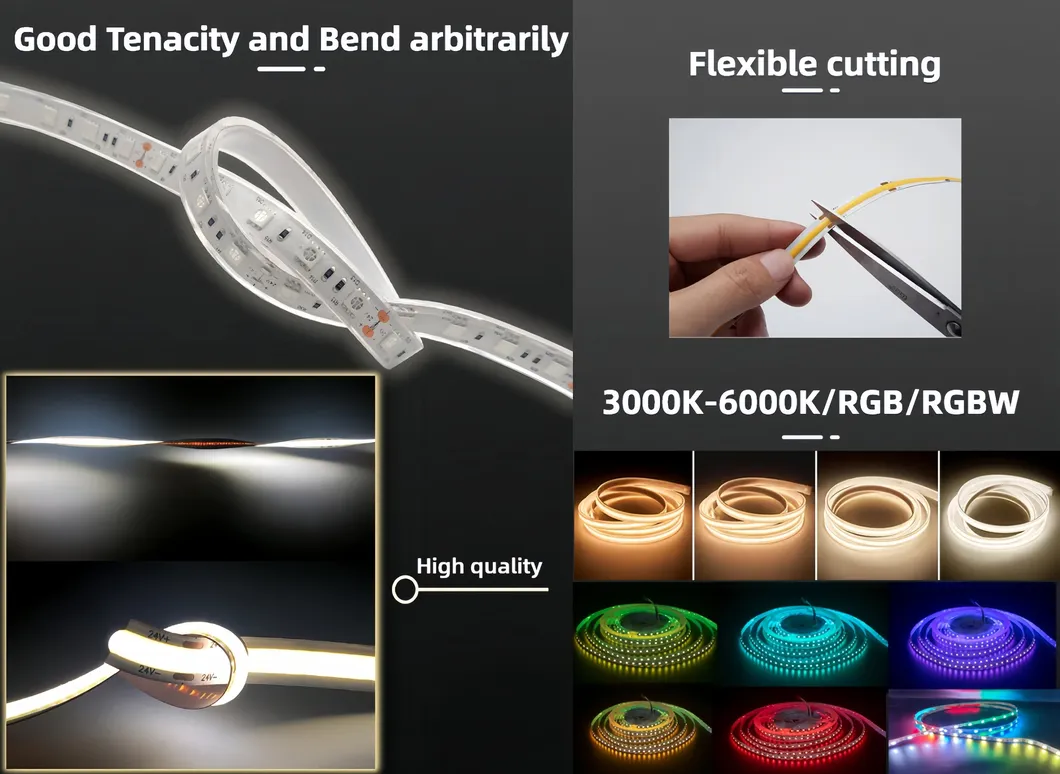

Lighting Effect
Technical Specifications
Model No LEDs/m CCT CRI IP Voltage PCB Width Cut Length Wattage Warranty
MF-COBIC-336-12V 336 3000K-6000K 90 IP20 12V 8MM 35.71MM 8W/M 2 Years
MF-COBIC-384-24V 384 3000K-6000K 90 IP20 24V 8MM 62.5MM 9W/M 2 Years
MF-COBIC-480-24V 480 3000K-6000K 90 IP20 24V 8MM 50MM 9W/M 2 Years
MF-COBIC-504-24V 504 3000K-6000K 90 IP20 24V 8MM 41.66MM 10W/M 2 Years
Advanced Manufacturing Technology

The COB strip light boasts cutting-edge flip-chip on flexible board technology. LED chips are seamlessly soldered and dispensed in a linear arrangement without gaps, using advanced machine automation. Roll-to-roll production enhances efficiency by eliminating handling losses and delays. Quality is ensured with a 99.8% first pass yield and automatic COB die-bonders.

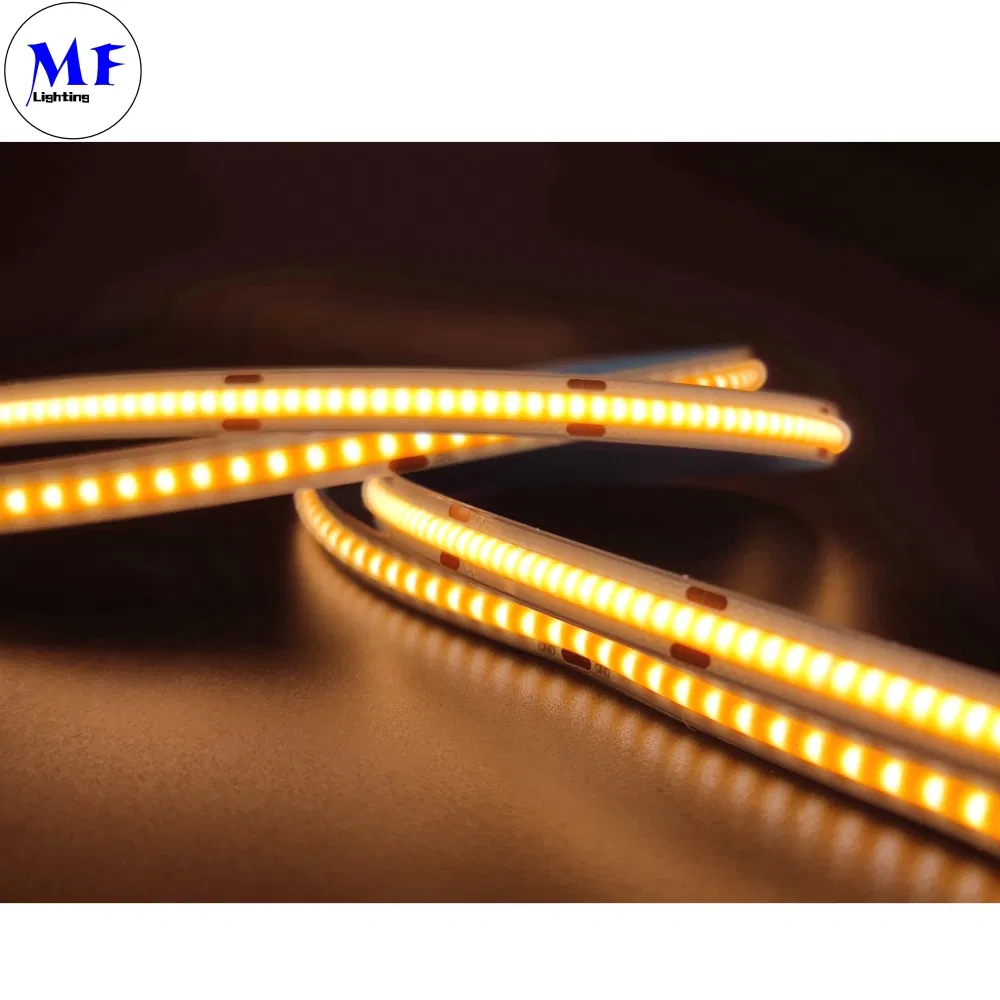

Production Line Chip Detail

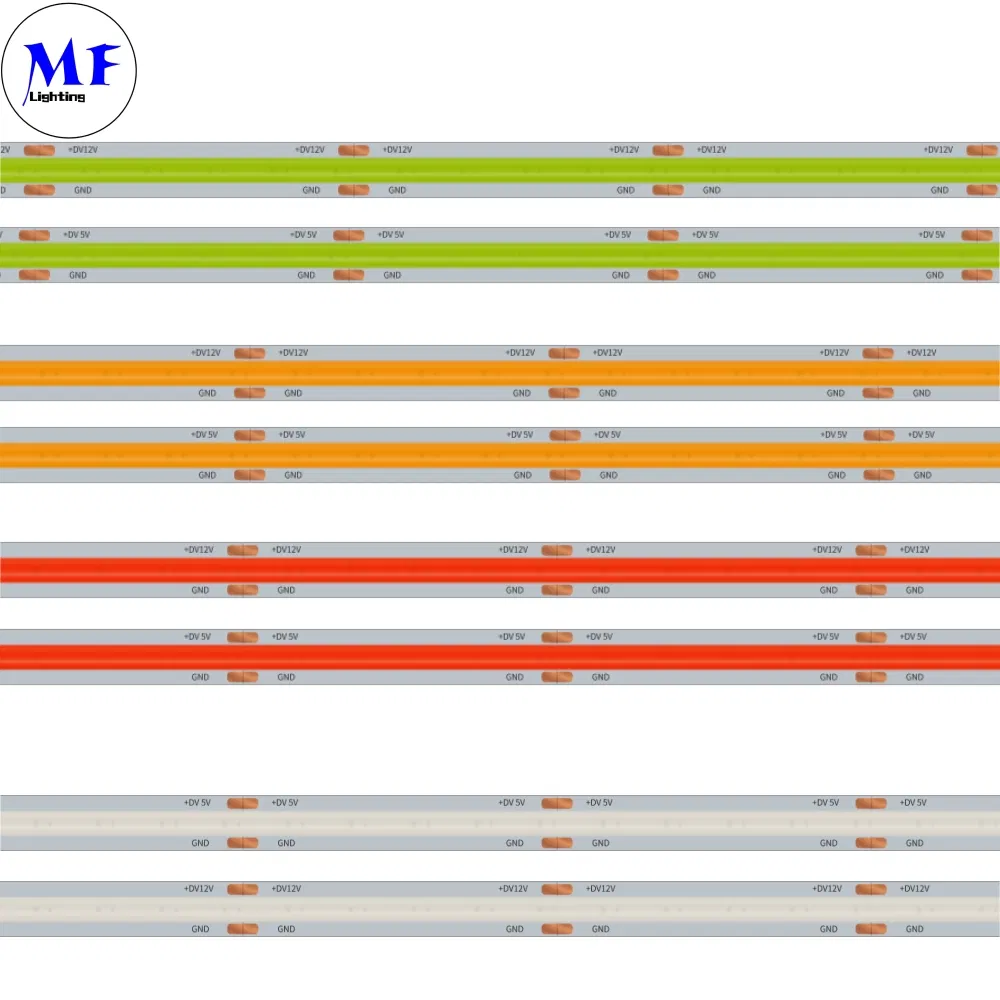

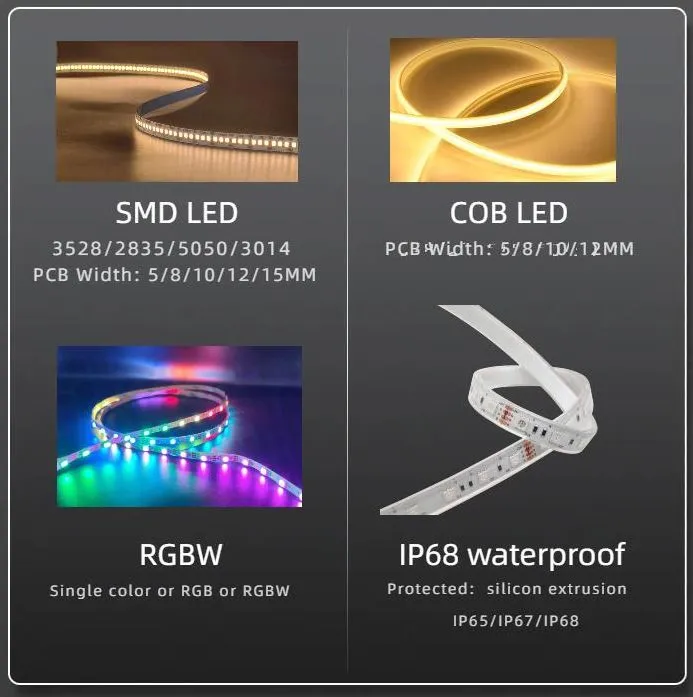

Flexible Board COB Light Detail
Key Features
  • ★ Passed LM80 and TM30 tests for color stability.
  • ★ High-speed SMT automatic installation.
  • ★ Silicone integration for up to IP68 extrusion.
  • ★ Certified with CE, ROHS, and UL.
  • ★ Suitable for furniture, vehicles, and advertising.

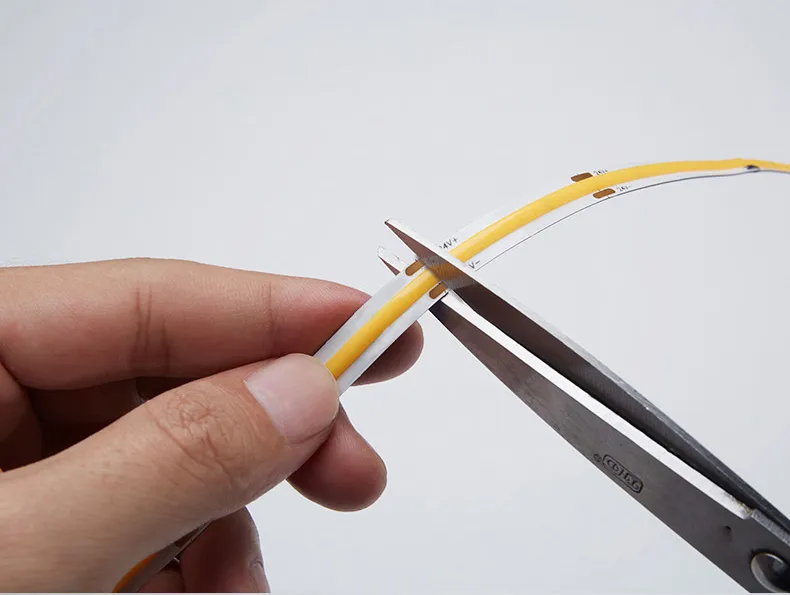

Features Illustration

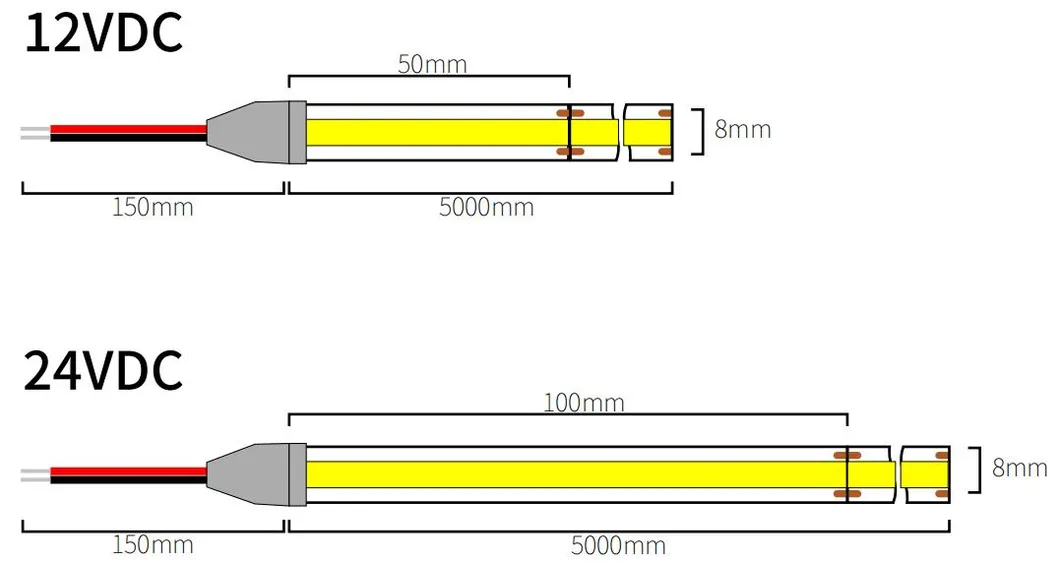

Technical Drawing
Color Temperature Guide

Color temperature is expressed in Kelvin (K). Choosing the appropriate color temperature can influence the ambiance and visual experience of the environment.

  • ● Warm White (2700K-3000K): Cozy yellowish tone.
  • ● Natural White (4000K-4500K): Neutral white resembling daylight.
  • ● Daylight (5000K-6500K): Bright white tone.

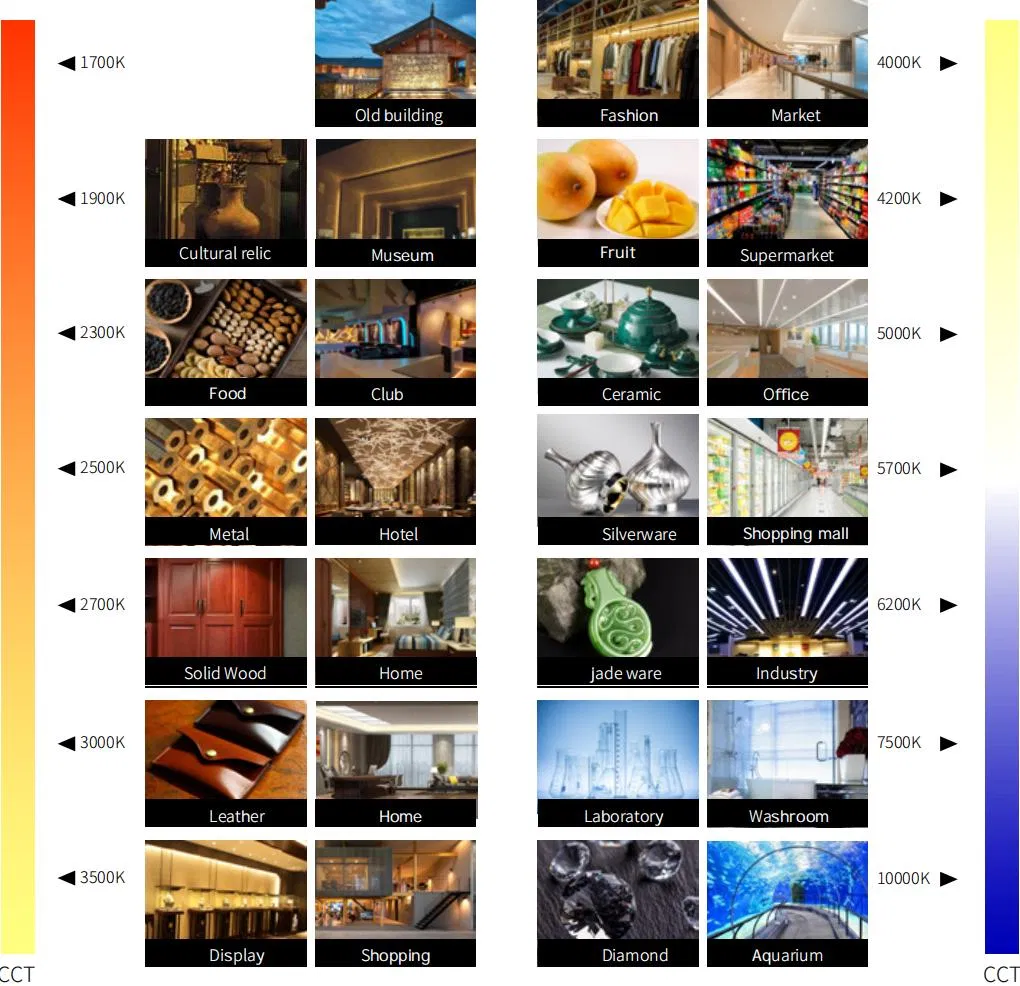

Color Temperature Chart
Professional Production & Testing

Every strip undergoes rigorous patch detection and aging detection to ensure long-term reliability and performance.

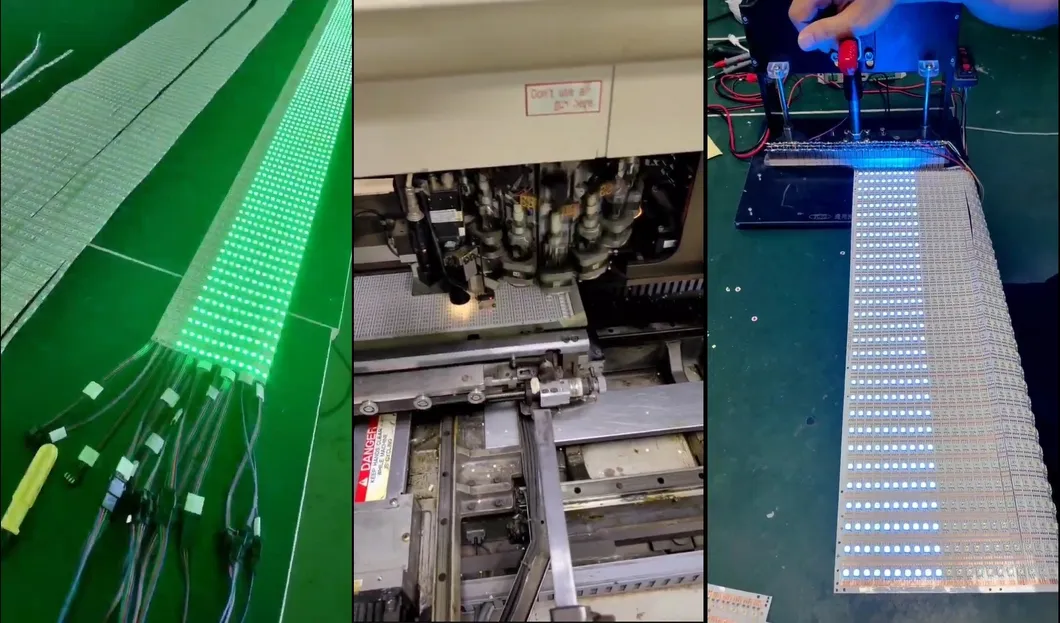

Testing Process 1 Testing Process 2
Applications

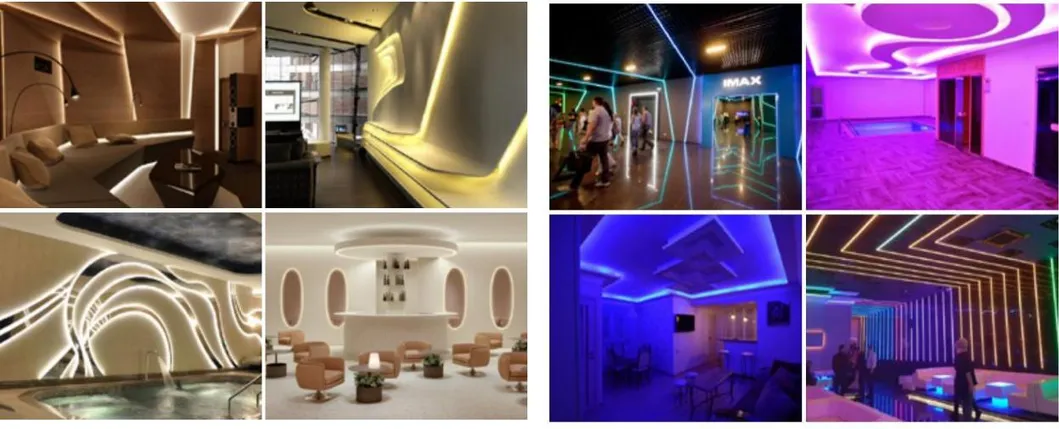

Application 1
Application 2
Application 3
Frequently Asked Questions
What are the main advantages of COB LED strips?
COB (Chip on Board) LED strips provide a seamless, dot-free linear light source, offering better flexibility and more uniform light distribution compared to traditional SMD strips.
Can these LED strips be cut?
Yes, the strips are designed with specific cut points (e.g., every 35.71mm or 62.5mm depending on the model) allowing you to customize the length for your project.
Are the COB strips waterproof?
We offer multiple IP ratings ranging from IP20 (non-waterproof) to IP65, IP67, and IP68 (fully waterproof), making them suitable for both indoor and outdoor use.
What is the lifespan of the COB LED strip?
Our COB LED strips have a rated lifespan of up to 50,000 hours, supported by high-quality 99.99% pure gold wire packaging.
What voltage do these strips require?
These strips operate on safe low voltage DC 12V or 24V, requiring a compatible LED power supply (transformer) for operation.
Do you provide a warranty?
Yes, we provide a 2-year warranty period for our COB LED strip lighting products.
