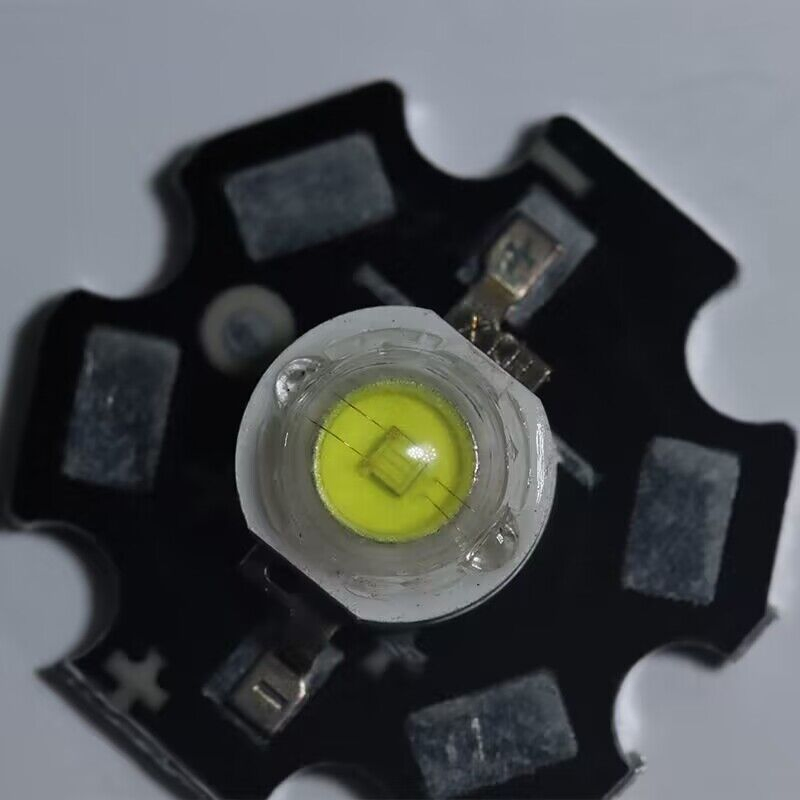

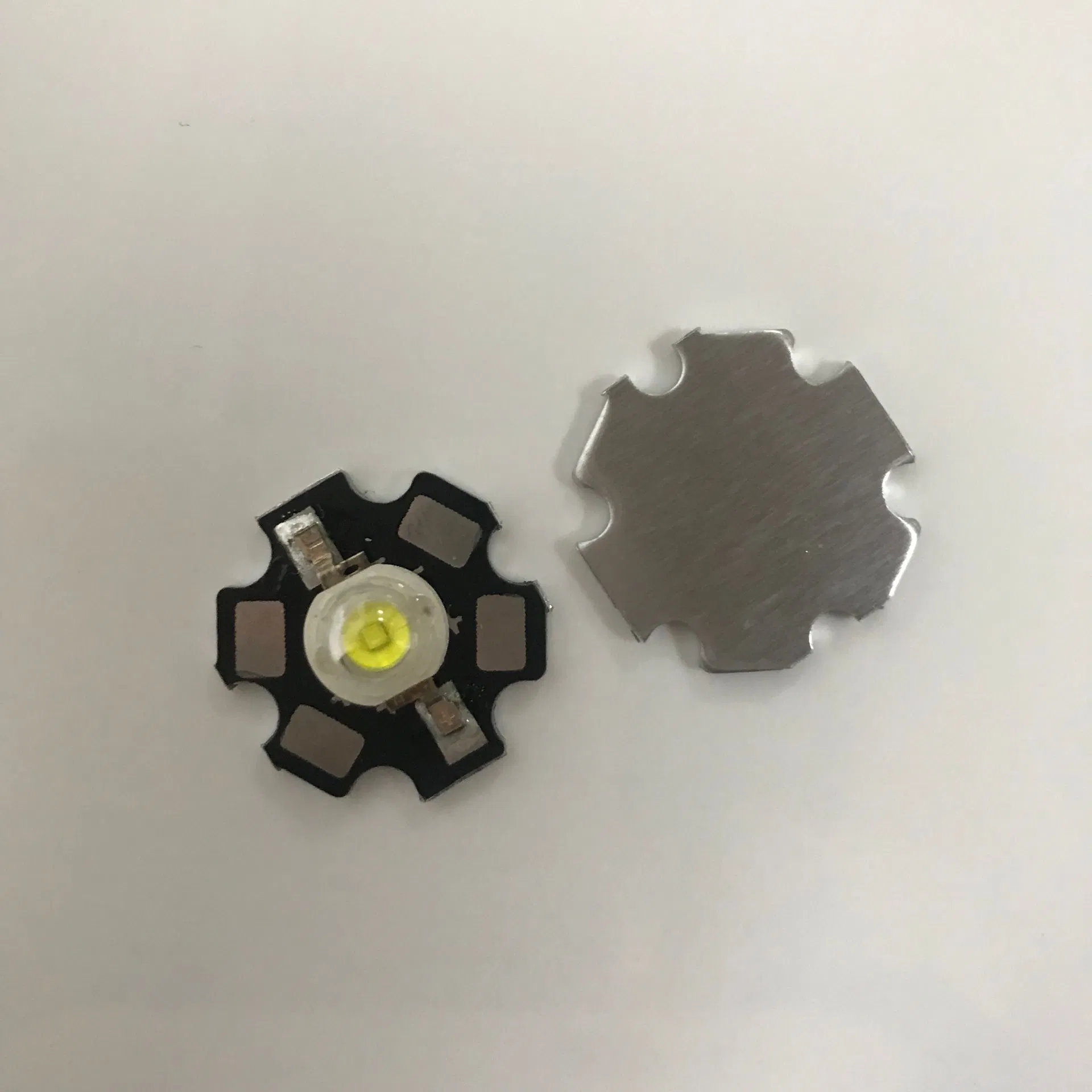

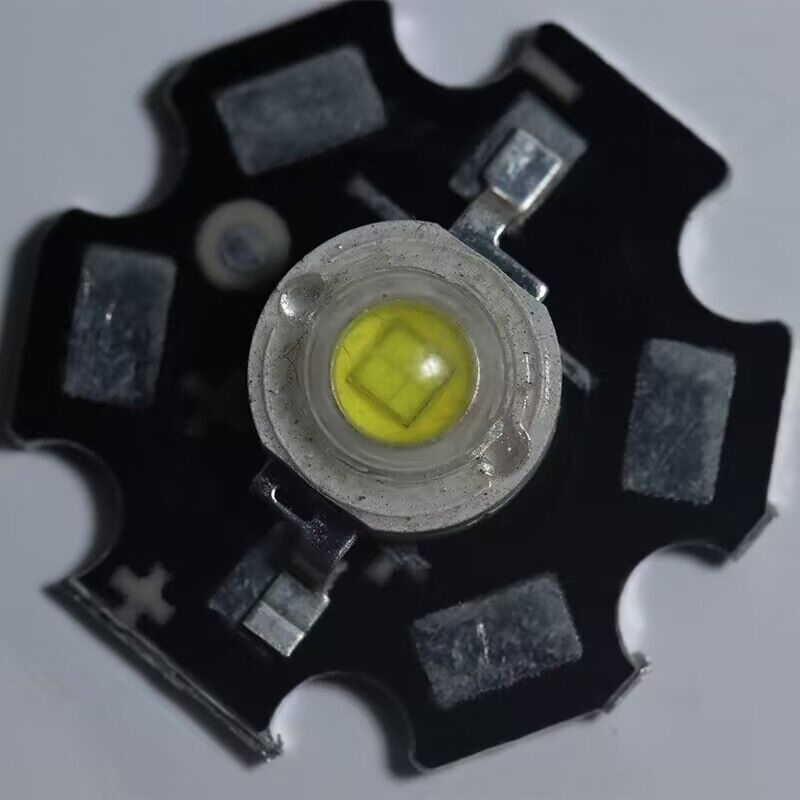

White Emitting Color Diode 3000K 3500K 5000K 6000K 1W 2W 3W High Power LED COB LED Chip with Star PCB Aluminum Heatsink Board

1 / 5

White Emitting Color Diode 3000K 3500K 5000K 6000K 1W 2W 3W High Power LED COB LED Chip with Star PCB Aluminum Heatsink Board

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Beam Angle:

120°

Emitting Color:

Cool White

IP Rating:

IP33

Base Material:

Copper

LED Chips:

Sanan

Power:

Lifespan:

50,000 Hours

Certification:

RoHS, CE

Operating Temp:

-30 - 60℃

Support Dimmer:

Yes

Warranty:

1 Year

Origin:

China

Product Description

Dimension	LED: 14.6x8.0x5.15mm PCB: 20*20mm
Power Consumption	3W
Color Temp	Warm White (2700K-3500K) / Natural White (3800-4500K) / White (5000-6500K)
Efficiency	80-100lm/W (CRI90)
Current / Voltage	350-700mA / 3-3.4V
Application	Linear Fixtures, Street Light, High Bay Light, Flood Light

Soldering & Handling Guidelines

Preliminary heating: 140~160ºC max, for 120 seconds max.
Soldering heat: 260ºC max, for 3 seconds max.
The silicone part should be protected from mechanical stress or vibration until it returns to room temperature.
Manual soldering: Not more than 3 seconds at max 260ºC.
Electrical insulation between the case and the board is required.
Do not use force impact or pressure on the LED lens to avoid catastrophic failure.
Do not bend the leads of the LED as it may damage the internal structure.

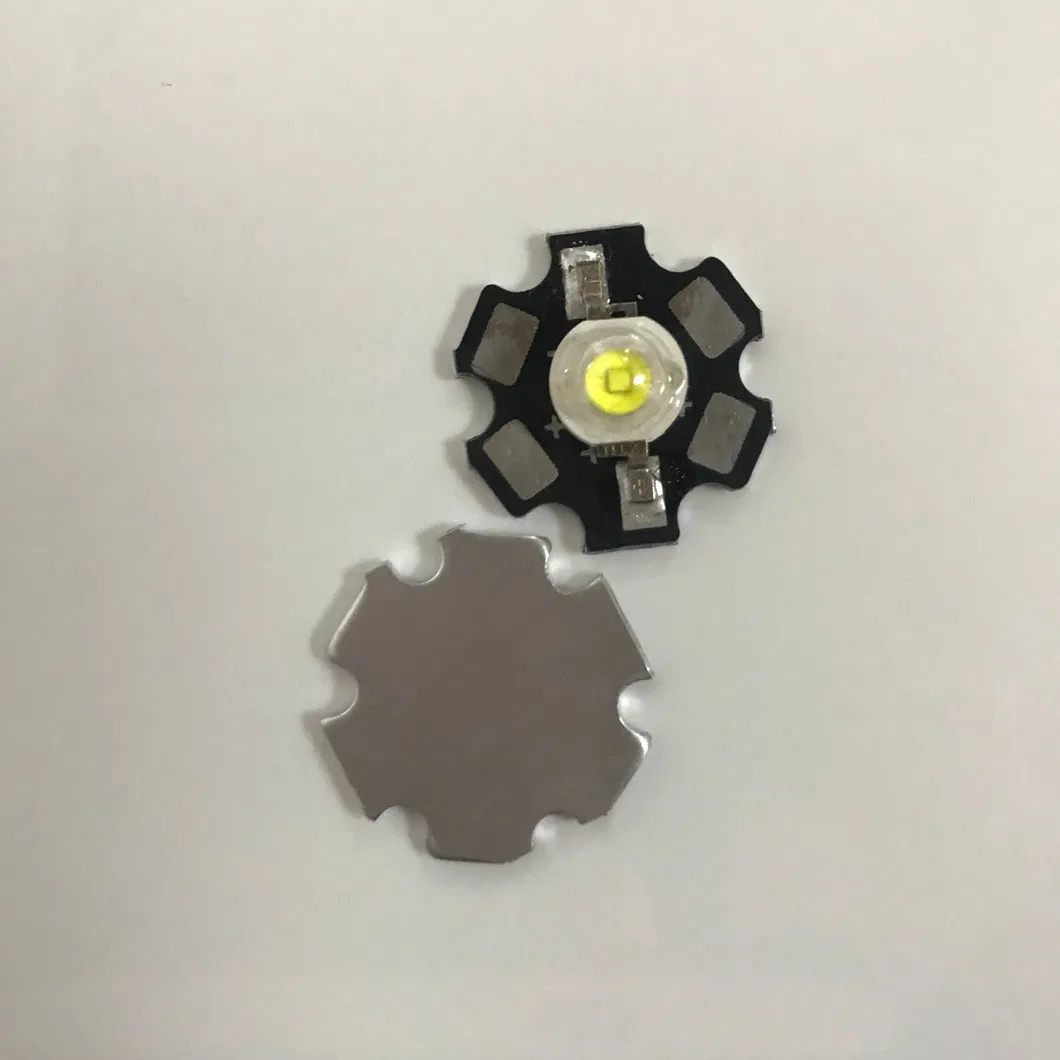

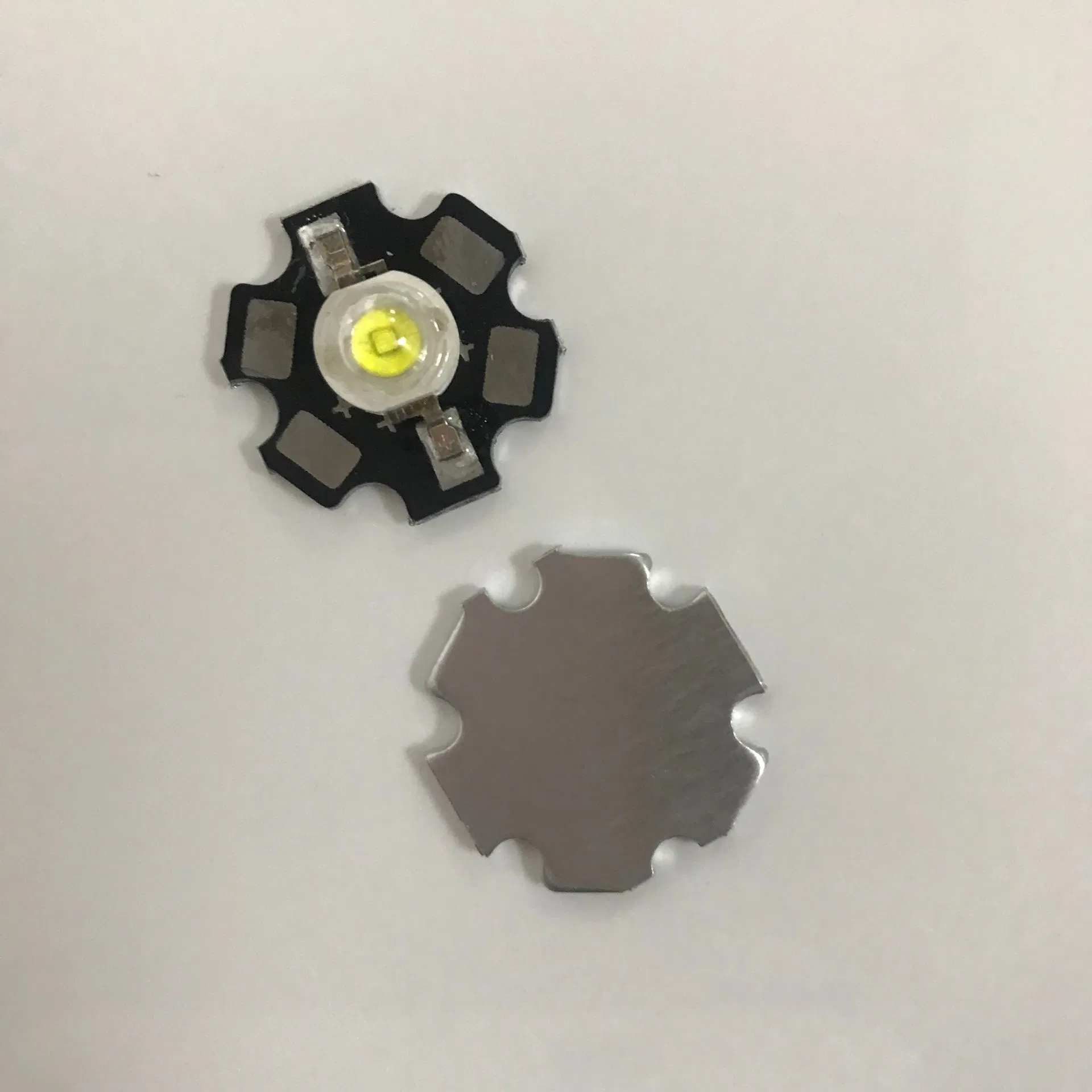

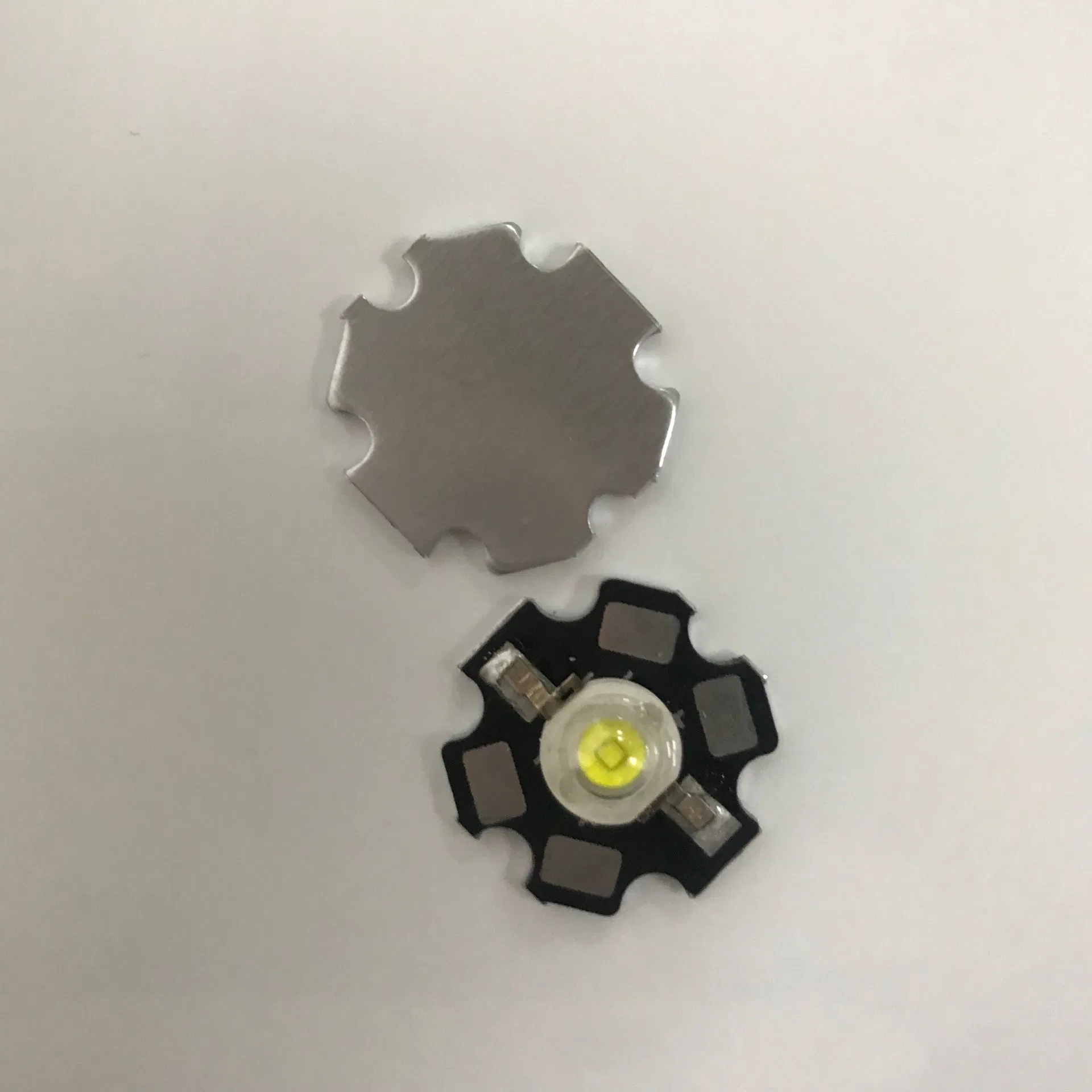

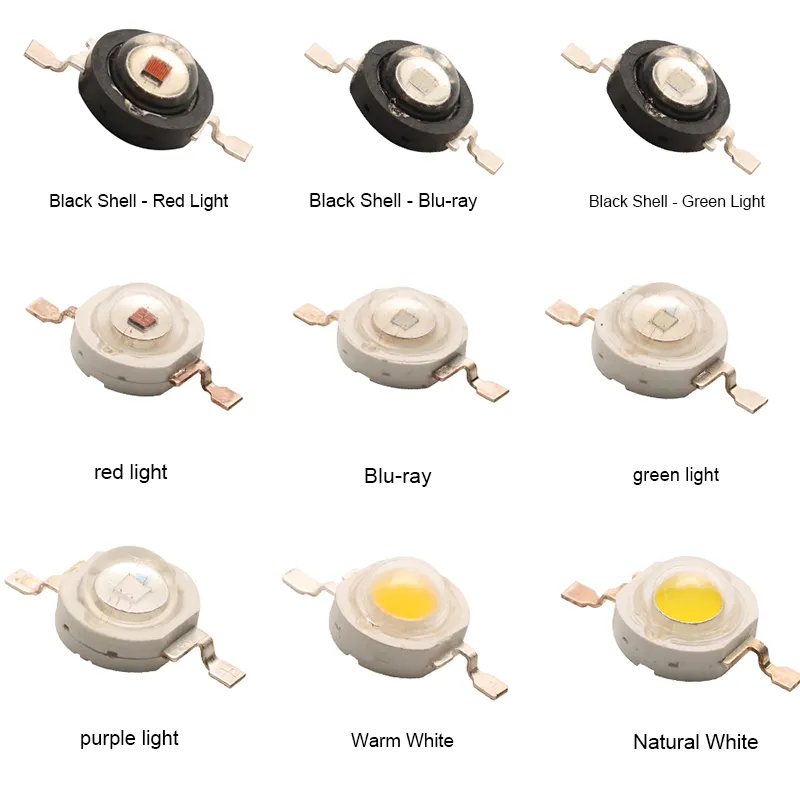

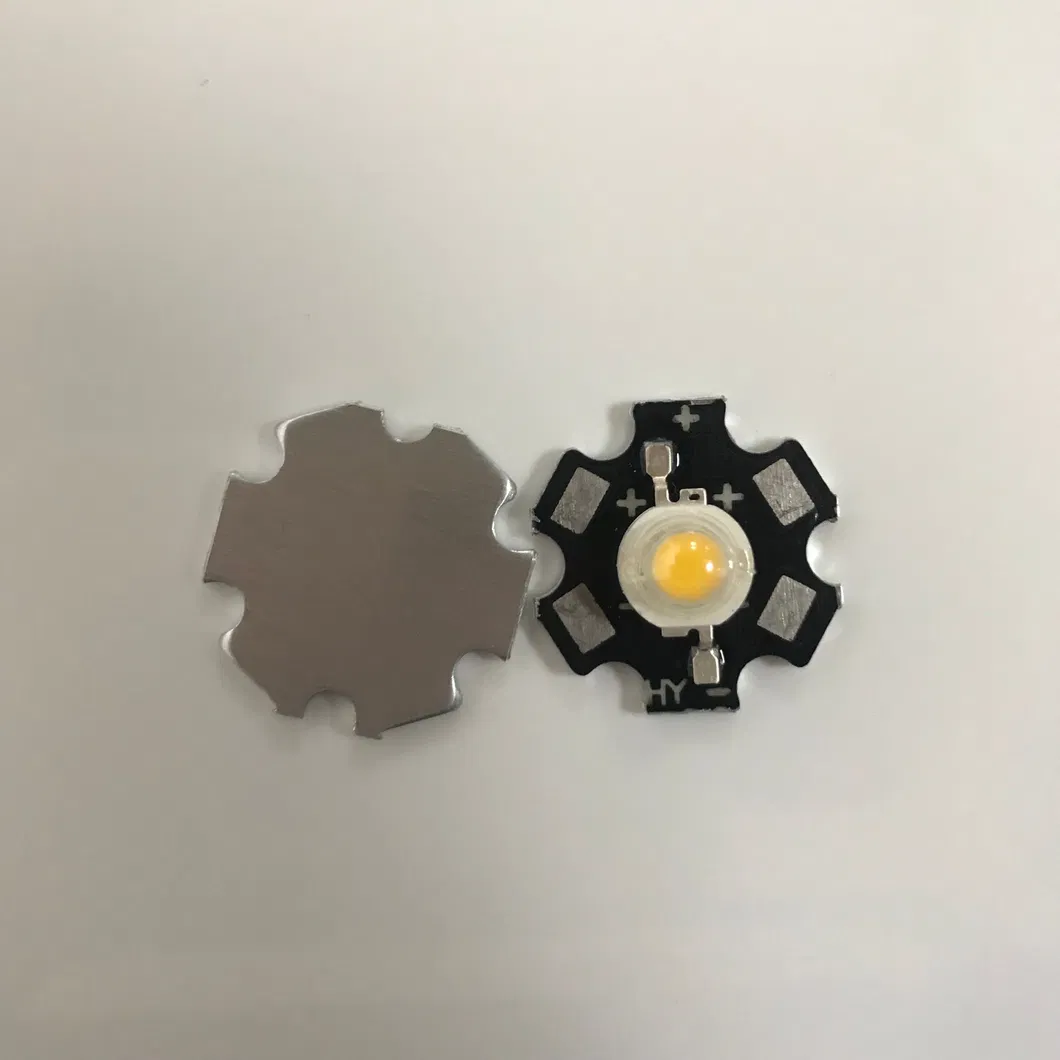

Detailed Product Photos

Product Parameters & Certifications

Packaging & Shipping

Frequently Asked Questions

Q1: Do you supply OEM and ODM services?

A1: YES, absolutely. We can realize customized solutions based on your requirements.

Q2: Are the product pictures real?

A2: Yes, all product pictures on this page are 100% real shots of our actual products.

Q3: How can I receive a quotation?

A3: Please leave a message with your specific needs, including product models and quantities. Our team usually replies within 6 hours.

Q4: Can I place a sample order first?

A4: Yes, we welcome sample orders to test and check quality. Mixed samples are also acceptable.

Q5: What is the typical lead time for orders?

A5: Samples typically take 3-5 days, while mass production requires 1-2 weeks depending on the order quantity.

Q6: How are the goods shipped and how long does it take?

A6: We usually ship via DHL, UPS, FedEx, or TNT. It typically takes 3-5 days to arrive. Airline and sea shipping are also available.
