10W 6565 UV LED 365nm for Industrial UV Curing Application

High-Reliability Performance 10W High Power 365nm UVA SMD LED

Innovative inorganic packaging technology ensures superior reliability, minimal heat generation, and low light attenuation for demanding industrial applications.

📊 Basic Information

Model NO.

LLS6565UVA365

Beam Angle

60°

Emitting Color

Ultraviolet

Power

10W

Peak Wavelength

365nm

Radiant Flux

2400-5000MW

Base Material

Ceramic and Quartz

LED Chips

LG

Life

50000h

Certification

RoHS, Reach

Forward Voltage

6.8-7.4V

Forward Current

700-1600mA

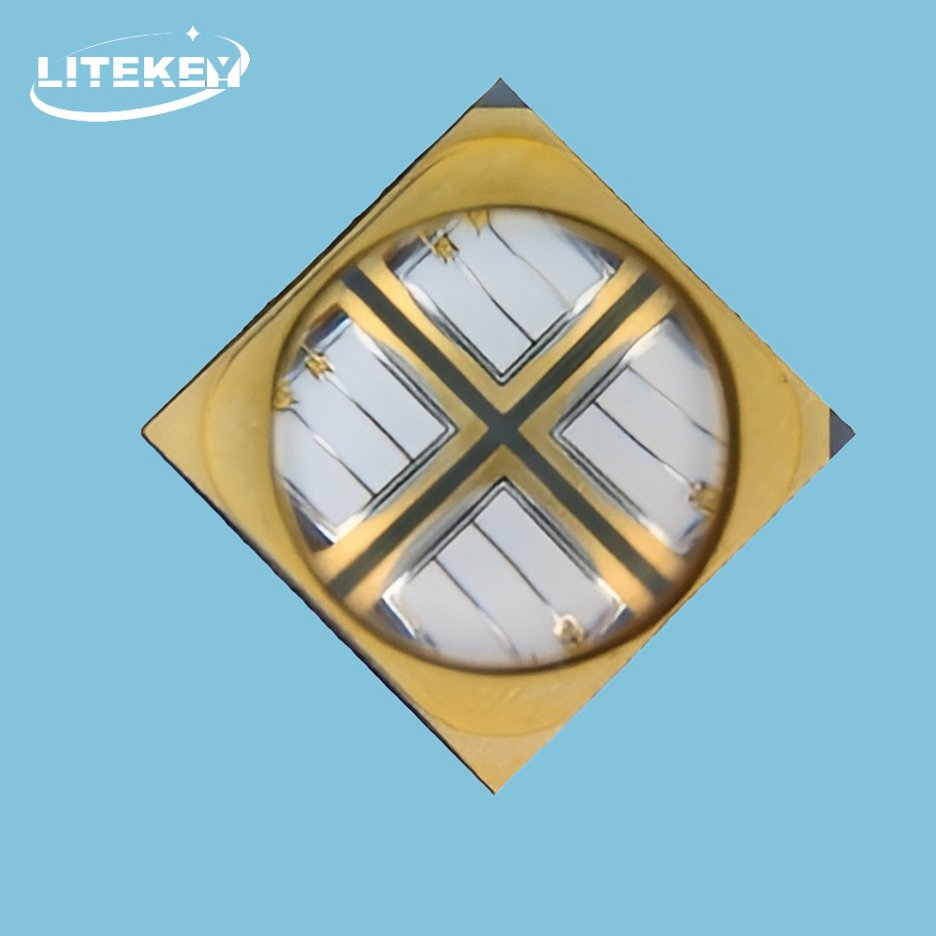

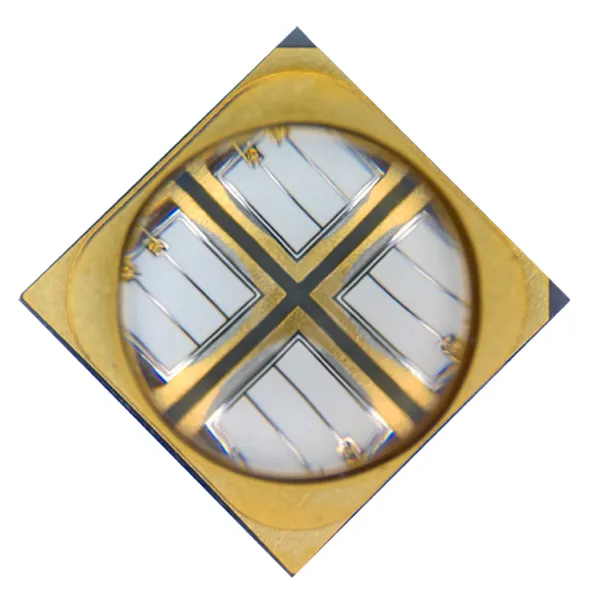

📷 Detailed Product View

📝 Key Features

Peak Wavelength: 365-370nm
Compact Dimension: 6.5mm × 6.5mm × 4.3mm
Viewing Angle: 60/120 degrees available
Soldering Method: Advanced Eutectic welding technology
Superior ESD protection for circuit safety
Environmentally Friendly: RoHS and REACH Compliance
High Optical Output Power: 2400-5000mW range

⚙️ Technical Parameters (Ta=25ºC)

Parameters	Symbol	Min.	Typ.	Max.	Unit
Forward Voltage	Vf	6.8	7.2	7.4	V
Forward Current	IF	700	1400	1600	mA
Optical Output Power	Pout	2400	4300	5000	mW
Peak Wavelength	λp	365	--	370	nm
Power Dissipation	Pd	4.5	10	12	W

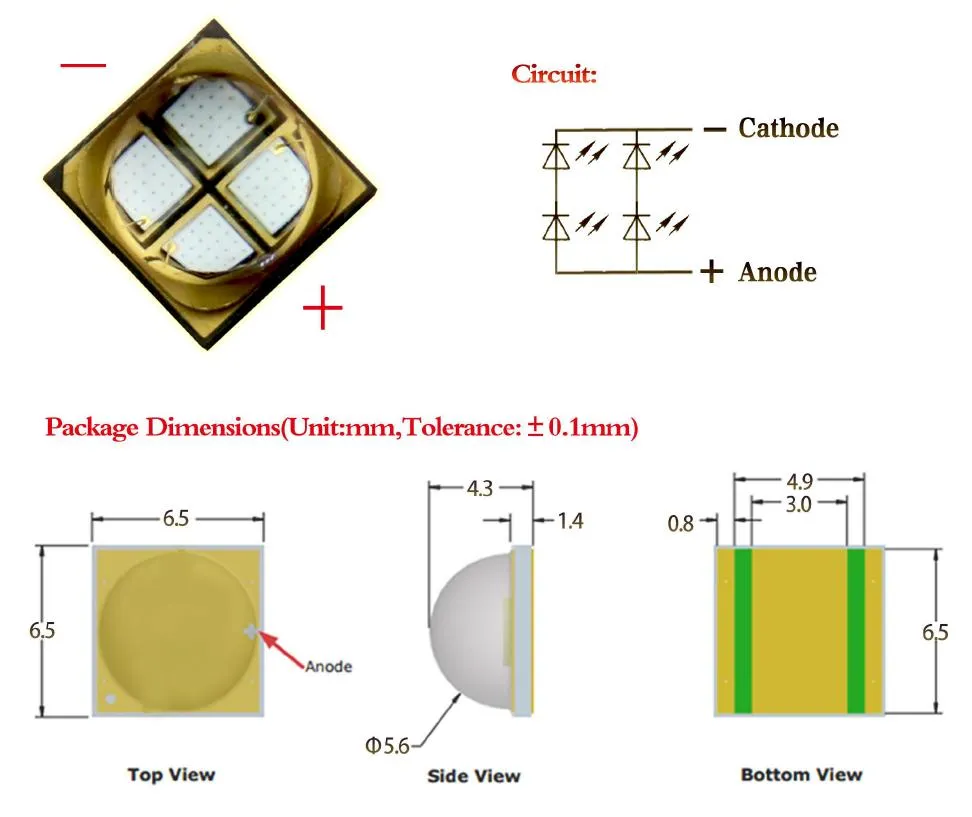

📐 Package Dimensions

🚀 Industrial Applications

Fluorescent spectroscopy & Chemical Analysis
Industrial Sensors and monitors
Bio-analysis and DNA detection
Medical Phototherapy
High-efficiency Disinfection & Sterilization

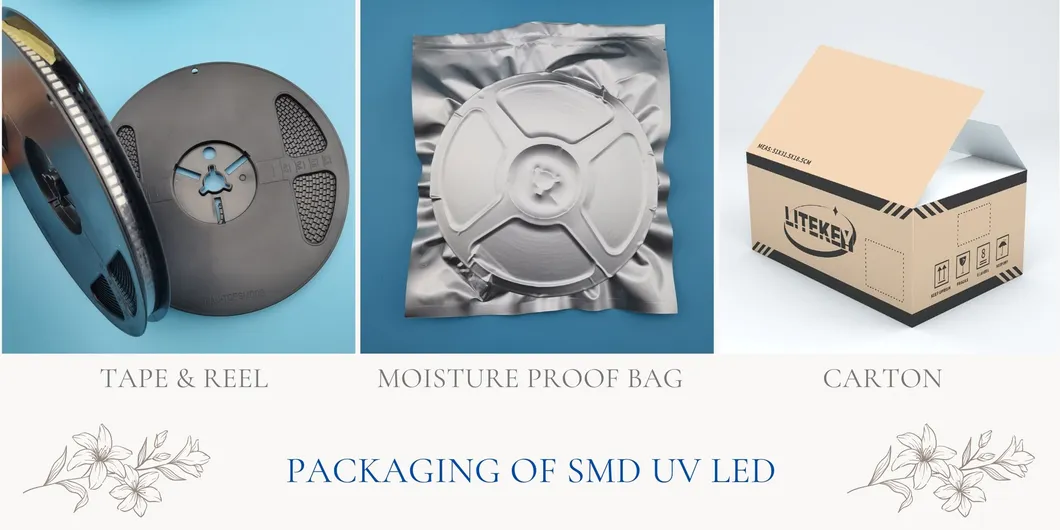

📦 Packaging & Shipping

Package Size

15.00cm * 15.00cm * 15.00cm

Gross Weight

1.000kg

Transport Type

Tape and Reel

❓ Frequently Asked Questions

What is the advantage of inorganic packaging technology?

Inorganic packaging provides significantly better reliability, higher heat resistance, and lower light attenuation compared to traditional methods, ensuring a longer lifespan for the UV LED.

What is the typical lifespan of this 10W UV LED?

This product is designed for high durability with a rated life of up to 50,000 hours under standard operating conditions.

Can the wavelength be customized?

The standard peak wavelength is 365nm-370nm. We focus on specialized UV research and can discuss specific requirements for customized wavelength needs.

Are these LEDs compliant with international standards?

Yes, all our UV LED components are RoHS and REACH compliant, meeting strict environmental and safety regulations.

What cooling measures are recommended for a 10W UV LED?

Given the 10W power dissipation, we recommend using high-quality ceramic heat sinks and ensuring proper thermal management to maintain the junction temperature below 105°C.

What is the maximum forward current supported?

The rated forward current range is 700mA to 1400mA, with an absolute maximum rating of 1600mA.
