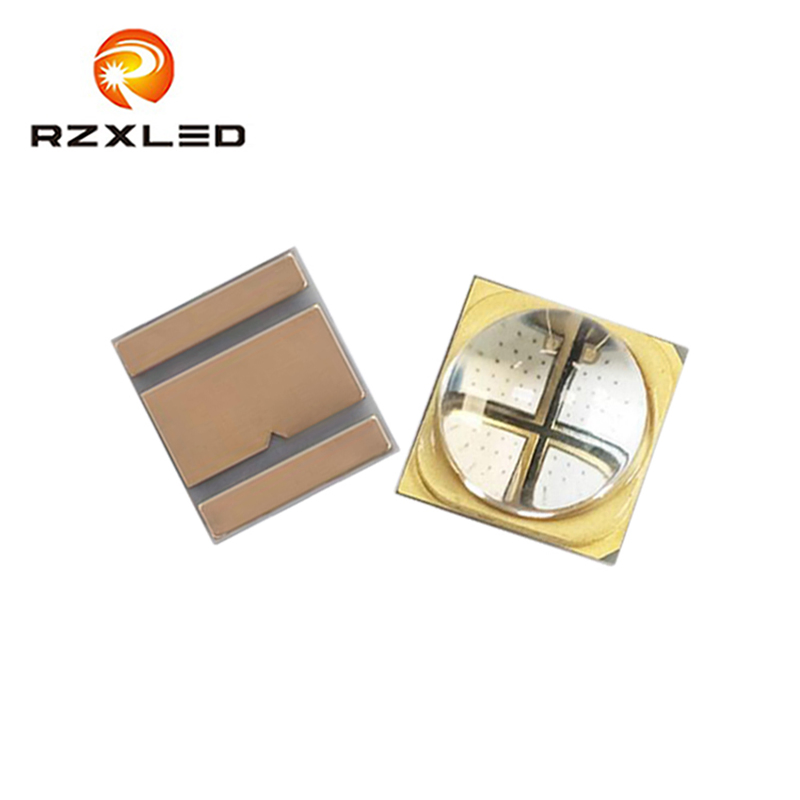

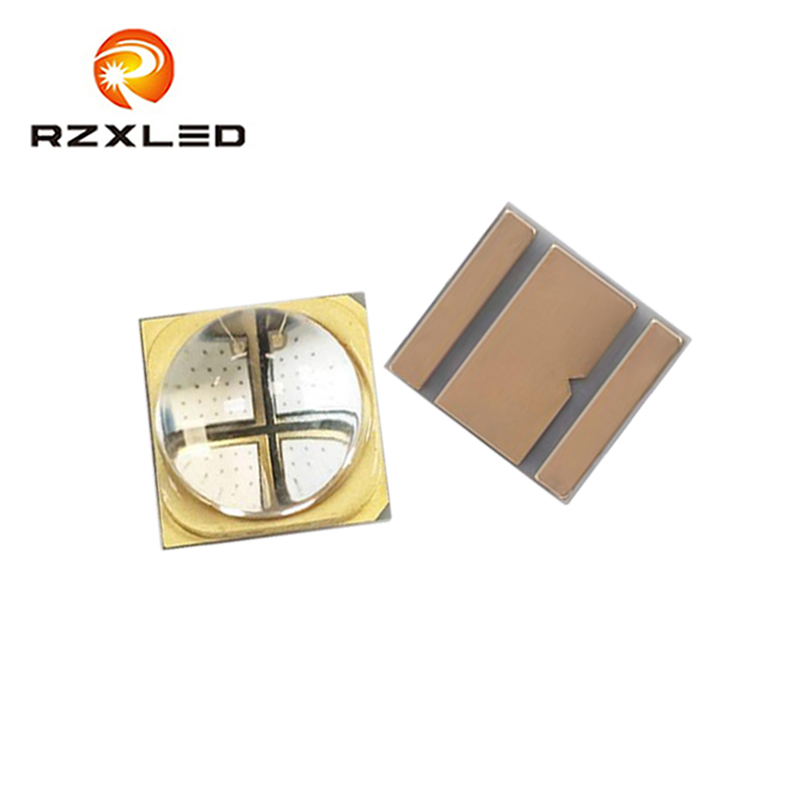

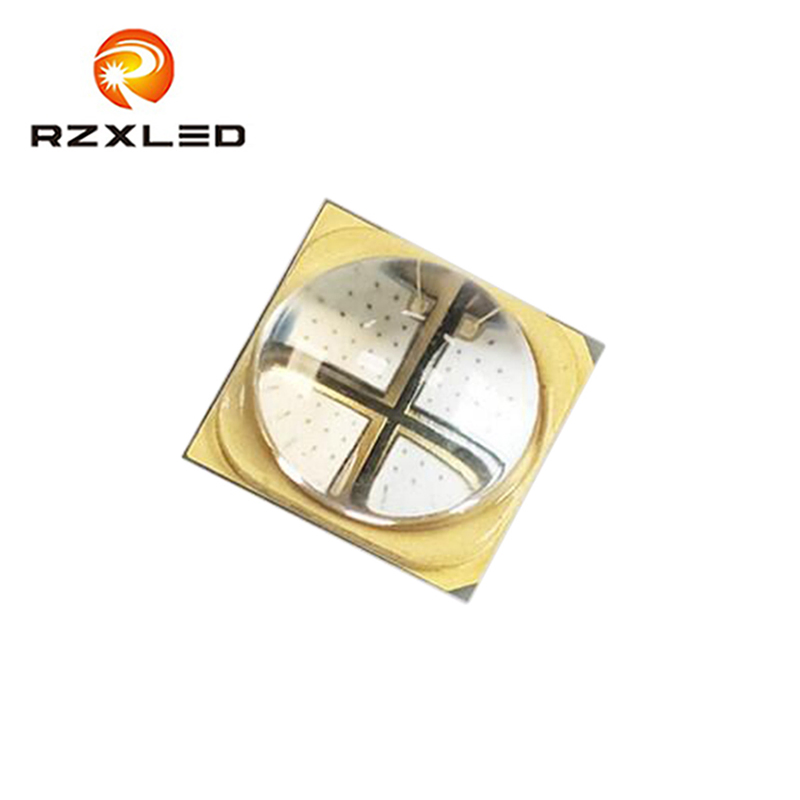

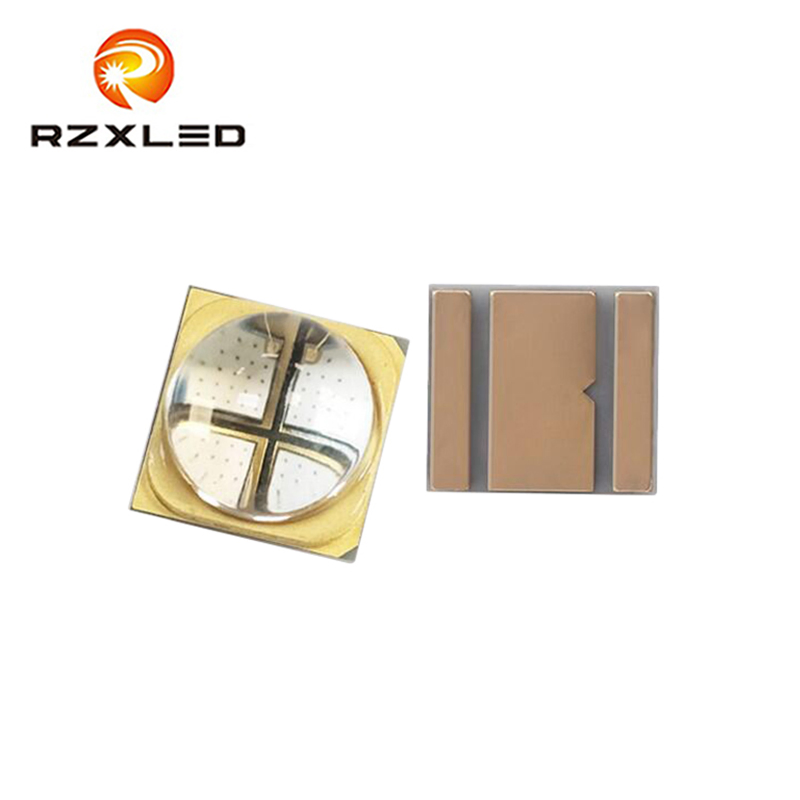

Deep Ultraviolet LED UV LED Lamp 6868 12W 395nm for UV Curing

1 / 5

Deep Ultraviolet LED UV LED Lamp 6868 12W 395nm for UV Curing

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

RZX-S6868-395NM-12W-N60-6V

Beam Angle

60°

Emitting Color

Purple (UV)

IP Rating

IP33

Base Material

Copper

Power

12W

Lifespan

50000h

Certification

RoHS

Forward Current

1000-1400mA

Luminous Flux

2000-2500MW

Voltage

6.5-7.6V

Application

Industrial Curing

Specification

6.5*6.5*4.4mm

Origin

China

★

Product Description

Dimension	6.56.54.4mm
Power Consumption	12W
Wavelength	390-405NM
Radiant Flux	2000-2500MW
Operating Voltage	6.5-7.6V
Driving Current	1000-1400mA
Primary Application	UV Curing

📷

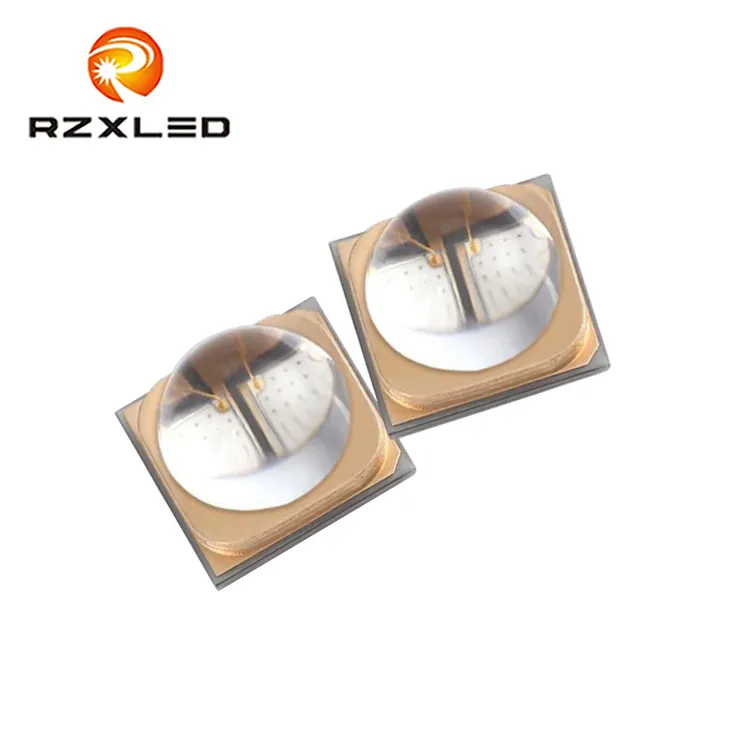

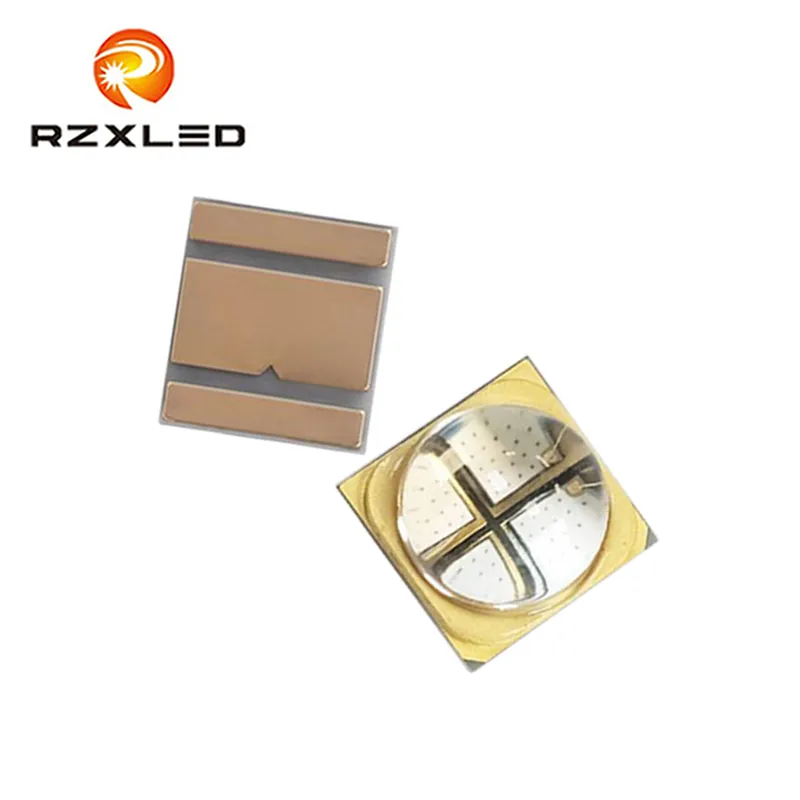

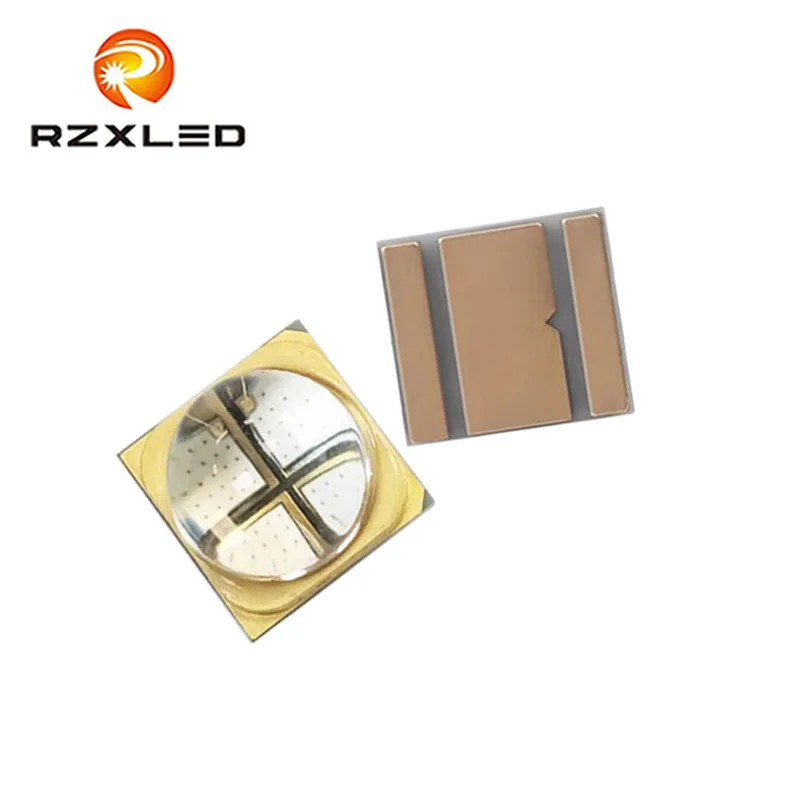

Detailed Photos

✔

Certifications & Standards

📦

Packaging & Shipping

Package Size

24.00cm * 24.00cm * 5.00cm

Gross Weight

0.500kg

💼

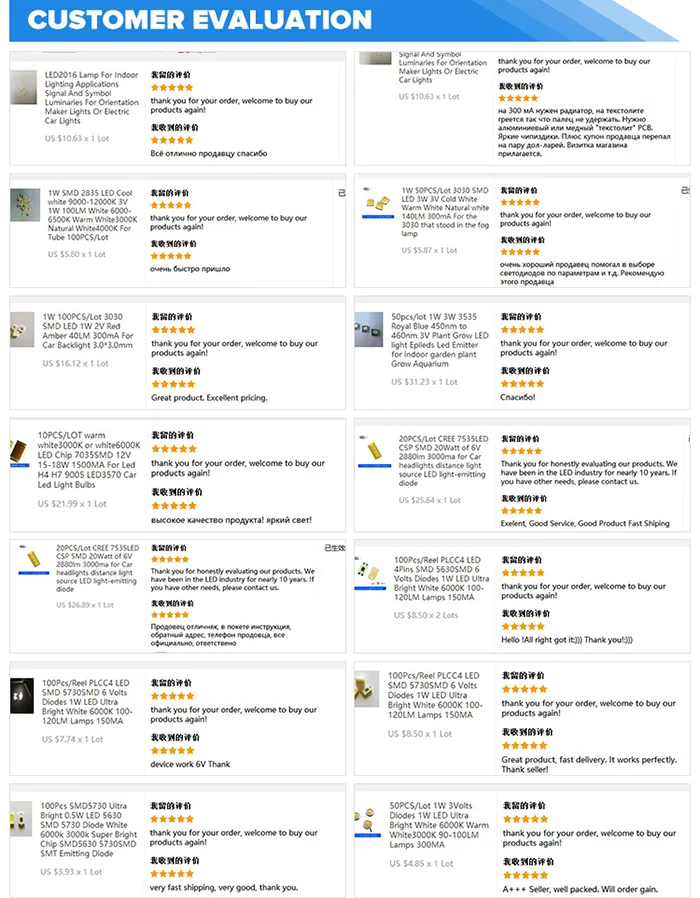

Applications & Success Cases

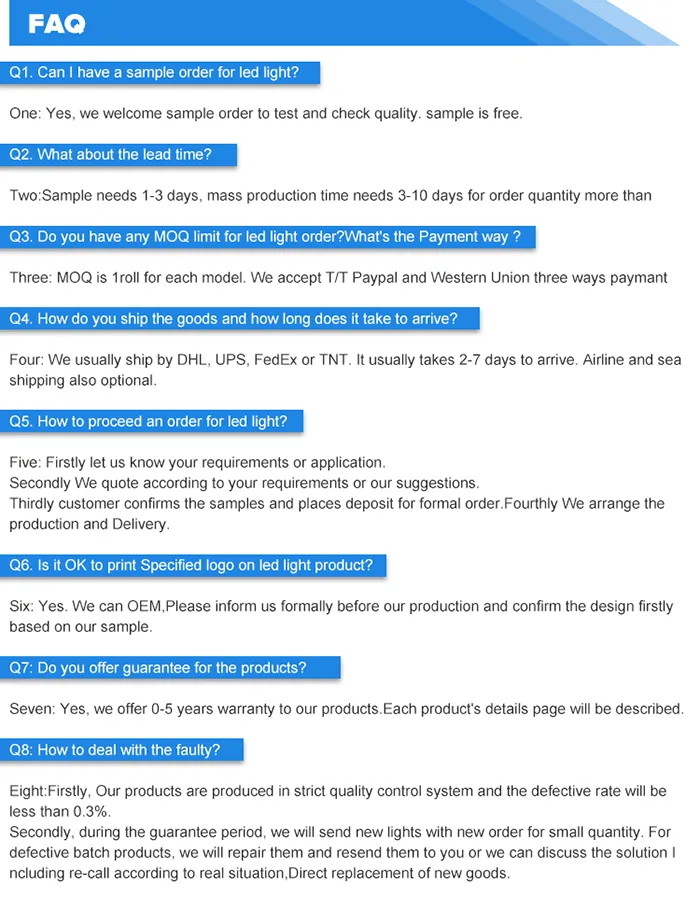

Frequently Asked Questions

What is the primary wavelength of this UV LED?

This High-Power UV LED operates within the 390nm to 405nm range, which is optimal for industrial UV curing applications.

What is the benefit of the copper base material?

The copper base provides superior thermal conductivity, ensuring efficient heat dissipation which extends the lifespan of the 12W LED chip.

Is this LED suitable for outdoor use?

It has an IP33 rating, meaning it is protected against solid objects and direct sprays of water when tilted up to 60 degrees. It is primarily designed for controlled industrial environments.

What are the main applications for the 6868 UV LED?

It is widely used for UV glue curing, 3D printing, industrial ink drying, and forensic analysis due to its high radiant flux.

What is the expected lifespan of the product?

Under standard operating conditions with proper heat management, this UV LED is rated for a lifespan of up to 50,000 hours.

What driving current is required for maximum efficiency?

We recommend a forward current between 1000mA and 1400mA to achieve the best balance between UV output and component longevity.
