Air Cooled UV LED Linear Curing System 365nm 405nm Ultraviolet Lamp Light Source for Optical Fiber

1 / 5

Air Cooled UV LED Linear Curing System 365nm 405nm Ultraviolet Lamp Light Source for Optical Fiber

Customization:	Available
Wavelength:	365/385/395/405nm
Material:	Pure Aluminum

Send Inquiry

Product Description

Basic Information

Model NO.

AFL-200x10

Certification

Input Voltage

AC85~240V(50/60Hz)

Cooling Method

Air-Cooled and Water-Cooled

LED Life

20000hrs

Control Method

RS232/Pedal/PLC

Operation Interface

Touch Screen

LED Beam Size

10X200mm

UV Intensity

1~20W/Cm2

HS Code

8543709990

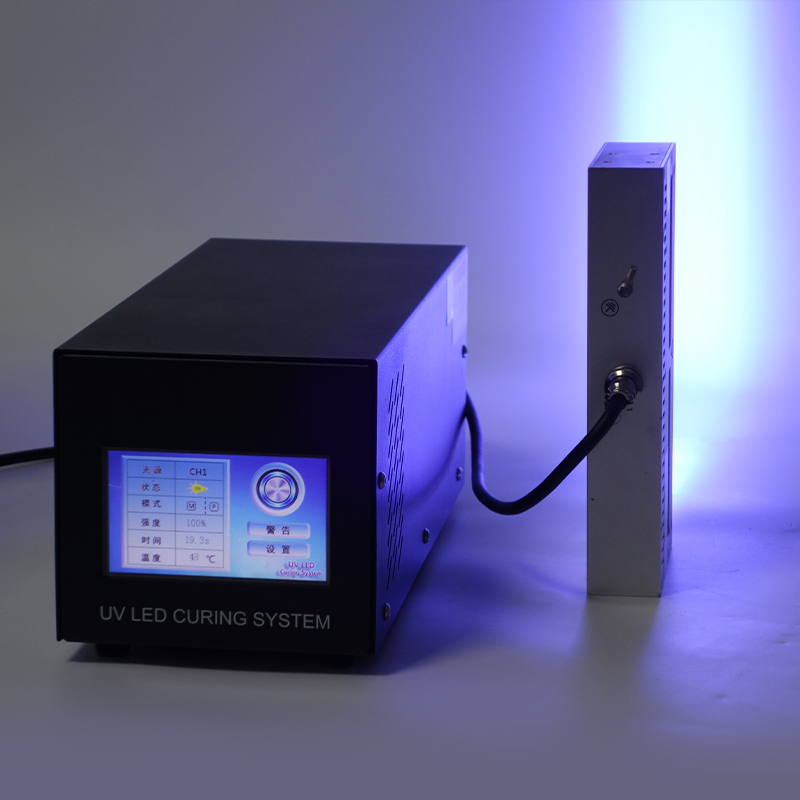

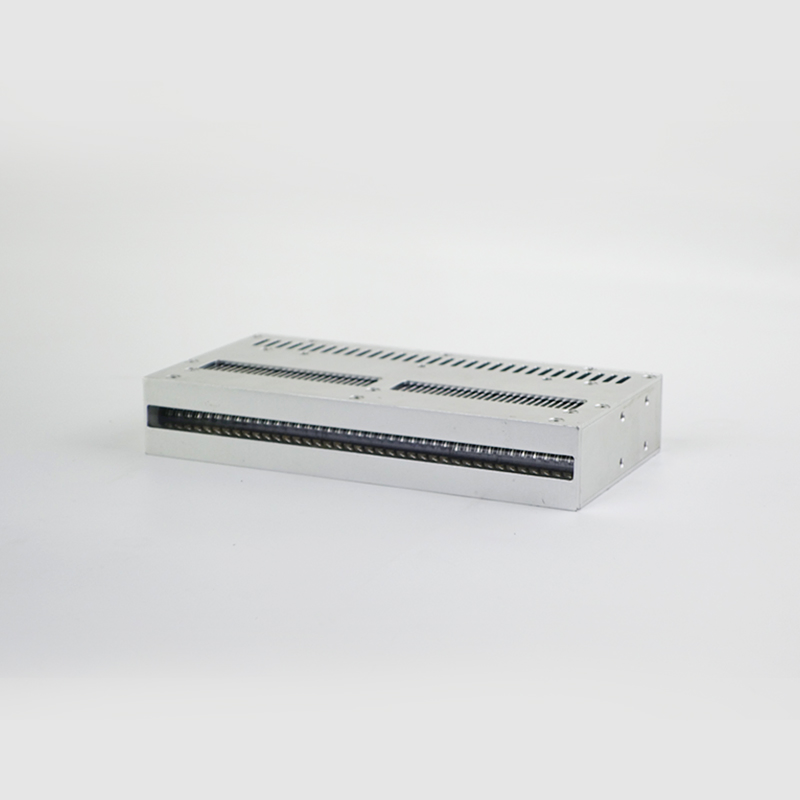

Air Cooled UV LED Linear Curing System

Product model: AFL-200x10

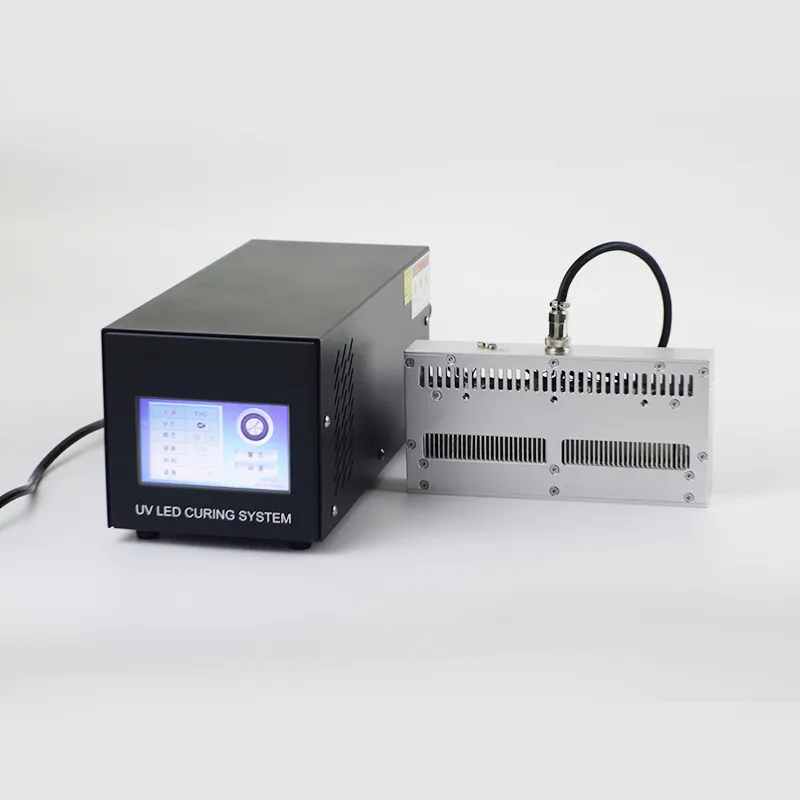

This high-performance ultraviolet lamp light source is designed for optical fiber and industrial precision curing. The system consists of a controller and an irradiator head (single controller can drive multiple heads).

Key Features of Controller

External signal controls UV irradiation via MCU, PLC, or scanner.
Status LEDs for real-time monitoring (Start, Stop, Working, Alarm).
RS232 interface for parameter programming and software updates.
Direct lighting control via foot switch or sensor terminals.

Advantages of UV LEDs

No infrared radiation; ideal for heat-sensitive materials.
Fast response with instant on/off capabilities (no warm-up needed).
Customizable spectra for safe and rapid curing processes.

Technical Specifications

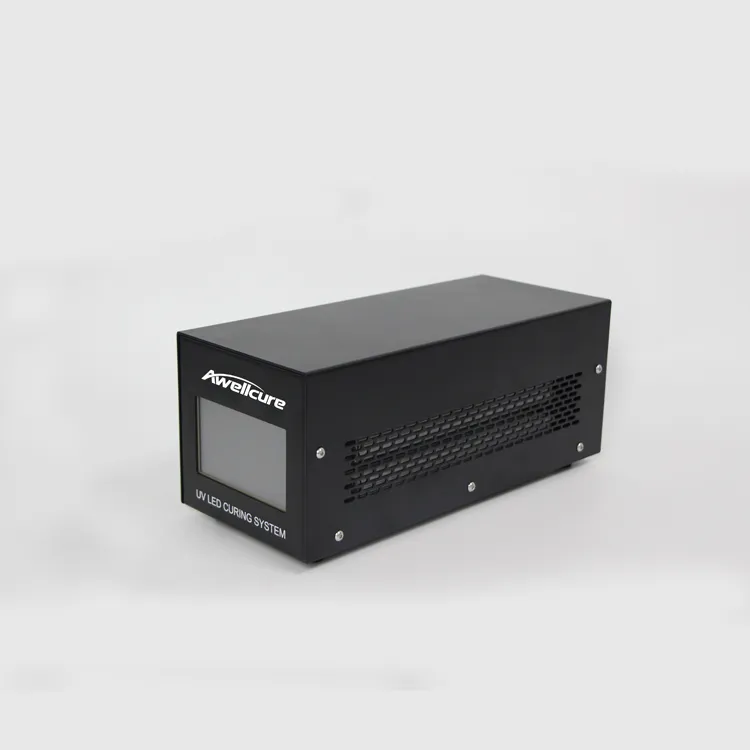

Controller Specifications
Voltage	100-240V AC
Material	Pure Aluminum
Heat Dissipation	Fan Cooling
Control Mode	Touch / Pedal / RS232 / PLC
Power Range	10% - 100% mW
Irradiation Mode	Manual, Automatic (0.1-999.9S), Ladder (1-20 steps), Pulse
Working Temp	0-45℃

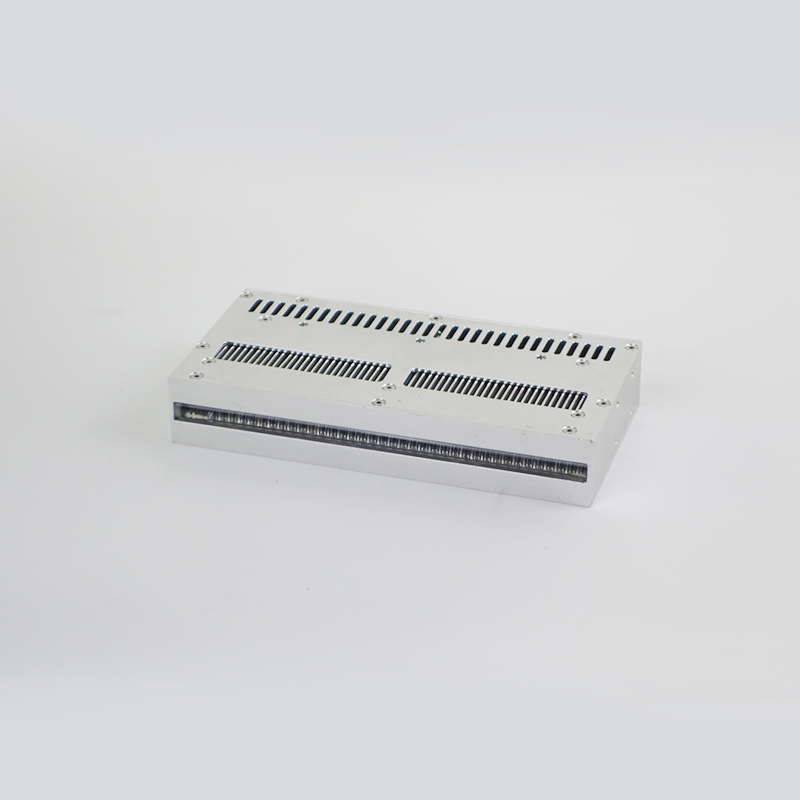

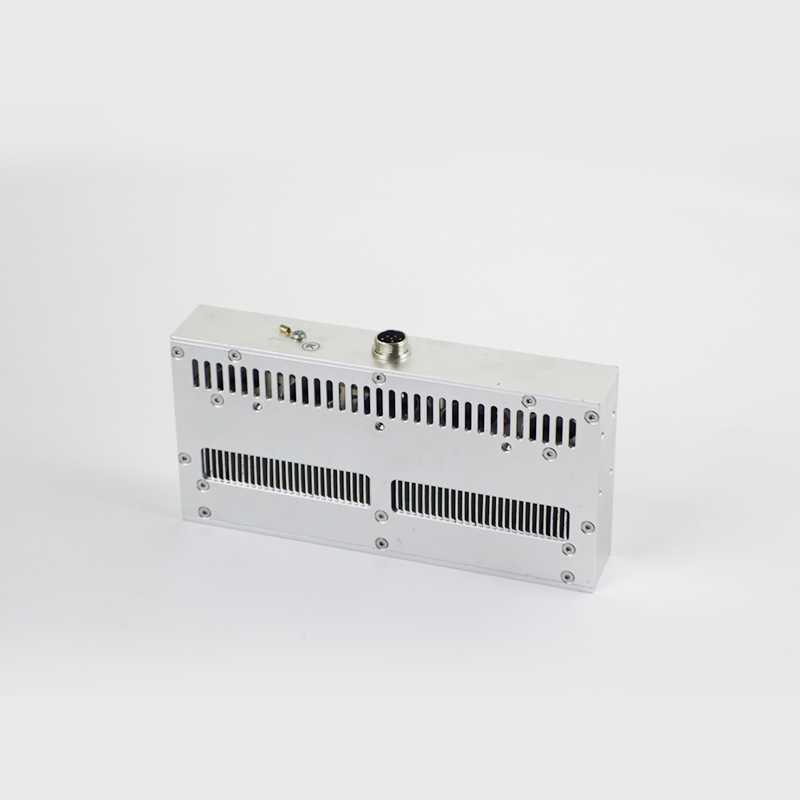

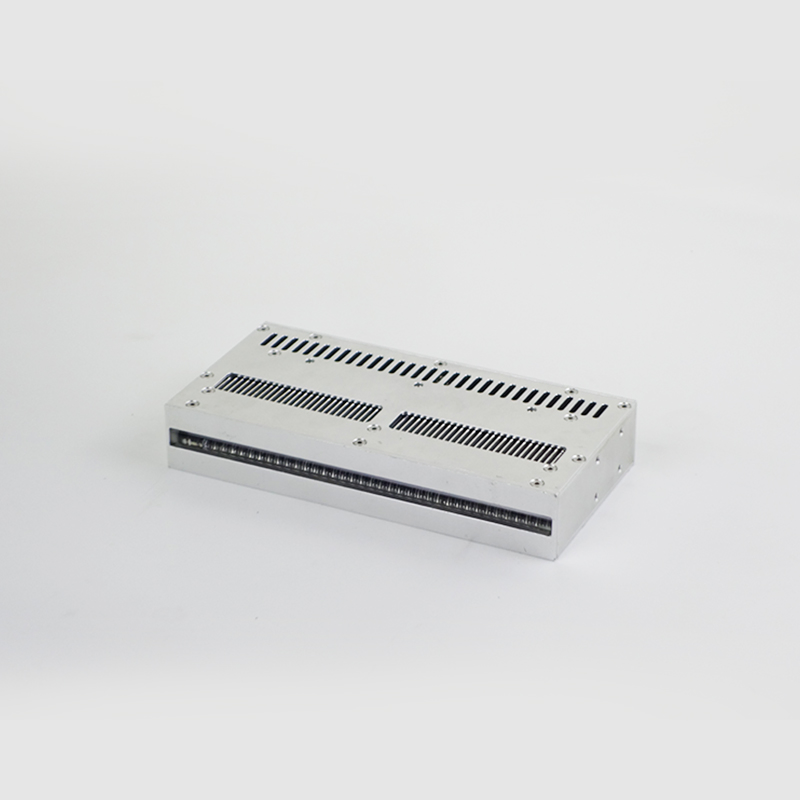

Irradiation Head Specifications
LED Type	Imported High-Performance Chips
UV LED Lifespan	20,000 Hrs @ 80% power
Wavelength	365nm / 385nm / 395nm / 405nm (±5)
Luminous Size	10x200mm
Intensity	2700mW or Customized
Cooling Method	Air Cooled / Water Cooled

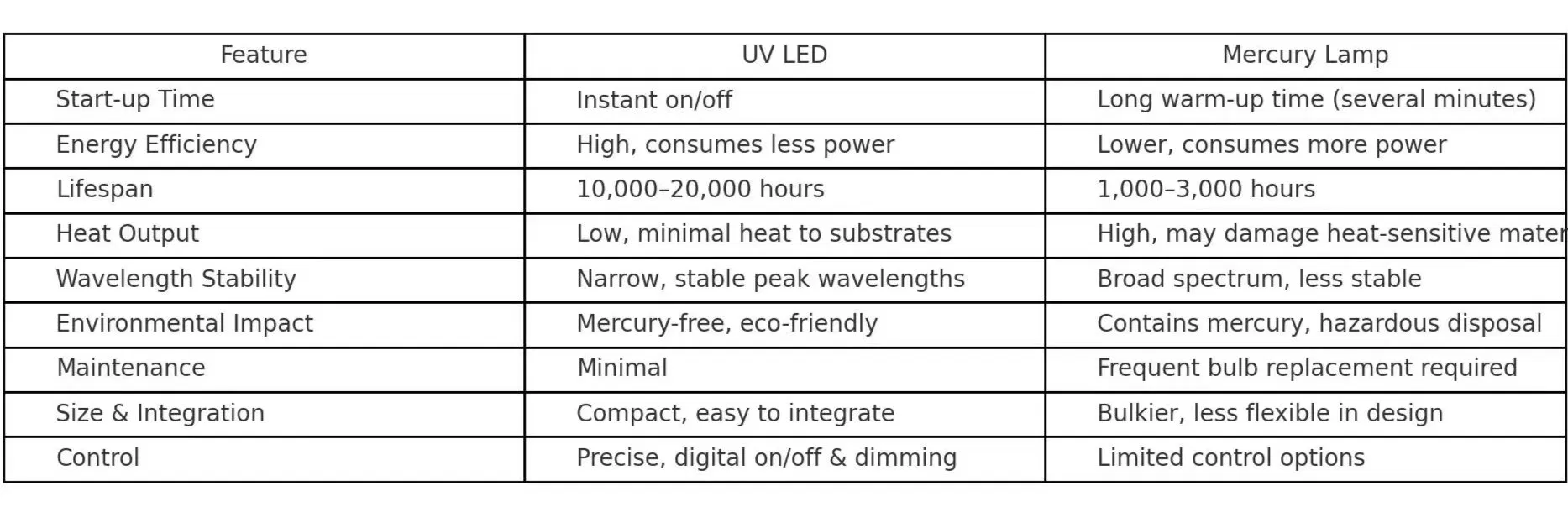

Comparison: UV LED vs. Mercury Lamp

Industry Applications

UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screens.
UV Coating: PCBA, Precision machining, Chip packaging, Automotive Industry.
UV Ink: UV printing, 3D printing, Flexo printing, Digital and Screen printing.

Professional Support & Service

After-Sales Service

12 months standard warranty (up to 36 months optional).
24/7 technical assistance.
Global spare parts supply.
Remote or on-site operation training.

Why Choose Our Systems?

Certified with ISO 9001, CE, and RoHS.
Over 12 years of industry expertise.
Full OEM/ODM customization capabilities.
Turnkey project solutions for industrial curing.

Frequently Asked Questions

Q: What are the main advantages of a UV LED curing system compared to mercury lamps?

A: UV LED systems offer a significantly longer lifespan (20,000+ hours), lower energy consumption, instant on/off without warm-up time, and are environmentally friendly as they are ozone-free and mercury-free.

Q: Which industries commonly use the AFL-200x10 UV curing system?

A: It is widely used in optical communications, electronics assembly (adhesive curing), automotive part coating, and various printing applications including inkjet and flexo.

Q: Can the emitting window size be customized?

A: Yes, we provide full customization for the emitting window size and peak irradiance levels to match your specific production line requirements.

Q: How do I choose the right power intensity for my material?

A: Power intensity requirements depend on the UV sensitivity of your materials and your desired production speed. Our technical team can assist in determining the optimal specs for your application.

Q: Does the system support automated production lines?

A: Absolutely. The controller features RS232, PLC, and I/O interfaces, allowing for seamless integration into fully automated manufacturing environments.

Q: What is the recommended distance for irradiation?

A: For the AFL-200x10 model, the recommended distance range for optimal peak intensity is approximately 10mm.
