📊Basic Information
| Model NO. | GG-3535UVC-1015 |
| Beam Angle | 120° |
| Emitting Color | RGBW |
| IP Rating | IP33 |
| Base Material | Aluminum |
| LED Chips | Epileds Sanan |
| Power | 3W |
| Life | 30000h |
| Certification | CCC, RoHS, CE, FCC, SGS, Lm-80 |
| Wavelength | 260-280nm |
| Warranty | 3 Years |
| Production Capacity | 5000kpcs/Month |
💡Product Description

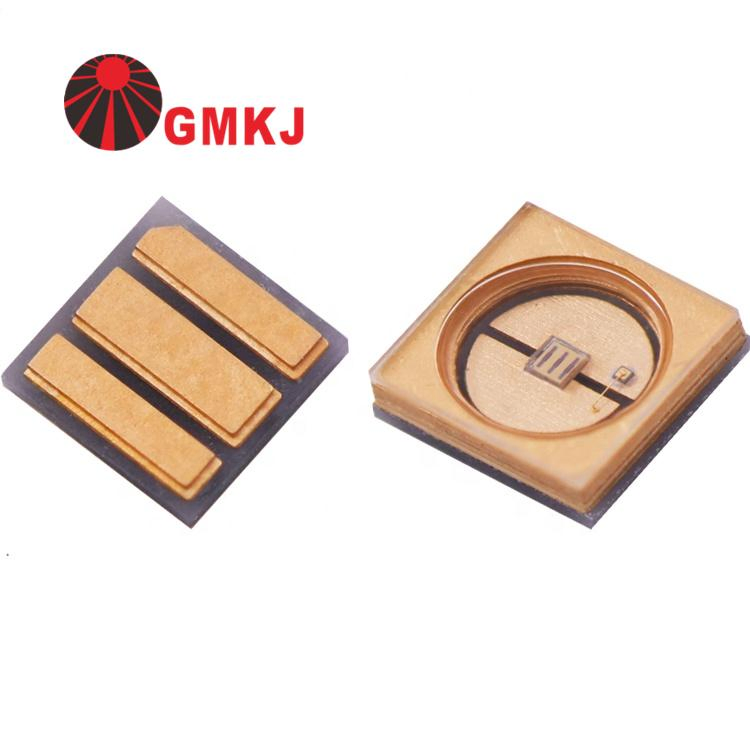

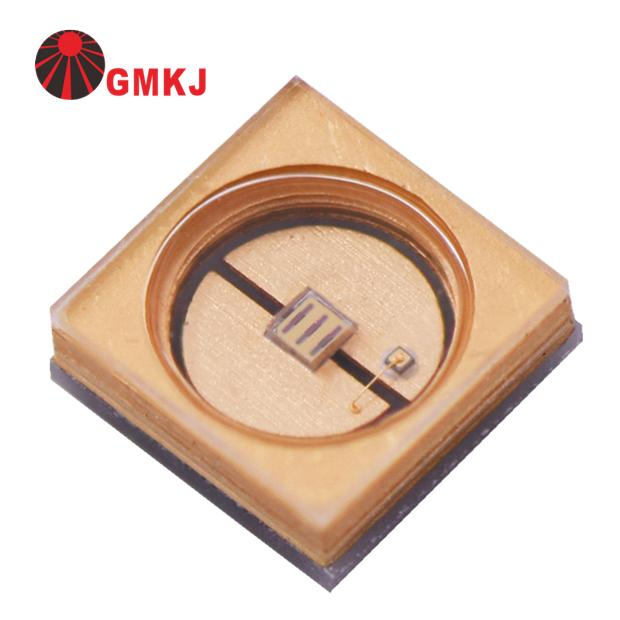

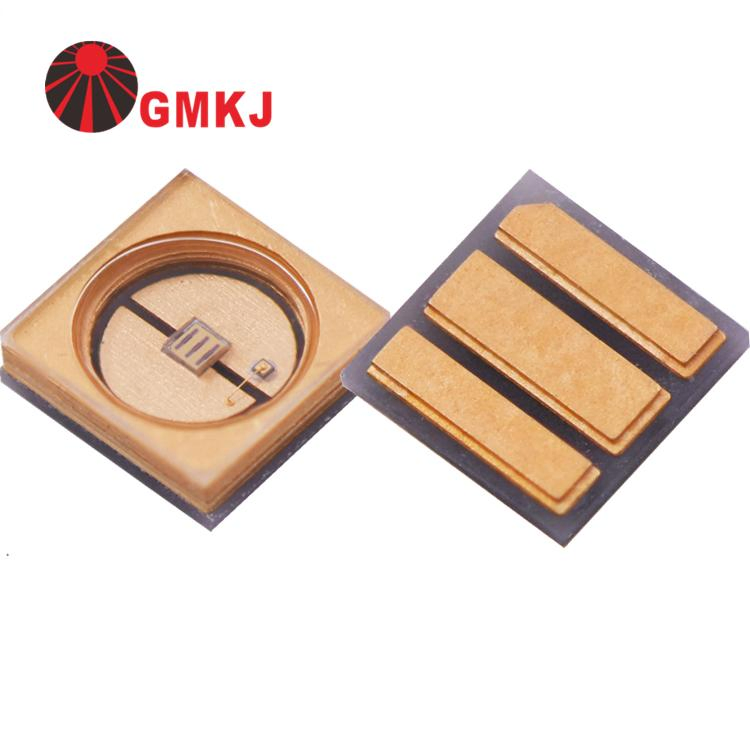

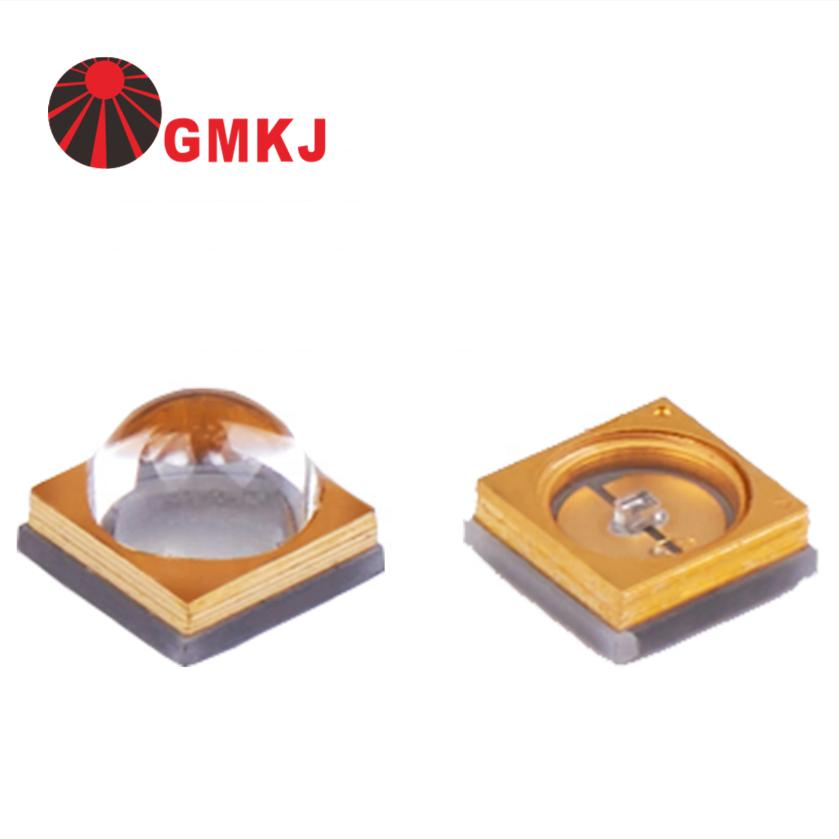

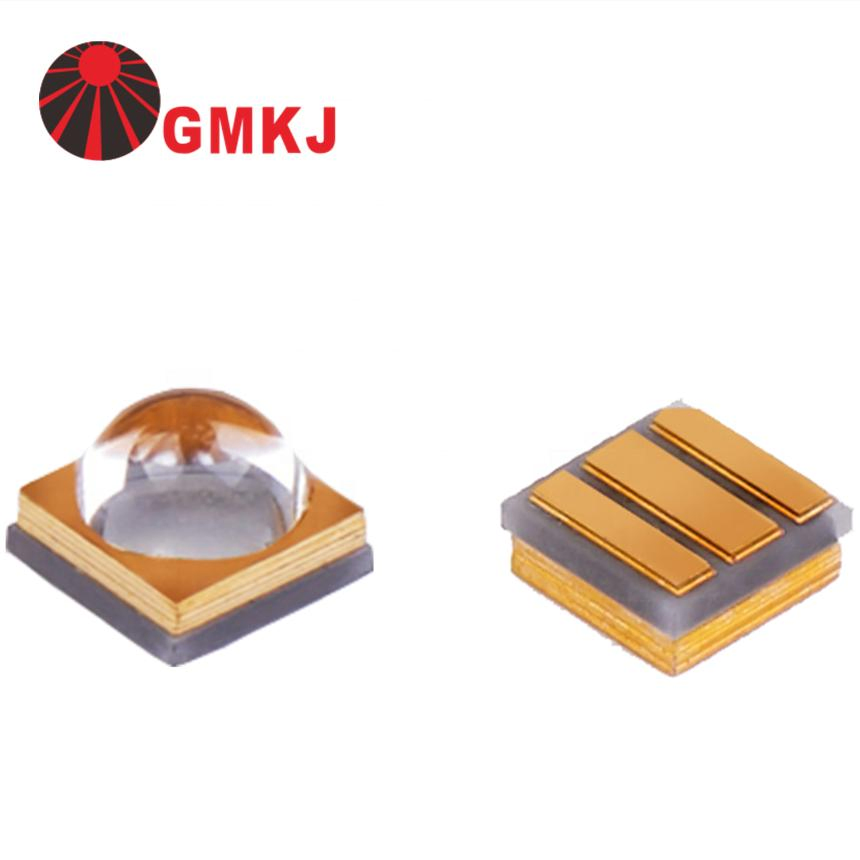

High Efficiency Ultraviolet 3535 SMD LED available in 1W and 3W options. This versatile chip covers a wide spectrum including 265nm, 270nm, 280nm, 300nm, 310nm, 311nm, 350nm, 365nm, 375nm, 385nm, 395nm, and 400nm, catering to UV UVA UVB UVC applications such as UV curing and sterilization.
| Type | 3535 SMD LED |
| Input Voltage | DC 6.00-8.00V |
| Forward Current | 300mA |
| Viewing Angle | 60° / 120° |
| Color Rendering Index | 80 Ra |

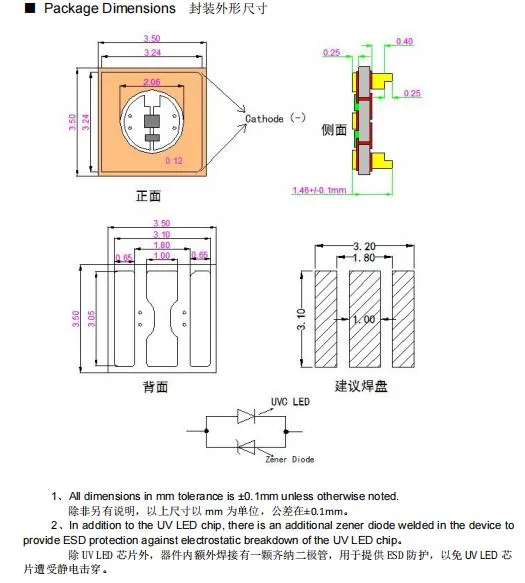

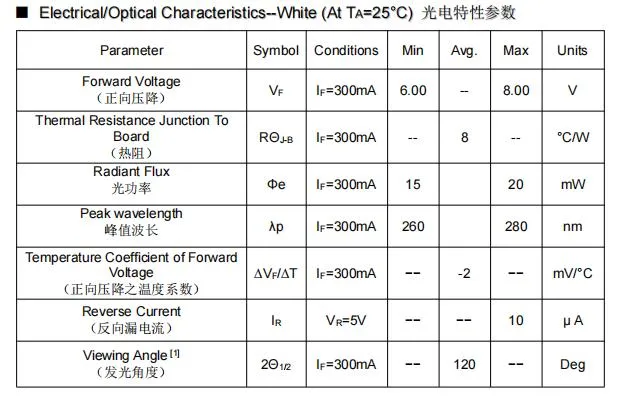

📐Technical Specifications
🏢Professional Manufacturer Profile

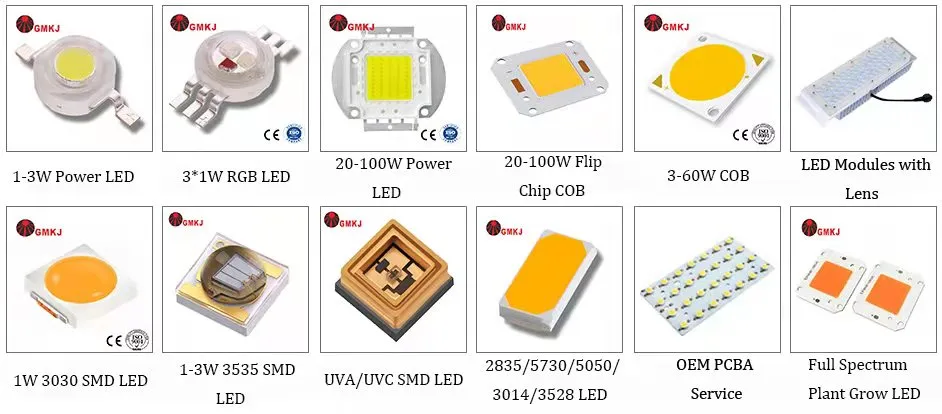

We are a professional LED chips package manufacturer. Our primary production includes 2835, 3030, 3535 SMD LED, 3-100 Watt COB LED, high power LED chips, UV LEDs, and IR LEDs. These components are widely utilized in street lighting, plant growth lights, high bay fixtures, UV curing machinery, and security systems.

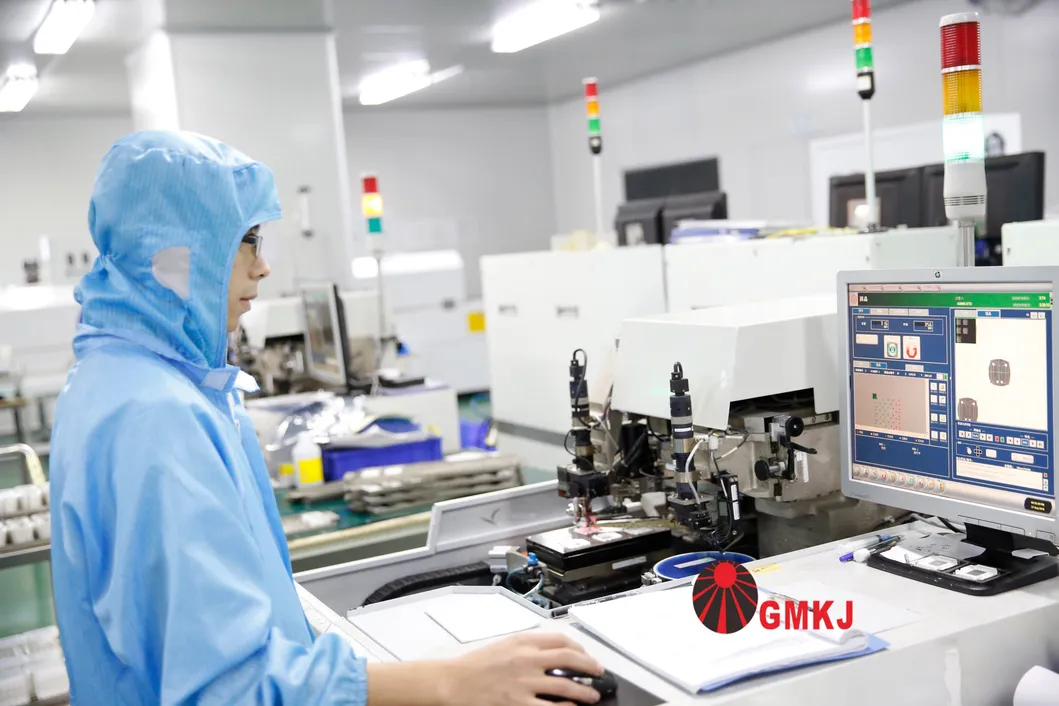

All products adhere to the energy standard LM-80, CE, and RoHS testing. We implement 100% testing for brightness, color temperature, and input voltage prior to shipment. Our facility is equipped with automatic ASM die bonding machines and KS golden wire soldering machines to ensure premium quality.
📦Packaging & Shipping
Shipping Methods:
1. Express: DHL, UPS, Fedex (3-5 working days);
2. Air: Favorable for specific regions (5-7 days);
3. Sea: Economic for large, heavy, and non-urgent orders;
4. Forwarder: We can coordinate with your assigned shipping agent.
❓Frequently Asked Questions
Do you supply OEM and ODM services?
Yes, we have focused on professional OEM & ODM services for over 7 years to meet specific client requirements.
Are the product images on your site authentic?
Yes, all images displayed are 100% real photos taken of our actual products.
How can I obtain a formal quotation?
Please provide your specific needs, including product parameters, application, and quantity. Our team will respond within one hour.
Is there a discount for bulk orders?
Yes, we provide wholesale pricing for bulk orders and customized product requests.
What are your standard payment terms?
We accept T/T, PayPal, Western Union, and various secure payment methods.
What is the typical lead time for orders?
Standard lead time is 10-15 working days. For standard samples, delivery can be as fast as 3 days.
