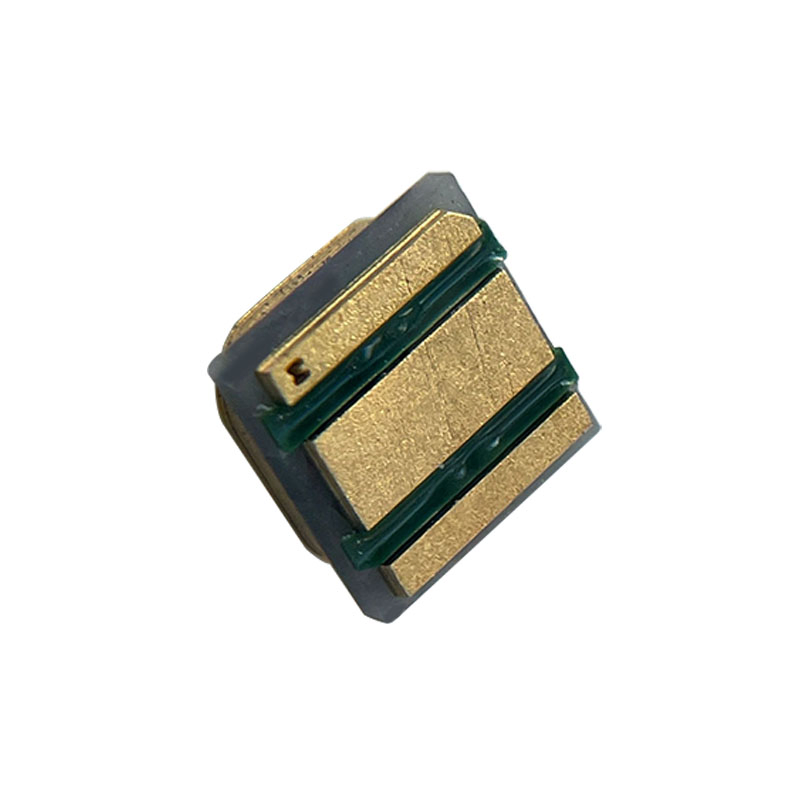

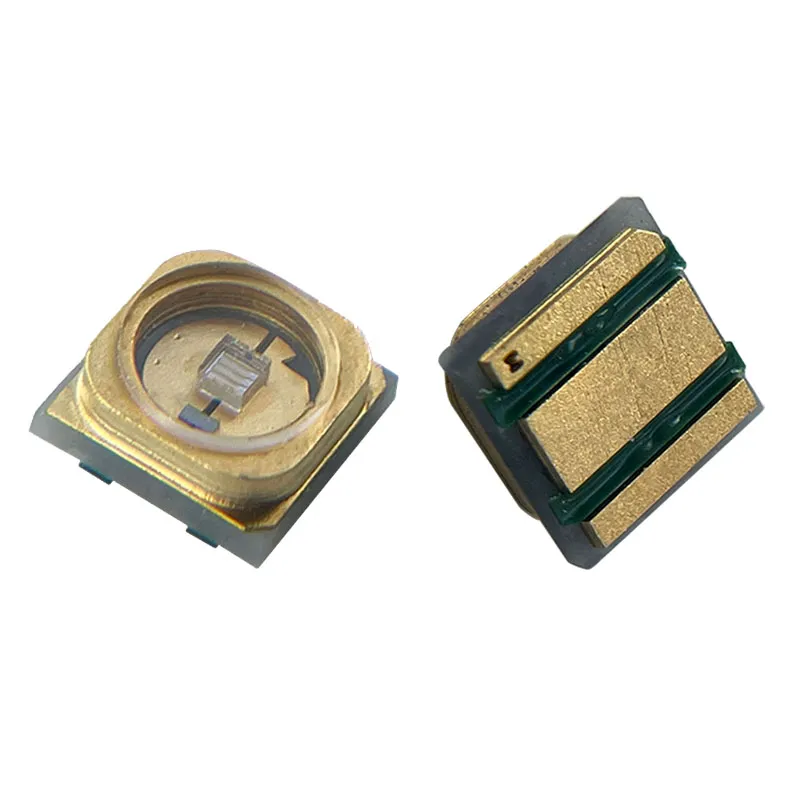

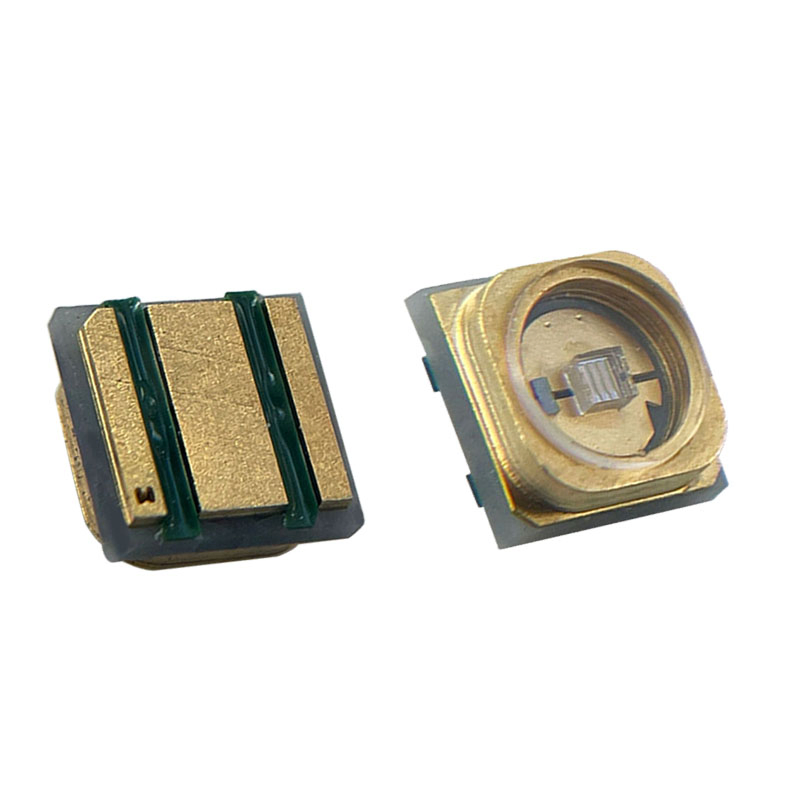

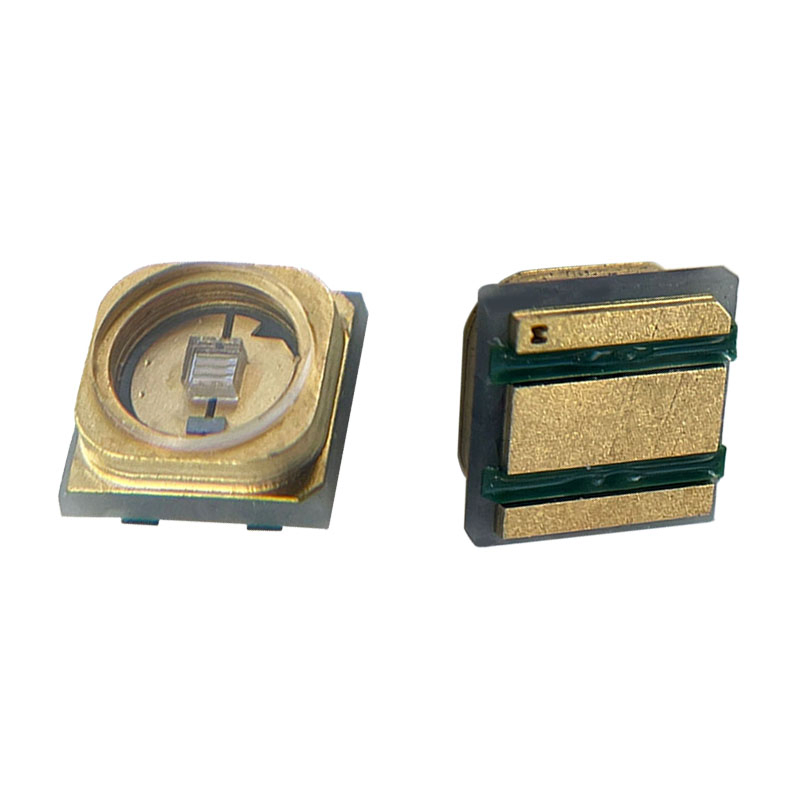

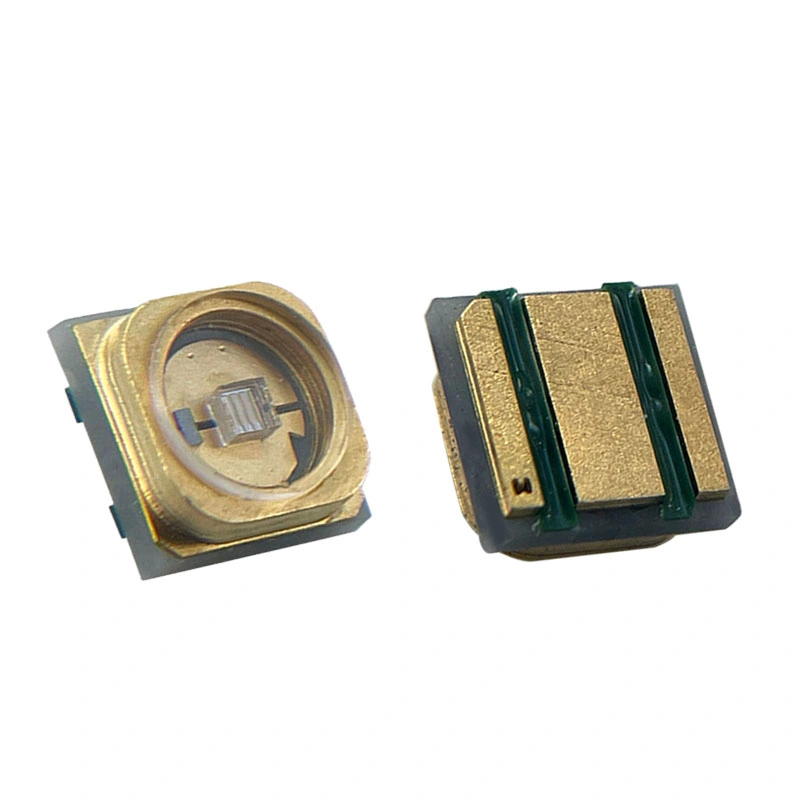

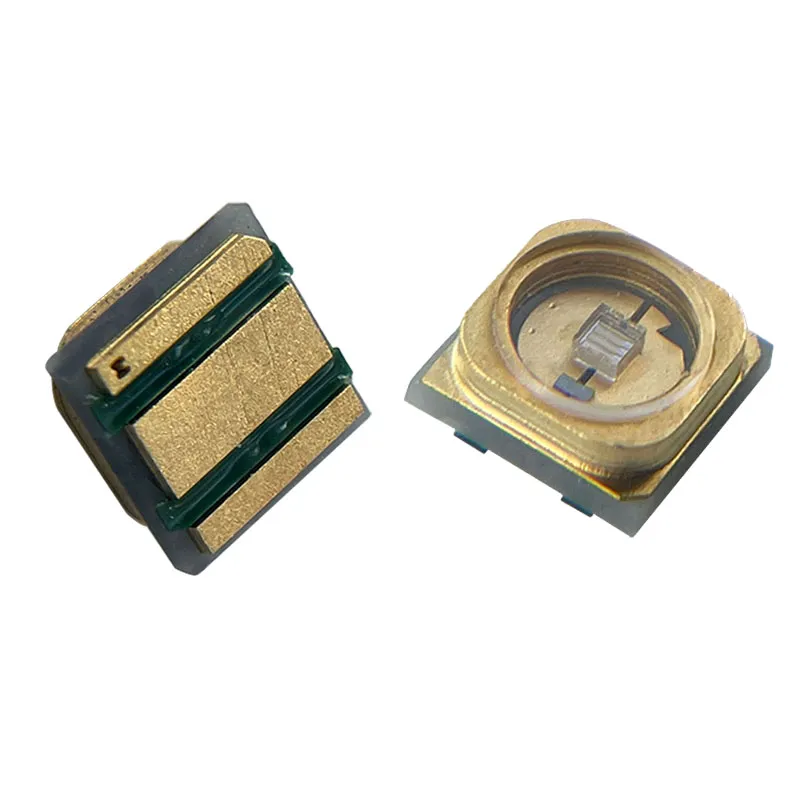

| Product Name | SMD 3535 1W 6V 300nm-315nm LED Chip |
| Type | UV LED |

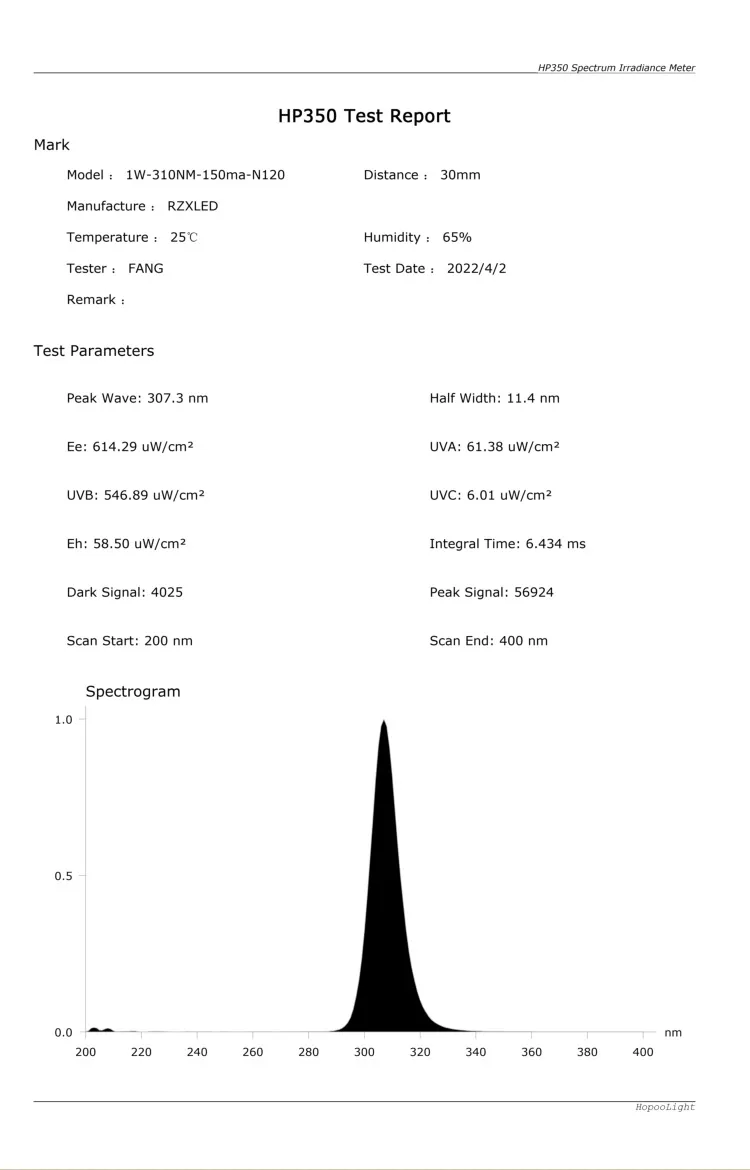

| Wavelength | 300nm-315nm |
| Power | 1W |
| Input Voltage | 6V |
| Forward Current | 150 Ma |
| Beam Angle | 120° |
| Radiation Flux | 20-30MW |
| Base Material | Copper |
| Lifespan | 30000 Hours |
| Certification | RoHS |
| Size | 3.5*3.5*1.6mm |
| Application | Medical Equipment, Ultraviolet Sensor, Water Sterilization |
The 3535 UVC series is a surface mount high-power device featuring high brightness combined with a compact size that is suitable for all kinds of lighting applications such as general illumination, flash, spot, signal, industrial and commercial lighting. This series is designed to meet the rigorous requirements of modern Solid-State Lighting.
Ultraviolet Technology Advantages: Compared with traditional mercury lamps, UV LEDs offer instant lighting, low power consumption, and environmental protection. With the implementation of the Minamata Convention, UVLED technology has become the major trend for energy-efficient light sources.
Application Spectrum:
• UVA (320-400 nm): Used for curing (glue, ink).
• UVB (280-320 nm): Used for skin treatment (vitiligo, psoriasis).
• UVC (200-280 nm): Used for sterilization of solids, liquids, and gases.
Principle of Ultraviolet Disinfection:
UV disinfection uses appropriate wavelengths to destroy the molecular structure of DNA or RNA in microorganisms, causing cell death to achieve sterilization. UVC is within the range of microbial absorption peaks, allowing viruses and bacteria to be killed within seconds by destroying their DNA structure. UV disinfection is a physical method with no side effects, often used in water supply and drainage projects.
