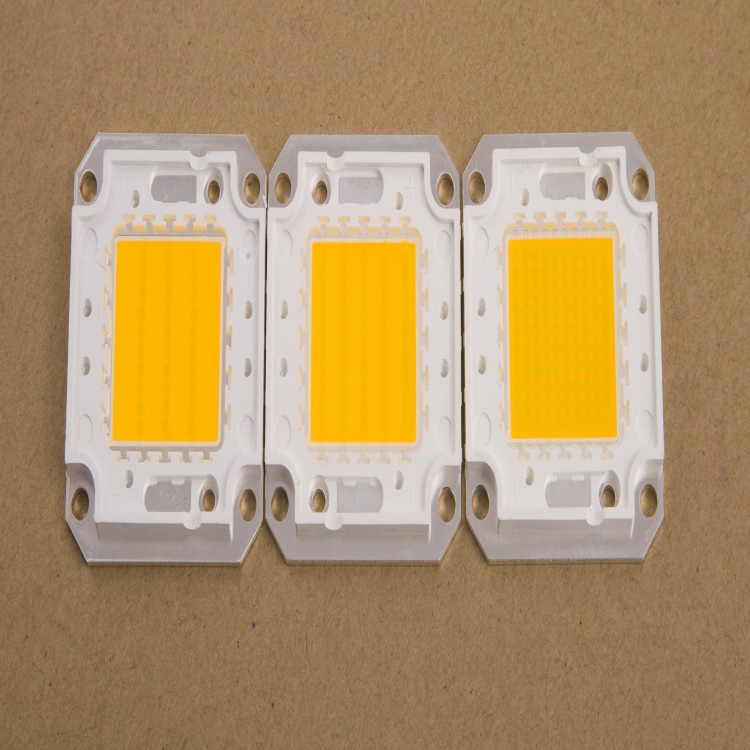

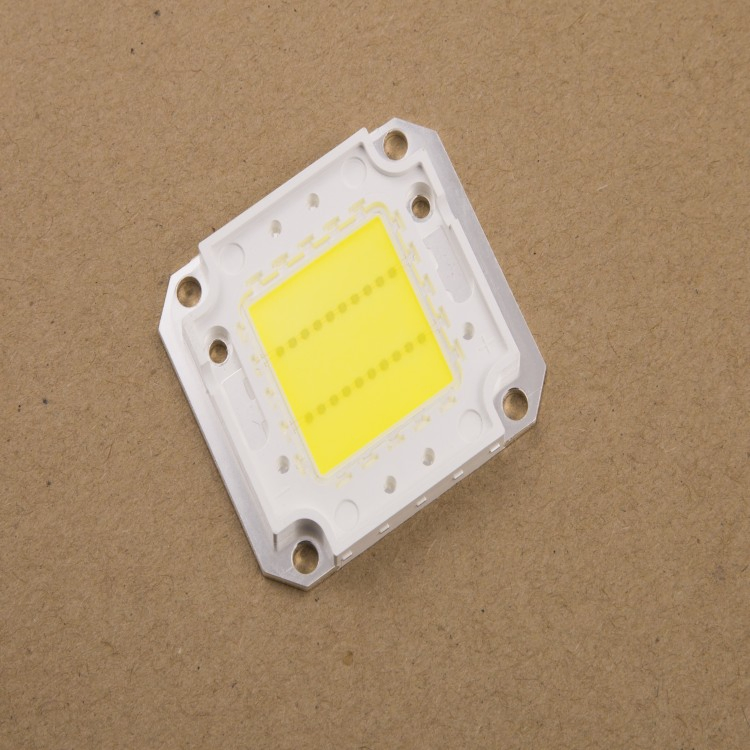

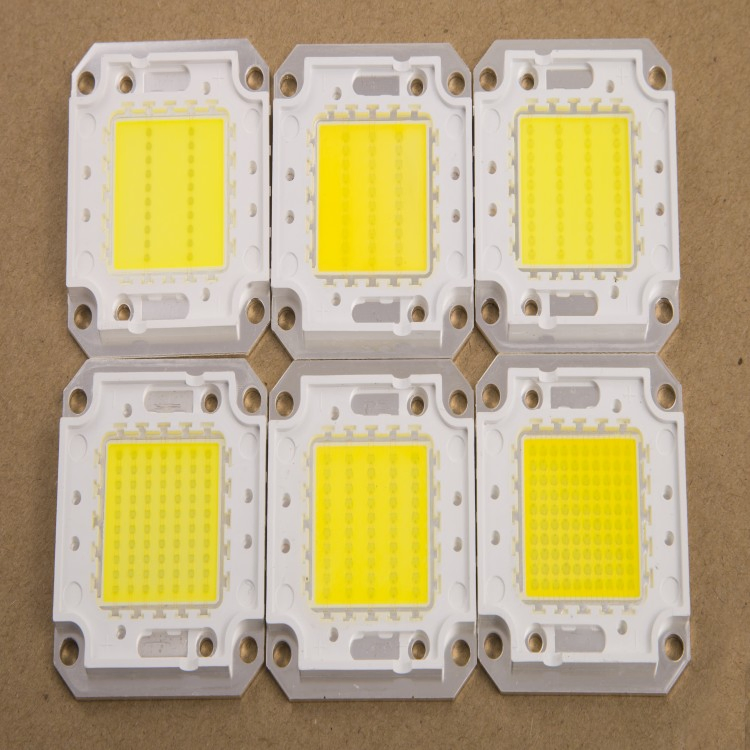

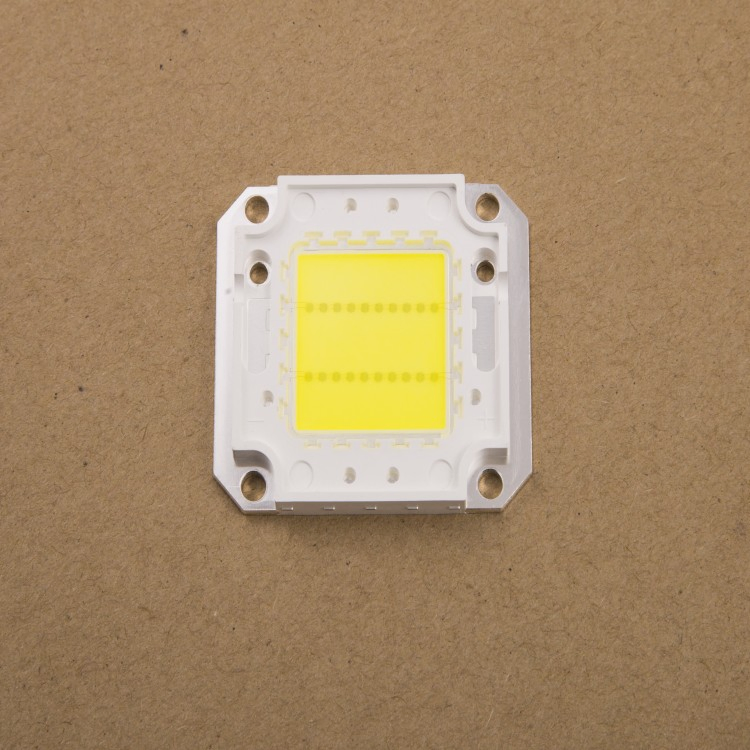

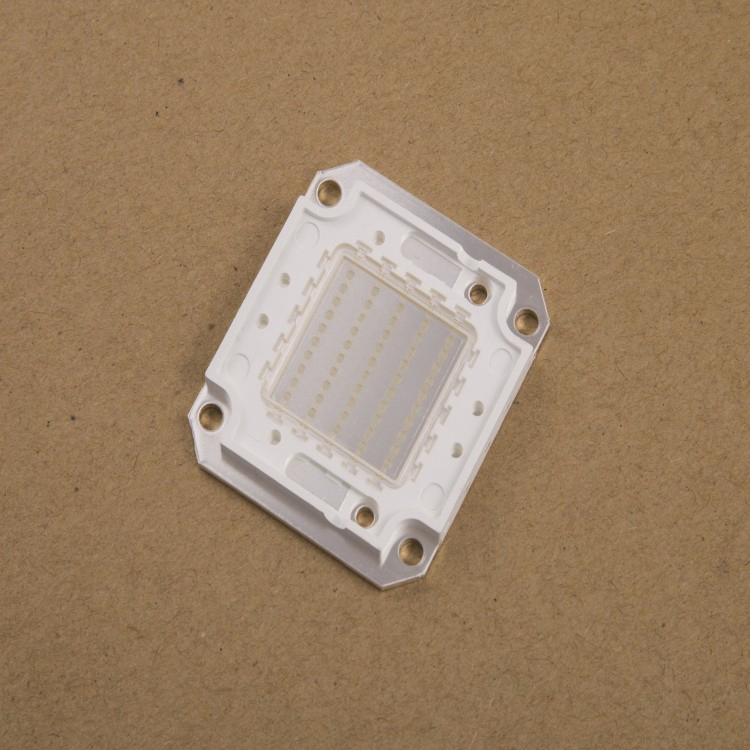

Bridgelux 45mil 20W 30V - 36V 700mA High Power LED for Flood Light
Bridgelux 45mil 20W 30V - 36V 700mA High Power LED for Flood Light
Bridgelux 45mil 20W 30V - 36V 700mA High Power LED for Flood Light
Bridgelux 45mil 20W 30V - 36V 700mA High Power LED for Flood Light
Bridgelux 45mil 20W 30V - 36V 700mA High Power LED for Flood Light
1 / 5
Bridgelux 45mil 20W 30V - 36V 700mA High Power LED for Flood Light
Bridgelux 45mil 20W 30V - 36V 700mA High Power LED for Flood Light
Bridgelux 45mil 20W 30V - 36V 700mA High Power LED for Flood Light
Bridgelux 45mil 20W 30V - 36V 700mA High Power LED for Flood Light
Bridgelux 45mil 20W 30V - 36V 700mA High Power LED for Flood Light

Bridgelux 45mil 20W 30V - 36V 700mA High Power LED for Flood Light

Customization: Available
Power: 20W
IP Rating: IP33
Send Inquiry

Product Description

i

Basic Information

Model NO.
RZX-SJ20W2B10C-CW
Power Source
COB
Lamp Holder Type
COB
Housing Material
Copper Stent
Life
50000h
LED Chips
Epistar
Certification
RoHS, CE
CCT
2700-6500K
Voltage
30-36V
Current
700mA
Transport Package
10PCS/Lot
Origin
China
📦

Packaging & Delivery

Package Size
15.00cm * 10.00cm * 5.00cm
Package Gross Weight
0.100kg
Lead Time
15 days (1 - 1000 Pieces); To be negotiated (> 1000 Pieces)
★

Product Description

  • Specifications: 20W High Power LED
  • Quality: Brand new and high quality components
  • Forward Current: 700mA
  • Color Temperature: White (5500-6500K), Warm White (2700-3500K), Natural White (3800-4500K)
  • DC Forward Voltage (VF): 30-36V
  • Beam Angle: 120 degrees wide illumination
  • Lifespan: Over 50,000 hours
  • Luminous Intensity: 2000-2500LM per piece
  • Compliance: RoHS compliant and lead-free
Model SMD Size (mm) Viewing Angle Power (W) Voltage (V) Current (mA) Color Temp (K) Flux (LM)
RZX-PO20B2C10CW-CW 50*45MM 120 20W 30-36V 700MA 6000-6500K 2000-2500LM
RZX-PO20B2C10AW-AW 50*45MM 120 20W 30-36V 700MA 2700-3500K 2000-2500LM
RZX-PO20B2C10NW-NW 50*45MM 120 20W 30-36V 700MA 3800-4500K 2000-2500LM

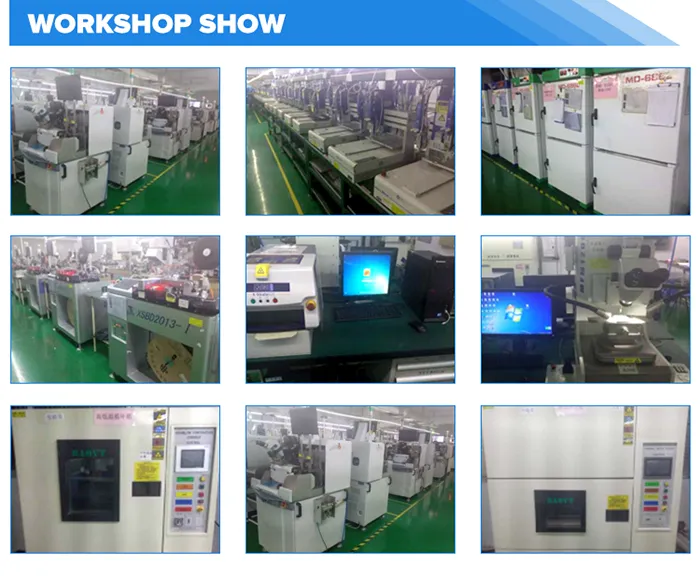

LED Detail 1

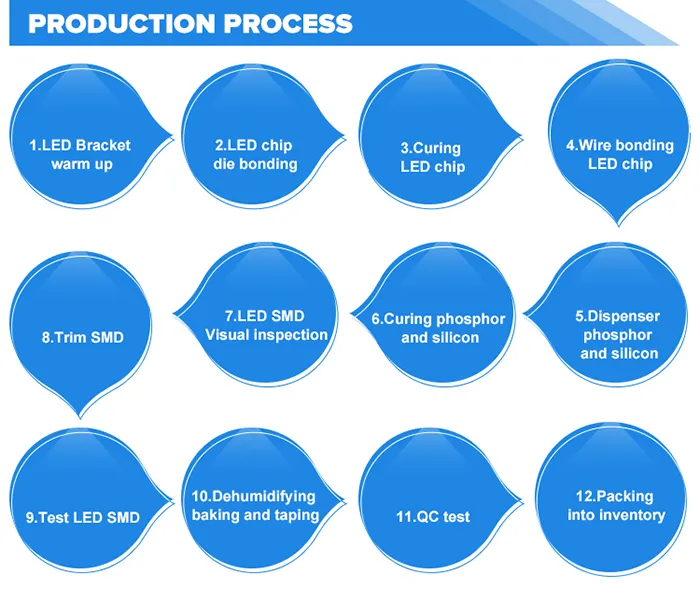

LED Detail 2
LED Detail 3

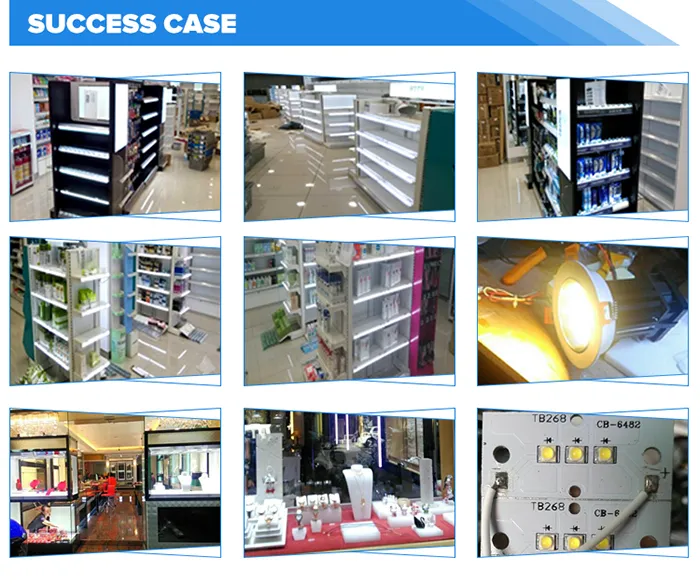

LED Detail 4
LED Detail 5
LED Detail 6
LED Detail 7

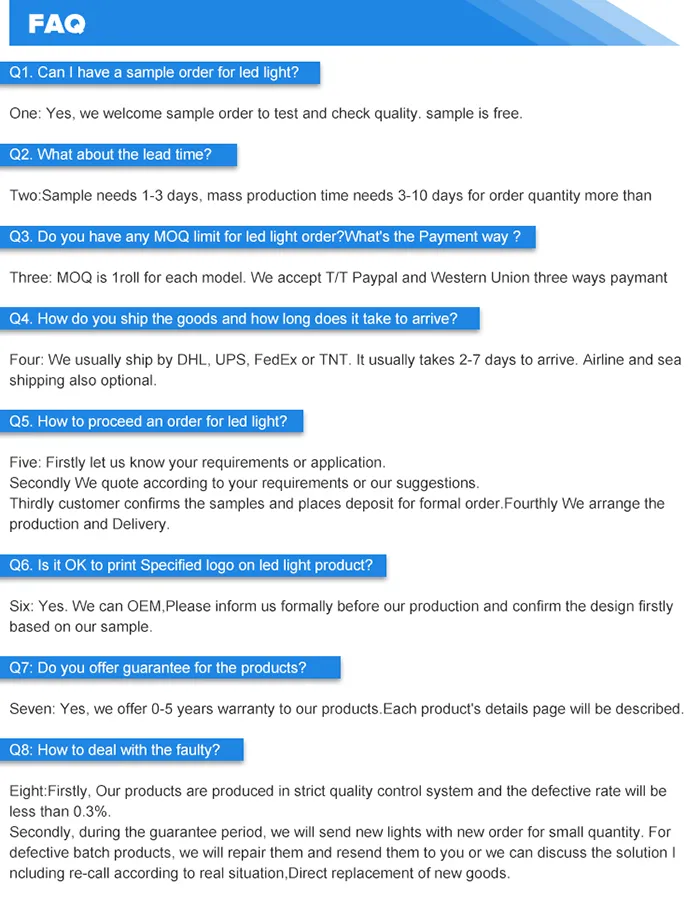

LED Detail 8
?

Frequently Asked Questions

What is the expected lifespan of this 20W COB LED?
The product is designed for long-term durability with a lifespan exceeding 50,000 hours.
What are the voltage and current requirements?
This LED operates on a DC forward voltage of 30-36V and a forward current of 700mA.
Which color temperatures are available?
We offer three main options: Warm White (2700-3500K), Natural White (3800-4500K), and Cool White (5500-6500K).
What is the luminous flux of this 20W LED?
The intensity luminous ranges between 2000-2500LM per piece, providing high brightness for flood lights.
Is the product certified for international standards?
Yes, the LED is RoHS compliant, CE certified, and lead-free, ensuring safety and environmental standards.
What is the beam angle of the light emission?
The LED features a wide beam angle of 120 degrees, making it ideal for broad area illumination.
