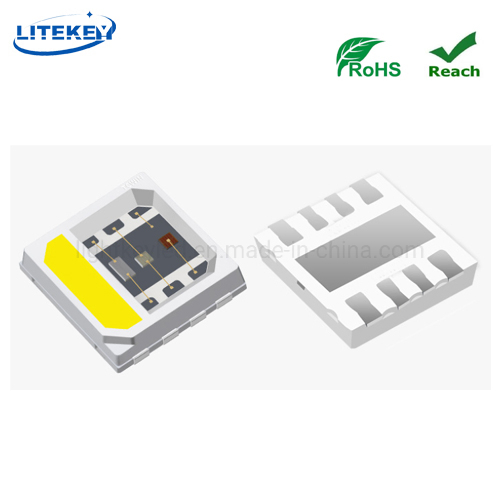

Expert Manufacturer of High Power SMD LED RGBW 5050 2W with 8 Pins RoHS Compliant

1 / 5

Expert Manufacturer of High Power SMD LED RGBW 5050 2W with 8 Pins RoHS Compliant

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

■ Basic Information

Model NO.

LLS5050PLC8RGBW-2W

Beam Angle

120°

Emitting Color

RGBW

Base Material

Copper

LED Chips

Epistar

Power

Life

50000h

Certification

RoHS, Reach

Specification

5.0mm x 5.0mm x 1.6mm

Origin

China

■ Product Features

High Power RGBW SMD LED 5050 2W 150mA with 8 Pins

✓

High Reliability
Ensures stable performance under various conditions.

✓

Efficiency
Low operating voltage and low power consumption.

✓

Long Lifespan
Designed for up to 50,000 hours of use.

✓

Eco-Friendly
PB Free products, fully compliant with EU RoHS.

■ Technical Parameters

P/N	Power	Color	Forward Voltage (V)	Forward Current (mA)	WLP (nm/K)	Luminous Flux (lm)
LLS5050PLC8RGBW-2W	2W	Red	2.0-2.4V	150mA	620-630nm	13-18lm
		Green	2.8-3.2V		515-530nm	30-40lm
		Blue	3.0-3.4V		455-465nm	5-13lm
		White	2.8-3.4V		2000-10000K	50-70lm

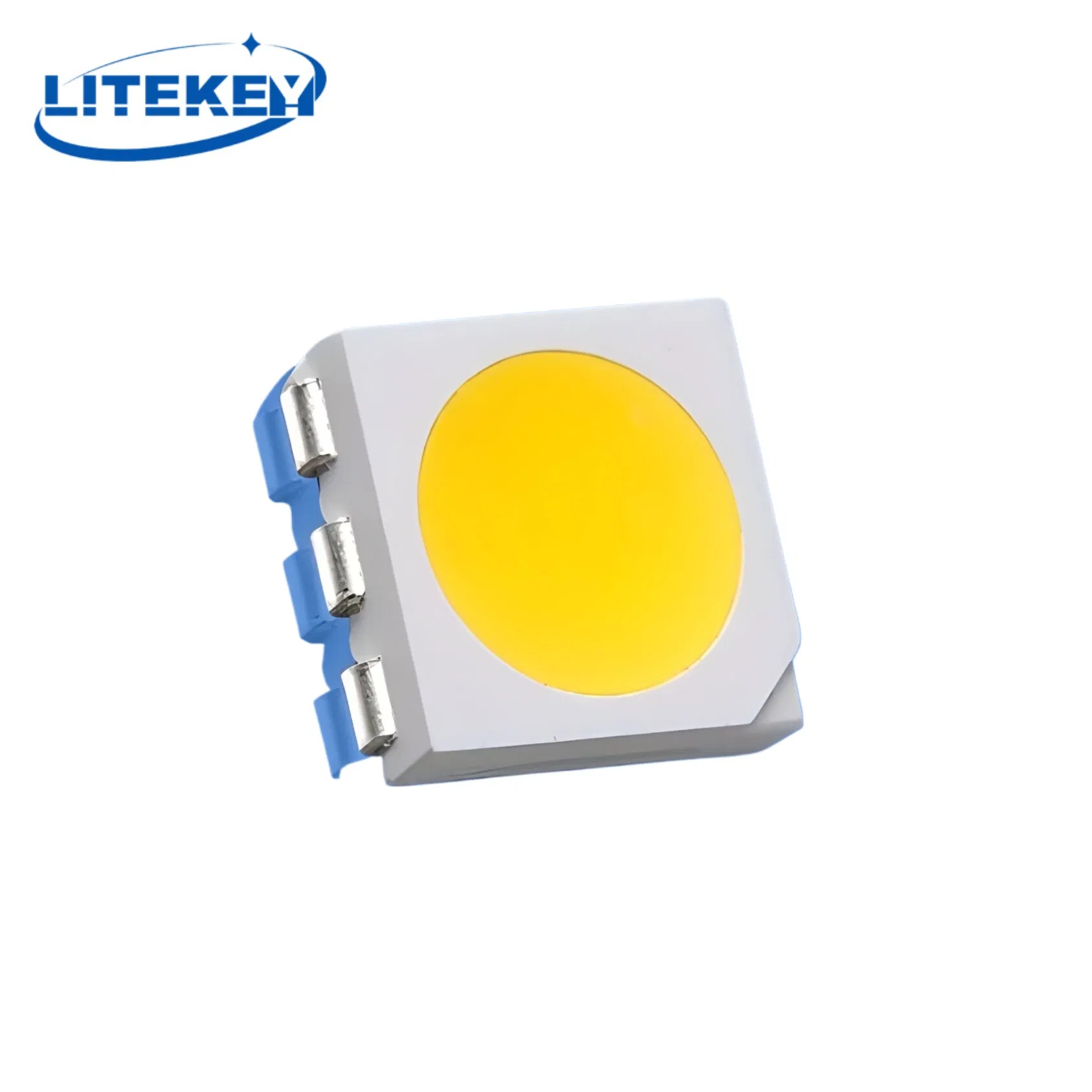

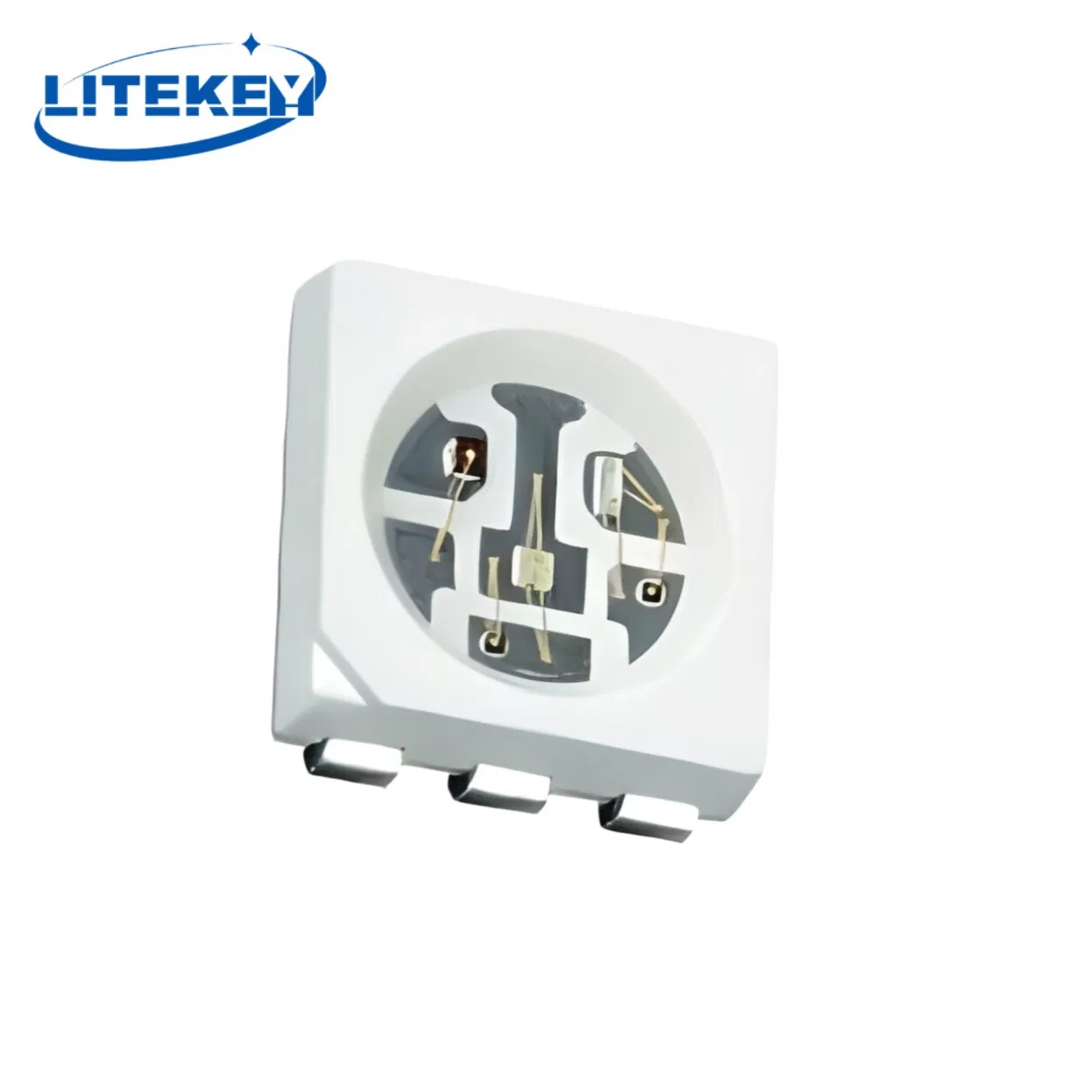

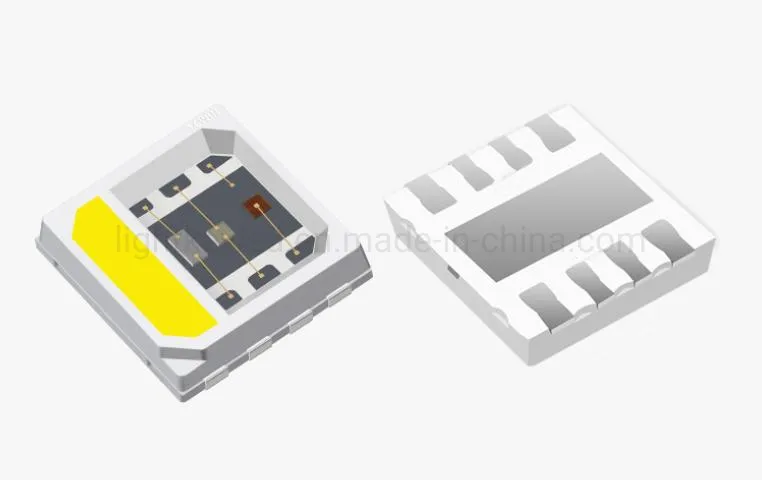

■ Detailed Photos

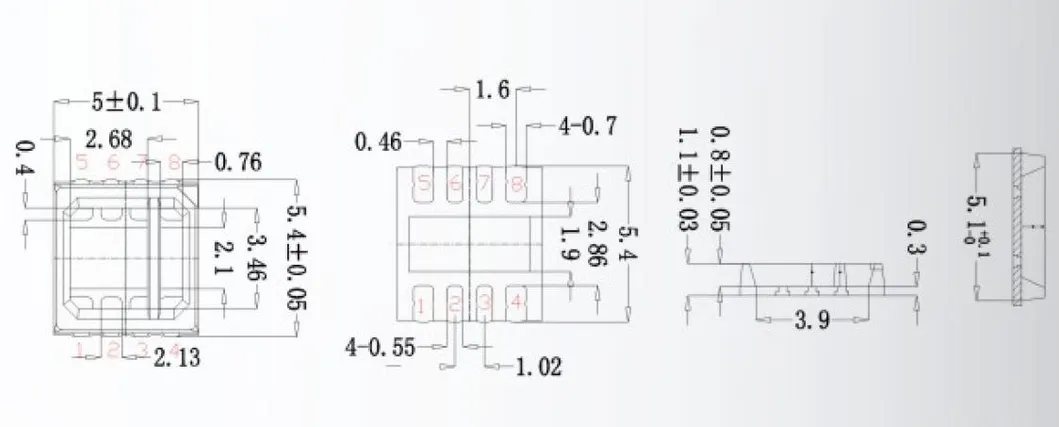

■ Package Dimensions

Custom Design: We can design according to your specific demands. Sample orders are available upon request.

■ Applications

● Indoor Illumination

● Automotive Lighting

● Back Lighting

● General Use

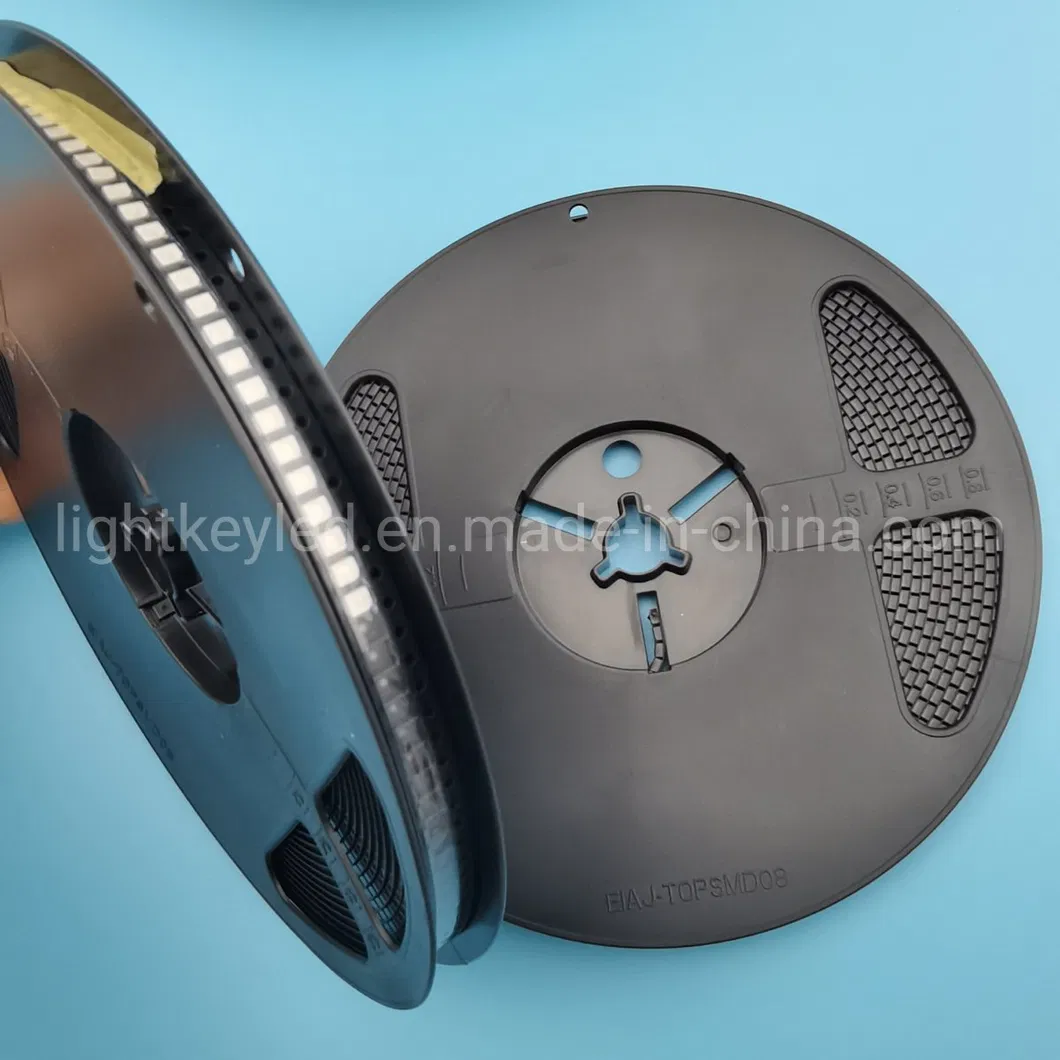

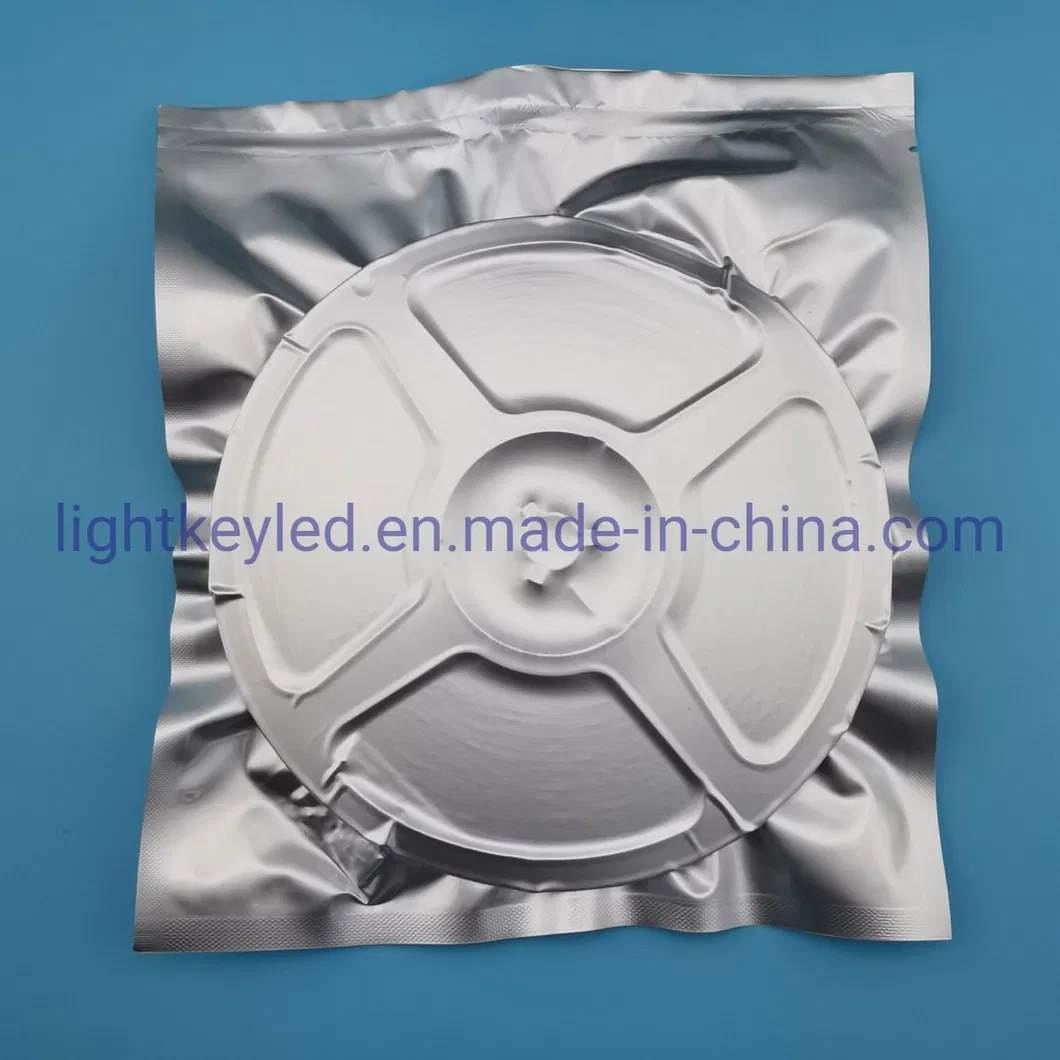

■ Packaging & Shipping

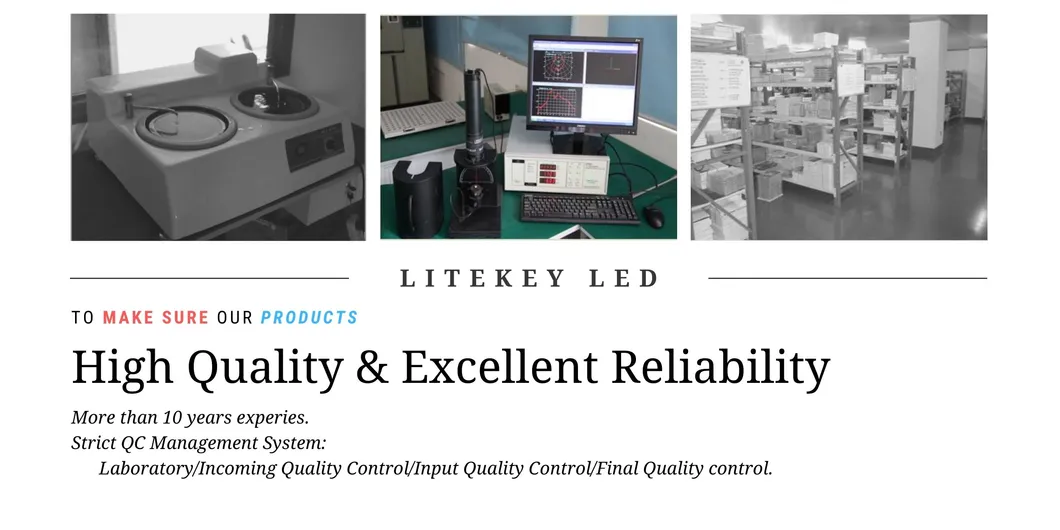

■ Quality Control & Manufacturing

Why Choose Our SMD LED Diodes?

We ensure high light efficiency and reliability through excellent raw materials:

Famous Brand & Big Size chips
Pure (99.99%) Gold Wire
Copper Frame
Advanced Optical-Grade Epoxy

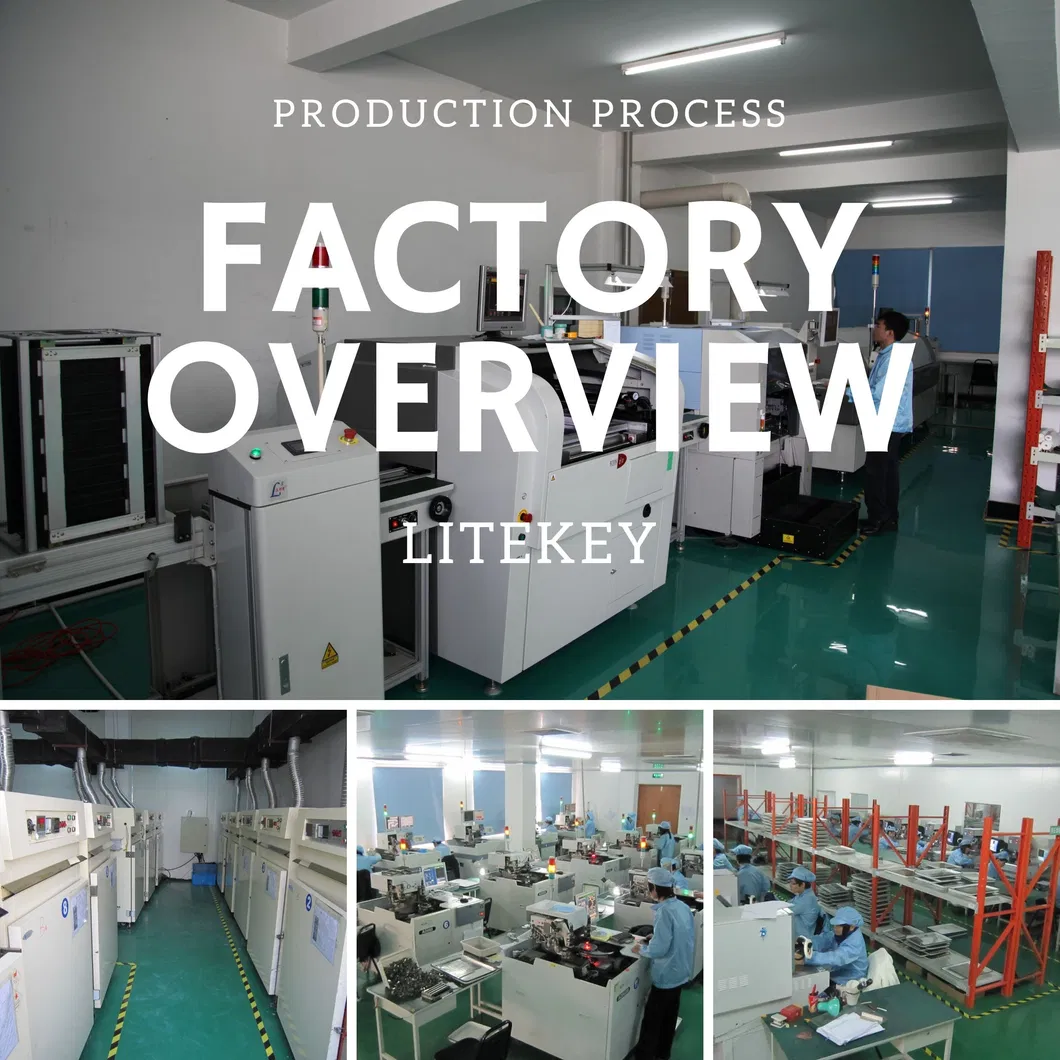

Factory Overview & Production Process:

■ Our Services

Professional service: Replied within 24 hours.

Customized products and design based on demand.

100% testing for each piece with automatic machines.

Over 14 years of experience in LED component production.

Frequently Asked Questions

What are the main advantages of this RGBW LED?

This LED offers high reliability, low power consumption, and a long lifespan of 50,000 hours. It uses a copper base and pure gold wire for superior thermal management and conductivity.

Is this product environmentally certified?

Yes, the product is PB-free and fully compliant with RoHS and REACH standards, making it safe for global distribution and use.

What is the beam angle and size of the 5050 LED?

The beam angle is 120°, and the physical dimensions are 5.0mm x 5.0mm x 1.6mm.

Can I use these LEDs for automotive applications?

Absolutely. These LEDs are specifically designed for indoor illumination, automotive lighting, and backlighting due to their high moisture resistance and anti-UV performance.

What kind of chips are used in these LEDs?

We utilize high-quality Epistar chips to ensure stable light efficiency and consistent color output across all RGBW channels.

Do you provide customized designs or samples?

Yes, we can provide customized products and designs according to your specific technical requirements. Sample orders are also available for testing.
