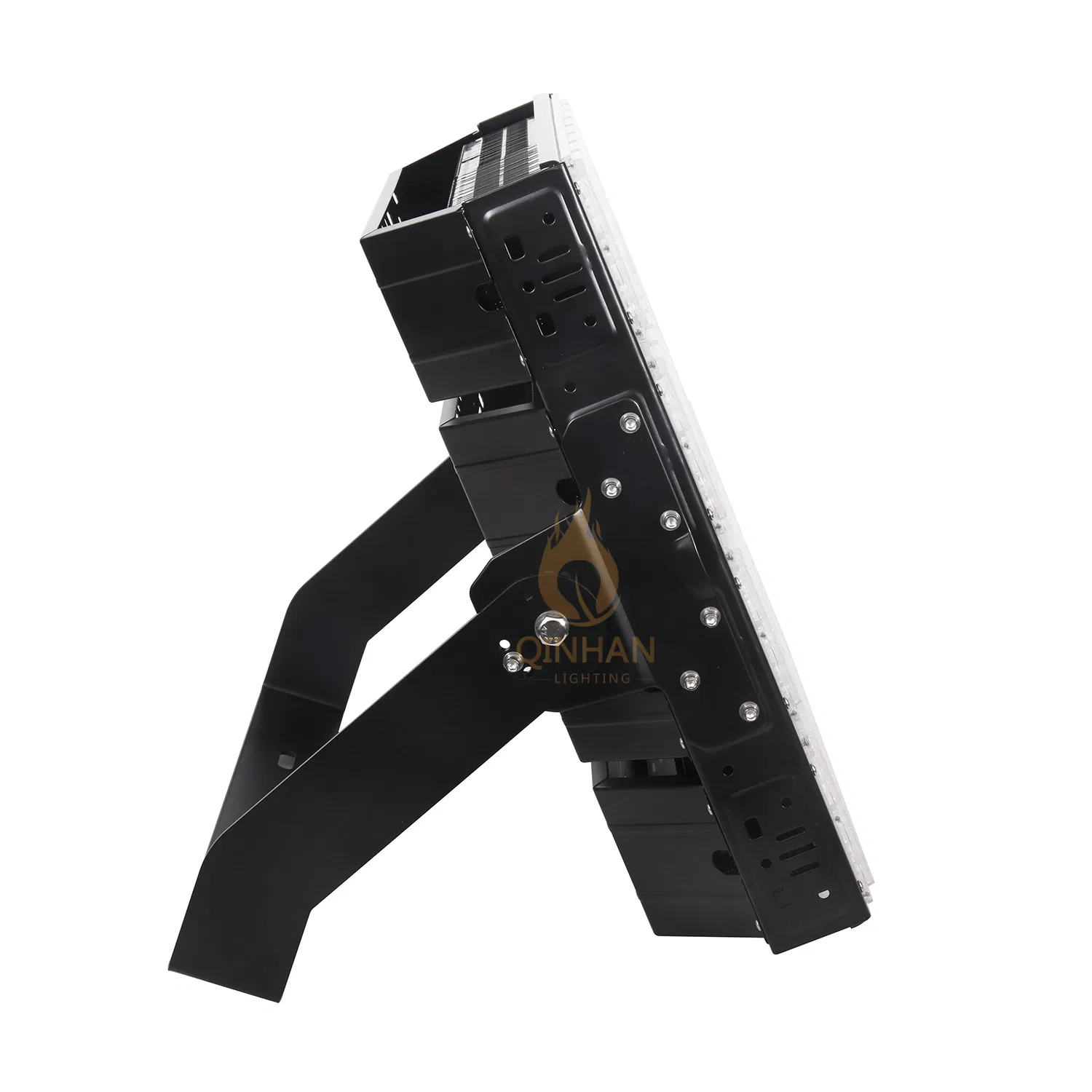

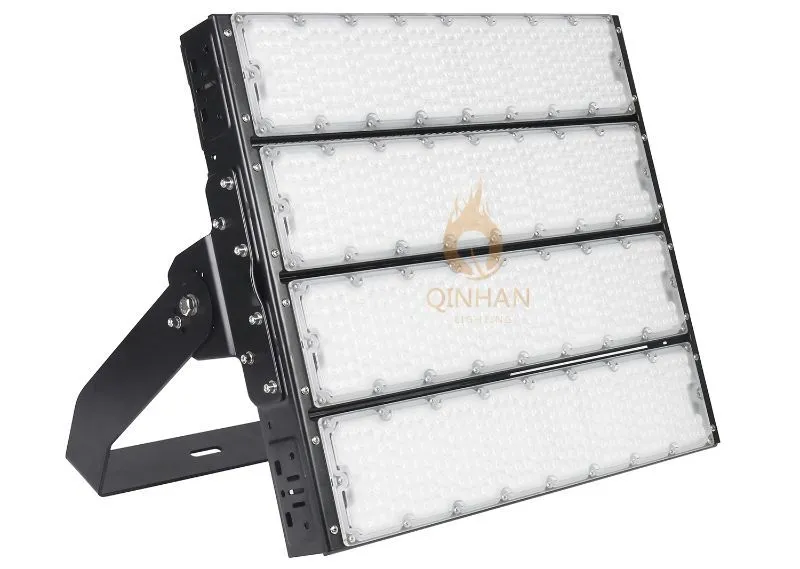

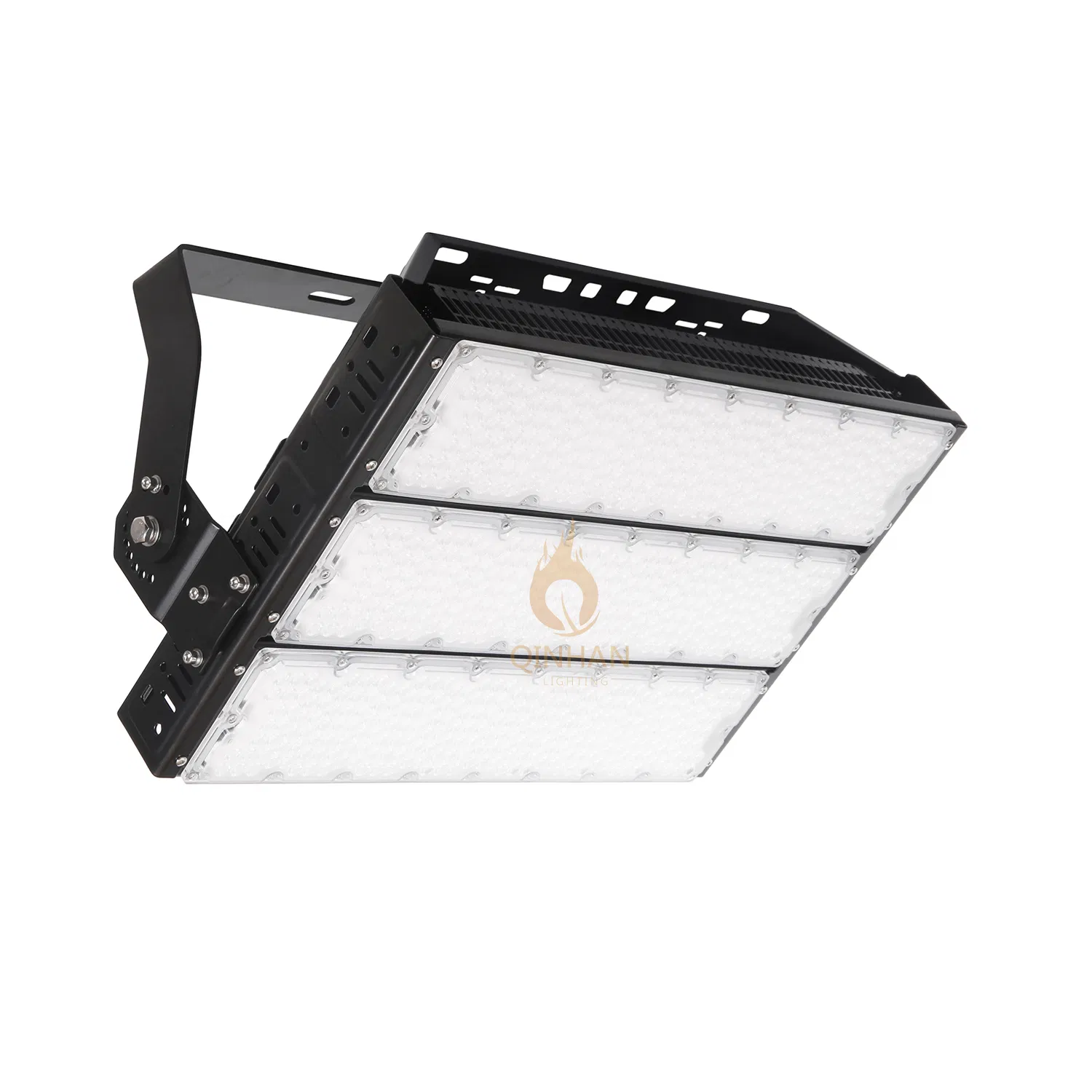

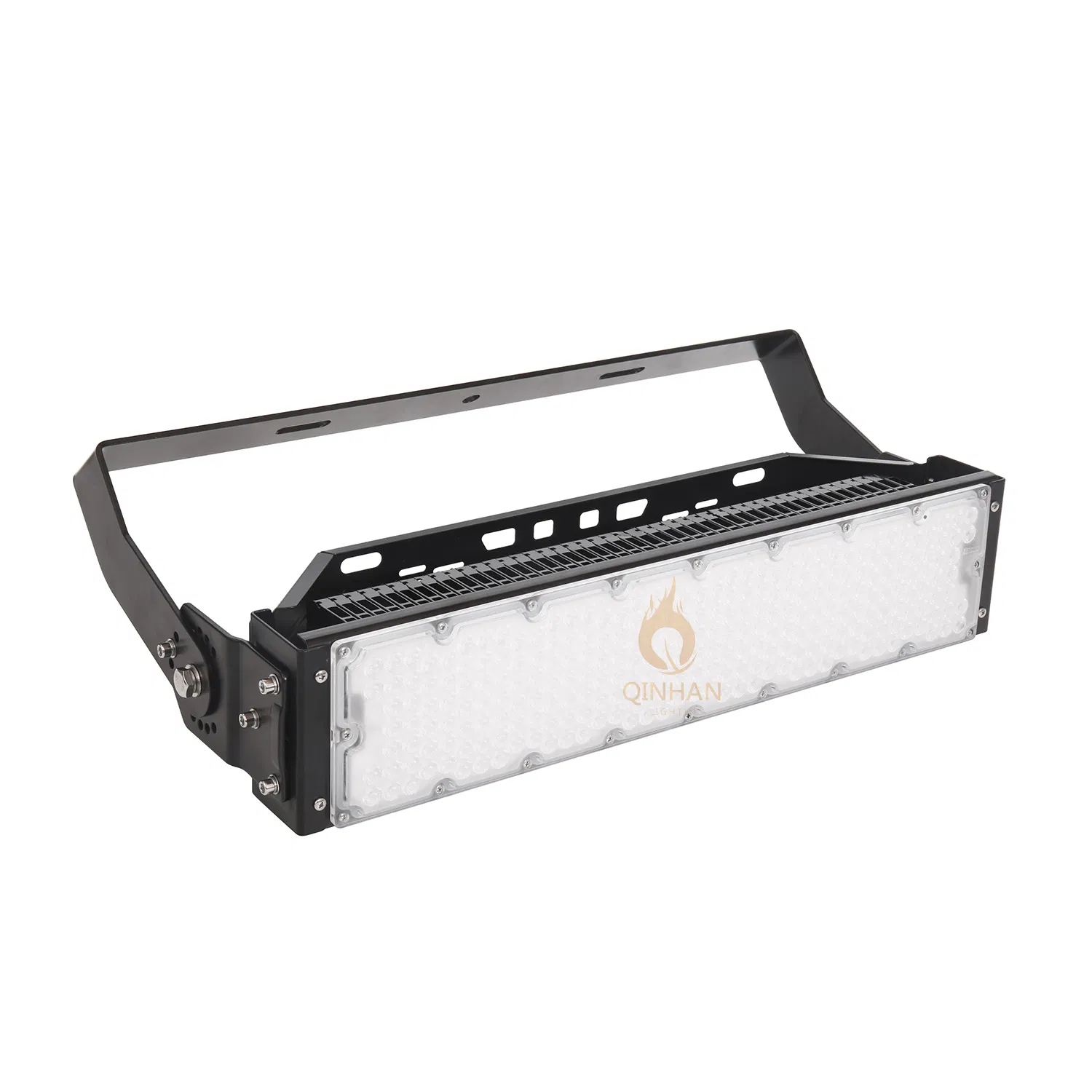

IP66 1000W High Power Stadium Lamp Outdoor Floodlight Spotlight Searchlight Projector High Mast Light 5050 SMD LED with Dali DMX Dimmable Control System

Basic Specifications

Model NO.

QH-FLMS-1000W

Power

1000W

Projection Distance

>35m

IP Rating

IP66

Certification

CE, EMC, ETL, FCC, LVD, RoHS, SAA, VDE

Operating Voltage

AC 100V - 480V

LED Chips Brand

CREE

Warranty

5 Years

Driver

Meanwell or Inventronics

Luminous Flux

150-160LM/Watt

Body Material

Die-Casting Aluminum Housing

Color Temp

3000K - 6500K (Max 20000K)

Product Description

IP66 1000W High Power Stadium Lamp Outdoor Floodlight Spotlight Searchlight Projector High Mast Light 5050 SMD LED with DALI DMX Dimmable Control System

Key Features

✓IP66 rated waterproof LED flood light for extreme outdoor conditions.
✓Rotatable modules offering maximum customization for lighting angles.
✓Multiple optics available: 20°/40°/60°/49*21°/30*70°.
✓Industry-leading efficiency of 150Lm/W with instant-on, flicker-free start.
✓Unique thermal design extracts heat from the source, extending component life.
✓Lightweight design for easy retrofitting of existing HID installations.

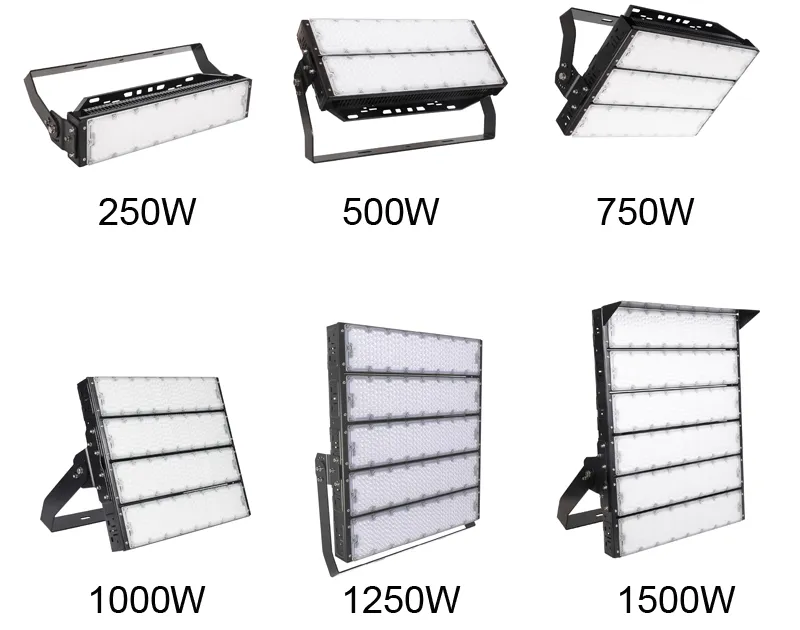

Technical Datasheet (500W-1500W)

Model	QH-FLMS-500W	QH-FLMS-750W	QH-FLMS-1000W	QH-FLMS-1500W
Power	500W	750W	1000W	1500W
LED Qty	192pcs	288pcs	384pcs	576pcs
Luminous Flux	150-160LM/Watt
Input Voltage	90-305V AC 50/60Hz
CRI	CRI>80 (Max >95)
Working Life	>50,000 hours
Gross Weight	6.5Kg	14Kg	18.4Kg	22Kg

Applications

Ideal for large-scale outdoor areas: Square, Park, Port, Airport, Shipyard, Container Wharf, Golf Course, Football Field, and Stadium lighting.

Frequently Asked Questions

Can we customize the product with our own brand?

Yes, we support OEM services including printing or embossing your logo on the fixture and providing custom branded packaging.

What is the warranty period for these stadium lights?

We provide a standard 5-year warranty for our high-power LED flood lights, ensuring long-term maintenance-free operation.

How do you ensure the quality of the LED lights?

Quality is our priority. We use top-tier components like CREE chips and Meanwell drivers. Our products have gained CE, RoHS, FCC, and other international certifications.

What happens if some lights are defective upon arrival?

We stand behind our products. If any lights are found to be non-functional upon receipt, we will provide the same quantity of working lights as compensation in your next order.

What control systems are compatible with these lights?

Our lights support various control systems including DALI, 1-10V, 0-10V, and DMX512 dimming, with optional microwave induction functions.

What are the available payment terms?

We accept T/T (Telegraphic Transfer), L/C (Letter of Credit) at sight, and Western Union.
