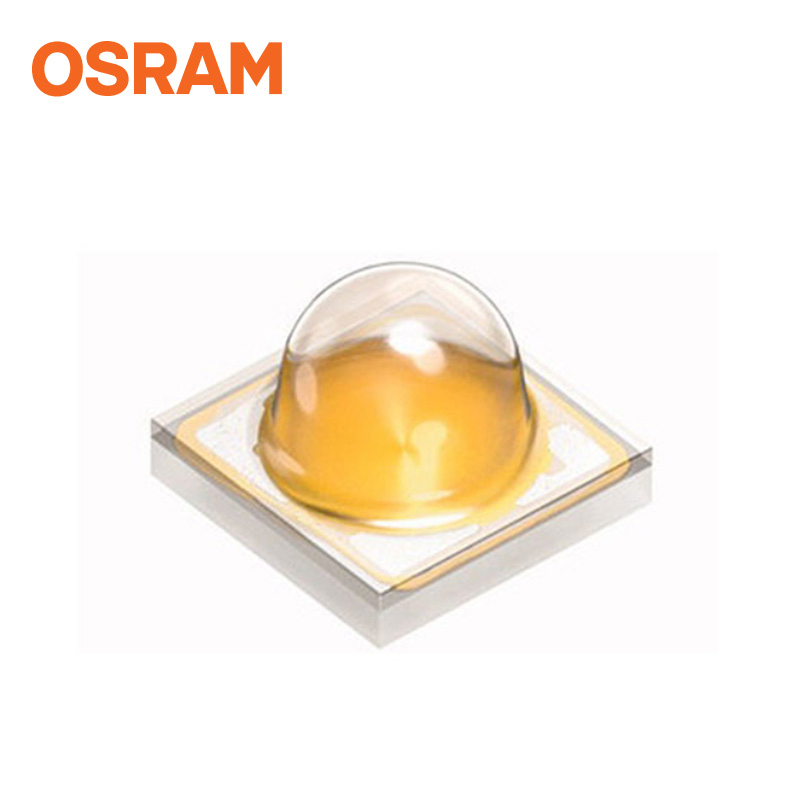

Osrams Gw CS8pm1. Pm High Power LED Cool White 5700K

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
GW CS8PM1. PM-LRLT-A232-1-350-R18
IP Rating
IP20
Power Source
2.85V
Lamp Holder
SMD/SMT
Housing
Copper
Life
50000h
LED Chips
OSRAM
Certification
RoHS, CE
Color Temp
5700K
Emitting Color
Cool White
Luminous Flux
147lm (130lm ~ 164lm)
Viewing Angle
120°
Product Description

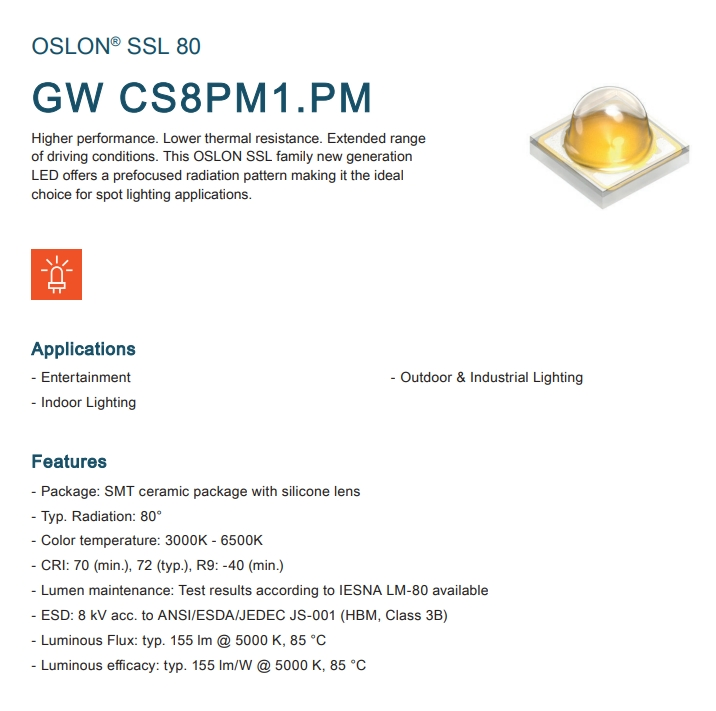

OSRAM GW CS8PM1.PM SMD LED OSLON Cool White 5700K

OSLON® SSL 80 GW CS8PM1.PM

Higher performance. Lower thermal resistance. Extended range of driving conditions. This OSLON SSL family new generation LED offers a prefocused radiation pattern making it the ideal choice for spot lighting applications.

Key Applications:

  • Entertainment Lighting
  • Indoor Lighting
  • Outdoor & Industrial Lighting

Technical Features:

  • Package: SMT ceramic package with silicone lens
  • Typ. Radiation: 80°
  • Color temperature: 3000K - 6500K
  • CRI: 70 (min.), 72 (typ.), R9: -40 (min.)
  • ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
  • Luminous Flux: typ. 155 lm @ 5000 K, 85 °C
  • Luminous efficacy: typ. 155 lm/W @ 5000 K, 85 °C
High Power LED

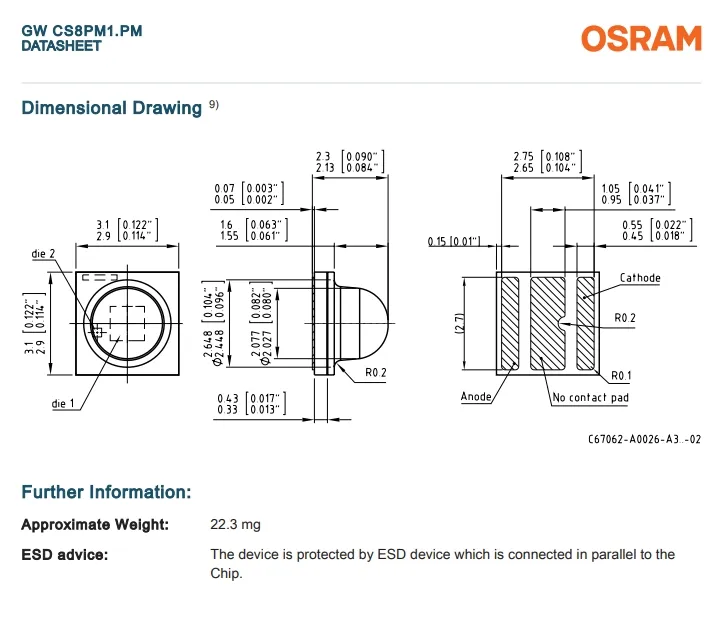

LED Chip Detail

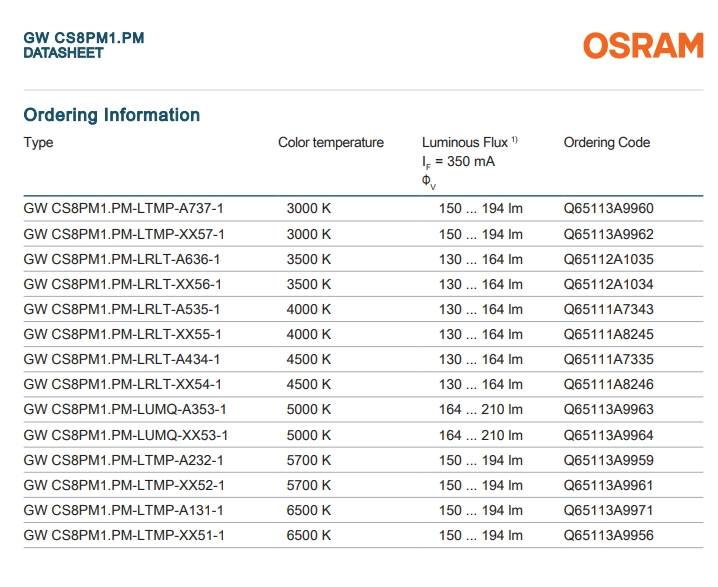

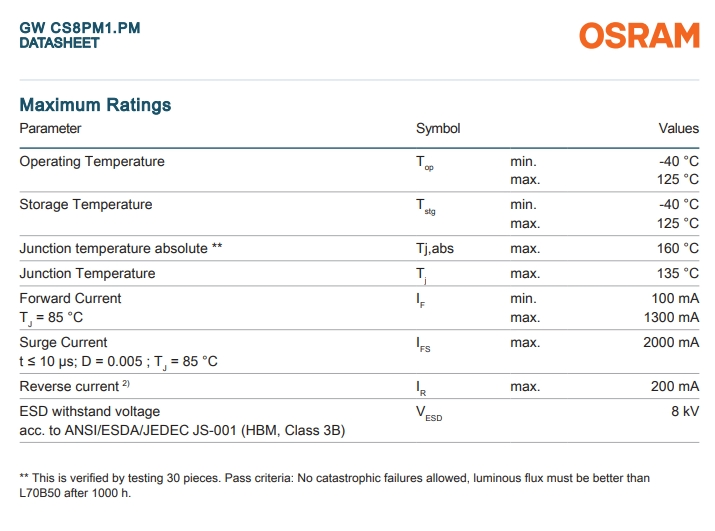

Specifications & Dimensions

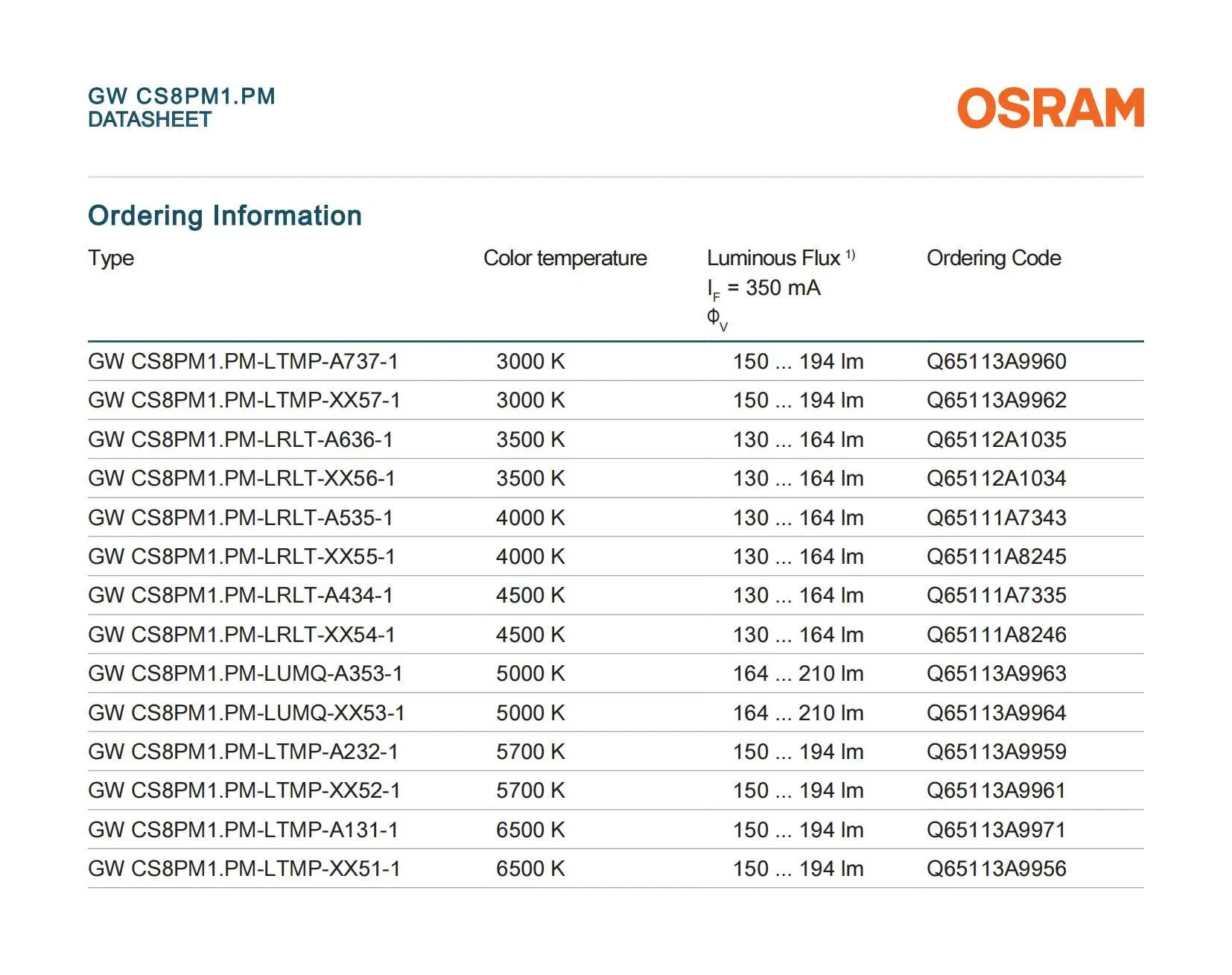

Specification 1

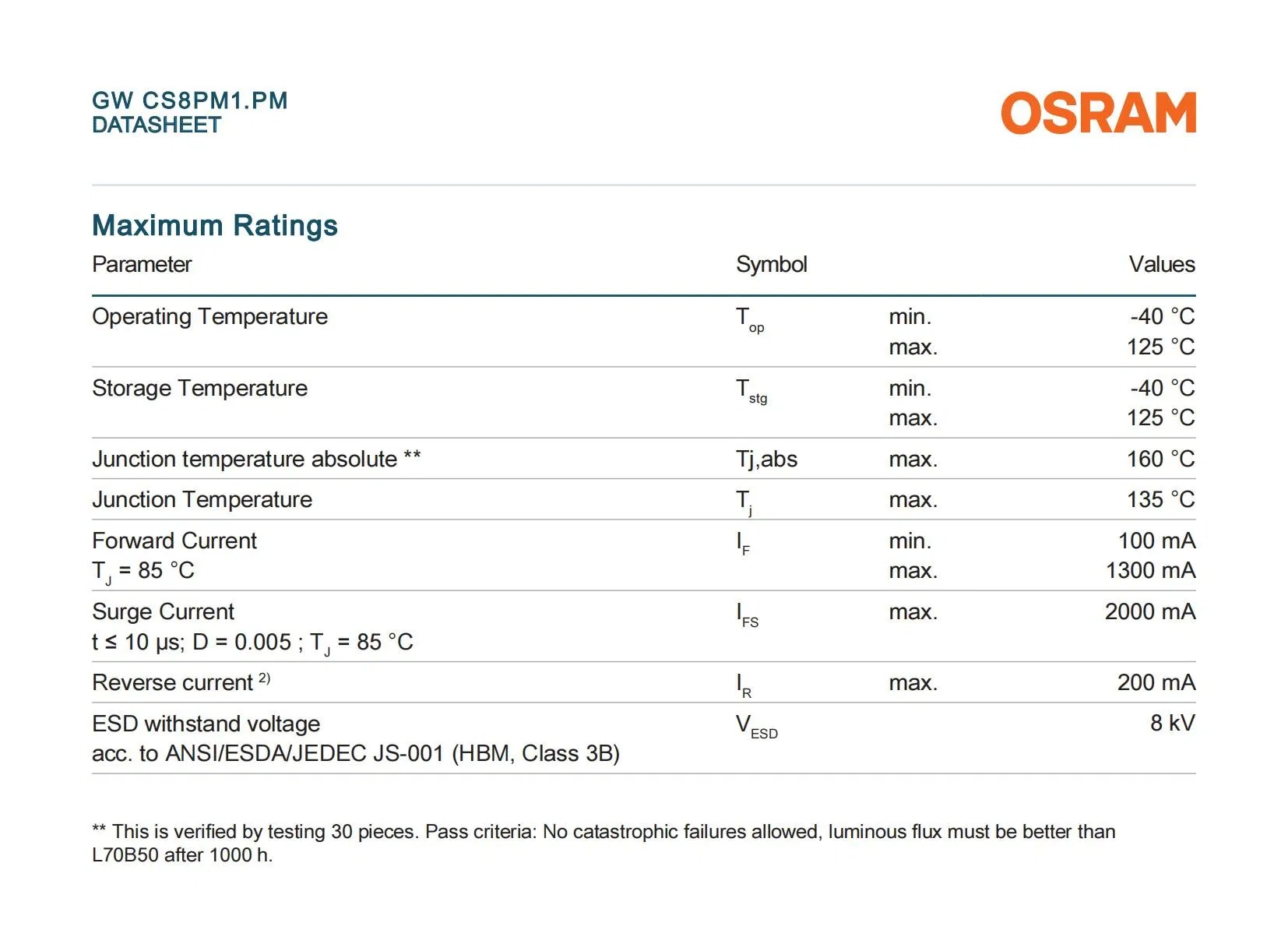

Specification 2

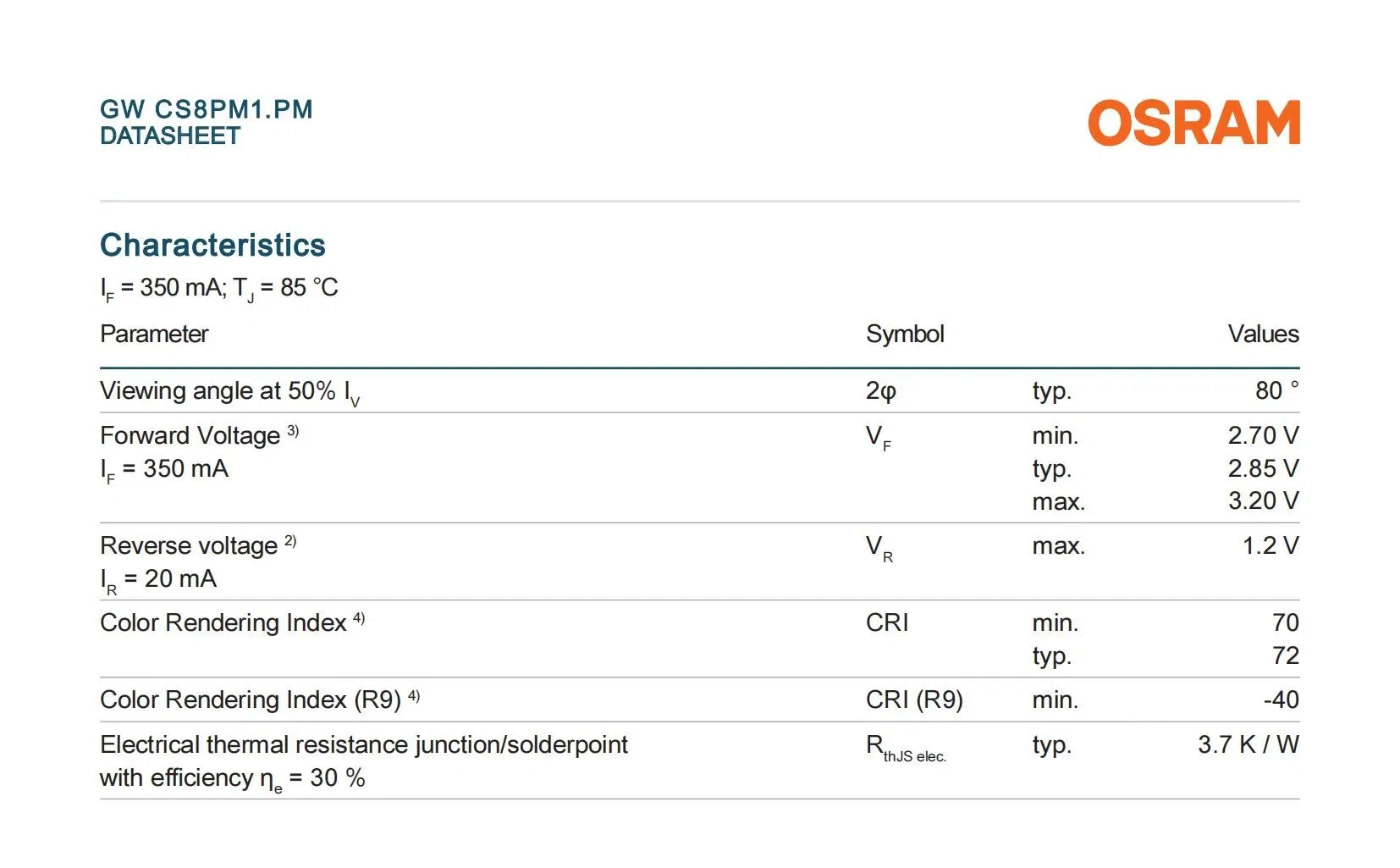

Specification 3

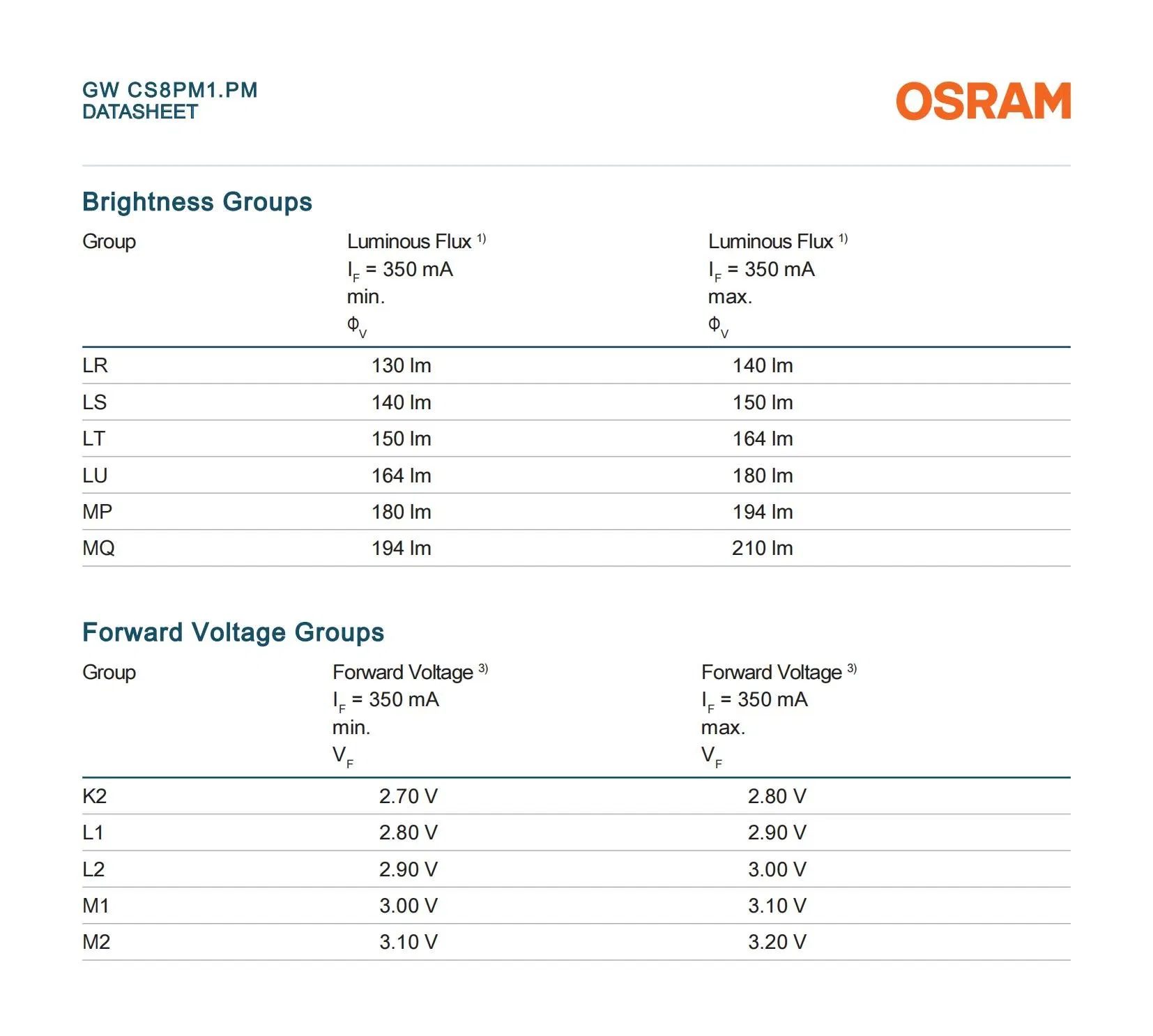

Specification 4
Packing & Delivery

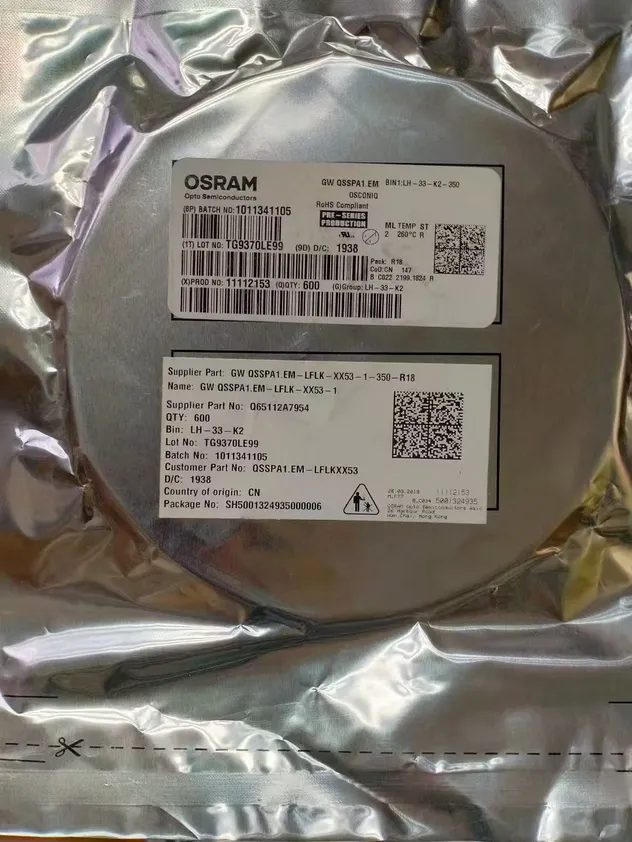

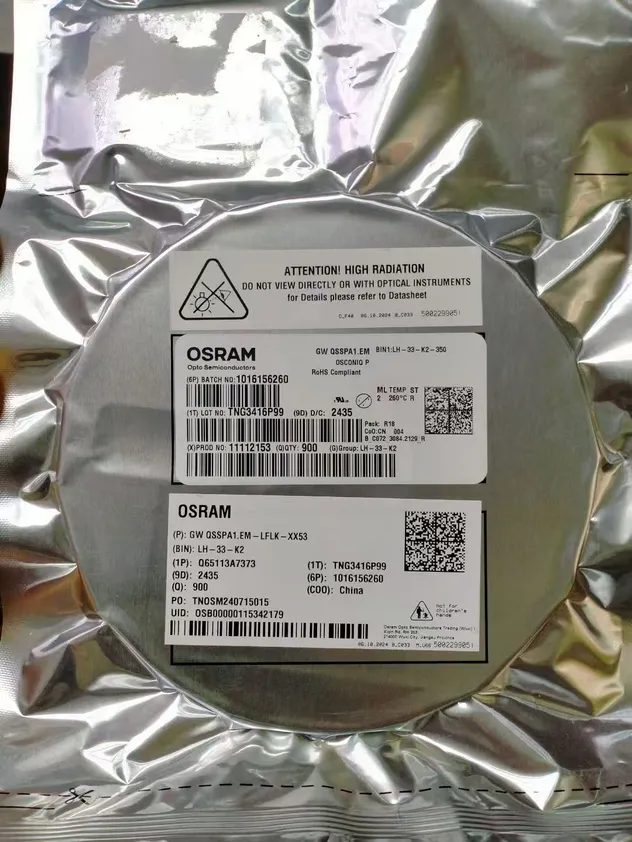

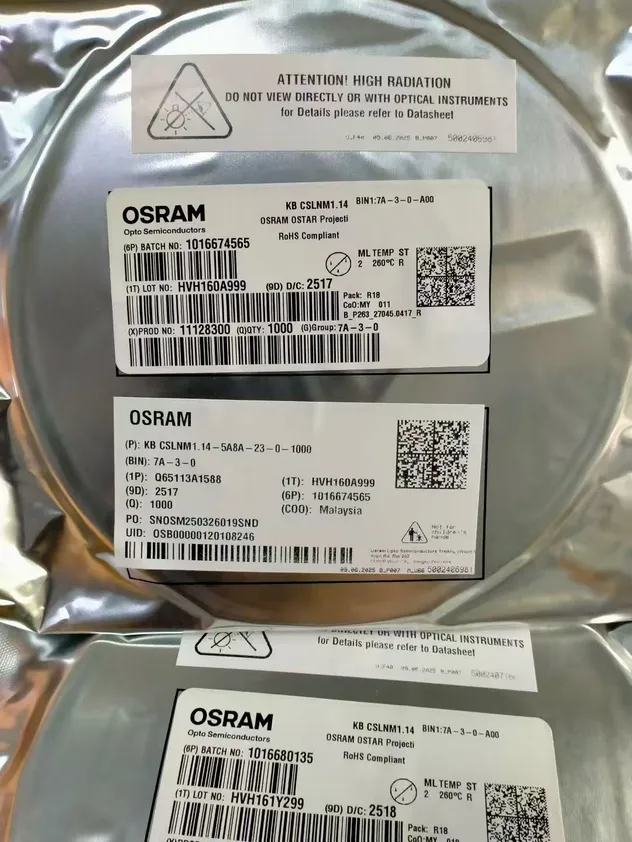

Packing 1 Packing 2 Packing 3

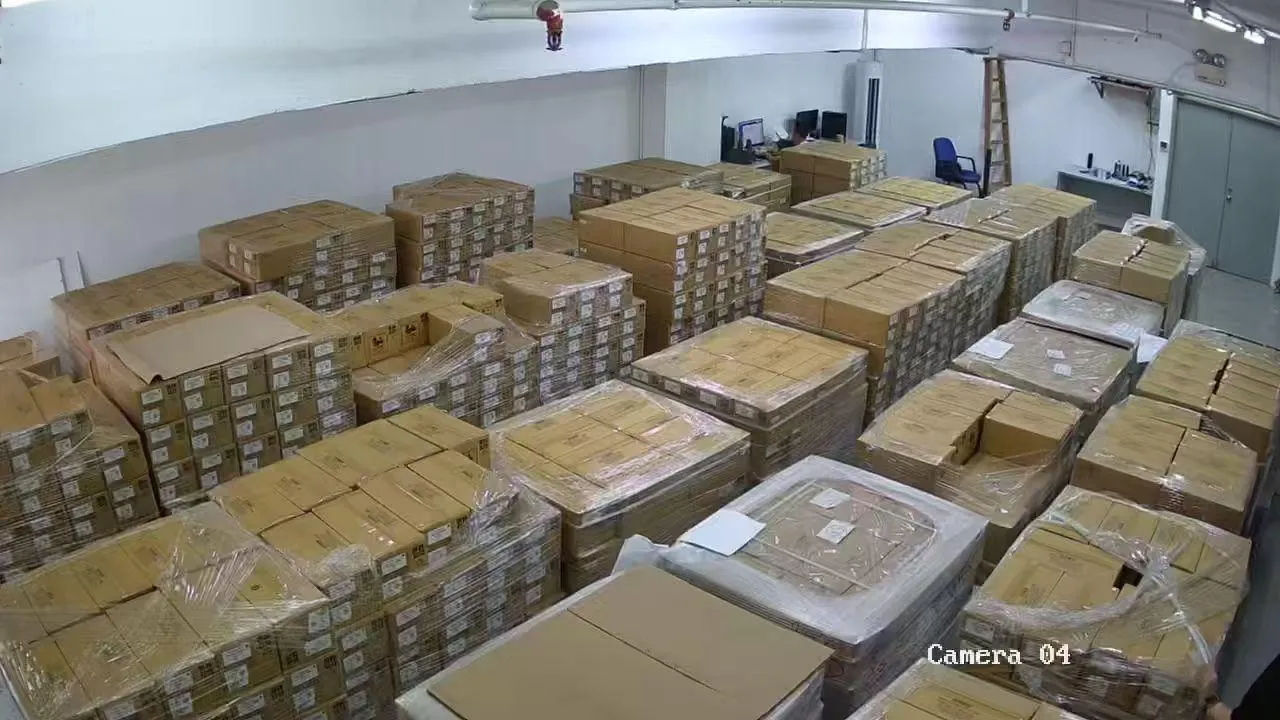

Delivery Process
Package Size
20.00cm * 20.00cm * 10.00cm
Gross Weight
1.200kg
Lead Time
7 days (1 - 1000 Pieces)
More Products

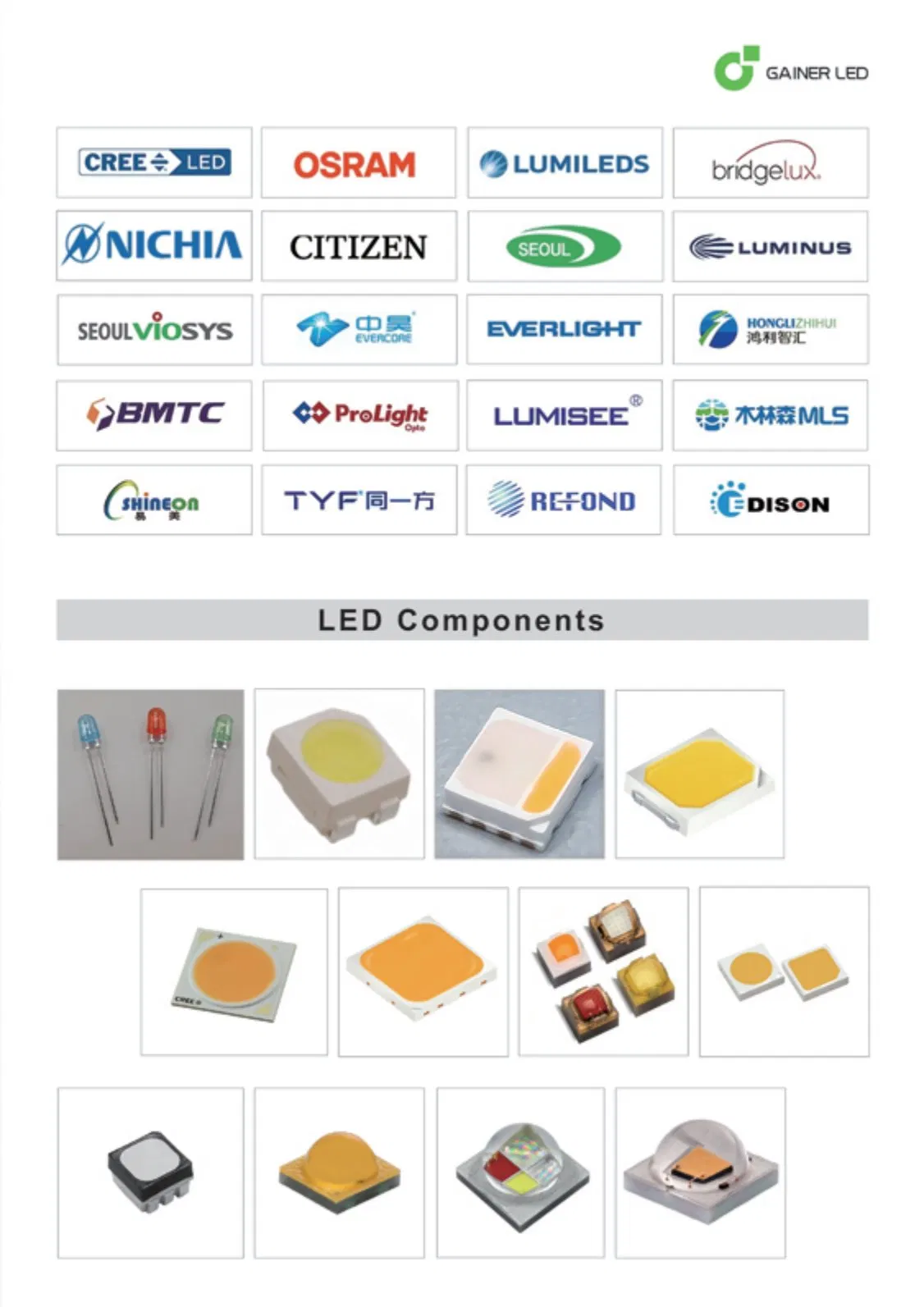

Product Range
Profile

Established in 2012, we have been focused on the LED industry for over 12 years. We supply LED components, LED drivers, and Optical Lenses of prestigious brands including OSRAM, CREE, Lumileds, Seoul Semiconductors, Bridgelux, Luminus, Citizens, Refond, Meanwell, Inventronics, Ledil, and LedLink.

Benefit from the huge market and reliable supplier relations, we have better price advantages, abundant supply, and shorter delivery times. We aim to provide a fast, consistent, and highly responsive service to global lighting manufacturers and LED distributors.

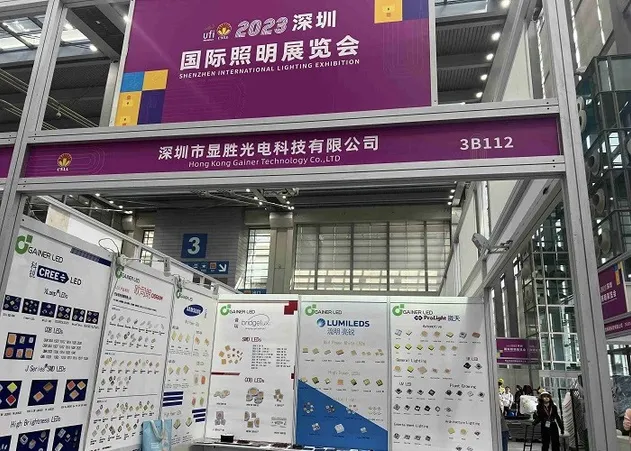

Facility 1 Facility 2 Facility 3
Support: Well-trained product specialists and engineers provide support & advice on product development.
Inventory: Over $5 Million of stock in the Distribution Center for fast delivery.
Service: A dedicated sales support team of over 35 employees providing professional services.
Frequently Asked Questions
Q1. Can I have a sample order for LED chips?
A: Yes, we welcome sample orders to test and check the quality. Mixed samples are acceptable.
Q2. What is the typical delivery cycle?
A: It usually takes 3-5 days for samples and 1-2 weeks for batch production depending on the order volume.
Q3. How do I place an order for these LED components?
A: First, let us know your requirements. Second, we provide a quote. Third, the customer confirms samples and pays the deposit. Finally, we arrange production.
Q4. Do you provide a guarantee for the products?
A: Yes, we provide a standard warranty for our products to ensure long-term reliability and performance.
Q5. What are the main applications for the OSLON SSL series?
A: They are ideal for spot lighting, entertainment lighting, indoor residential lighting, as well as outdoor and industrial lighting solutions.
Q6. What makes the GW CS8PM1.PM model unique?
A: It features a prefocused radiation pattern (80°), low thermal resistance, and high luminous efficacy, making it superior for precision lighting.
