Basic Specifications
Model NO.
RZX-S3535-254NM-395NM
Emitting Color
UVC254nm+UVA395nm
Base Material
Ceramic Stent
Certification
CCC, RoHS, CE
Specification
Surface Mount 3535 Package
Packaging & Delivery
Package Size
3.00cm * 3.00cm * 3.00cm

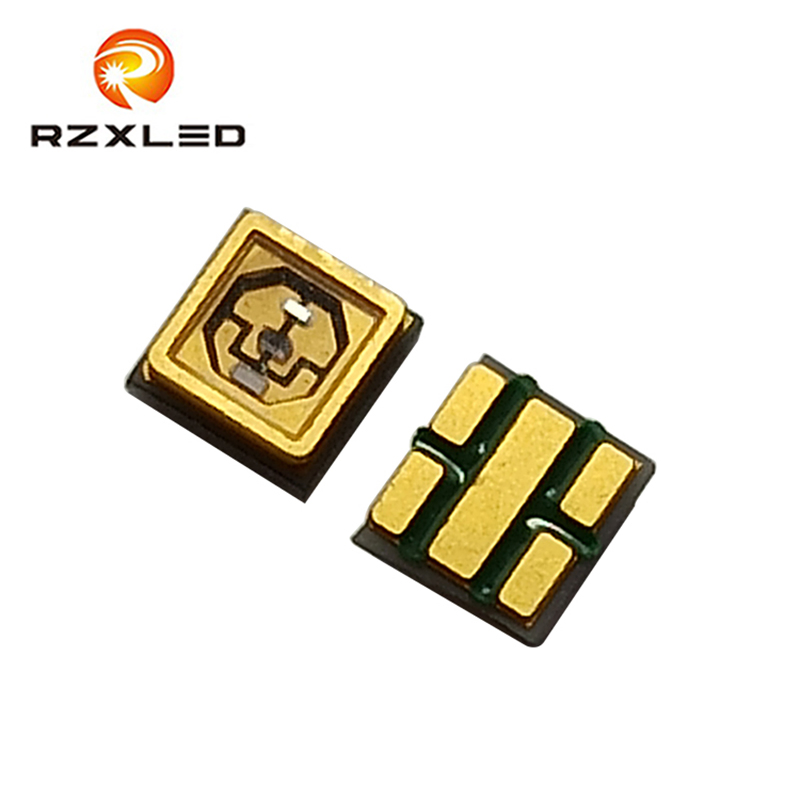

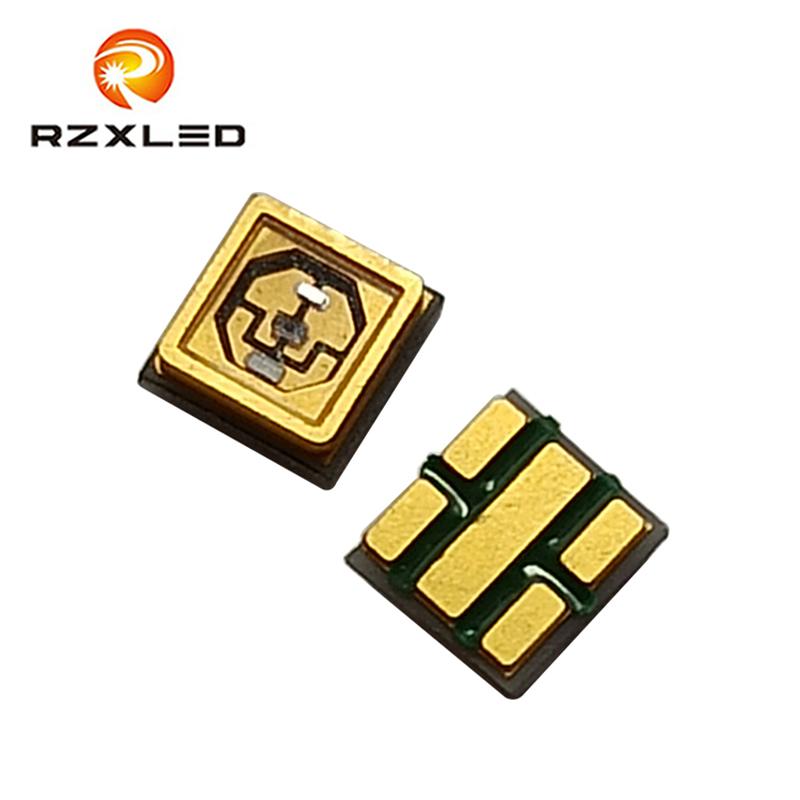

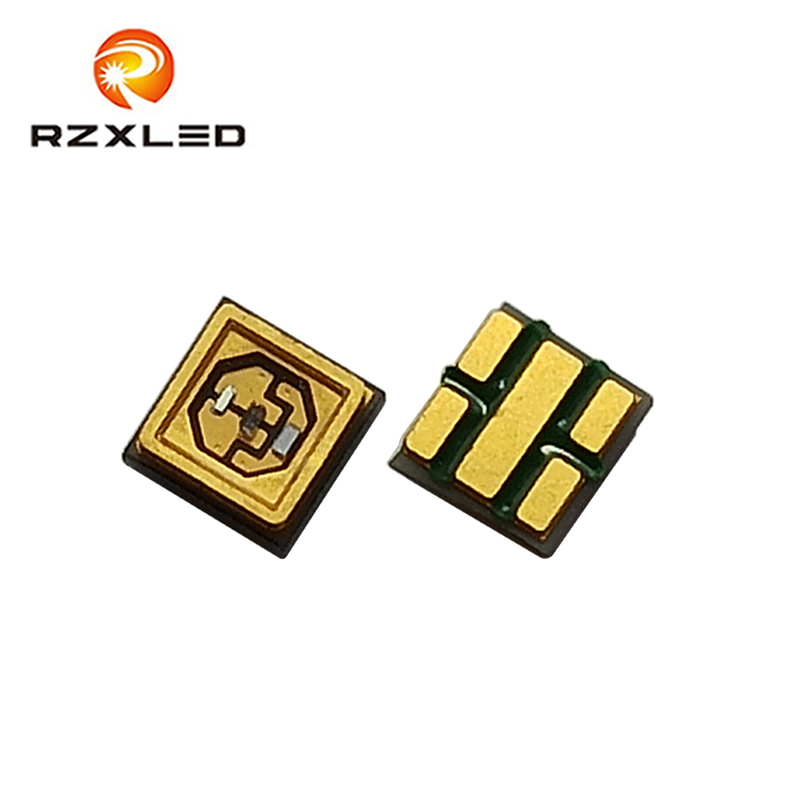

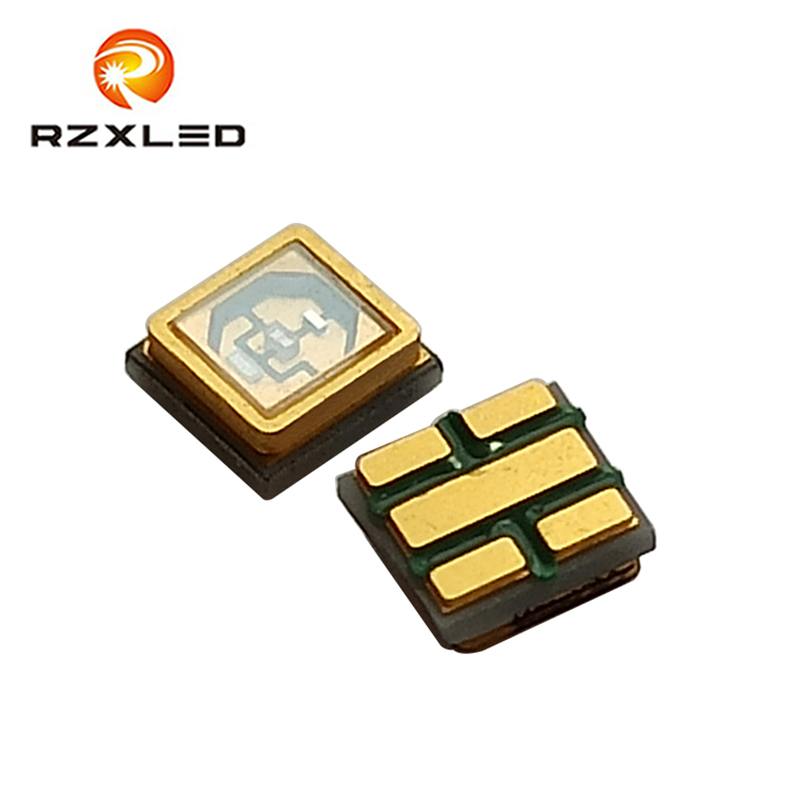

Product Description
The 3535 series is a cutting-edge surface mount high-power device featuring high brightness combined with a compact size. It is suitable for all kinds of lighting applications such as general illumination, flash, spot, signal, industrial, and commercial lighting. This series is designed to meet modern Solid-State Lighting requirements.
🚀 Key Features:
- Dual Wavelength: UVC 250-260NM + UVA 395-405NM
- High Efficiency: 1W Power consumption with Korea Chip technology
- Durable Build: Ceramic stent for superior thermal management
- Safety Approved: Fully compliant with RoHS & CE standards
- Compact Design: Standard 3.5*3.5*1.5MM footprint
| Parameter |
Value |
| Dimension | 3.5x3.5*1.5mm |
| Power Consumption | 1W |
| Color Temperature | 254NM + 395NM |
| Radiant Flux | UVC: 3-5MW; UVA: 65-85MW |
| Spectrum Half Width | 10NW |
| Forward Current | 20-60MA |
| Reflow Temperature | 170-180 ºC |

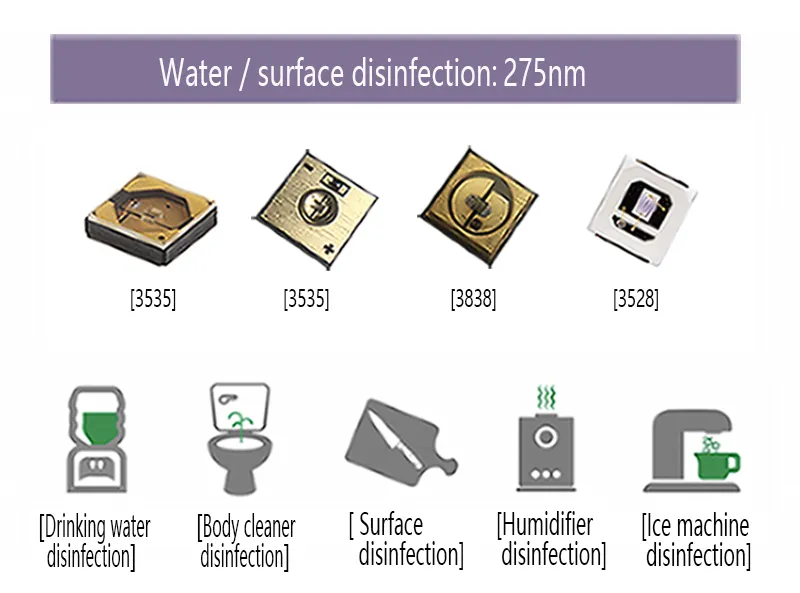

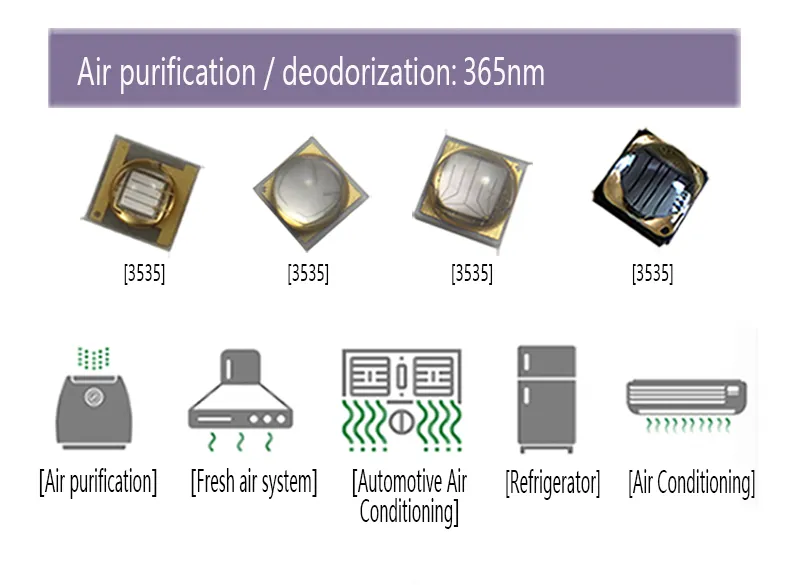

Applications
- Sterilization and disinfection
- Air and water purification
- UV detection and communication technology
- Food processing, preservation, and packaging
- Medical care and dermatological treatment

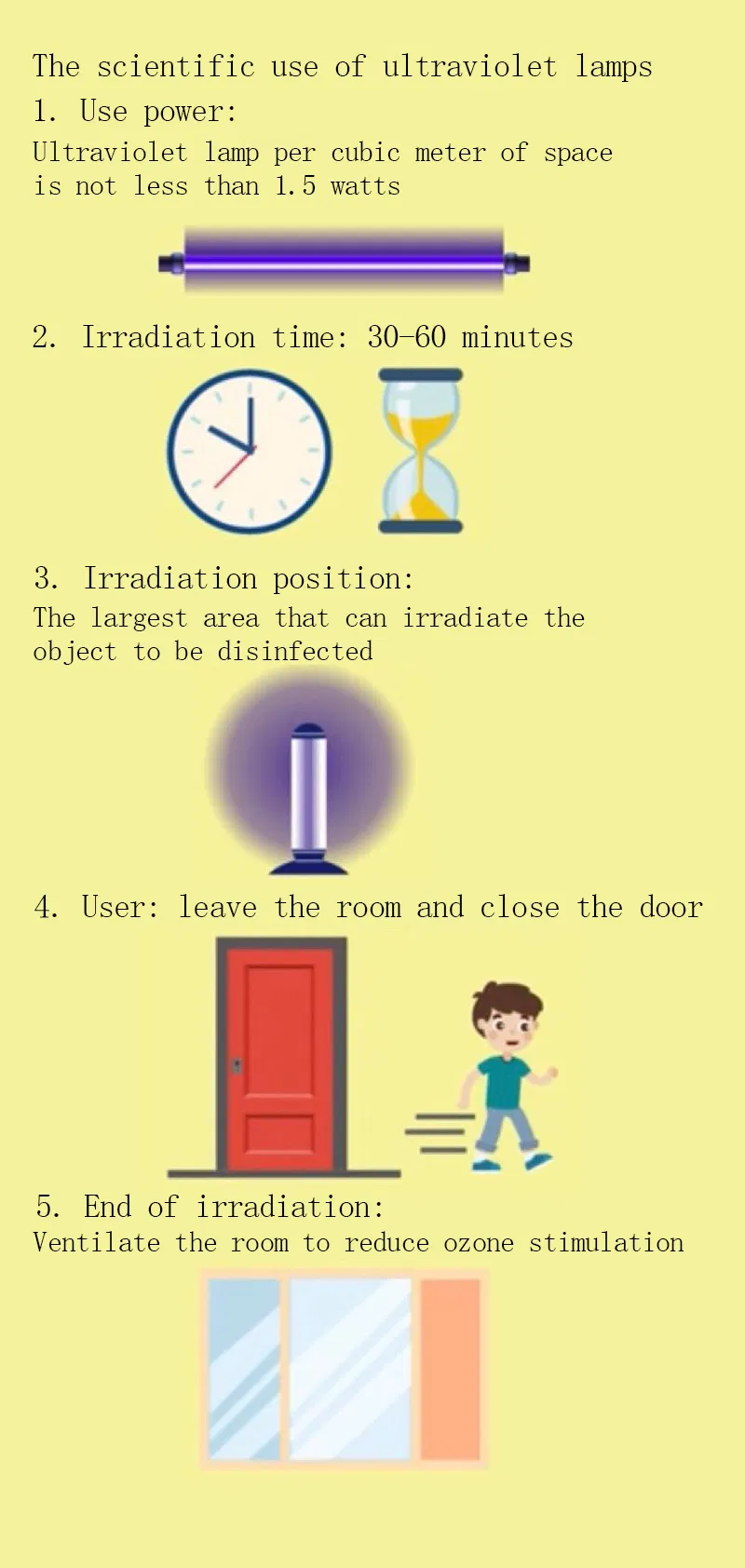

Principle of Ultraviolet Disinfection
Ultraviolet light of an appropriate wavelength destroys the molecular structure of DNA or RNA in microorganisms, causing cell death to achieve sterilization. UVC (200-280nm) is the most effective range for microbial absorption, capable of killing viruses and bacteria within seconds. Unlike traditional mercury lamps, UV LEDs offer instant lighting, low power consumption, and environmental protection, aligning with the Minamata Convention.

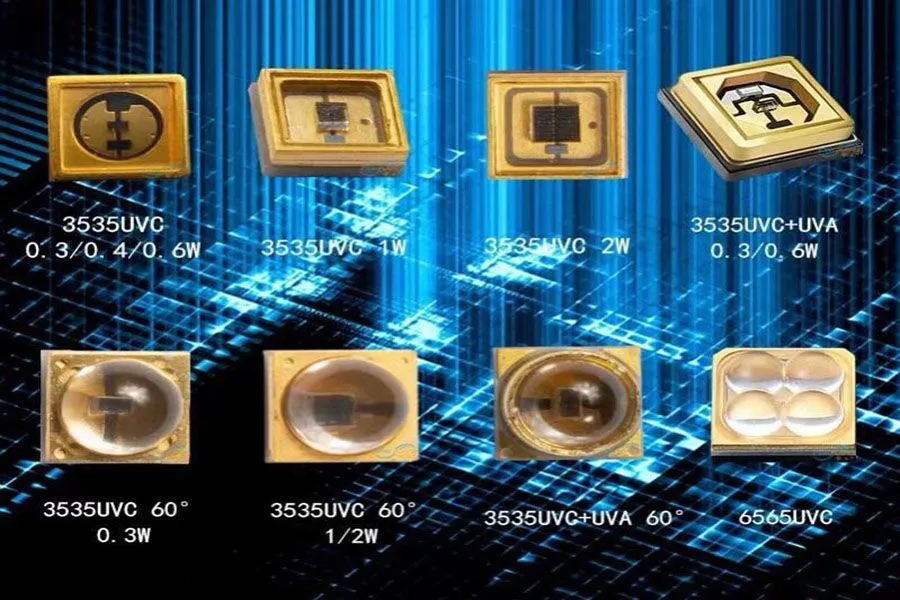

Product Gallery
Frequently Asked Questions
What are the specific wavelengths of this dual-band LED?
This LED combines UVC (254nm) for high-efficiency sterilization and UVA (395nm) for curing and auxiliary applications.
What is the expected lifespan of the 3535 UV LED?
The device is designed for long-term reliability with a lifespan of approximately 10,000 hours.
Can this LED be used for water purification?
Yes, it is ideal for water sterilization, air purification, and food packaging disinfection due to its potent UVC output.
What is the advantage of using UV LED over traditional mercury lamps?
UV LEDs provide instant start-up, contain no harmful mercury, consume significantly less power, and are more environmentally friendly.

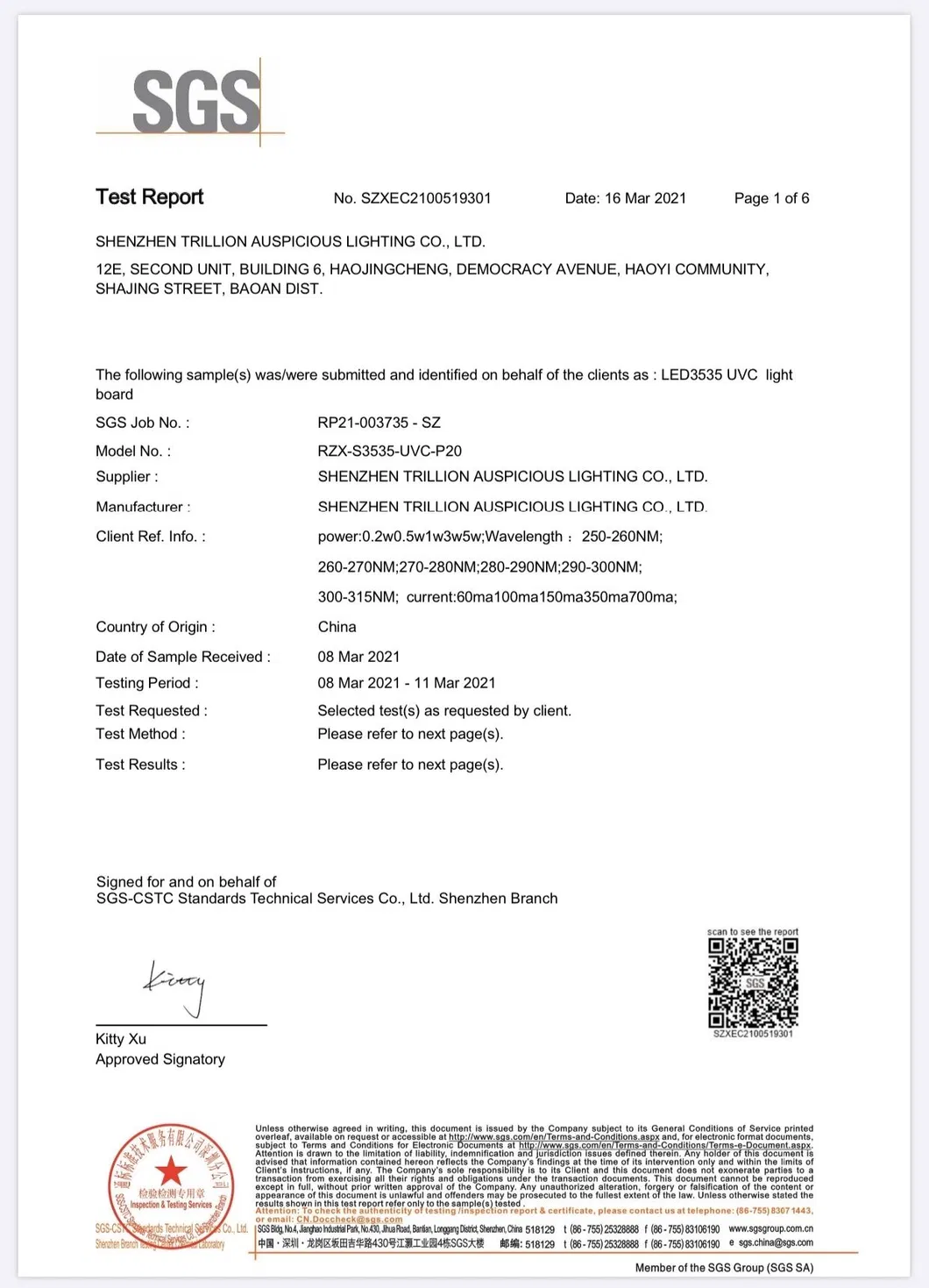

What certifications does this product hold?
The product is fully certified with CCC, RoHS, and CE, ensuring it meets international safety and environmental standards.
What is the recommended reflow temperature for soldering?
The recommended reflow temperature for the 3535 series is between 170ºC and 180ºC.
