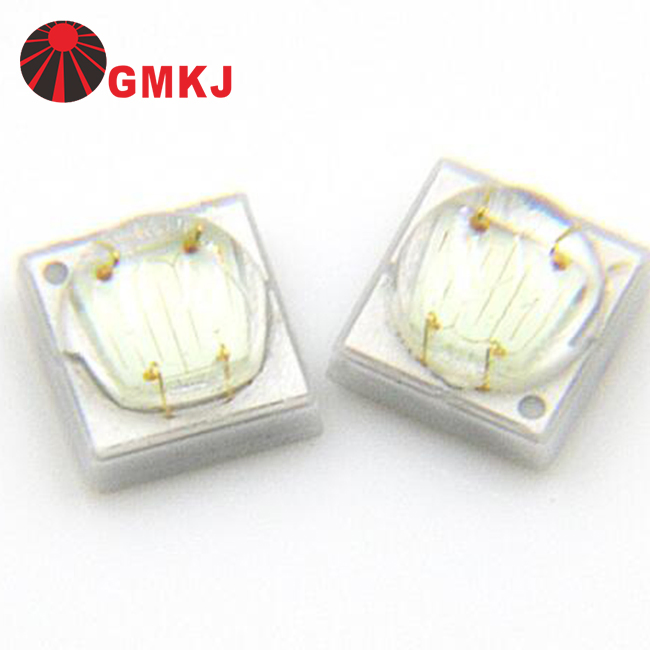

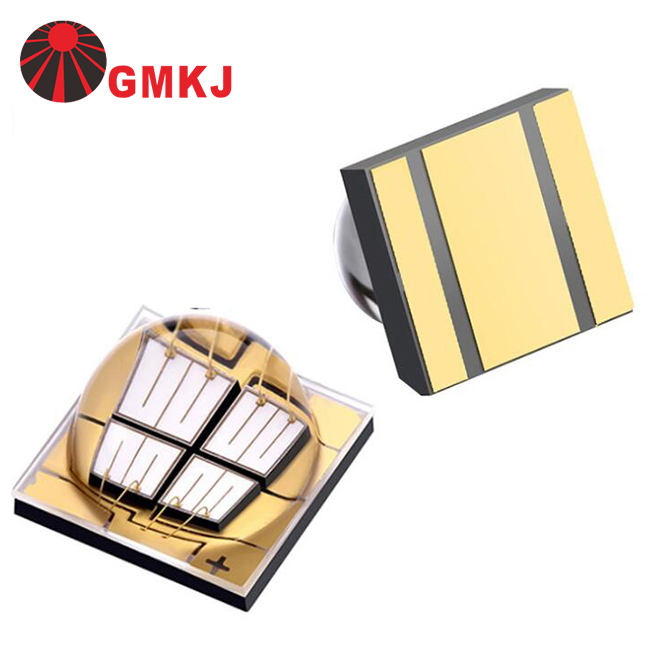

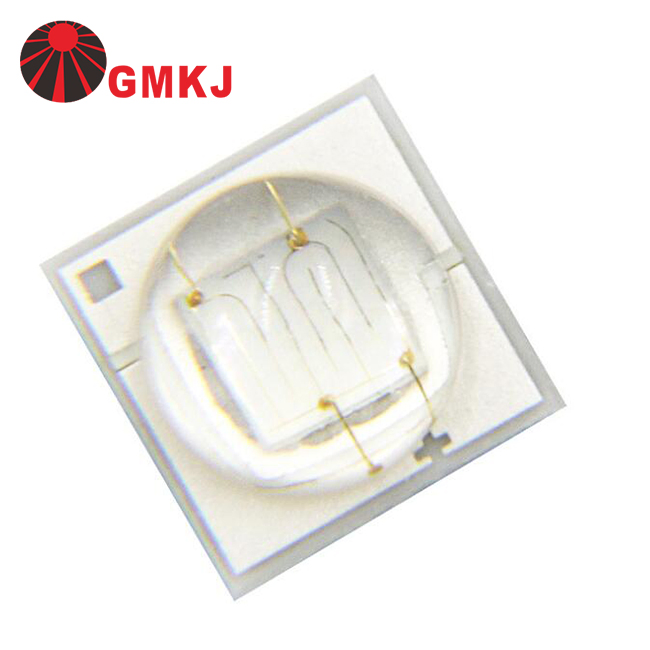

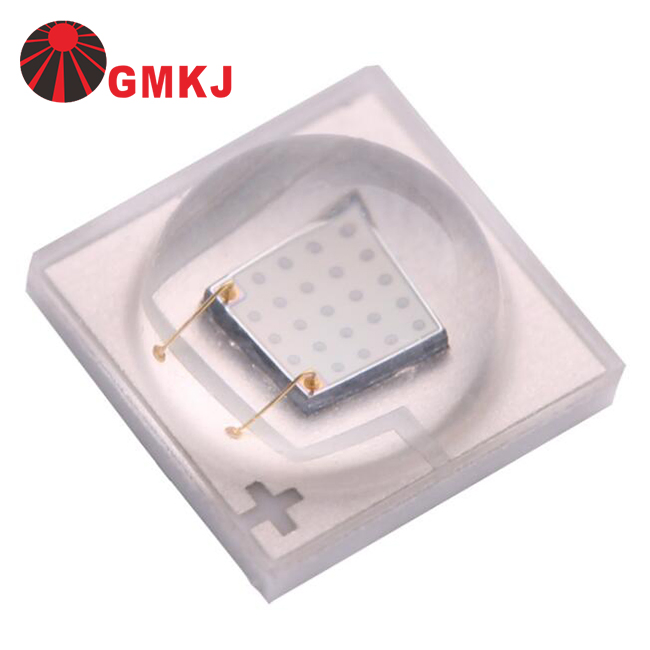

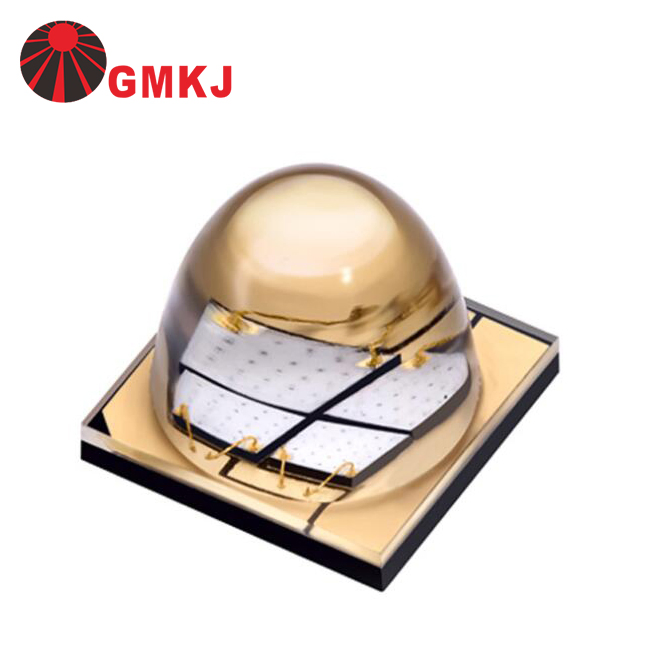

Gmkj Ultraviolet 5050 UV LED UVA UVB UVC 254nm 265nm 280nm 305nm 310nm 311nm 365nm 370nm 380nm 385nm 390nm 405nm 410nm 430nm 4in1 5050 SMD LED Diode Beads Specs
Gmkj Ultraviolet 5050 UV LED UVA UVB UVC 254nm 265nm 280nm 305nm 310nm 311nm 365nm 370nm 380nm 385nm 390nm 405nm 410nm 430nm 4in1 5050 SMD LED Diode Beads Specs
Gmkj Ultraviolet 5050 UV LED UVA UVB UVC 254nm 265nm 280nm 305nm 310nm 311nm 365nm 370nm 380nm 385nm 390nm 405nm 410nm 430nm 4in1 5050 SMD LED Diode Beads Specs
Gmkj Ultraviolet 5050 UV LED UVA UVB UVC 254nm 265nm 280nm 305nm 310nm 311nm 365nm 370nm 380nm 385nm 390nm 405nm 410nm 430nm 4in1 5050 SMD LED Diode Beads Specs
Gmkj Ultraviolet 5050 UV LED UVA UVB UVC 254nm 265nm 280nm 305nm 310nm 311nm 365nm 370nm 380nm 385nm 390nm 405nm 410nm 430nm 4in1 5050 SMD LED Diode Beads Specs
1 / 5
Gmkj Ultraviolet 5050 UV LED UVA UVB UVC 254nm 265nm 280nm 305nm 310nm 311nm 365nm 370nm 380nm 385nm 390nm 405nm 410nm 430nm 4in1 5050 SMD LED Diode Beads Specs
Gmkj Ultraviolet 5050 UV LED UVA UVB UVC 254nm 265nm 280nm 305nm 310nm 311nm 365nm 370nm 380nm 385nm 390nm 405nm 410nm 430nm 4in1 5050 SMD LED Diode Beads Specs
Gmkj Ultraviolet 5050 UV LED UVA UVB UVC 254nm 265nm 280nm 305nm 310nm 311nm 365nm 370nm 380nm 385nm 390nm 405nm 410nm 430nm 4in1 5050 SMD LED Diode Beads Specs
Gmkj Ultraviolet 5050 UV LED UVA UVB UVC 254nm 265nm 280nm 305nm 310nm 311nm 365nm 370nm 380nm 385nm 390nm 405nm 410nm 430nm 4in1 5050 SMD LED Diode Beads Specs
Gmkj Ultraviolet 5050 UV LED UVA UVB UVC 254nm 265nm 280nm 305nm 310nm 311nm 365nm 370nm 380nm 385nm 390nm 405nm 410nm 430nm 4in1 5050 SMD LED Diode Beads Specs

Gmkj Ultraviolet 5050 UV LED UVA UVB UVC 254nm 265nm 280nm 305nm 310nm 311nm 365nm 370nm 380nm 385nm 390nm 405nm 410nm 430nm 4in1 5050 SMD LED Diode Beads Specs

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Information

Beam Angle120°
Emitting ColorUV
IP RatingIP33
Base MaterialAluminum
LED ChipsSanan
Life50000h
CertificationCCC, RoHS, CE
Chip Size45*45mil
Wavelength365-370nm
Warranty3 years
OEMAccepted
ApplicationsUV Curing; Industrial; Disinfection

🔍 Product Description

💎

Premium Materials

  • Germany Hereaus diameter 15um gold wires
  • Black copper material led base
  • USA Intermatix phosphor powder
  • USA Dow corning silicon glue

📋 Specification

Voltage 6.00V-7.00V
Current 1000mA
Packaged anti-ESD box/carton
Color UVA UVB UVC (Customized size available on request)

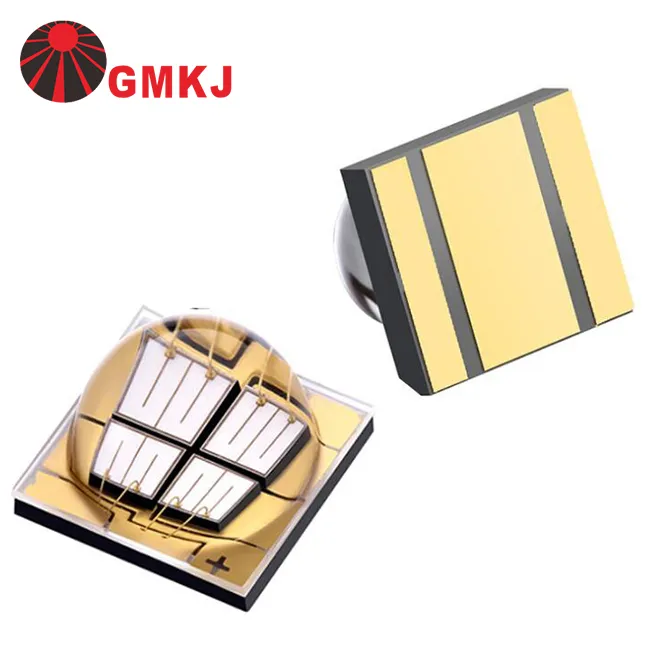

UV LED Specs

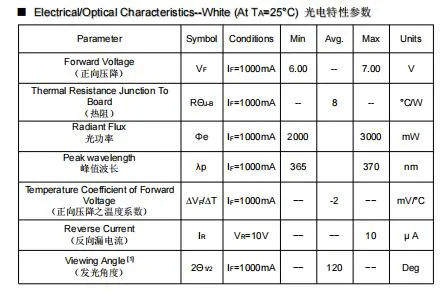

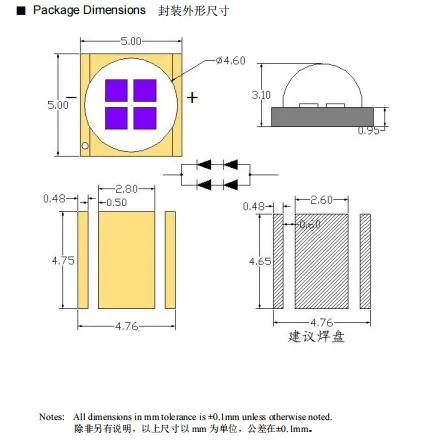

UV LED Detail 1 UV LED Detail 2

🏭 Production Line

Production Line

📜 Certifications

Certifications

📦 Packaging & Shipping

  • By Express: DHL, UPS, TNT, FEDEX etc. (3-5 days)
  • Air Freight: Economical for orders over 100kgs
  • Sea Freight: Cost-effective solution for bulk delivery
  • Client Agent: Coordination with your designated shipping agent
Shipping Options

🏢 Company Profile

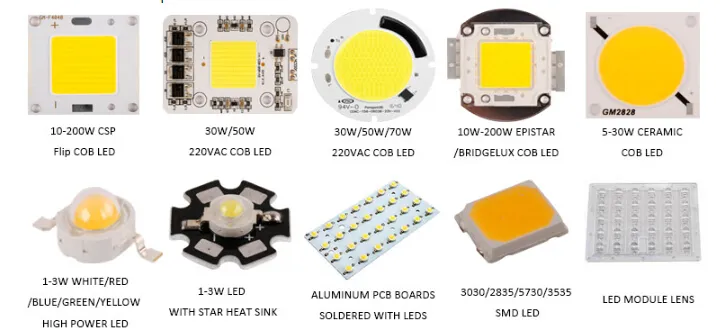

Specializing in LED Production since 2009. Main product range includes:

  • SMD LED 3030, 3535, 2835, 5050, 5730, 3528, 3014
  • 1-3W high power led 100-200lm/watt
  • DC COB LED 3watt - 300watt for outdoor lighting
Company Overview

❓ Frequently Asked Questions

Can I have a sample order?
Sample order is welcomed to test and check quality. Mixed samples are welcomed as well.
What about the lead time?
3-7 working days for sample, 10-15 working days for bulky order based on the quantity.
How about the MOQ?
Low MOQ, 1pc for sample checking is available.
How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Do you provide OEM service?
Yes. OEM is welcomed and accepted for customized manufacturing.
Do you offer guarantee for the products?
Yes, we offer a 3-year warranty for our products.
