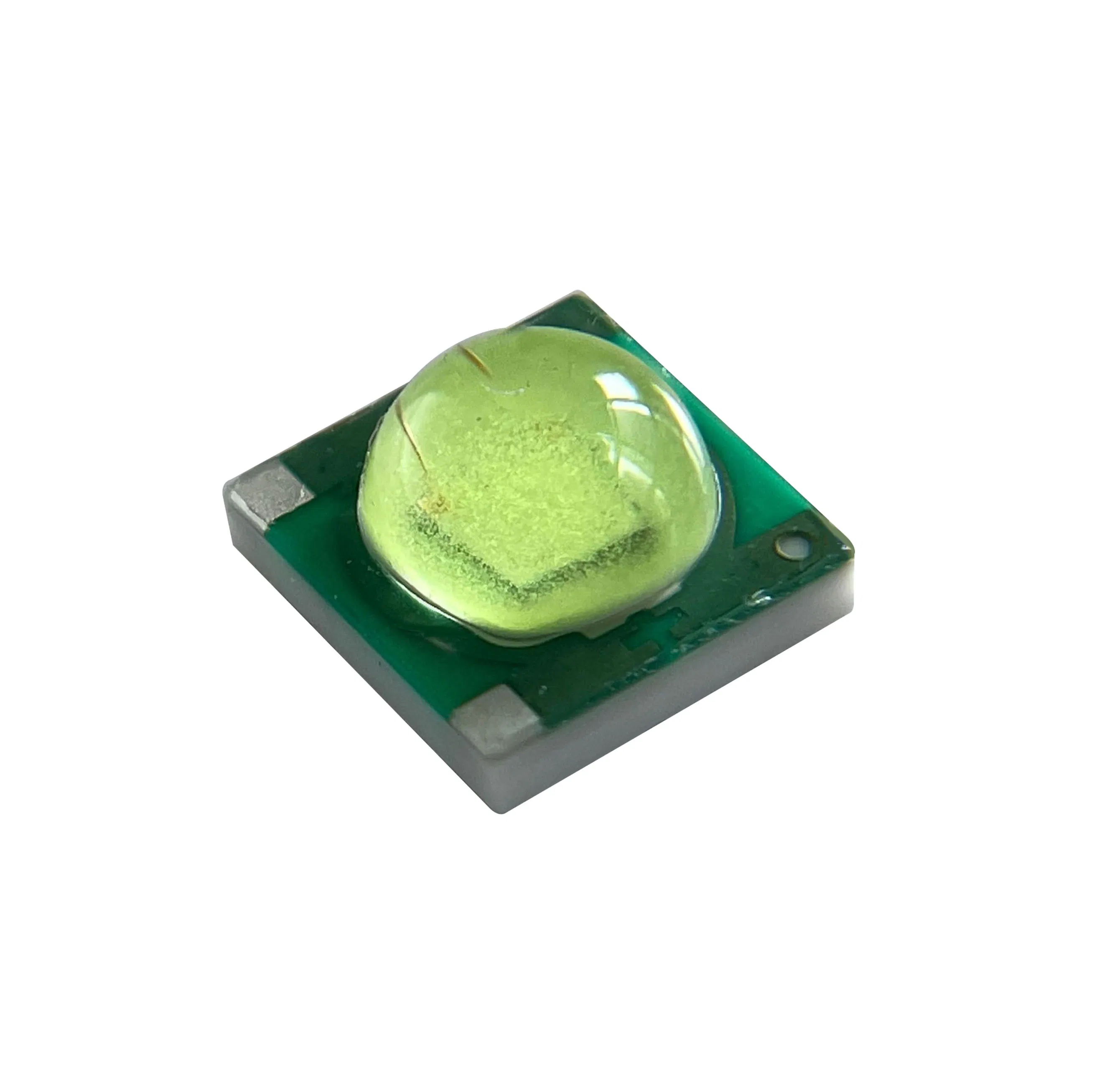

High Power 1W 3W Ice Blue 480nm LED 3535 Chip

1 / 5

High Power 1W 3W Ice Blue 480nm LED 3535 Chip

Customization:	Available
LED Packaging Type:	Top
Chip Material:	AlGaInP

Send Inquiry

Product Description

Basic Specifications

Model NO.

RZX-S3535ICB-3W

Beam Angle

120°

Emitting Color

Ice Blue

IP Rating

IP33

Base Material

Ceramic

LED Chips

Epistar

Power

Life

50000h

Certification

EMC, RoHS, CE

Application

Car Light

Forward Current

350- 700mA

Forward Voltage

3-3.3V

CCT

Ice Blue 480-490nm

Package Size

1.00cm * 1.00cm * 1.00cm

Transport Package

1000PCS/Roll

Origin

China

Product Description

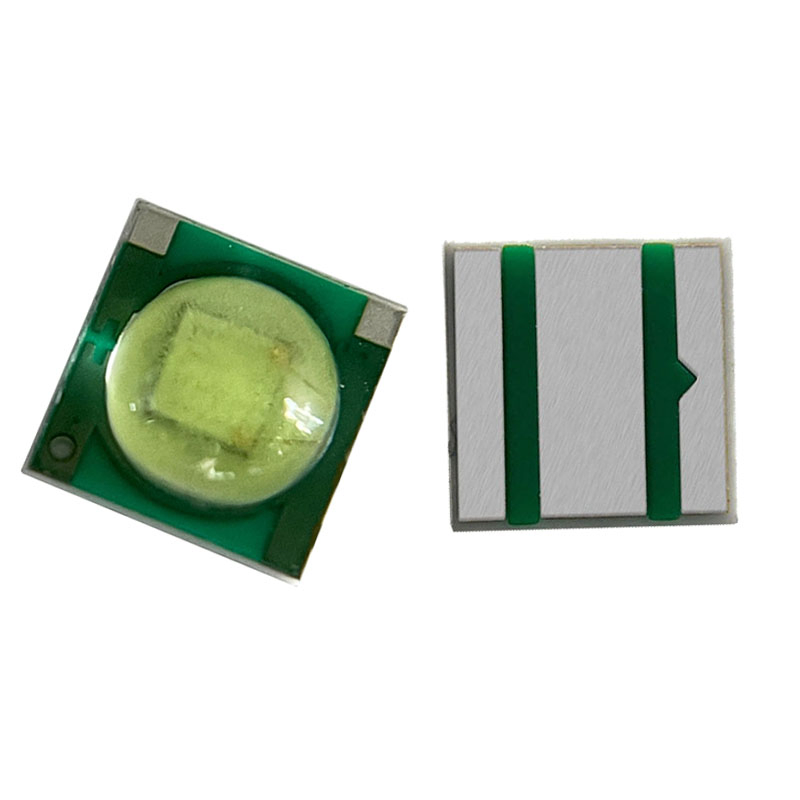

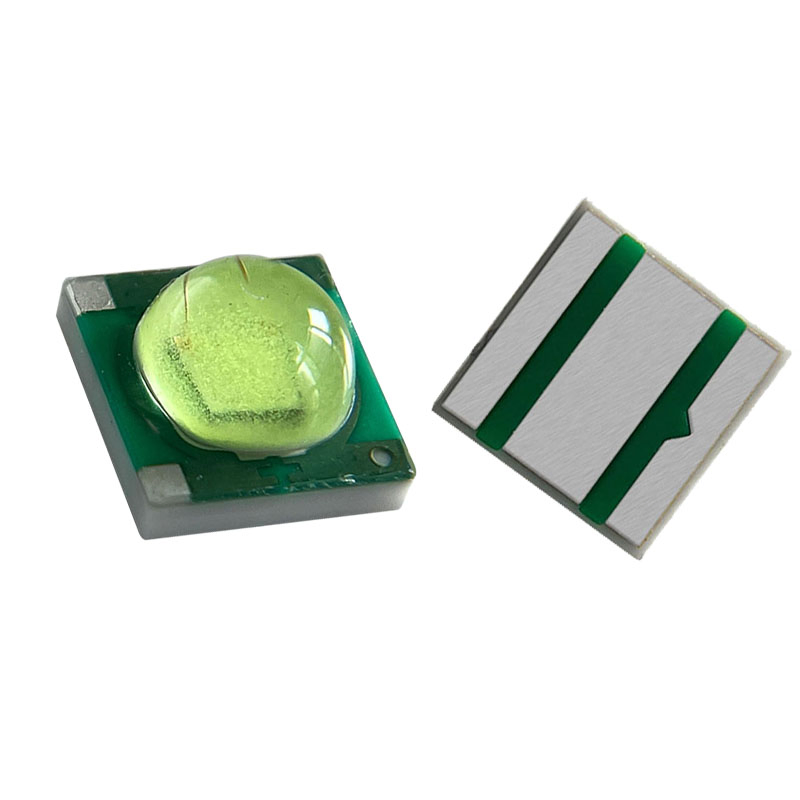

The 3535 series is a high-power surface mount device featuring exceptional brightness and a compact form factor. It is engineered for versatility in modern Solid-State Lighting applications, including general illumination, spot lighting, and signal indicators.

◈

Dimensions:
3.45 * 3.45 * 2mm compact design.

◈

Optical:
120° viewing angle with surface luminous output.

◈

Performance:
30-50lm brightness at 350-700mA.

IMPORTANT: Proper cooling is mandatory. LEDs may burn out if they receive full power without adequate heat dissipation. Ensure the cooling temperature does not exceed 60°C.

Power Consumption	3W
CCT / Wavelength	Ice Blue 480-490nm
Luminous Flux	30-50lm
Voltage Range	3-3.3V
Current Range	350-700mA
Primary Application	Car lighting, Commercial lighting

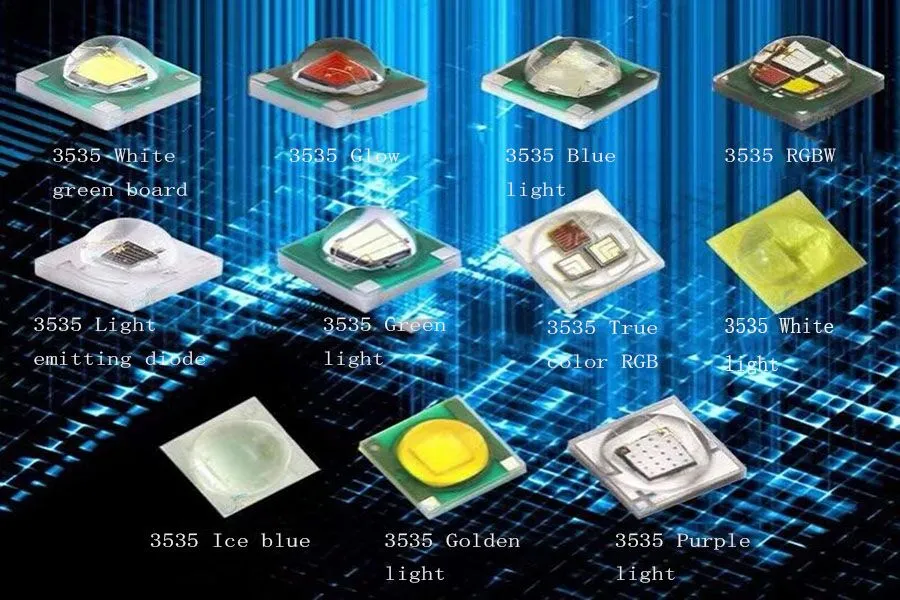

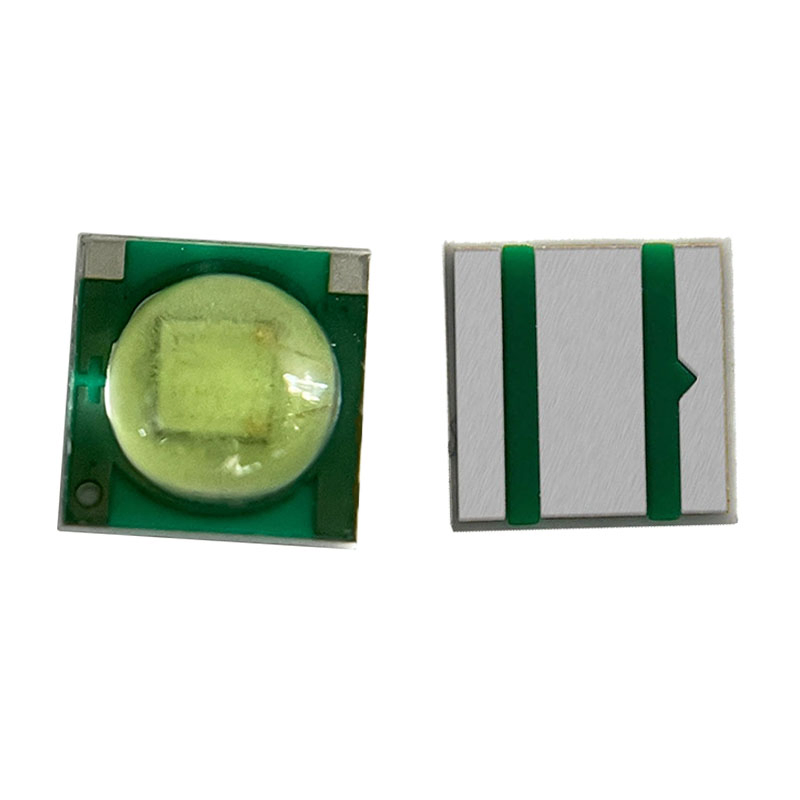

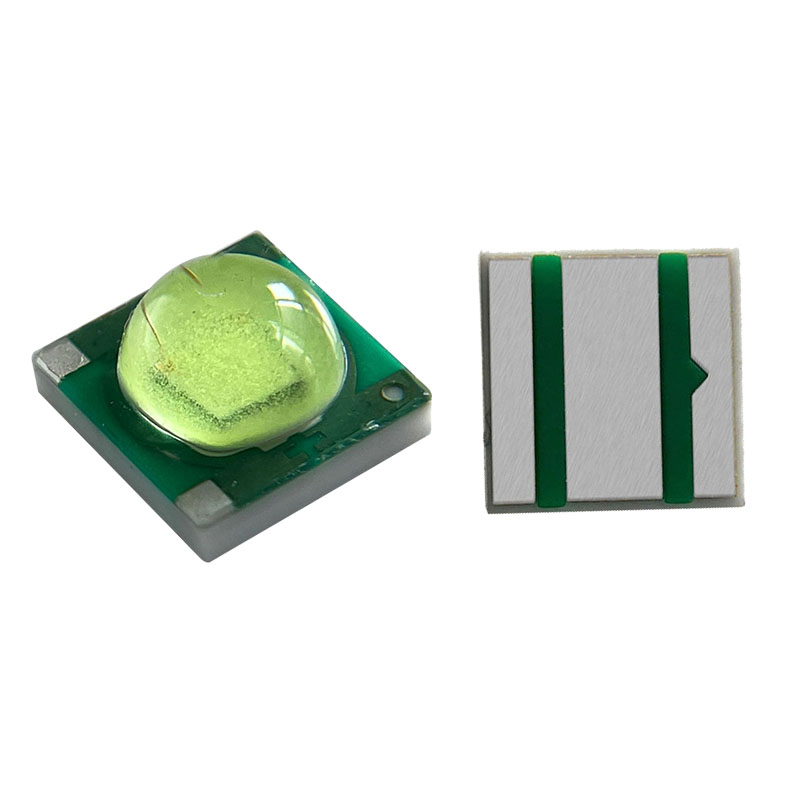

Product Display

Frequently Asked Questions

What is the specific wavelength for the Ice Blue color?

The Ice Blue color operates within a wavelength range of 480nm to 490nm.

Is this LED chip waterproof for outdoor use?

The chip has an IP33 rating, meaning it is not waterproof. For outdoor applications, it must be installed within a waterproof fixture.

What are the thermal management requirements?

High-power LEDs generate significant heat. It is critical to use a proper heat sink to ensure the operating temperature stays below 60°C to prevent damage.

What is the recommended drive current for the 3W model?

The recommended forward current is between 350mA and 700mA, with a forward voltage of 3-3.3V.

What is the expected lifespan of the 3535 LED?

Under proper operating conditions and adequate cooling, the LED chip has a rated lifespan of up to 50,000 hours.

How is the product packaged for shipping?

The standard packaging is 1000 pieces per roll, suitable for automated SMT assembly processes.
