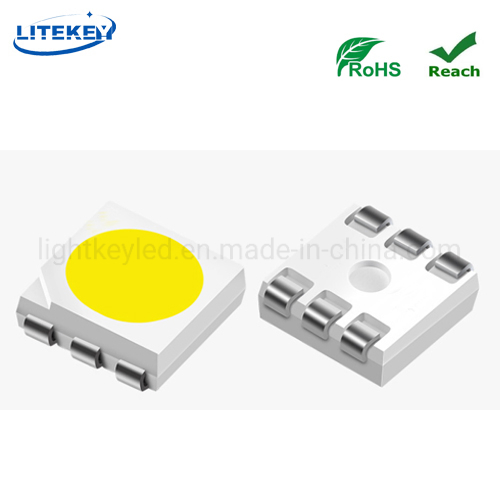

Custom High Power 3W 6V Warm White SMD LED 5050 with 6 Pins RoHS Compliant

Custom High Power 3W 6V Warm White SMD LED 5050 with 6 Pins RoHS Compliant

1 / 2

Custom High Power 3W 6V Warm White SMD LED 5050 with 6 Pins RoHS Compliant

Custom High Power 3W 6V Warm White SMD LED 5050 with 6 Pins RoHS Compliant

Custom High Power 3W 6V Warm White SMD LED 5050 with 6 Pins RoHS Compliant

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.

LLS5050PLC6WW-3W

Beam Angle

120°

Emitting Color

Warm White

Base Material

Copper

LED Chips

Epistar

Power

3W

Life

50000h

Certification

RoHS, Reach

Production Capacity

500,000,000 PCS/Year

Specification

5.0mm x 5.0mm x 1.3mm

💡

Product Description

RoHS compliant High Power 3W 6V Warm White SMD LED 5050 with 6 Pins

Key Features

High reliability and stability
Low operating voltage & Low power consumption
Extra long service life (up to 50,000 hours)
PB Free products (Compliant with EU's RoHS)
RGB capability available

⚙️

Technical Parameters

Absolute Maximum Ratings (Ta=25ºC)

Item	Symbol	Maximum	Unit
Forward Current	IF	500	mA
Reverse Voltage	VR	--	V
Power Dissipation	PD	3000	mW
Peak Pulsing Current	IFP	800	mA
Electrostatic Discharge	ESD	2000	V
Junction Temperature	Tj	115	ºC

Electrical/Optical Characteristics (Ta=25ºC)

Item	Symbol	Condition	Min.	Typ.	Max	Unit
Forward Voltage	VF	IF=500mA	6.0	--	6.5	V
Color Temperature	CCT	IF=500mA	3800	--	4200	K
Luminous Flux	φ	IF=500mA	300	--	350	LM
Viewing Angle	2θ1/2	IF=500mA	-	120	-	deg
Color rendering index	CRI	IF=500mA	--	70	--	Ra

📸

Detailed Photos

SMD LED 5050 Detail 1

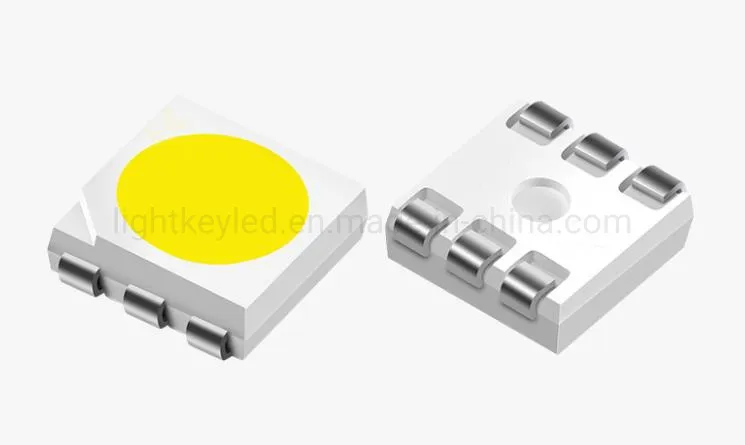

SMD LED 5050 Detail 2

📐

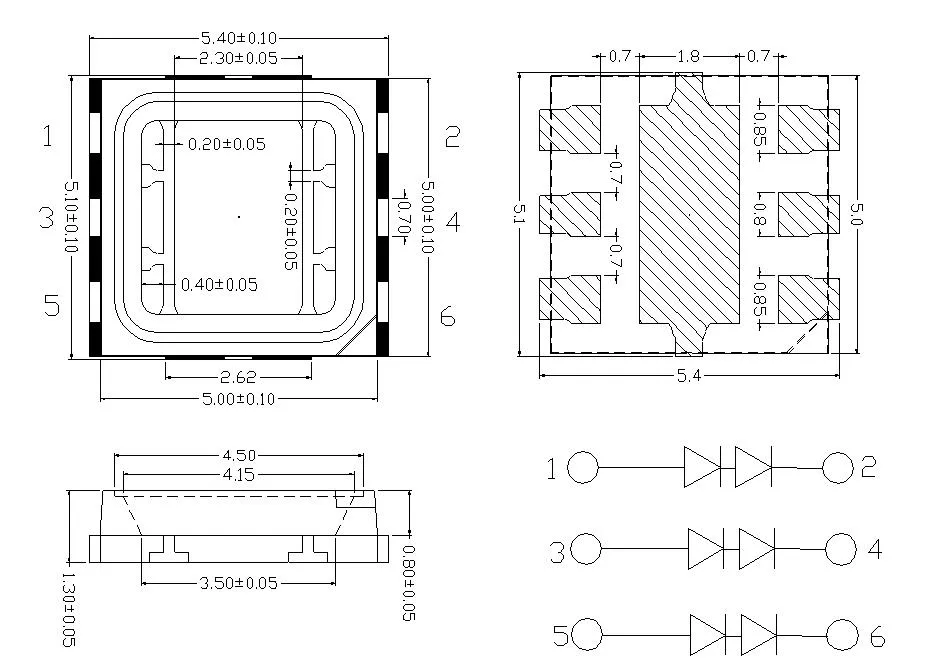

Package Dimensions

Package Dimensions

Note: Custom designs are available according to your specific demand. Sample orders are welcome for quality testing.

🏠

Applications

Indoor illumination (LED bulbs, tubes, downlights)
Automotive lighting (Dashboard, signal lights)
Back lighting (LCD, switches, displays)
General use in electronic equipment

📦

Packaging & Shipping

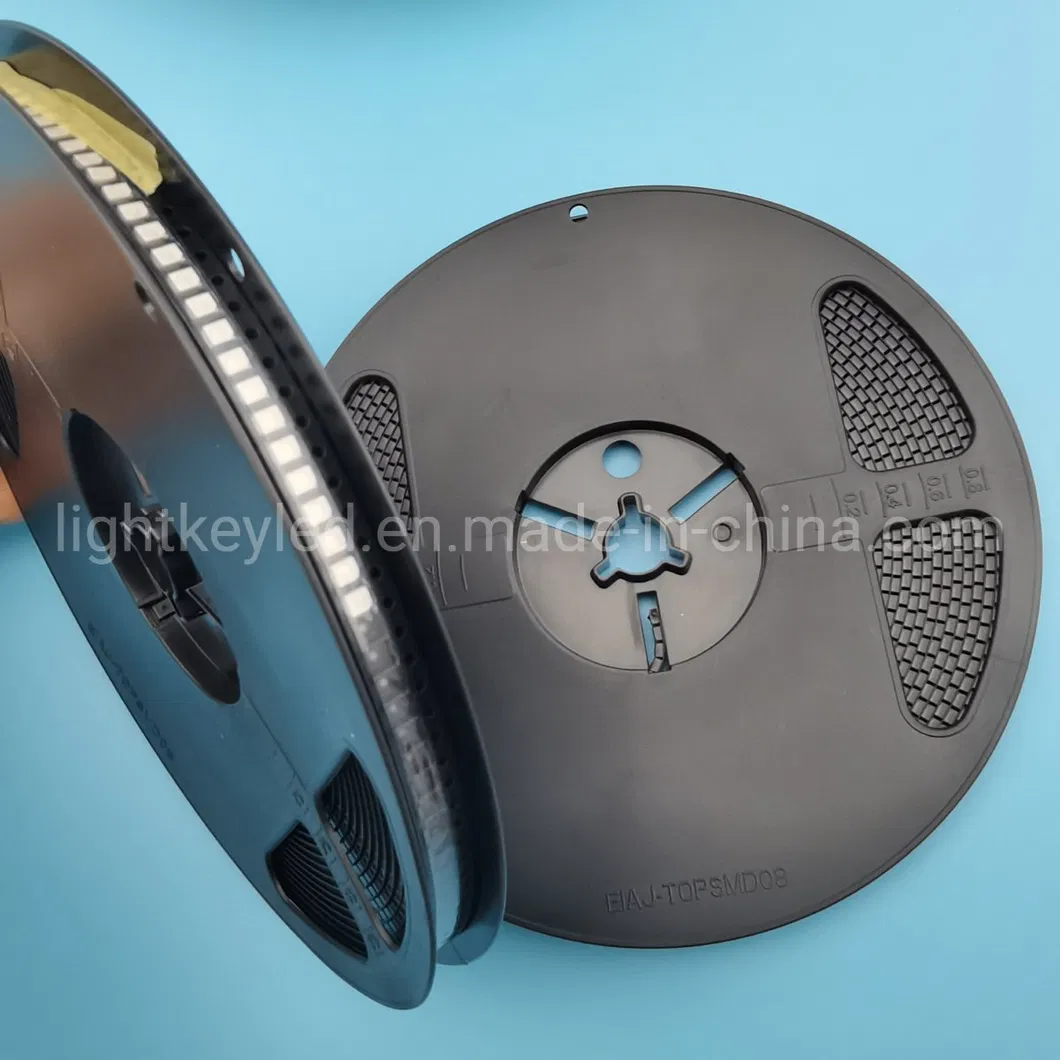

Packaging 1

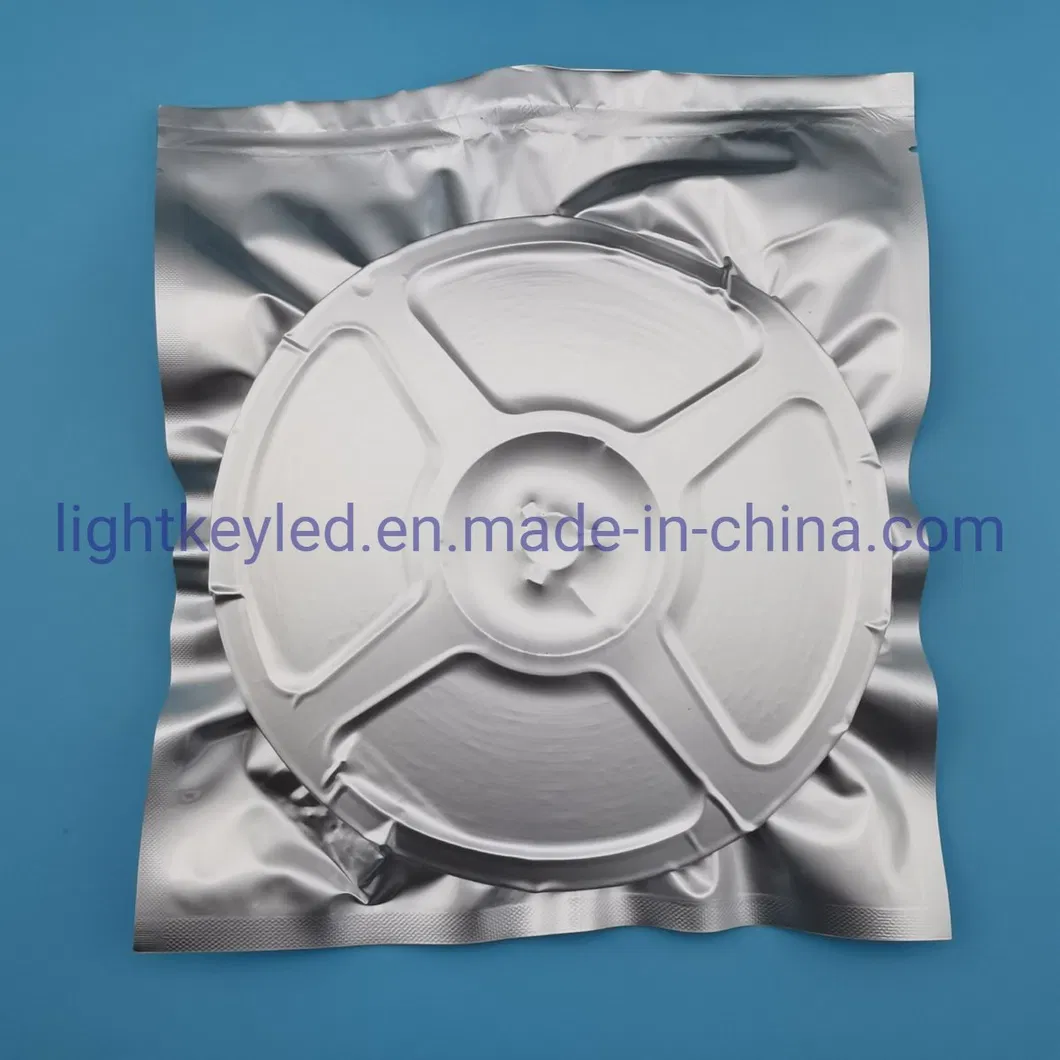

Packaging 2

Packaging 3

🛡️

Quality Control & Manufacturing

Excellent Raw Materials

Famous Brand & Big Size chips (Epistar)
Pure (99.99%) Gold Wire for superior conductivity
Copper Frame for better heat dissipation
Advanced Optical-Grade Epoxy

QC System

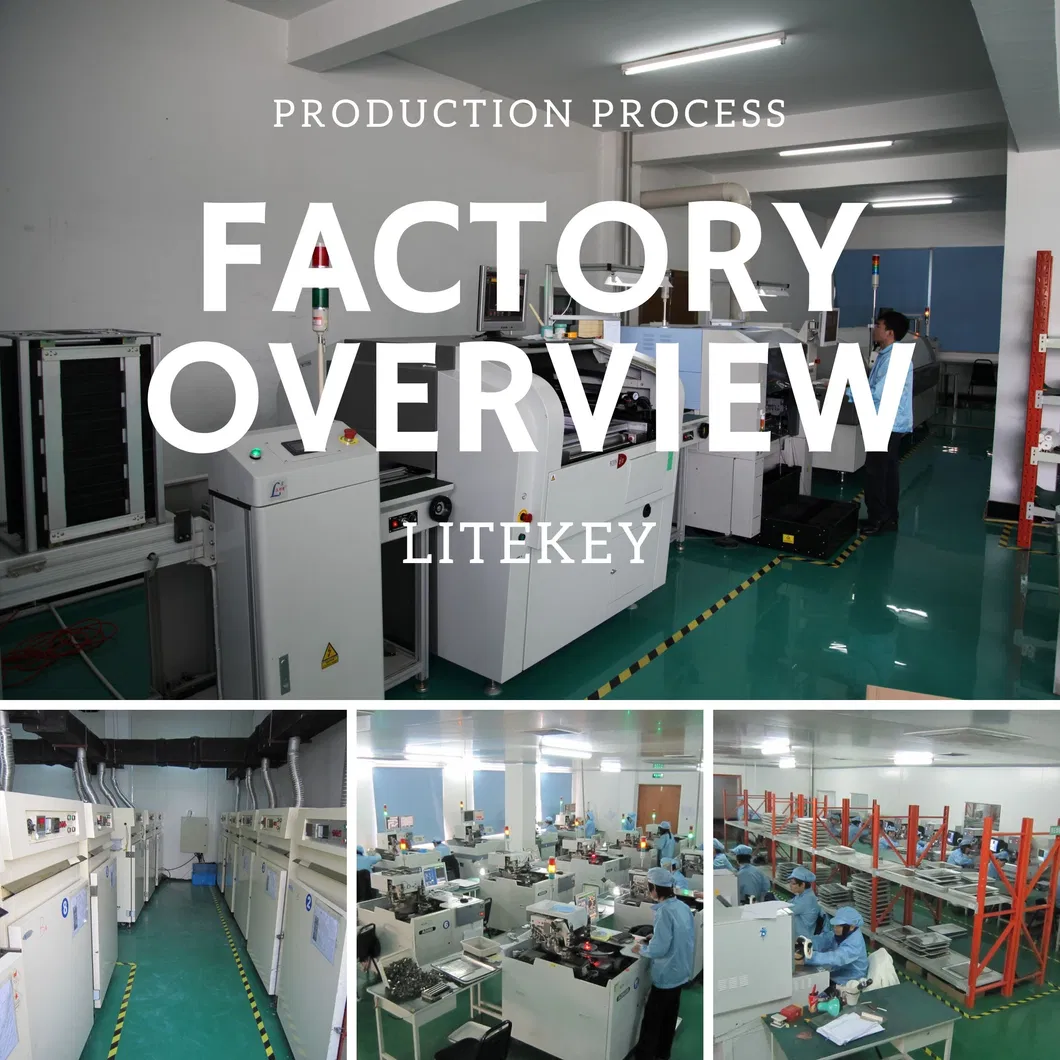

Factory Overview

Factory Overview

❓

Frequently Asked Questions

What is the lifespan of this 3W SMD LED?

The LED is designed for high durability with a lifespan of up to 50,000 hours under standard operating conditions.

Is this product RoHS compliant?

Yes, all our SMD LED products are RoHS and Reach compliant, ensuring they are PB-free and safe for the environment.

What kind of chips are used in these LEDs?

We use high-quality Epistar chips and 99.99% pure gold wire to ensure high light efficiency and reliability.

Can these LEDs be used for automotive lighting?

Absolutely. These 5050 SMD LEDs are widely used in automotive applications, including dashboards and signal lighting.

Do you offer customized LED designs?

Yes, we provide professional customization services. We can design and manufacture LEDs according to your specific technical requirements.

What is the beam angle of the 5050 SMD LED?

The standard viewing angle for this model is 120°, providing a wide and even light distribution.
