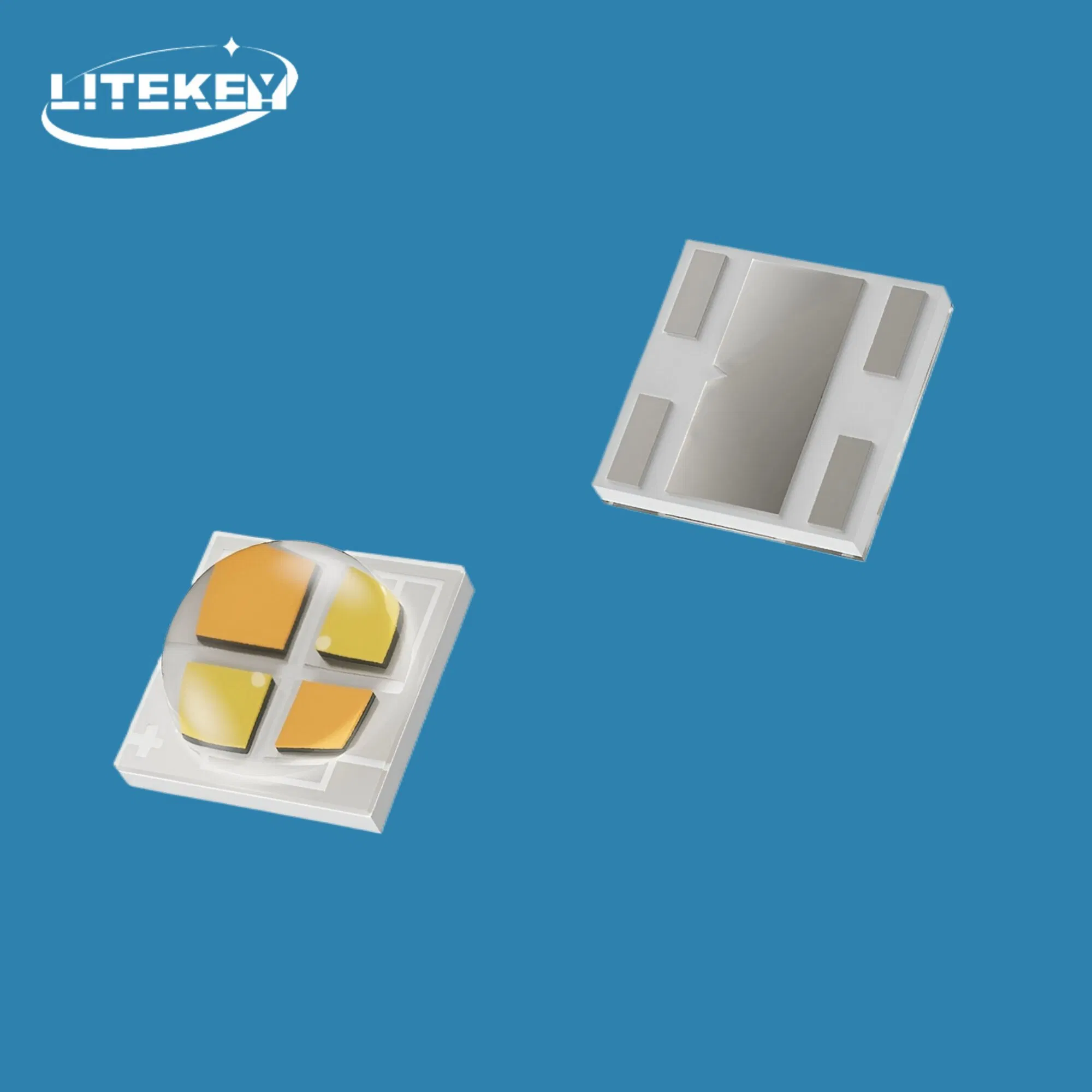

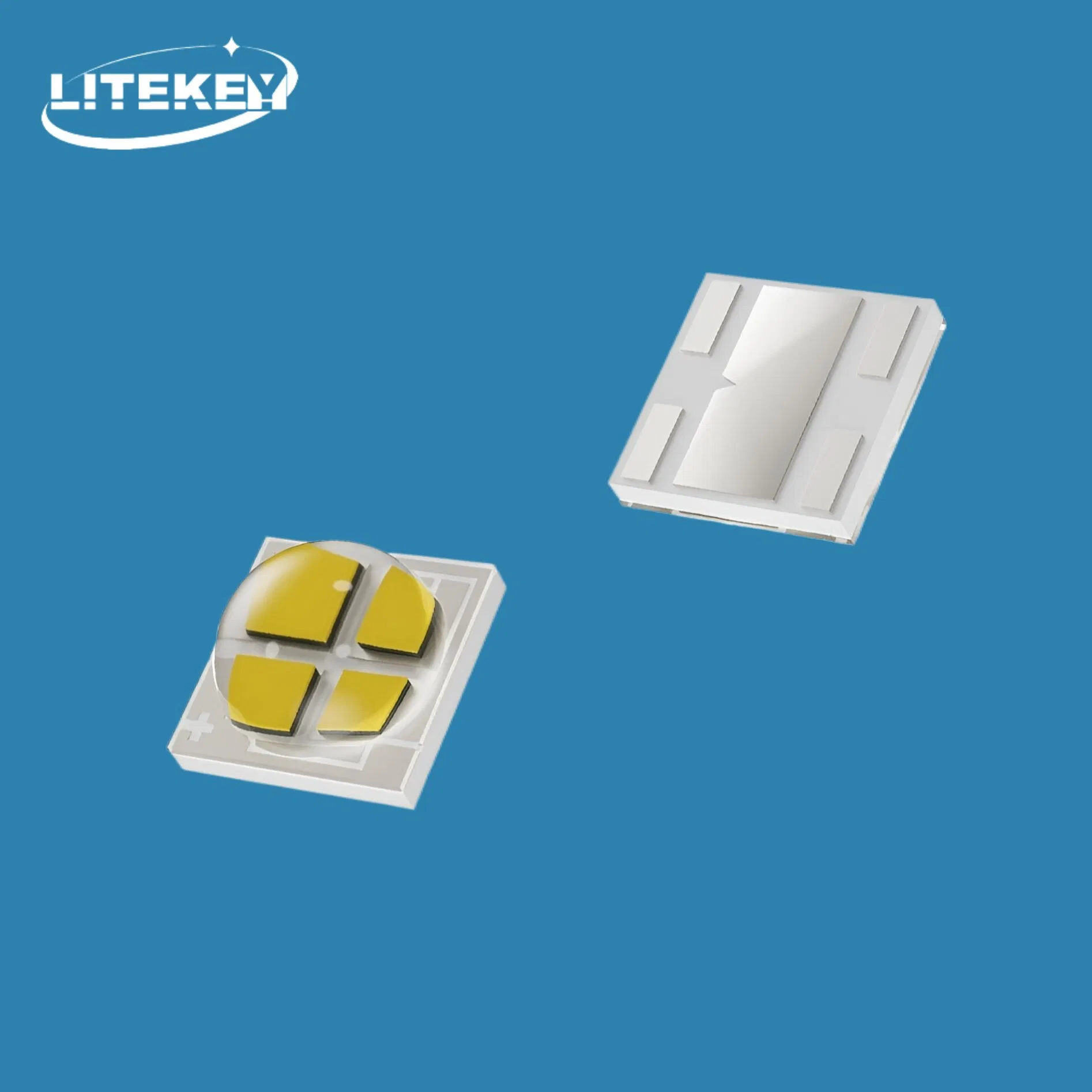

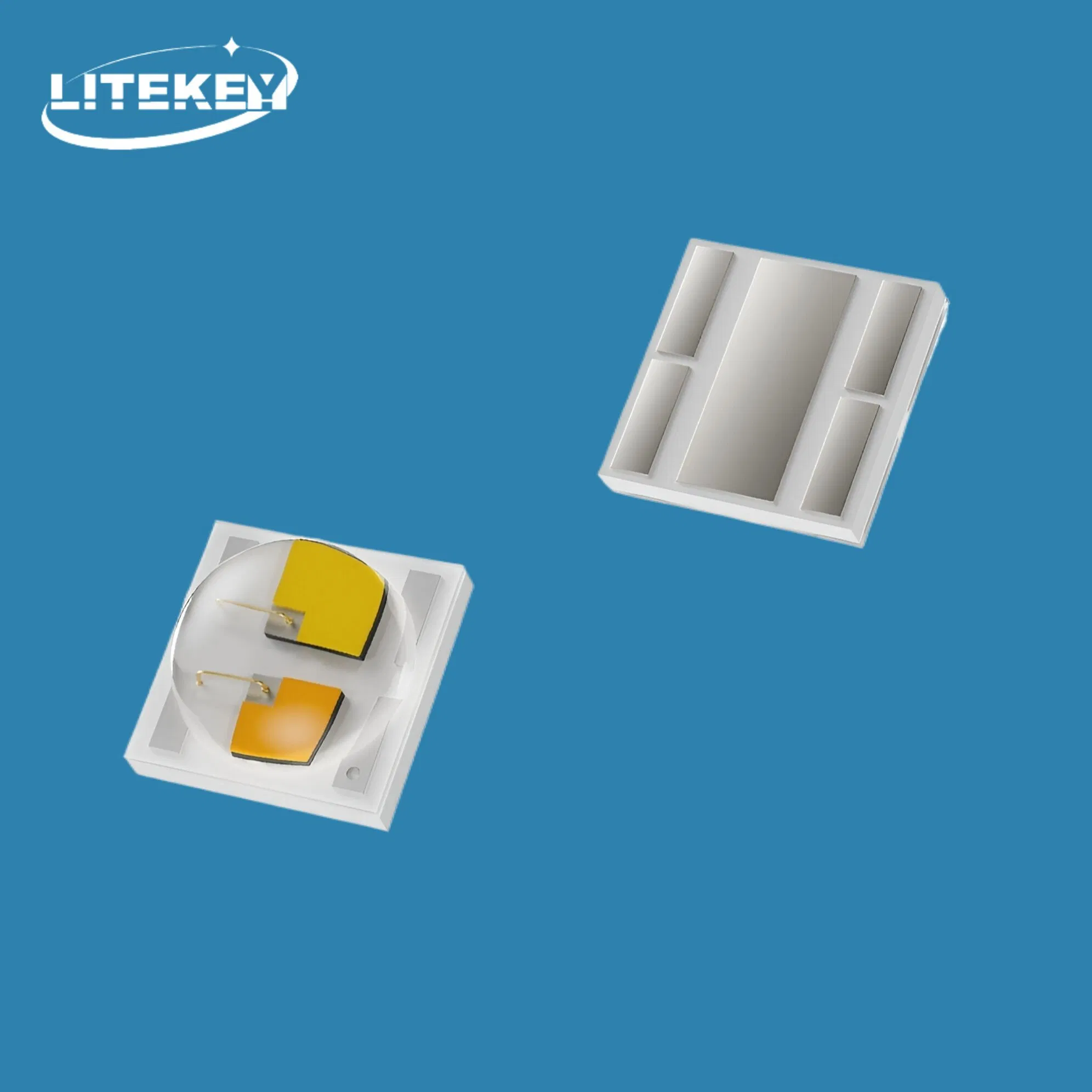

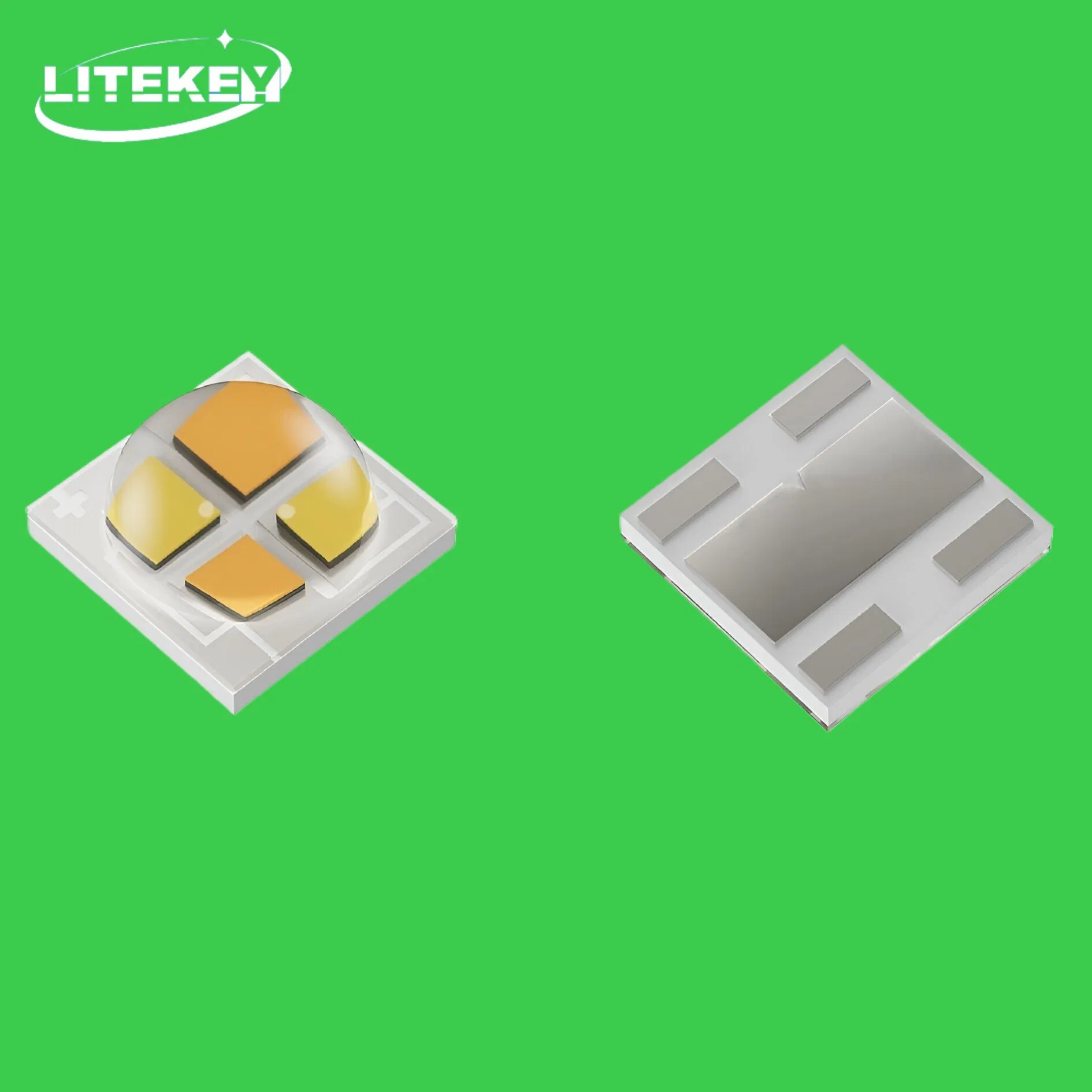

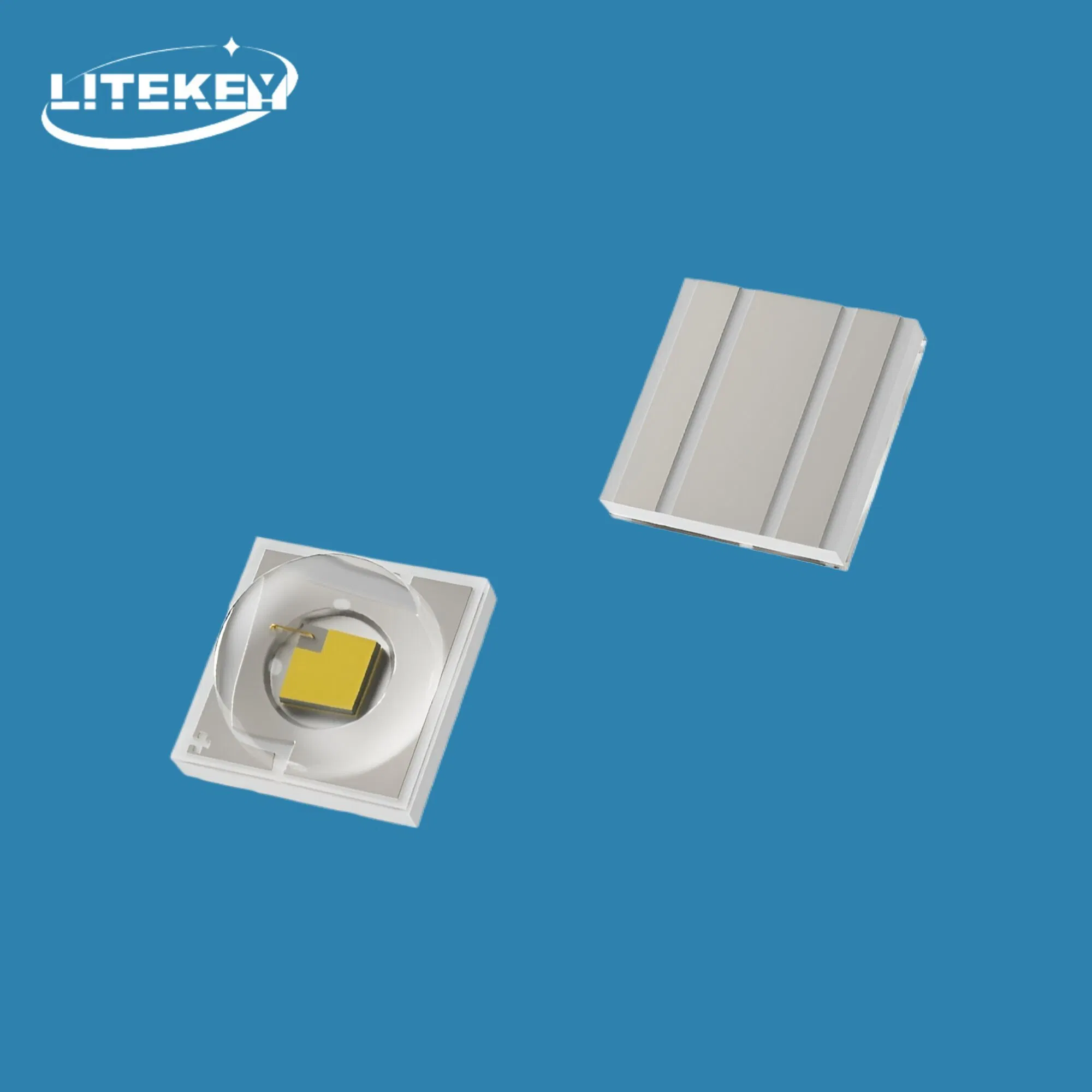

High Power LED 760nm 810nm 840nm 940nm 970nm 5050 IR SMD LED
High Power LED 760nm 810nm 840nm 940nm 970nm 5050 IR SMD LED
High Power LED 760nm 810nm 840nm 940nm 970nm 5050 IR SMD LED
High Power LED 760nm 810nm 840nm 940nm 970nm 5050 IR SMD LED
High Power LED 760nm 810nm 840nm 940nm 970nm 5050 IR SMD LED
1 / 5
High Power LED 760nm 810nm 840nm 940nm 970nm 5050 IR SMD LED
High Power LED 760nm 810nm 840nm 940nm 970nm 5050 IR SMD LED
High Power LED 760nm 810nm 840nm 940nm 970nm 5050 IR SMD LED
High Power LED 760nm 810nm 840nm 940nm 970nm 5050 IR SMD LED
High Power LED 760nm 810nm 840nm 940nm 970nm 5050 IR SMD LED

High Power LED 760nm 810nm 840nm 940nm 970nm 5050 IR SMD LED

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
LLS5050IR
Beam Angle
120°/60°/45°
Emitting Color
Infrared Light
IP Rating
IP65
LED Chips
High Reliability LG Chips
Power
10W
Life
50000h
Certification
RoHS, Reach
Encapsulation
Quartz
Base Material
Copper
Product Description

Custom High Power, High-reliability Performance 5050 IR LED

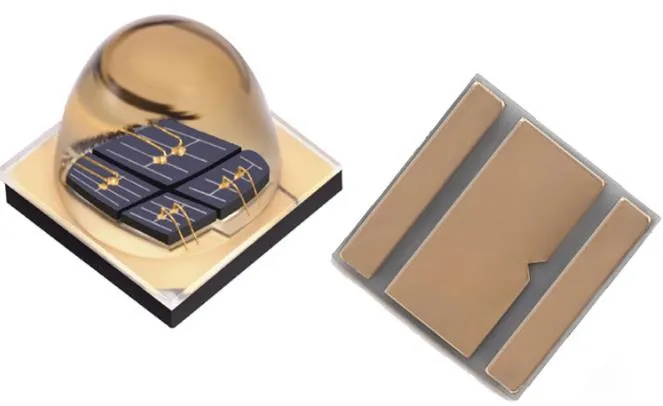

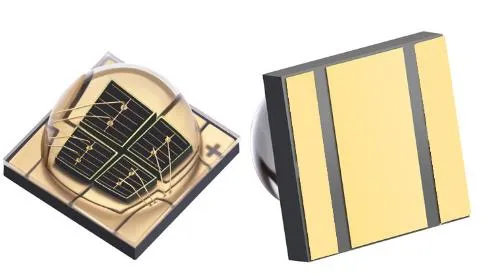

5050 IR SMD LED High Power LED IR
Key Features
  • Dimension: 5.15mm × 5.15mm
  • Emitted Color: Infrared
  • Lens Appearance: Water Clear
  • Viewing angle: 120° / 60° / 45° customizable
  • RoHS compliant and Lead-free
  • Suitable for all SMT assembly methods

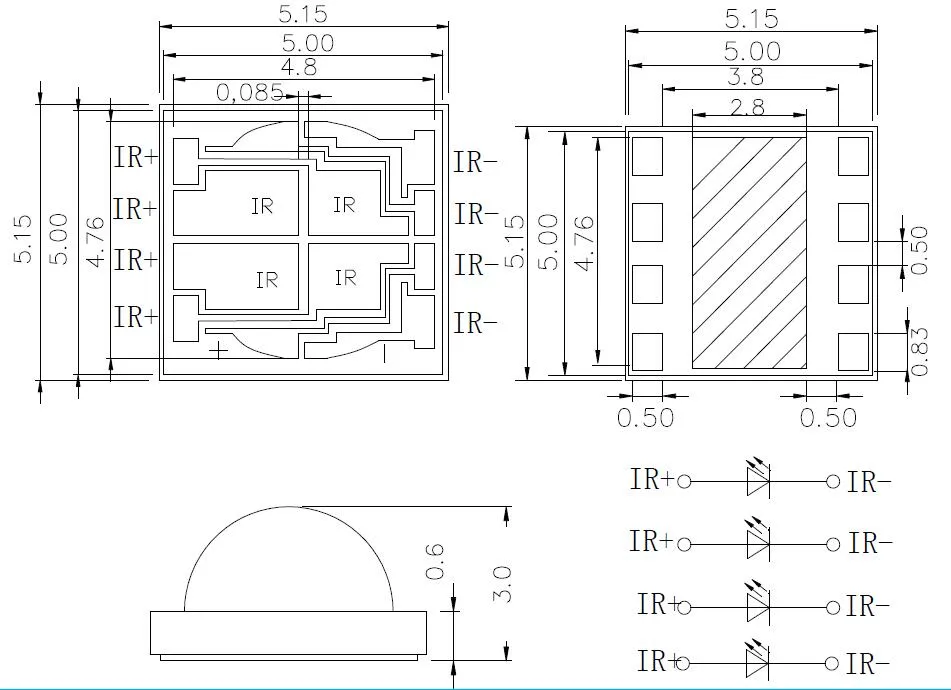

Package Dimensions

* Viewing angle and circuit diagram can be customized according to requirements.

Applications & Wavelengths

Our Infrared LED Products cover the entire Near Infrared (NIR) wavelength range from 730nm to almost 1,000nm. These are ideal for Surveillance Systems, Night Vision, Face Recognition, and Medical Instrumentation.

700nm - 730nm: Money & Safety Sensors
760nm: Blood Sensor / Money Sensor
850nm: CCTV, Optical Mouse, Night Vision
875nm: IrDA, Scanner, Smoke Detector
940nm: Remote Controller, Proximity Sensor
1050nm: Specialized Scientific Instrumentation
Custom 5050 IR LED Data Sheet
Part No. Optical Power (mW) Forward Voltage (V) Wavelength (nm) Forward Current (mA) View Angle
LLS5050IR850A45-800800-10001.6-1.8840-855100045°
LLS5050IR940A45-700700-9001.2-1.4940-950100045°
LLS5050IR760A45-500500-7001.7-1.9760-77070045°
LLS5050IR850A60-30003000-40003.0-4.2840-850200060°
LLS5050IR940A120-12001200-15001.4-1.6940-9501000120°
LLS5050IR1050A60-25002500-35003.0-4.01000-1100150060°
Quality Control & Packing
QC System: Advanced encapsulation technology is used to accurately control the real wavelength for high-reliability performance.

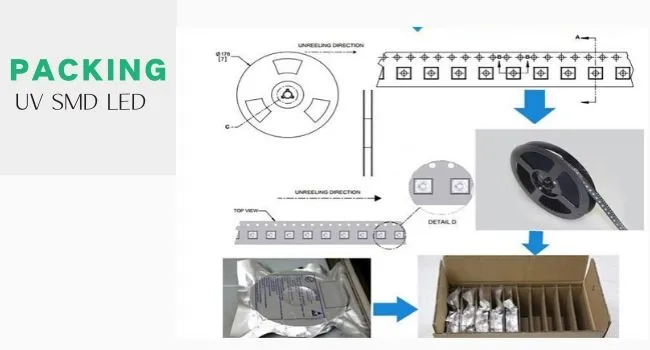

IR LED Packing QC Testing
Production Process

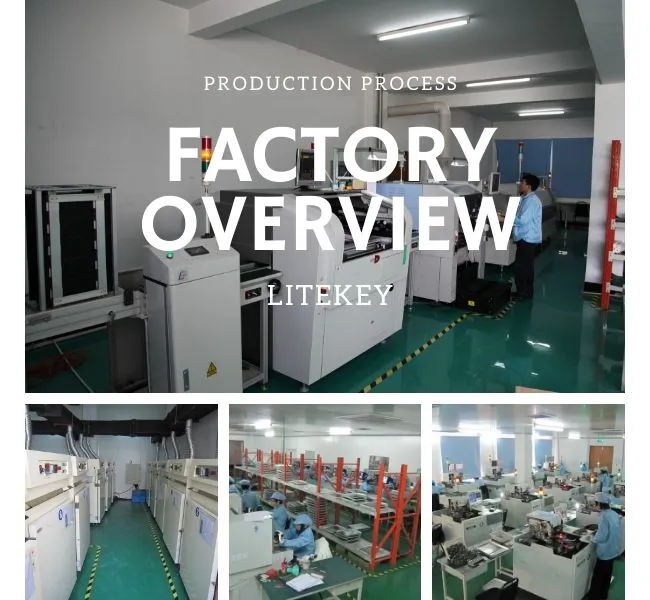

Production Process Overview
  • Professional 24-hour service response.
  • Advanced ASM automatic production machines.
  • 100% testing for each piece with automatic bin selection.
  • Over 14 years of experience in LED component manufacturing.
Frequently Asked Questions
What are the primary advantages of the 5050 IR LED package?
The 5050 package offers high power density, excellent heat dissipation due to its copper base, and a compact 5.15mm footprint, making it ideal for high-intensity infrared applications.
Which wavelength should I choose for a security camera?
850nm is the most common choice for CCTV and night vision because it provides high sensitivity for CCD/CMOS sensors. 940nm is used when "invisible" IR is required to avoid the red glow.
Can the viewing angle be customized for specific projects?
Yes, we provide multiple standard viewing angles including 120°, 60°, and 45°. Custom lens designs can be discussed to meet specific flood or narrow beam requirements.
Are these IR LEDs compatible with standard SMT reflow soldering?
Absolutely. These LEDs are designed for standard SMT assembly methods and are compliant with RoHS standards for lead-free soldering.
What is the expected lifespan of these high-power LEDs?
Under standard operating conditions with proper heat management, these 5050 IR LEDs have a rated lifespan of up to 50,000 hours.
Do you offer samples for testing before bulk orders?
Yes, sample orders for evaluation are available to ensure the technical specifications meet your application's needs.
