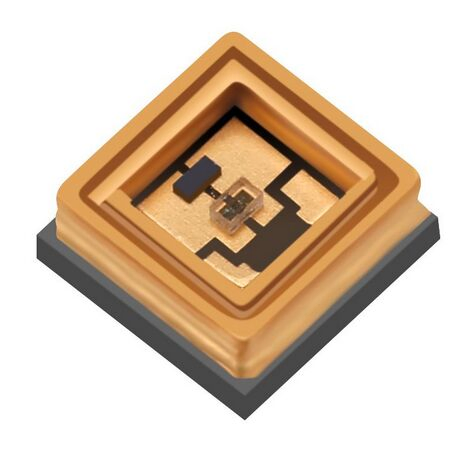

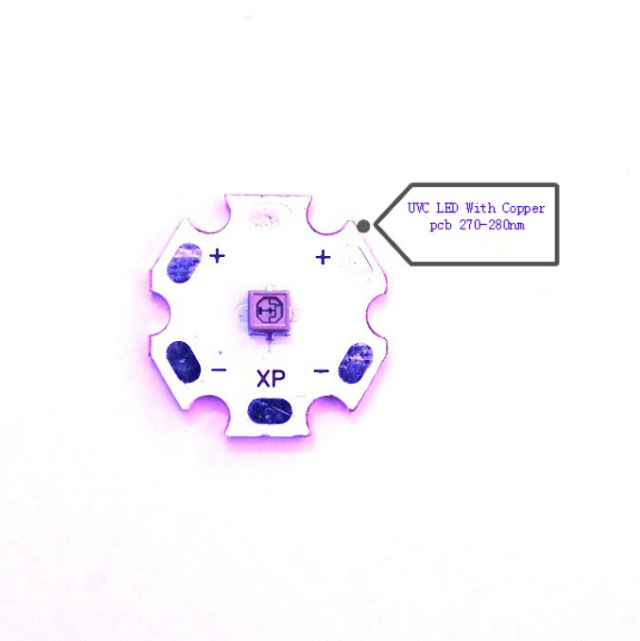

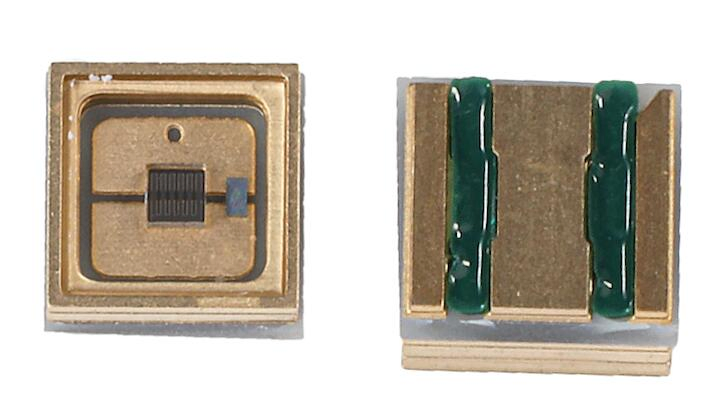

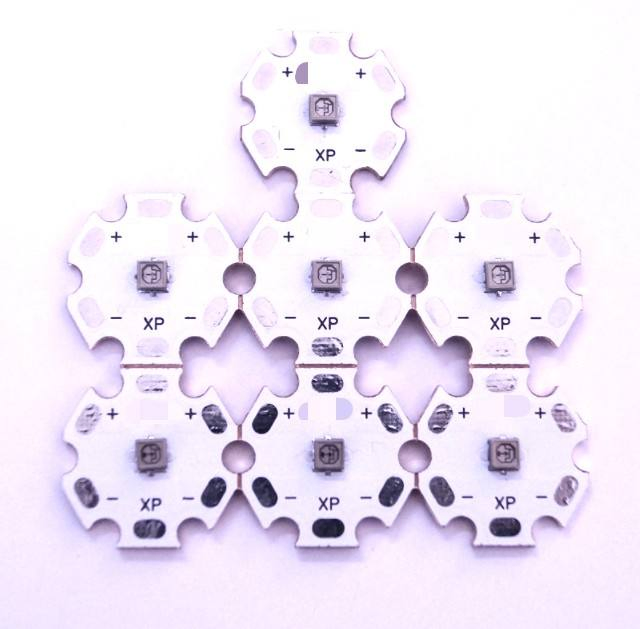

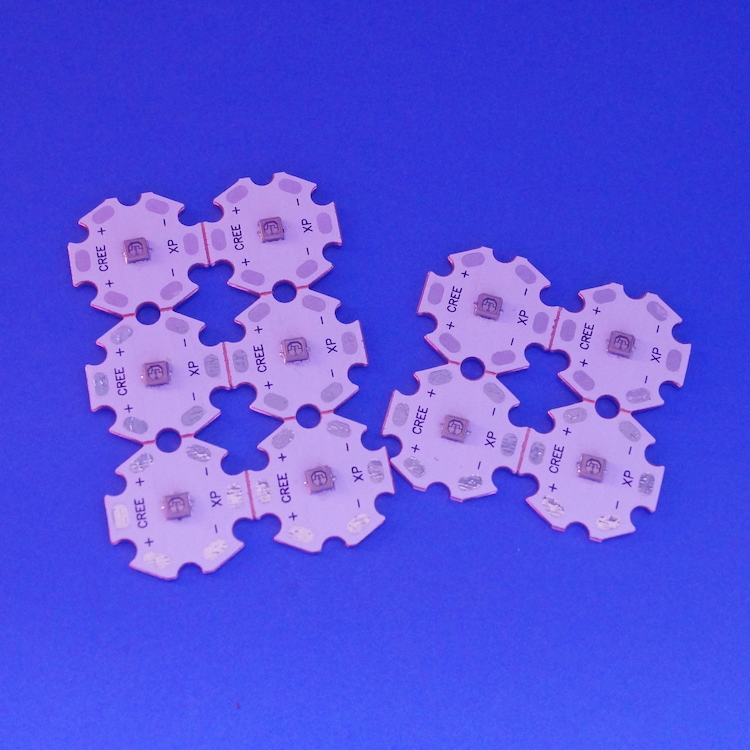

SMD 3535 Ultraviolet 270-280nm For UV light

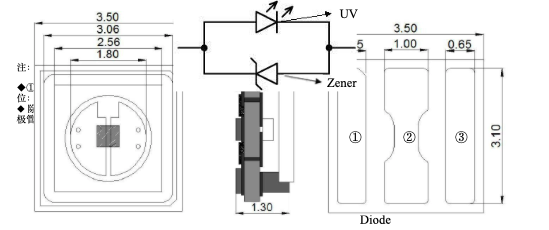

High-performance ultraviolet LED solution featuring a compact 3.5×3.5×1.3 mm package. Designed for efficiency and reliability in sterilization applications.
| Data | Symbol | Testing | Min | Typ | Max | Unit |
| Forward Voltage | Vf1 | If = 30mA | 5.8 | - | 6.2 | V |
| Zener Voltage | Vf3 | If = 10uA | 4 | - | - | V |
| Reverse Current | Ir | Vr = -5V | - | - | 1.0 | μA |
| Reverse Voltage | Vr | Ir = -10μA | 10 | - | - | V |
| Radiated Power | Φe | 30mA | 0.5 | - | 3 | mW |
| Peak Wavelength | WLP | 30mA | 270 | - | 280 | nm |
| Half Wave Width | HW | 30mA | 8 | - | 14 | nm |
Performance: Reliable performance, low power consumption, and compact design. The product utilizes a DC 6V constant current power supply to ensure stable light output. It features instant start-up at the nanosecond level with no delay.
Sterilization: Capable of achieving a sterilization rate of up to 99%. Widely used in consumer electronics such as TWS headset sterilization, electric toothbrushes, and vacuum cleaners.
