📋 Basic Information
Installation Distance
0.2m
Measuring Distance
Equivalent to 5m
Icon Mask
Single, Horizontal, Vertical
Control Method
Remote Control or Online
Chart Window Size
210×80mm
Light Source
LCD Backlight LED
Specification
CE, FDA, ISO
🔍 Product Description

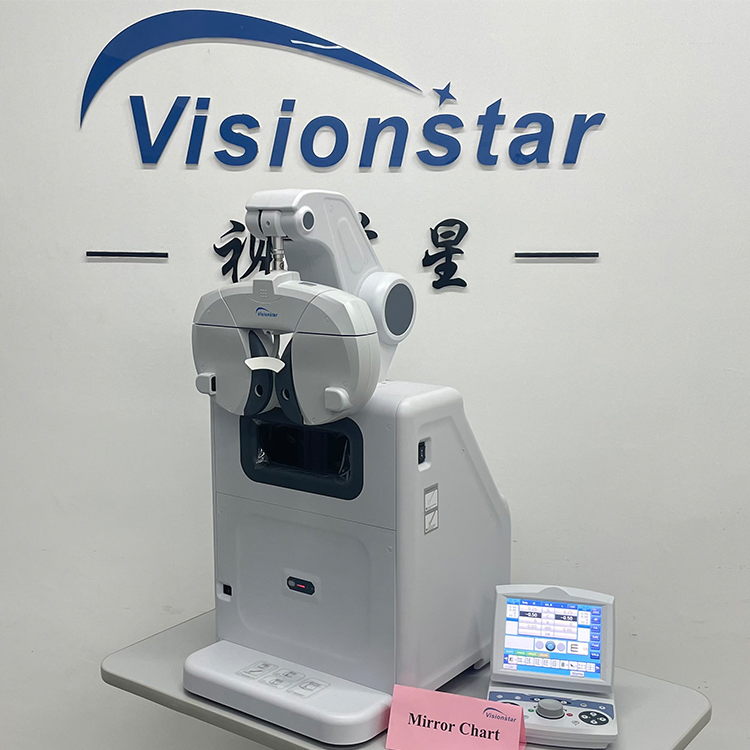

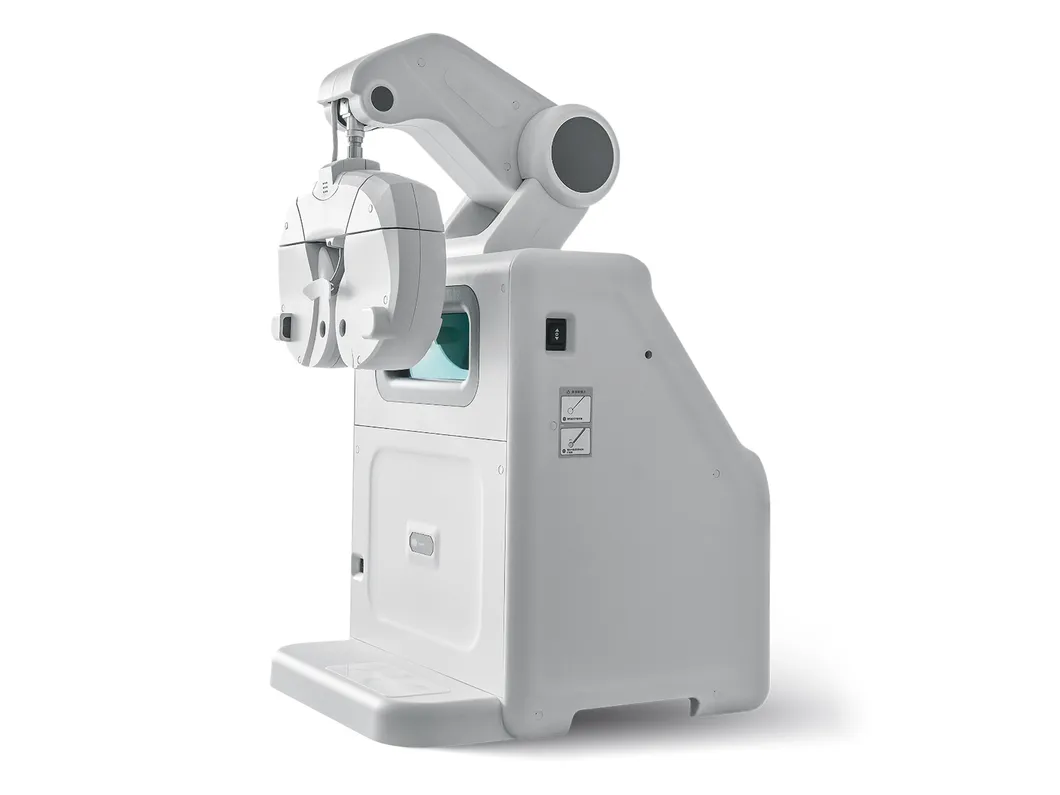

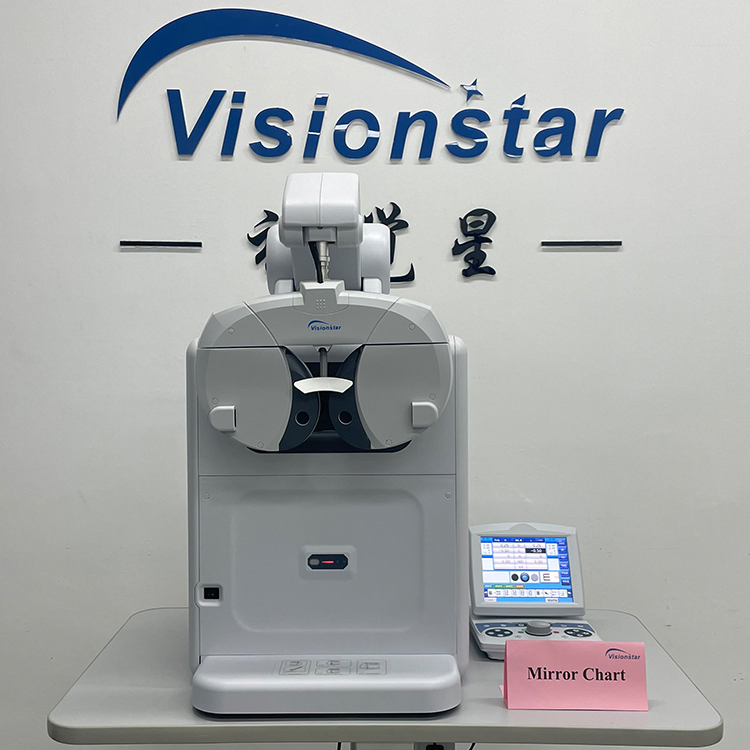

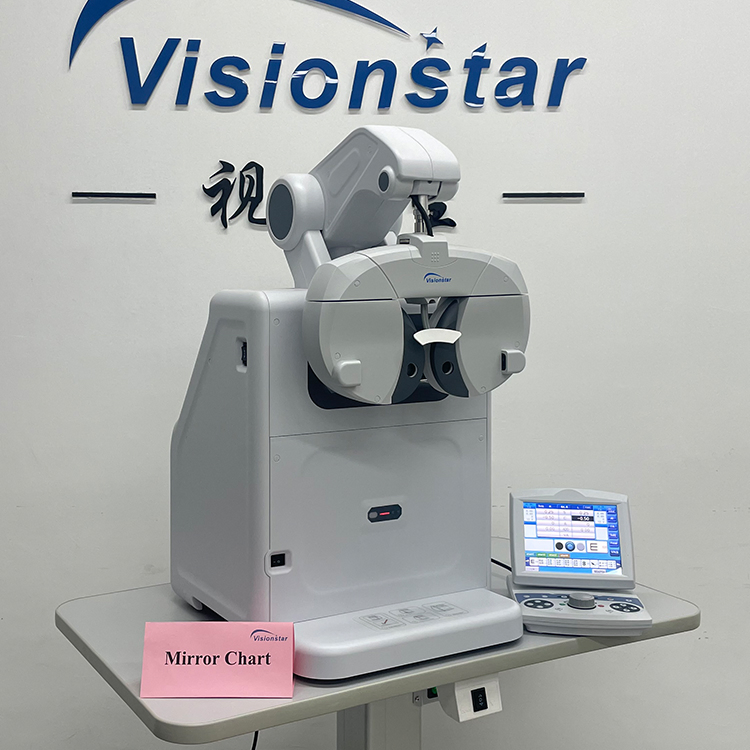

MC-100 Mirror Chart
Tabletop Refraction System Optical Built-in Vision Chart Automatic Phoropter Optometry Testing Unit.
| Technical Data Specifications |
| Charts | 33 selections |
| Installation distance | 0.2m |
| Measuring distance | Equivalent to 5m |
| Icon mask | Single, horizontal, vertical |
| Filter | Red/Green |
| Control method | Remote control or online |
| Chart window size (W×H) | 210×80mm |
| Light source | LCD backlight LED fill-in light |
| Power supply | 220V 50Hz |
| Power | 148VA |
| Dimension (W×D×H) | 450×470×555mm |
| Weight | 20kg |
| Environmental Requirements (Working) |
| Temperature | +10°C ~+40°C |
| Humidity | 30%RH~75%RH |
| Air pressure | 700hPa~60hPa |
❓ Frequently Asked Questions
What is the required installation distance for the MC-100?
The MC-100 requires a very short installation distance of only 0.2m, while providing a measuring distance equivalent to 5m.
How many chart selections does this vision chart offer?
The system includes 33 different chart selections to accommodate various optometry testing needs.
What control methods are supported?
The device can be operated via remote control or through an online connection for integrated optometry workflows.
Does the MC-100 include specialized filters?
Yes, it features built-in Red/Green filters and various icon masks including single, horizontal, and vertical options.
What certifications does this equipment have?
The MC-100 is compliant with international standards and holds CE, FDA, and ISO certifications.
What are the power requirements for operation?
It operates on a standard 220V 50Hz power supply with a power consumption of 148VA.
