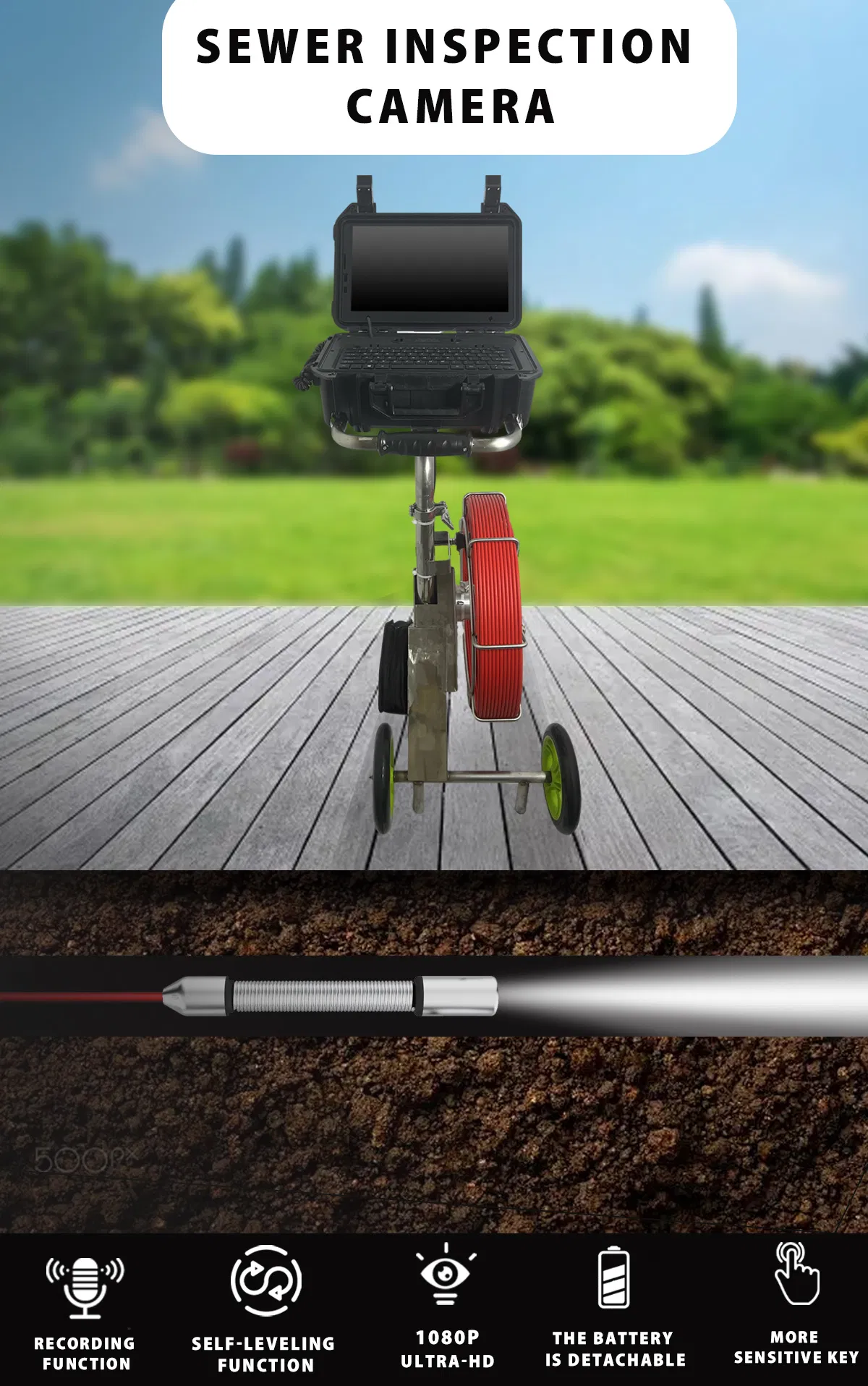

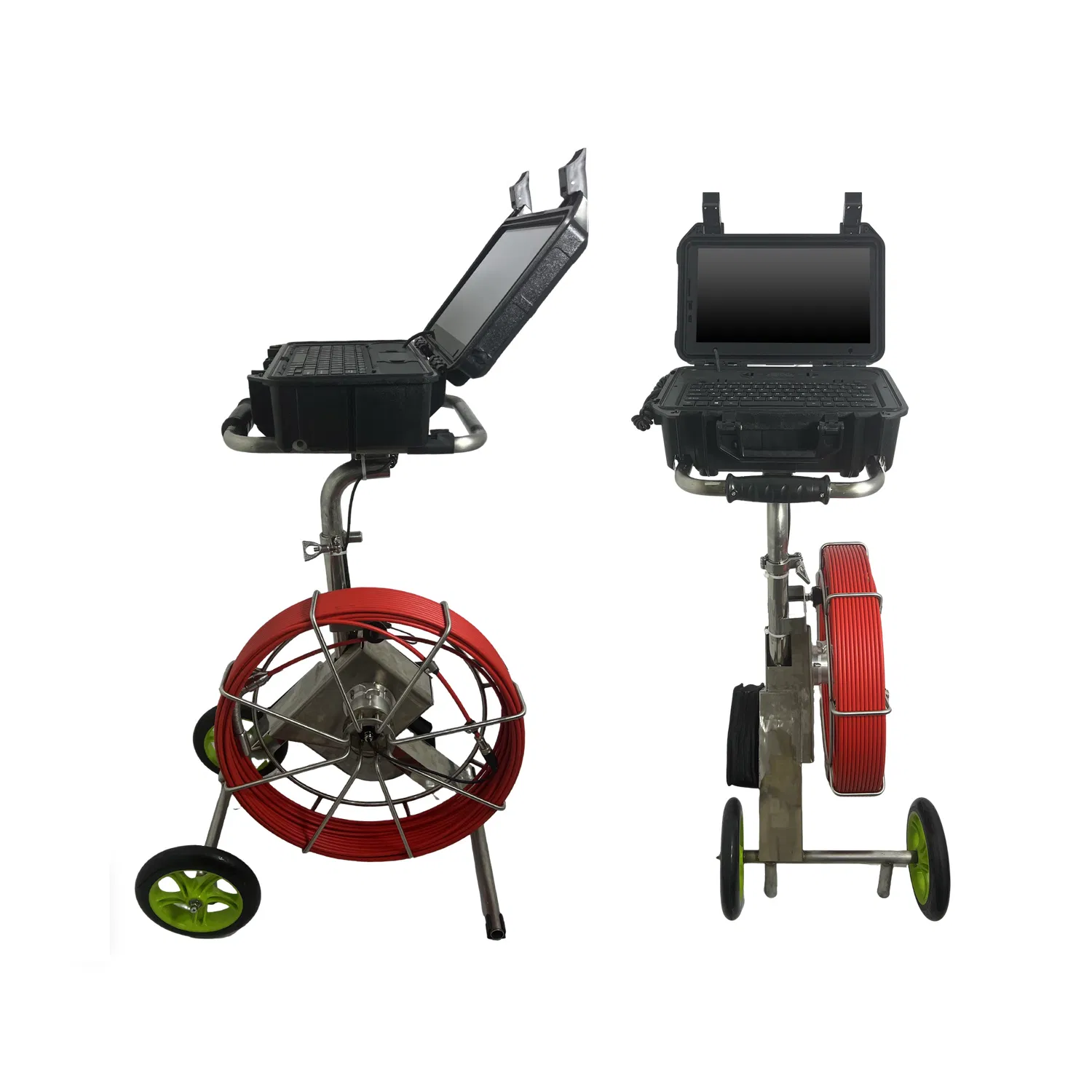

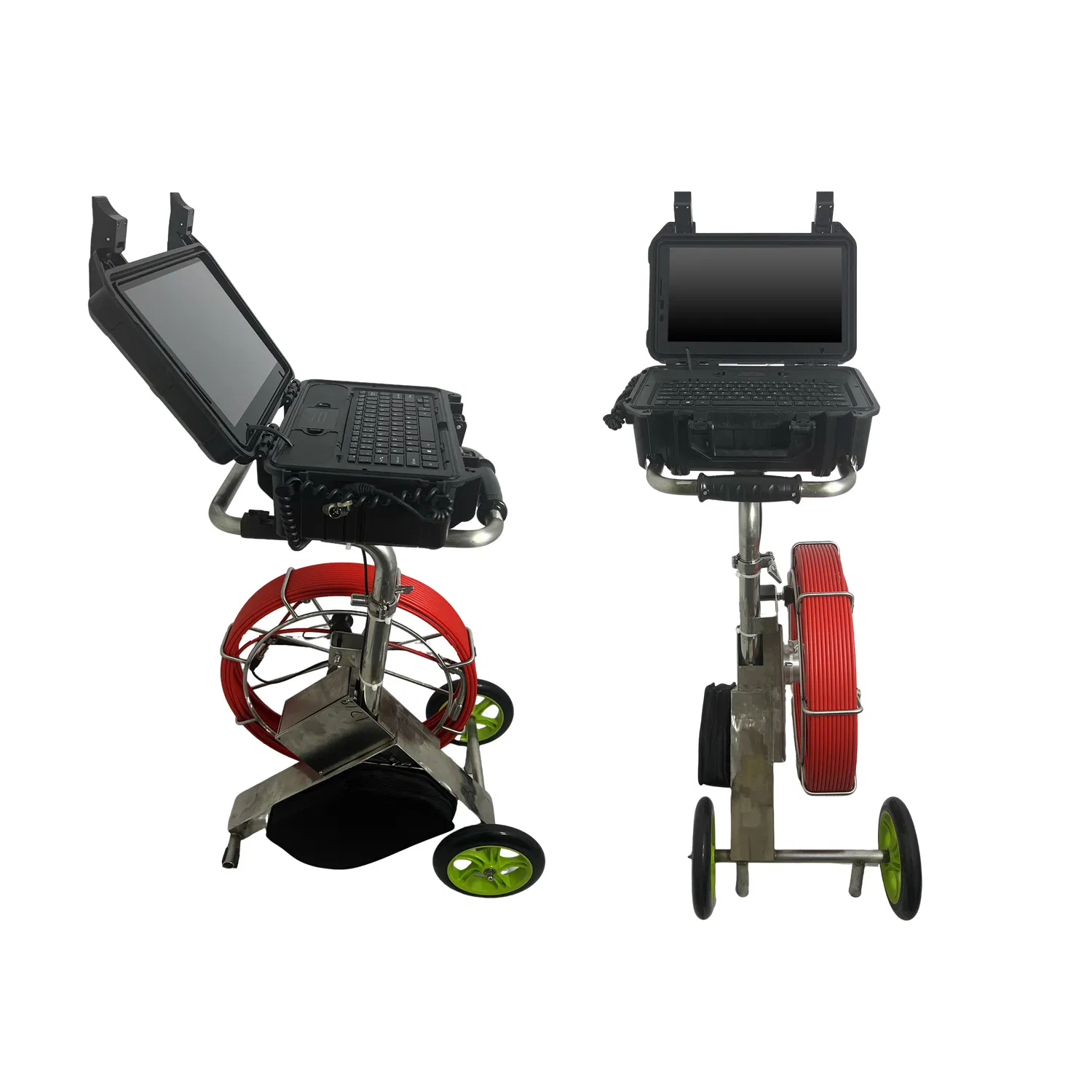

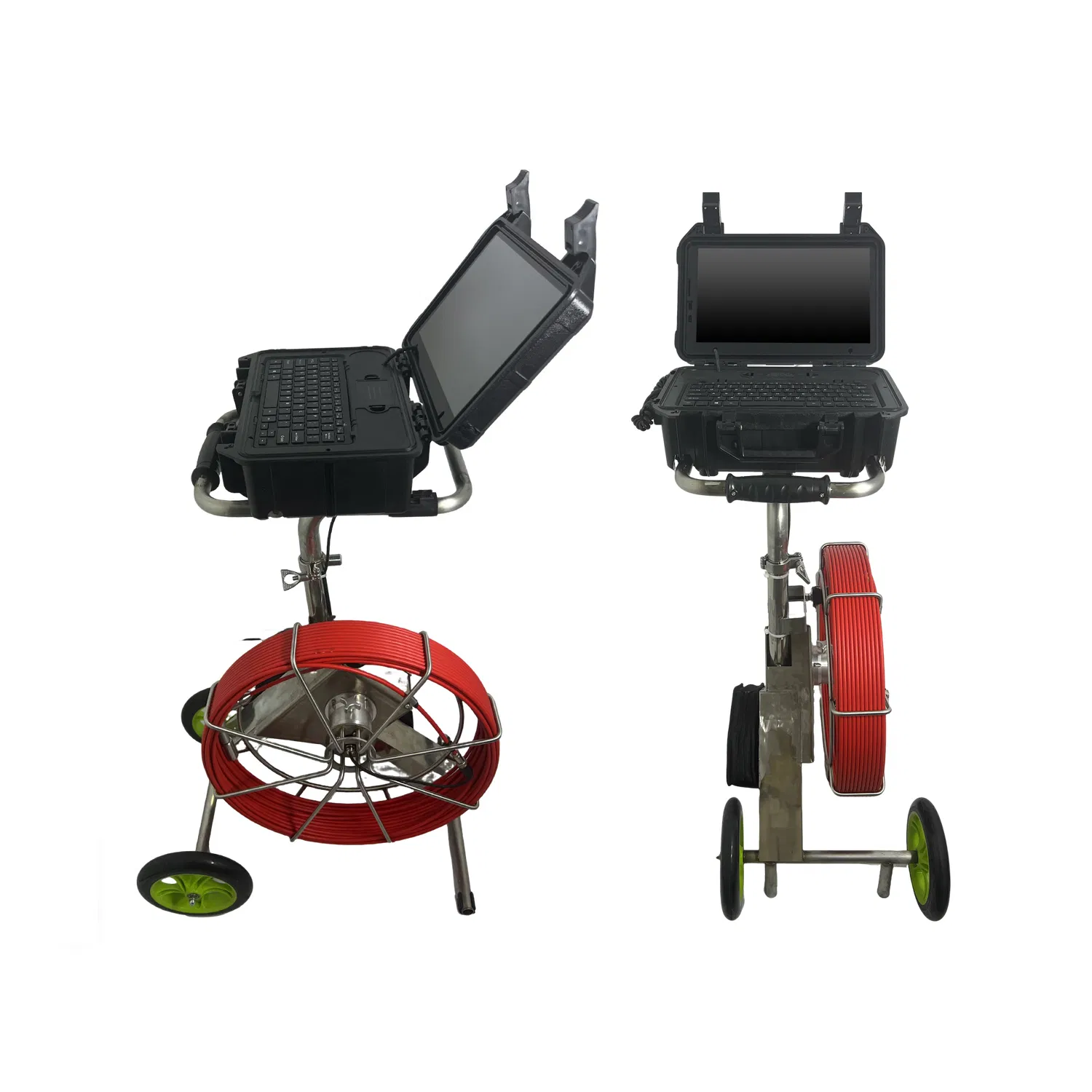

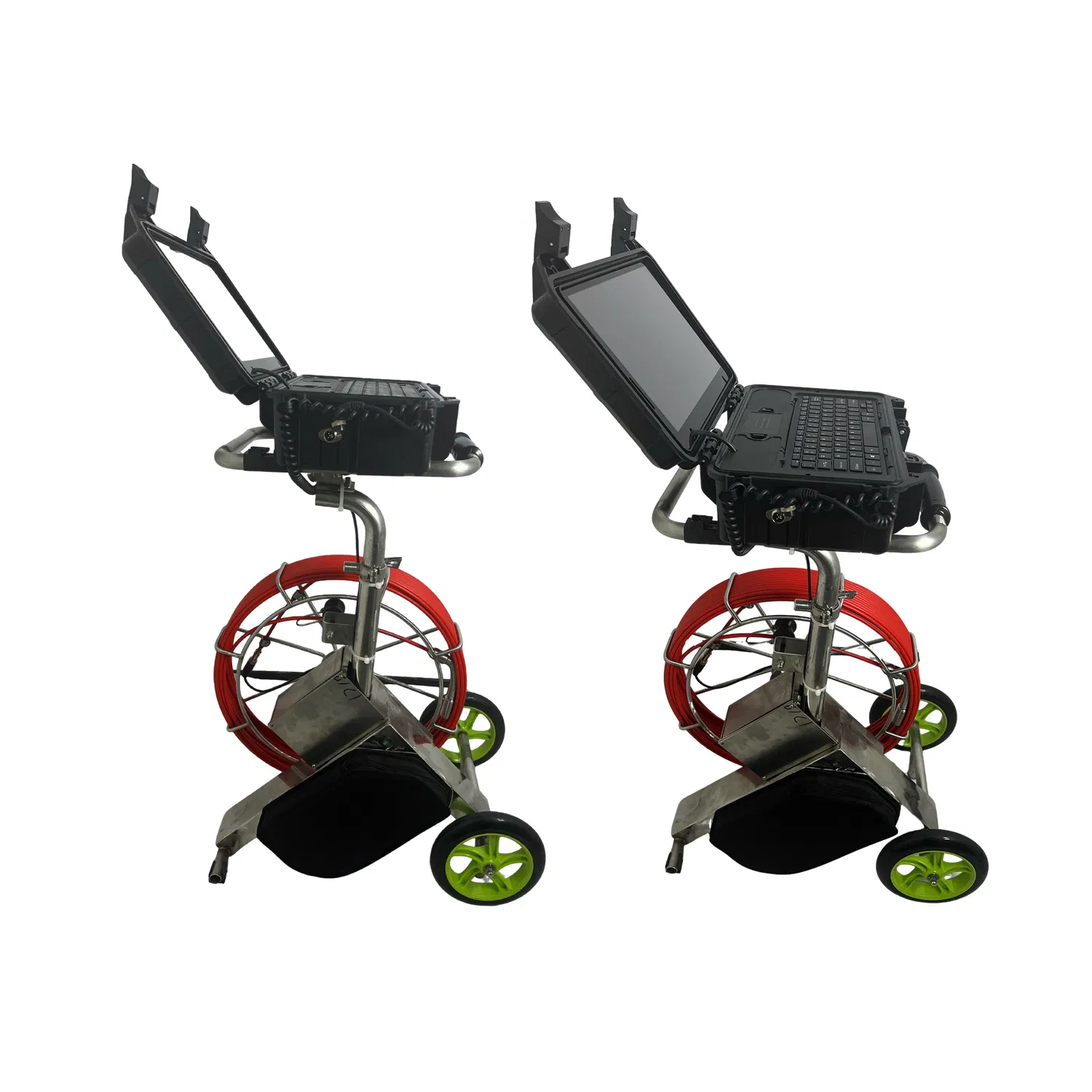

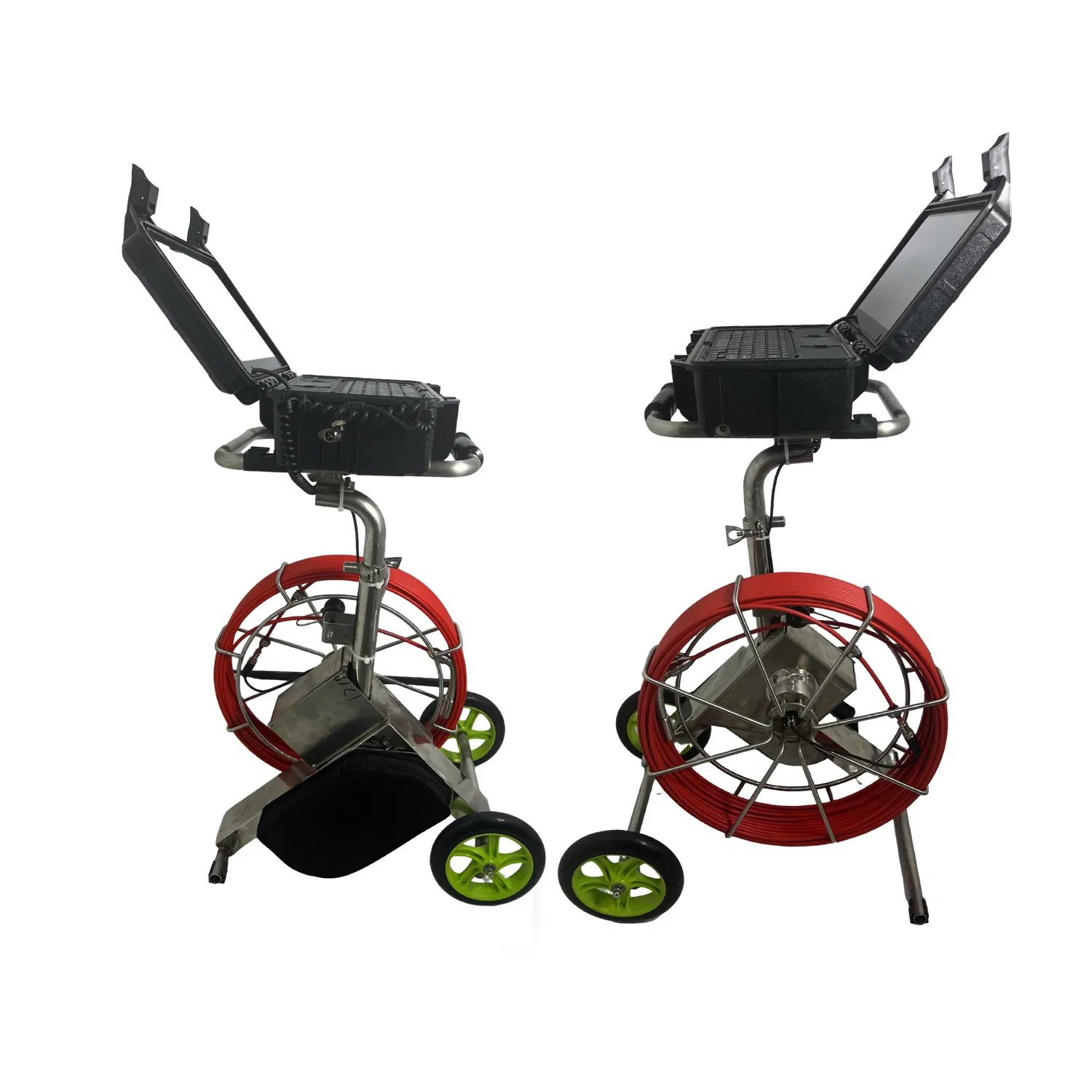

Self-Contained Pipeline Inspection Unit on Trolley Mini CCTV Camera

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.3692EA
TypeInspection, CRT Monitor
MethodInspection
UsageIndustrial
Size8-20"
HDMI Format1080P
ApplicationAdvertising
FeatureLED Backlight Display
CertificationCE, FCC, CCC, RoHS, EMI/EMC, ISO9001: 2000
Interface TypeHDMI
Horizontal Resolution520tvl
SensorCMOS
ColorBlack & Red
ResolutionAhd1920X1080
Battery Capacity7.2V 9000mAh Lithium-Ion Battery
MemorySupports 64G SD Card
Operating Time11-12hour(7") / 10-11hour(10.1")
OriginChina

Keyboard Input Parameters

Input LanguageEnglish
Maximum Page Count9 pages
Character Count Per Page500
Character HidingOne click hide and display all characters
Keyboard CompatibilityCompatible with specified PC Bluetooth keyboard
Length MeterBuilt-in
Meter ToleranceMaximum(± 10cm+0.5%)
Meters and FeetMeter/foot/closed

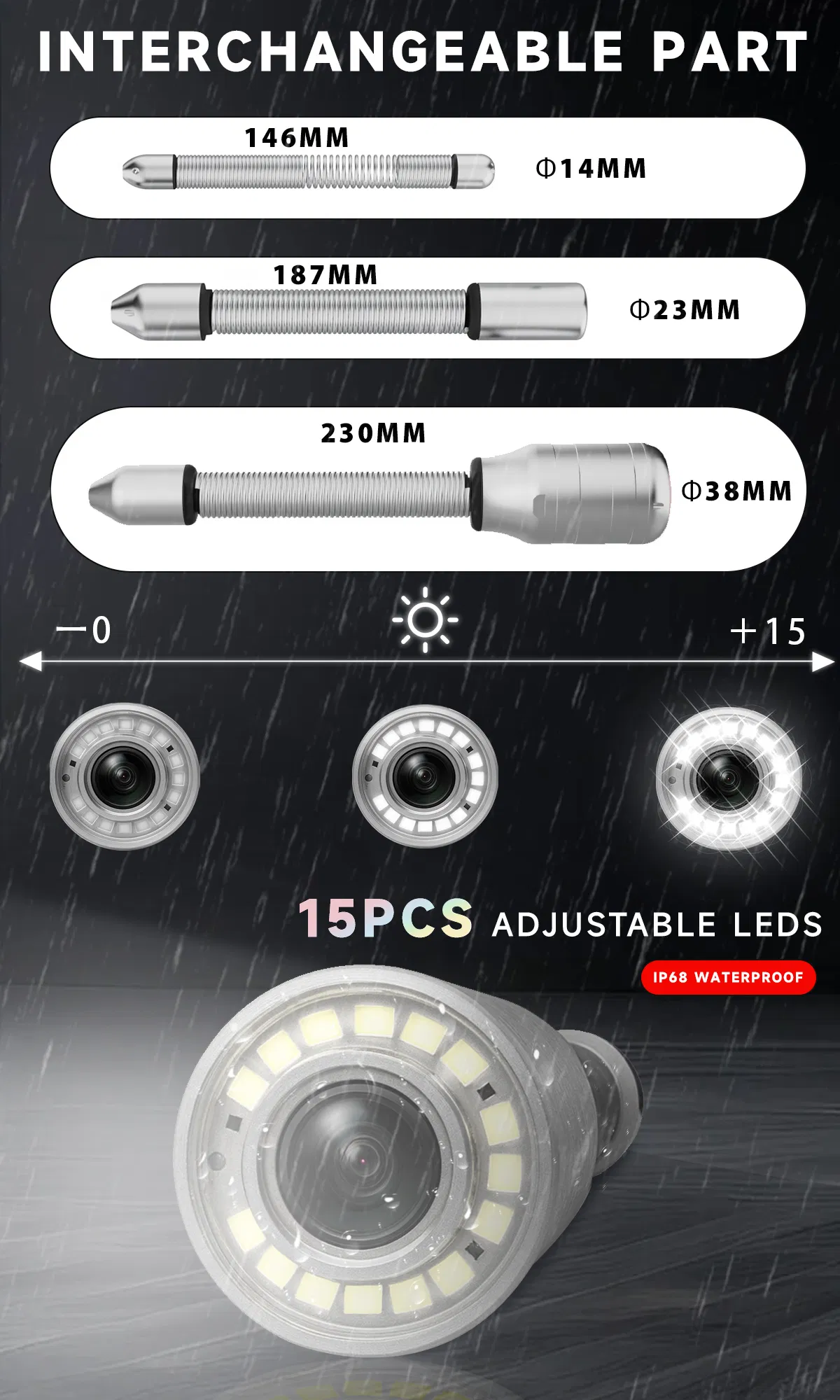

Camera Parameters (23mm)

Sensor1/3” CMOS
ResolutionAHD 1920x1080
Field of View (FOV)130°
Camera Size23mm x 51mm (Main Body)
Lens MaterialSapphire glass
Housing Material304# Stainless Steel
Light SourceBuilt-in 15 White LEDs
Waterproof Depth20m (fixed on cable)

Display Parameters

ScreenHigh-definition color LCD screen
Screen Resolution1080 * 1920
Video CompressionHigh compression, H.264
LED AdjustmentBuilt-in LED dimming
LanguagesEnglish, Chinese, Japanese, Korean, Russian, German, French, Italian, Spanish, Portuguese, Thai, Finnish, Swedish
Charging TimeApproximately 10 hours

Professional Grade Performance: Our product isn't just an upgrade—it's a different class. From the replaceable 9000mAh battery to the true 1080P display and self-leveling camera, every detail is engineered to deliver higher efficiency, clearer visuals, and a more professional user experience.

Competitor devices may look similar on the surface, but the differences become obvious the moment you start working: clearer images, faster controls, longer runtime, and smarter features that simply make your job easier.

Product Showcase

Frequently Asked Questions

What is the battery life of the inspection unit?
The unit is equipped with a 7.2V 9000mAh Lithium-Ion battery, providing approximately 11-12 hours of operation for the 7" screen and 10-11 hours for the 10.1" screen.
Is the camera waterproof for deep pipe inspections?
Yes, the camera is designed for underwater use with a waterproof depth rating of up to 20 meters when fixed on the cable.
What is the resolution of the display and recorded media?

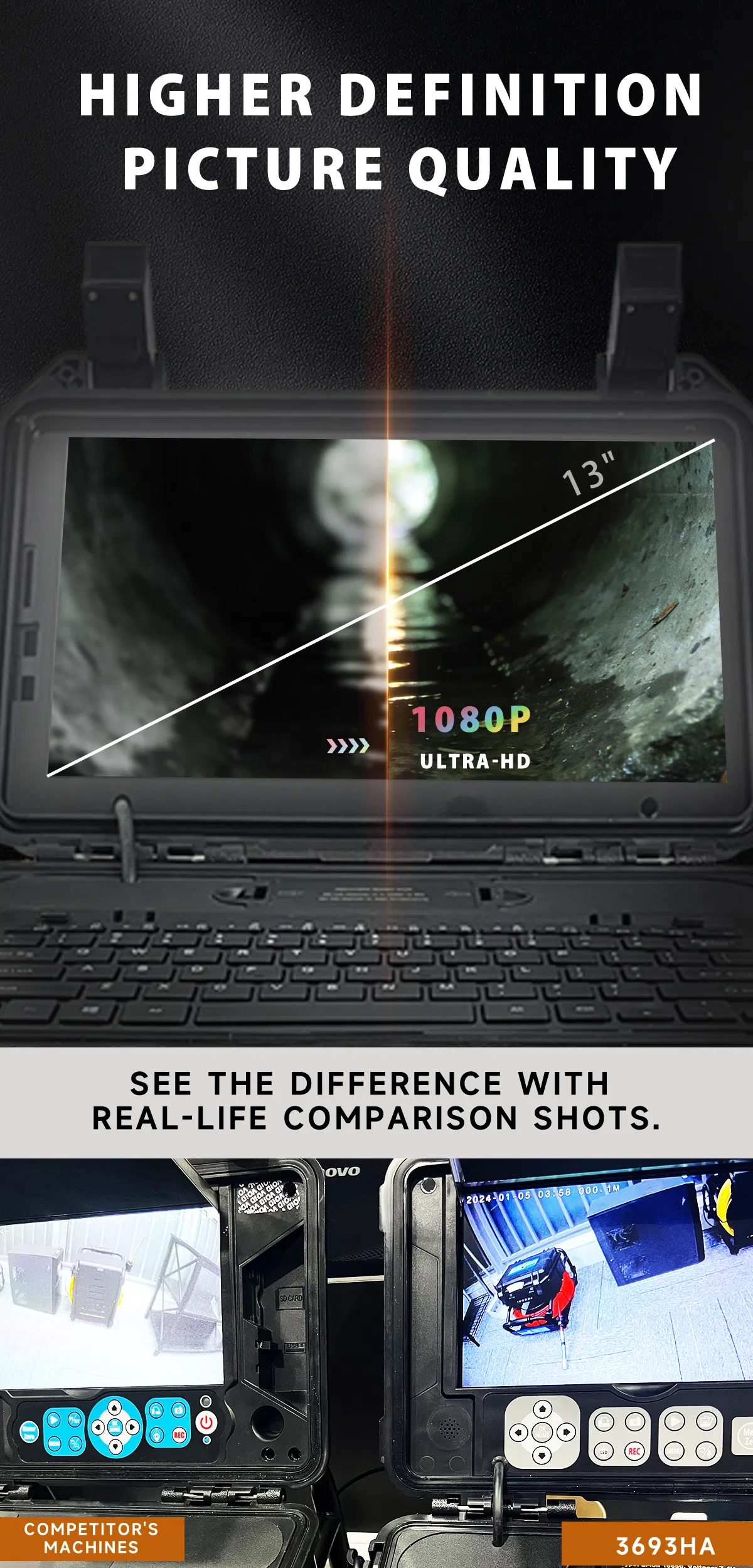

The system features a true 1080P high-definition color LCD screen. Both video and photo resolutions are AHD 1920x1080 for crystal clear visuals.
Can I add text notes during the inspection?
Yes, the system supports keyboard input in English, allowing up to 9 pages of text with 500 characters per page to document your findings.
What type of memory storage does the device use?
The device supports local recording and photography, storing data on an SD card with a maximum capacity of 64GB.
Does the camera perform well in dark environments?
Absolutely. The camera head features 15 built-in white LEDs with adjustable dimming controls to ensure optimal visibility in completely dark pipes.
