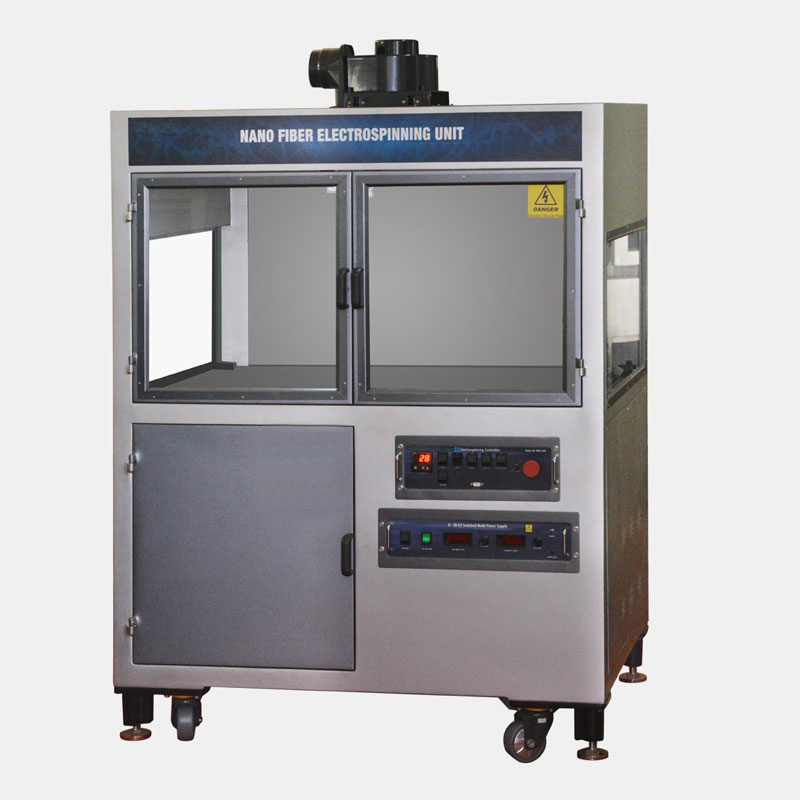

Nanofiber electrospinning units used to synthesize a variety of polymers
The model electrospinning equipment is a complete unit for Nanofiber electrospinning. It is used to make nano and micro fibers ranging from 50nm to 5 microns in diameter. Many kind of polymers like Protein nanofibers, carbon nanotubes, inorganic nanofibers etc. can be synthesized using our nano fiber electrospinning unit. This equipment uses horizontal spinning technology, which assures the quality of the spun fibers with no dip and uneven diameter.
| Item | Detail Description | Specifications |
|---|---|---|

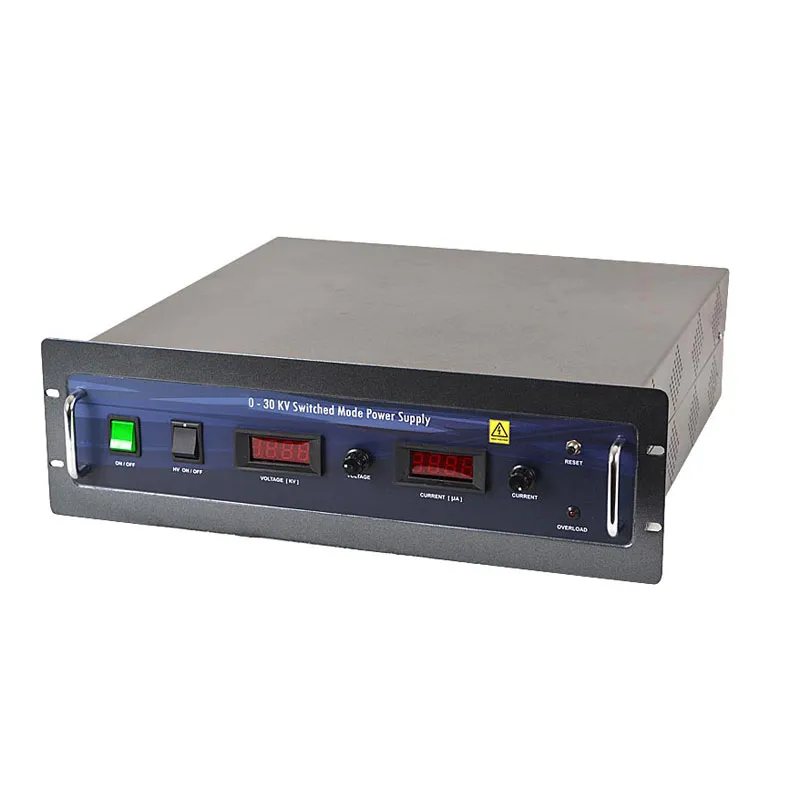

| High Voltage Power Supply | Comes with HMPSKV30 model. Output voltage and current can be set using front panel knobs with digital readout. | 1.0 - 30kV Single Output, 0.5mA max Current; Digital Meters; Arc Protection. |

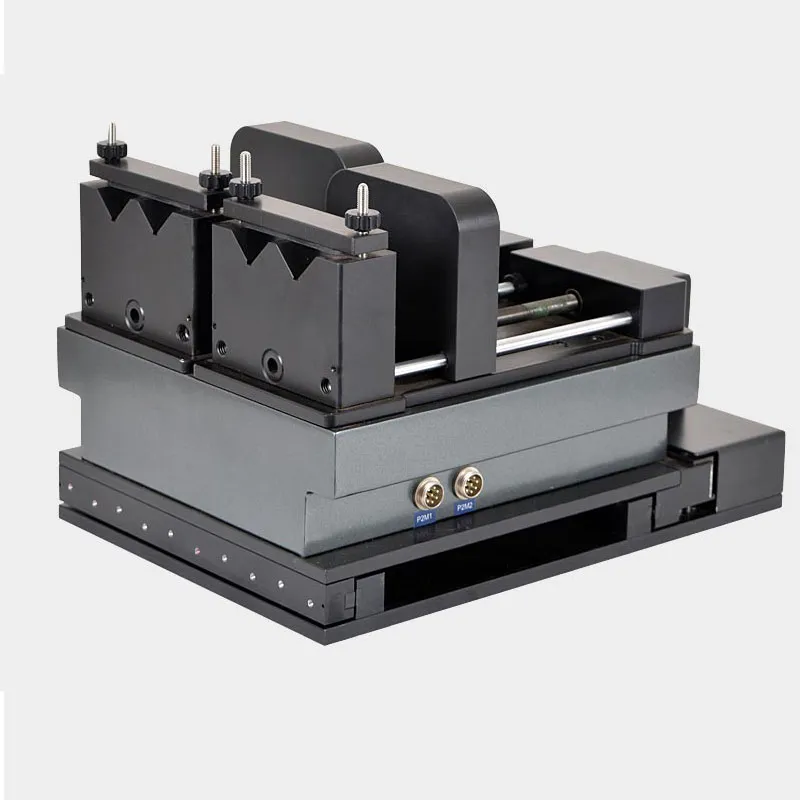

| Dual Channel Syringe Pump | Provides independent control of two dual channel syringe pumps. PC controlled movement in X axis (200mm travel). | Flow rate: 0.4 µl/hr to 650 ml/hr; Supports 2.5 to 60ml syringes; Microcontroller based. |

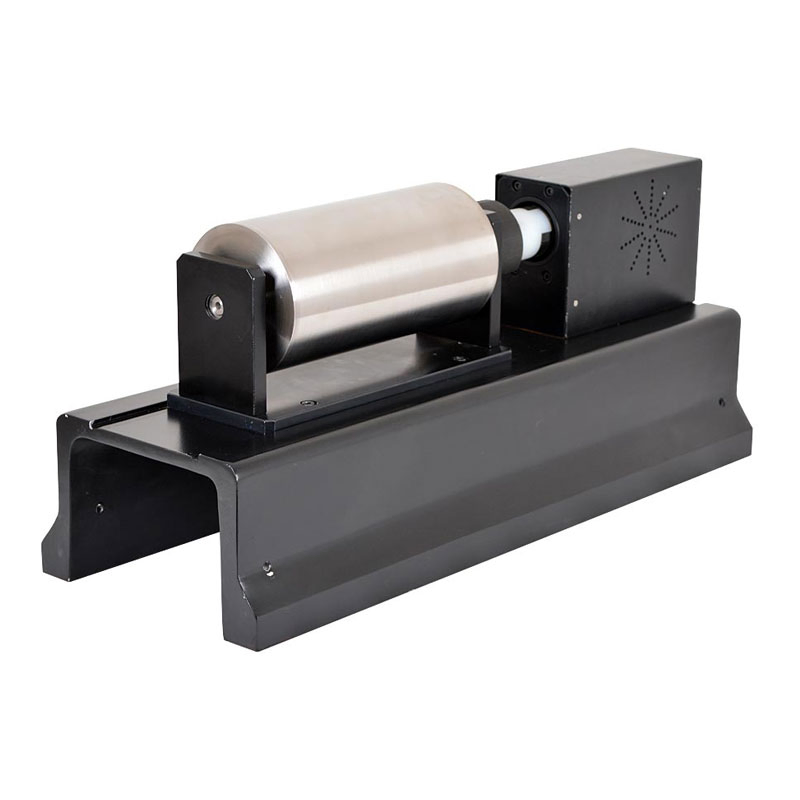

| Rotating Mandrel | Used as a target to get an aligned continuous mesh of nanofiber. Grounding via carbon brush contact. | Speed: 300 - 4000 rpm; Stability: +/- 1%; Multiple drum sizes (2mm to 100mm). |
| Fume Hood | Enclosed atmosphere to protect user from solvent evaporation. Features transparent float glass walls. | Stainless Steel & Glass; Footprint: 1200*850*1520 mm; In-built heater & exhaust. |
