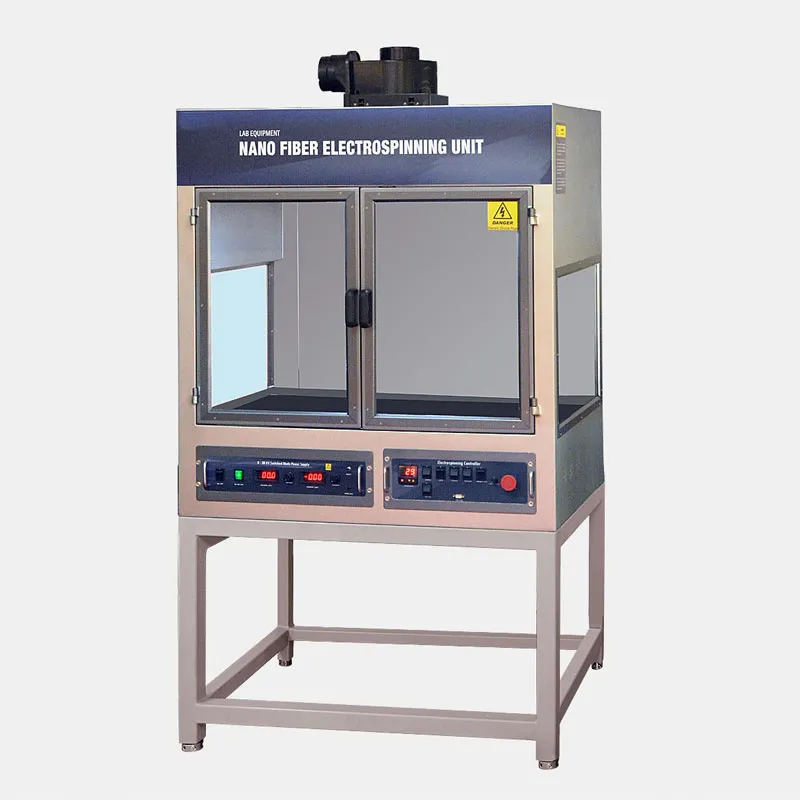

This Electro-spinning equipment is a compact version for Nano fiber Electro spinning. A unique support structure made of steel pipes is provided which serves as a sturdy support for the unit.
| Item | Detail | Specifications |
|---|---|---|
| High Voltage Power Supply | 0 - 30kV output voltage range with 0.5mA max current. Adjustable via front panel. | 1.0 - 30kV Single Output; Digital Voltmeter/Current meter; Arc Circuit Protection. |

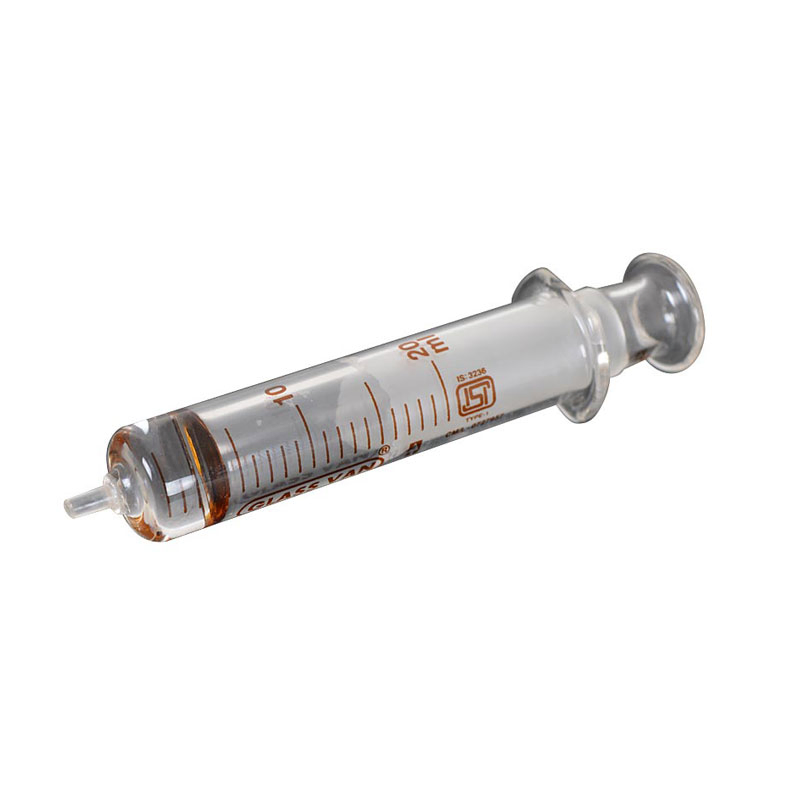

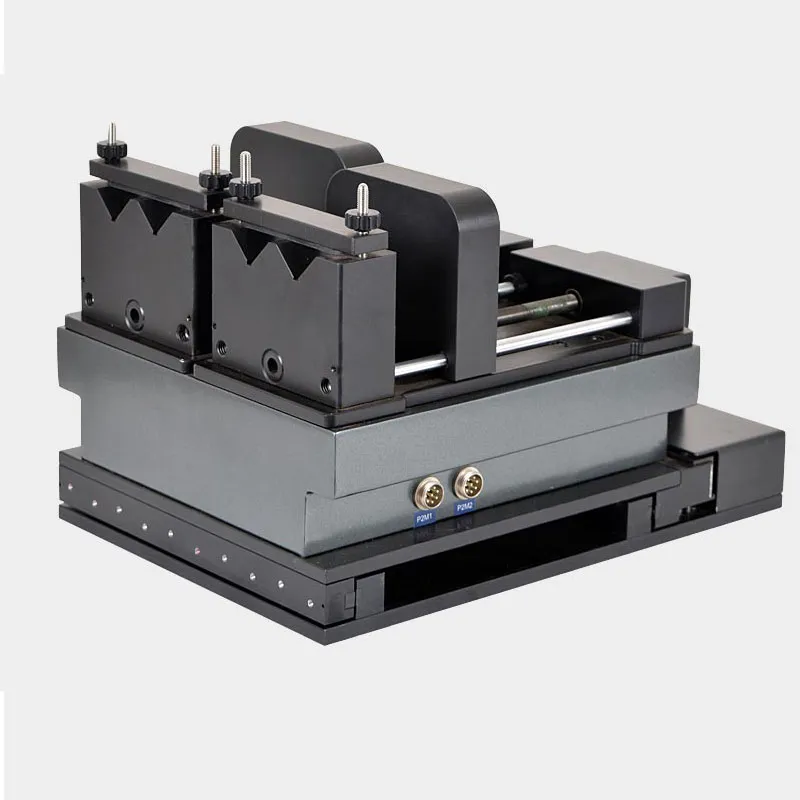

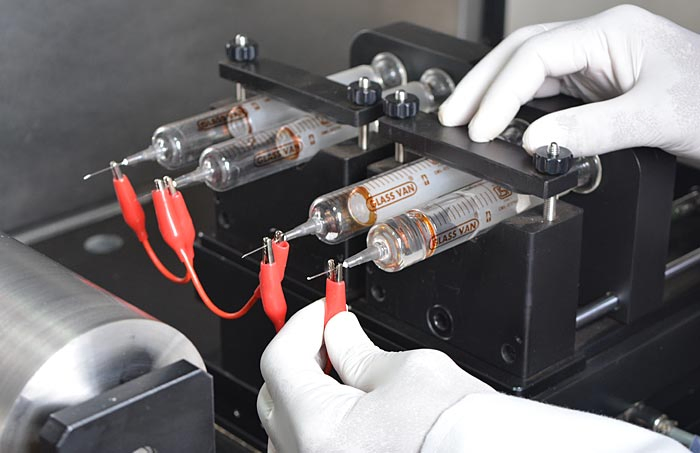

| Dual Channel Syringe Pump | Independent control of two dual channel pumps. Travel distance 200mm via PC control. | Flow rate 0.4 µl/hr to 650 ml/hr; Supports syringes from 2.5 to 60ml. |

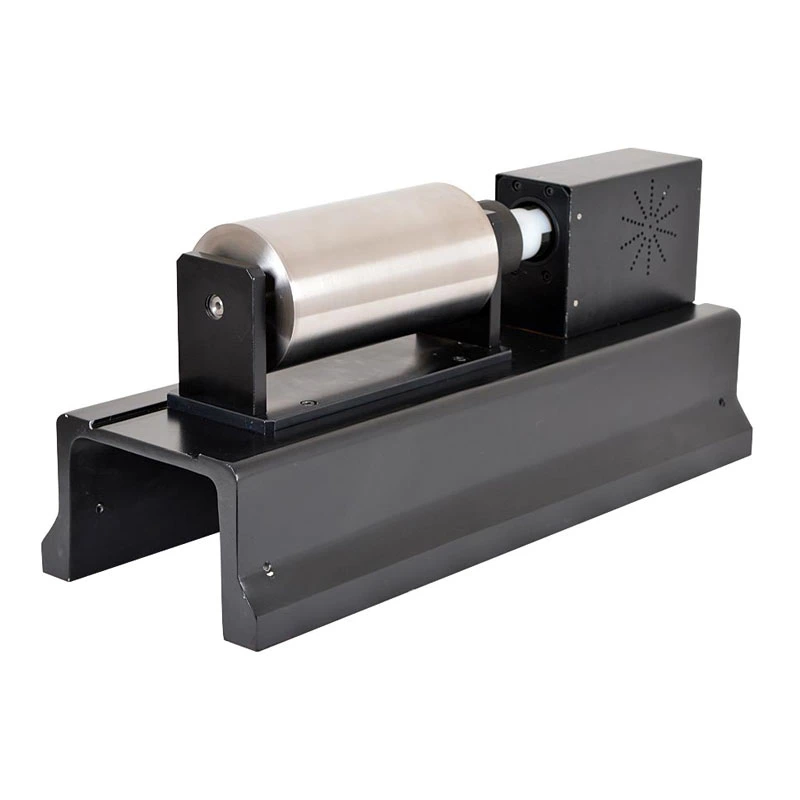

| Rotating Mandrel | High speed assembly for aligned continuous mesh. Grounding through carbon brush. | 300 - 4000 rpm; Includes 9 mandrels (2mm to 100mm diameter). |

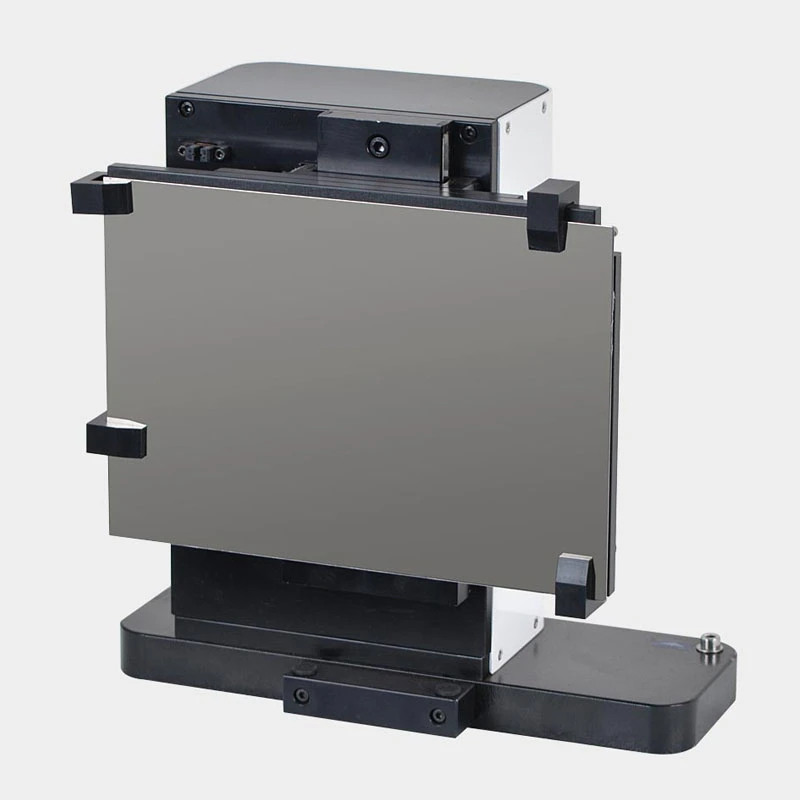

| Y Plate Collector | Stationary or Y-plate collector made of stainless steel with grounding. | Plate Dimension 250 x 175 x 3mm; Programmable motion profile via PC. |
| Fume Hood | Enclosed chamber with transparent float glass walls and granite table top. | 1000 x 800 x 1672 mm; Epoxy coated; Integrated PID temperature control. |
