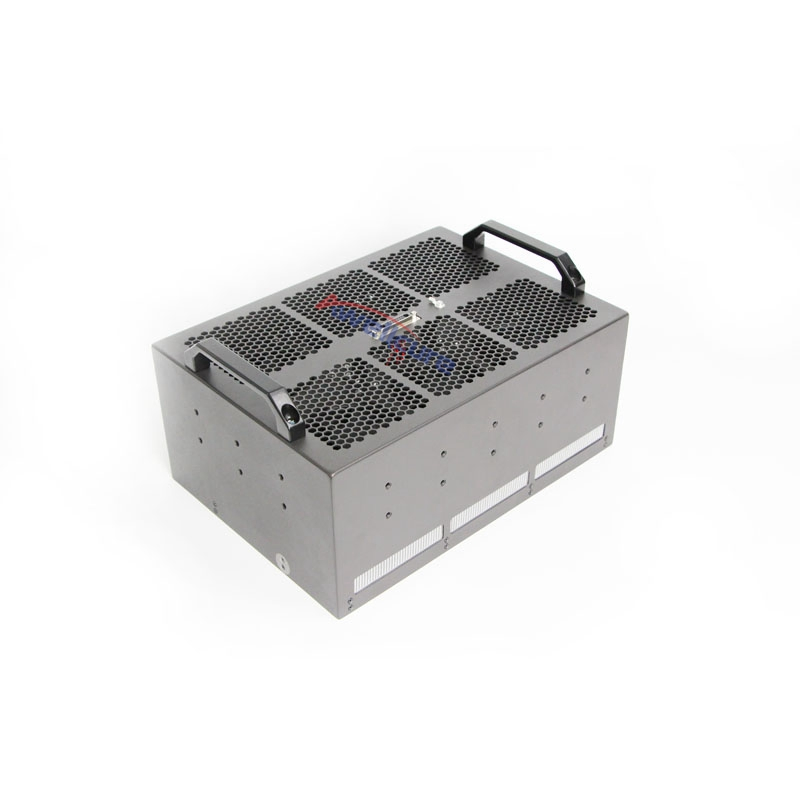

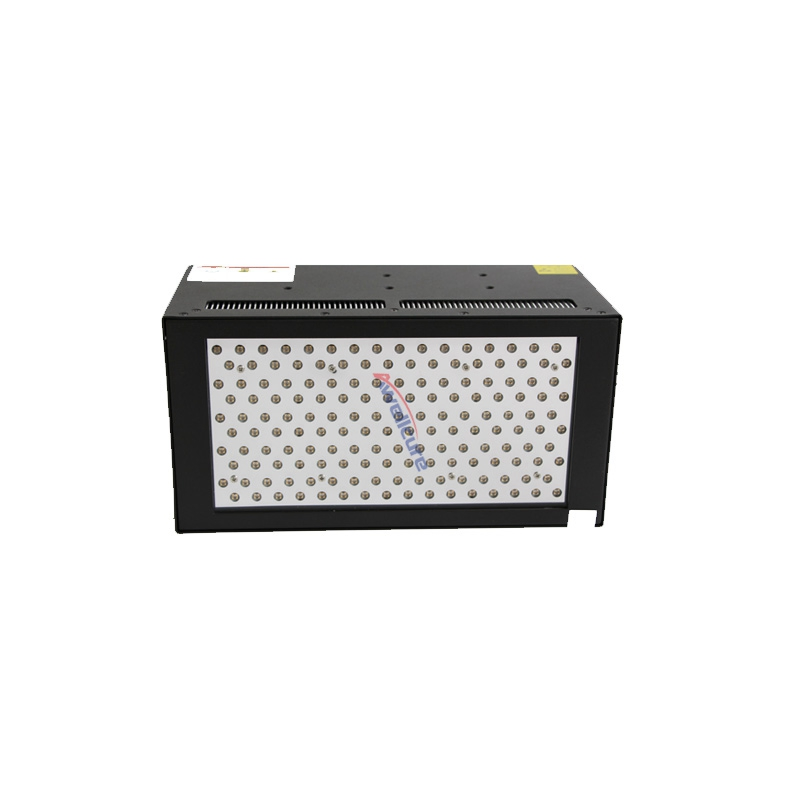

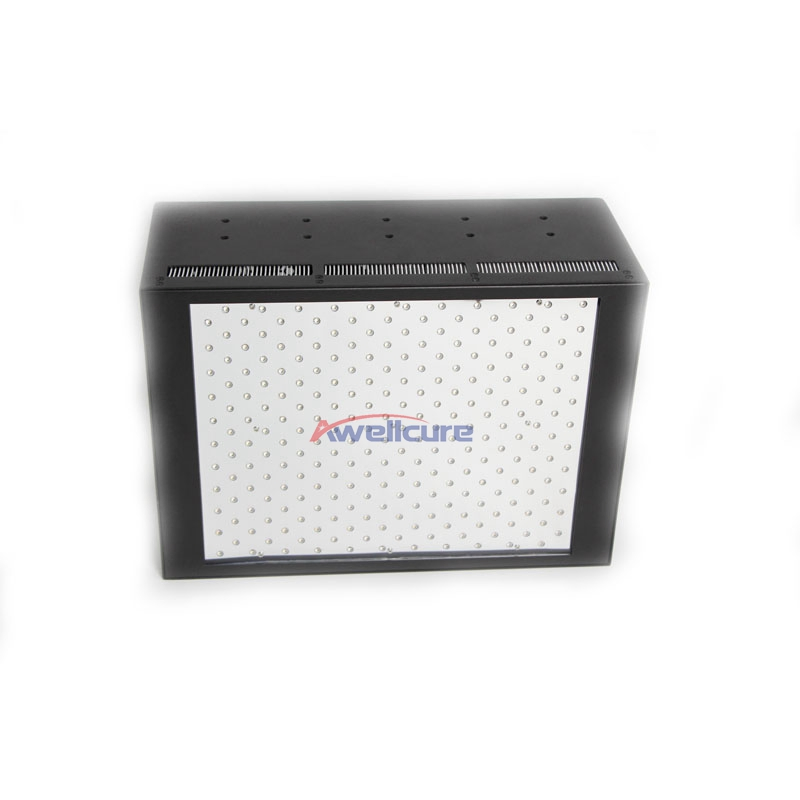

Ultraviolet UV LED Curing Lamp UV Ink Drying Equipment 405nm LED Surface Light Source
Product model: AF200300H1

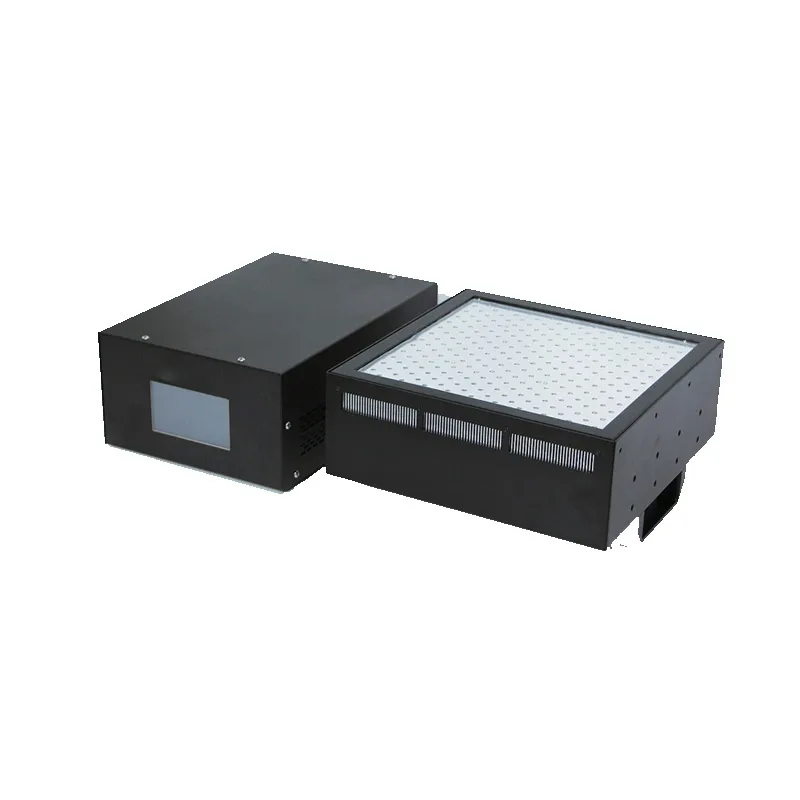

Type selection: Controller + Irradiator Head (Per controller can drive multi irradiator heads.)

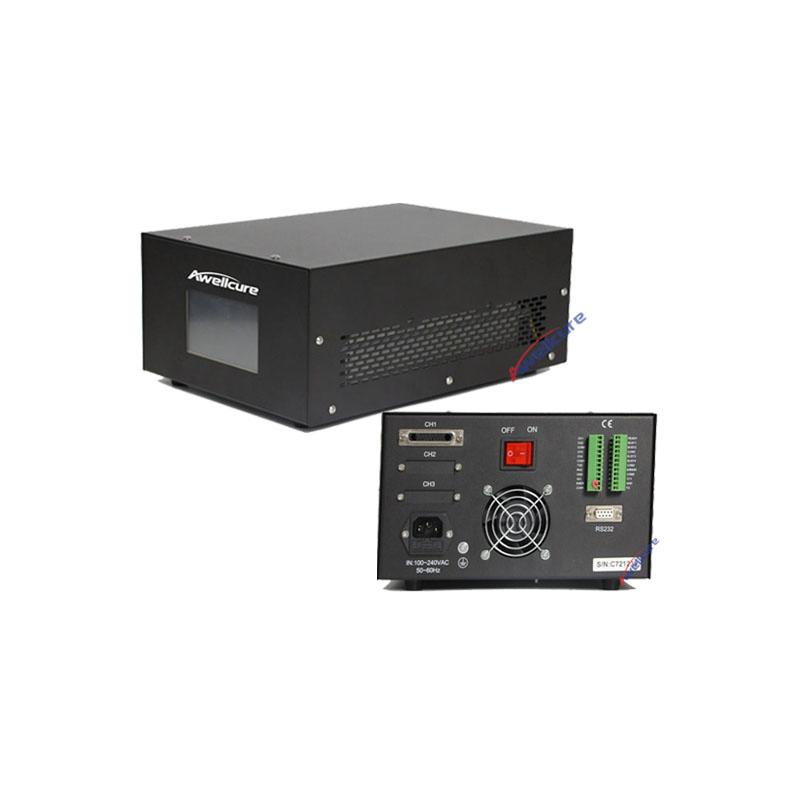

⚙️Features of Controller

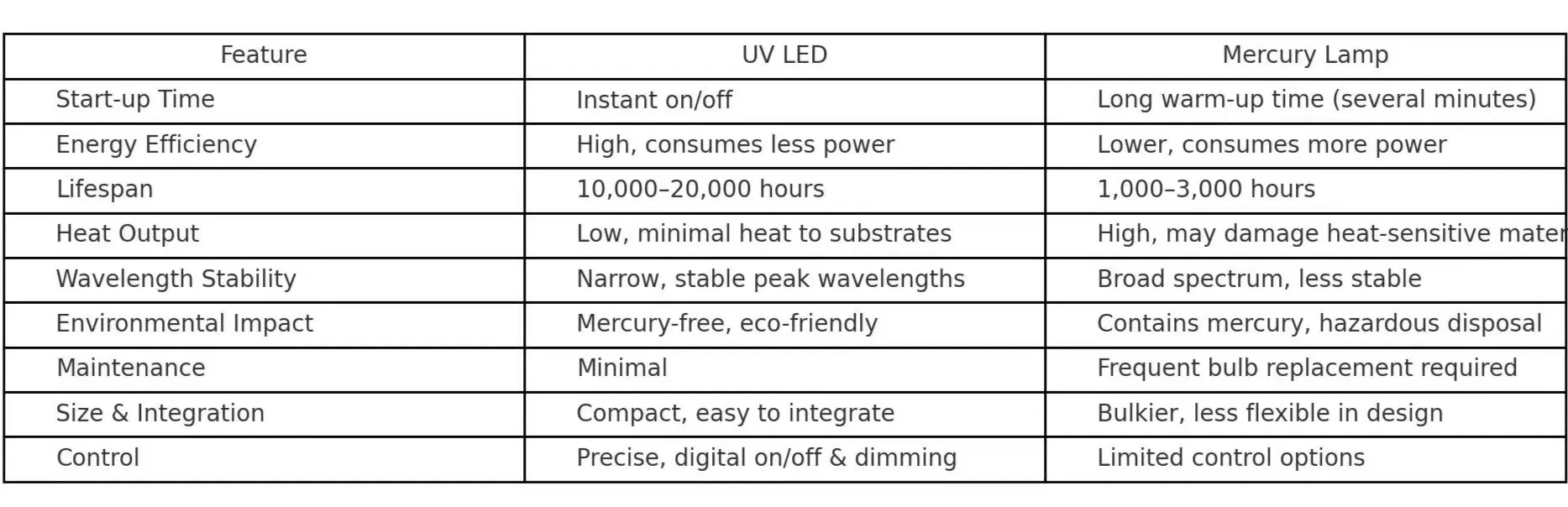

🚀Advantages of UV LEDs
| Controller Specifications | |
|---|---|
| Voltage | 100-240V AC |
| Material | Sheet metal black |
| Cooling Method | Fan cooling |
| Controller Method | Touch/Pedal/RS232 Port/PLC |
| Irradiation Power Range | 10%~100%mW |
| Irradiation Modes | Manual, Automatic (0.1-999.9S), Ladder (1-20 steps), Pulse |
| Communication | RS232 Serial Port & I/O Interface |

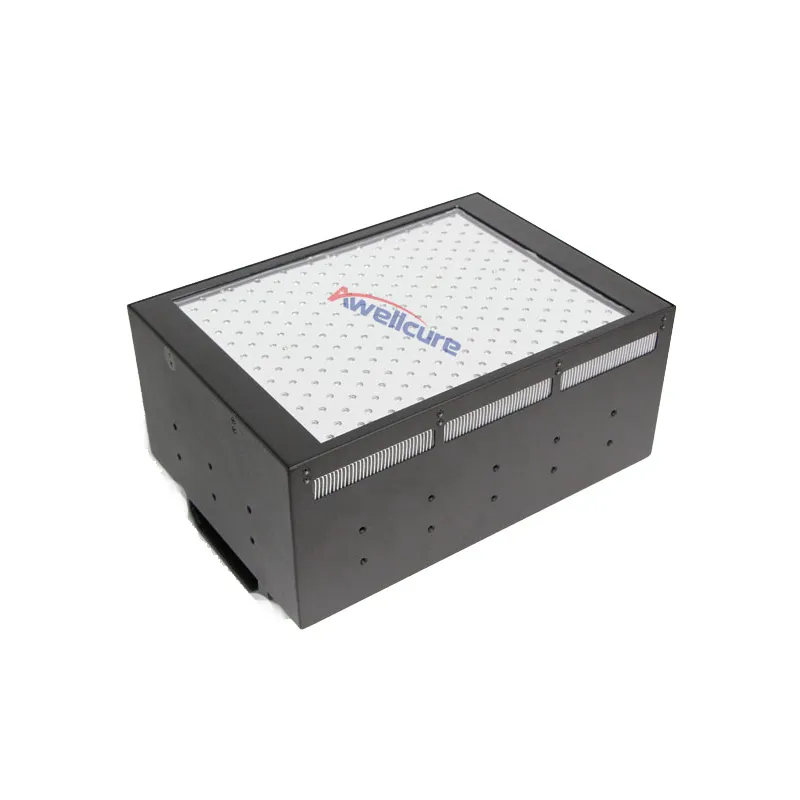

| Irradiation Head Specifications | |
|---|---|
| LED Type | Imported High-Quality LED |
| Usage Time | 20,000 Hrs @ 80% power |
| Wavelength Range | 365nm/385nm/395nm/405nm (±5) |
| Luminous Size | 100x100mm |
| Peak Intensity | 0.5~20W/cm² |
| Cable Length | Standard 2/5M or Customized |
UV LED curing systems offer faster response, greater energy efficiency, longer lifespan, and a more environmentally friendly alternative to traditional mercury lamps.
Standard Warranty: 12 months (Extended up to 36 months optional).
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.

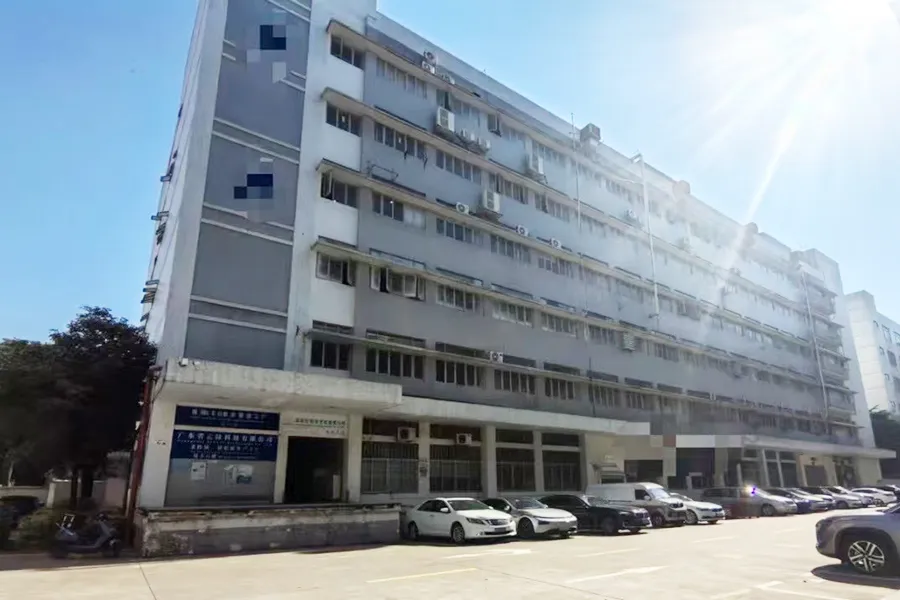

We are a leading manufacturer of UV LED Curing Systems with over 12 years of expertise. Certified with ISO 9001, CE, and RoHS, we export to 50+ countries, offering reliable machines backed by R&D innovation and strict quality control.
