Product Parameters
Control & Indicators

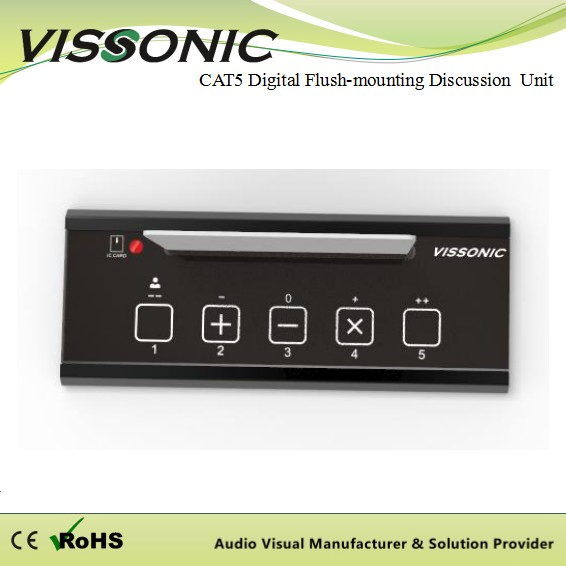

Five touch-buttons for voting
One LED sign-in indicator
One IC card reader slot
Interfaces
No1. RJ11 socket for VIS-CSU-F or VIS-DCC-F/ VIS-DCD-F
No.2 RJ11 socket for VIS-DCC-FS/VIS-DCD-FS
Technical Parameters
Mounting: Flush-mounting
Weight: 0.1kg
Dimension: 100W × 40H × 65H mm
Operating temperature: 0 ºC to + 55 ºC
Color: Black
Item Model for Order

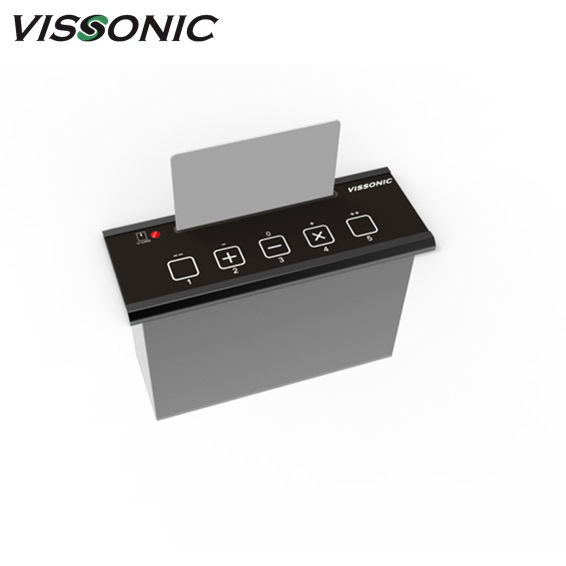

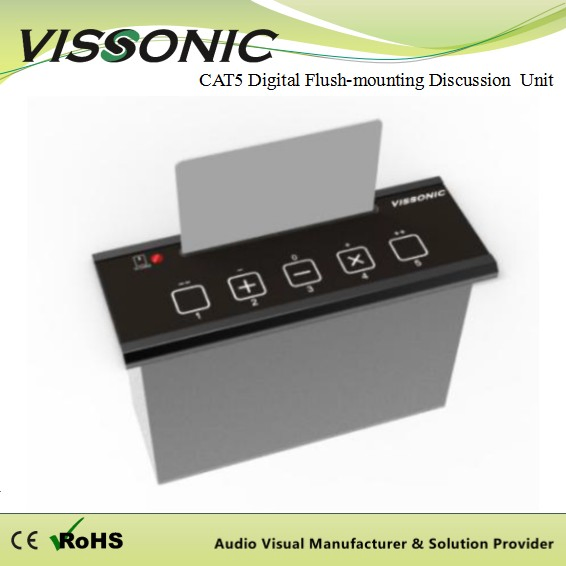

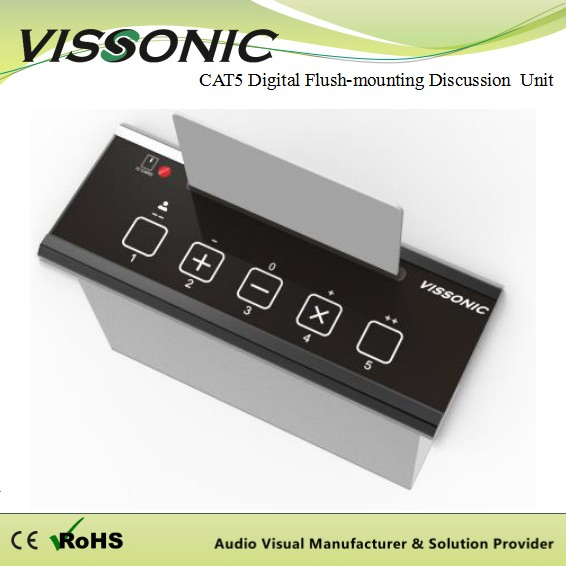

VIS-DVU-FS1: Digital Voting Unit with IC Card Reader

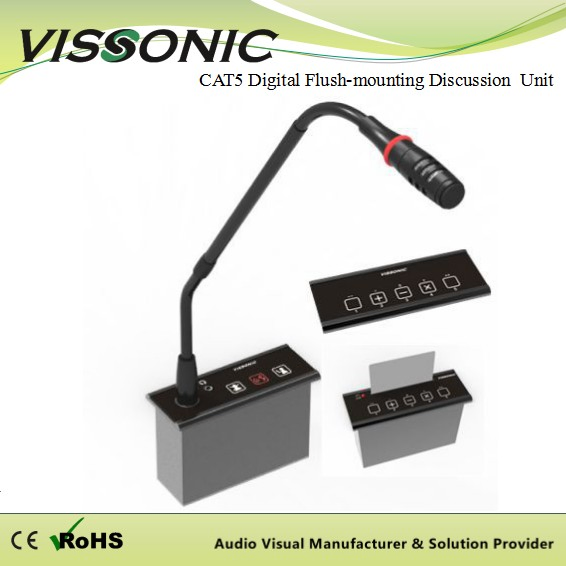

VIS-DCC-F: Digital Flush-mounting Discussion Chairman Unit (microphone/cable not included)
VIS-DCD-F: Digital Flush-mounting Discussion Delegate Unit (microphone/cable not included)
VIS-CSU-F: Digital Flush-mounting 64 Channel Selector
Frequently Asked Questions
What is the maximum capacity of the voting system?
The system can support a maximum capacity of up to 3000 voting units.
Does the unit support IC card authentication?
Yes, the VIS-DVU-FS1 features a built-in contactless IC-Card reader for secure sign-in and identification.
What types of voting are supported by the 5 touch buttons?
The buttons support parliamentary voting (Yes/No/Abstain), multiple choice (1 to 5), and rating scales (-- to ++).

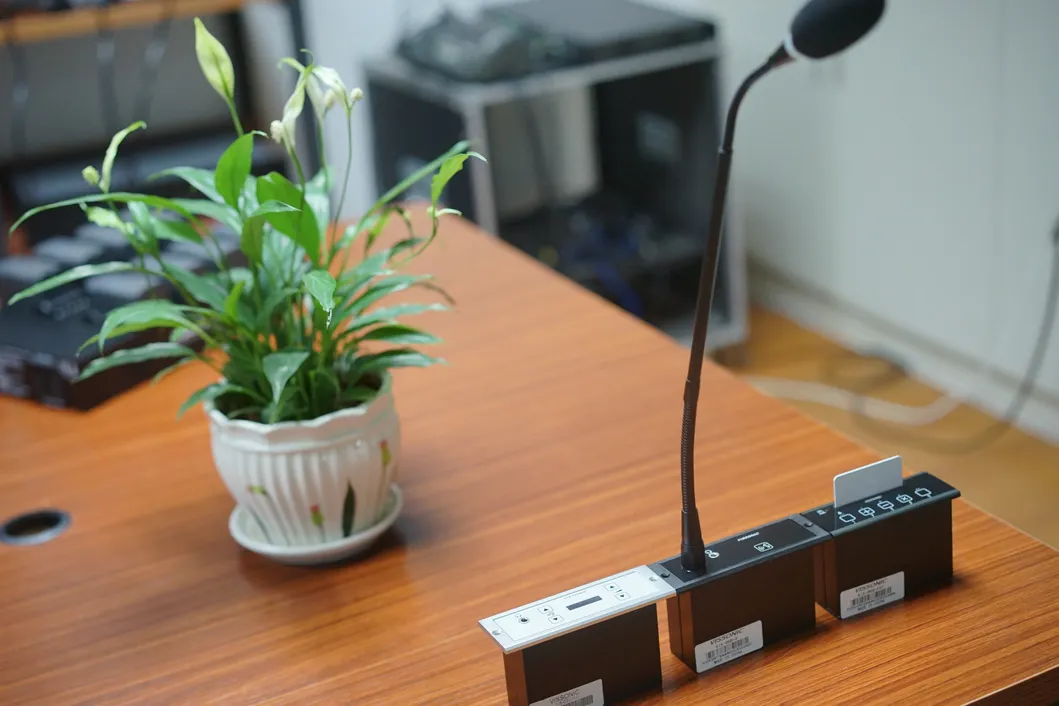

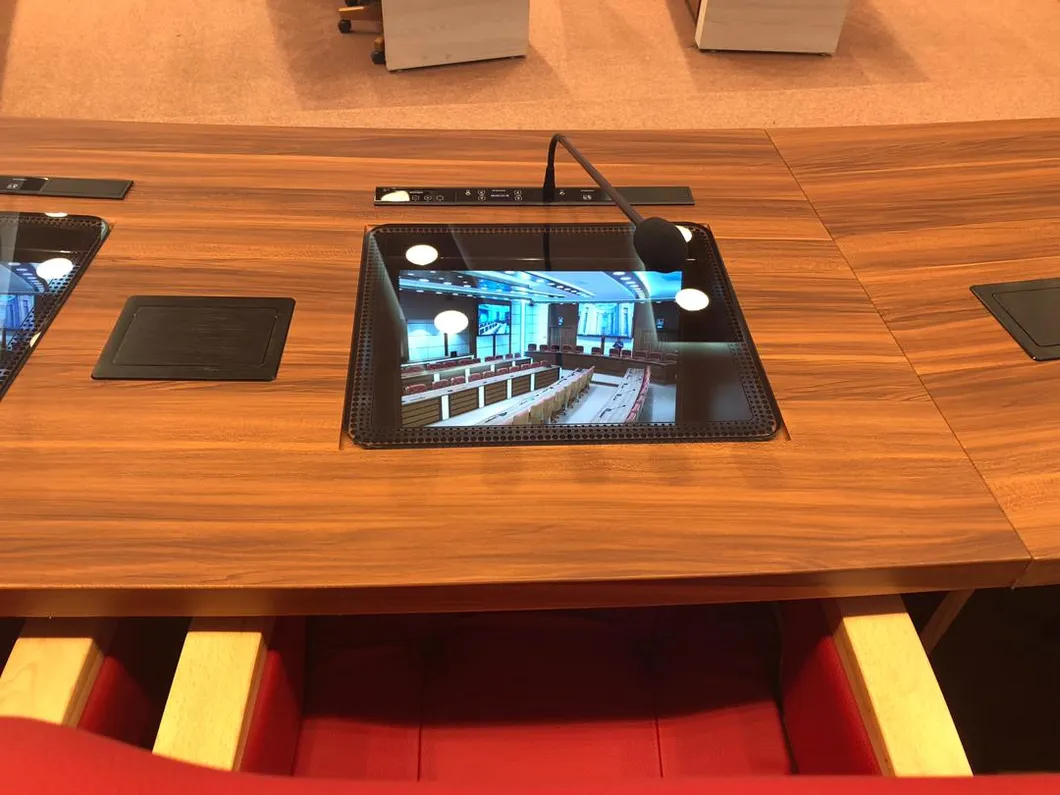

How is the unit installed in a conference room?
The unit is designed for flush-mounting, providing a stylish and low-profile look on the conference table.
Can I customize the voting forms?
Yes, by using the compatible PC software, you can support more diverse and complex voting forms.
What is the operating temperature range for this device?
The device is designed to operate reliably in temperatures ranging from 0 ºC to +55 ºC.
