6-Lead-Technology Black Surface 3535 Multi Color SMD LEDs for Full Color Video Walls
6-Lead-Technology Black Surface 3535 Multi Color SMD LEDs for Full Color Video Walls
6-Lead-Technology Black Surface 3535 Multi Color SMD LEDs for Full Color Video Walls
6-Lead-Technology Black Surface 3535 Multi Color SMD LEDs for Full Color Video Walls
6-Lead-Technology Black Surface 3535 Multi Color SMD LEDs for Full Color Video Walls
1 / 5
6-Lead-Technology Black Surface 3535 Multi Color SMD LEDs for Full Color Video Walls
6-Lead-Technology Black Surface 3535 Multi Color SMD LEDs for Full Color Video Walls
6-Lead-Technology Black Surface 3535 Multi Color SMD LEDs for Full Color Video Walls
6-Lead-Technology Black Surface 3535 Multi Color SMD LEDs for Full Color Video Walls
6-Lead-Technology Black Surface 3535 Multi Color SMD LEDs for Full Color Video Walls

6-Lead-Technology Black Surface 3535 Multi Color SMD LEDs for Full Color Video Walls

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
LLS3535RGB
Beam Angle
120°
Emitting Color
RGB
IP Rating
Surface Water-Proofing
Base Material
Copper
LED Chips
Epistar
Power
0.6W
Life
80000h
Certification
KEMA, RoHS
Chip Number
3PC
Package
SMD Epoxy Package
Surface Color
Black Surface
HS Code
8541401000
Specification
3.5mm x 3.5mm

Product Description

6-Lead Technology Black Surface 3535 Multi-Color SMD LEDs

This multi-color SMD LED is specifically designed for high-end full-color video walls. The unique 6-lead technology allows for an additive mixture of color stimuli through independent driving of each chip. Its compact package size is ideal for high-resolution display applications.

Key Features

  • Package: SMD epoxy package with a black surface for higher contrast.
  • Chip Technology: Thinfilm / InGaN on Sapphire.
  • Radiation Angle: Typical 120° (Horizontal) / 120° (Vertical).
  • Wavelength: Red (620-630nm), True Green (520-530nm), Blue (460-470nm).

Detailed Photos & Dimensions

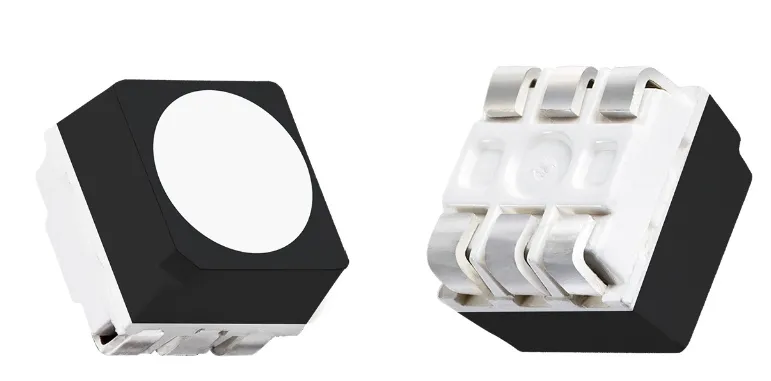

3535 SMD LED Photo

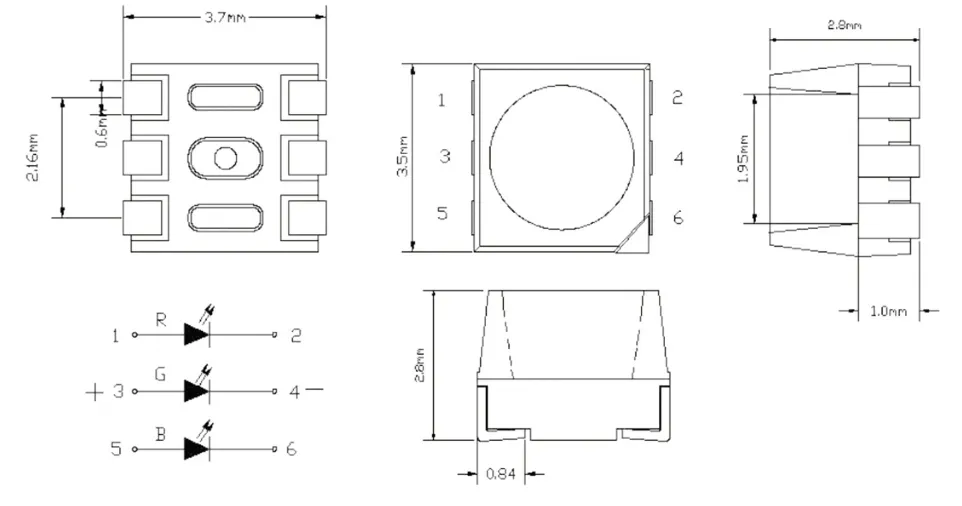

Package Dimensions

Product Parameters

Series Color VF (V) WL (nm) IV (mcd) IF (mA) Angle (°)
A Series Red 2.0-2.5 620-630 600-1000 20 120
Green 2.8-3.5 520-530 1500-2200 20 120
Blue 2.8-3.5 460-470 300-600 20 120
B Series Red 2.0-2.5 620-630 900-1300 20 120
Green 2.8-3.5 520-530 2500-3500 20 120
Blue 2.8-3.5 460-470 500-800 20 120

Applications

🚀 Main Uses: Video Walls Signage, VMS (Variable Message Signs), and high-resolution indoor/outdoor displays.

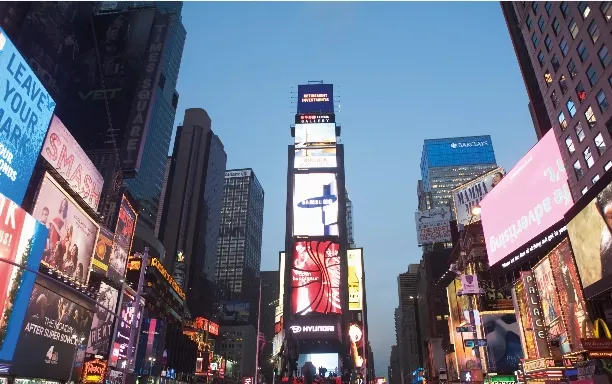

Application 1
Application 2
Application 3

Core Advantages

Premium Raw Materials

  • Epistar Big Size chips
  • Pure (99.99%) Gold Wire
  • Copper Frame for better heat dissipation
  • Advanced Optical-Grade Epoxy

Quality Assurance

  • Lifespan exceeding 80,000 hours
  • High Moisture & UV Resistance
  • RoHS Compliant & Lead-Free
  • Automatic testing & bin code selection

Packaging & Shipping

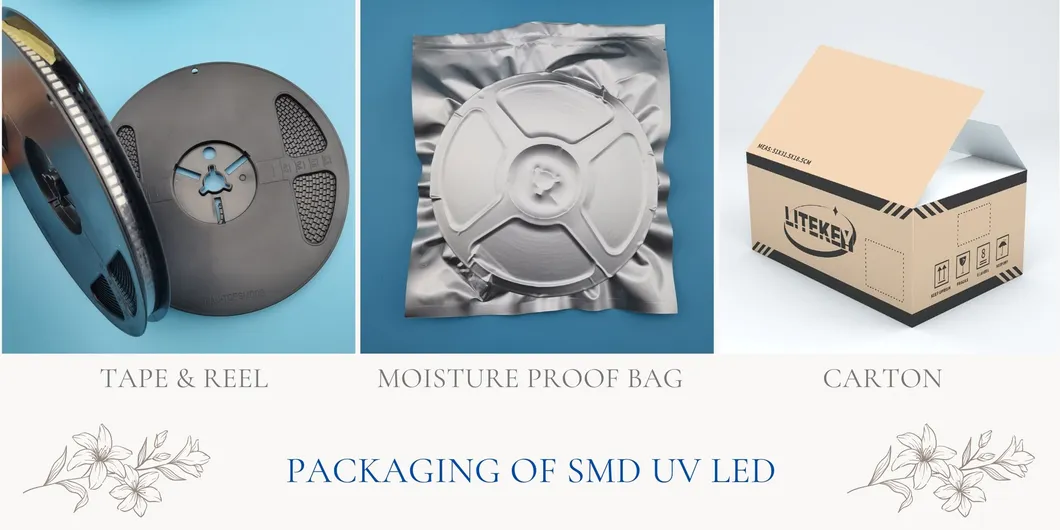

Packaging Info

Frequently Asked Questions

What are the primary applications for the 3535 RGB LED?
The 3535 RGB LED is specifically designed for high-resolution video walls, outdoor signage, and Variable Message Signs (VMS) due to its compact size and high contrast.
What is the estimated lifespan of these LEDs?
These LEDs are built for longevity, with a service life exceeding 80,000 hours under proper operating conditions.
How does the "Black Surface" benefit the display?
The black surface of the SMD package significantly increases the contrast ratio of the LED display, resulting in deeper blacks and more vibrant colors.
Are these LEDs environmentally friendly?
Yes, they are RoHS compliant and Lead (Pb) free, ensuring they meet strict environmental and safety standards.
What type of chip technology is used?
The LEDs utilize high-quality Epistar chips with Thinfilm and InGaN on Sapphire technology for maximum efficiency and stability.
Can these LEDs withstand outdoor conditions?
They feature high moisture resistance and anti-UV properties, making them suitable for long-term exposure to direct sunlight and outdoor environments.
