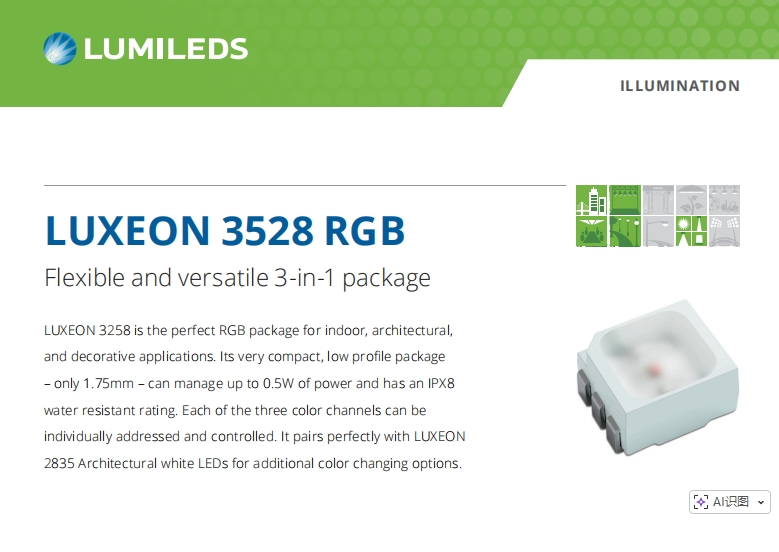

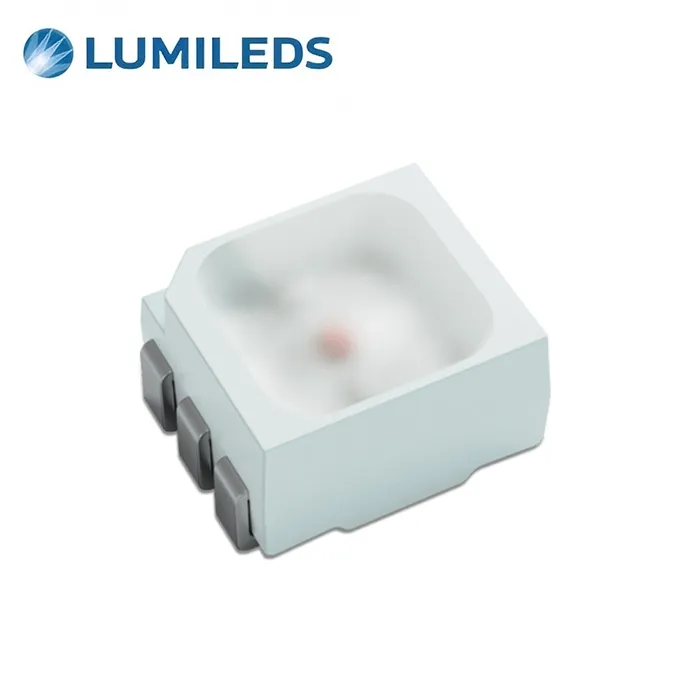

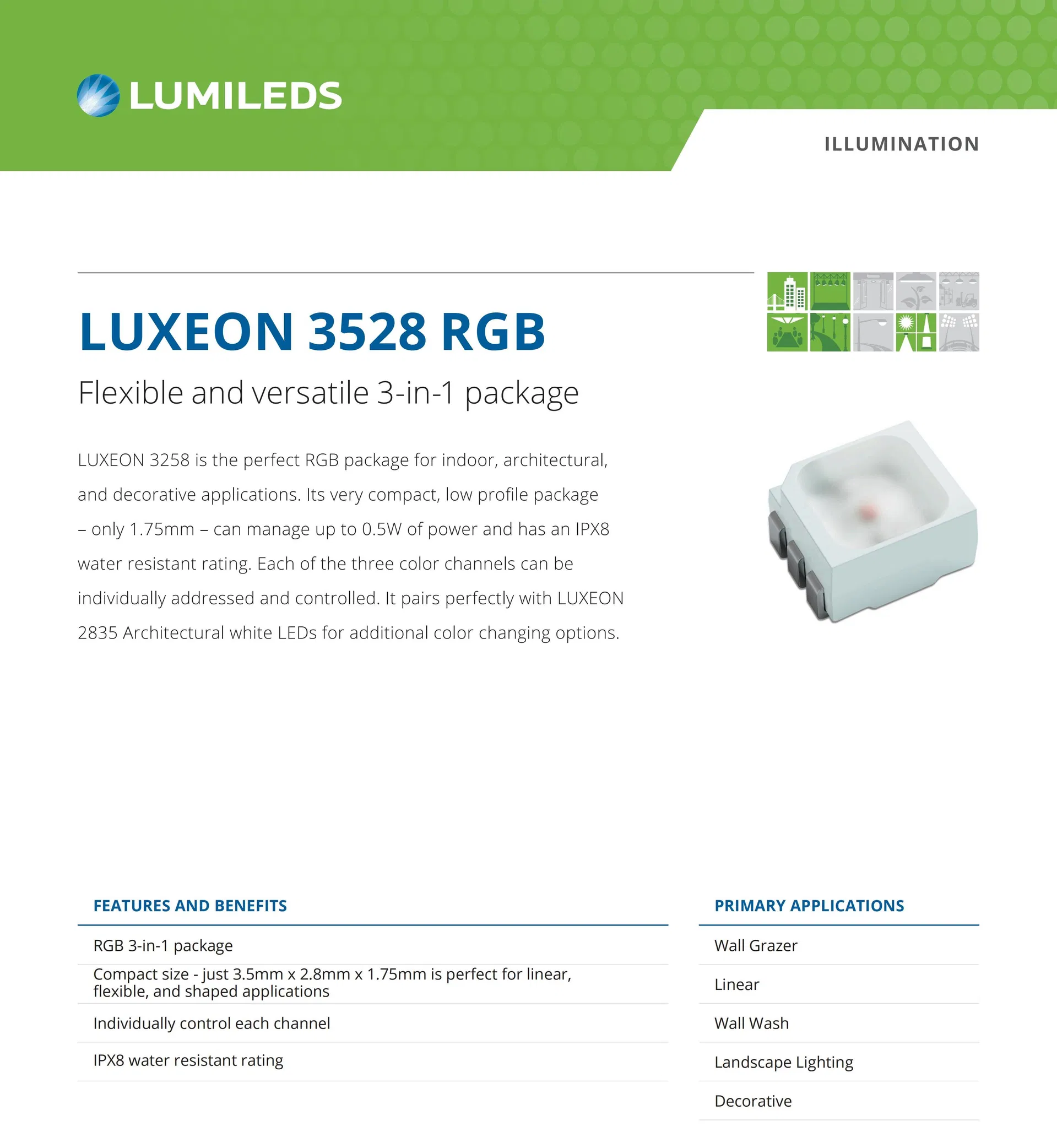

LUXEON 3528 RGB is the perfect RGB package for indoor, architectural, and decorative applications. Its very compact, low profile package – only 1.75mm – can manage up to 0.5W of power and has an IPX8 water resistant rating. Each of the three color channels can be individually addressed and controlled. It pairs perfectly with LUXEON 2835 Architectural white LEDs for additional color changing options.

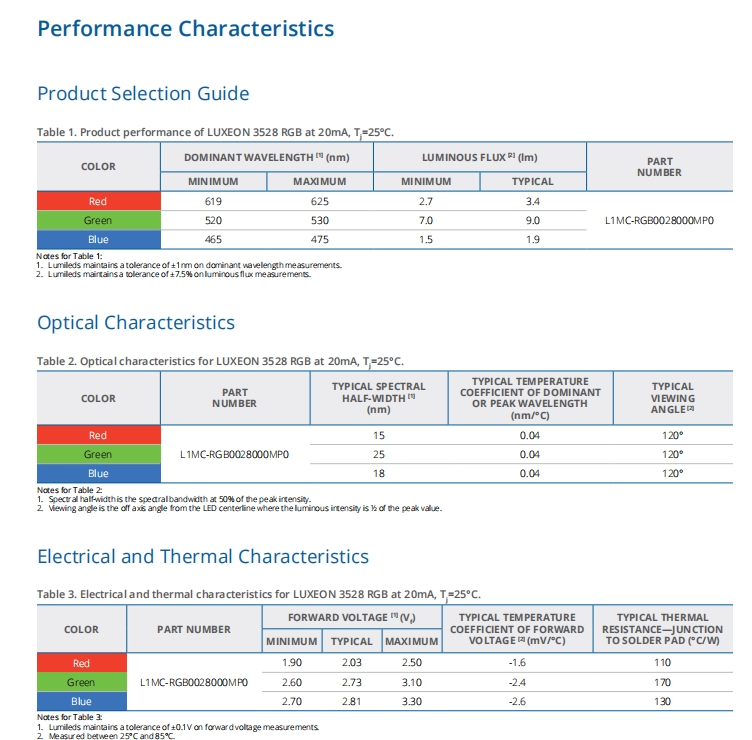

| Product Attribute | Attribute Value |
|---|---|
| Manufacturer | Lumileds |
| Mounting Style | SMD/SMT |
| Wavelength | 625 nm |
| Luminous Flux | 2.7 lm, 7 lm, 1.5 lm |
| Viewing Angle | 120 deg |
| Forward Current | 50 mA, 35 mA |
| Forward Voltage | 2.81 V |
| Lens Shape | Square |

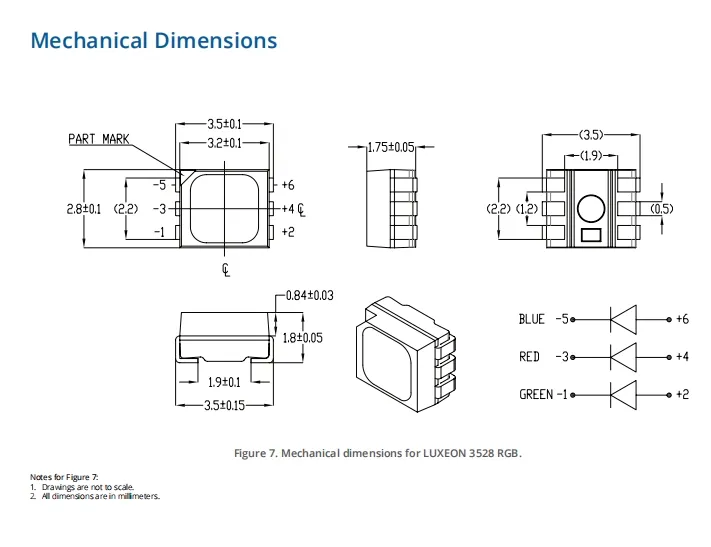

| Dimensions | 3.5 mm x 2.8 mm x 1.75 mm |
