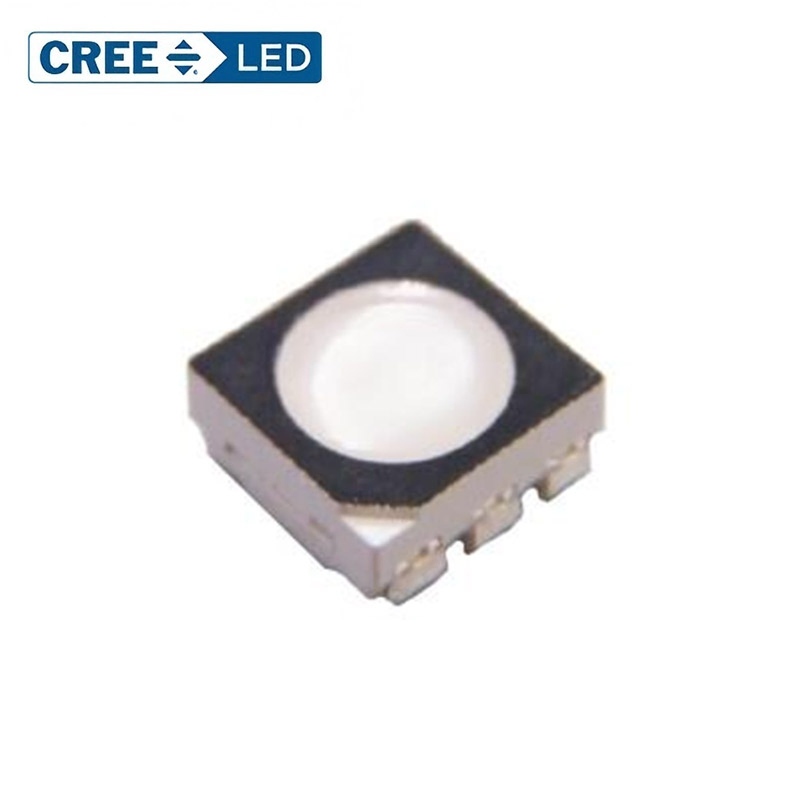

Crees Clv6f-Fkb-Cqr1xy1h1bb7d3d3 Multi-Color RGB LED SMD Plcc-6

Still deciding? Get samples of $ !
Order Sample

Product Description

i
Basic Information
Model NO.
CLV6F-FKB-CQR1XY1H1BB7D3D3
IP Rating
IP33
Power Source
5V
Lamp Holder Type
SMD/SMT
Housing Material
Copper
Life
50000h
LED Chips
CREE
Certification
RoHS, CE
Color
RGB
Luminous Flux
67.2 Lm
Viewing Angle
120deg
Forward Current
35 Ma
P
Product Description

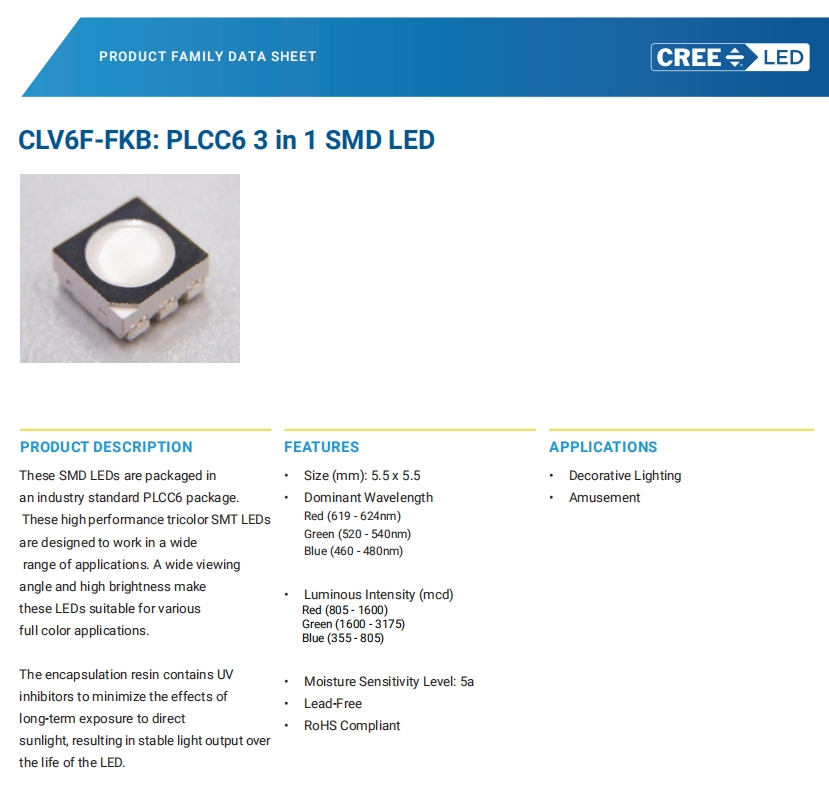

Multi-Color LEDs RGB LED, SMD, PLCC-6

These SMD LEDs are packaged in an industry standard PLCC6 package. These high performance tricolor SMT LEDs are designed to work in a wide range of applications. A wide viewing angle and high brightness make these LEDs suitable for various full color applications. The encapsulation resin contains UV inhibitors to minimize the effects of long-term exposure to direct sunlight, resulting in stable light output over the life of the LED.

FEATURES:
  • Size (mm): 5.5 x 5.5
  • Dominant Wavelength: Red (619-624nm), Green (520-540nm), Blue (460-480nm)

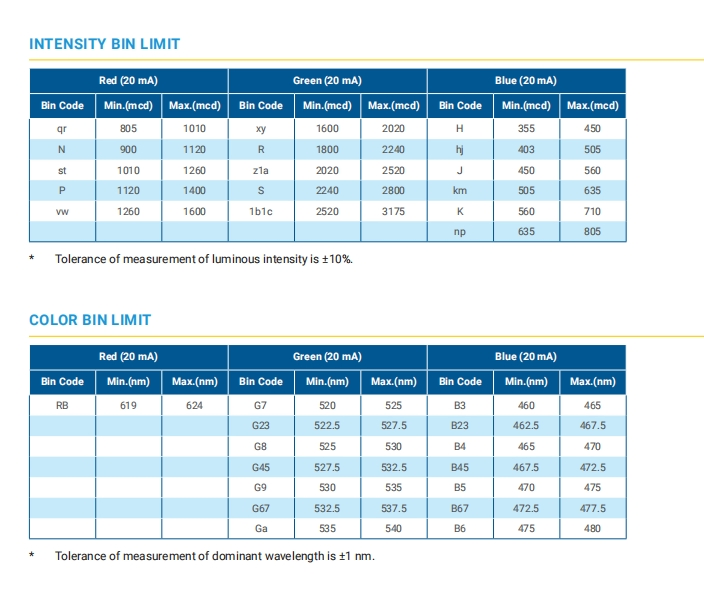

  • Luminous Intensity (mcd): Red (805-1600), Green (1600-3175), Blue (355-805)
  • Moisture Sensitivity Level: 5a
  • Lead-Free & RoHS Compliant
RGB LED SMD Plcc-6
Product Attribute Attribute Value
ManufacturerCrees LED
Product CategoryMulti-Color LEDs
Mounting StyleSMD/SMT
Lens ColorColorless
SeriesCLV6F-FKB
Factory Pack Quantity3000

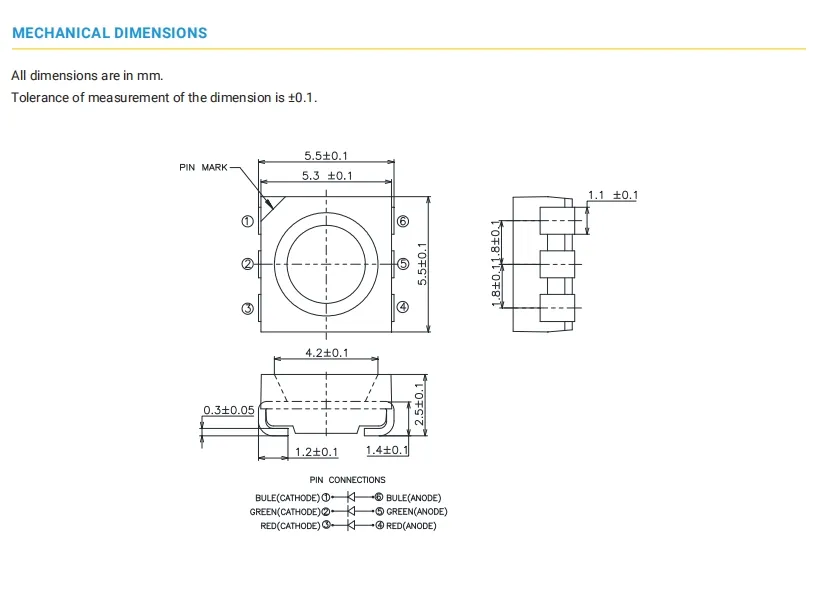

Product Dimensions
S
Specifications

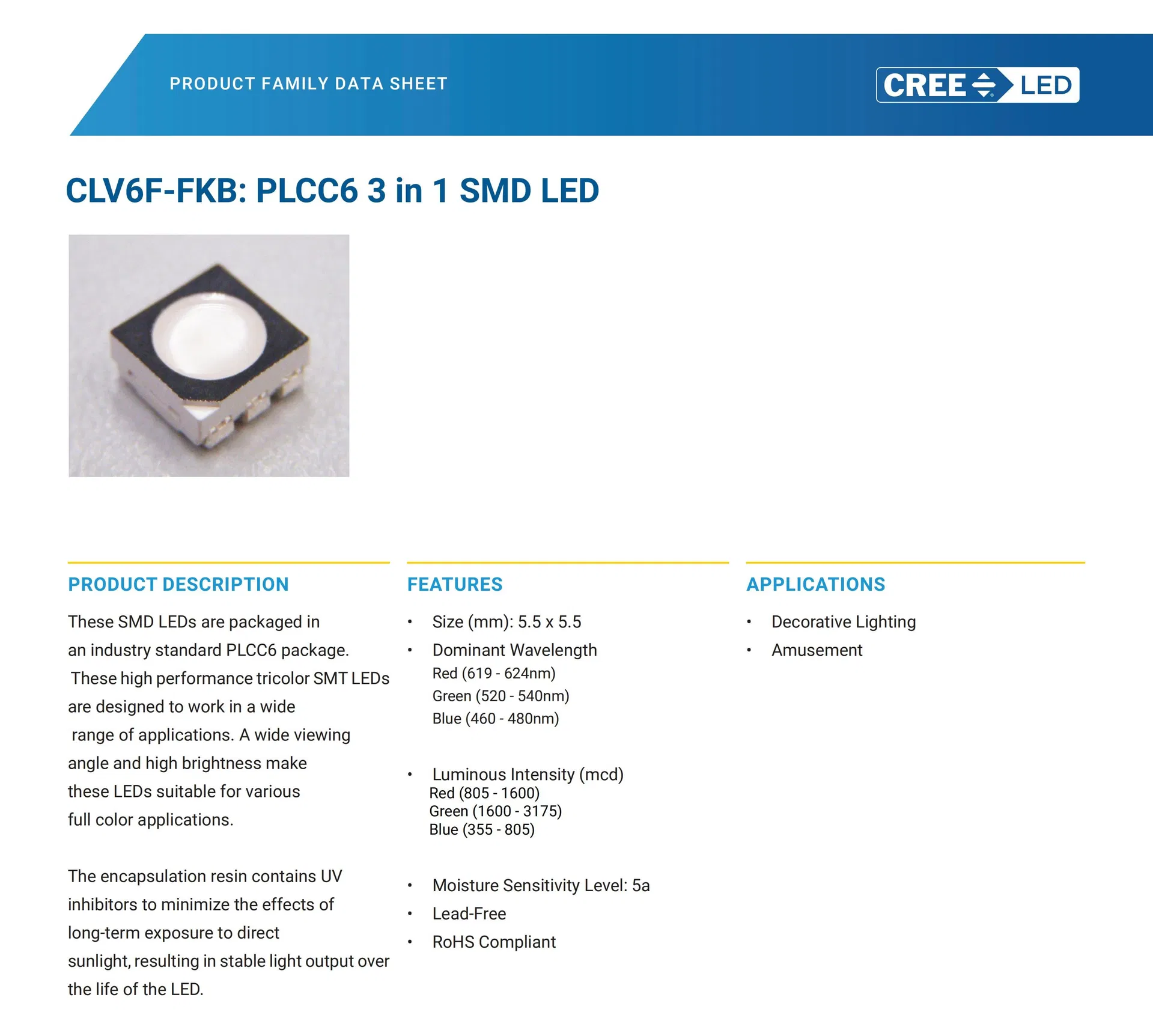

Spec 1

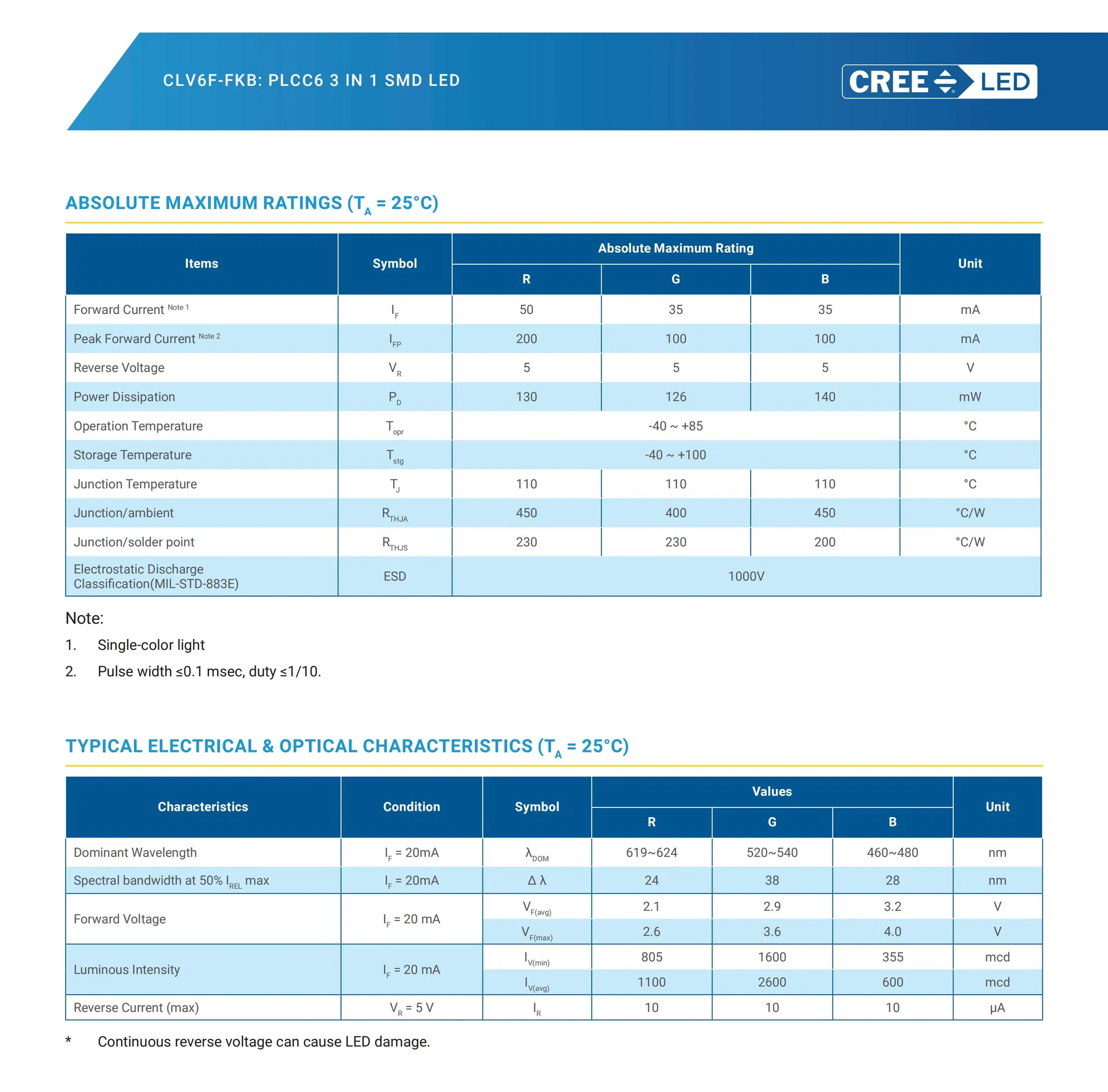

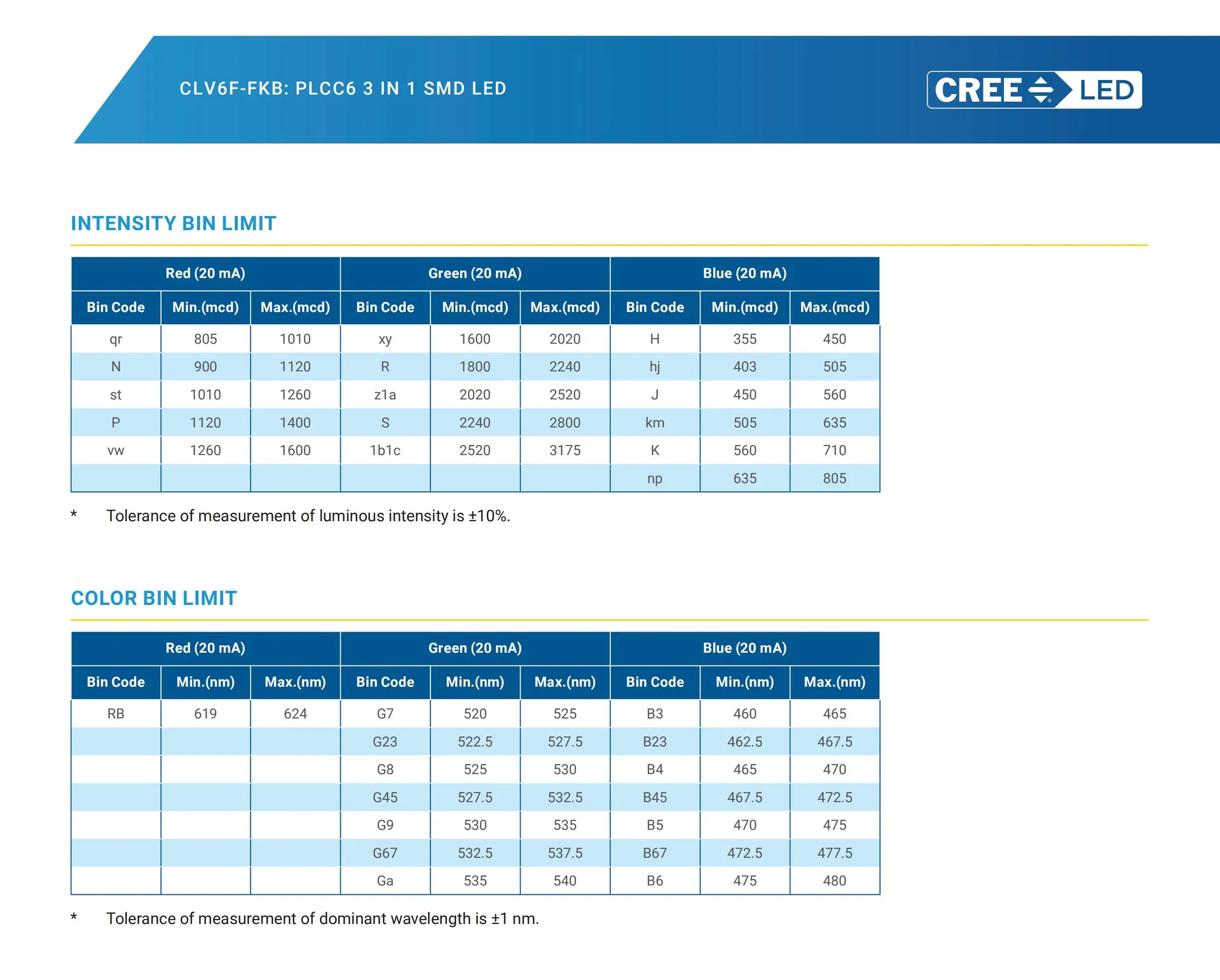

Spec 2

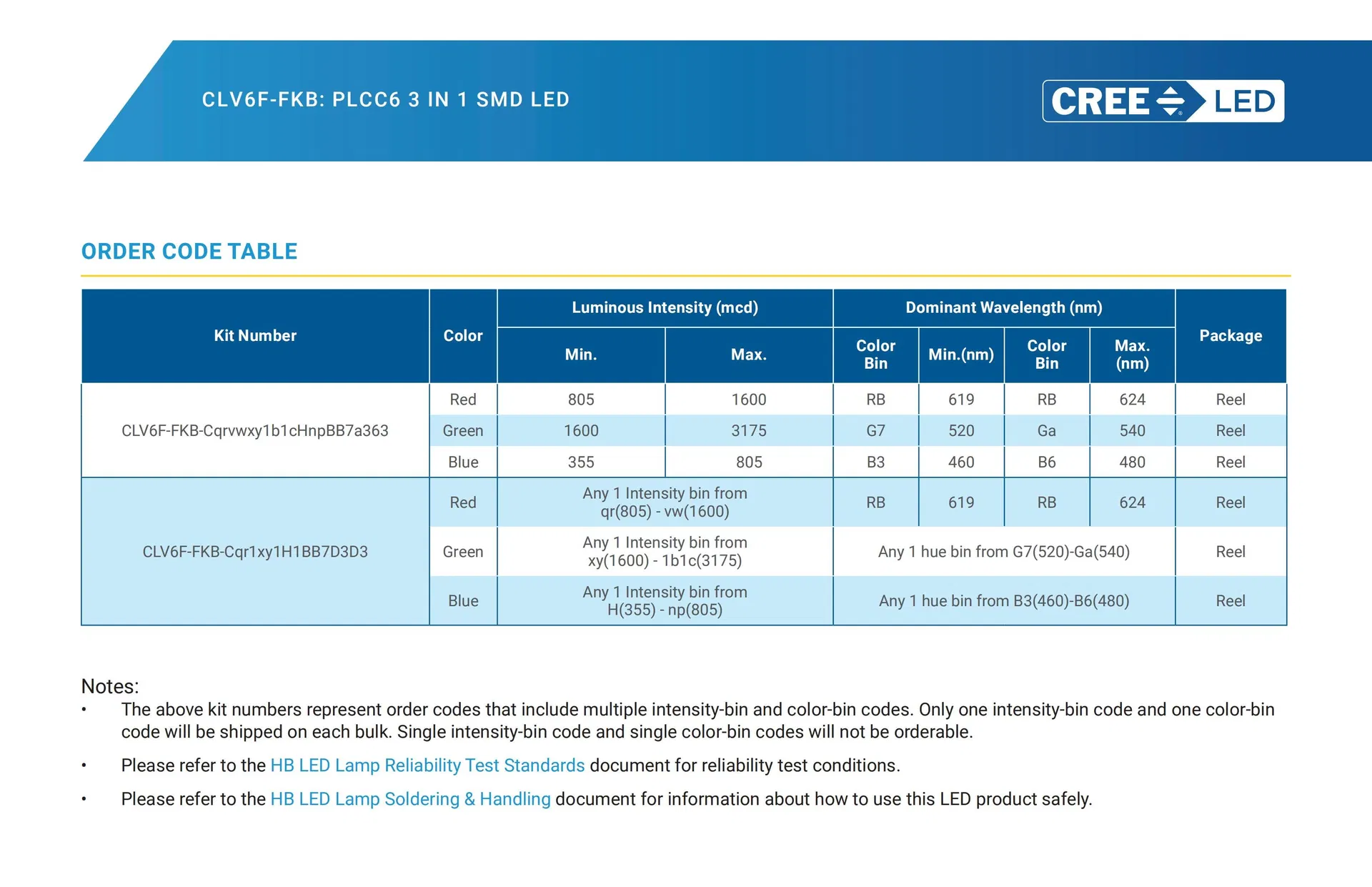

Spec 3
Spec 4
D

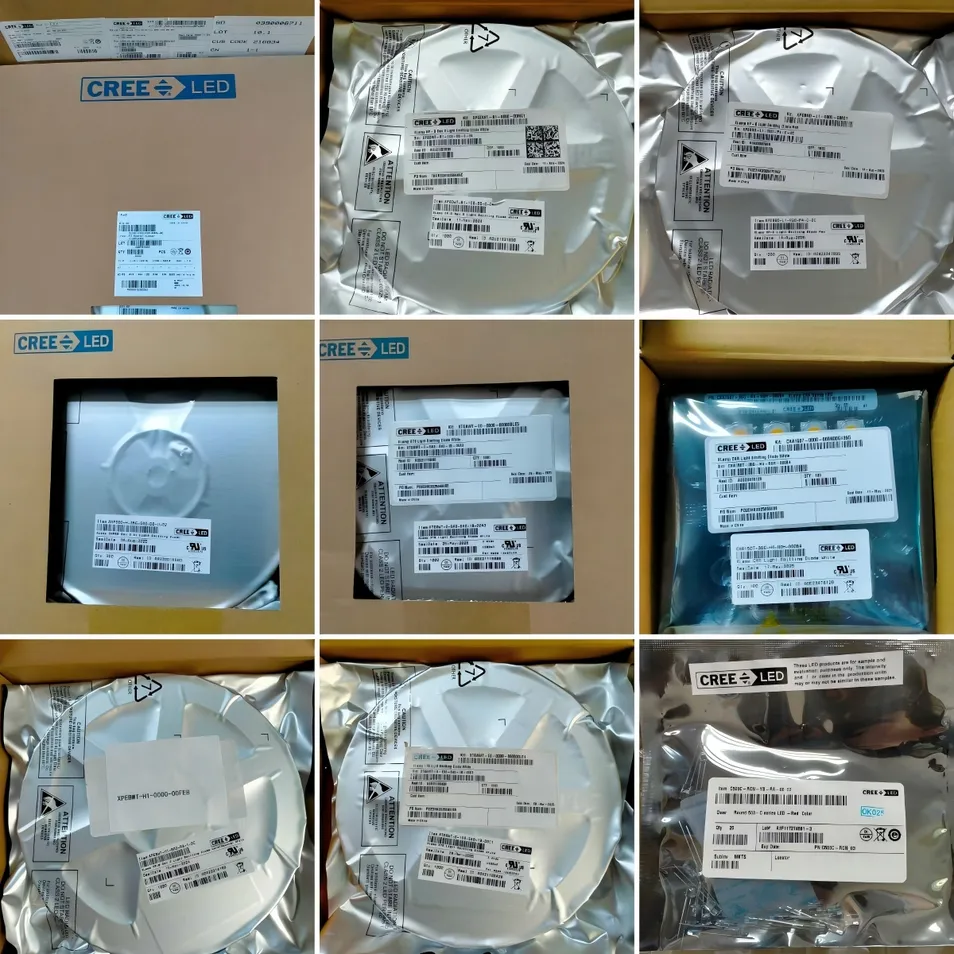

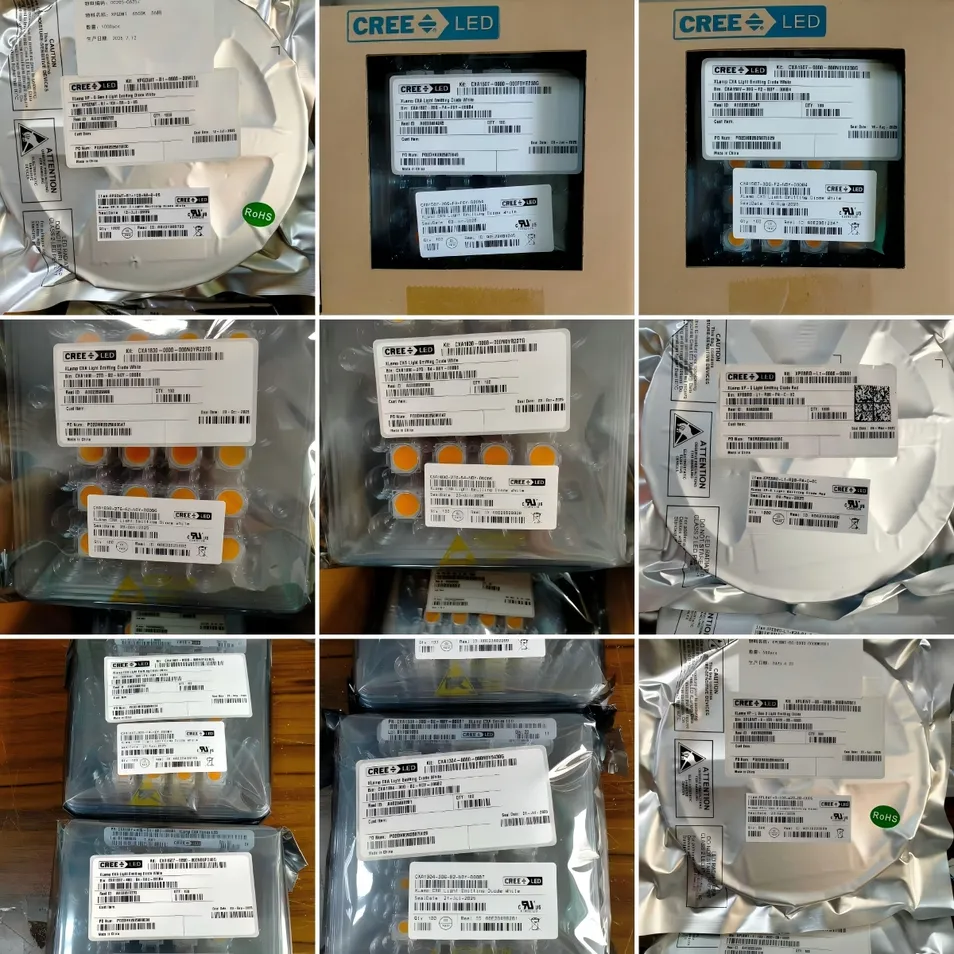

Packing & Delivery

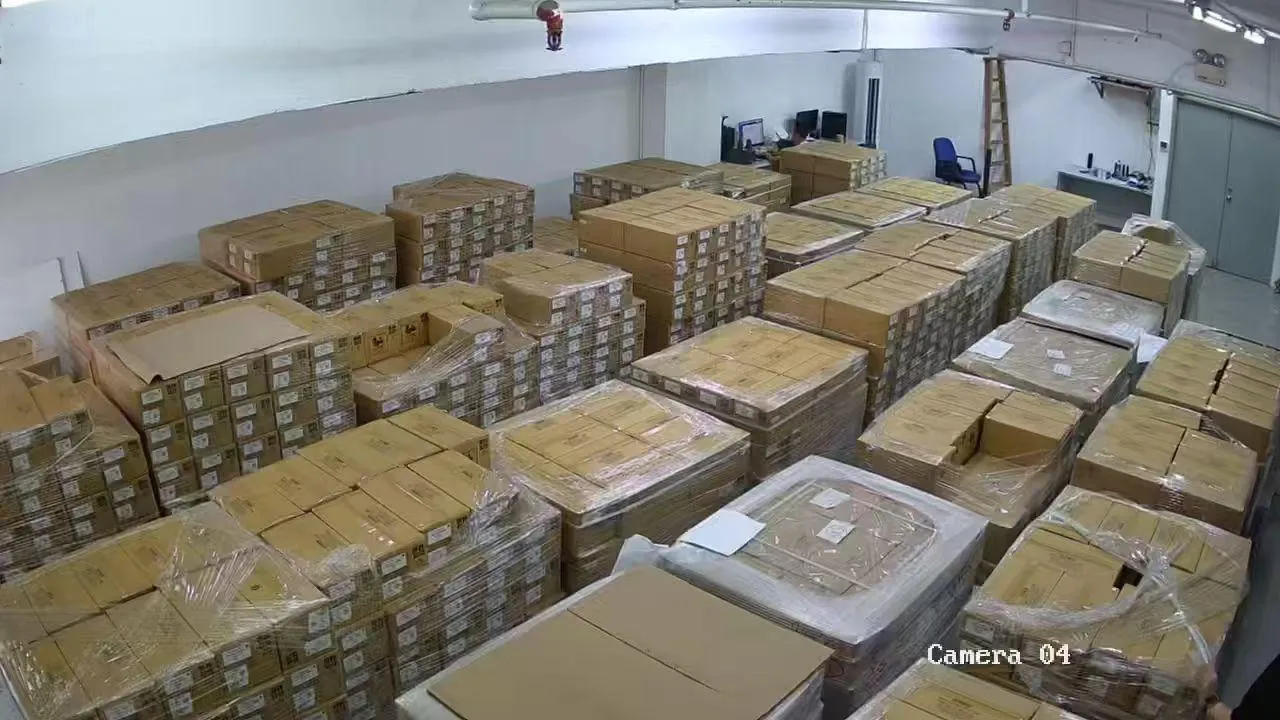

Delivery Logistics
Package Size
40.00cm * 40.00cm * 10.00cm
Gross Weight
2.000kg
+
More Products
Product Range
C
Professional Service

Focused on the LED industry for over 12 years, we supply premium LED components, drivers, and optical lenses from prestigious global brands. Benefit from a robust supply chain, we offer competitive pricing, abundant stock, and rapid delivery times. Our goal is to provide highly responsive service to global lighting manufacturers and distributors.

Technical Support: Expert advice on product development and engineering.
Large Inventory: Over $5 Million of stock available for immediate dispatch.
Dedicated Service: A professional support team of over 35 employees.
?
Frequently Asked Questions
Can I have a sample order for LED chips?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
What is the typical delivery cycle?
It takes 3-5 days for samples and 1-2 weeks for batch production depending on the quantity.
How do I place an order for these LEDs?
First, let us know your requirements. Second, we provide a quote. Third, confirm samples and pay the deposit. Fourth, we arrange production.
Do you provide a guarantee for the products?
Yes, we provide a full warranty for our LED products to ensure long-term performance.
What are the primary applications for these RGB LEDs?
They are ideal for decorative lighting, amusement equipment, and full-color signage applications.
What is the standard packaging format?
These LEDs are typically provided in Reel, Cut Tape, or MouseReel formats for automated SMT assembly.
