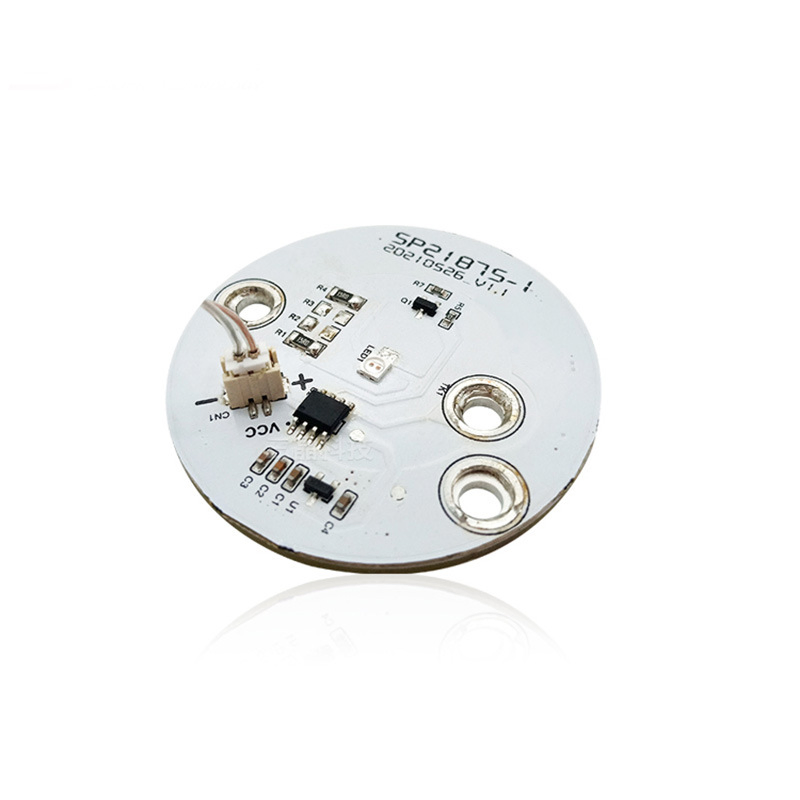

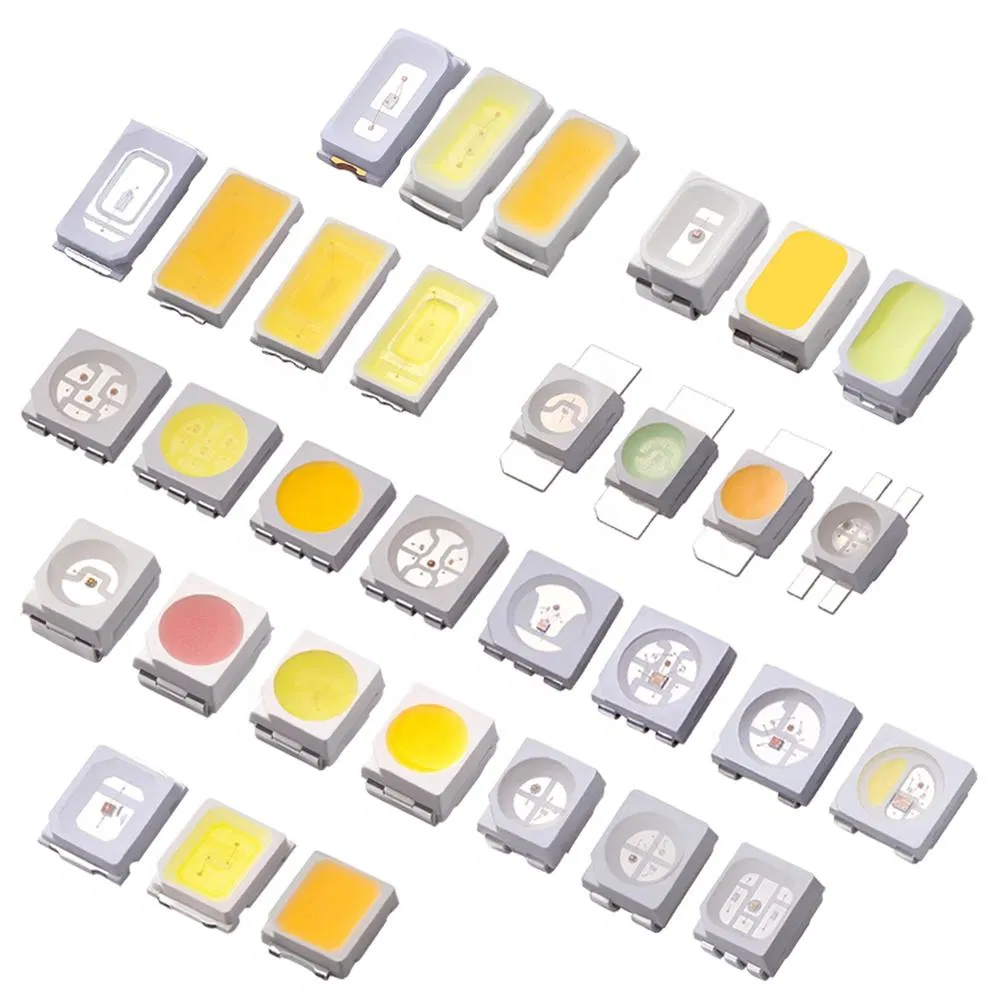

5050SMD 60W High Power Samsung P5 RGB LED Lighting Module SMD LED for Street Light

1 / 5

5050SMD 60W High Power Samsung P5 RGB LED Lighting Module SMD LED for Street Light

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

p5 rgb led module

IP Rating

IP33

Power Source

AC85-260V

Lamp Holder Type

E27

Housing Material

Aluminum

Life

50000h

LED Chips

CREE

Certification

CCC, RoHS, CE

Operating Temp

-55~ 150(Celsius)

Transistor Polarity

NPN Transistor

Maximum Power

300MW

Mounting Type

Through Hole

Packaging & Delivery

Package Size

10.00cm * 10.00cm * 5.00cm

Gross Weight

1.000kg

Lead Time

10 days (1 - 10 Pieces) / Negotiable

Product Description

P5 RGB LED Module: Experience a burst of vibrant illumination! Elevate your visual displays to new heights with this cutting-edge module that effortlessly blends technology and design.

Key Benefits

Dazzling Visuals: Immerse your audience in a spectrum of colors.
Energy Efficiency: Brilliant displays with optimized power consumption.
Versatile Applications: Perfect for retail displays, digital signage, and DIY projects.
Longevity: Built to last for extended periods of use.

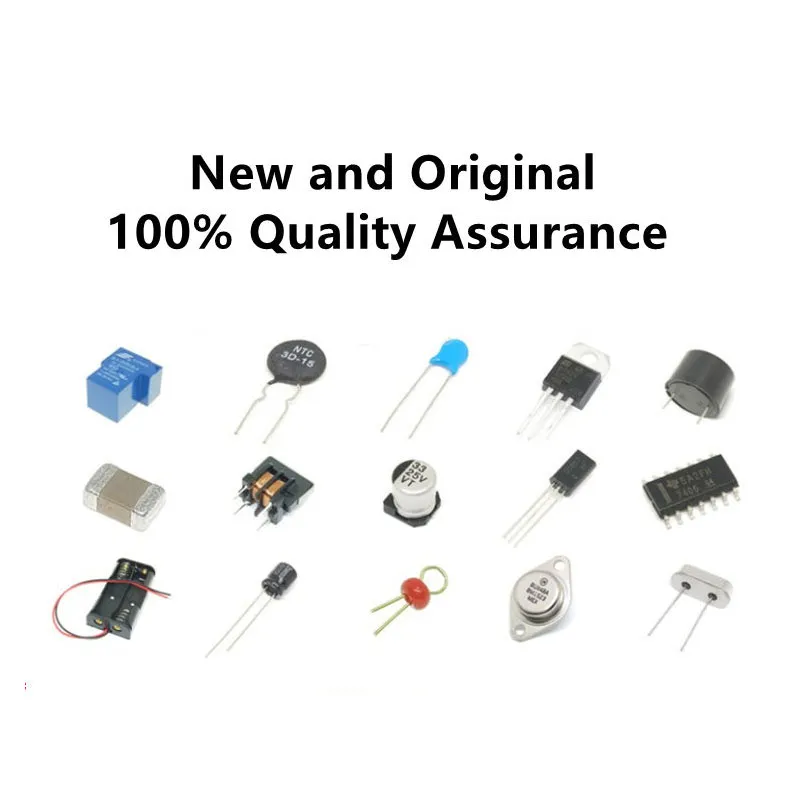

Our professional services provide one-stop electronic component sourcing at cost-effective prices. We are committed to delivering high-quality, reliable solutions including PCB manufacturing and assembly.

Technical Capabilities

Assembly Aspect	Technical Specifications
1. Assembly Type	FR4, FPC, Rigid-flex PCB, Metal base PCB.
2. Assembly Specification	Min size L50W50mm; Max size: L510460mm
3. Assembly Thickness	Min: 0.2mm; Max: 3.0mm
4. Minimum Device Accuracy	+/-0.04mm
5. Minimum Footprint Distance	0.3mm
6. Testing Protocols	IQC, IPQC, SPI Test, AOI, X-Ray, Function Test
7. Delivery Time	Normal: 24h; Small Production: 72h; Medium: 5 working days
8. Daily Capacity	SMT: 5M points; Plug-in: 300,000 points

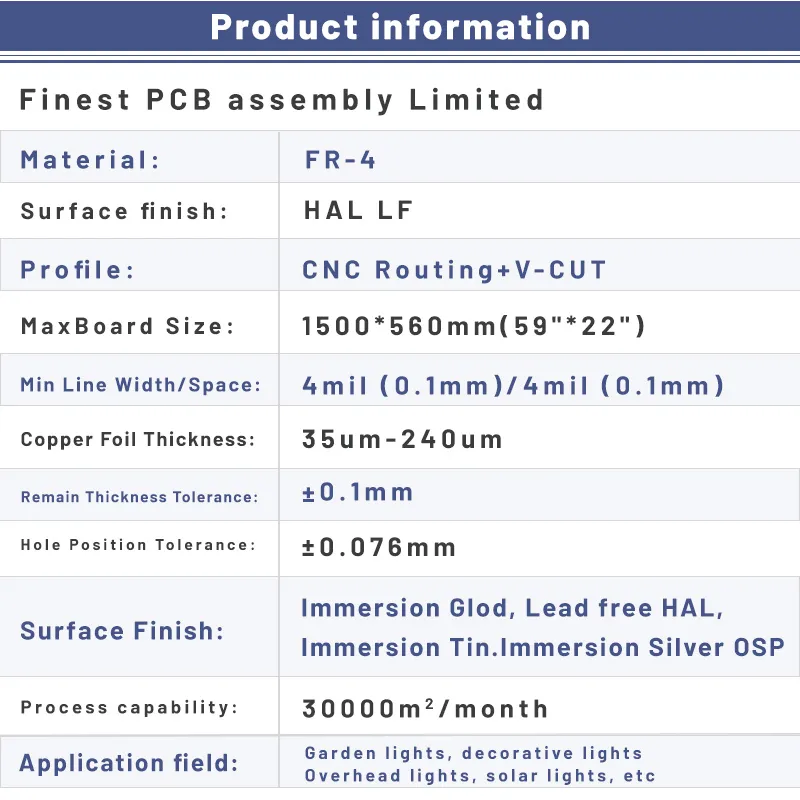

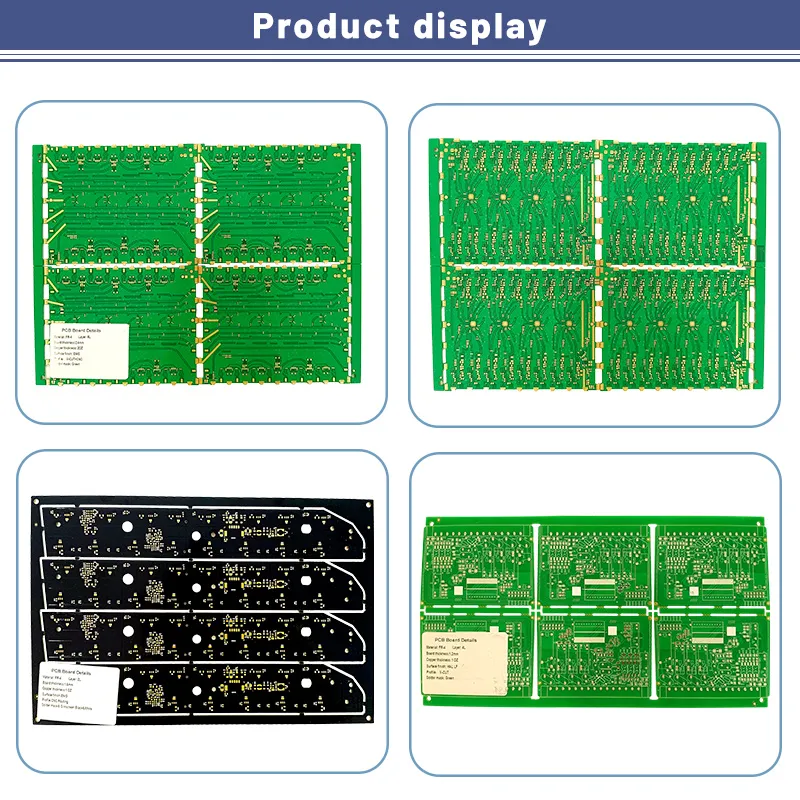

PCB Specifications

Parameter	Detail
PCB Layers	1-24 layers
PCB Materials	CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum, Halogen Free
Surface Finished	HASL Lead-free, ENIG, Chem Tin, OSP, Gold Finger, Immersion Silver
Min Hole Size	0.20mm
Min Line Width/Space	3/3mil
Inspection Standard	IPC-A-610 CLASS II

Frequently Asked Questions

Q1: What are the core advantages of the P5 RGB LED Module?

The module offers dazzling visuals with a wide spectrum of colors, high energy efficiency, and a durable build with a lifespan of up to 50,000 hours, making it ideal for retail and digital signage.

Q2: What quality certifications do your products hold?

Our products meet stringent international standards, holding certifications such as CCC, RoHS, and CE, ensuring reliability and safety for global applications.

Q3: Can you handle quick-turn PCB assembly projects?

Yes, we provide quick-turn services with normal delivery times as fast as 24 hours (fastest 12 hours) and small production runs within 72 hours.

Q4: What testing methods are used to ensure product quality?

We employ a comprehensive quality control system including Incoming Inspection (IQC), SPI solder paste inspection, AOI (Automated Optical Inspection), X-Ray for BGA testing, and final functional testing.

Q5: What file formats are required for PCB assembly?

To proceed with a project, we typically require the BOM (Bill of Materials) list and the PCB Gerber files to ensure accurate manufacturing and sourcing.

Q6: What is the range of PCB layers and materials supported?

We support 1-24 layer PCBs using various materials including FR-4, High Tg FR-4, Aluminum Base, Rogers, CEM1, CEM3, and Halogen-free substrates.
