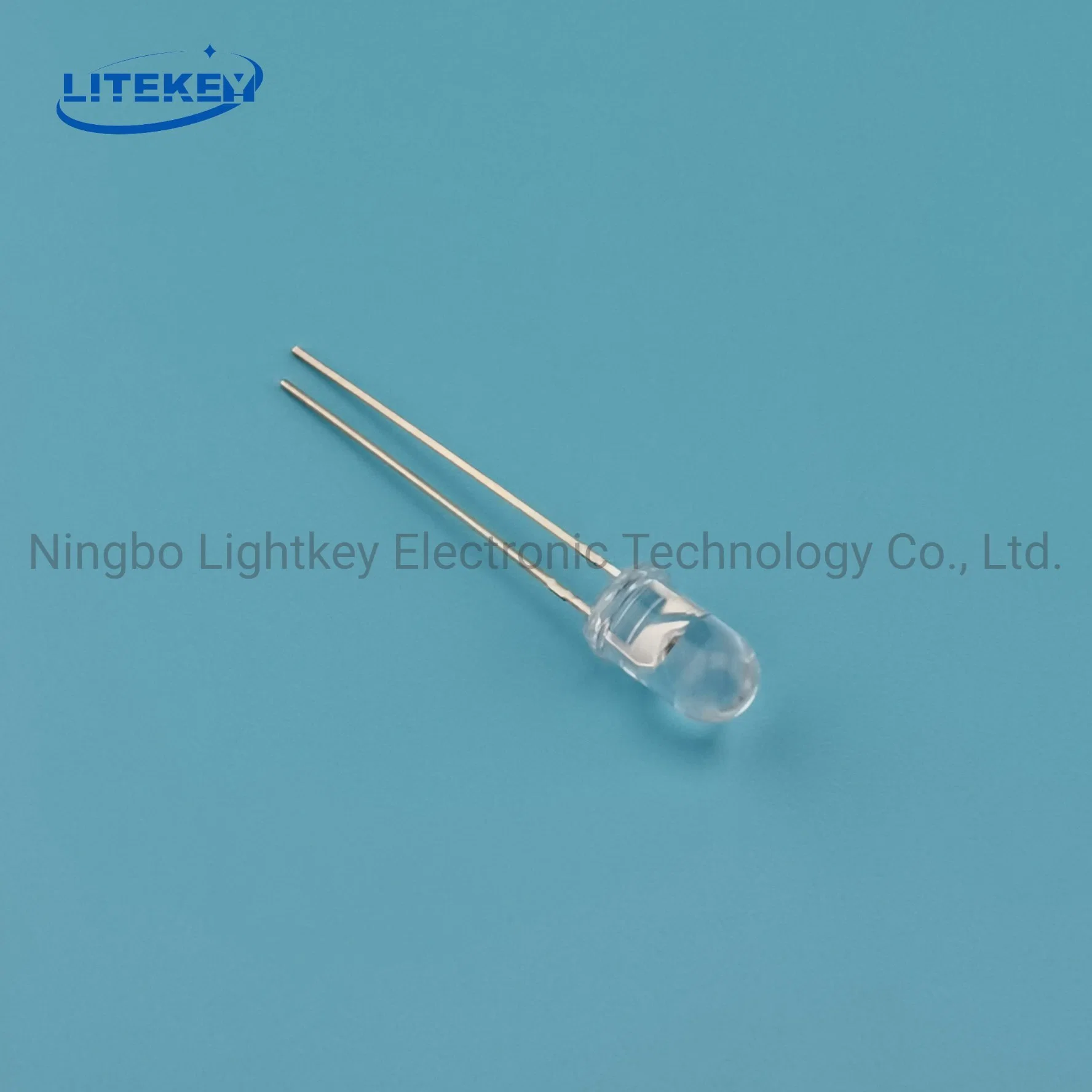

High Quality 5mm UV LED Lamp Through-Hole 365nm 380nm 395nm 415nm

1 / 1

High Quality 5mm UV LED Lamp Through-Hole 365nm 380nm 395nm 415nm

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.:LL50UVA

LED Chips:LG

IP Rating:IP67

Life:10000h

Certification:RoHS, CE, Reach

Outline Dimensions:5mm

Chip Number:1PCS

Transport Package:Taping and Carton

Specification:f5

Origin:China

HS Code:8541401000

Production Capacity:1,000,000,000 PCS/Year

Product Overview

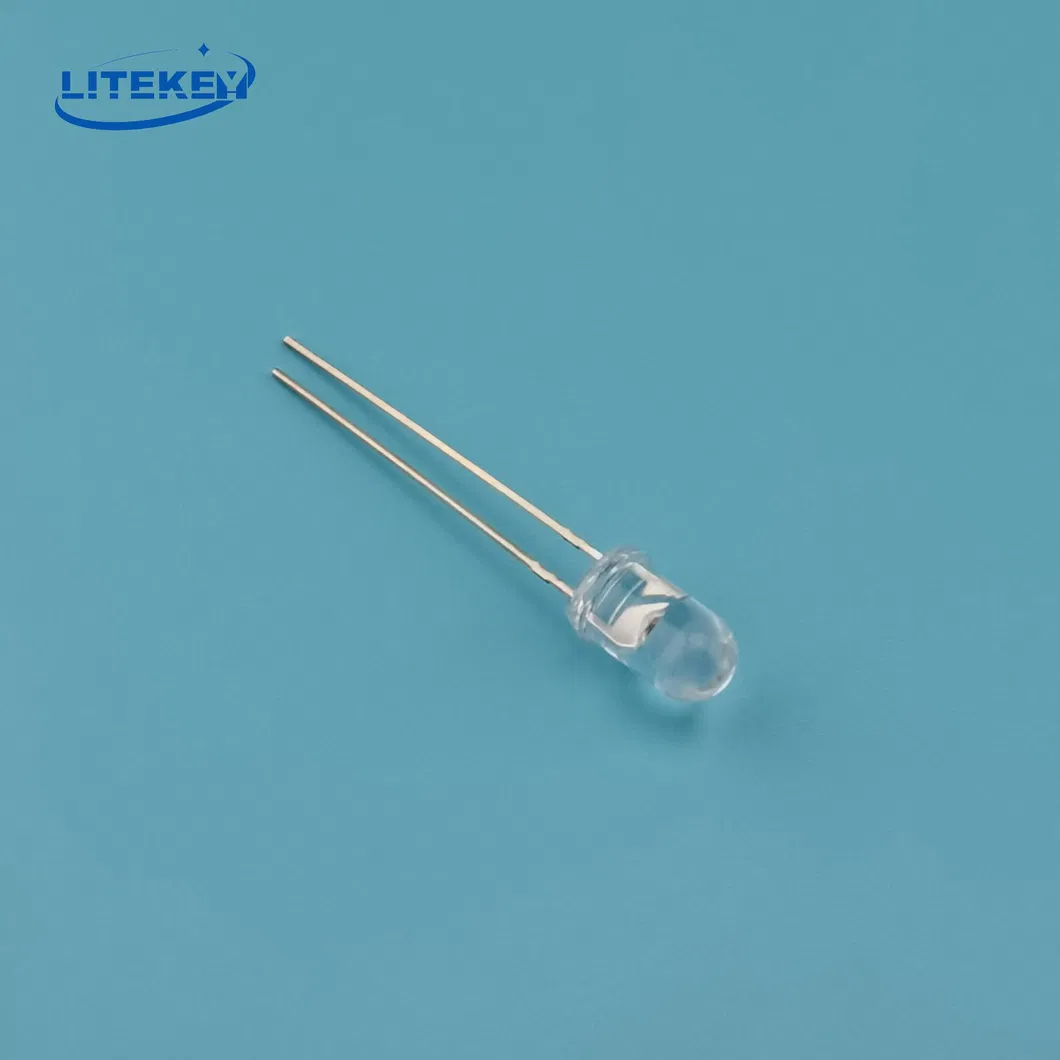

High-Reliability Performance 5mm Through-hole UVA LED Lamp

1. Features and Benefits

Super high power output
High-reliability performance
Energy saving and Environment friendly (Non-metal gas or harmful substances)
Long life span
Lead-Free & RoHS and Reach Compliant

2. Applications

UV Curing, Printing, Coating, Adhesive
Counterfeit Detection / Security
UV Torch & Fluorescence Photography
Dental Curing & Crime Inspection
Oil leak Detection

3. Selection Guide

Part No.	Forward Voltage/V	Wavelength/nm	Optical Power/mW	View Angle (50% LV)	Forward Current/mA
LL50UVA365W30-140	3.0-3.6	365-370	140-160	30	20
LL50UVA380W30-20	3.0-3.6	380-385	20-35	30	20
LL50UVA395W30-20	3.0-3.6	395-405	20-35	30	20
LL50UVA410W15-20	3.0-3.6	410-435	20-35	15	20
LL50UVA365W15-5	3.0-3.6	365-370	5-10	15	20
LL50UVA380W15-20	3.0-3.6	380-385	20-35	15	20
LL50UVA395W15-20	3.0-3.6	395-405	20-35	15	20

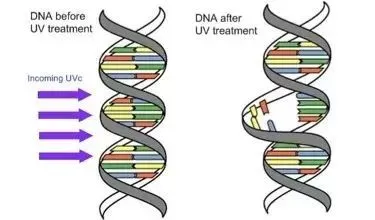

4. How UV LEDs Work for Disinfection

UV disinfection is a physical method. Microorganisms exposed to ultraviolet radiation absorb energy into their genetic material (DNA and RNA). This destroys their ability to divide and replicate, leading to natural death or elimination by the immune system, effectively neutralizing pathogenic ability.

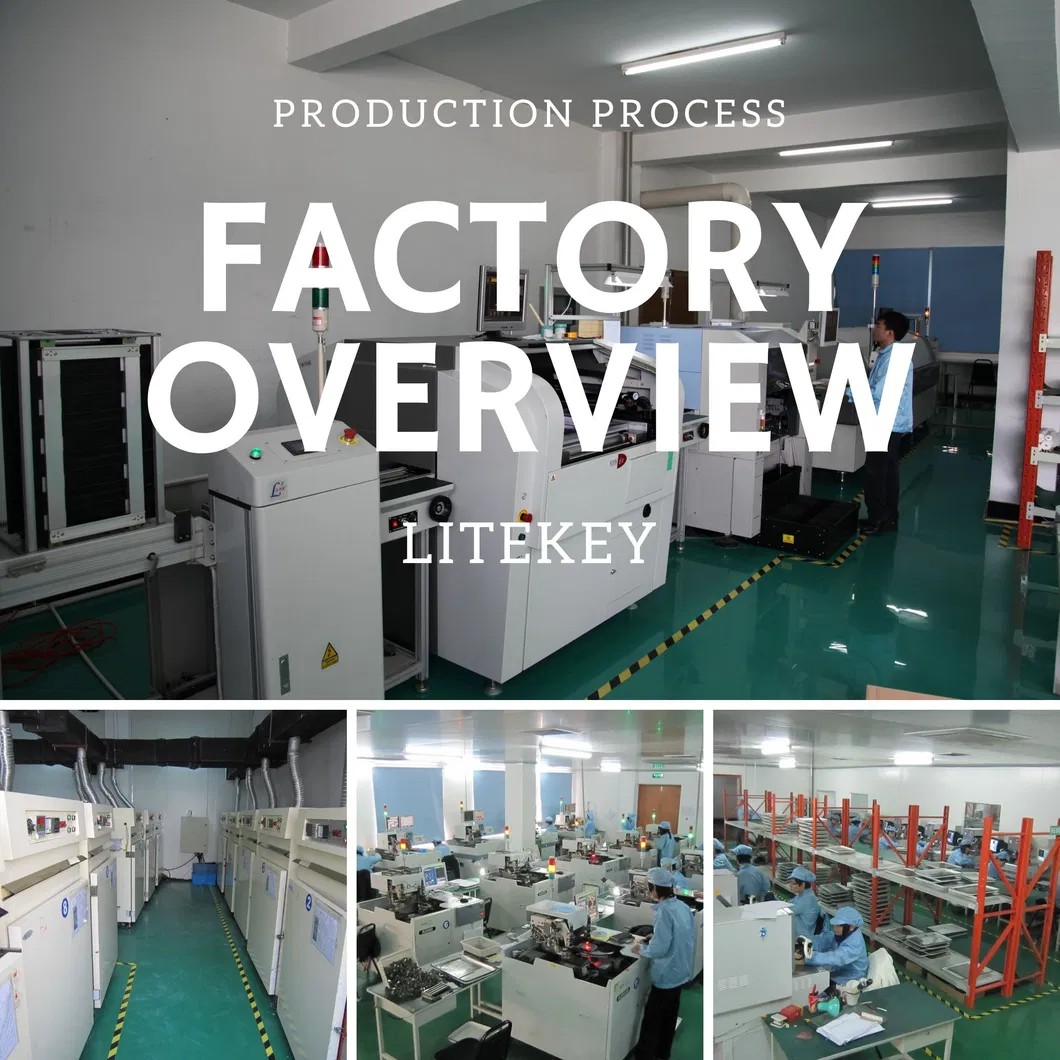

Quality Control & Factory

We utilize advanced encapsulation techniques to accurately control the real wavelength.

Professional service replied within 24 hours.
Various ready moldings available without extra fees.
Customized product design according to demand.
100% testing for each piece with automatic testing machines.
Over 14 years of experience in LED component production.
Advanced ASM automatic production equipment.

Frequently Asked Questions

What is the main application of these UVA LEDs?

They are primarily used for UV curing, industrial printing, coating, adhesive bonding, and security applications like counterfeit detection.

What is the lifespan of the LL50UVA model?

The rated life of this LED lamp is 10,000 hours under standard operating conditions.

Are these LEDs environmentally friendly?

Yes, they are energy-saving and do not contain metal gases or harmful substances, making them RoHS and Reach compliant.

How do you ensure the wavelength accuracy?

We use forward-looking encapsulation technology and 100% automatic machine testing to accurately control and verify the real wavelength of every unit.

Can I request a customized design?

Absolutely. We provide customized products and can design the LEDs according to your specific technical demands.

What is the IP rating of this product?

The LL50UVA series features an IP67 rating, providing high resistance to dust and water.
