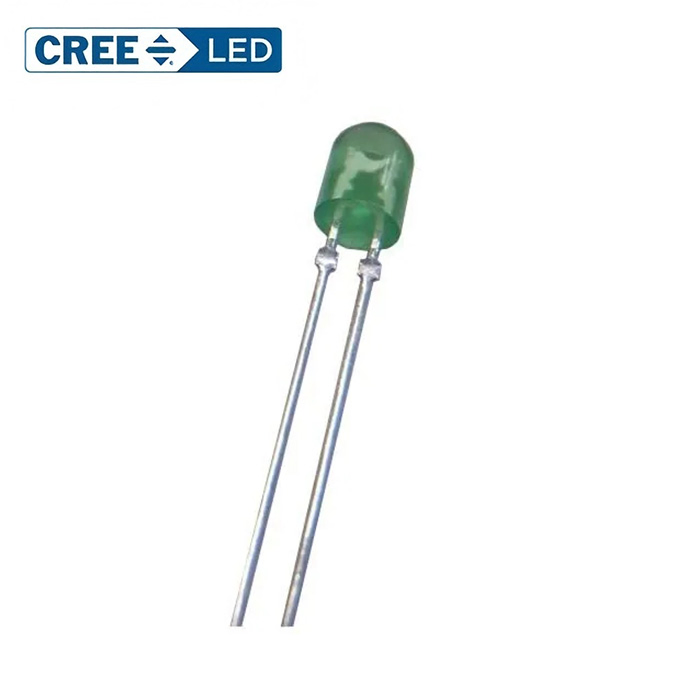

Crees C5SMF Green 527nm LED 3.4V 5-mm Oval LEDs Standard LED Through Hole

📋

Basic Specifications

Model NO.

C5SMF-GJF-CX14Q7T2

IP Rating

IP20

Power Source

3.4 V

Lamp Holder Type

SMD/SMT

Housing Material

Copper

Life

50000h

LED Chips

CREE

Certification

RoHS, CE

Viewing Angle

100° X 40°

Color Temperature

Green

Luminous Flux

140 MW

Forward Current

20 Ma

Factory Pack

2500PCS/Roll

Specification

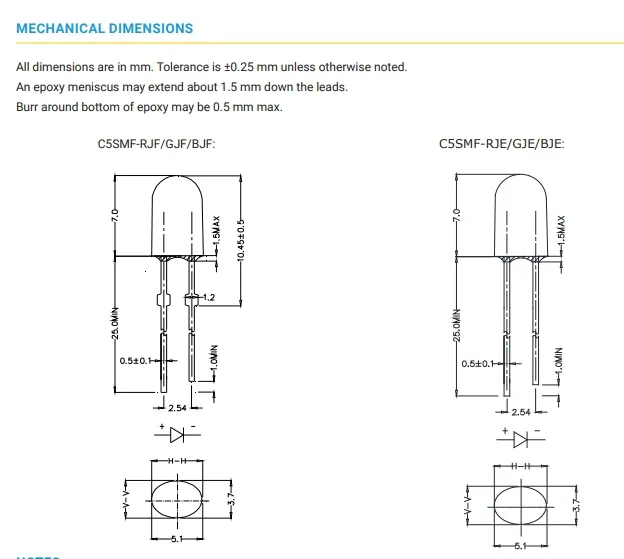

5.1 mm x 3.7 mm

💡

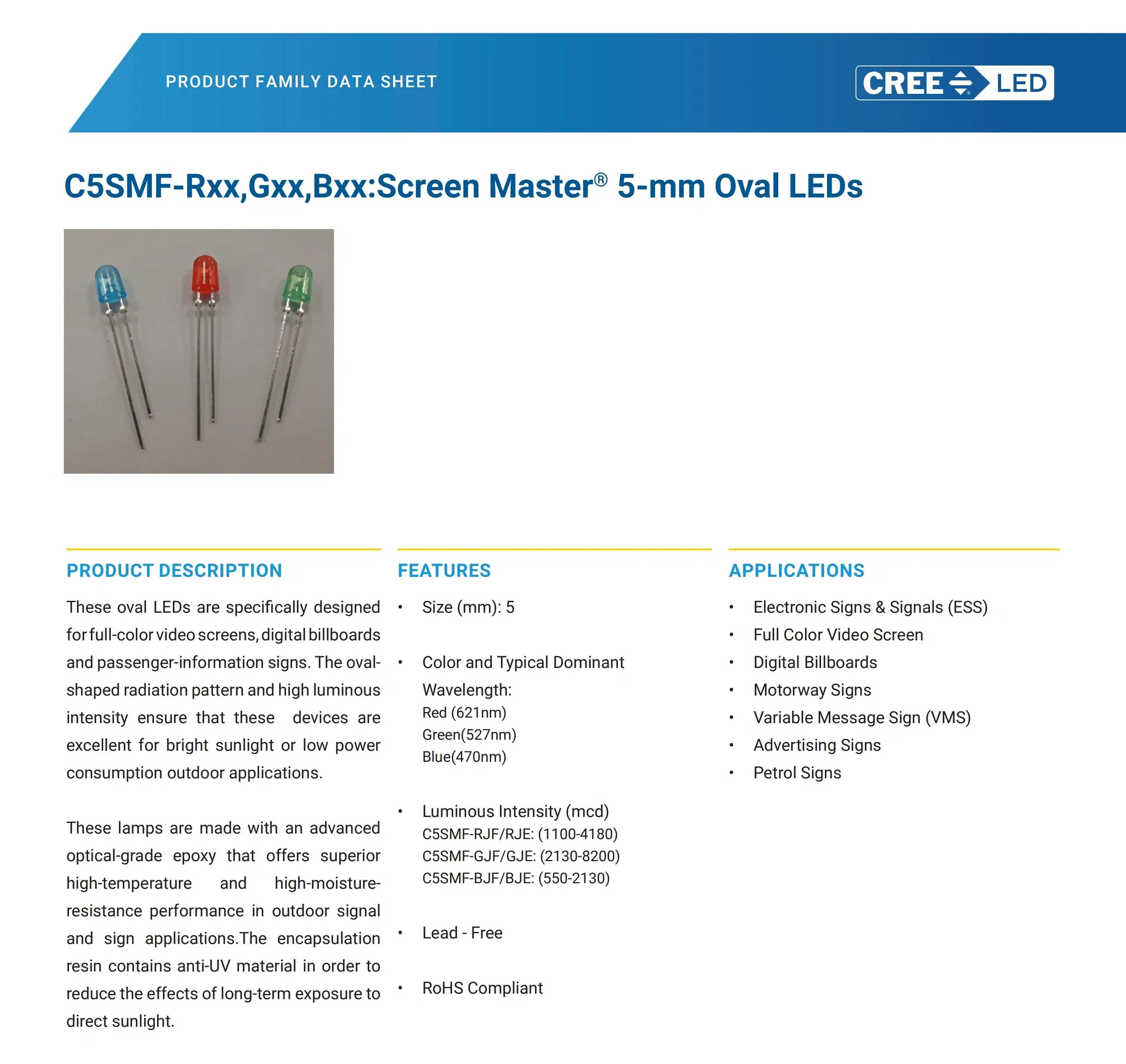

Product Description

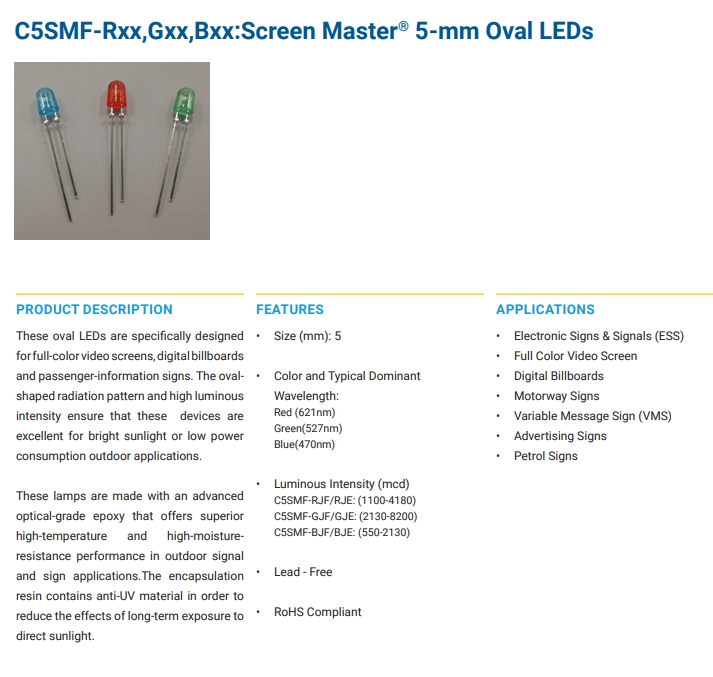

High-power Green 527nm Radial Screen Master 5-mm Oval LEDs

These oval LEDs are specifically designed for full-color video screens, digital billboards and passenger-information signs. The oval-shaped radiation pattern and high luminous intensity ensure that these devices are excellent for bright sunlight or low power consumption outdoor applications.

These lamps are made with an advanced optical-grade epoxy that offers superior high-temperature and high-moisture resistance performance in outdoor signal and sign applications. The encapsulation resin contains anti-UV material in order to reduce the effects of long-term exposure to direct sunlight.

Key Features

Size (mm): 5
Color: Red (621nm), Green (527nm), Blue (470nm)

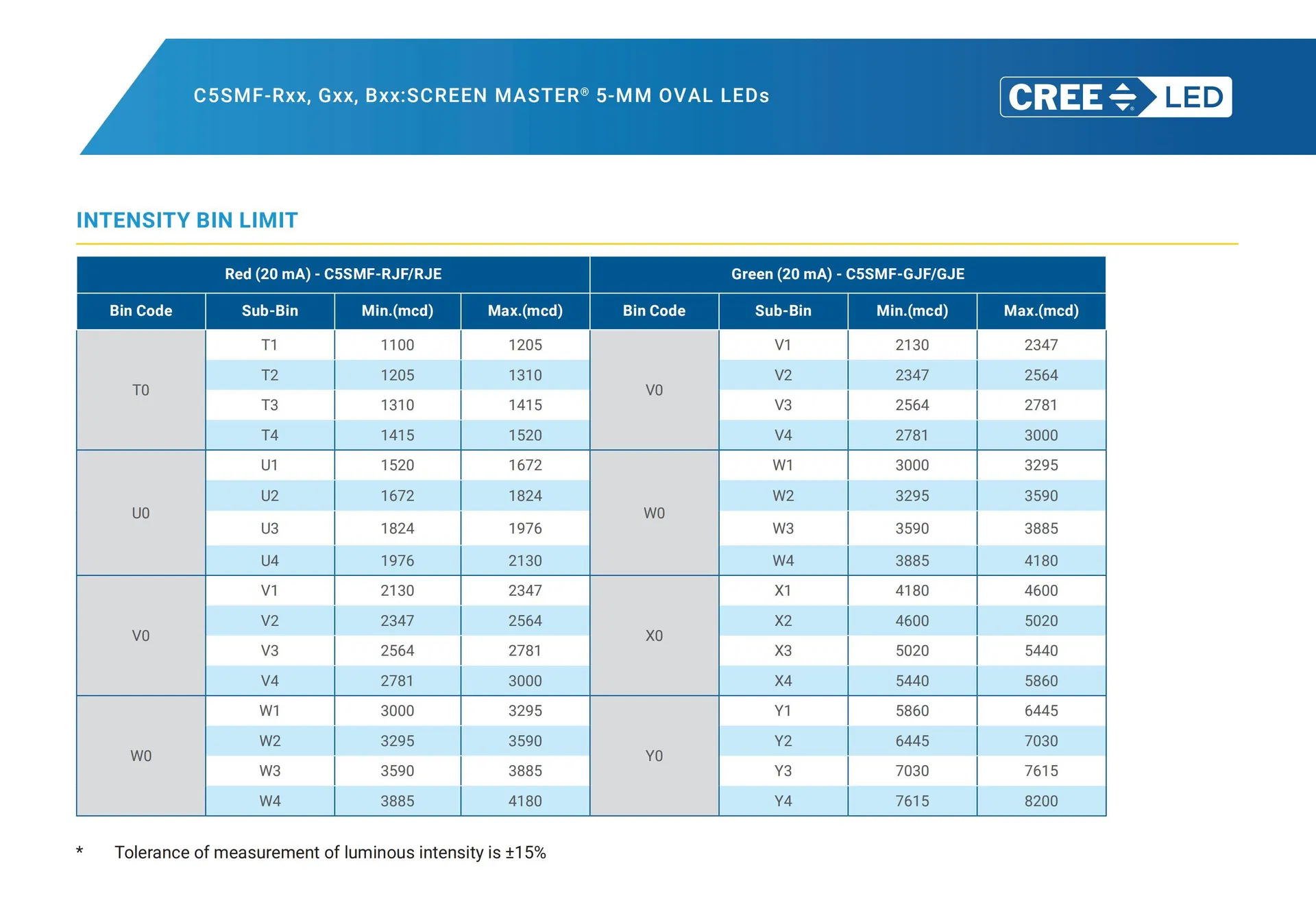

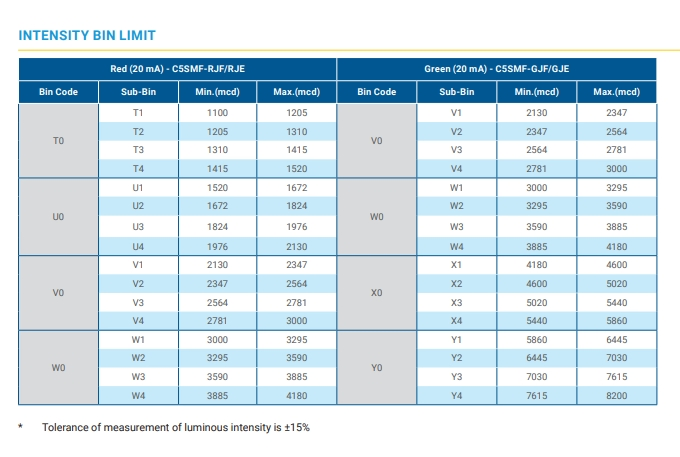

Luminous Intensity (mcd): GJF/GJE (2130-8200)
Lead - Free & RoHS Compliant

📊

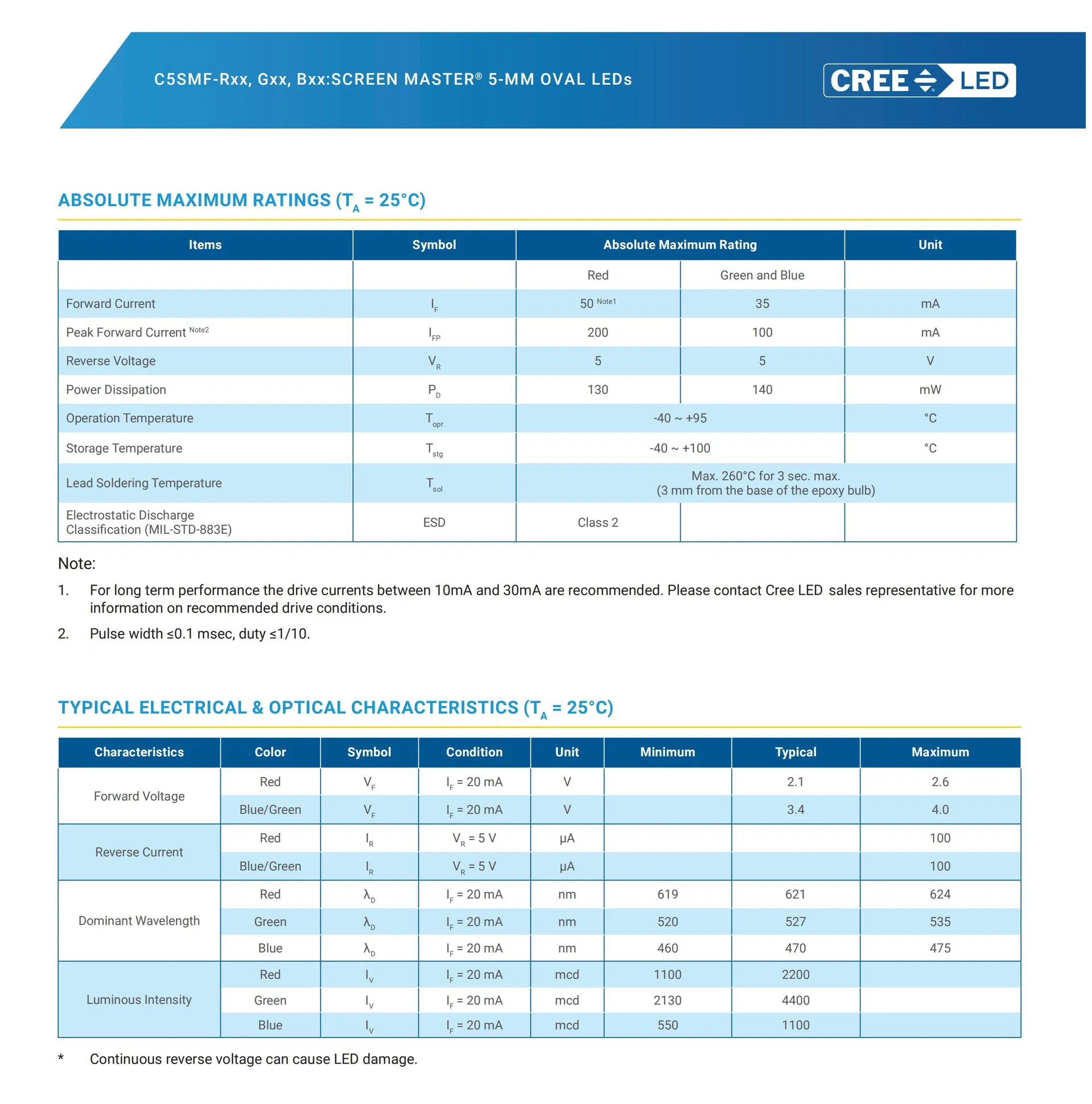

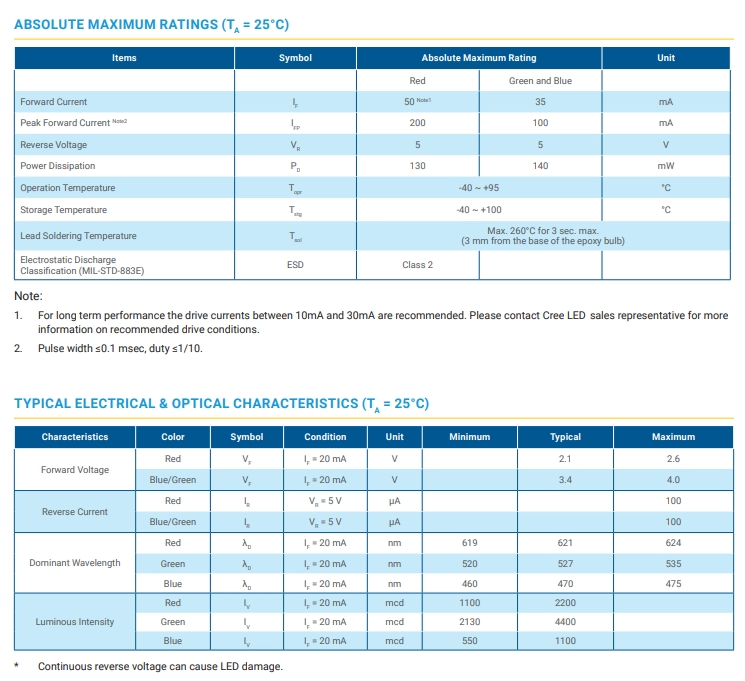

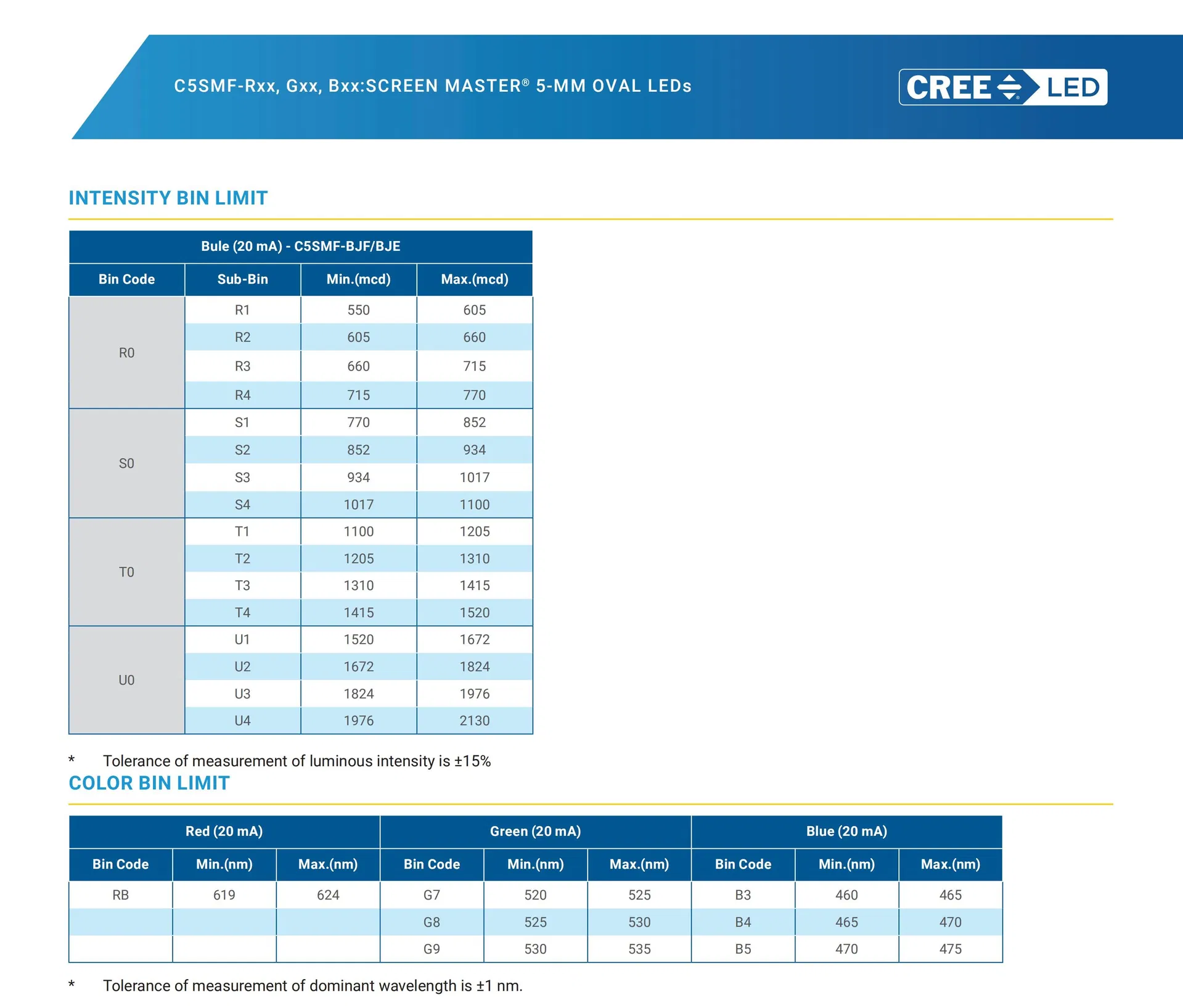

Technical Specifications

🚀

Main Applications

Electronic Signs & Signals (ESS)
Full Color Video Screens
Digital Billboards
Motorway and Petrol Signs
Variable Message Signs (VMS)

📦

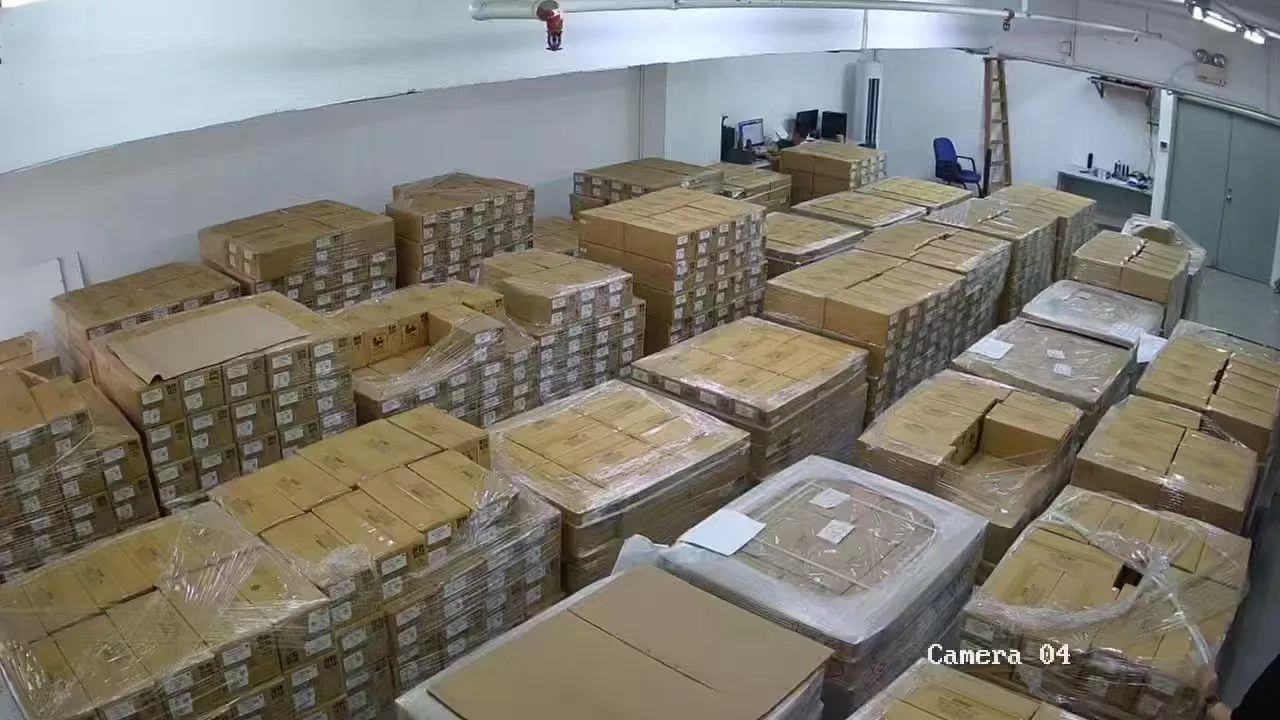

Packing & Delivery

🏢

Professional Overview

Established in 2012, we have been focused on the LED industry for over 12 years. We supply high-quality LED components, LED drivers, and Optical Lenses from prestigious global brands. Benefit from the huge market and reliable supplier relations, we offer competitive advantages in pricing, abundant supply, and shorter delivery times.

Technical Support: Expertise in product development and advice.

Inventory: Over $5 Million of stock for fast delivery.

Service: Dedicated sales support team.

❓

Frequently Asked Questions

Can I have a sample order for LED chips?

Yes, we welcome sample orders to test and check the quality. Mixed samples are acceptable.

What is the typical delivery cycle?

It usually takes 3-5 days for samples and 1-2 weeks for batch production depending on the order volume.

How do I place an order for these LEDs?

First, let us know your requirements. We will quote based on your needs. Once the sample is confirmed and the deposit is paid, we arrange production.

Are these LEDs suitable for outdoor billboards?

Yes, they are specifically designed with UV-resistant epoxy and high luminous intensity for excellent performance in direct sunlight and outdoor environments.

What is the viewing angle of the C5SMF series?

The standard viewing angle for this model is 100° X 40°, making it ideal for wide-angle visibility in signage.

Do you provide a guarantee for the products?

Yes, we provide a standard warranty for our products to ensure long-term reliability and customer satisfaction.
