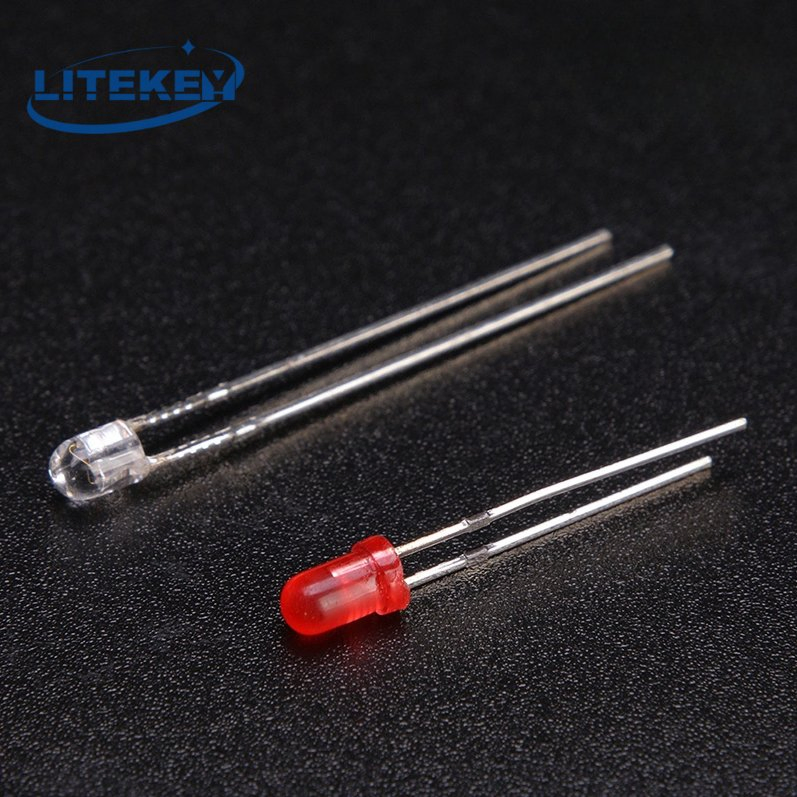

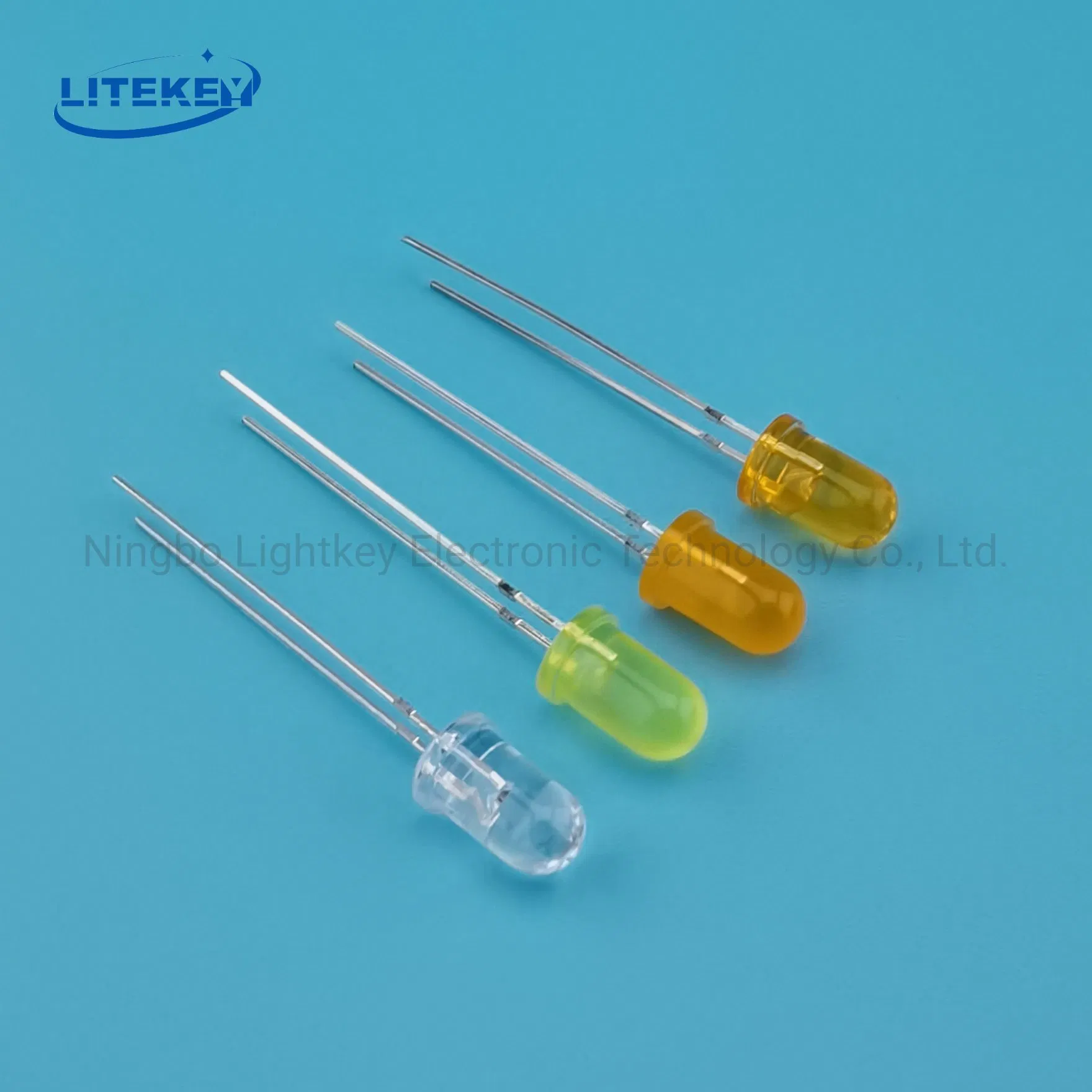

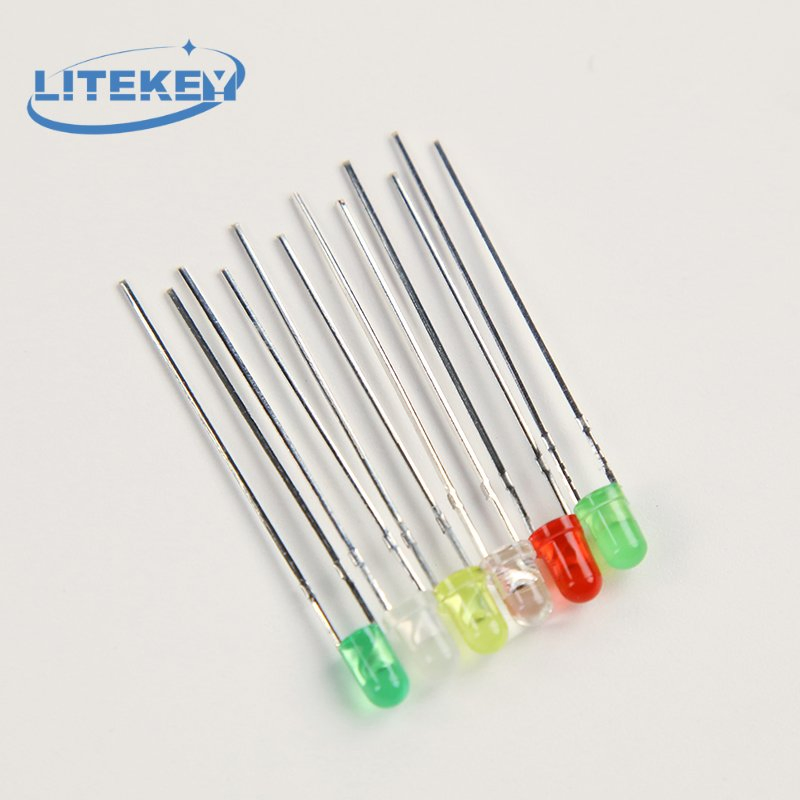

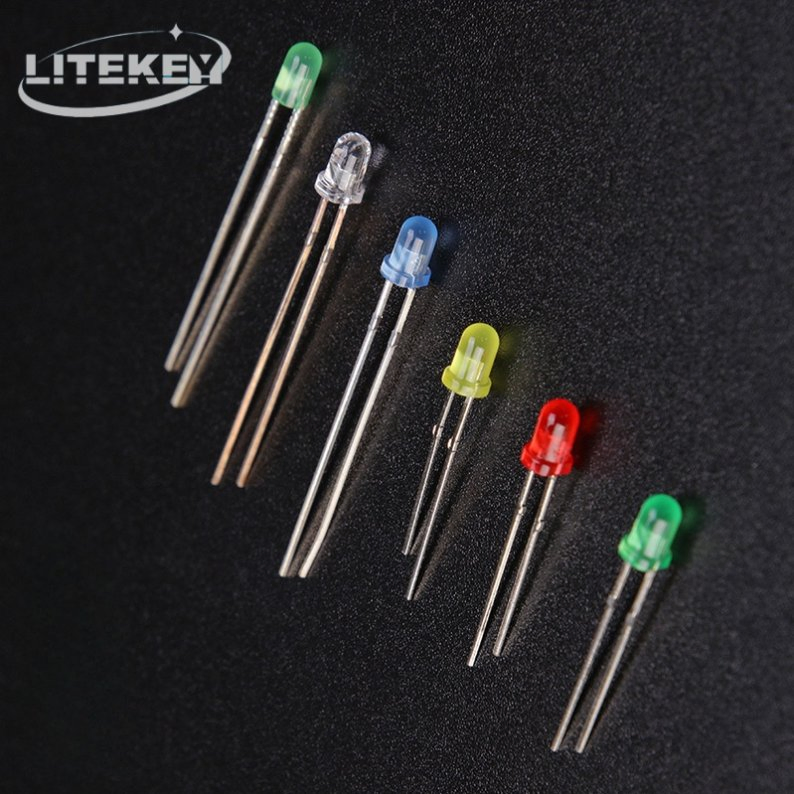

Through-hole Lamp LED series offers versatile lighting solutions with various shapes and colors. We can customize lamp LED according to requirements on viewing angle, emitting color, intensity, and case shape.
| Feature | Available Options |
|---|---|
| Case Shape | 3mm round, 5mm round, 8mm round, 10mm round, 3mm oval, 5mm oval, 4mm oval, 5mm concave |
| Emitting Color | Red, yellow-green, orange, amber, yellow, pure green, blue, white, dual color and RGB |
| Case Color | Red, white, green, yellow, black, water clear, colored transparent |
| Pin Length | 7.8mm or 25.4mm |
| Electrode | Common anode or common cathode |
Note: At Ta = 25 °C; Forward voltage at IF = 20mA; Peak forward current at 1/10 Duty Cycle, 0.1ms Pulse.
| Color | VF @ IF=20mA (V) | Reverse Current (uA) | Power Dissipation (mW) | DC Forward Current (mA) | |
|---|---|---|---|---|---|
| Typ. | Max. | ||||
| Super Red | 1.8 | 2.2 | 30 | 60 | 25 |
| Hi-Red | 1.8 | 2.2 | 30 | 60 | 25 |
| Orange / Yellow | 2.1 | 2.5 | 30 | 80 | 30 |
| Ultra Red | 1.9 | 2.6 | 30 | 60 | 30 |
| Ultra Orange/Amber/Yellow | 2.0 | 2.6 | 30 | 65 | 30 |
| Pure Green / Blue / White | 3.5 | 4.0 | 30 | 110-120 | 30 |

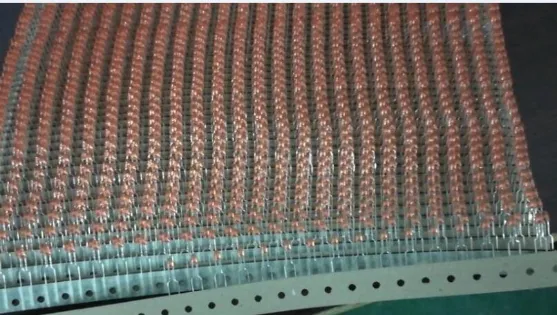

Tape Packing

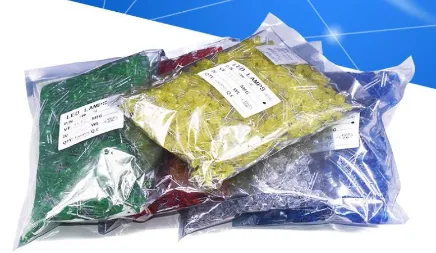

Bag Packing
