Crees Xmldcl-H0-0000-00A4aaaa1 5050 RGBW 12W LED Multi Color High Power LED

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Basic Specifications

Model NO.
XMLDCL-H0-0000-00A4AAAA
IP Rating
IP20
Power Source
2.1 V, 2.6 V, 2.9 V, 2.9 V
Lamp Holder
SMD/SMT
Material
Copper
Life Span
50000h
LED Chips
CREE
Certification
RoHS, CE
Viewing Angle
120°
Color Temp
RGB+White
Luminous Flux
130-150lm
Forward Current
1200-1400mA
💡

Product Description

High Power 5050 RGBW 12W LED for Professional Stage Lighting

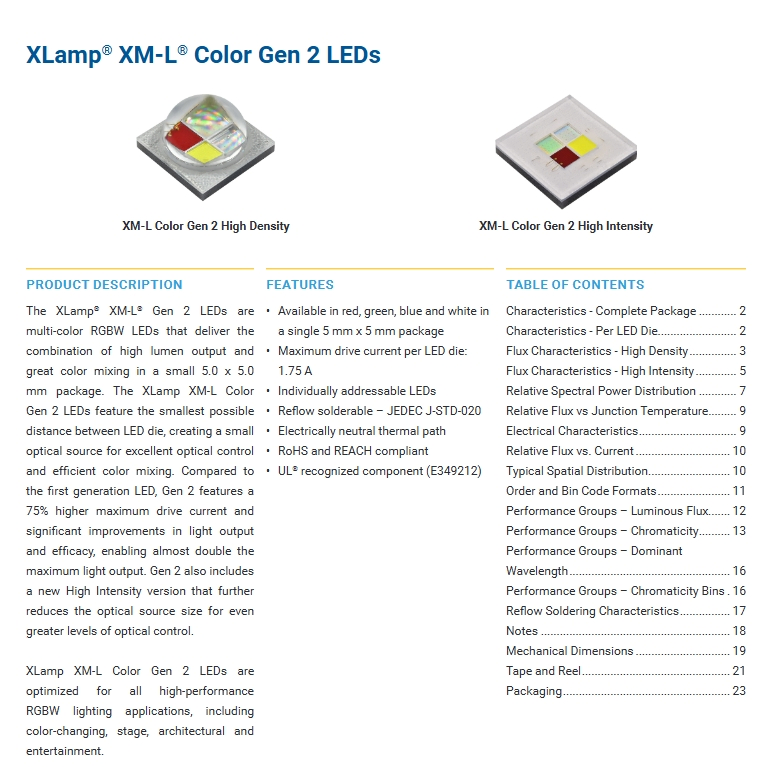

The XLamp® XM-L® Gen 2 LEDs are multi-color RGBW LEDs that deliver the combination of high lumen output and great color mixing in a small 5.0 x 5.0 mm package. The Gen 2 LEDs feature the smallest possible distance between LED die, creating a small optical source for excellent optical control and efficient color mixing.
Compared to the first generation, Gen 2 features a 75% higher maximum drive current and significant improvements in light output and efficacy, enabling almost double the maximum light output. These LEDs are optimized for all high-performance RGBW lighting applications, including color-changing, stage, architectural and entertainment.

Key Features

  • Available in Red, Green, Blue and White in a single 5mm x 5mm package
  • Maximum drive current per LED die: 1.75 A
  • Individually addressable LEDs for precise control
  • Reflow solderable – JEDEC J-STD-020
  • Electrically neutral thermal path
  • RoHS and REACH compliant
📸

Product Display

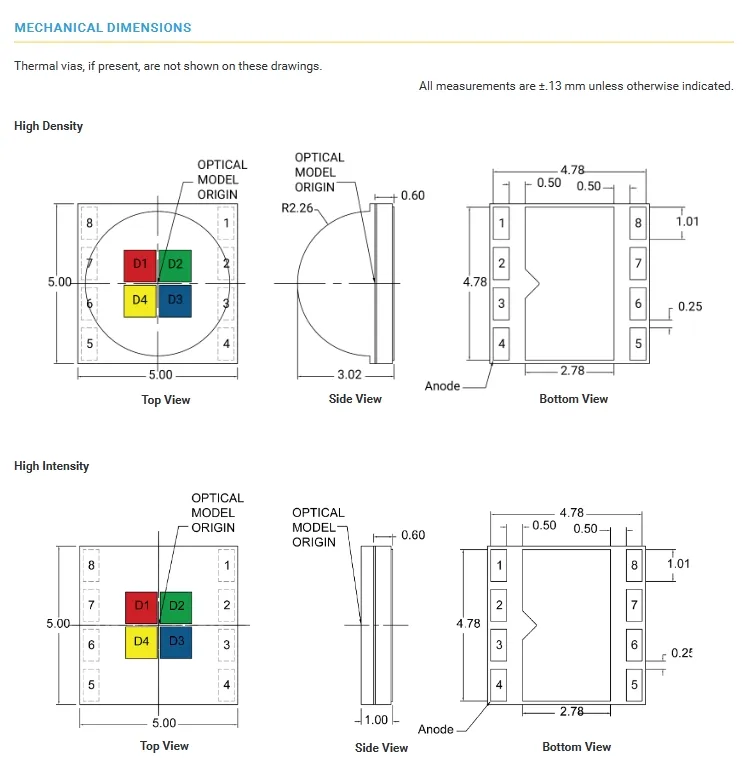

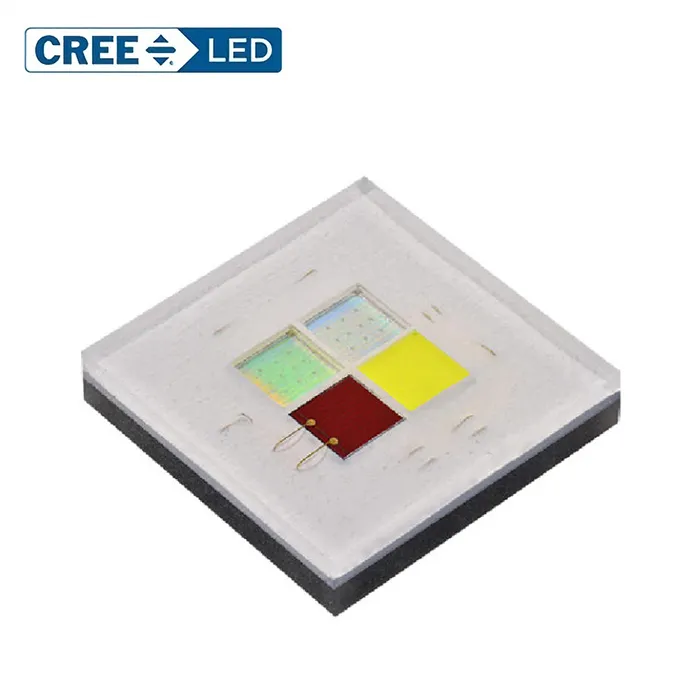

LED Product View 1 LED Product View 2
⚙️

Technical Specifications

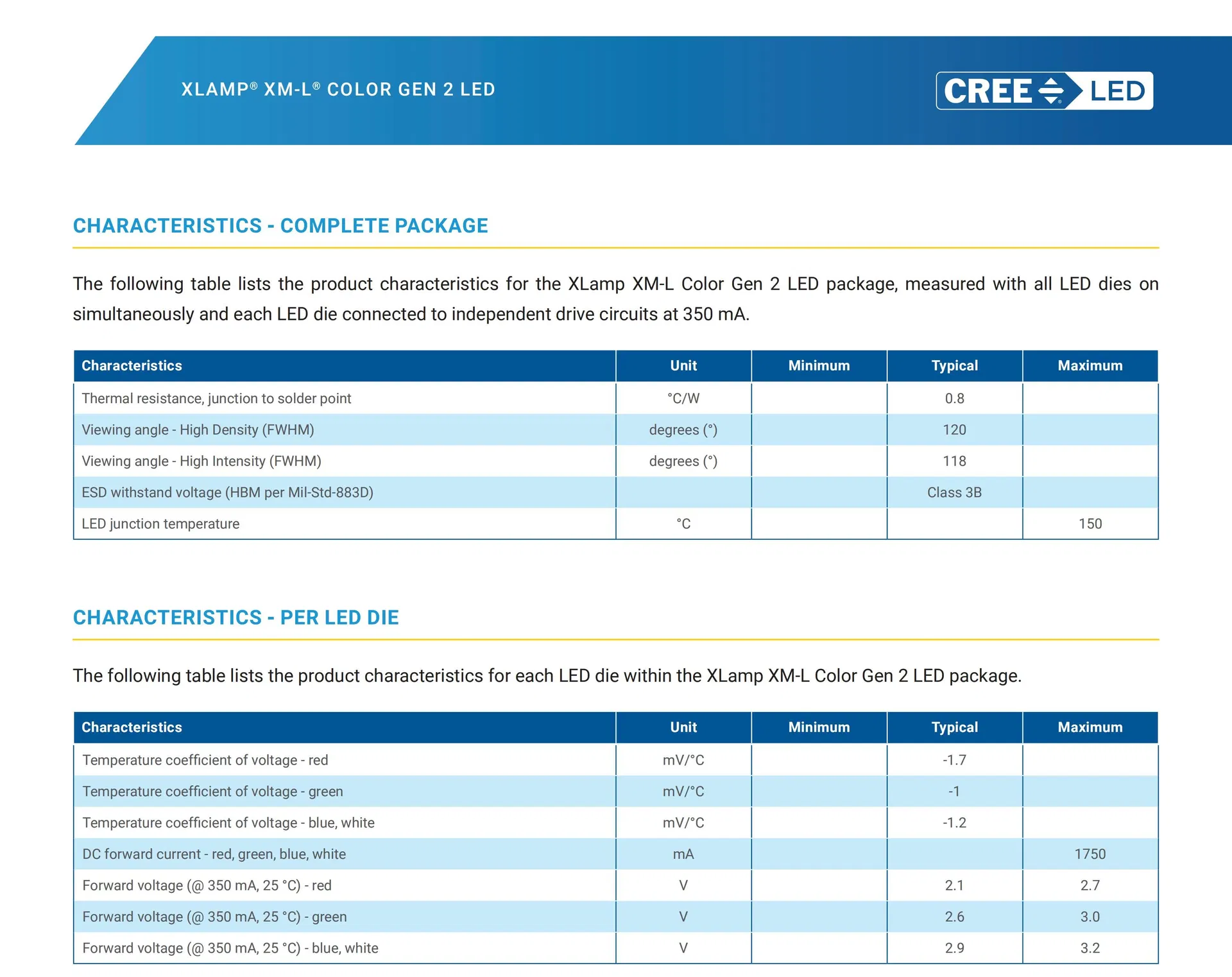

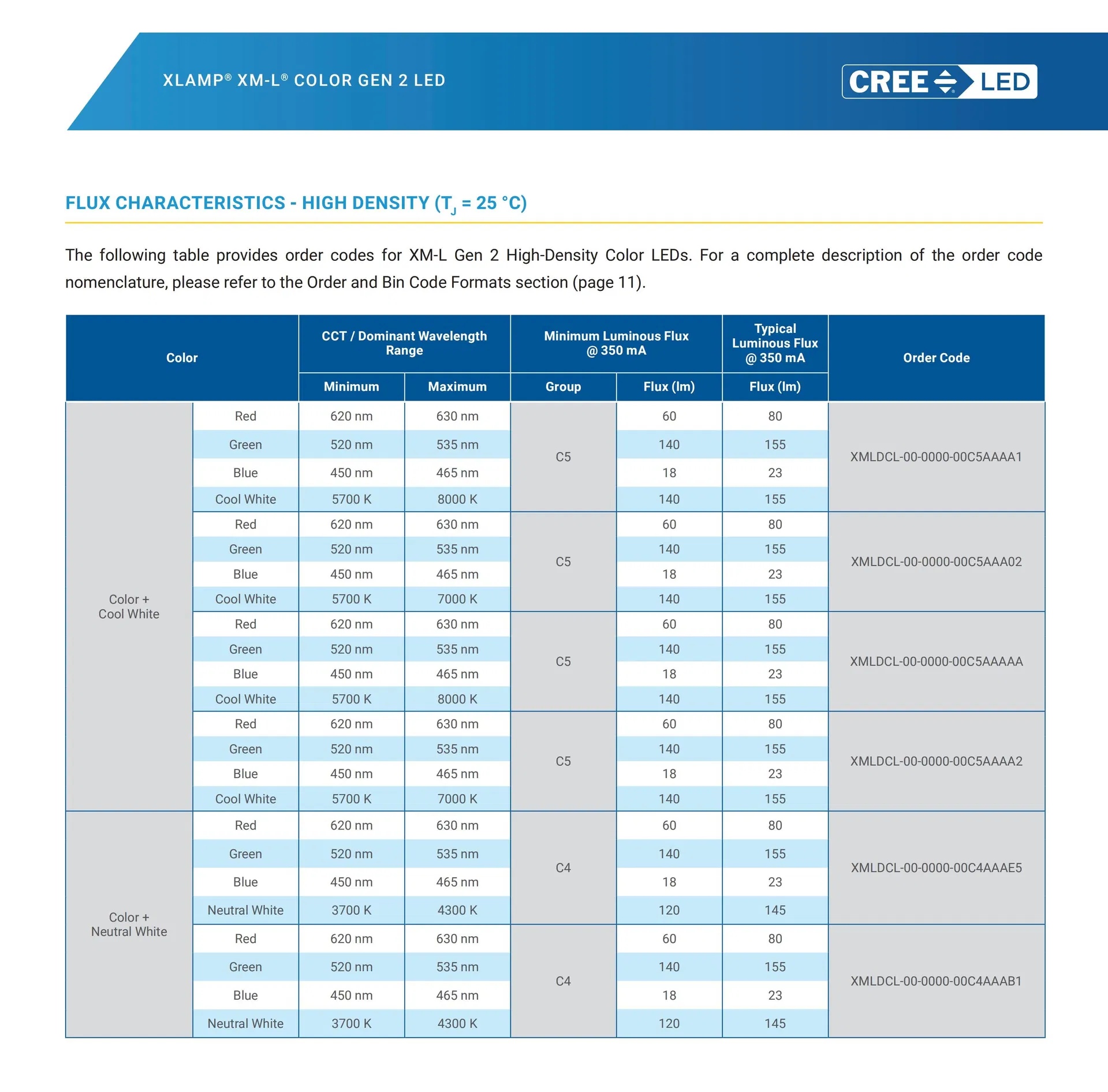

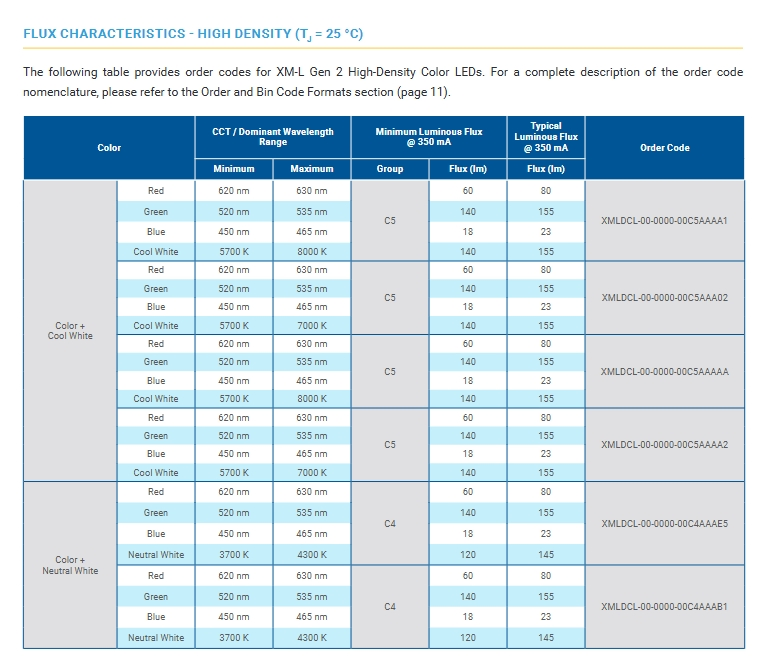

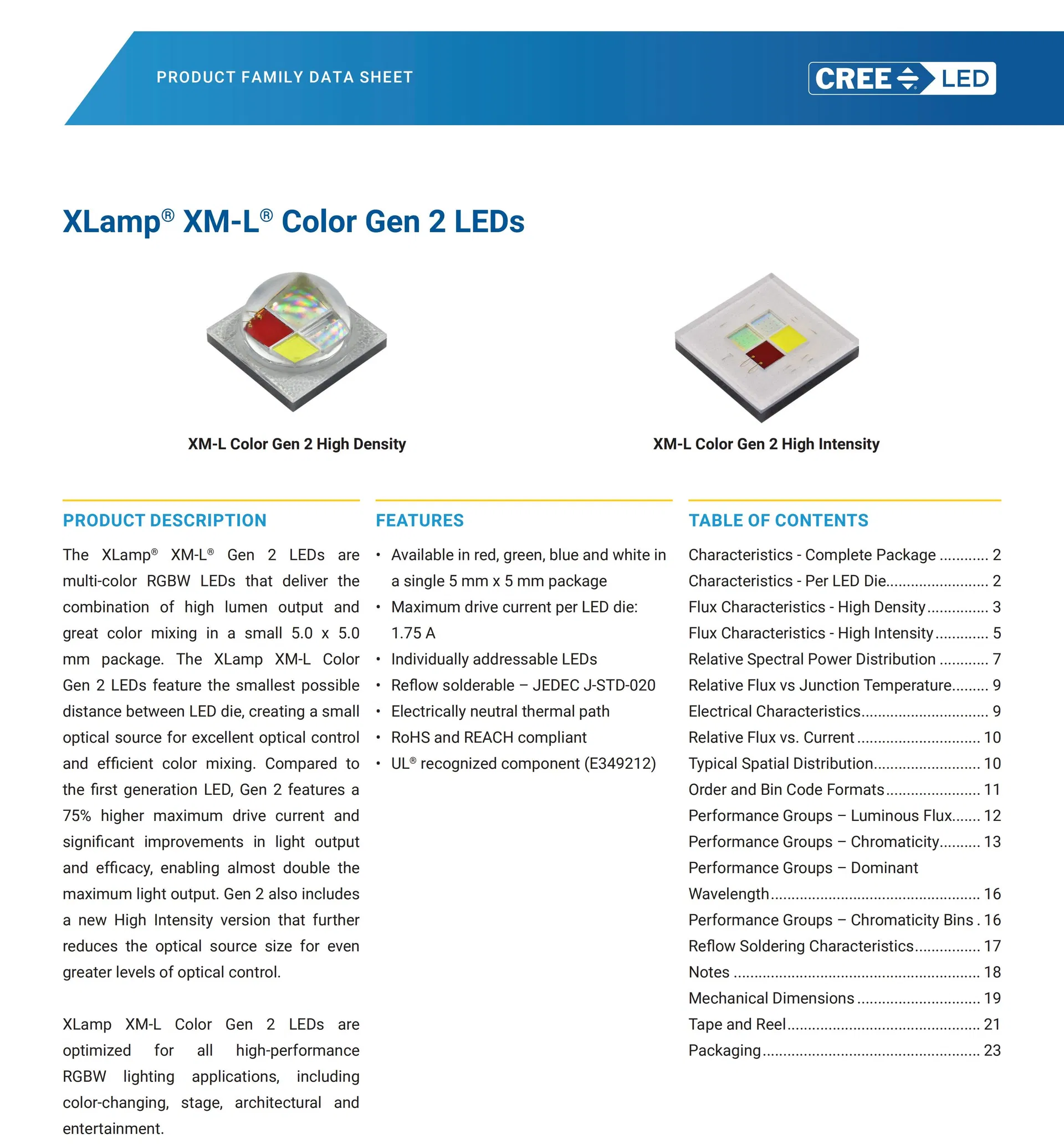

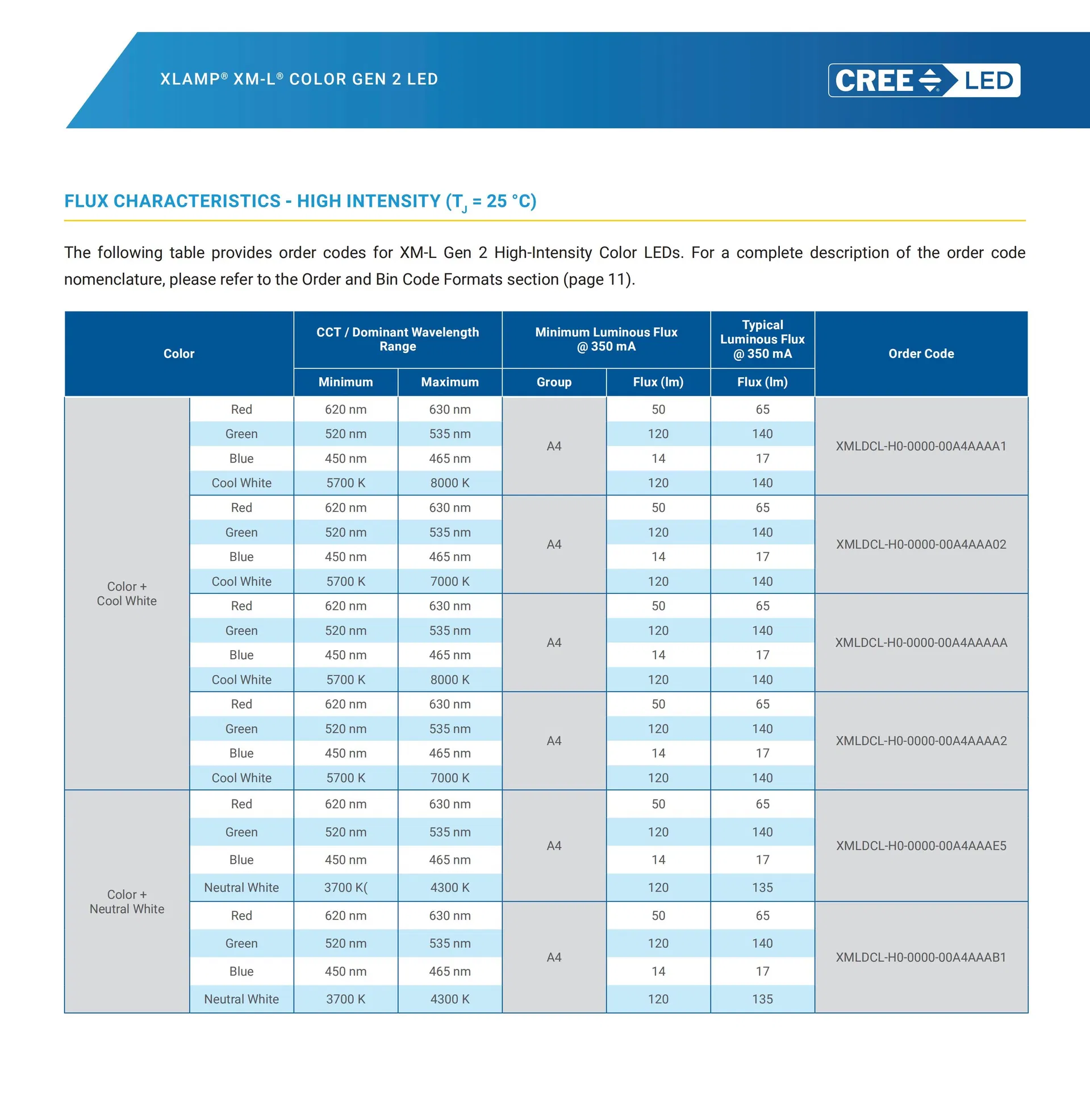

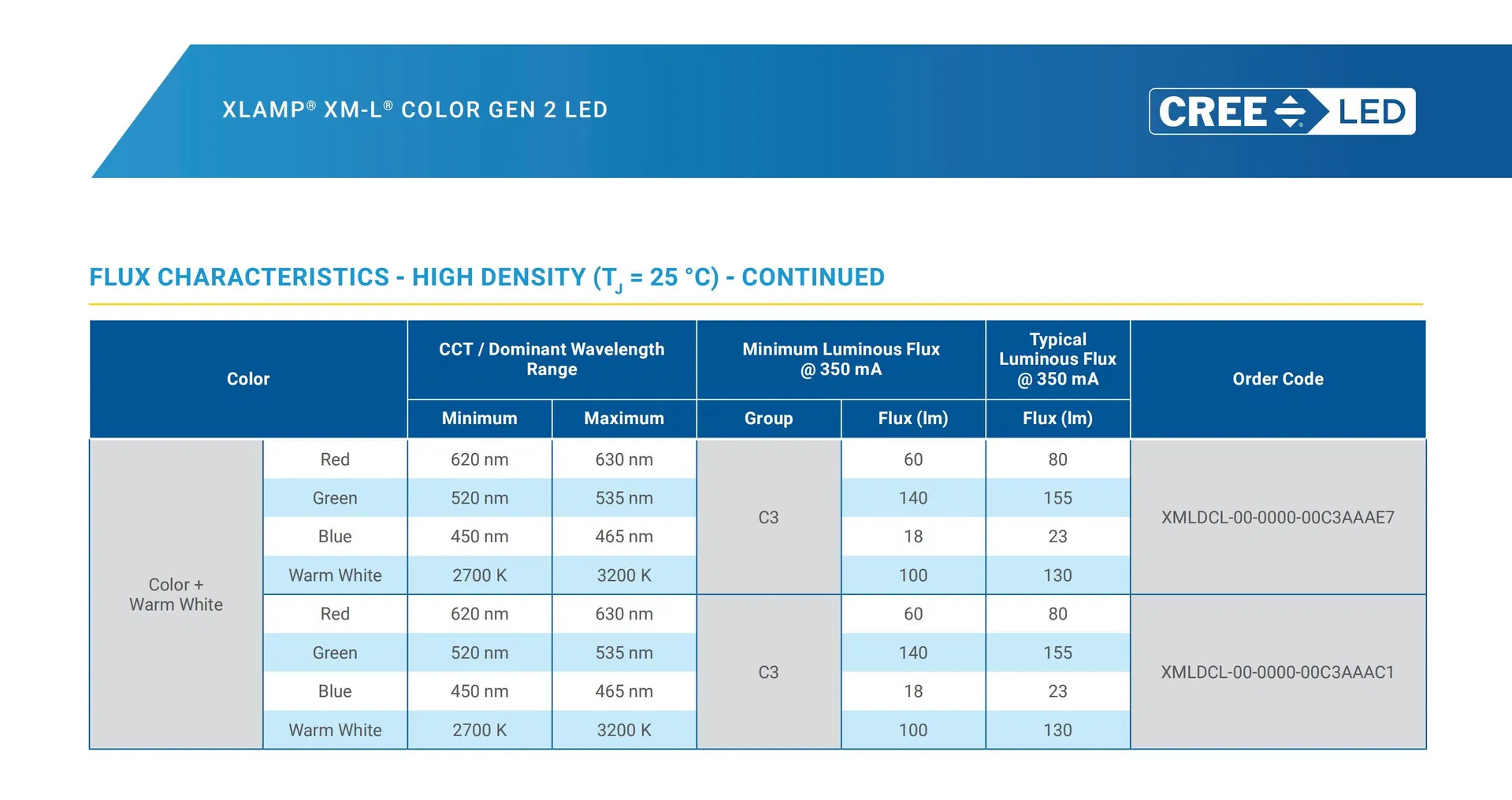

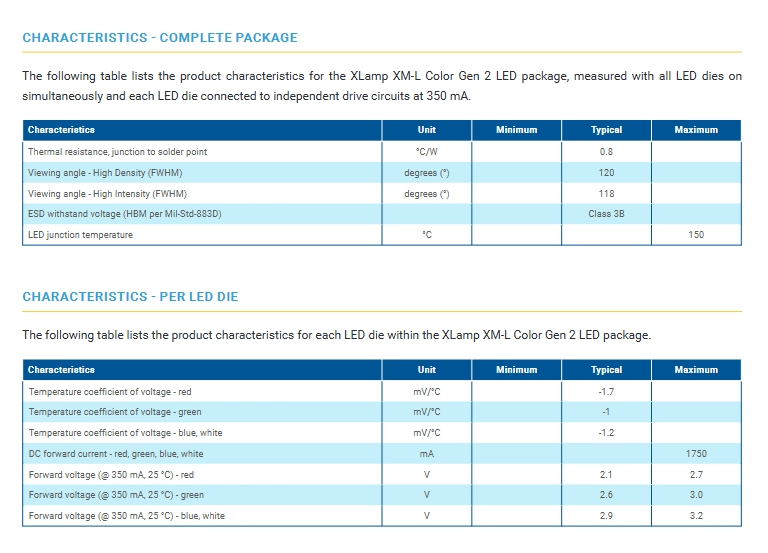

Specification Chart 1 Specification Chart 2 Specification Chart 3 Specification Chart 4 Specification Chart 5
📦

Packing & Delivery

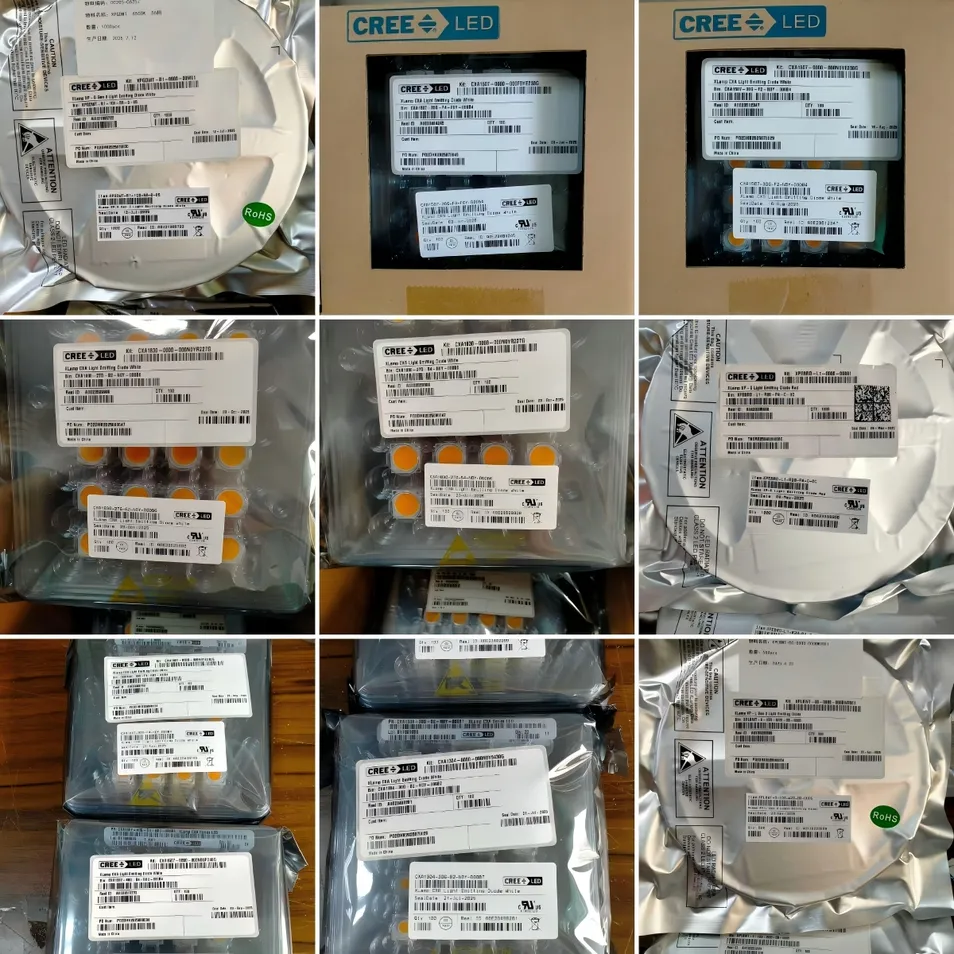

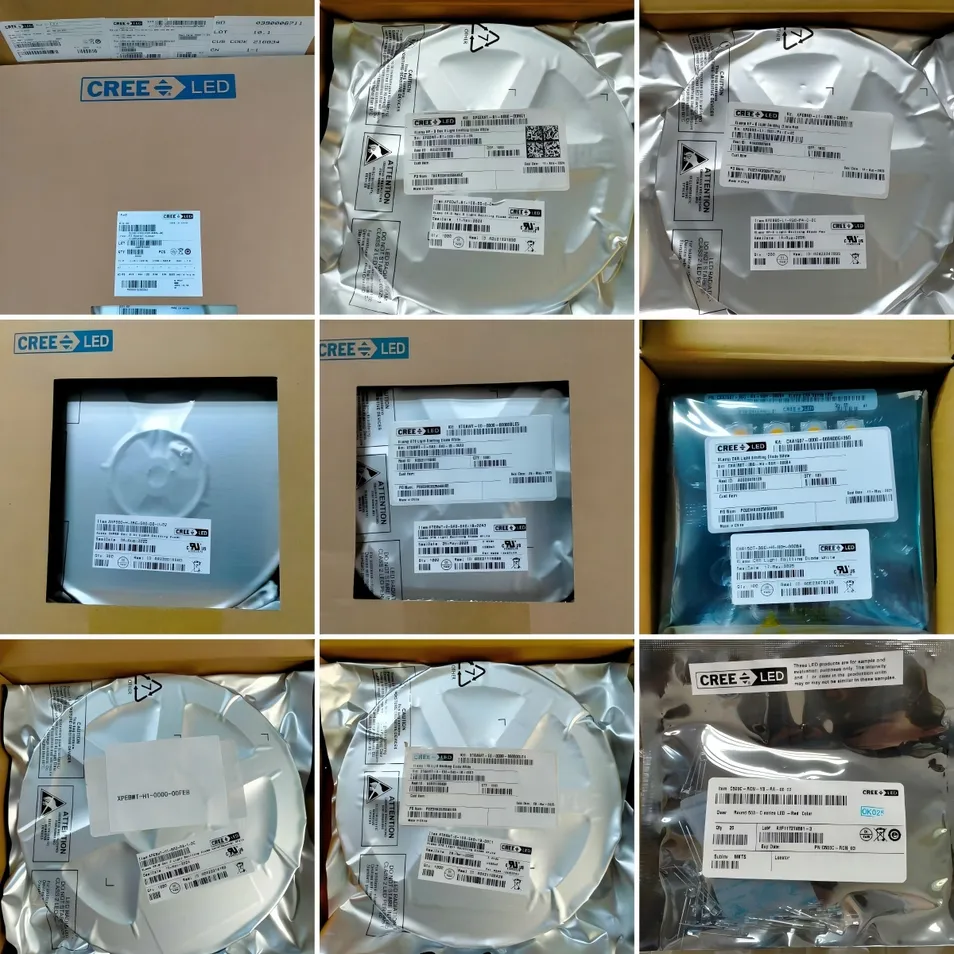

Packing 1 Packing 2

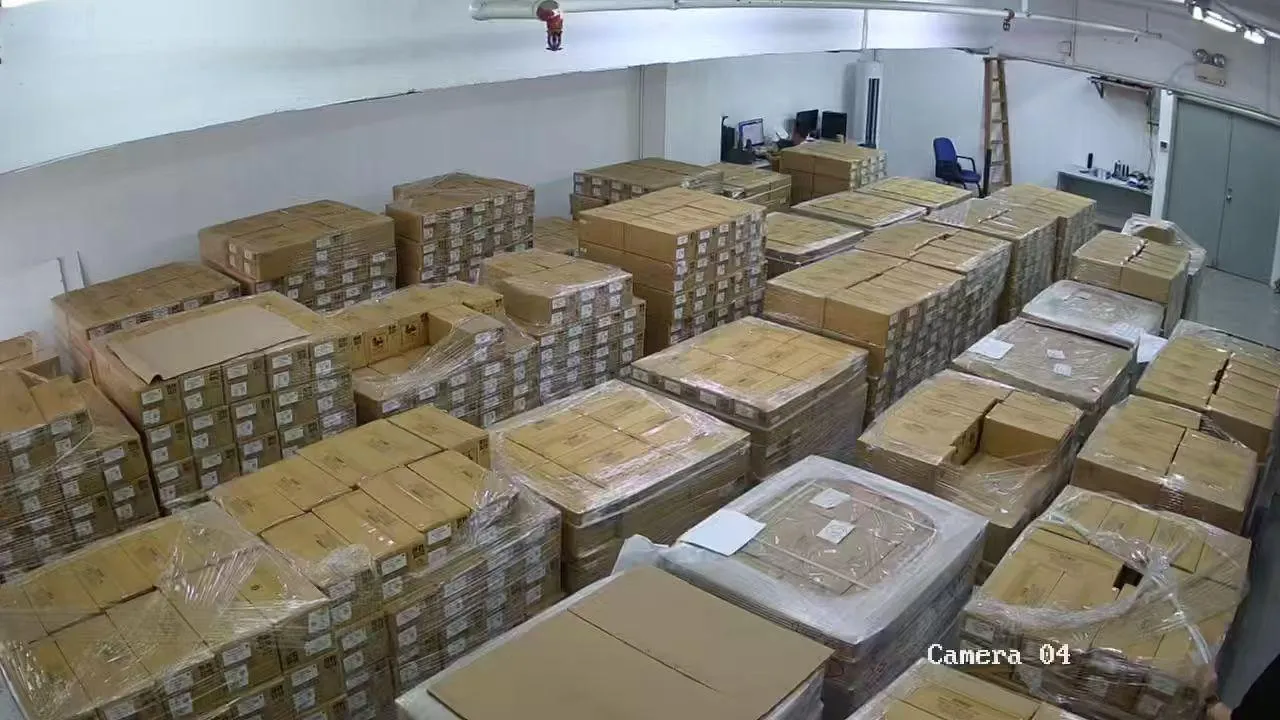

Delivery Logistics

More Products

Product Range
🏢

Company Overview

Established in 2012, our team has been focused on the LED industry for over 12 years. We supply LED components, LED drivers, and Optical Lenses from prestigious global brands.
Benefit from reliable supplier relations, we offer competitive pricing, abundant supply, and short delivery times. We aim to provide fast, consistent, and highly responsive service to global lighting manufacturers and distributors.

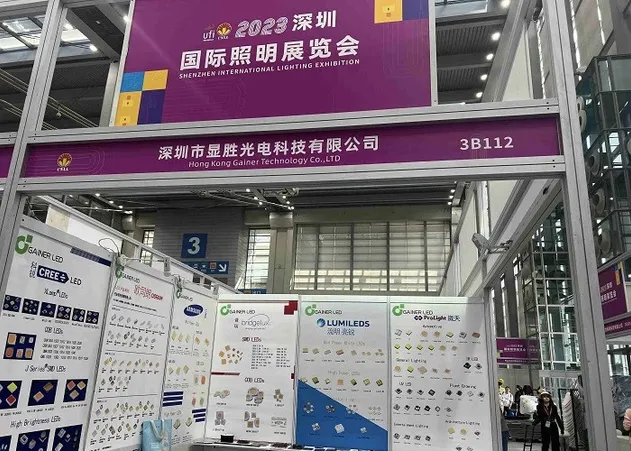

Facility 1 Facility 2 Facility 3
Expert Support: Advice on product development from trained specialists.
Large Inventory: Over $5 Million of stock for fast delivery.
Dedicated Service: A sales support team of over 35 employees.

Frequently Asked Questions

Q1. Can I have a sample order for LED chips?
A: Yes, we welcome sample orders to test and check the quality. Mixed samples are acceptable.
Q2. What is the typical delivery cycle?
A: It takes 3-5 days for samples and 1-2 weeks for batch production depending on order volume.
Q3. How do I place an order for LED lights?
A: First, let us know your request or application. Secondly, we quote according to your requirements. Third, the customer confirms samples and pays the deposit for the formal order. Fourth, we arrange production.
Q4. Do you guarantee the products?
A: Yes, we provide a full guarantee and warranty for our products to ensure long-term reliability.
Q5. What are the main applications for these RGBW LEDs?
A: These LEDs are ideal for high-performance applications including stage lighting, architectural color-changing, and entertainment venues.
Q6. Are these components environmentally compliant?
A: Yes, all our LED components are RoHS and REACH compliant, meeting international environmental standards.
