Crees Clw6a-Tkw-C90c070b0bb7c3c523 Multi Color LEDs RGBW SMD 353

Basic Specifications

Model NO.

CLW6A-TKW-C90C070B0BB7C3C523

Beam Angle

120°

Emitting Color

RGBW

IP Rating

IP33

Base Material

Copper

LED Chips

CREE

Life

50000h

Certification

RoHS, CE

Input Voltage

2.1 V - 3.1 V

Luminous Flux

304

Specification

3.5 mm x 3.5 mm

Trademark

Crees LED

Product Description

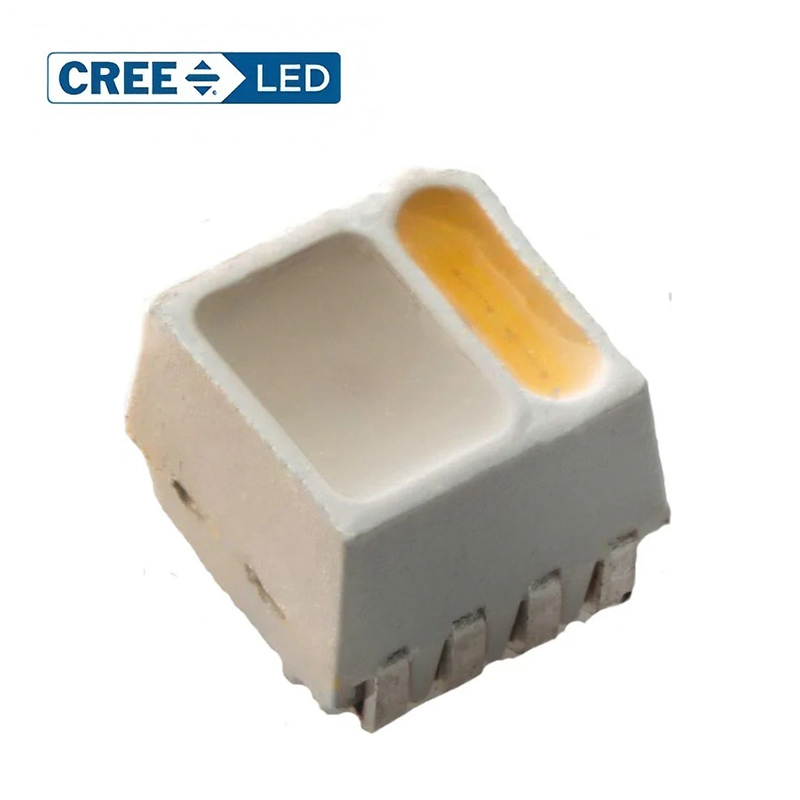

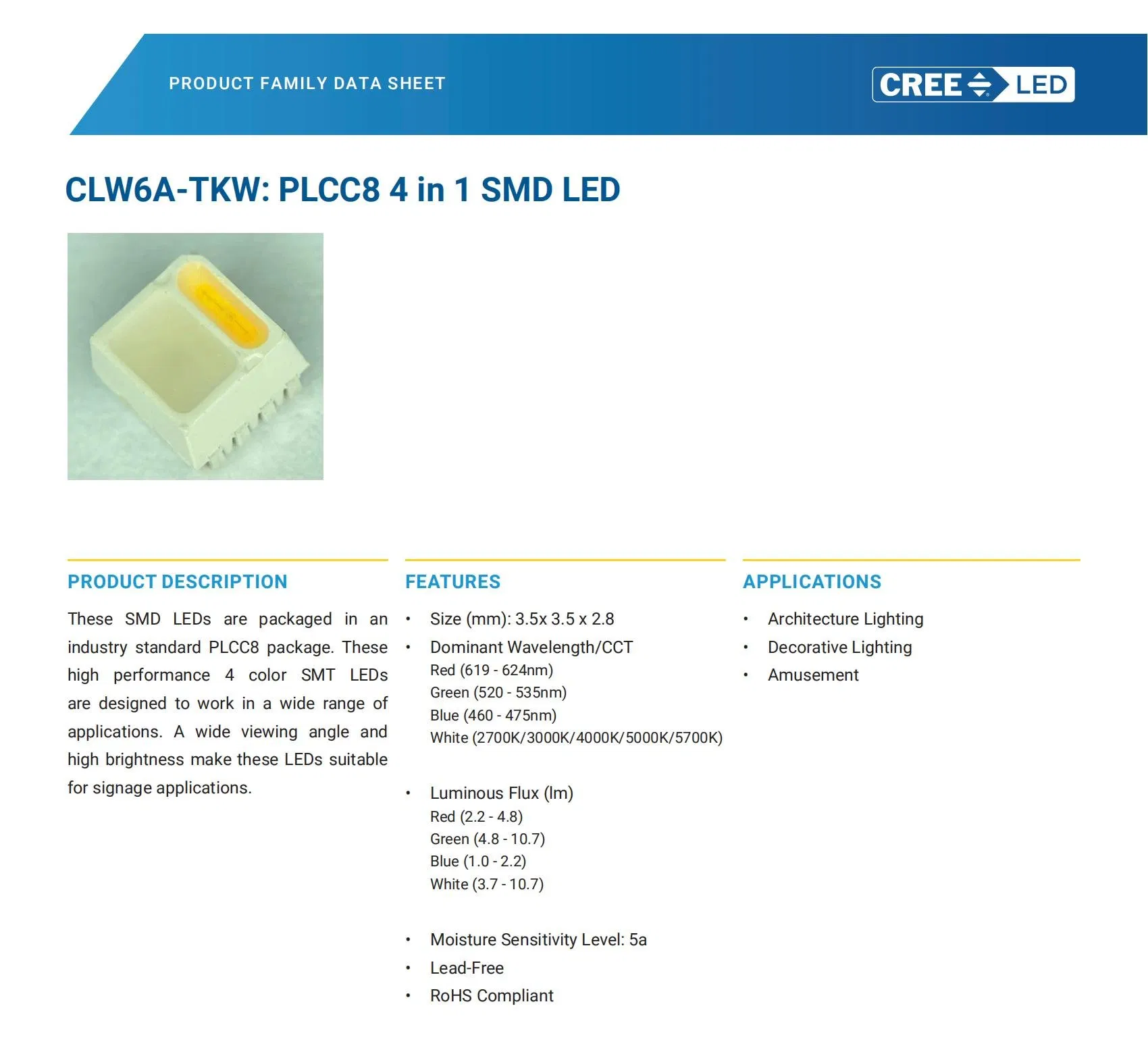

CREEs High Quality CLW6A-TKW Multi Color LEDs RGBW SMD 3535

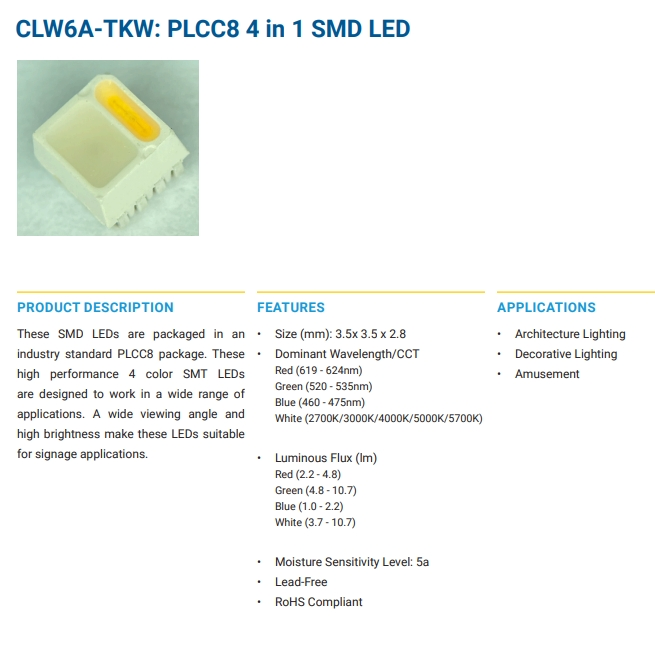

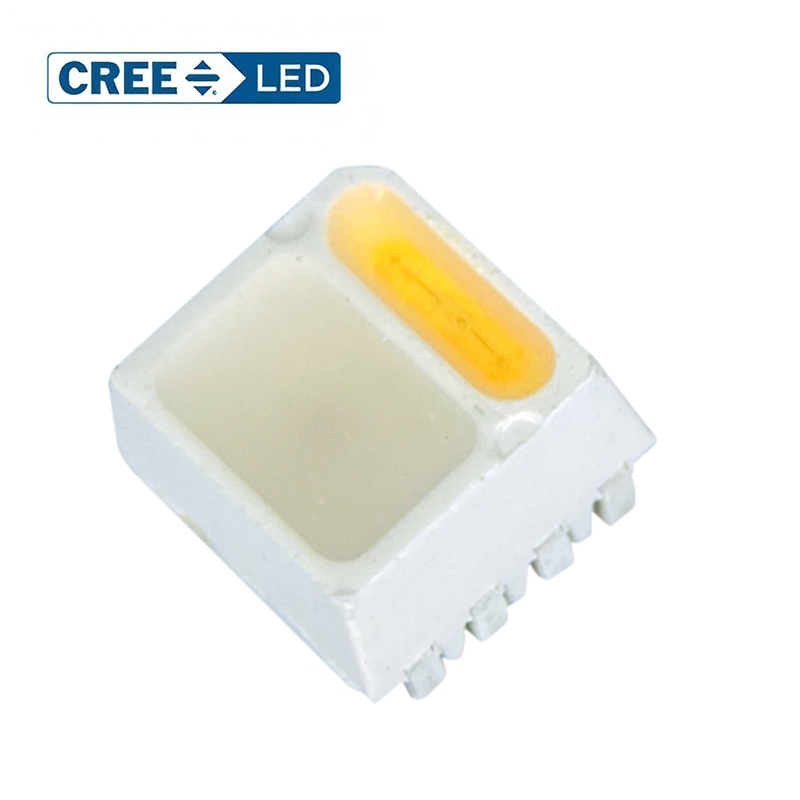

Cree CLW6A 4-in-1 SMD LEDs are high-performance 4 color SMT LEDs in an industry-standard PLCC8 package. The CLW6A offers high performance, a wide viewing angle, and high brightness ideal for signage applications. These LEDs are designed for various applications, including architecture lighting, decorative lighting, and amusement.

Key Features

Red (619nm - 624nm) | Green (520nm - 535nm) | Blue (460nm - 475nm)
White Color Temperature: 2700K/3000K/4000K/5000K/5700K
Luminous Flux: Red (2.2lm-4.8lm), Green (4.8lm-10.7lm), Blue (1.3lm-2.2lm), White (3.7lm-8.2lm)

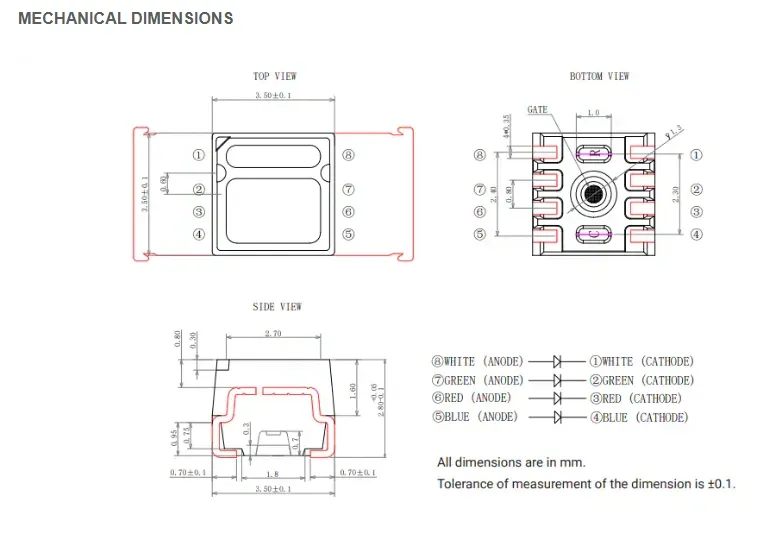

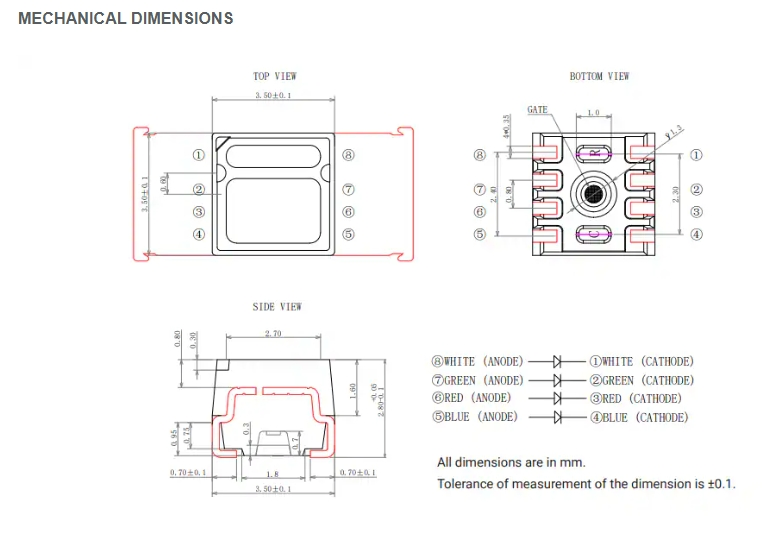

Compact Size: 3.5mm x 3.5mm x 2.8mm
Moisture Sensitivity Level: 5a
Lead-free & RoHS compliant

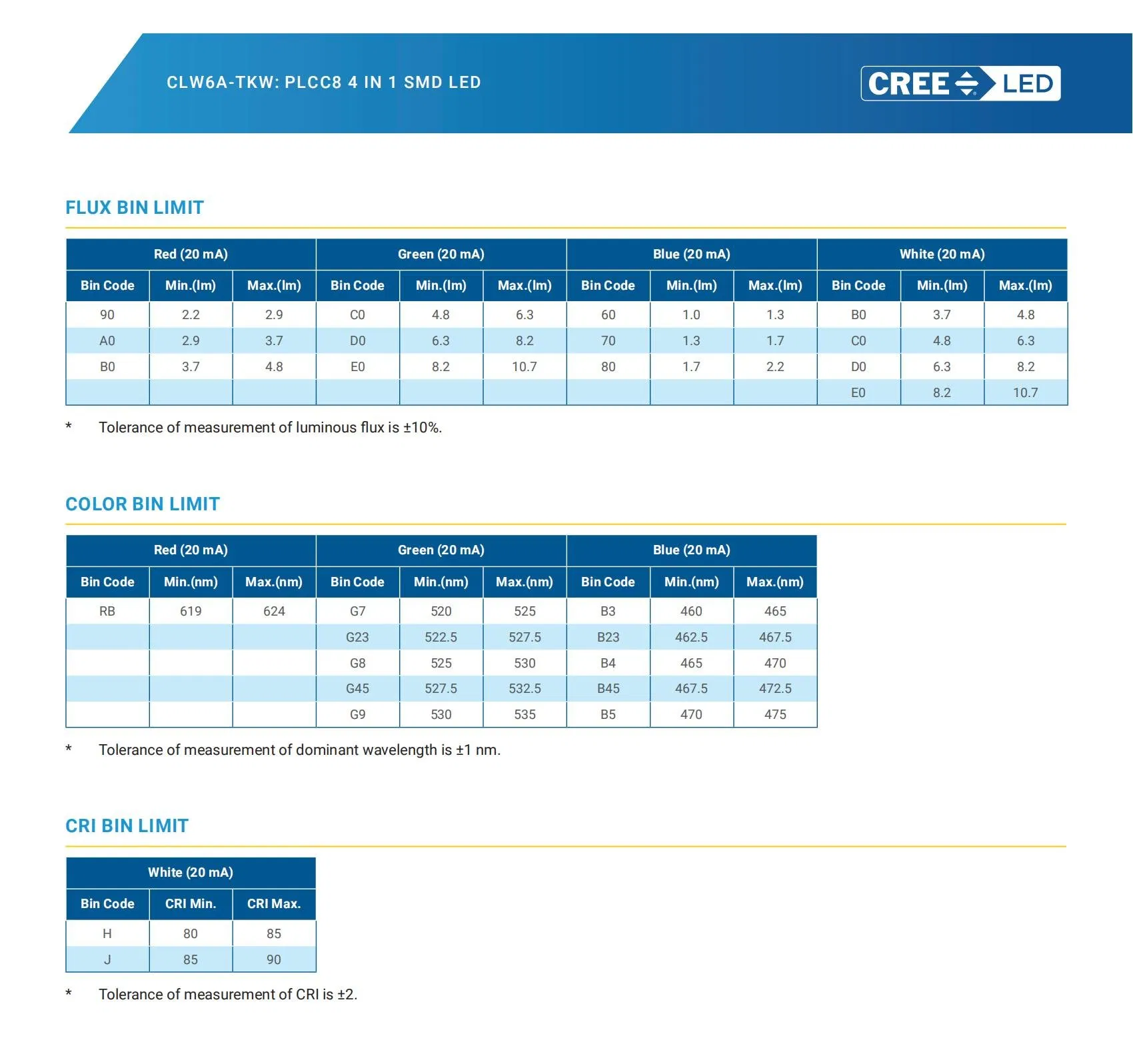

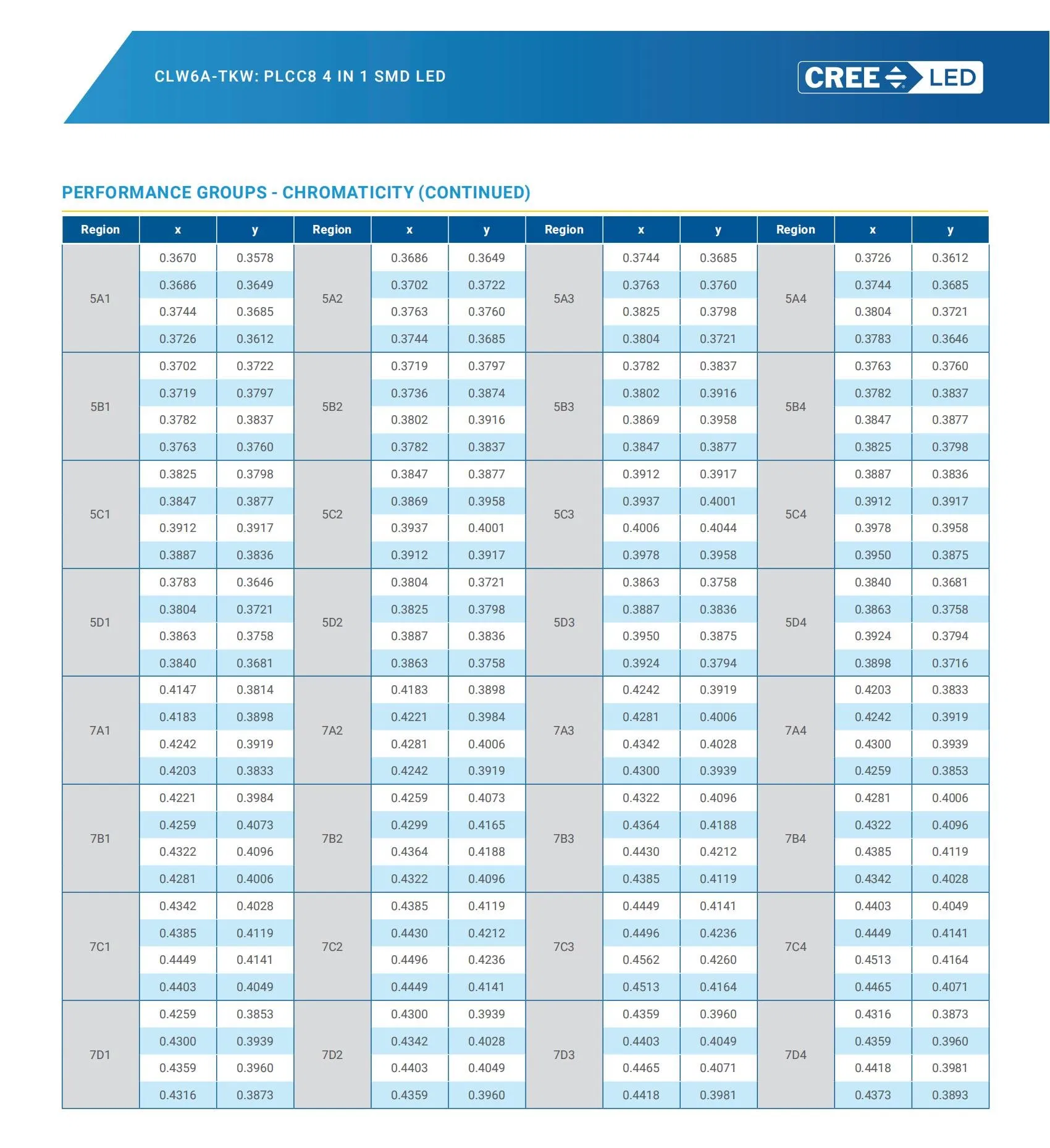

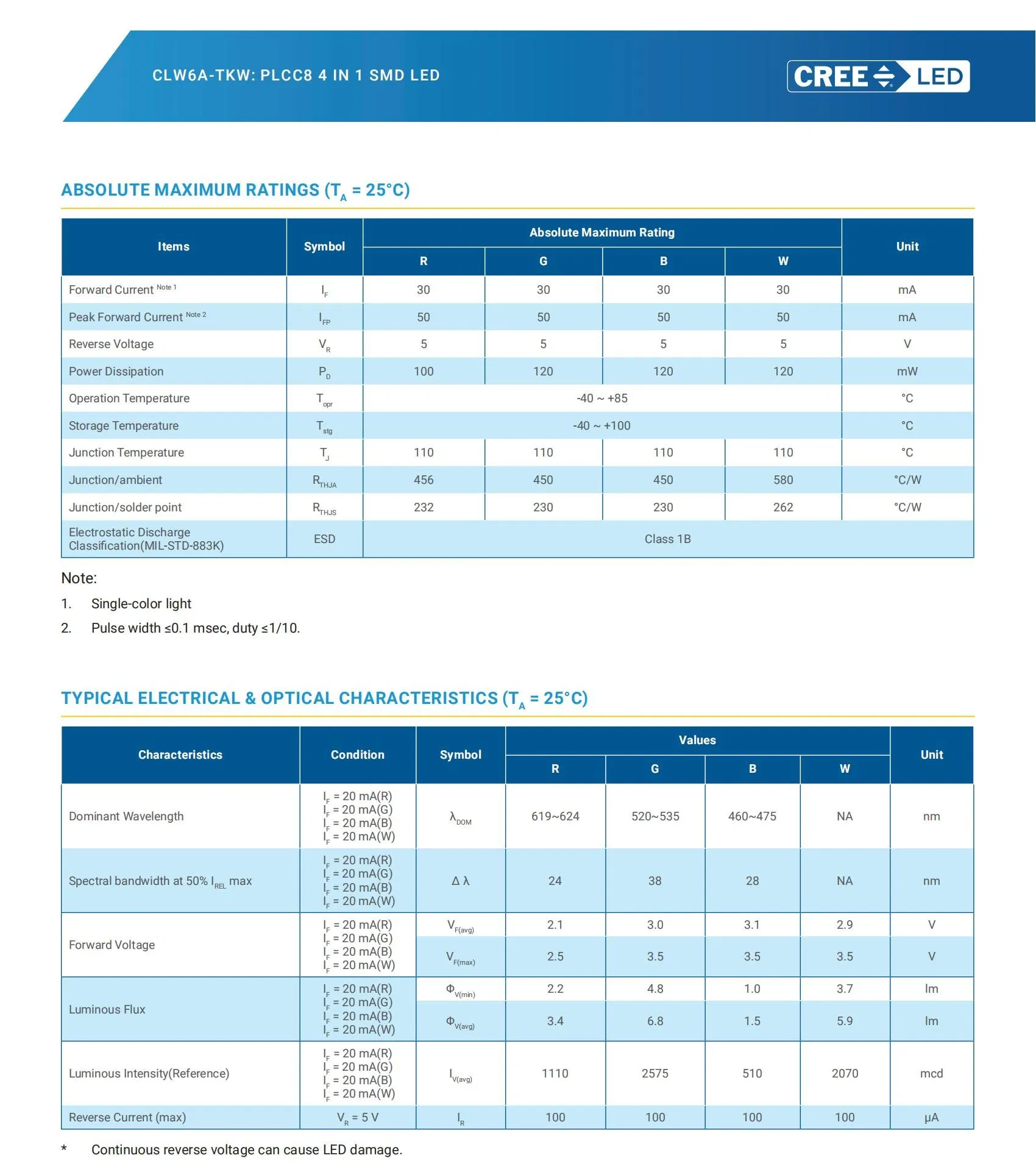

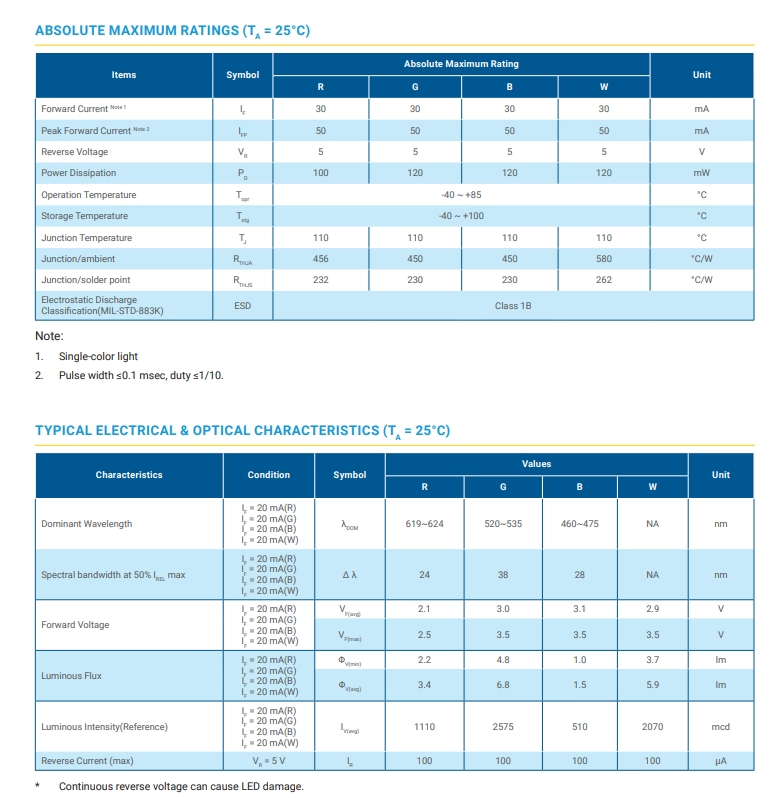

Technical Specifications

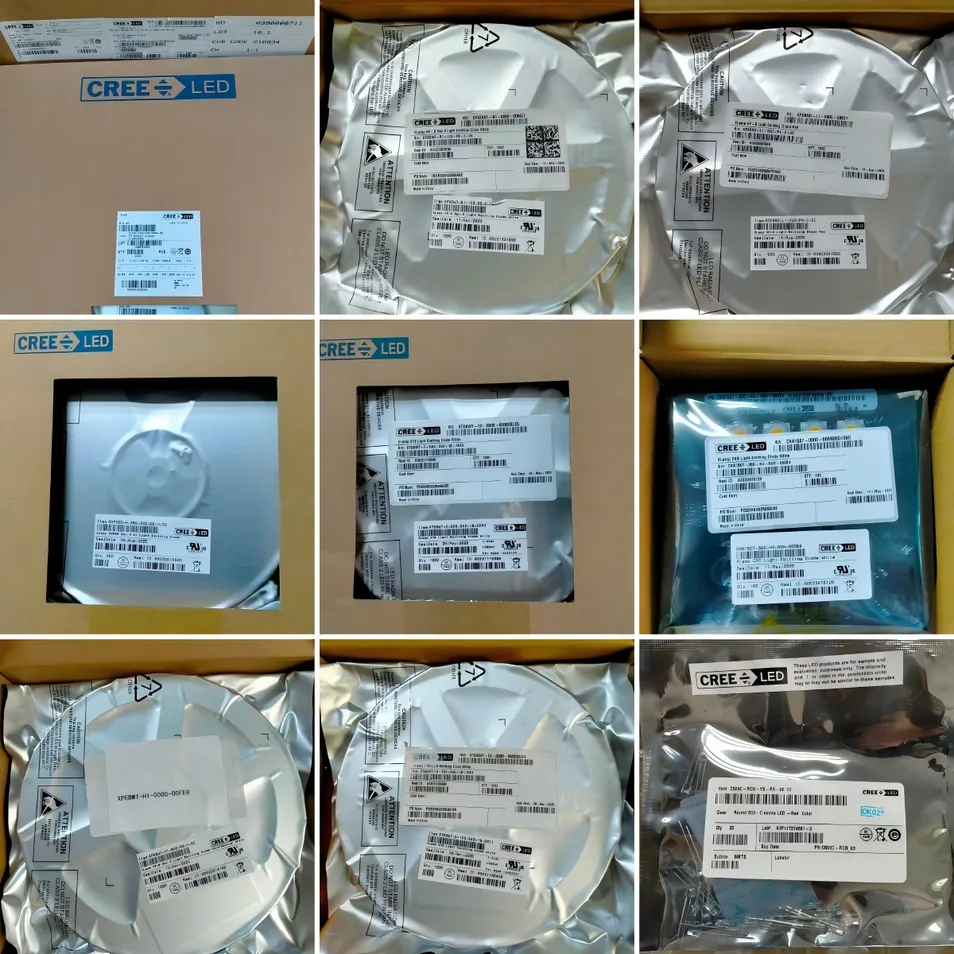

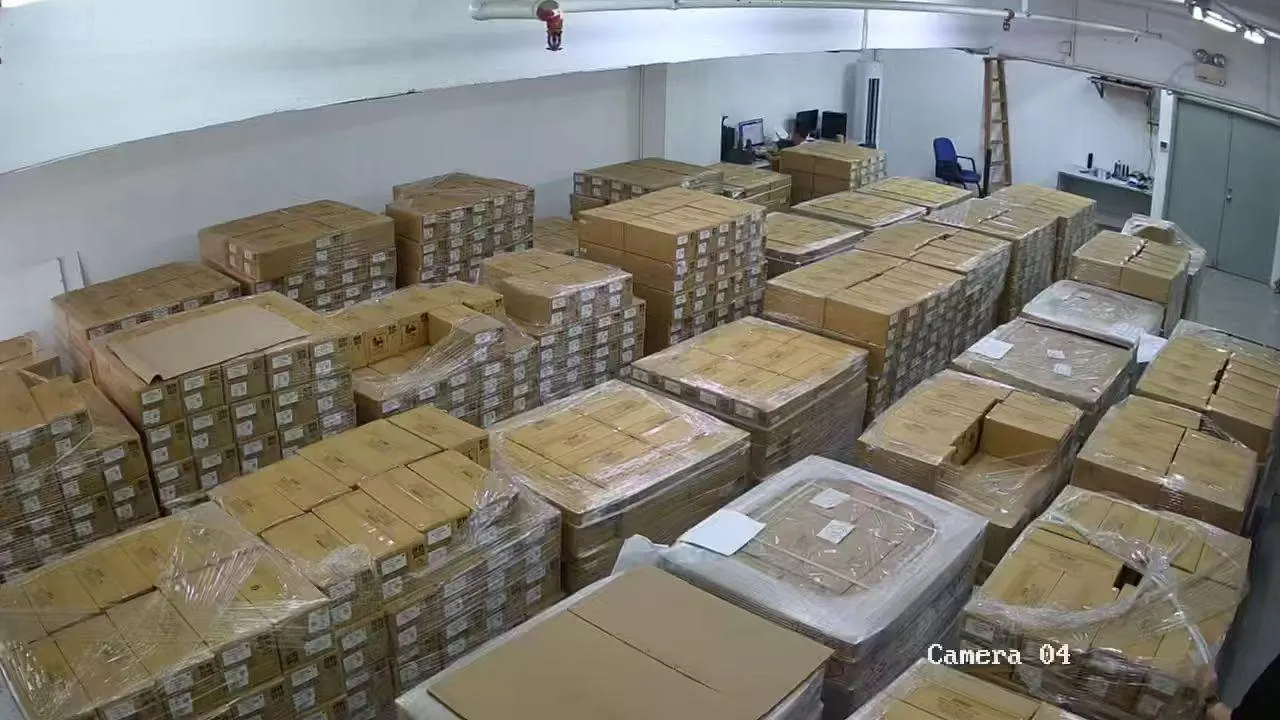

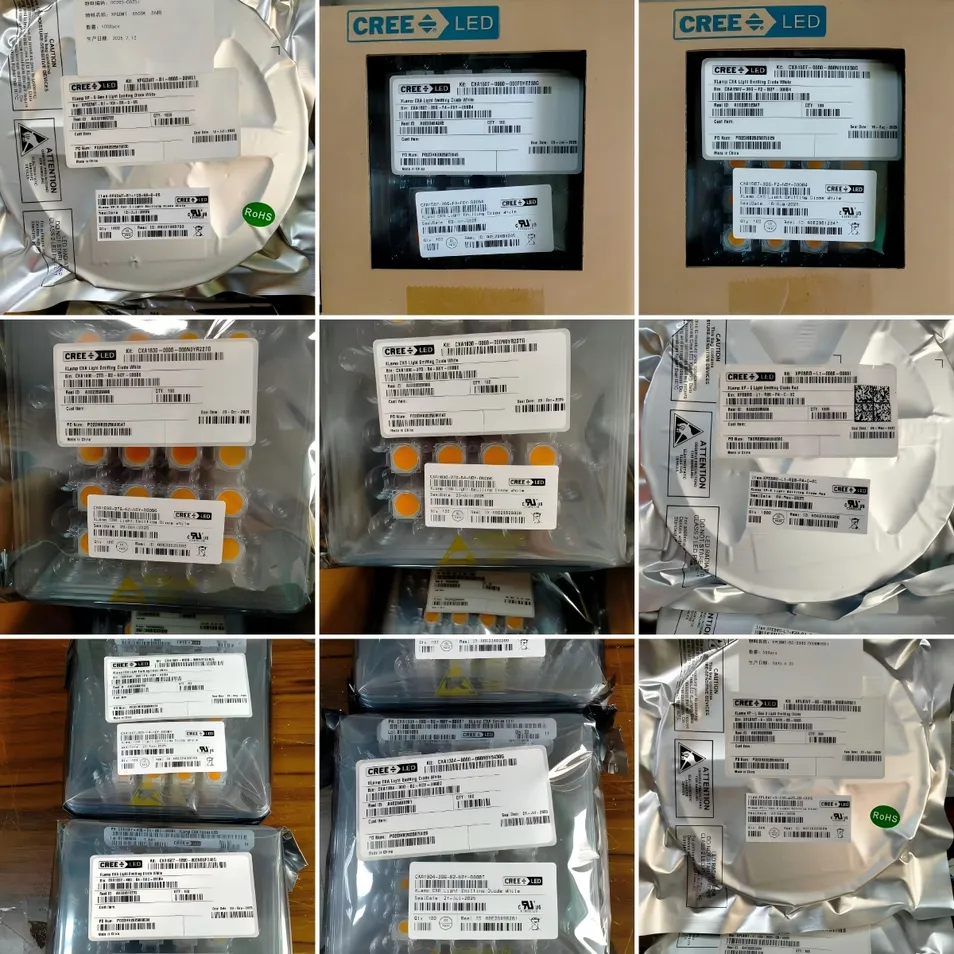

Packing & Delivery

More Products

Professional Service & Support

With over 12 years of focus on the LED industry, we provide high-quality LED components and drivers from prestigious global brands. Our mission is to provide fast, consistent, and highly responsive service to global lighting manufacturers and distributors.

Frequently Asked Questions

Q1. Can I have a sample order for these LED chips?

A: Yes, we welcome sample orders to test and check the quality. Mixed samples are acceptable.

Q2. What is the typical delivery cycle for orders?

A: It usually takes 3-5 days for samples and 1-2 weeks for batch production depending on the quantity.

Q3. What are the main applications for the CLW6A 4-in-1 LEDs?

A: These LEDs are ideal for signage, architecture lighting, decorative lighting, and amusement applications due to their high brightness and wide viewing angle.

Q4. What colors are integrated into this SMD 3535 LED?

A: This is a 4-in-1 LED featuring Red, Green, Blue, and White (RGBW) chips in a single compact package.

Q5. Is the product environmentally certified?

A: Yes, these LEDs are lead-free and fully RoHS compliant, meeting international environmental standards.

Q6. What is the estimated lifespan of these CREE LEDs?

A: These LEDs are rated for a long operational life of approximately 50,000 hours under standard conditions.
