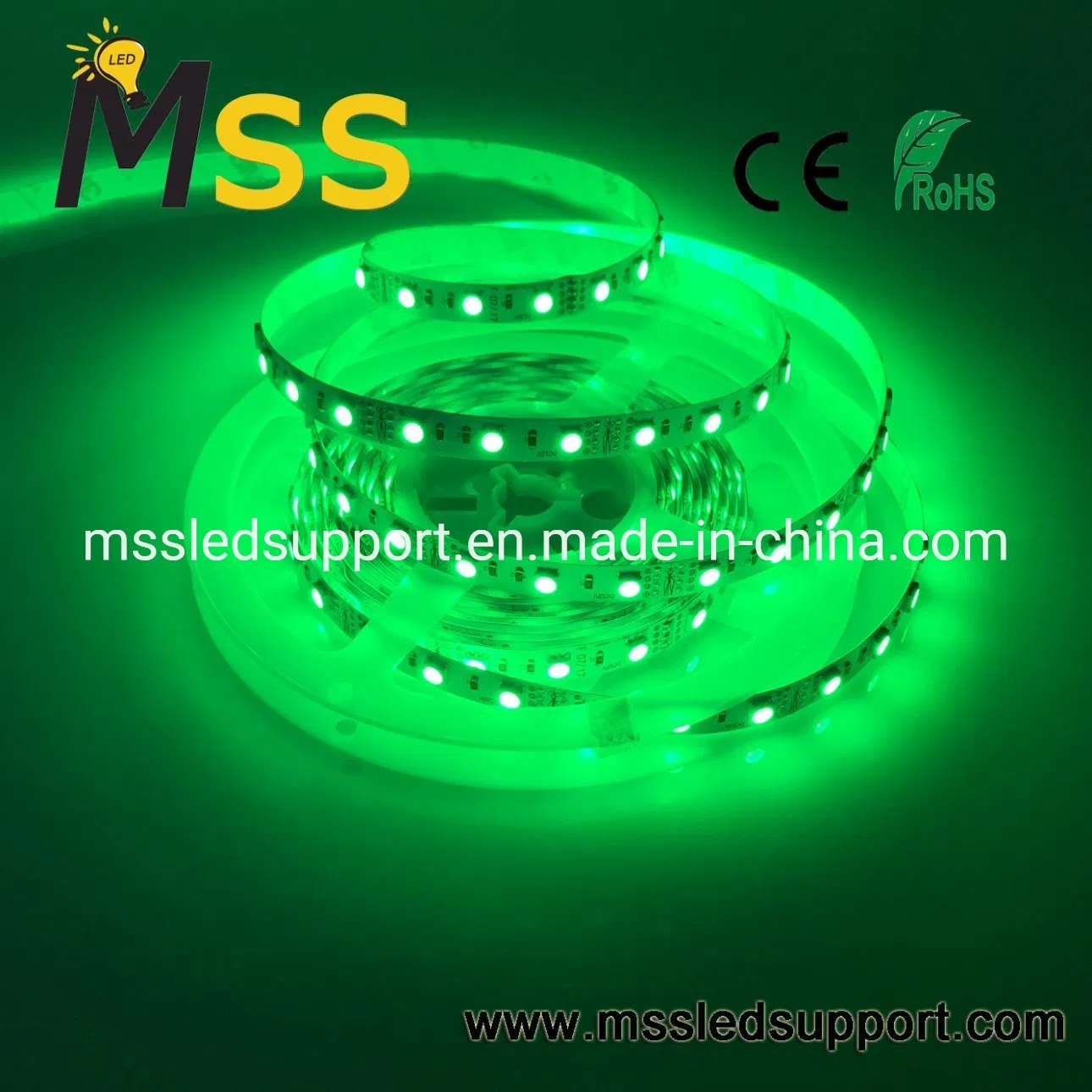

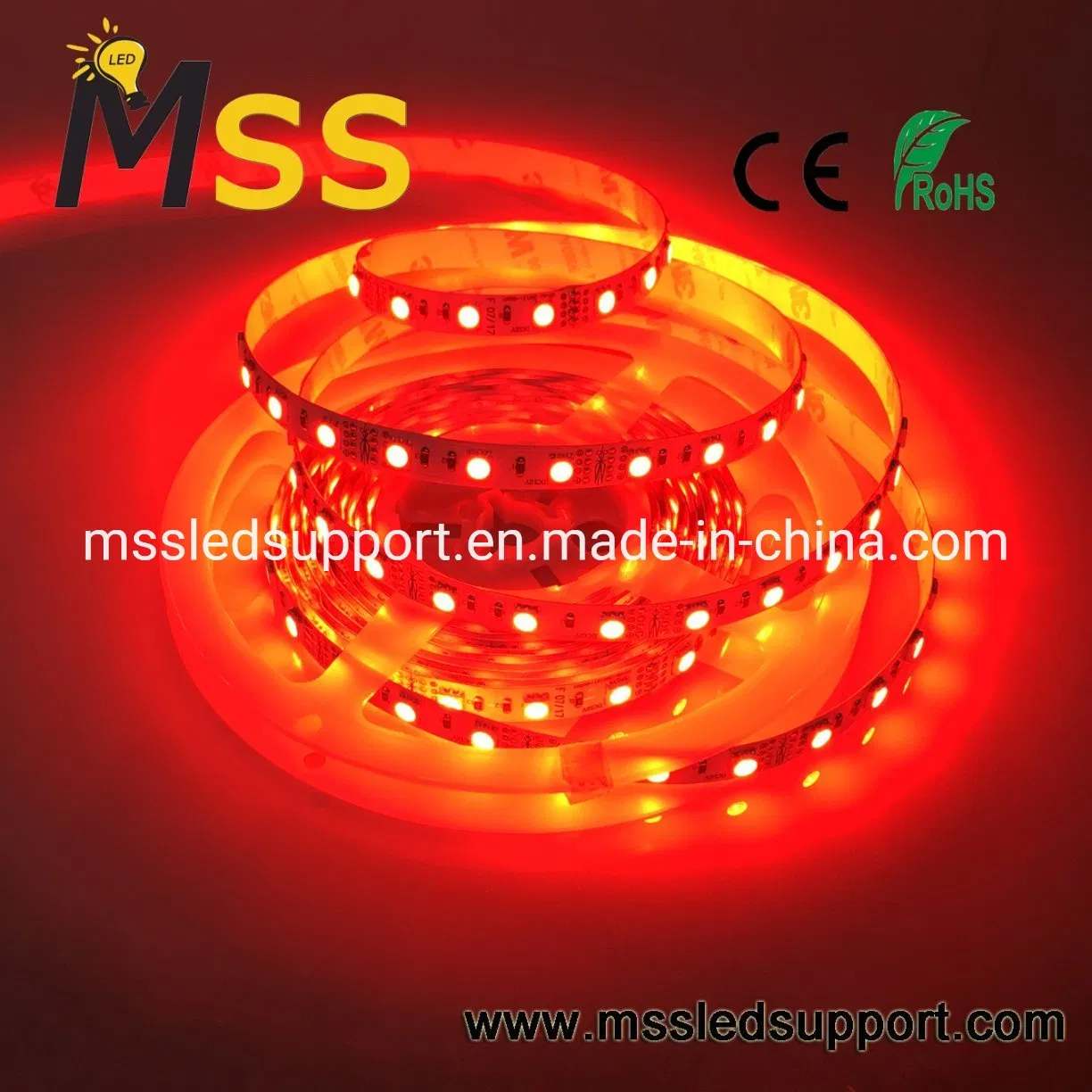

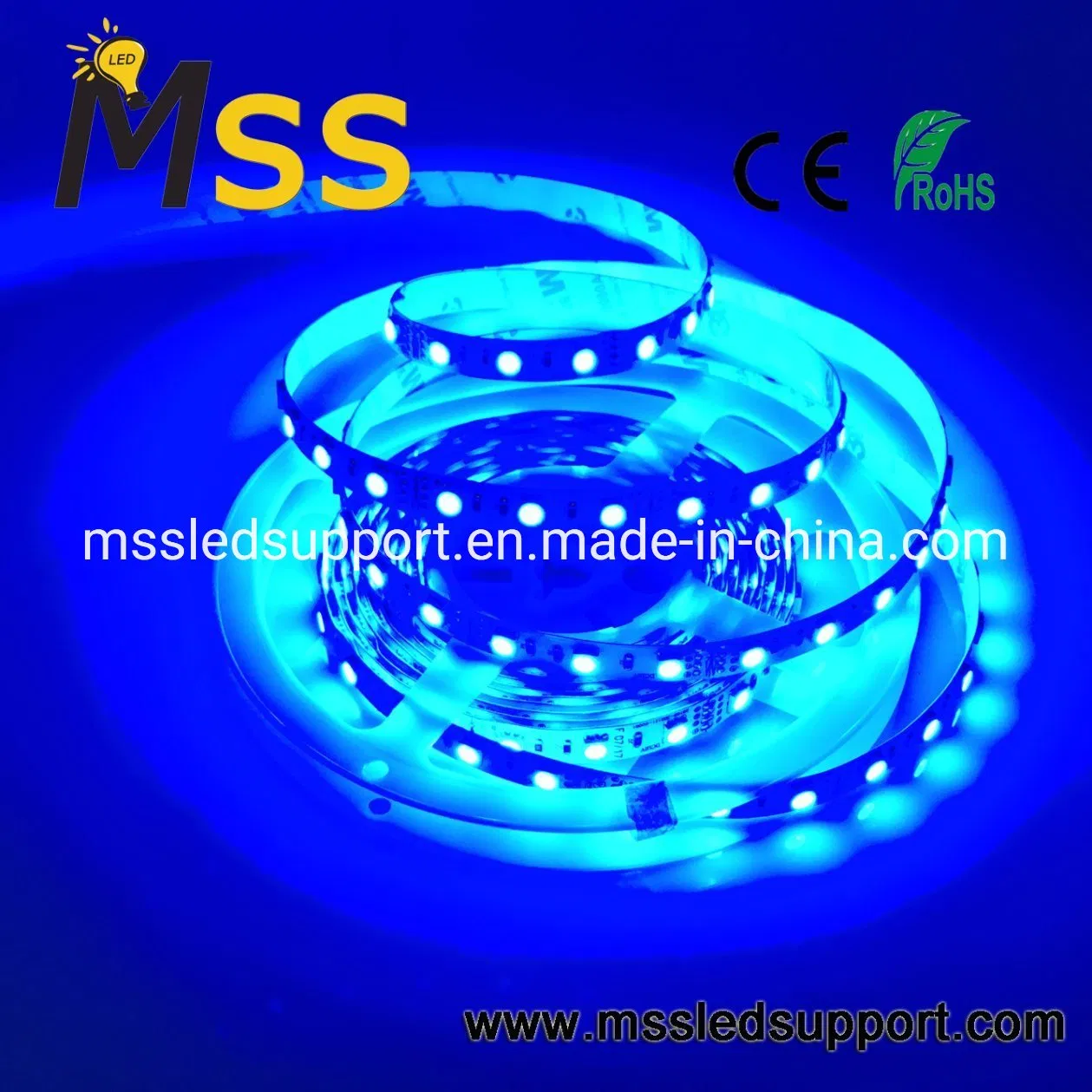

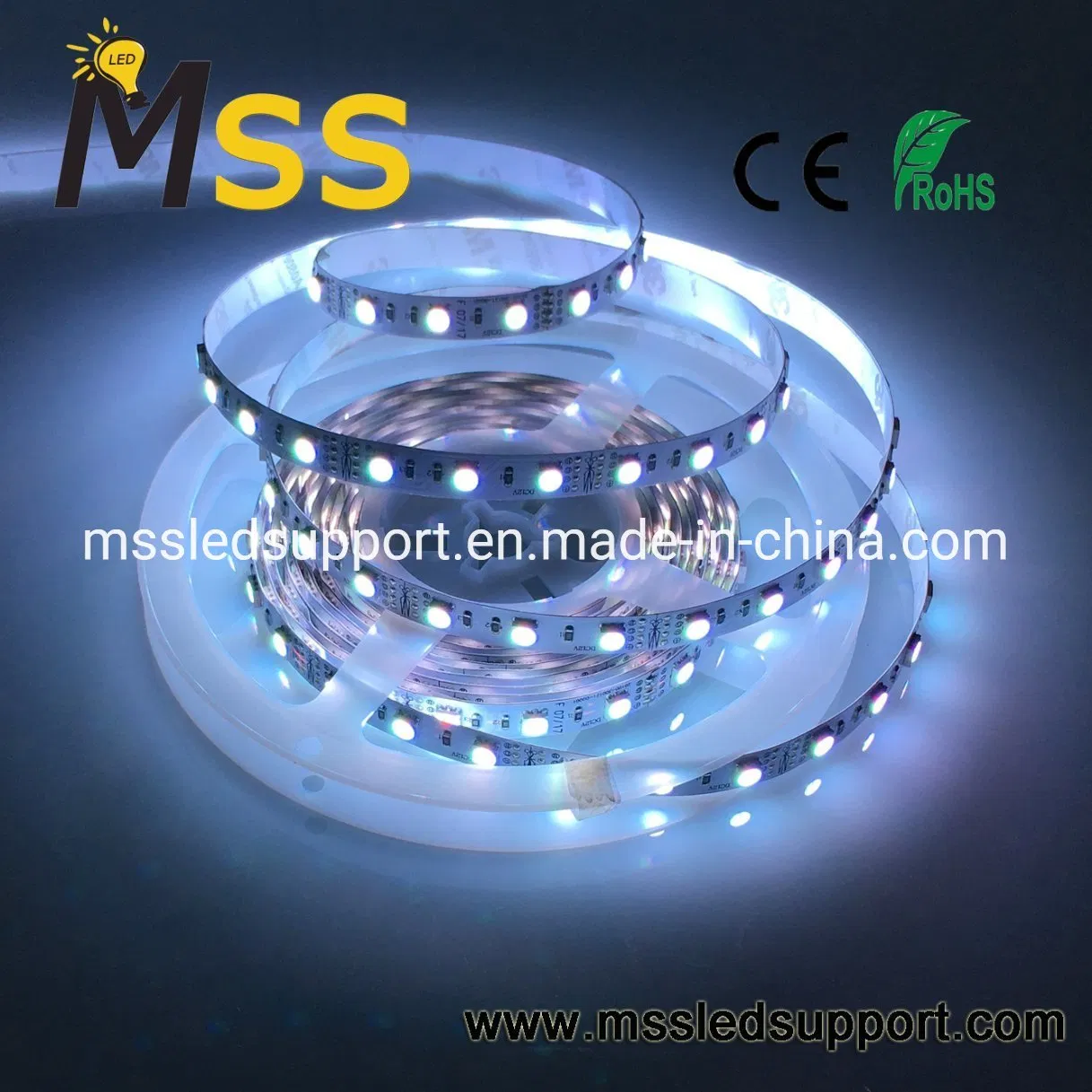

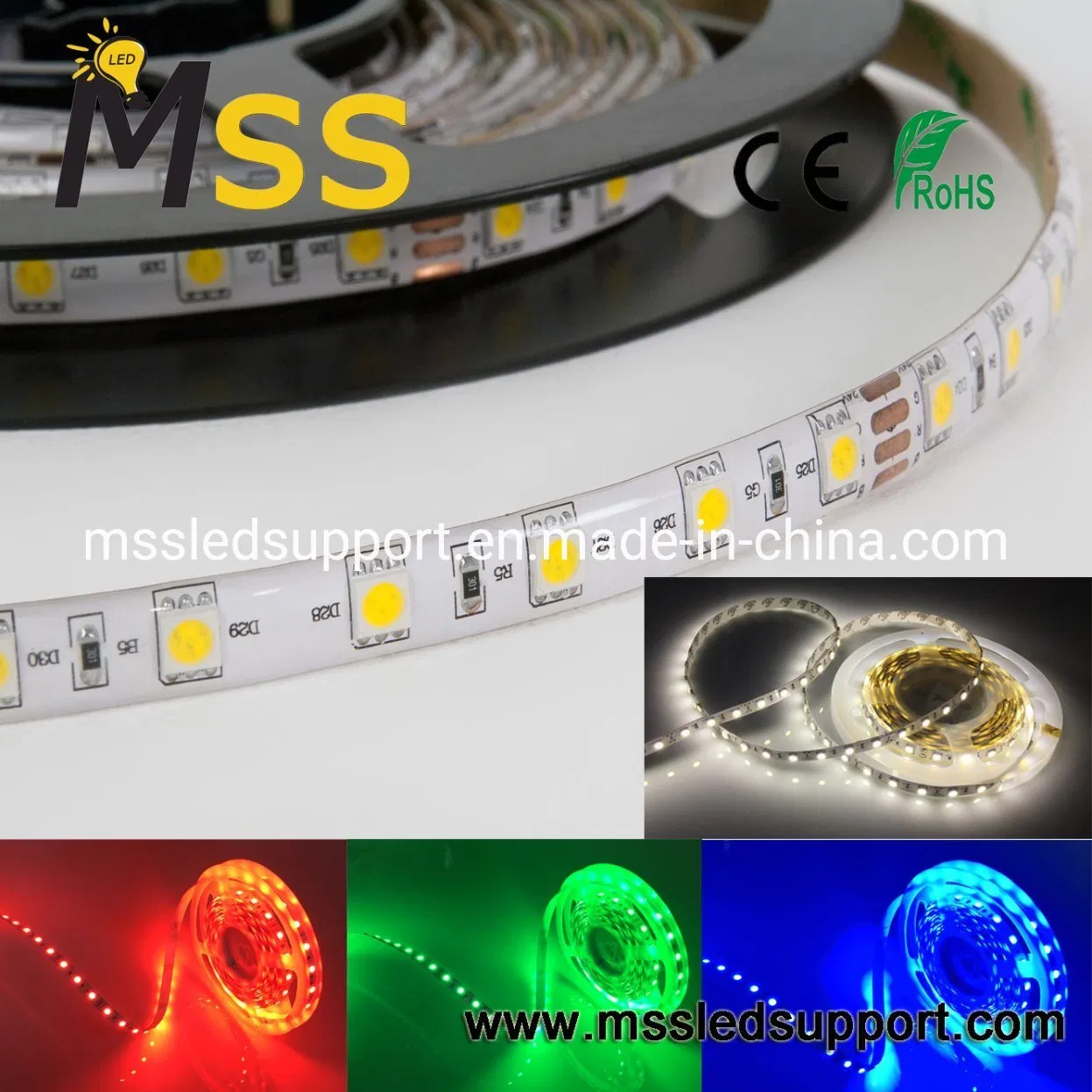

Long Life LED Strip Light RGB DC12V SMD5050 Flexible LED Strip Light
Main Features:
Environmental and Application Conditions:
| Parameter | Range |
|---|---|
| Ambient temperature range (TA on free air) | -25…..+50ºC |
| Operating (case) temperature range (TC) | -25…..+50ºC |
| Storage temperature range | -25…..+60ºC |
| IP rating | IP33 |
Electrical Parameters:
| Supply voltage range | 12.5±0.5 VDC |
| Supply Current range (per meter) | Max: 1200mA |
| Power range (per meter) | Max: 14.4 W |
| ESD protection | Contact 4KV, Air 8KV |
Optical Parameters:
| Part No. | Color Range (Wavelength) | Min. Lumen | Typ. Lumen |
|---|---|---|---|
| F300-5050RGB-R | 620nm - 630nm | 120LM | 150LM |
| F300-5050RGB-G | 520nm - 530nm | 400LM | 480LM |
| F300-5050RGB-B | 460nm - 470nm | 70LM | 90LM |

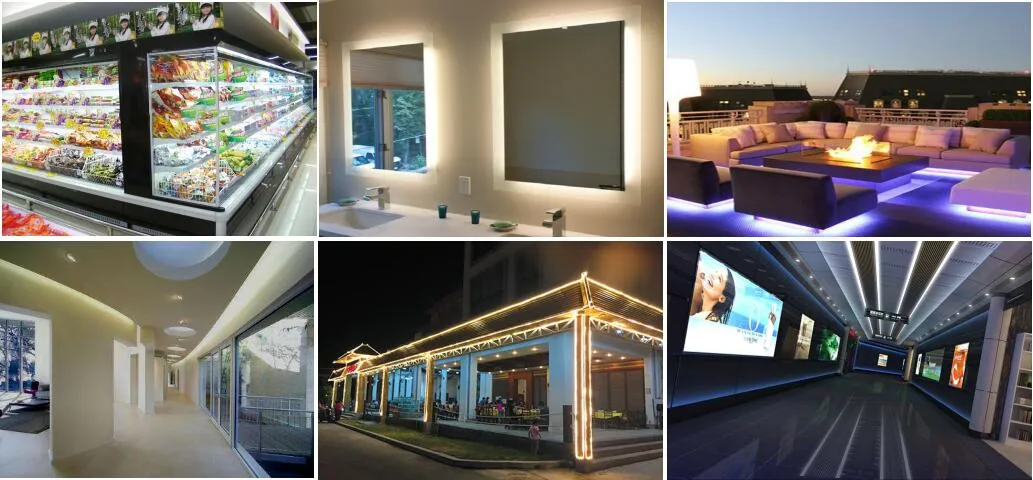

Applications:
Attention:
1. Max length is 5 meters per power supply.
2. Avoid mechanical stress on components.
3. Ensure adequate power supply capacity.
4. Housing design must match IP standards.
5. Use lightning protection if not built into the supplier.
