Luminuss Sbm-40-RGBW-LC41-QC100 Multi Color LED RGBW High Power LED
Luminuss Sbm-40-RGBW-LC41-QC100 Multi Color LED RGBW High Power LED
Luminuss Sbm-40-RGBW-LC41-QC100 Multi Color LED RGBW High Power LED
Luminuss Sbm-40-RGBW-LC41-QC100 Multi Color LED RGBW High Power LED
Luminuss Sbm-40-RGBW-LC41-QC100 Multi Color LED RGBW High Power LED
1 / 5
Luminuss Sbm-40-RGBW-LC41-QC100 Multi Color LED RGBW High Power LED
Luminuss Sbm-40-RGBW-LC41-QC100 Multi Color LED RGBW High Power LED
Luminuss Sbm-40-RGBW-LC41-QC100 Multi Color LED RGBW High Power LED
Luminuss Sbm-40-RGBW-LC41-QC100 Multi Color LED RGBW High Power LED
Luminuss Sbm-40-RGBW-LC41-QC100 Multi Color LED RGBW High Power LED

Luminuss Sbm-40-RGBW-LC41-QC100 Multi Color LED RGBW High Power LED

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
SBM-40-RGBW-LC41-QC100
IP Rating
IP33
Power Source
2.3 V, 3.2 V, 3.2 V, 3.2 V
Lamp Holder
SMD/SMT
Material
Ceramic
Life
50000h
LED Chips
Luminuss
Certification
RoHS, CE
Color
Red, Green, Blue, White (RGBW)
Luminous Flux
90 Lm, 210 Lm, 210 Lm
Viewing Angle
120 Deg
Origin
China
P

Product Description

LED Lighting Color SBM-40-LC Red, Green, Blue, White (RGBW)

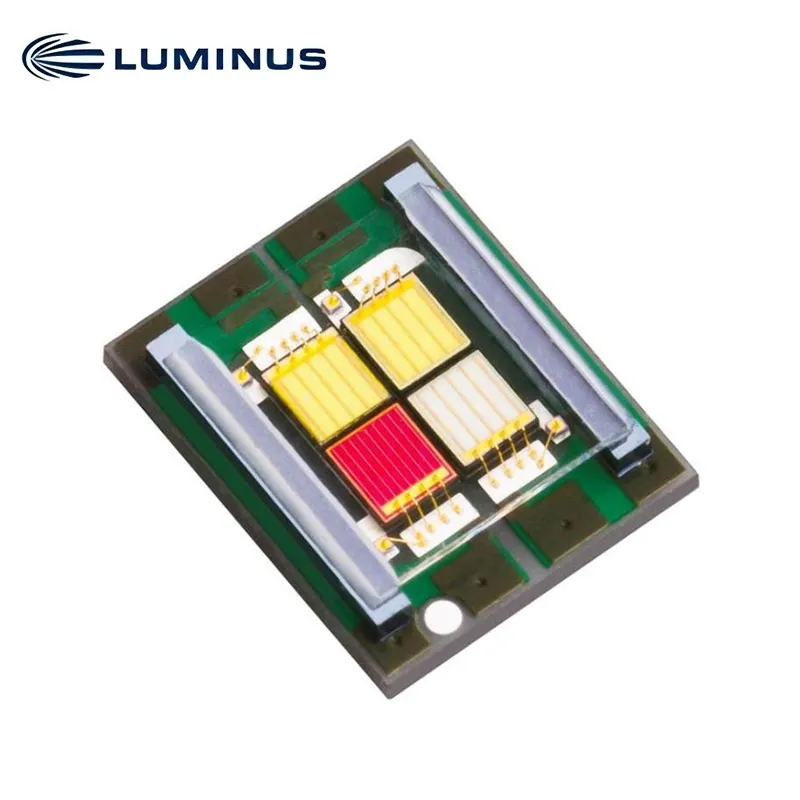

Multi Color LED RGBW High Power LED

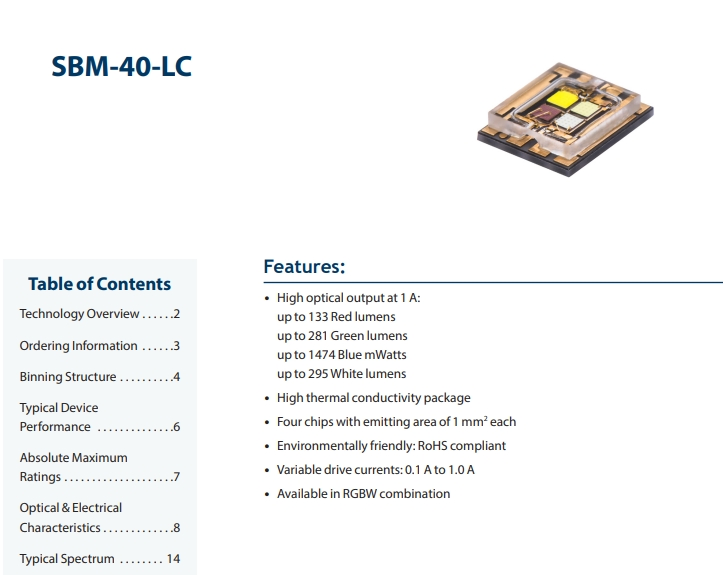

Main Features

  • High optical output at 1 A (Up to 295 White lumens)
  • High thermal conductivity package
  • Four chips with emitting area of 1 mm2 each
  • Environmentally friendly: RoHS compliant
  • Variable drive currents: 0.1 A to 1.0 A
  • Available in RGBW combination

Applications

  • Entertainment / Stage Lighting
  • Architectural Lighting
  • Spot Lighting
  • Pool and Fountain Lighting
  • Medical Lighting
  • Machine Vision
S

Technical Specifications

Product Attribute Attribute Value
ManufacturerLuminuss Devices
Product CategoryMulti-Color LEDs
Mounting StyleSMD/SMT
Wavelength622 nm, 527 nm, 455 nm
Forward Current (If)700 mA
Forward Voltage (Vf)2.3 V, 3.2 V, 3.2 V, 3.2 V
Lens ShapeSquare / Clear
Dimensions5.75 mm x 4.68 mm x 1.21 mm
SeriesSFT-40-RGBW

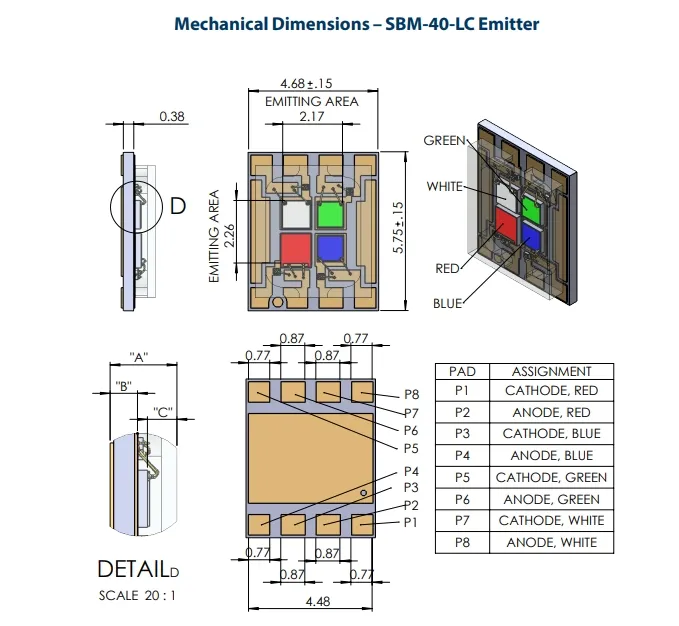

Technical Drawing
D

Performance Charts

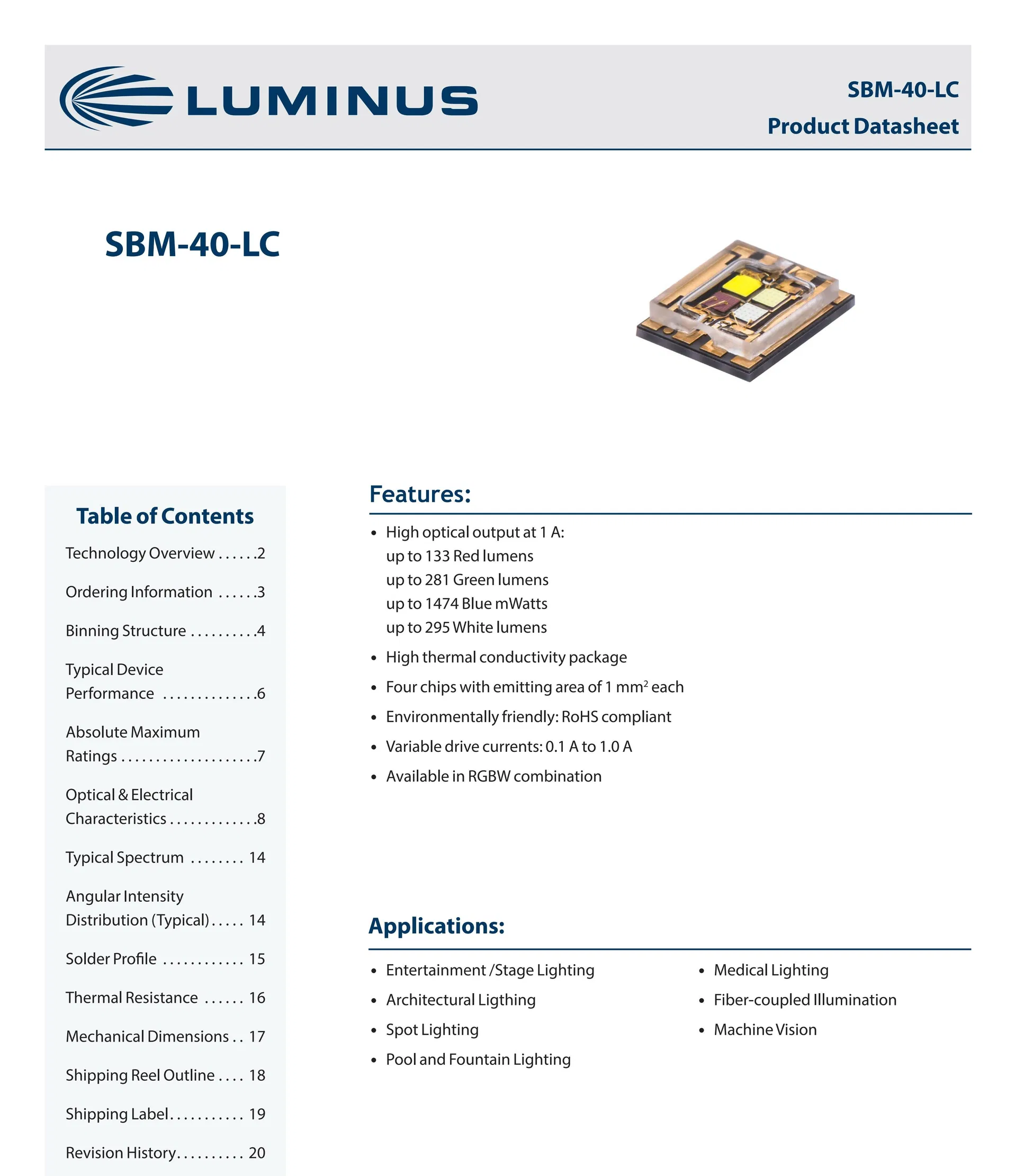

Specification Chart 1

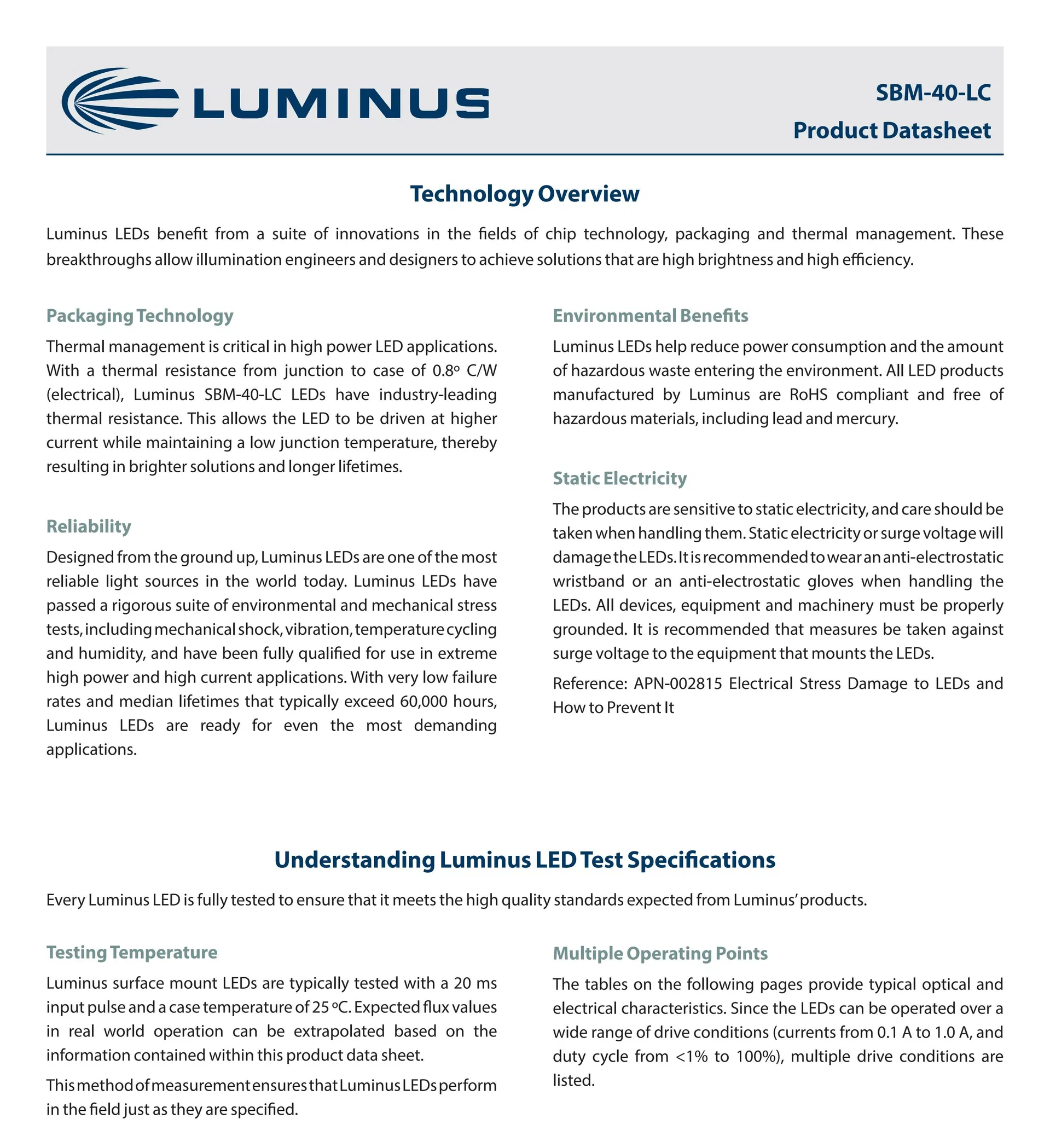

Specification Chart 2

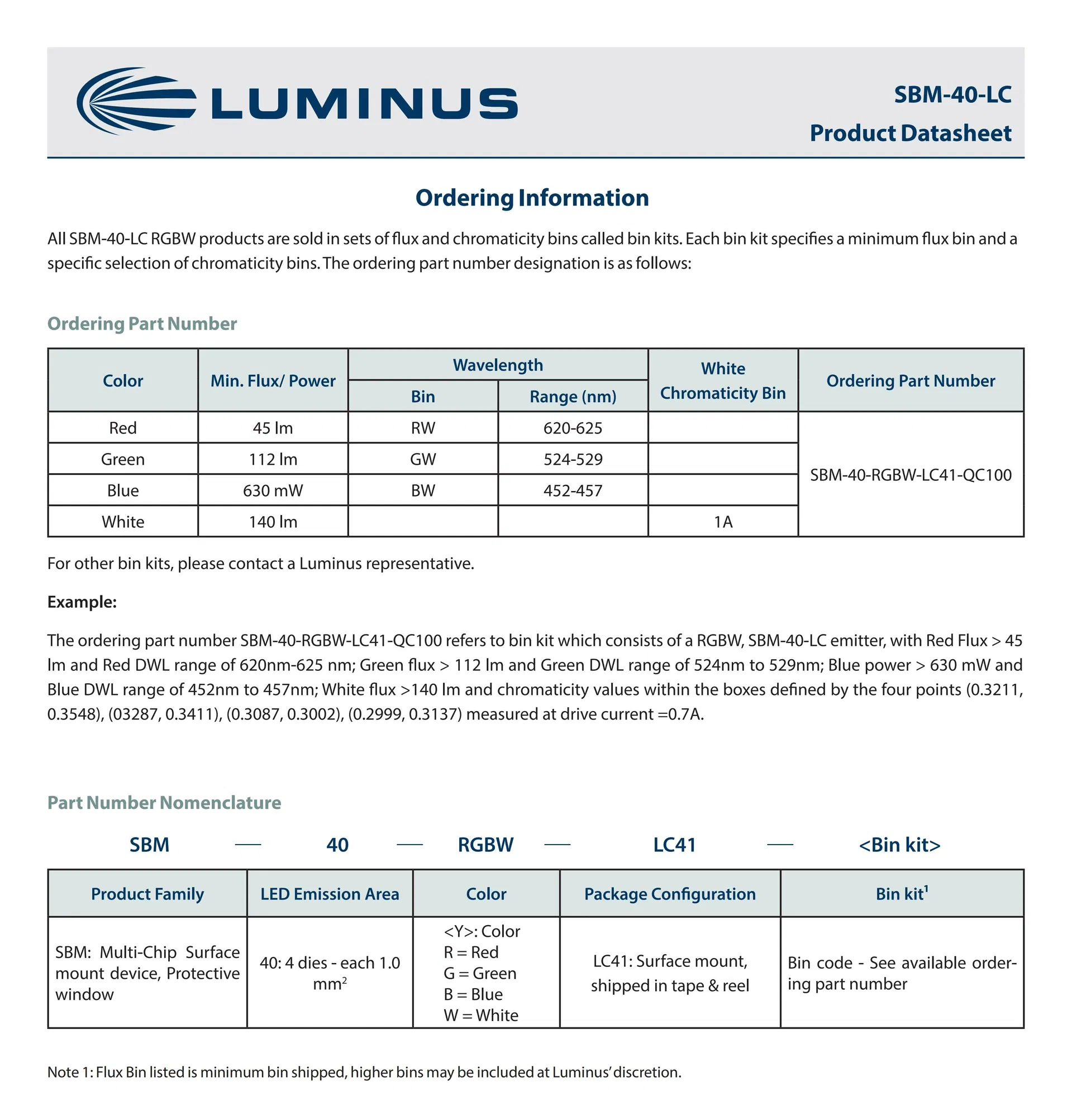

Specification Chart 3
L

Packing & Delivery

Package Size
40.00cm * 40.00cm * 10.00cm
Gross Weight
2.000kg
Lead Time
7-15 days depending on quantity

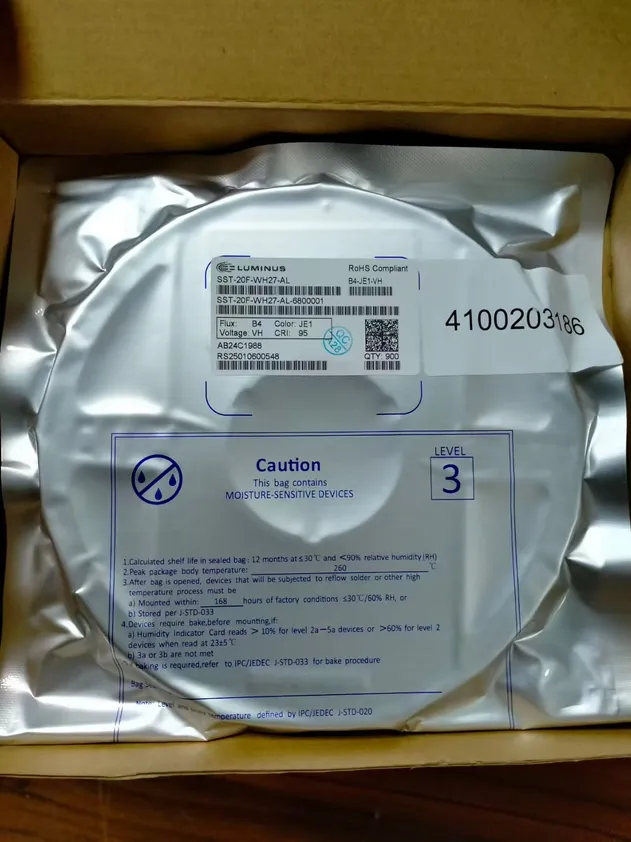

Packing 1

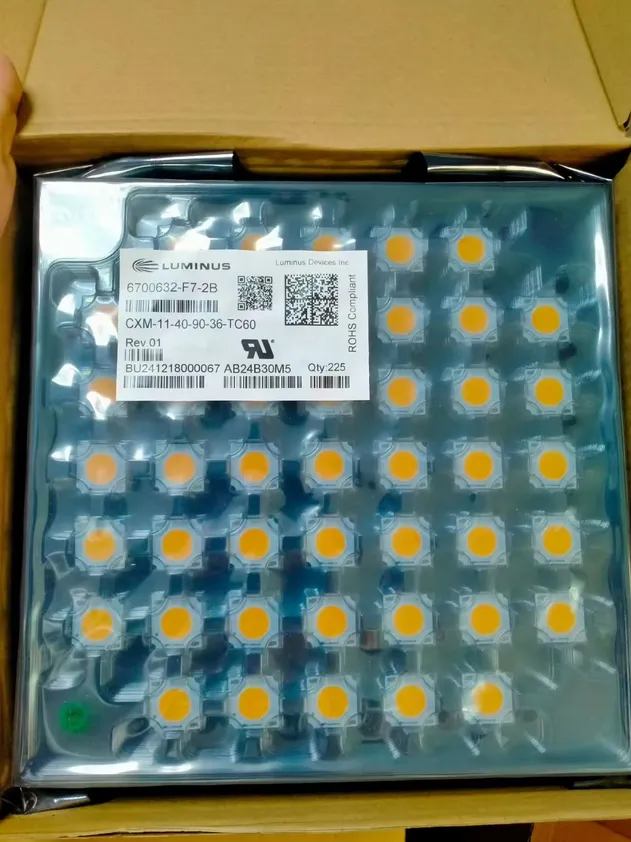

Packing 2

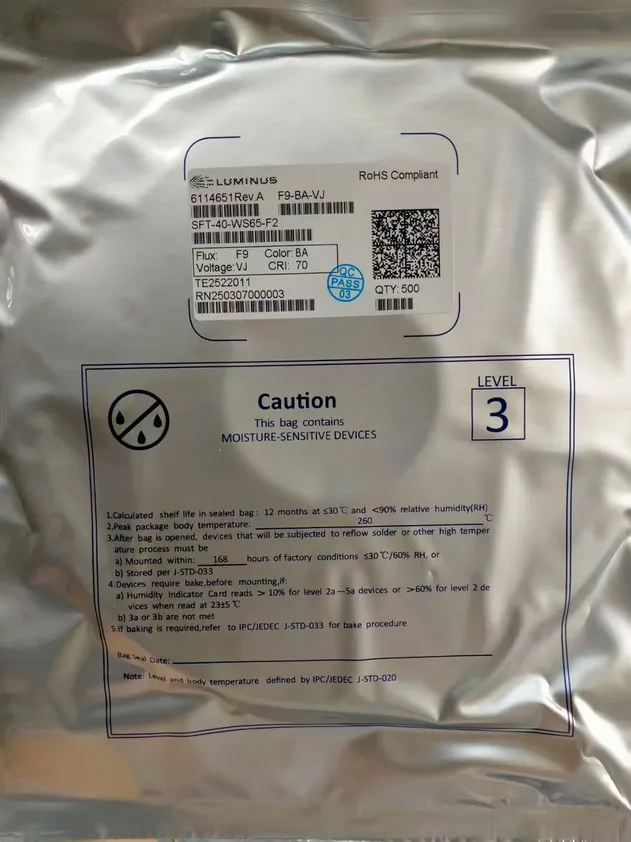

Packing 3
M

More Product Gallery

Product Range
?

Frequently Asked Questions

Can I have a sample order for LED chips?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
What is the typical delivery cycle?
It generally takes 3-5 days for samples and 1-2 weeks for batch production.
How do I place an order for these LEDs?
First, let us know your requirements. Second, we provide a quote. Third, the customer confirms samples and pays the deposit. Fourth, we arrange production.
What is the lifespan of the SBM-40 series?
These LED chips are designed for a long operational life of up to 50,000 hours.
Are these products RoHS compliant?
Yes, the SBM-40-RGBW series is environmentally friendly and fully RoHS compliant.
What are the primary applications for these LEDs?
They are ideal for entertainment/stage lighting, architectural lighting, medical lighting, and machine vision applications.
