1.2 Inch 5X7 DOT Matrix LED Display with Square DOT From China Manufacturer

1 / 5

1.2 Inch 5X7 DOT Matrix LED Display with Square DOT From China Manufacturer

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

LM120572

Emitting Color

Two-color

Power

IP Rating

Not Water-Proof

Pixel Pitch

4.1mm

LED Chips

Mic

Life

50000h

Certification

Reach and RoHS

Outline Dimensions

28.6X20.3X10.5mm

Digit Height

1.2 Inch

DOT Number

35PCS

Chip Material

4-Element

Specification

5x7

Origin

China

Product Description

1.2 Inch 5X7 Dot Matrix LED Display with Square Dot

Dimensions & Circuitry

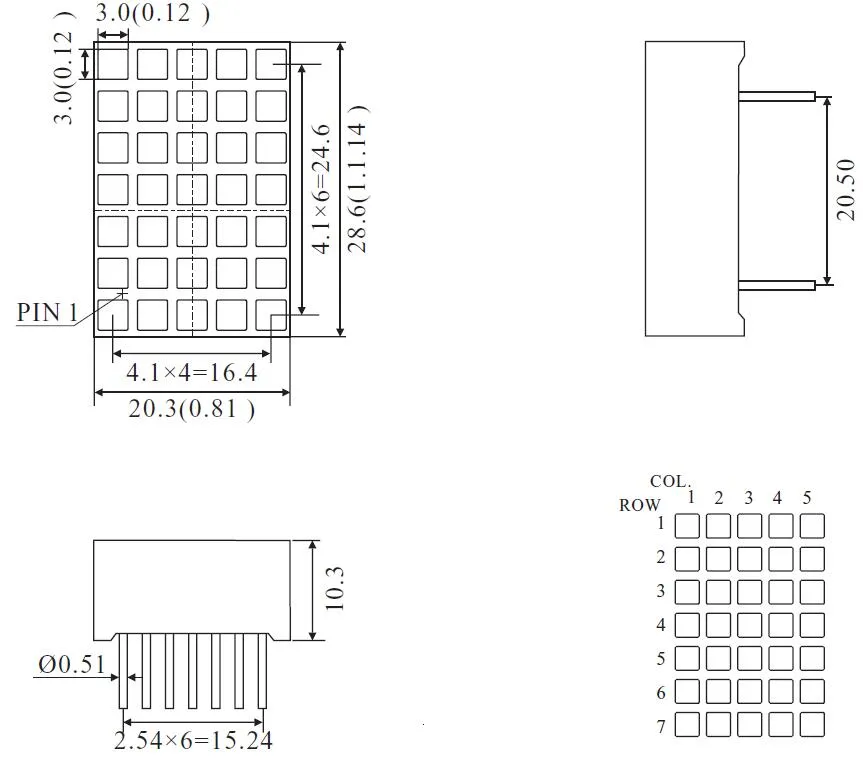

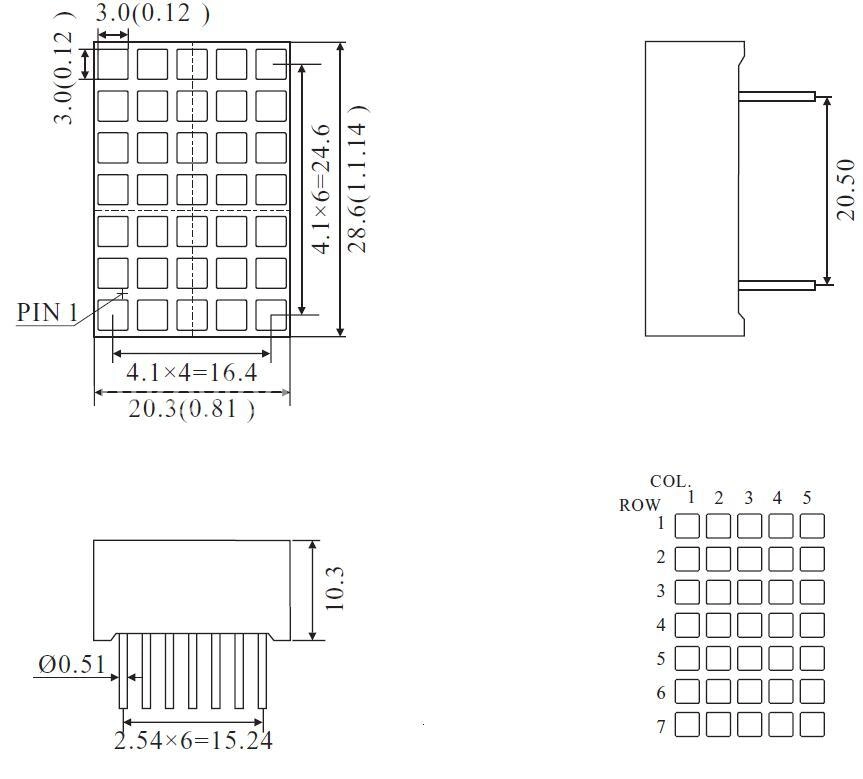

Size Detail and Circuit:

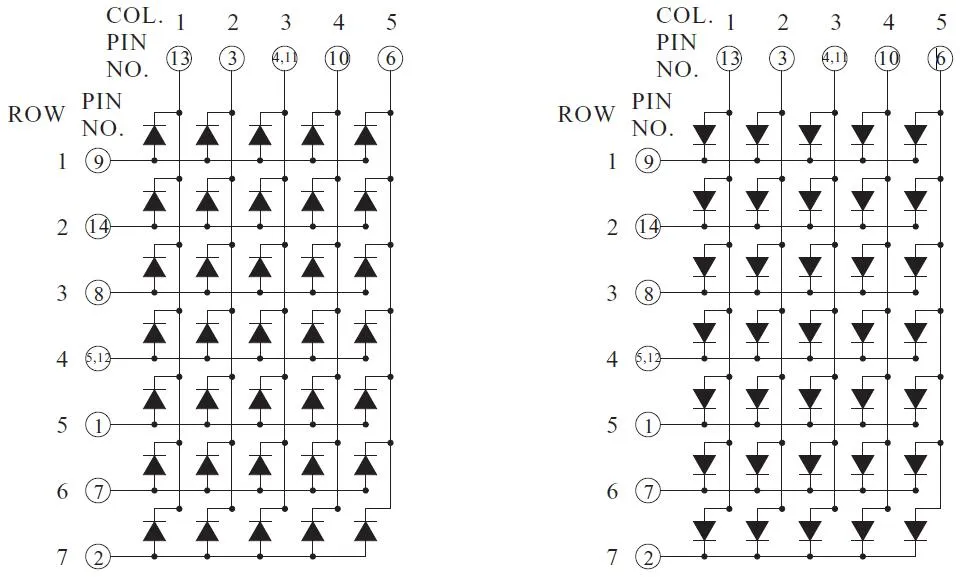

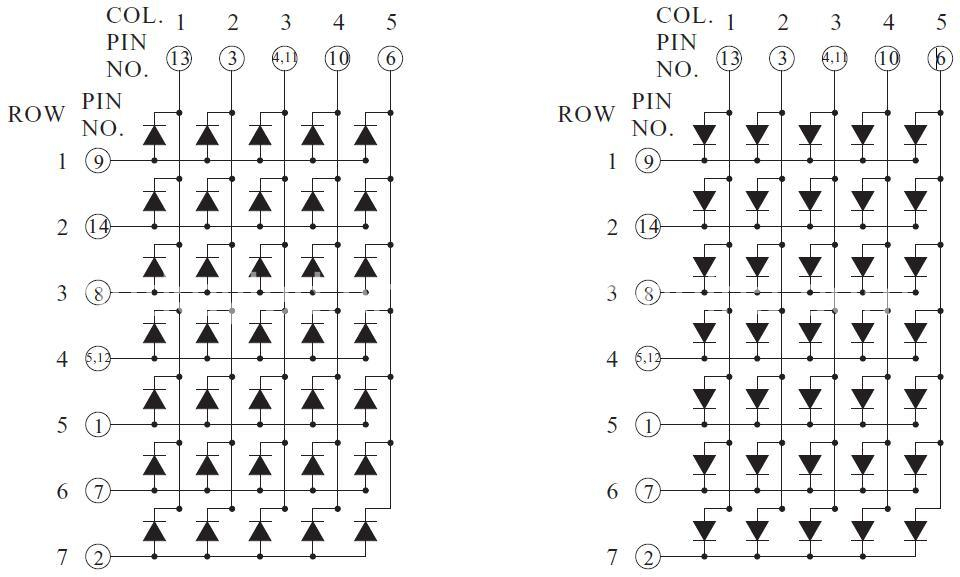

Internal Circuit Diagram:

Selection Guide

Feature	Details
Digit Height	1.2 inch (0.7 inch also available)
Available Emitting Color	Red, Yellow-Green, Orange, Amber, Yellow, Pure Green, Blue, White
Available Face Color	Red, White, Grey, and Black
Available Segment Color	Red, White (milky), Water Clear, and Yellow
Available Electrode	Common Anode or Common Cathode

★

Key Features

Multiple types available: 4X4, 5X7, 5X8, 8X8, and 16X16.
Versatile sizes: 0.7", 1", 1.2", 1.5", 2", 3", and 4".
Mounting options: Through-hole type or SMD Type.
Dot shapes: Round dot or Square dot options.

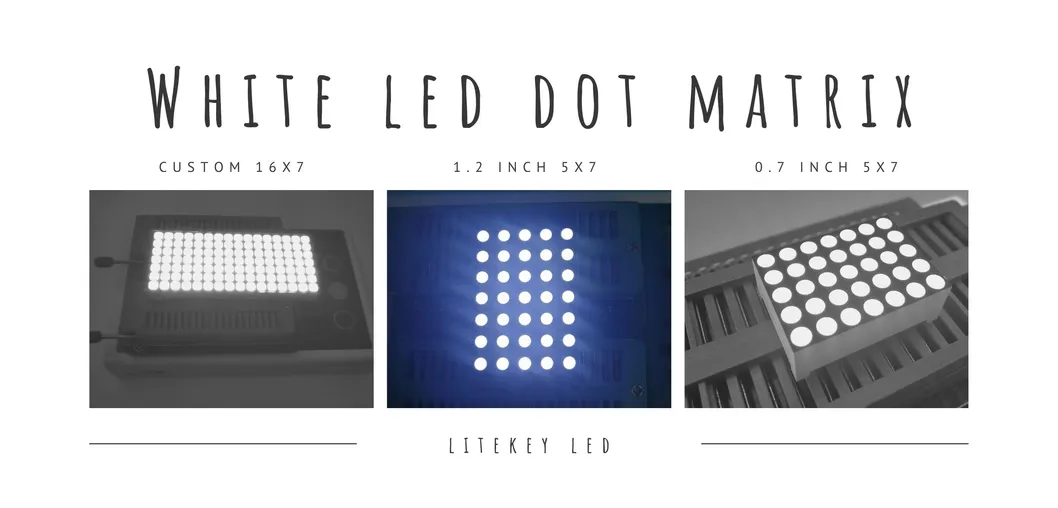

High-quality white LED dot matrix with superior brightness uniformity.
Customized designs available based on demand.

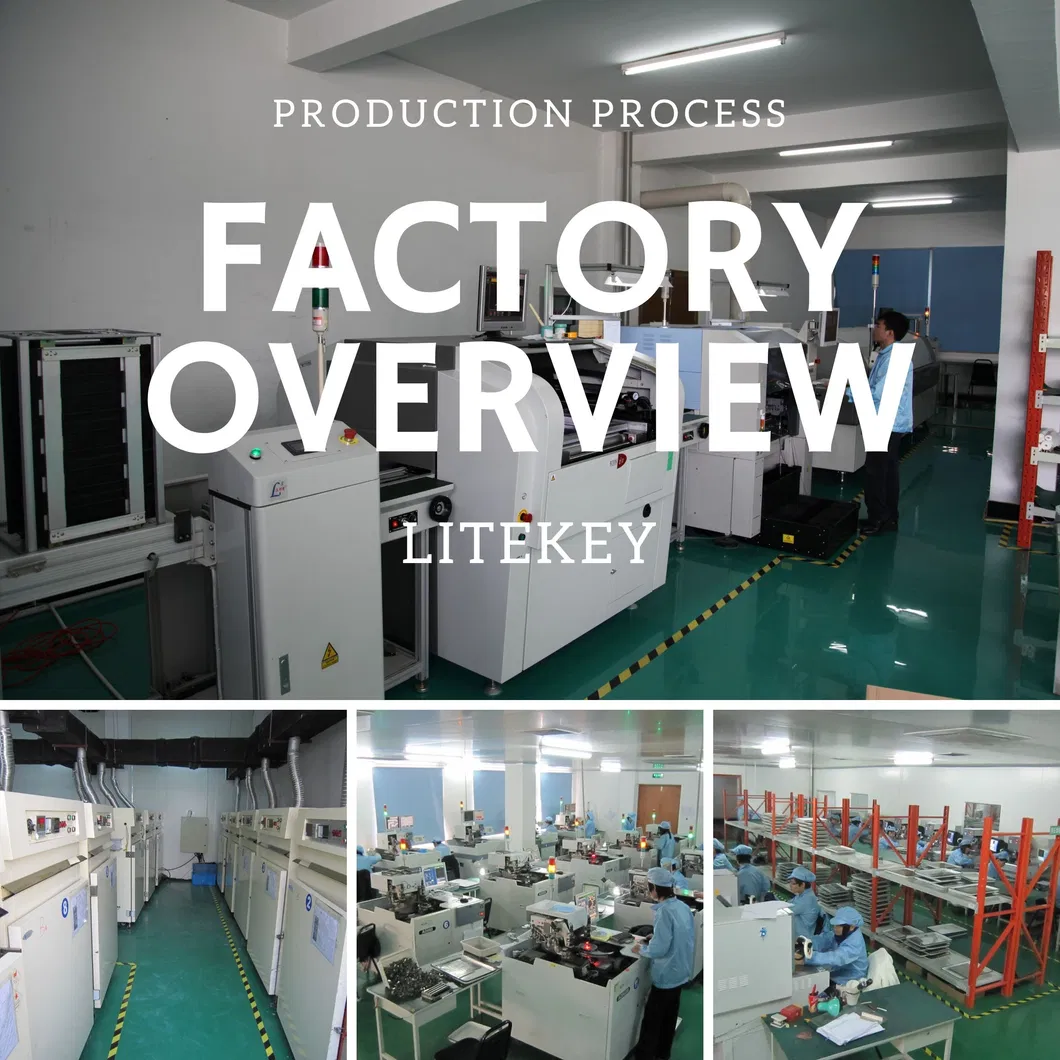

Factory Overview

✓

Why Choose Our LED Displays

1. Professional service: Replied within 24 hours (workdays).
2. Various ready moldings: No extra fee for standard moldings.
3. Customization: Tailored design according to specific requirements.

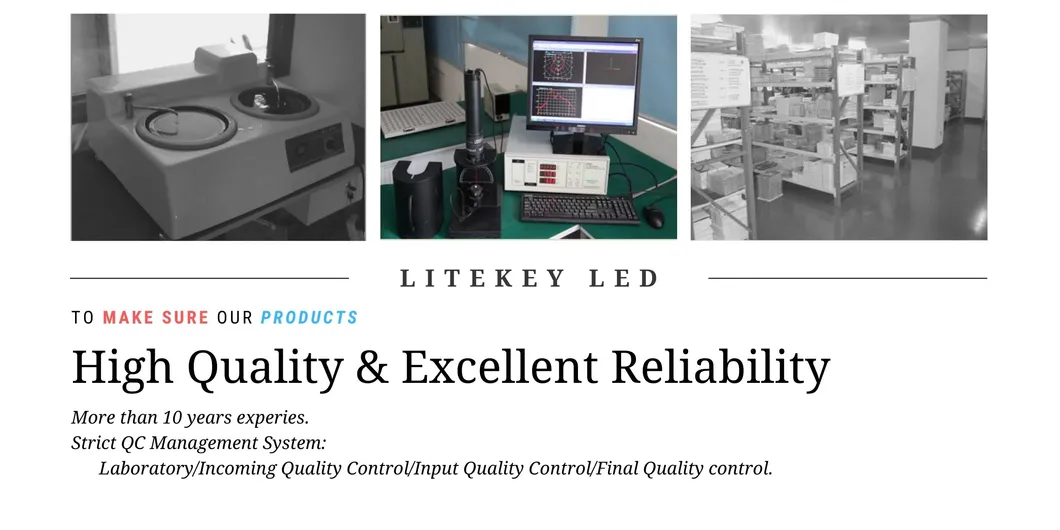

4. Reliable Quality: 100% testing for each piece with automatic binning.
5. Advanced Equipment: High-end ASM automatic production machinery.
6. Deep Experience: Over 14 years in LED component production.

Frequently Asked Questions

What emitting colors are available for the dot matrix displays?

We offer a wide range of colors including Red, Yellow-Green, Orange, Amber, Yellow, Pure Green, Blue, and White.

Do you support both Common Anode and Common Cathode configurations?

Yes, all our LED dot matrix displays can be manufactured in either common anode or common cathode electrode types to suit your circuit design.

What are the typical applications for a 1.2-inch 5x7 dot matrix?

They are commonly used in industrial controls, elevator floor indicators, message displays, and various consumer electronic dashboards.

Are these LED displays waterproof?

The standard models are not waterproof (IP rating: Not Water-Proof). For outdoor applications, additional protective housing or specialized sealing is required.

Can I request a custom dot pattern or size?

Yes, we provide professional customization services. We can design and manufacture dot matrix displays according to your specific dimensions and technical requirements.

What is the expected lifespan of these components?

Our LEDs are designed for long-term reliability with an estimated operational life of approximately 50,000 hours under standard conditions.
