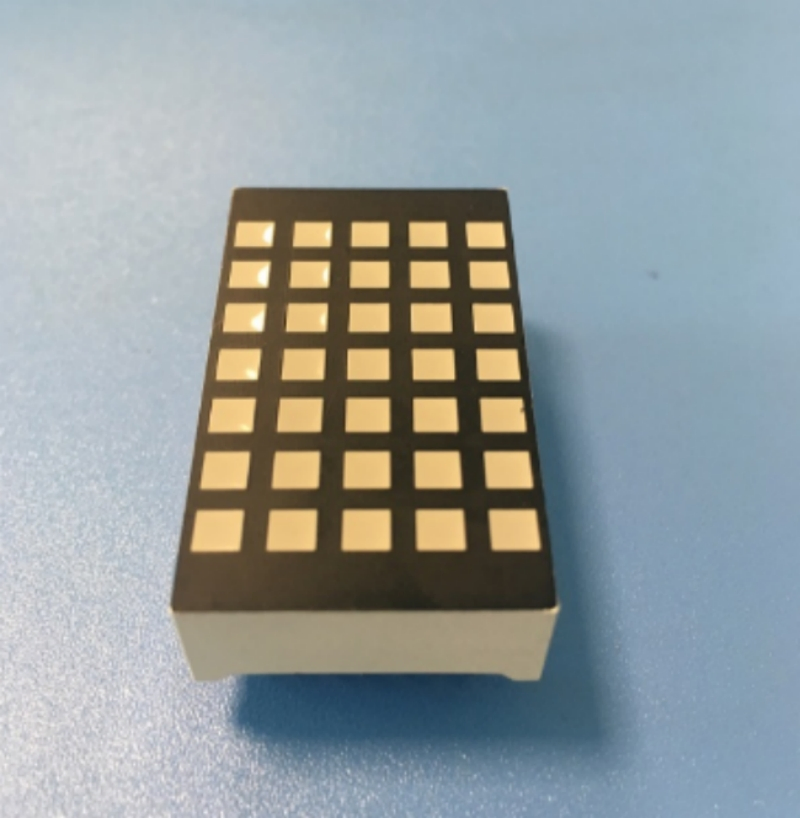

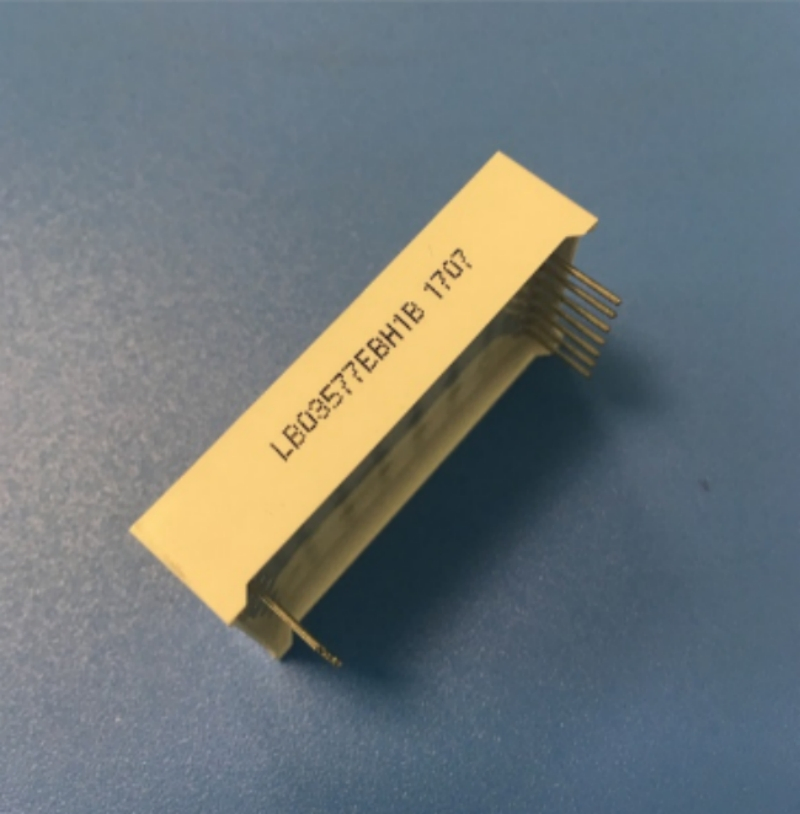

5X7 LED DOT Matrix Display for Elevator Floor Indicators
5X7 LED DOT Matrix Display for Elevator Floor Indicators
5X7 LED DOT Matrix Display for Elevator Floor Indicators
5X7 LED DOT Matrix Display for Elevator Floor Indicators
5X7 LED DOT Matrix Display for Elevator Floor Indicators
1 / 5
5X7 LED DOT Matrix Display for Elevator Floor Indicators
5X7 LED DOT Matrix Display for Elevator Floor Indicators
5X7 LED DOT Matrix Display for Elevator Floor Indicators
5X7 LED DOT Matrix Display for Elevator Floor Indicators
5X7 LED DOT Matrix Display for Elevator Floor Indicators

5X7 LED DOT Matrix Display for Elevator Floor Indicators

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
LB03577BBH1B
Scanning Mode
1/8 Scan
Display Type
Segment LED Display
Application
LED Display
IP Rating
IP54
Certification
CCC
DOT Diameter
3mm
Polarity
Row Cathode Column Anode
Specification
22.8*39*8.5MM
HS Code
85312000
P

Product Description

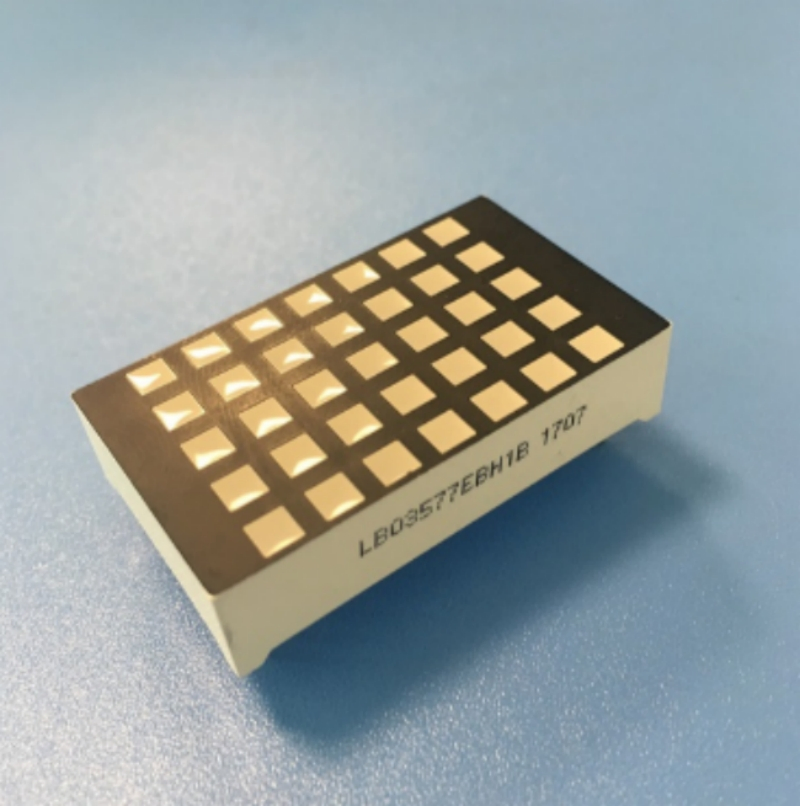

Ultra bright blue 3mm 5*7 square dot matrix LED display engineered for clear, dynamic visual communication. Featuring compact dimensions of 22.8×39×8.5mm, it delivers vibrant illumination (80-100mcd/LED) with a 462-465nm wavelength. Configured as row cathode and column anode, this display balances high efficiency with low power consumption.

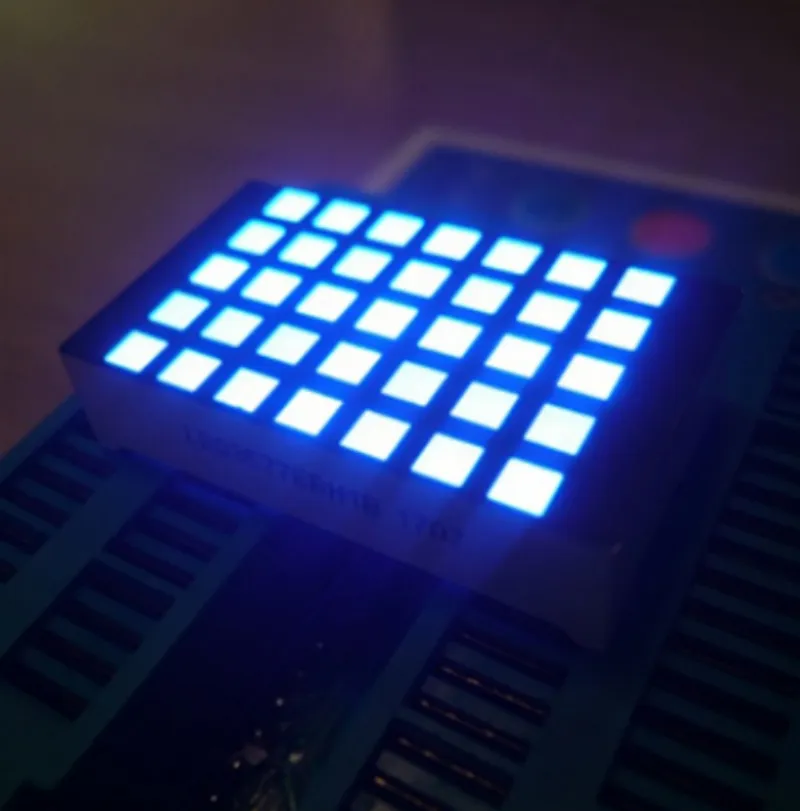

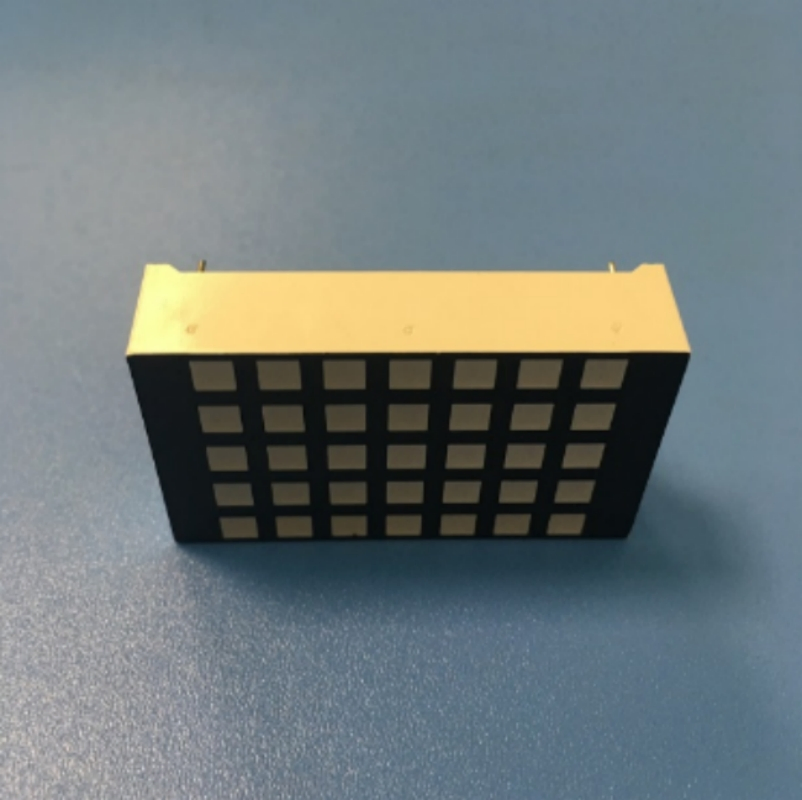

LED DOT Matrix Display Front

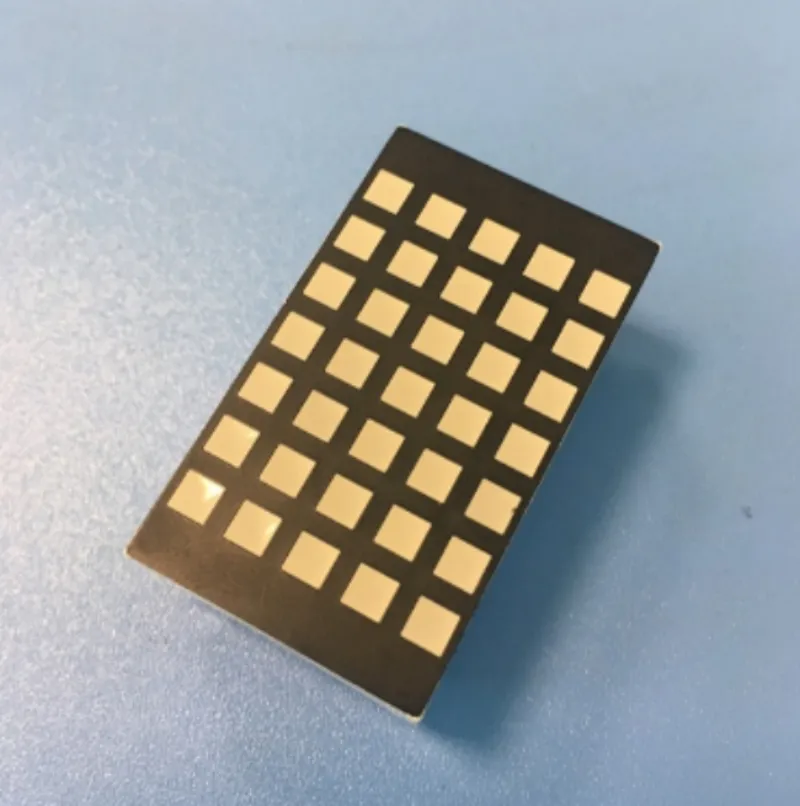

LED DOT Matrix Display Back
★

Key Features

  • Ultra Bright Blue Emission: Vivid blue light (462-465nm) with 80-100mcd intensity.
  • 5x7 Dot Matrix Design: 3mm dot diameter for crisp display of characters and numbers.
  • Efficient Performance: Low forward voltage (2.8-3.3V/LED) reduces power usage.
  • Sleek Aesthetic: White diffused epoxy dots on a black face for high contrast.
  • Wide Viewing Angle: Ensures readability from multiple positions.
  • RoHS Compliant: Meets international environmental standards.
T

Technical Specifications

Specification Details
Dot Matrix Size5x7 square dots
Dot Diameter3mm
Outer Dimensions22.8×39×8.5mm
Emitting ColorUltra bright blue (462-465nm)
Luminous Intensity80-100mcd/LED
Forward Voltage2.8-3.3V/LED
Recommended Current12-15mA
Operating Temp-40~+85 ºC
A

Products Applications

Perfectly suited for elevator position indicators, lift floor displays, digital screens, message boards, and moving signs. Also widely used in home appliances, temperature indicators, and industrial controllers.

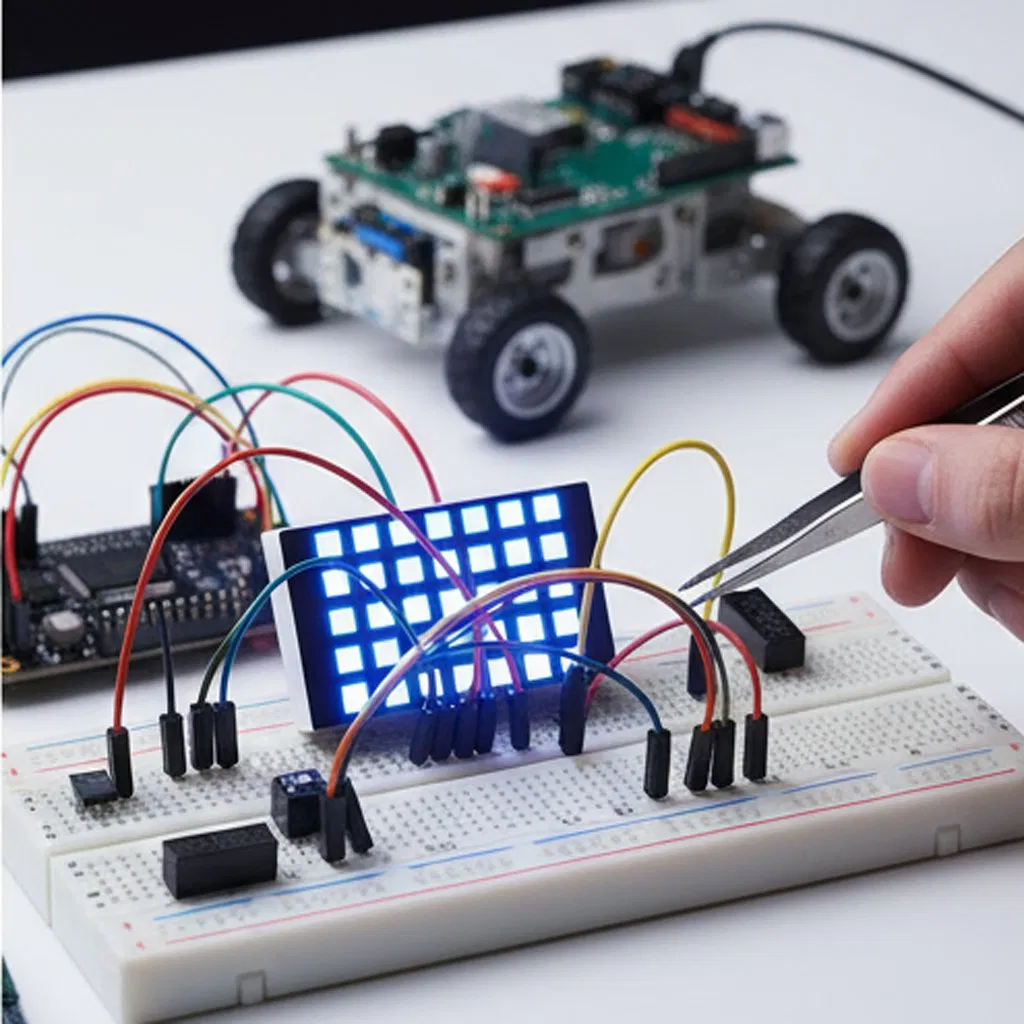

LED Application Scenarios
F

Factory & Quality Control

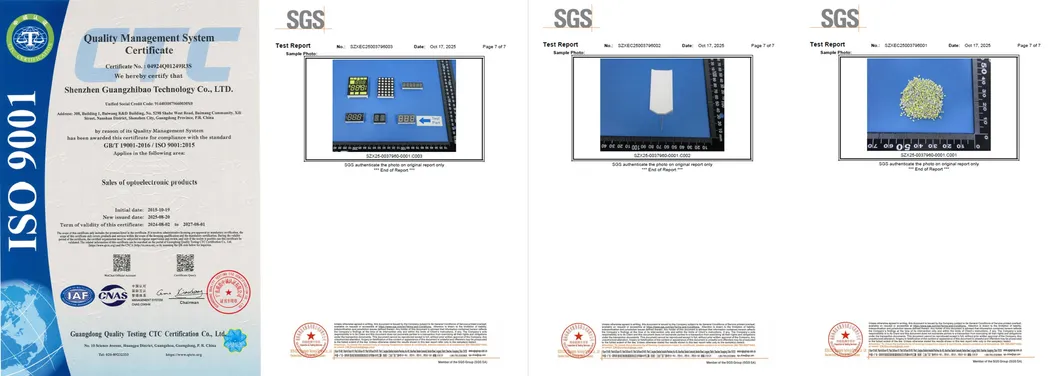

Certifications
Office Overview

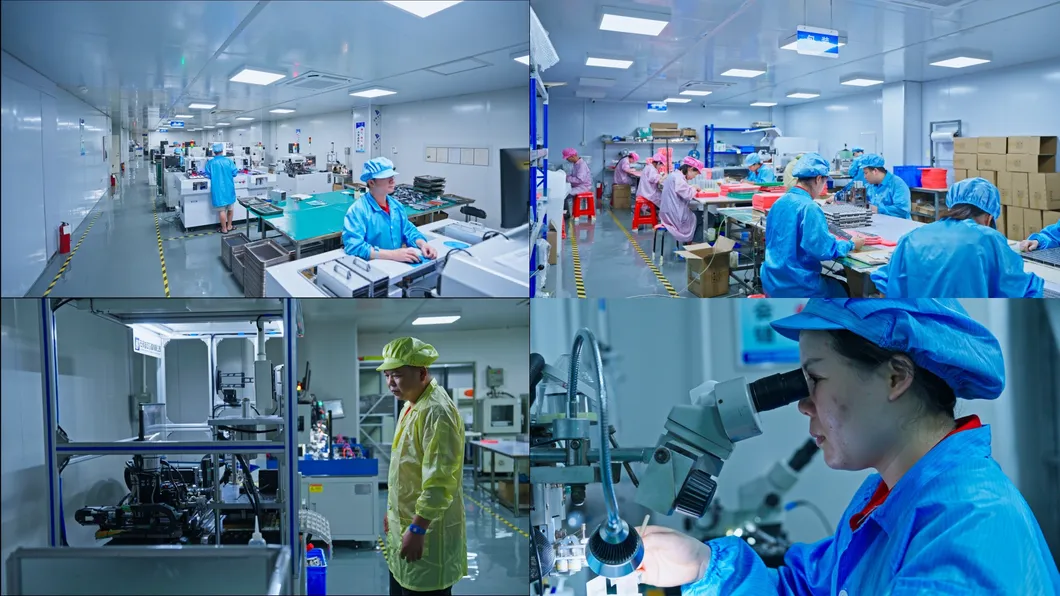

Production Line 1

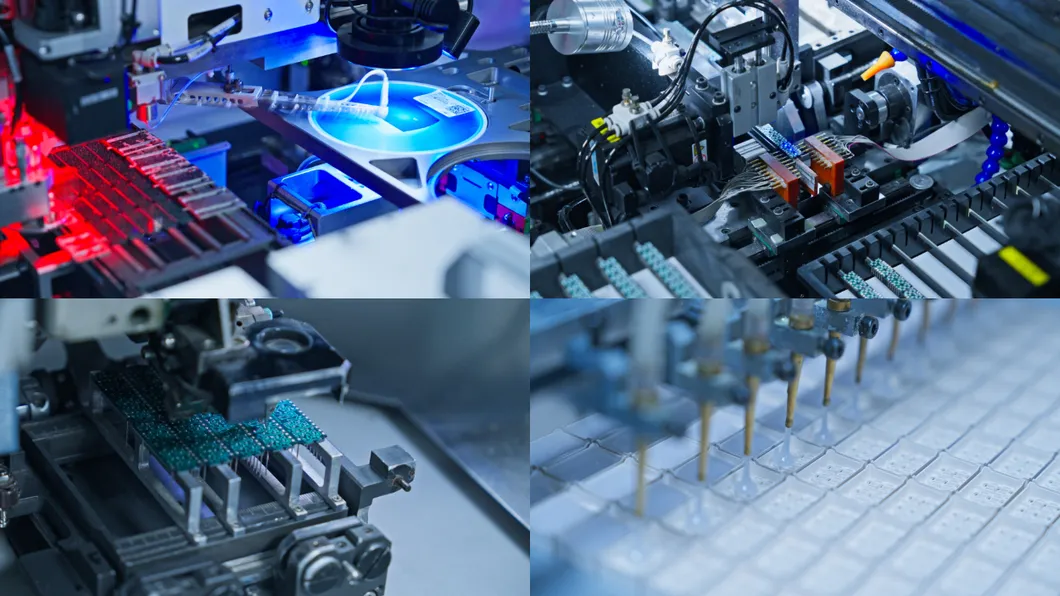

Production Line 2

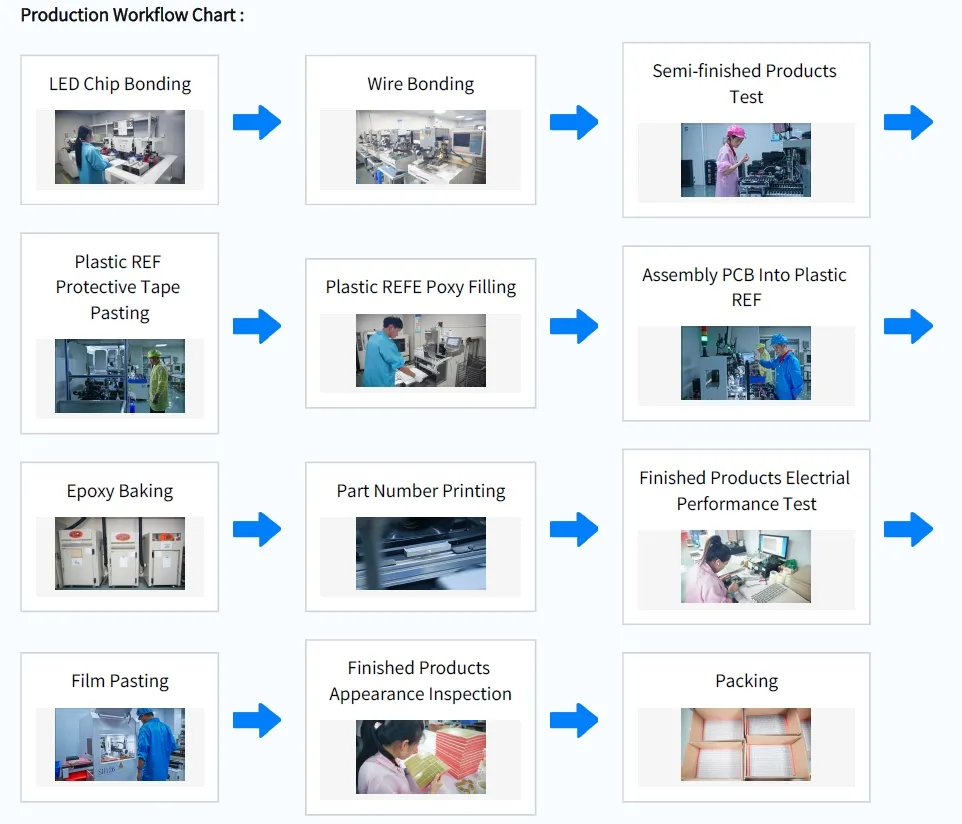

Equipment
S

Exhibitions & Logistics

Exhibition 1
Exhibition 2
Shipping Service 1
Shipping Service 2
?

Frequently Asked Questions

Q Are you a trading company or a manufacturer?
We are an original manufacturer with more than 20 years of experience in optoelectronic LED displays.
Q What are your main products?
Our main products include 7 Segment LED displays, SMD LED Displays, Dot matrix LED Displays, Arrow LED displays, Custom Design LED Displays, and LED Backlights.
Q What is your Minimum Order Quantity (MOQ)?
Our standard MOQ is 1000 pcs, but we also accept sample orders and small orders with quantities less than our MOQ for testing purposes.
Q Can you provide samples before placing an order?
Yes, we can provide 5-10 free samples for your testing, though the freight cost is typically borne by the customer.
Q Do you offer custom design (OEM/ODM) services?
Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your specific requirements.
Q How do you ensure the quality of your products?
We are an ISO 9001 certified manufacturer. We conduct 100% testing twice for all products before shipment to ensure high quality.
