Ultra Bright White 3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator

1 / 5

Ultra Bright White 3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator

Customization:	Available
Pixel Pitch:	3 mm
Display Type:	LED Dot Matrix Display

Send Inquiry

Product Description

Basic Specifications

Model NO.

LB03572BWH3B-D

IP Rating

IP54

Certification

CE, RoHS, Reach

Polarity

Row Anode Column Cathode

LED Color

Ultra Bright White

Forward Voltage

1.8-2.2V/LED

Transport Package

EPE+Carton

Specification

22.75 x 31.8 X 8.5mm

HS Code

85312000

Production Capacity

20000 PCS/Day

Product Visuals

Product Overview

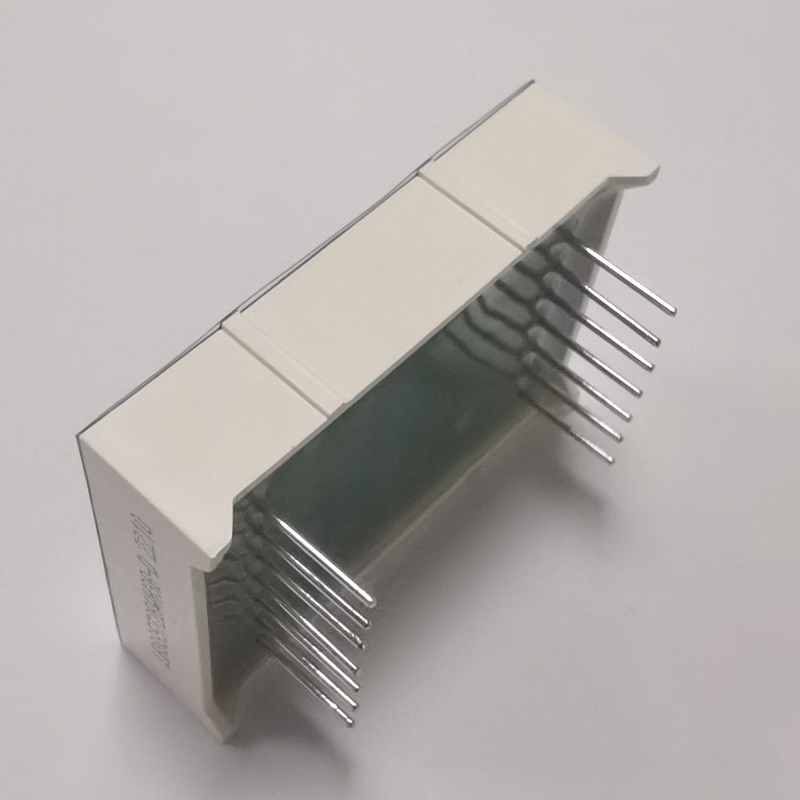

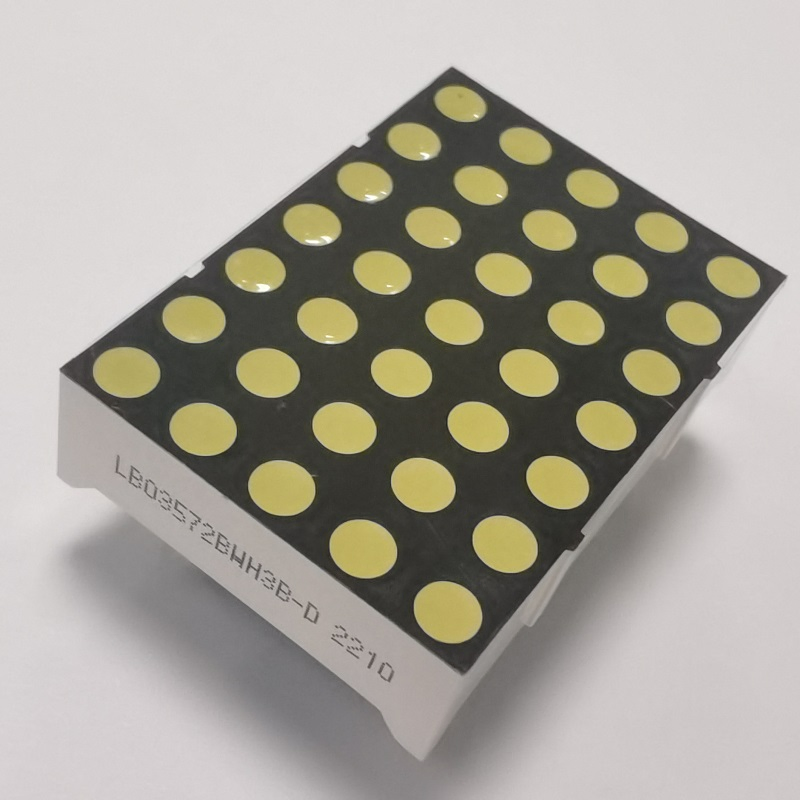

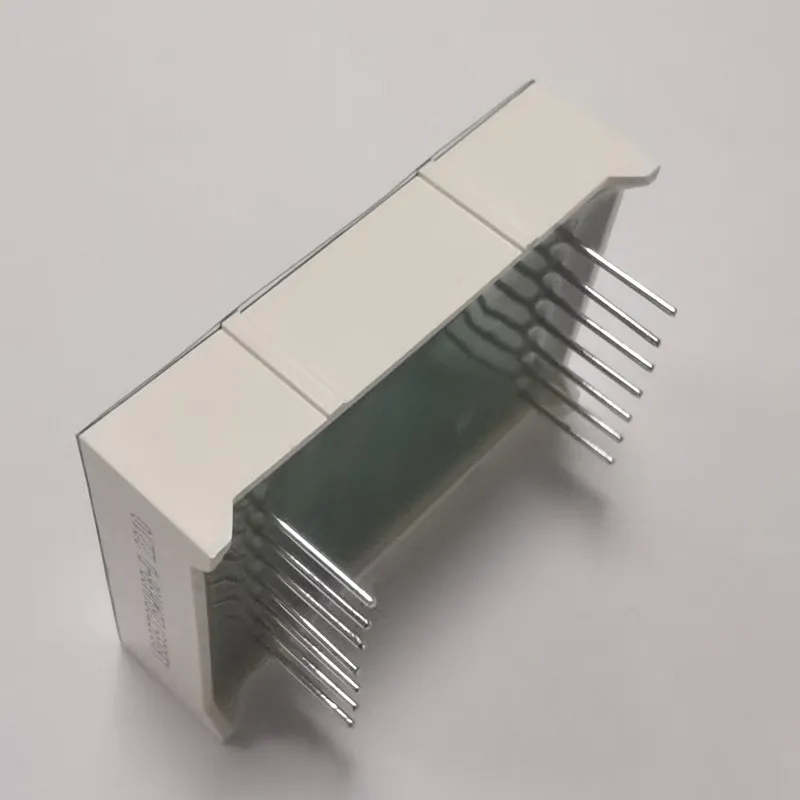

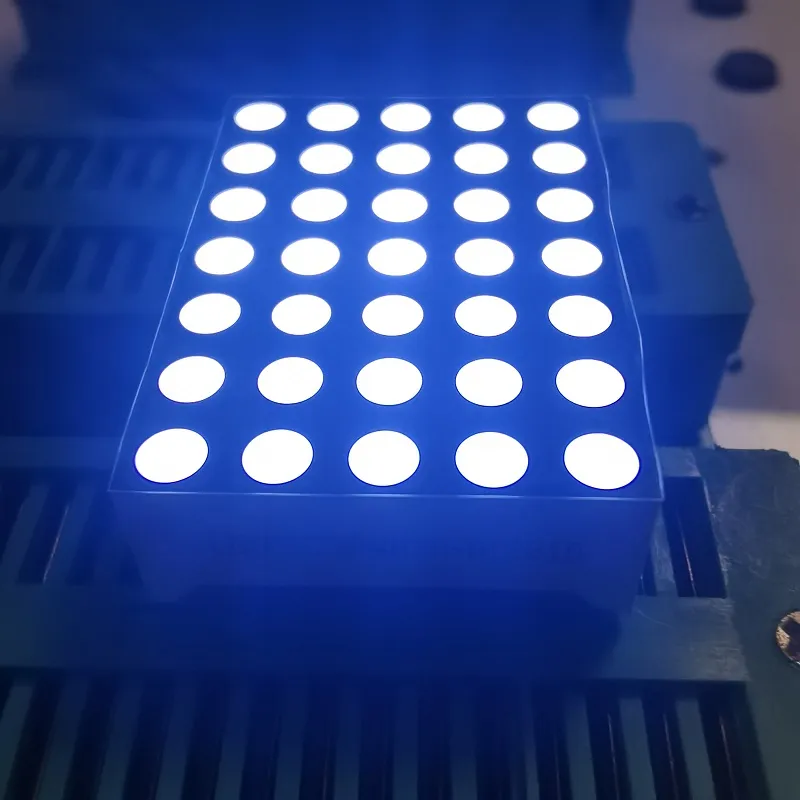

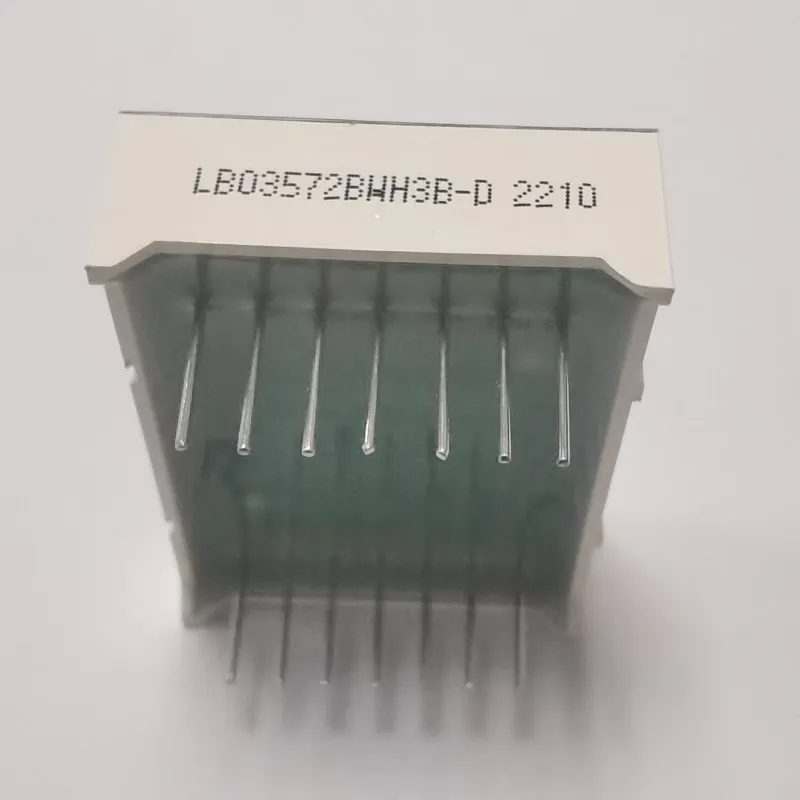

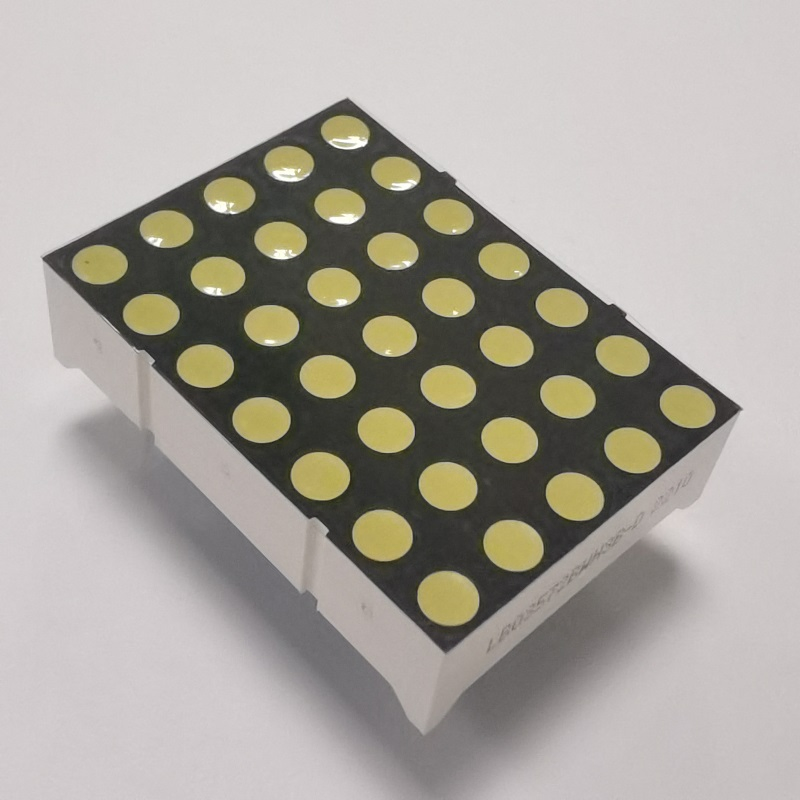

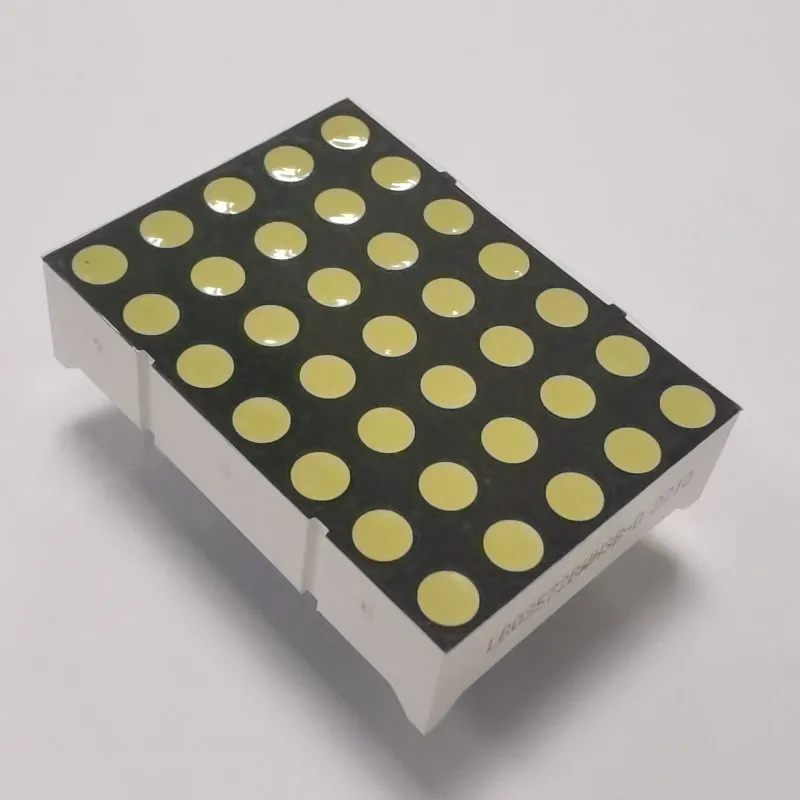

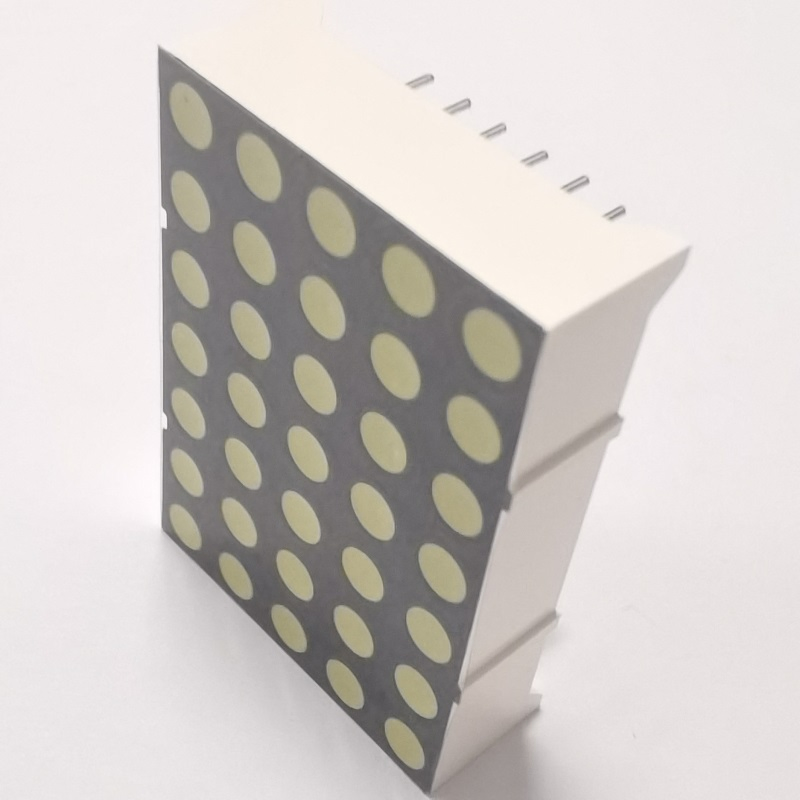

Ultra bright white 3mm Dot matrix LED display 5 x 7 for digital time zone clock indicator
This 5*7 dot matrix LED display features an emitting dot diameter of 3mm and outer dimensions of 22.75 x 31.8 X 8.5mm. Designed with a Row Anode Column Cathode connection, it delivers superior brightness in Ultra Bright White (620-625NM, 80-100MCD, 1.8-2.2V/LED).

Technical Parameters

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Optical-Electrical Characteristics (Code: Ultra Bright White -WH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8	-	3.2	V
Reverse Voltage	Vr	Ir=10uA	5	-	-	V
Luminous Intensity	Iv	If=10mA	120	-	140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32	-	0.30,0.33	nm

Key Features & Applications

Product Features:

✔ High luminous intensity
✔ Low power consumption
✔ Stable performance
✔ Long lifetime
✔ IC Compatible
✔ RoHS compliant

Applications:

📍 Lift position indicators
📍 Elevator floor displays
📍 Moving message signs
📍 Home appliances

Frequently Asked Questions

What is the dot size and matrix configuration of this display?

This is a 5x7 dot matrix LED display with an emitting dot diameter of 3mm.

What are the physical dimensions of the LB03572BWH3B-D model?

The outer dimensions are 22.75 x 31.8 x 8.5mm.

What colors are available for this series?

While this specific model is Ultra Bright White, the series is also available in red, blue, yellow, green, orange, and amber.

Is the display compatible with integrated circuits (IC)?

Yes, this LED display is designed to be IC compatible for easy assembly and integration.

What is the IP rating for this product?

This model has an IP54 rating, providing protection against dust and water splashes.

What is the operating temperature range?

The display can operate reliably within a temperature range of -40ºC to +85ºC.
