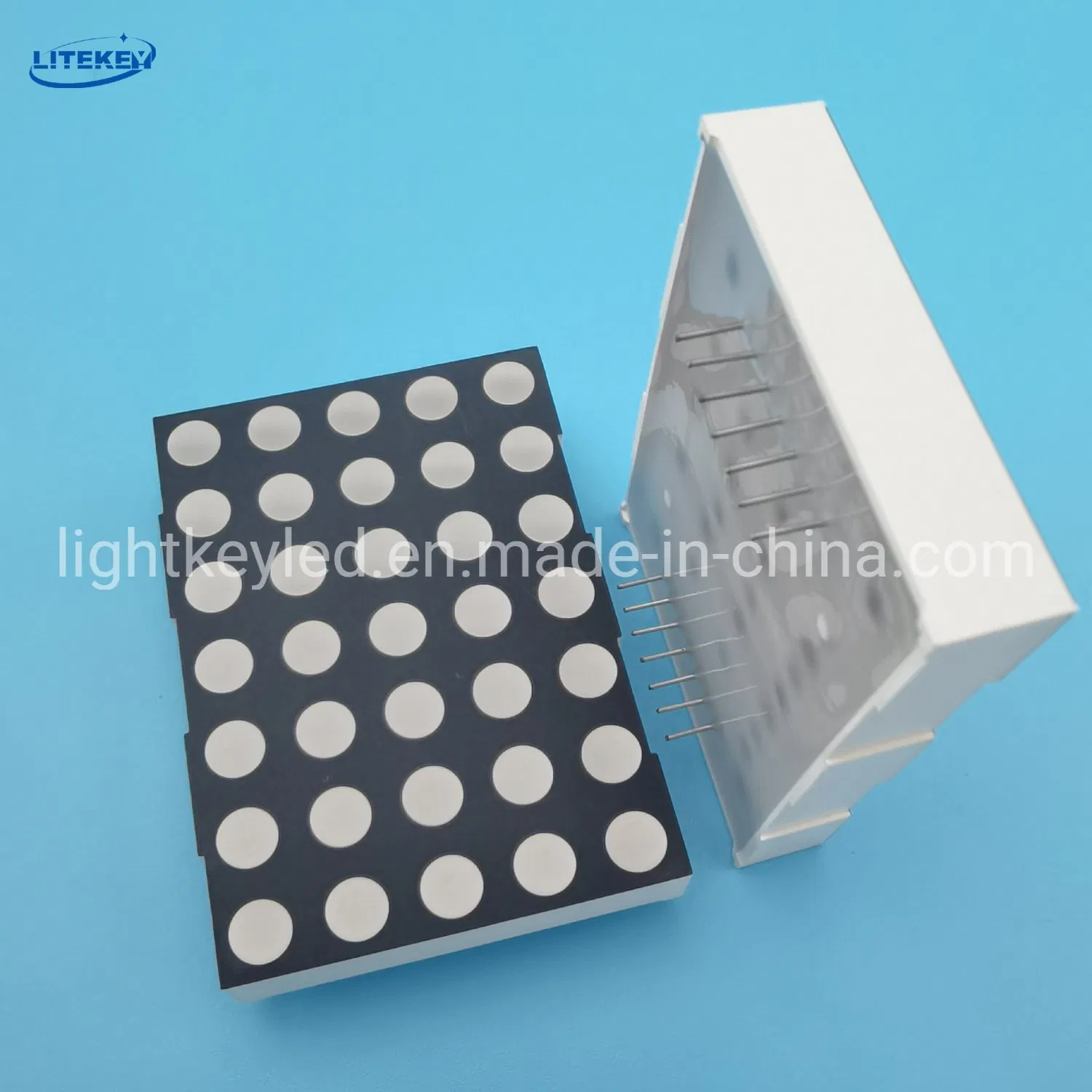

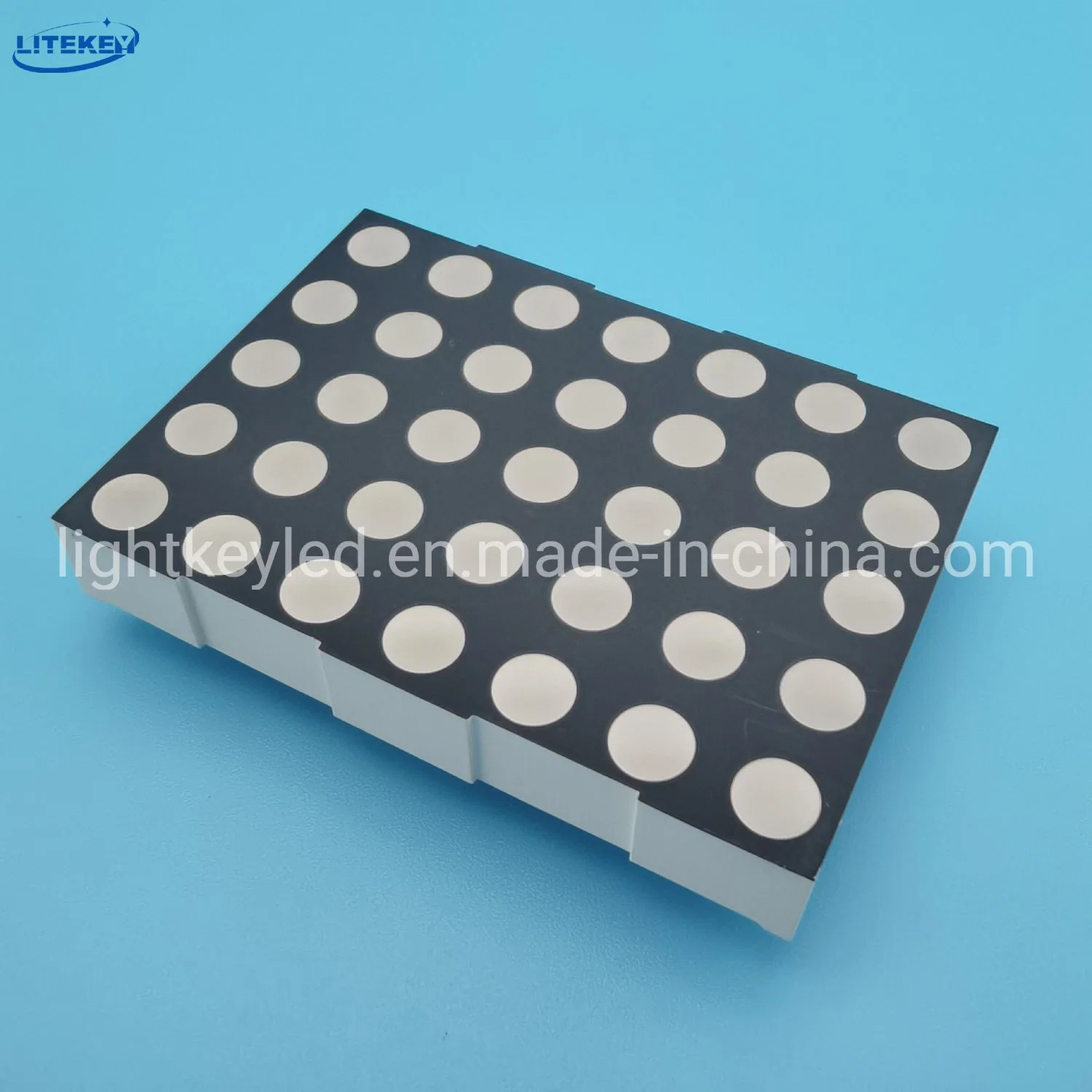

3 Inch 5X7 DOT Matrix LED Display with Pitch 11.4mm RoHS Compliant
3 Inch 5X7 DOT Matrix LED Display with Pitch 11.4mm RoHS Compliant
3 Inch 5X7 DOT Matrix LED Display with Pitch 11.4mm RoHS Compliant
3 Inch 5X7 DOT Matrix LED Display with Pitch 11.4mm RoHS Compliant
3 Inch 5X7 DOT Matrix LED Display with Pitch 11.4mm RoHS Compliant
1 / 5
3 Inch 5X7 DOT Matrix LED Display with Pitch 11.4mm RoHS Compliant
3 Inch 5X7 DOT Matrix LED Display with Pitch 11.4mm RoHS Compliant
3 Inch 5X7 DOT Matrix LED Display with Pitch 11.4mm RoHS Compliant
3 Inch 5X7 DOT Matrix LED Display with Pitch 11.4mm RoHS Compliant
3 Inch 5X7 DOT Matrix LED Display with Pitch 11.4mm RoHS Compliant

3 Inch 5X7 DOT Matrix LED Display with Pitch 11.4mm RoHS Compliant

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
LM30057
Emitting Color
Two-color
Power
3W
IP Rating
Not Water-Proof
Pixel Pitch
11.4mm
Life
50000h
Certification
Reach and RoHS
Outline Dimensions
79.6X56.8X8.8mm
Digit Height
3 Inch
DOT Number
35PCS
💡 Product Description

3 Inch 5X7 DOT Matrix LED Display with Pitch 11.4mm RoHS Compliant

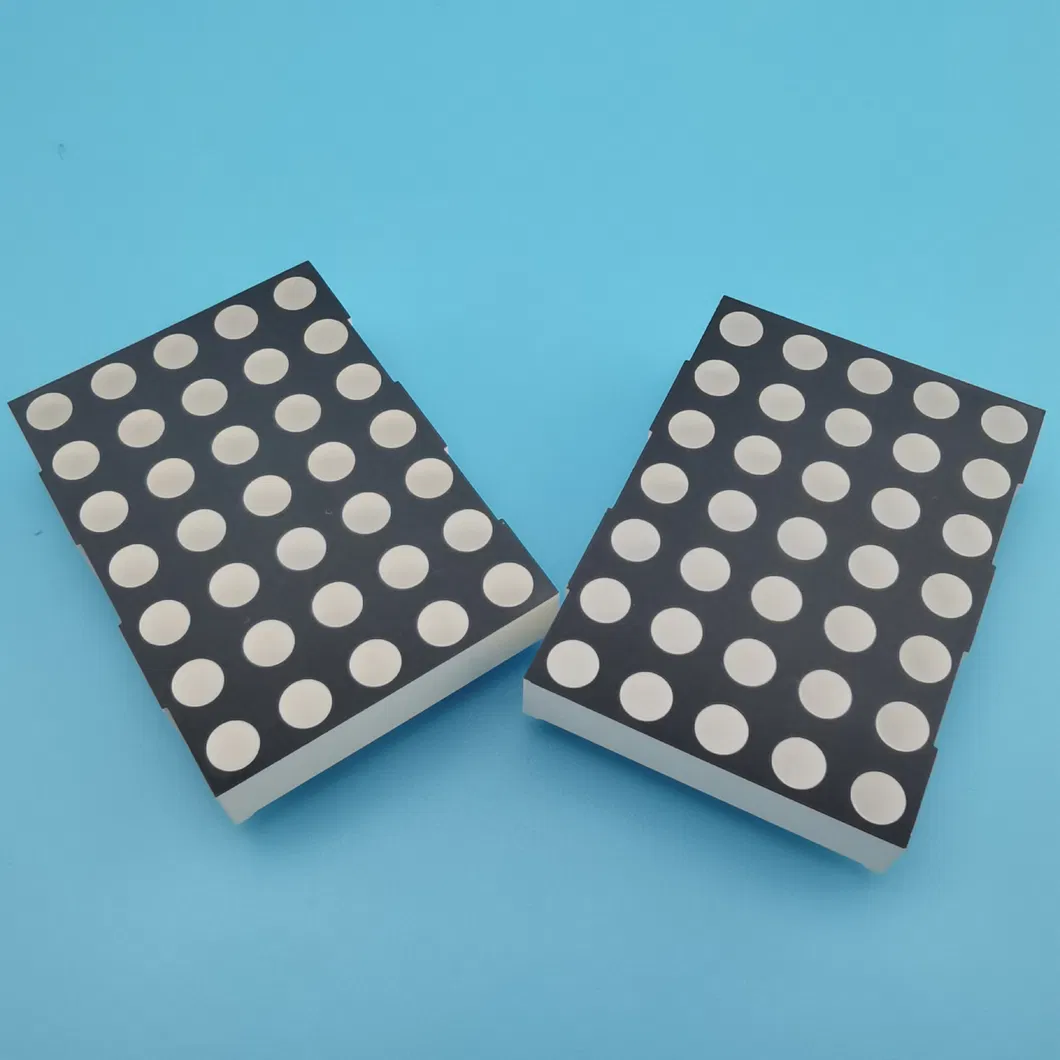

Detailed Photo 1

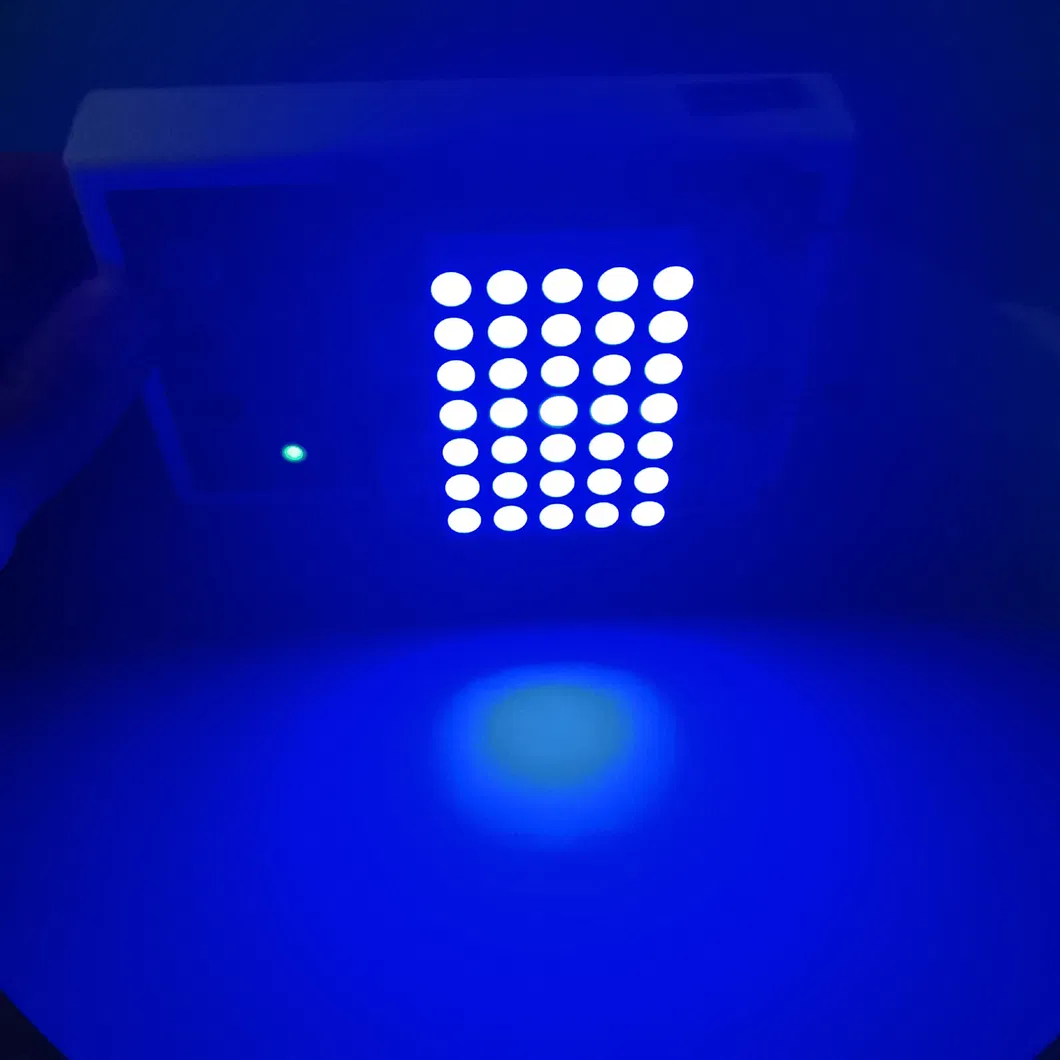

Detailed Photo 2

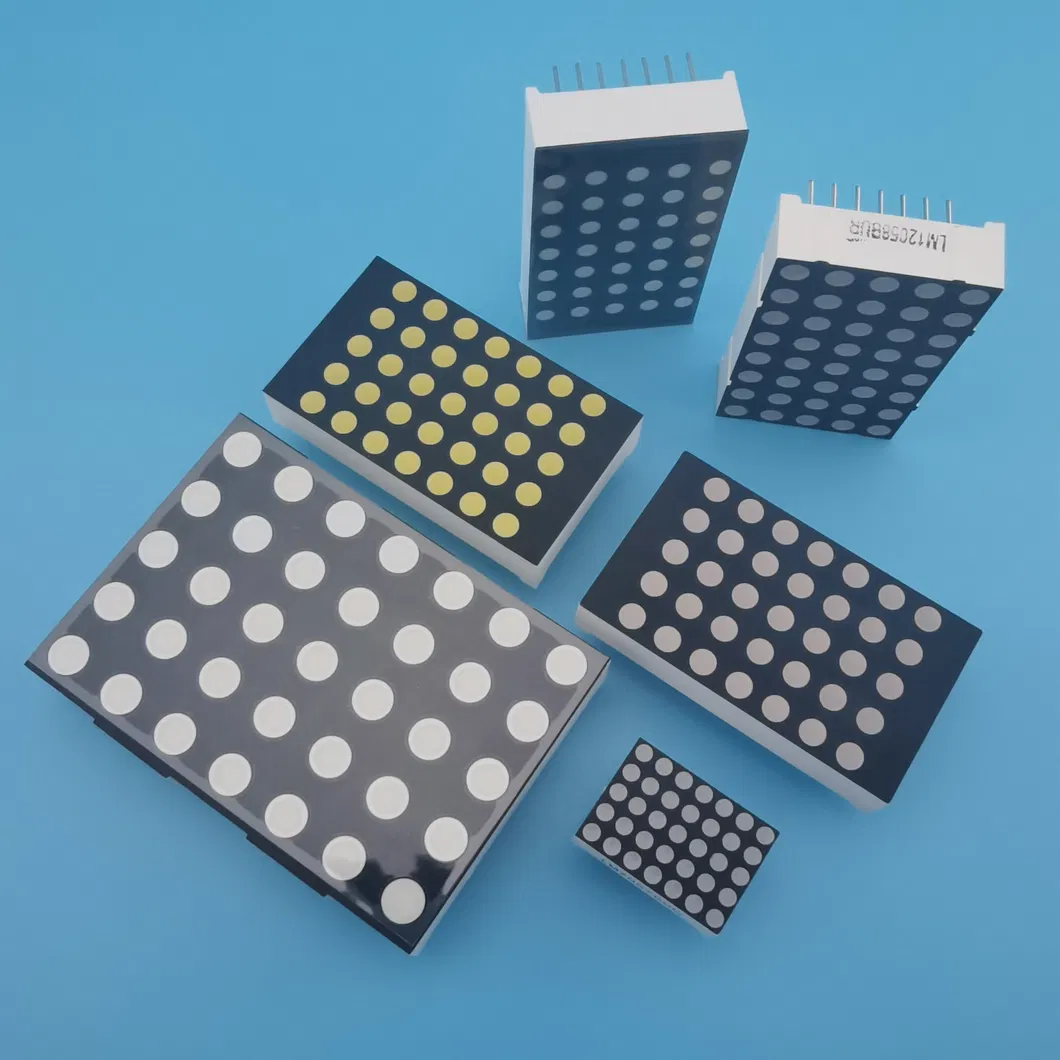

Detailed Photo 3
📐 Package Dimensions & Circuit Diagram

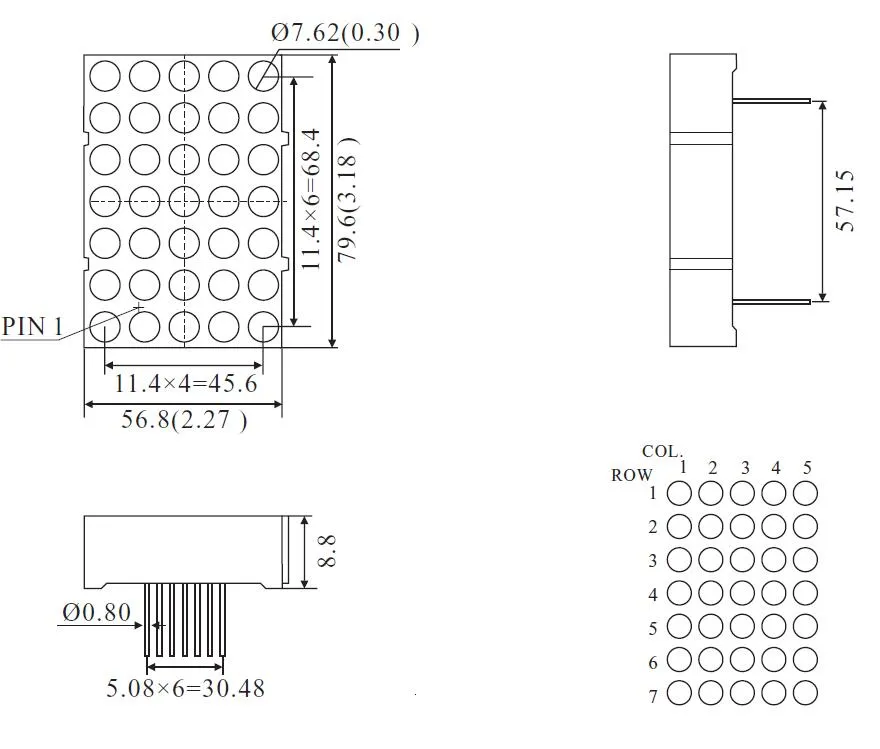

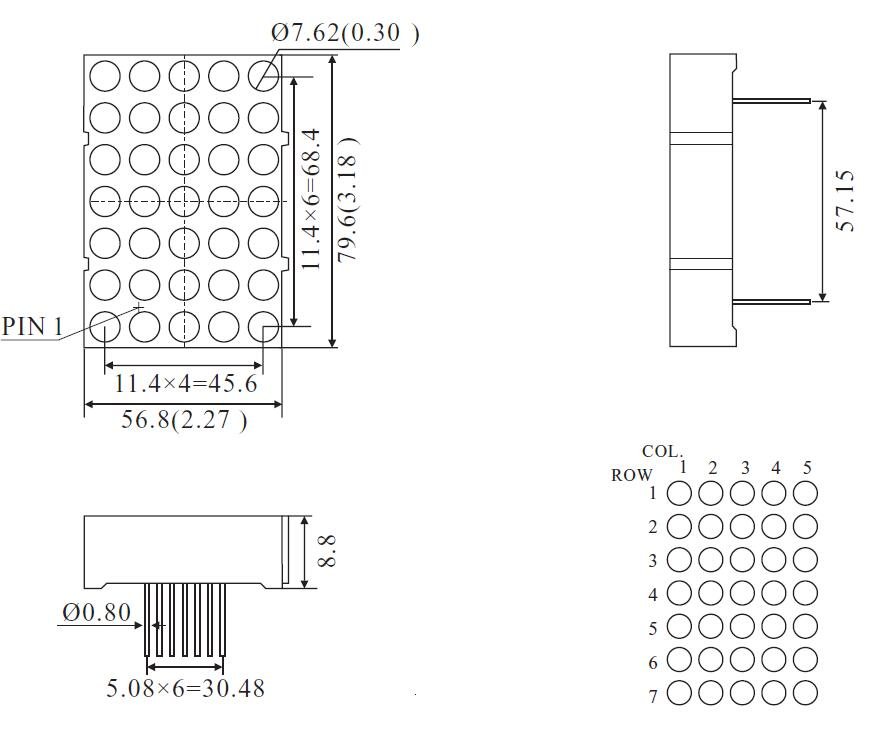

Package Dimensions

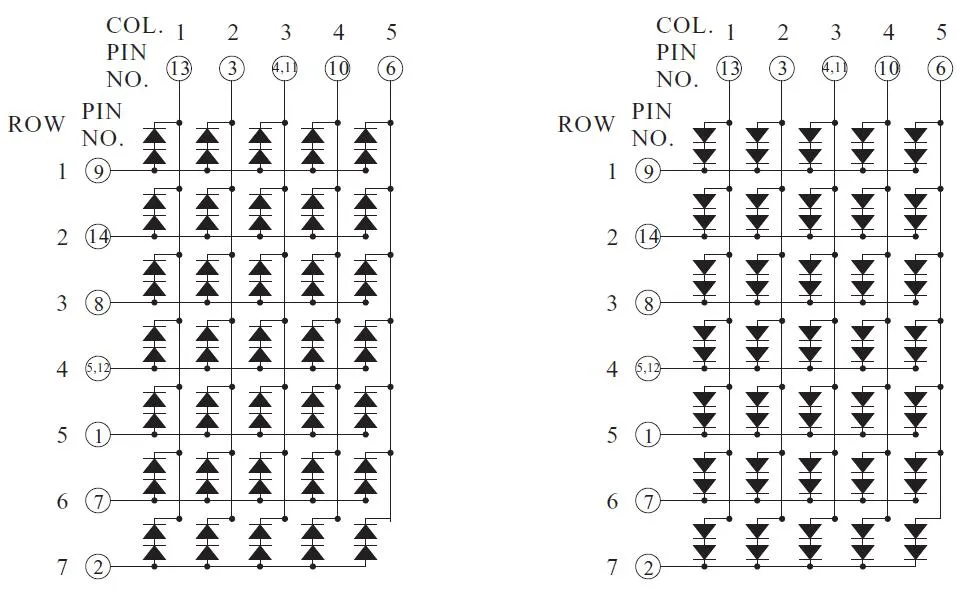

Internal Circuit Diagram
🔍 Selection Guide
Feature Specifications
Digit Height3 inch digit height
Available Emitting colorRed, yellow-green, orange, amber, yellow, pure green, blue, white
Available Face colorRed, white, grey, and black
Available Segment ColorRed, white (milky), water clear, and yellow
Available ElectrodeCommon anode or common cathode
✨ LED Dot Matrix Series Features
  • Common types: 4X4, 5X7, 5X8, 8X8, and 16X16
  • Common sizes: 0.7 inch, 1 inch, 1.2 inch, 1.5 inch, 2 inch, 3 inch, and 4 inch
  • Through-hole type or SMD Type is available
  • Round dot or Square dot options
  • High-quality White color LED with superior brightness uniformity
  • Customized designs available according to your specific demand

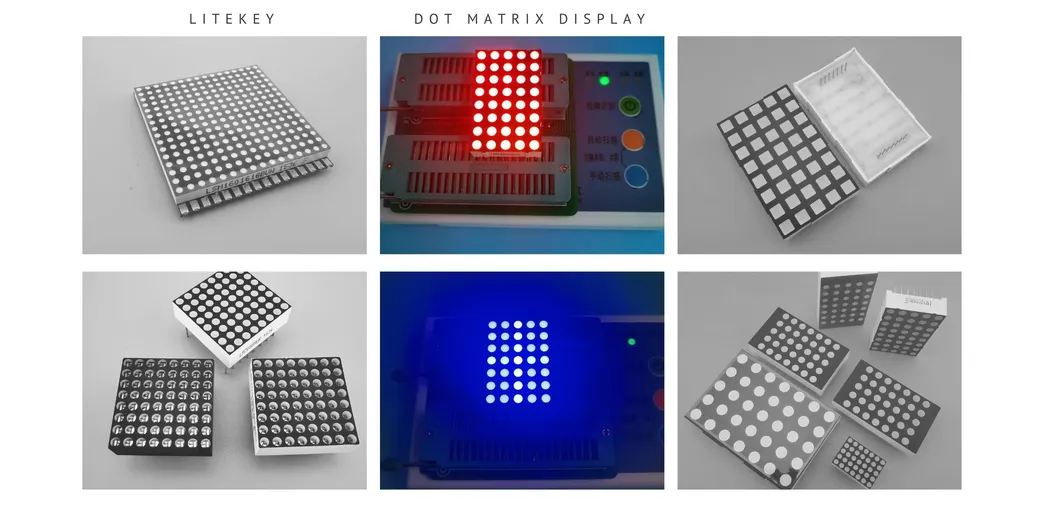

Series 1

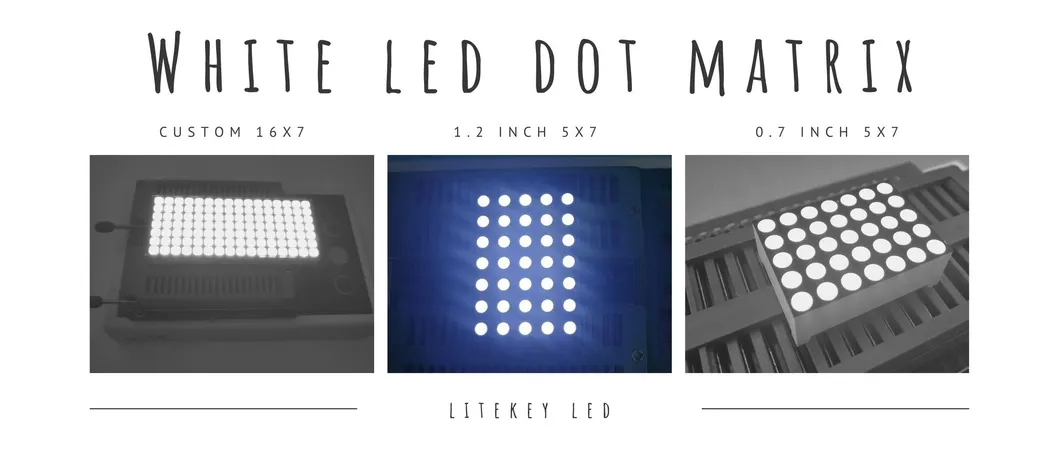

Series 2

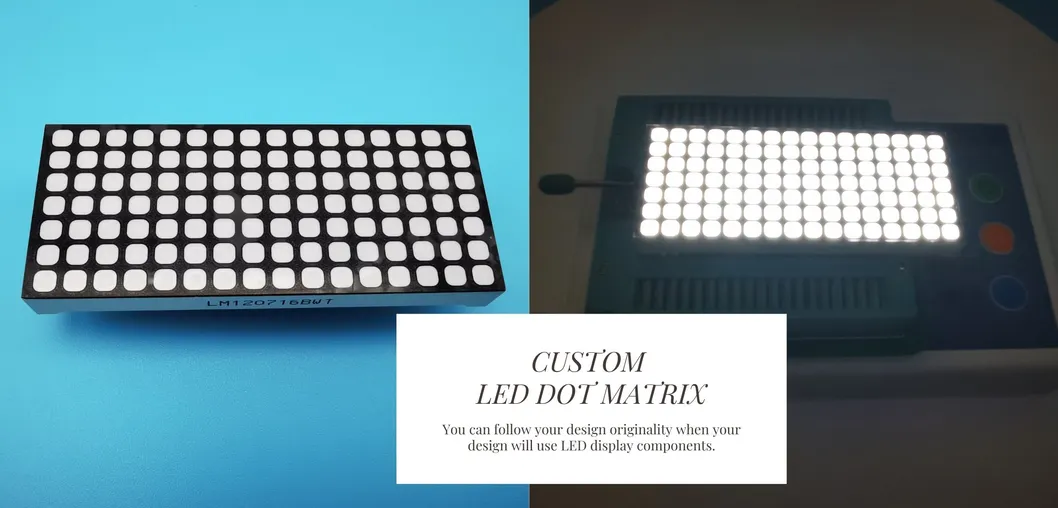

Series 3
🏭 Factory Overview & Quality Control

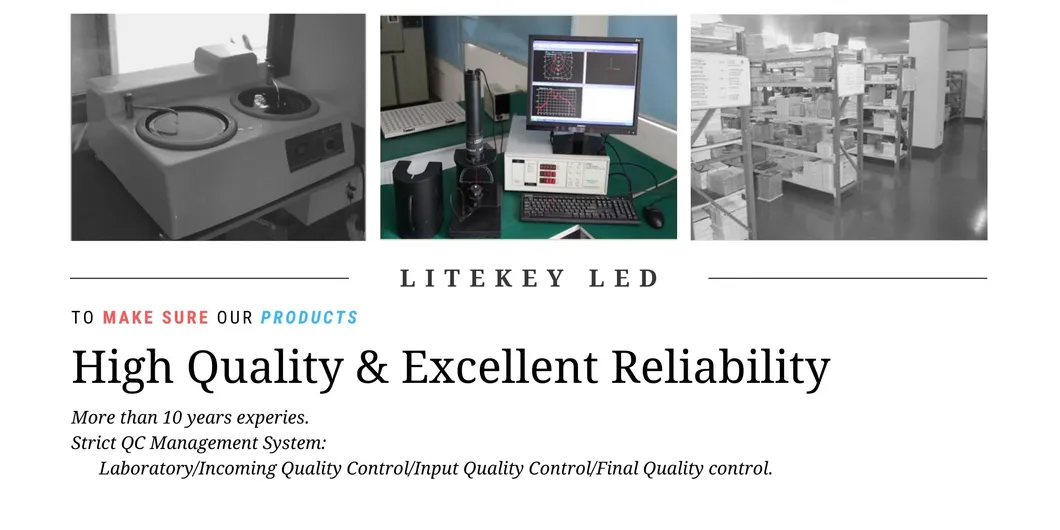

Factory View

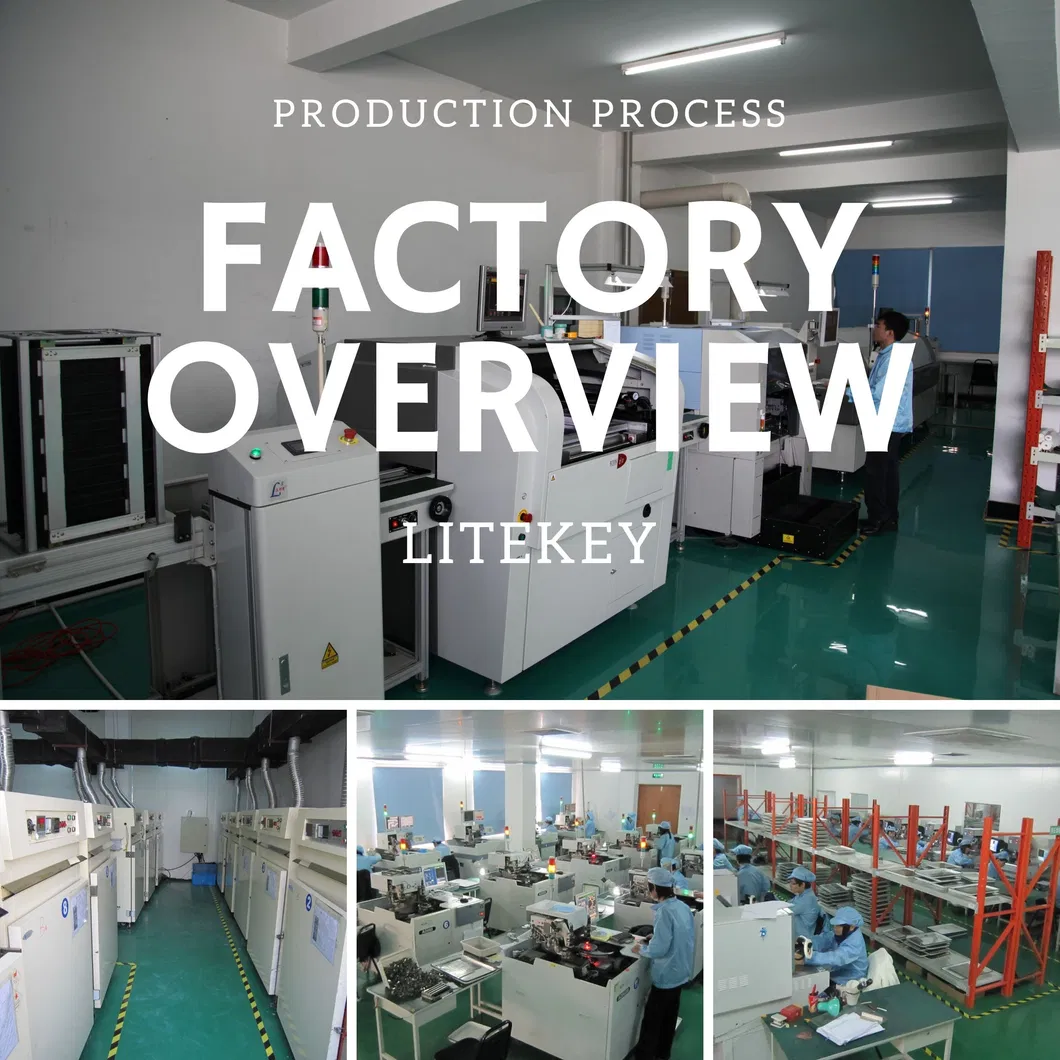

Production Line
Why Choose Our LED Solutions:
  • Professional service replied within 24 hours
  • Various ready moldings available (no extra molding fees)
  • 100% testing for each piece with automatic bin code selection
  • Over 14 years of experience in LED component production
  • Equipped with advanced ASM automatic production machines
❓ Frequently Asked Questions
What are the available sizes for the LED Dot Matrix series?
We offer a wide range of sizes including 0.7 inch, 1 inch, 1.2 inch, 1.5 inch, 2 inch, 3 inch, and 4 inch to suit various display needs.
Can I choose between common anode and common cathode configurations?
Yes, our 5x7 dot matrix displays are available in both common anode and common cathode electrodes to match your circuit requirements.
What emitting colors are available for the 3-inch display?
You can choose from Ultra Red, Yellow-Green, Orange, Amber, Yellow, Pure Green, Blue, and Ultra White.
Is the LM30057 model waterproof for outdoor use?
The standard LM30057 model is rated as Not Water-Proof. For outdoor applications, additional protective housing or specialized sealing is recommended.
Does the product comply with environmental regulations?
Yes, all our LED dot matrix products are fully Reach and RoHS compliant, ensuring they meet international environmental standards.
Do you offer customized designs for specific applications?
Absolutely. We can provide customized products and designs tailored to your specific technical demands and dimensions.
