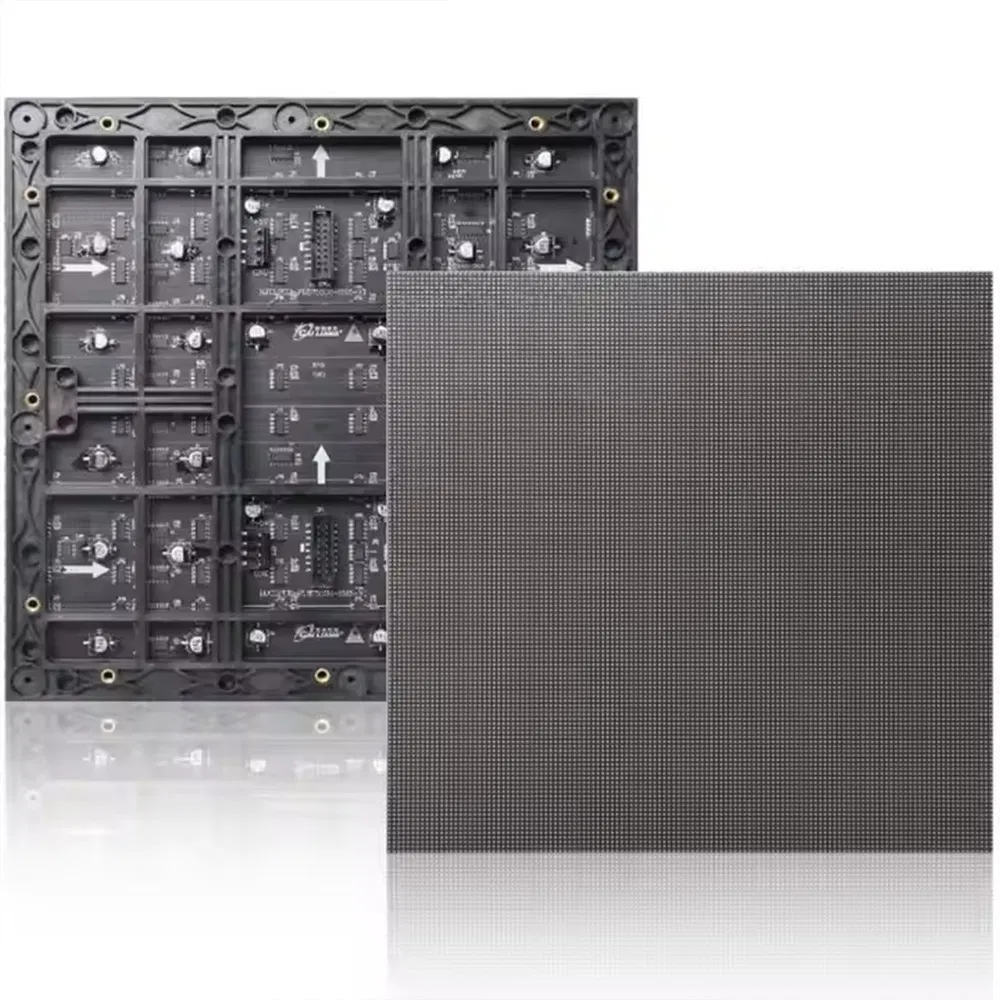

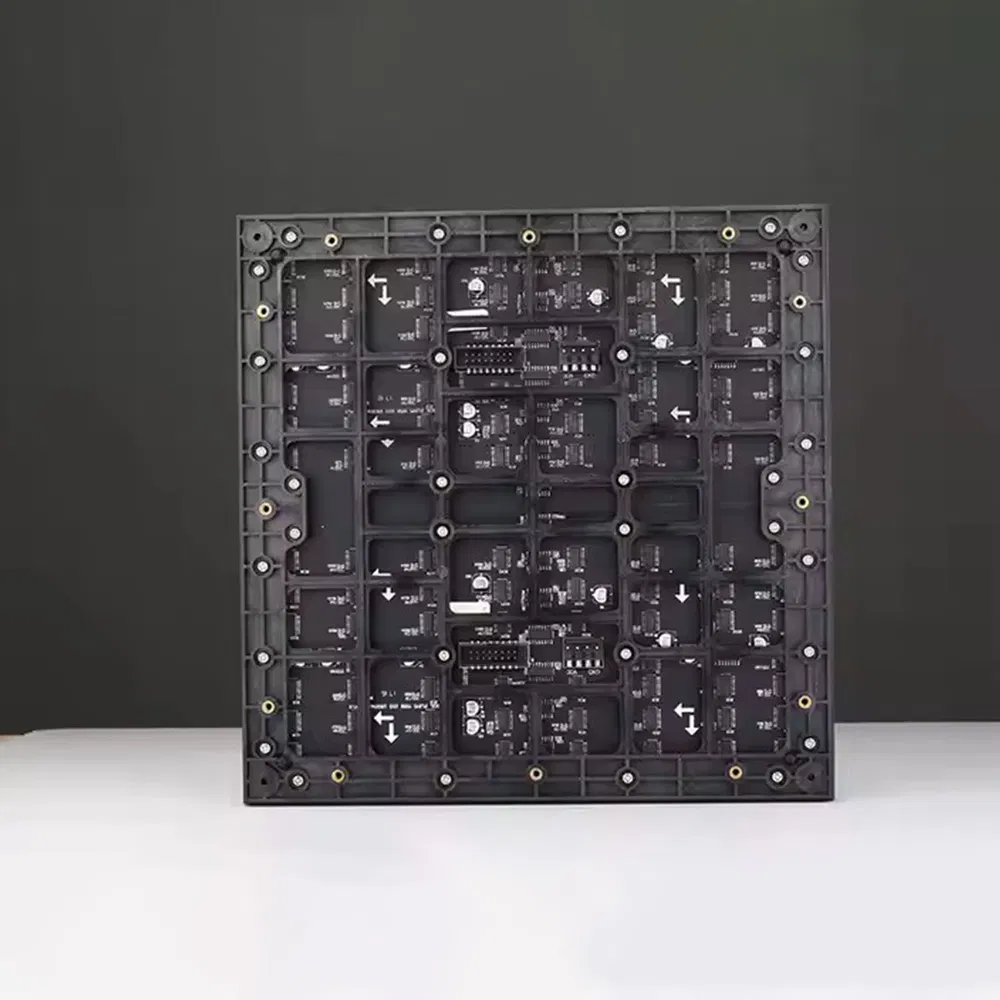

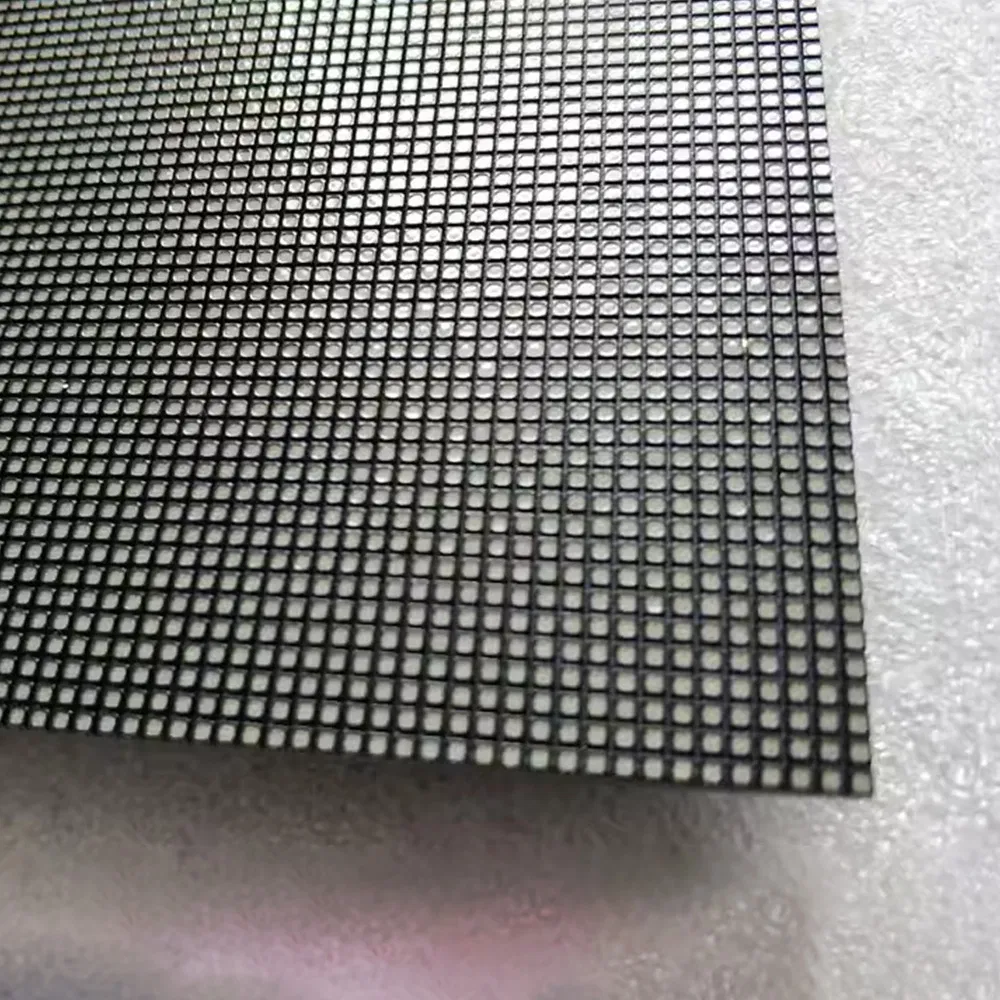

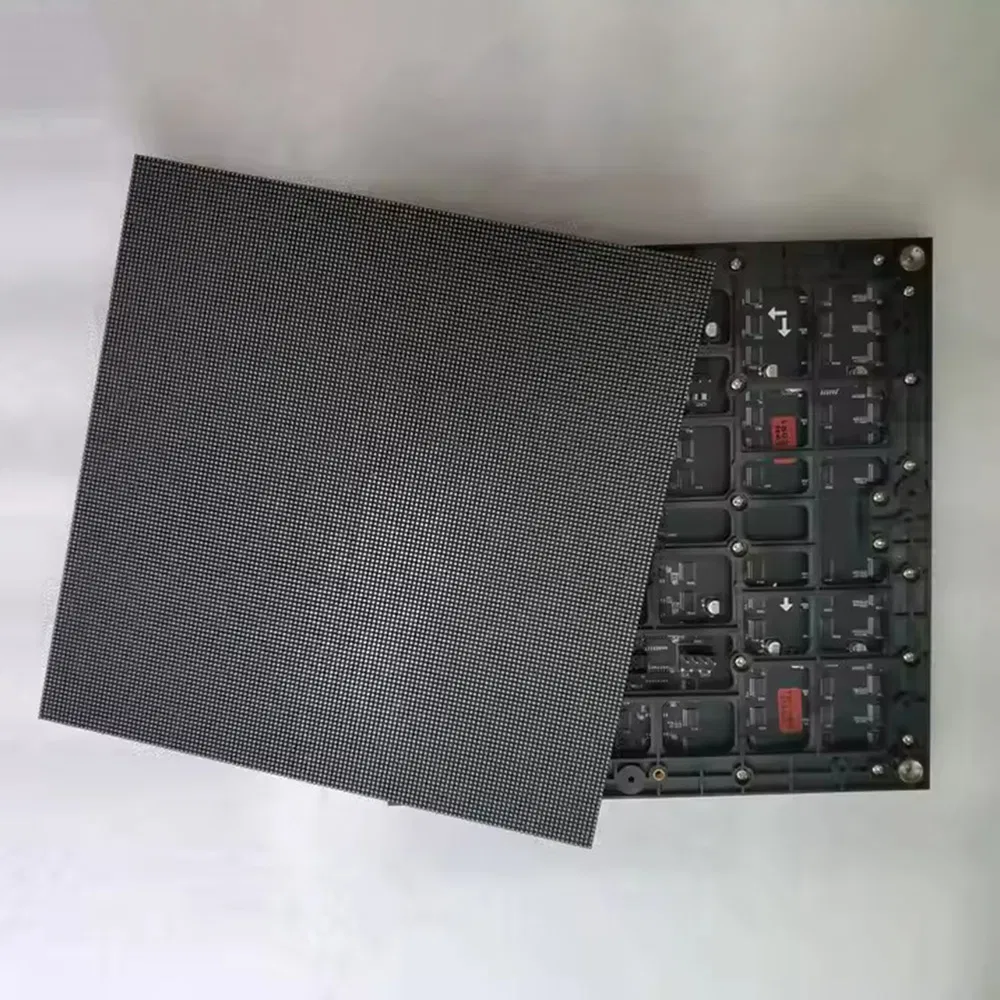

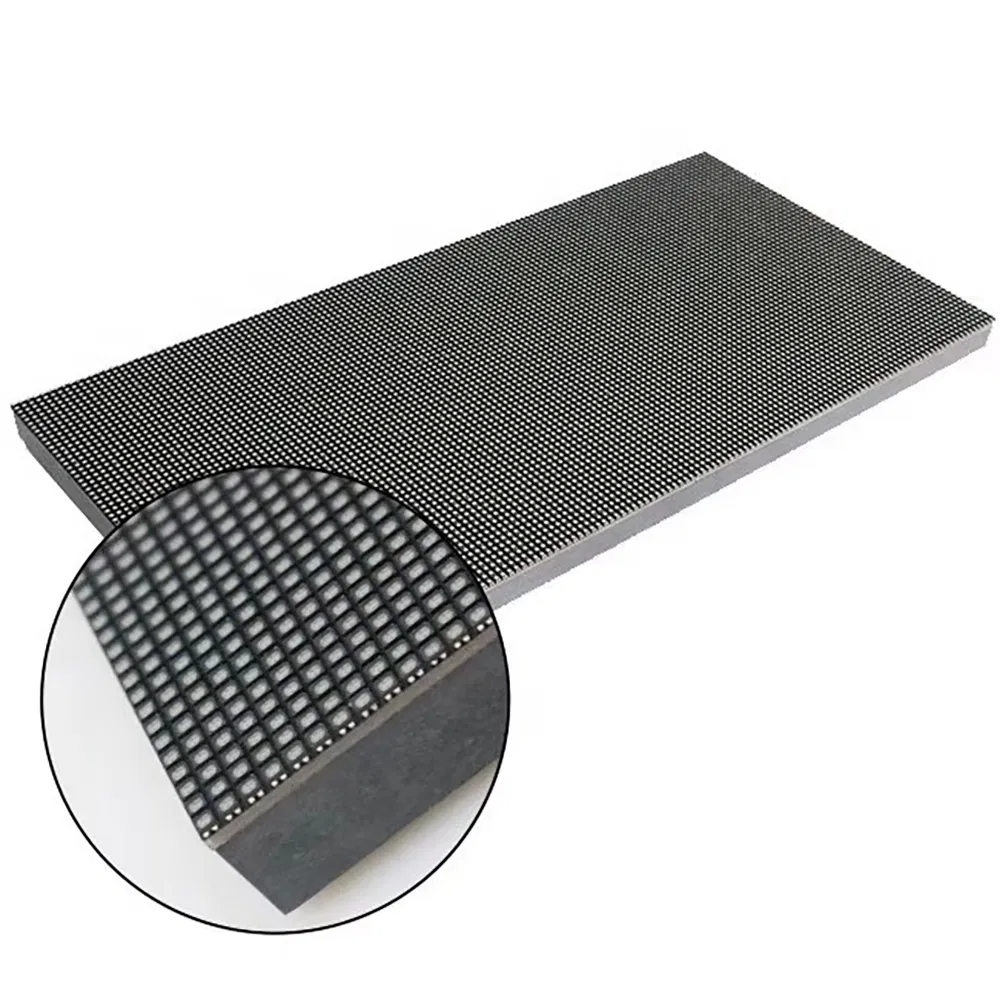

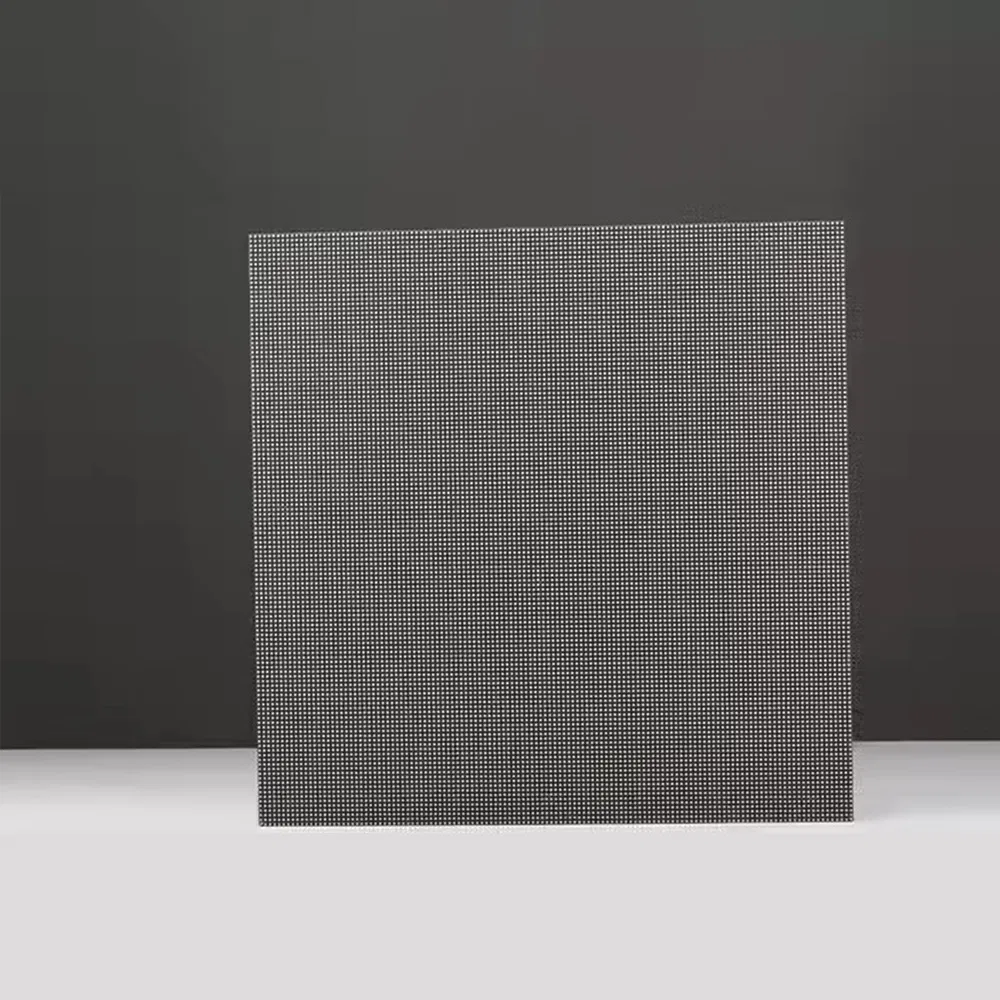

P1.875 RGB Pixel Panel HD Display 128X128 DOT Matrix Mooule SMD RGB LED Module Digital LED Billboard Video Wall Panel

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
P1.875 Indoor led module
Pixel Pitch
P1.875
Pixel Density
284444dots/M2
Scanning Mode
1/32scan
Display Type
LED Video Display
IP Rating
IP25
Certification
CE, RoHS, CCC, ETL
Module Size
240mm*240mm
Package Mode
SMD1515
Best Viewing Distance
2m~10m
Technical Specifications
P1.875 Rental LED Display: Ideal for high-end meetings, malls, stages, and stadiums. High-definition performance for professional advertising.
Module Specification
Size240mm(H)x240mm(W)
Module Resolution128(H)x128(V)
Pitch1.875mm
Density284,444 pixels/m2
LED LampsSMD1515 (Customizable Nationstar lamp)
Driver ICCHIPONE2053
Refresh Rate3840Hz
Brightness>1100cd/m2
View Angle140° (Horizontal) / 140° (Vertical)
Gray Scale65536
Operating Life>100,000 hours
📷 Product Display

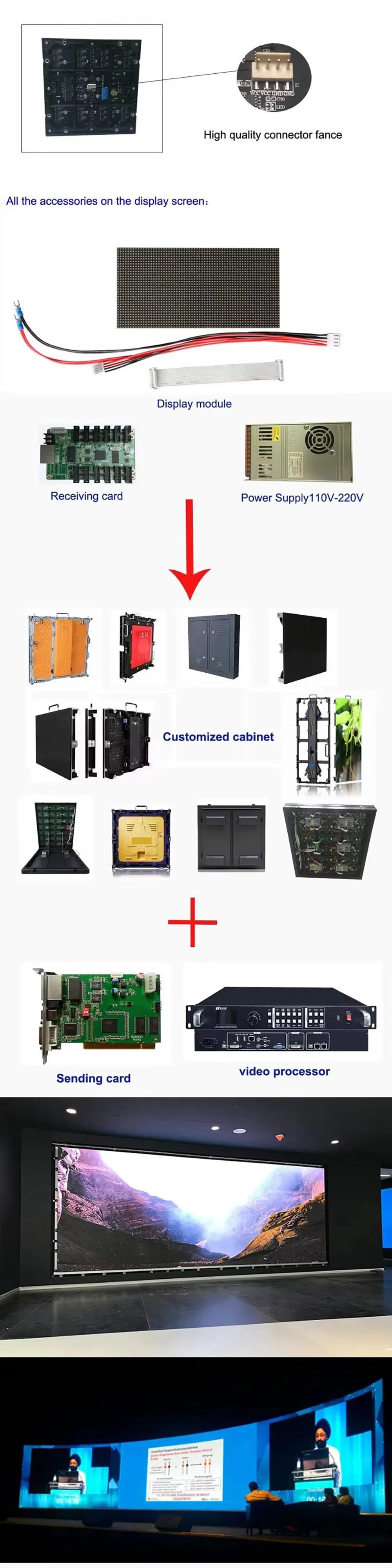

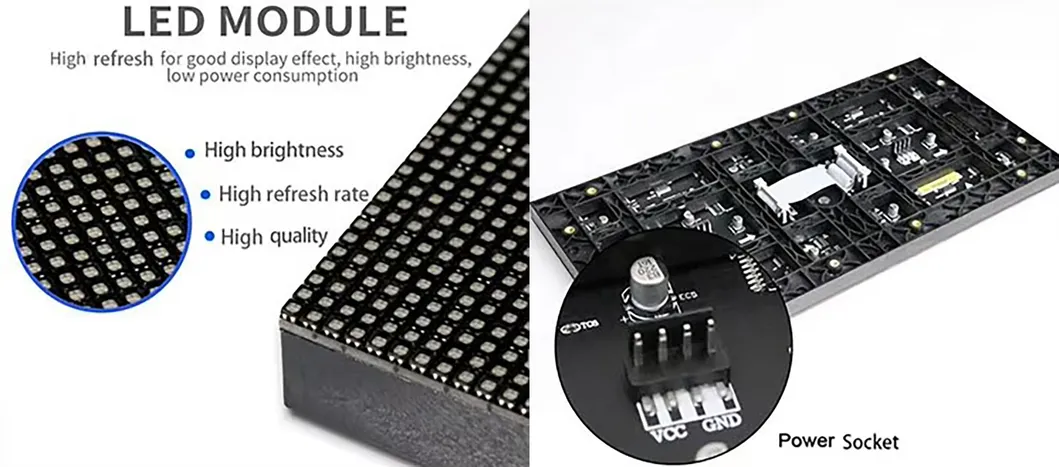

LED Module Detail
Application Scenario
💻 Applications

Our LED displays are versatile and suitable for various environments including stage performances, commercial advertising, shopping guides, and high-end conference rooms.

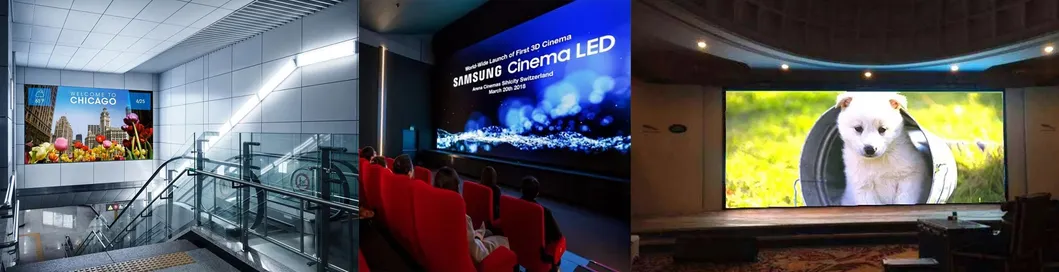

Application Banner
🏭 Quality & Production

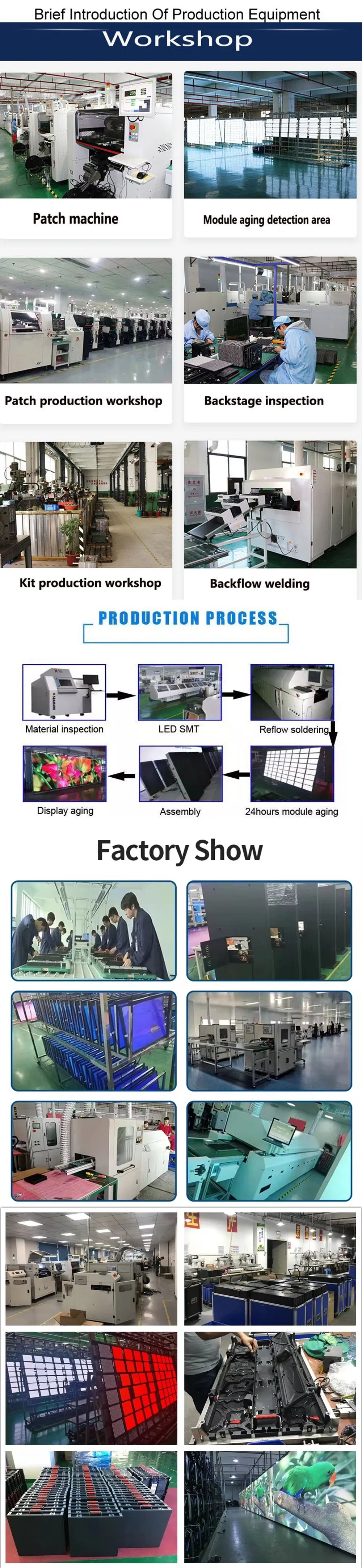

Production Line
Frequently Asked Questions
What is the main application for the P1.875 LED module?
It is primarily used for high-definition indoor applications such as rental stages, high-end meetings, shopping malls, and indoor advertising where close-up viewing is required.
How do you ensure the quality of the LED displays?
We conduct a pre-production sample check before mass production and a final inspection before every shipment to ensure all parameters meet the standards.
What is the refresh rate and why does it matter?
This module features a 3840Hz refresh rate, which ensures smooth video playback and prevents flickering when captured by professional cameras.
What control systems are compatible with this module?
The system supports various inputs including HDMI, DVI, VGA, RJ45, and USB, making it compatible with most standard LED controllers.
What is the expected lifespan of the LED panel?
The operating life is rated at over 100,000 hours, providing long-term reliability for your display needs.
What are the accepted payment and delivery terms?
We accept delivery terms like FOB and EXW. Payments can be made via T/T, MoneyGram, or Western Union in USD or CNY.
