Product Description

📊
Basic Information
Model NO.
LM15088A/BURPGUB
Emitting Color
Full-color (RGB)
Power
3W
IP Rating
Not Water-Proof
Pixel Pitch
4.75mm
Life Span
50,000 Hours
Certification
Reach and RoHS
Dimensions
38X38X10.4mm
Digit Height
1.4 Inch
DOT Number
64PCS (8x8)
Capacity
10,000,000 PCS/Year
Origin
China
💡
Product Description

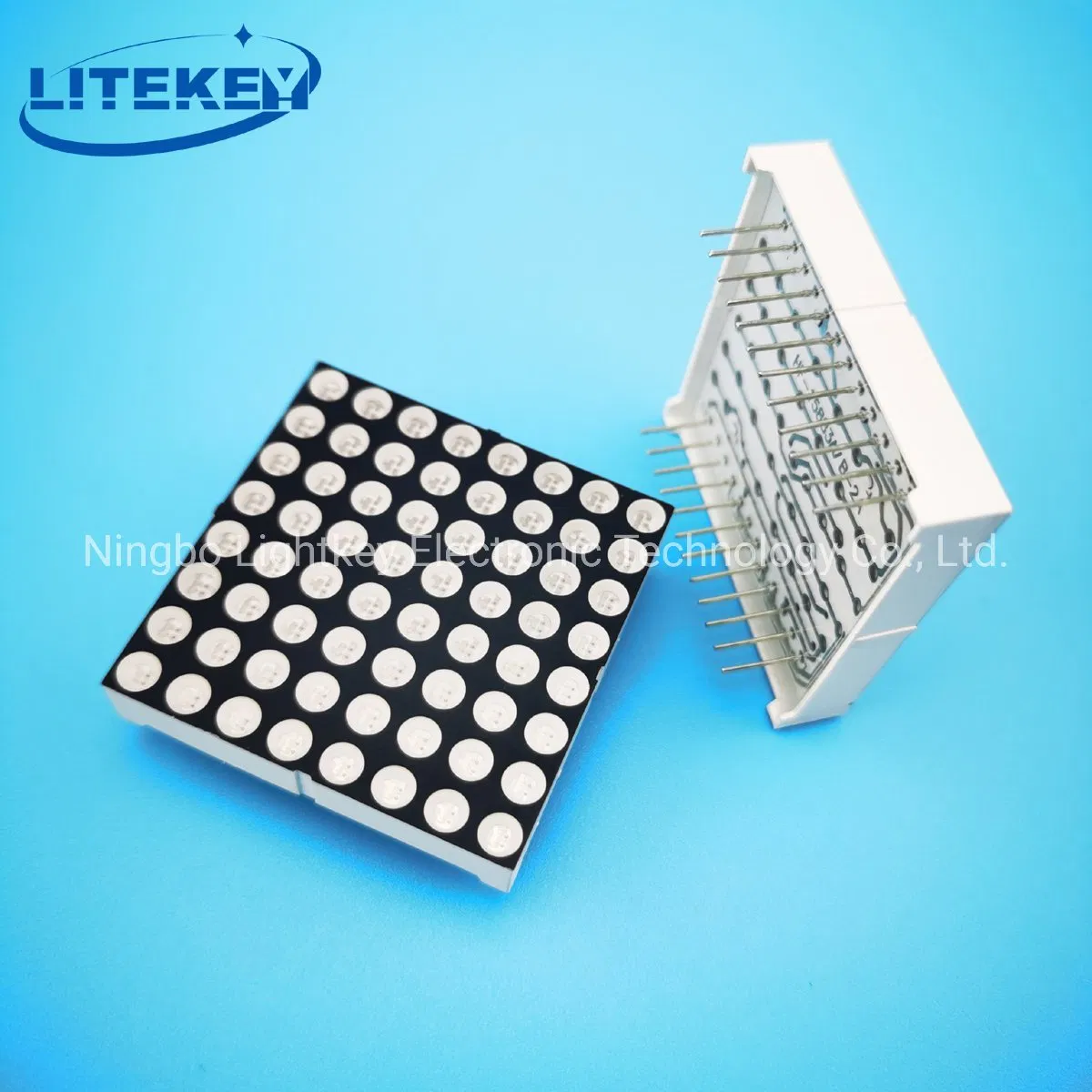

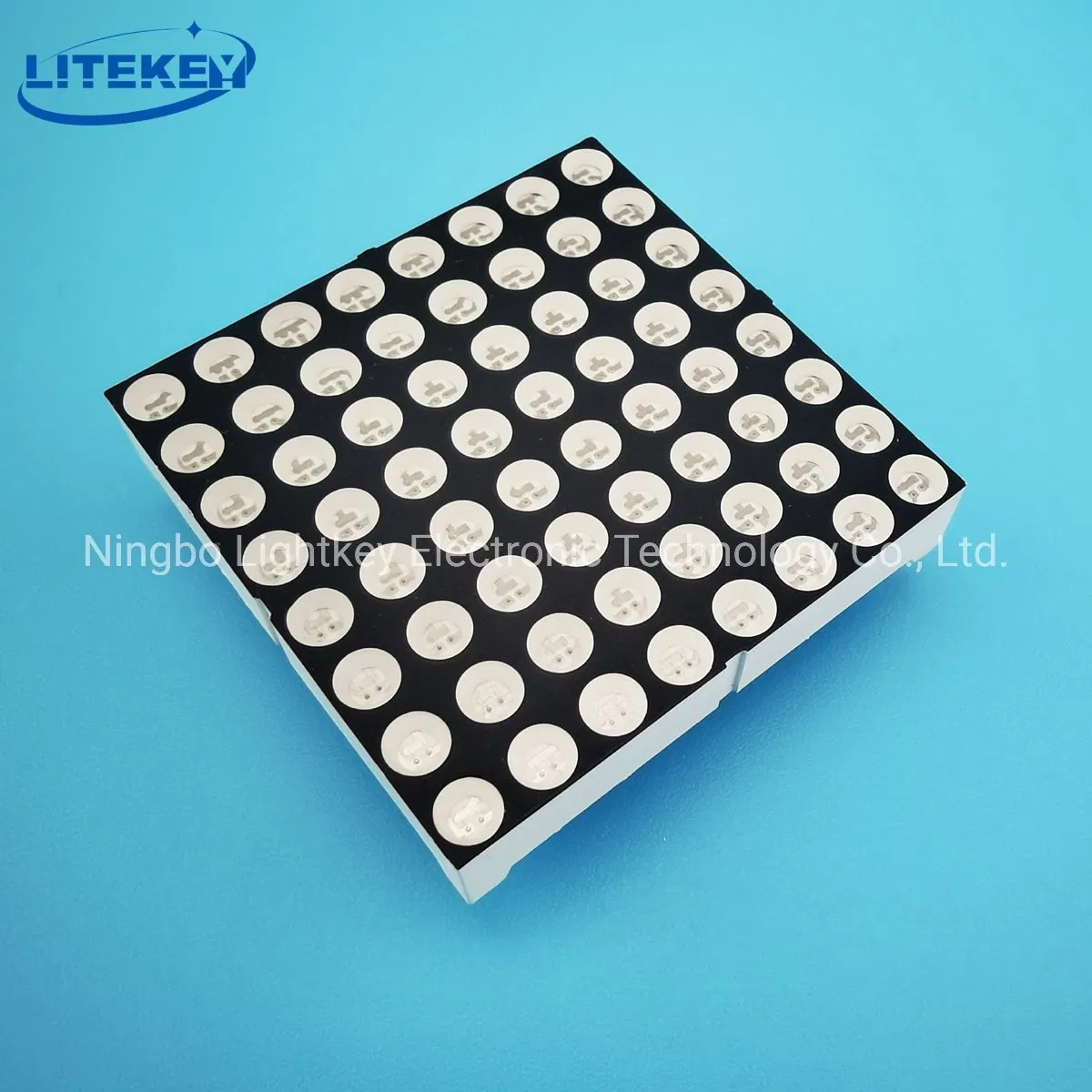

1.5 Inch 8X8 RGB DOT Matrix LED Display

High-performance RGB dot matrix module designed for clear visual output and low power consumption. Compliant with RoHS standards and featuring a wide viewing angle for versatile applications.

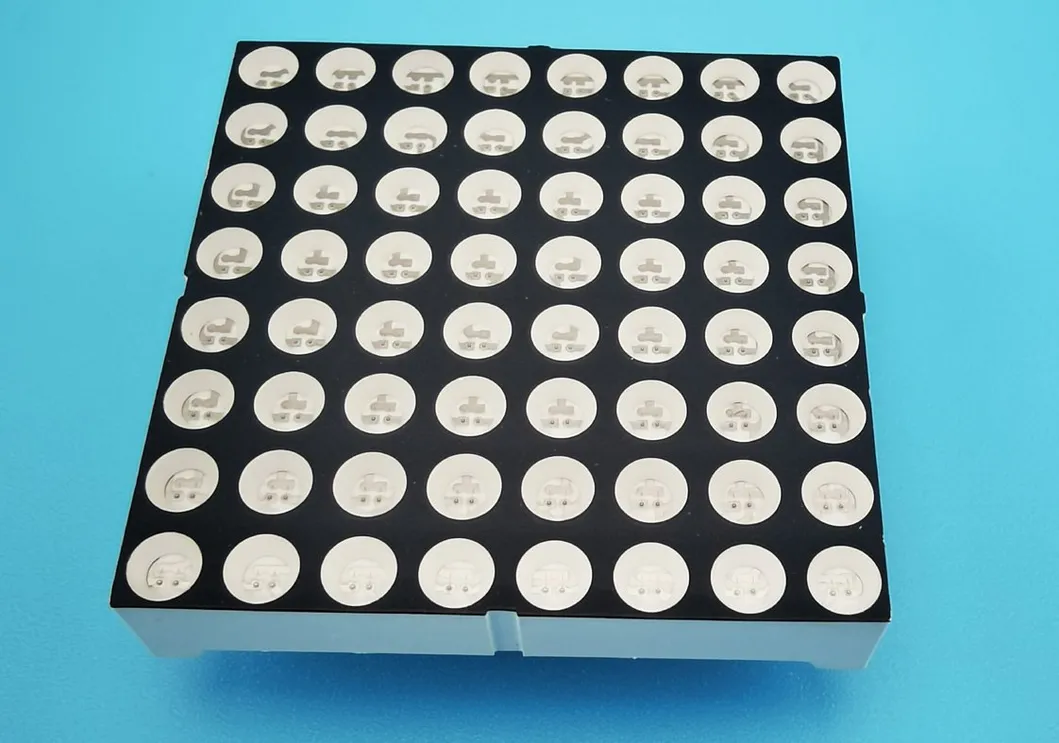

8X8 RGB DOT Matrix LED Display
📐
Package Dimensions & Circuit Diagram

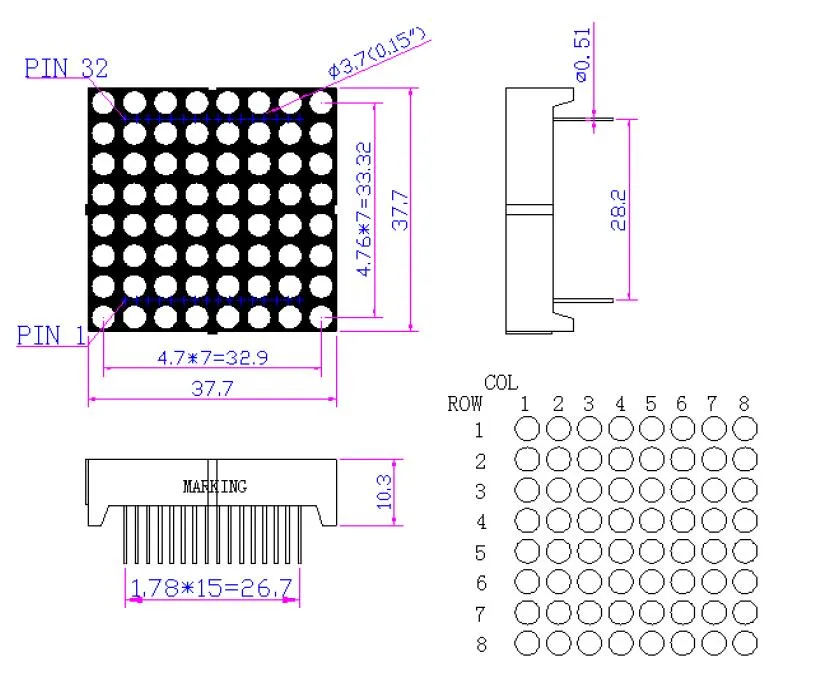

Package Dimensions

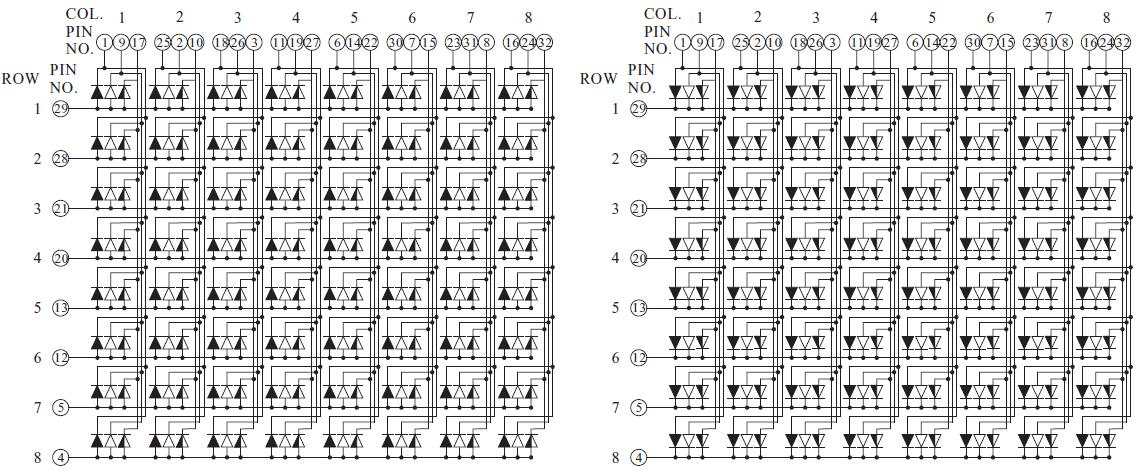

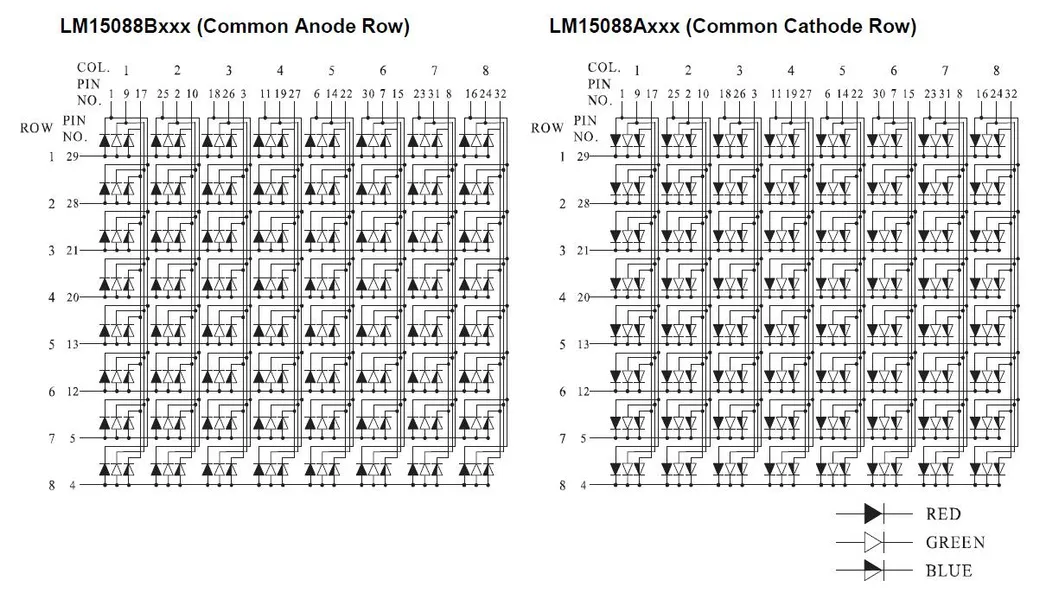

Internal Circuit Diagram
⭐
Key Features
  • 37.90mm (1.50 inch) digit high
  • Dot size: Diameter 3.70 mm
  • RoHS compliant
  • Pitch: 4.76 mm
  • Wide viewing angle
  • RGB Emitted colors
  • I.C. compatible
  • Low power consumption
  • White dot, grey or black face options
📋
Selection Guide
Part No. (Cathode/Anode) Chip Specification Iv(mcd) @ 20mA
Material Color Wavelength (nm) Min. Typ.
LM15088AURPGUB / LM15088BURPGUB AlGaInP Ultra Red 630 30 45
AlGaInP Ultra Green 520 400 600
InGaN Ultra Blue 470 40 60
⚙️
LED Dot Matrix Series Options
  • Common Types: 4X4, 5X7, 5X8, 8X8, and 16X16 configurations.
  • Available Sizes: 0.7", 1", 1.2", 1.5", 2", 3", and 4".
  • Mounting: Through-hole type or SMD Type available.
  • Design: Round dot or Square dot options.
  • Customization: Specialized designs according to your demand.

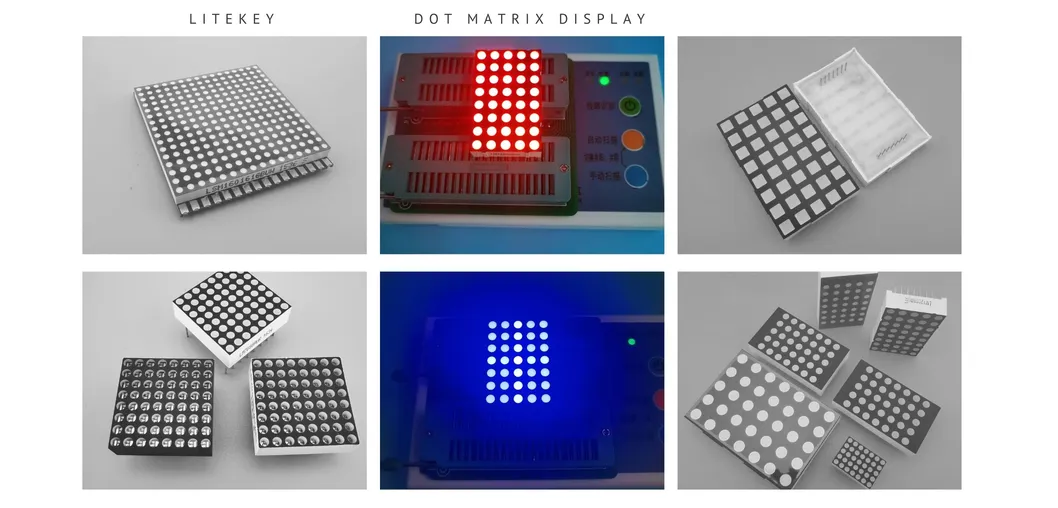

Series Overview

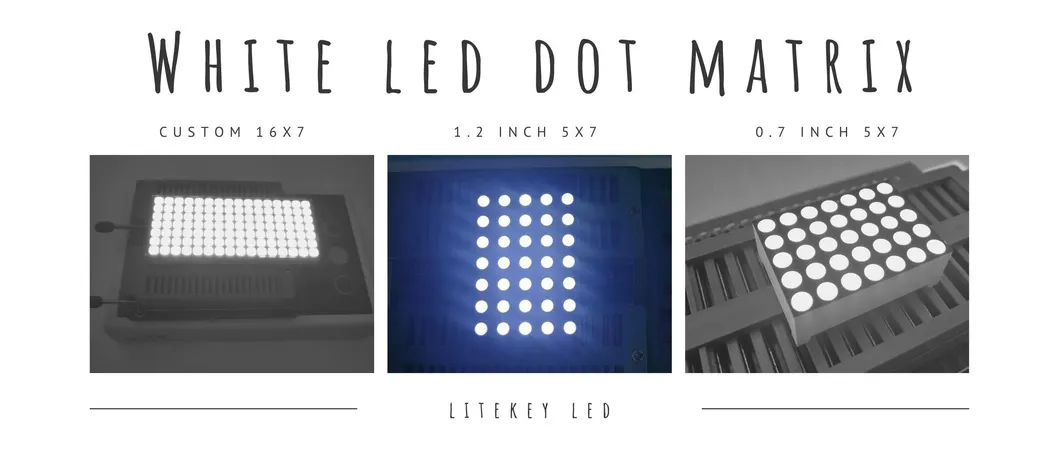

Quality Uniformity

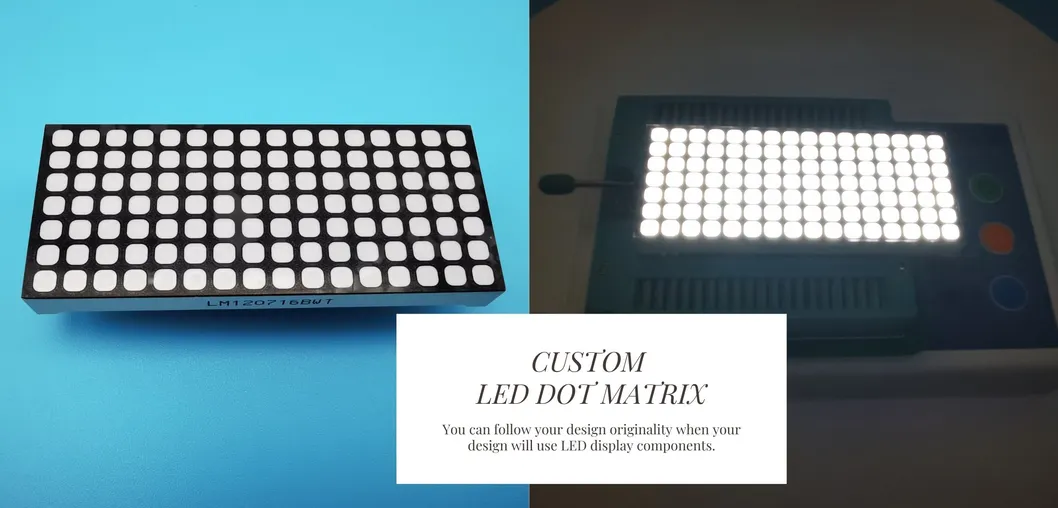

Customized Design
🏭

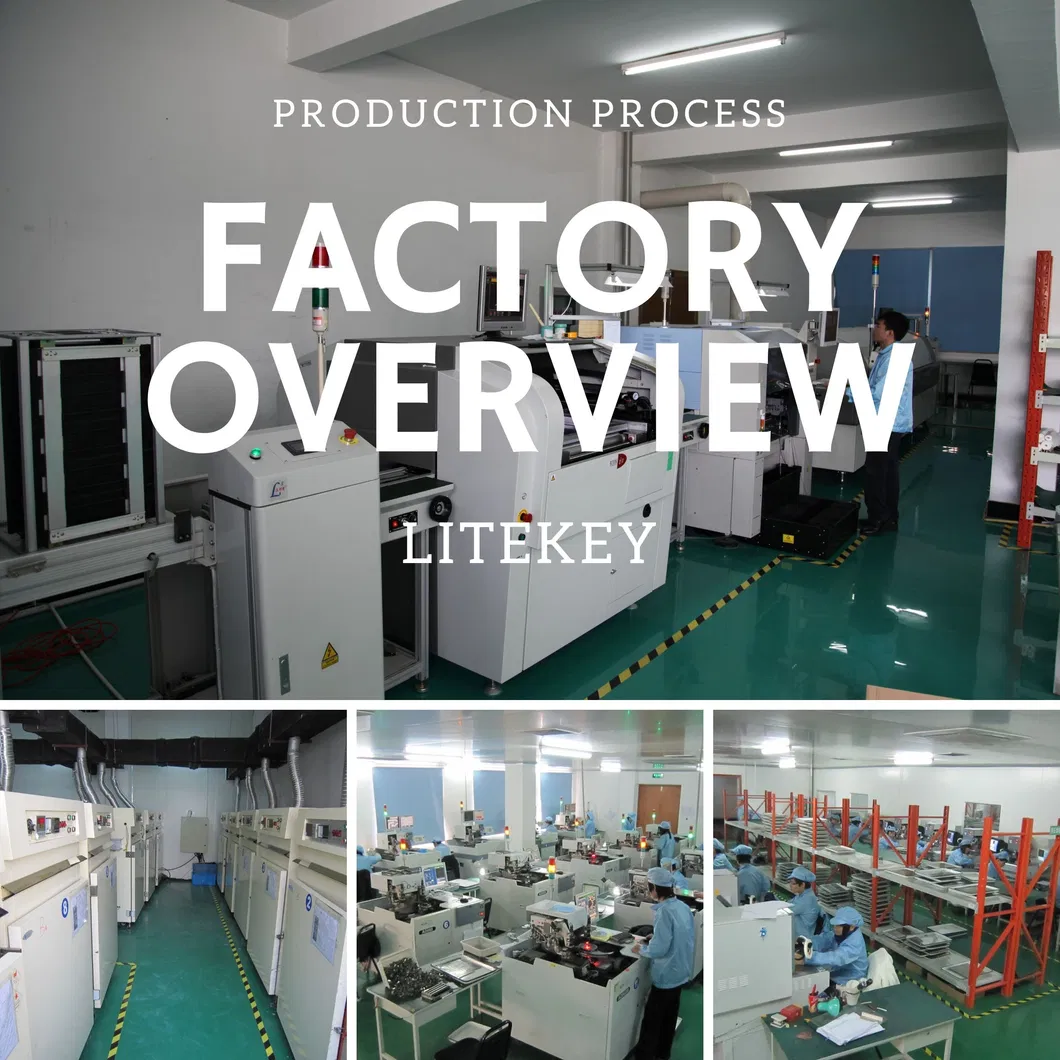

Factory Overview
Production Line
Quality Control
🛠️
Professional Services
  • Expert Support: Professional service replied within 24 hours.
  • Ready Moldings: Various ready moldings available with no extra fees.
  • Stable Quality: 100% testing for each piece using ASM automatic machines.
  • Experience: Over 14 years of experience in producing LED components.
  • Advanced Tech: Utilization of top-tier automatic production equipment.
  • R&D Focus: Dedicated to LED research, development, and sales.
    • ❓
    Frequently Asked Questions
    What is the lifespan of this LED Dot Matrix Display?
    The module is designed for a long service life of approximately 50,000 hours under standard operating conditions.
    Is the 1.5 inch 8x8 RGB LED display waterproof?
    No, this specific model is rated as Not Water-Proof. It is intended for indoor use or applications where it is protected from moisture.
    What certifications does this product hold?
    The product is fully compliant with Reach and RoHS environmental and safety standards.
    Can I request a customized emitting color or face color?
    Yes, we offer alternative emitting colors, segment colors, and face colors (White dot, grey, or black face) to suit your specific design needs.
    What are the power requirements for this module?
    The unit has a power rating of 3W and operates effectively at a forward current of 20mA per segment.
    What mounting types are available for the dot matrix series?
    We provide both standard Through-hole types and SMD (Surface Mount Device) types depending on your PCB assembly requirements.
